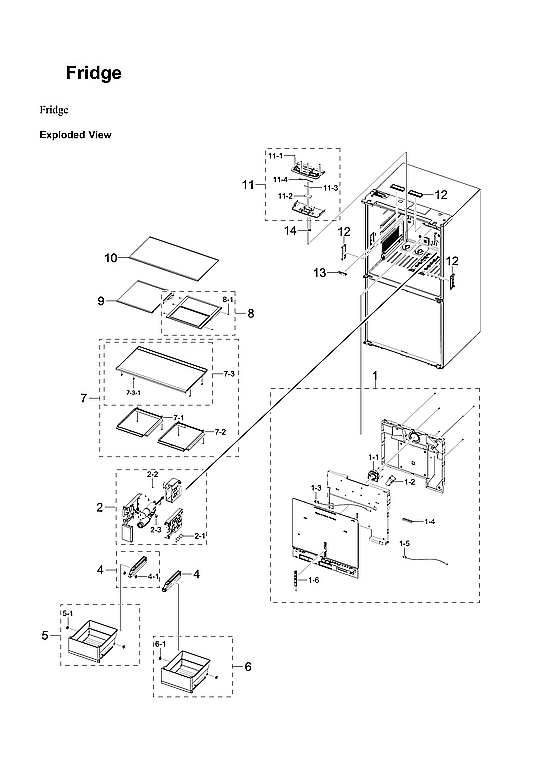

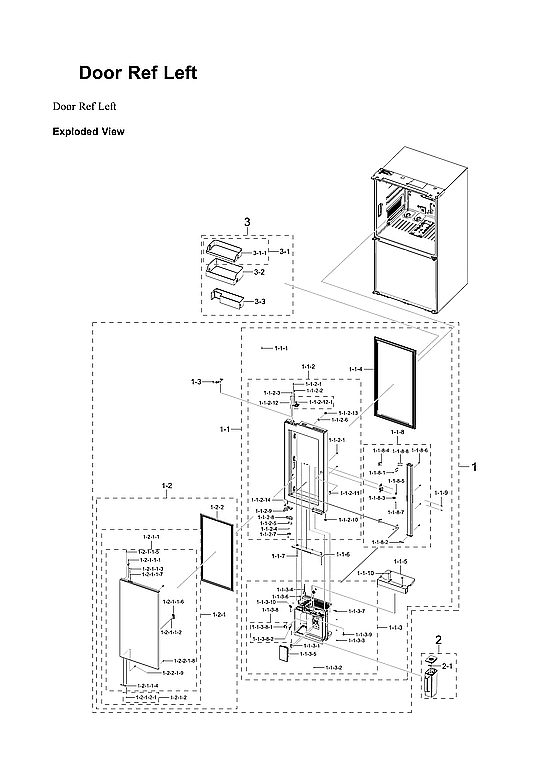

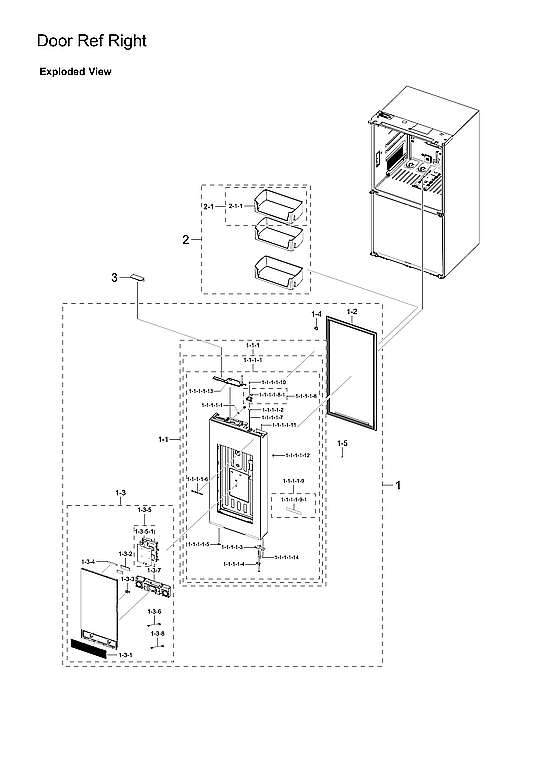

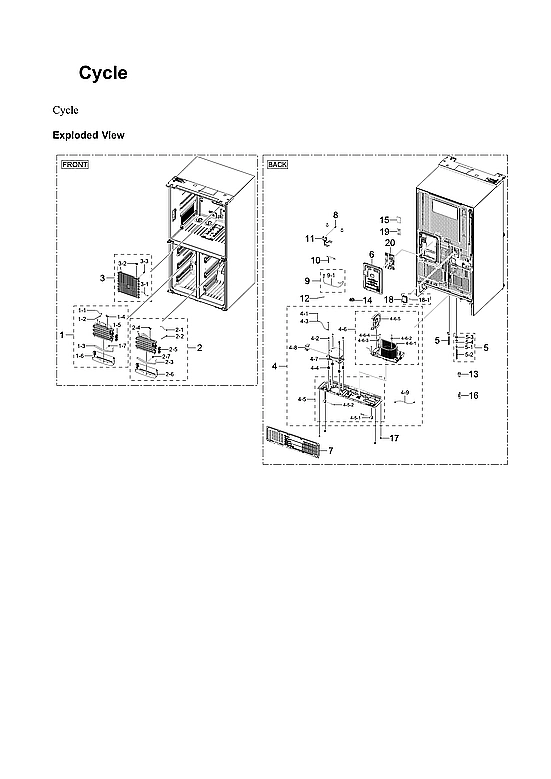

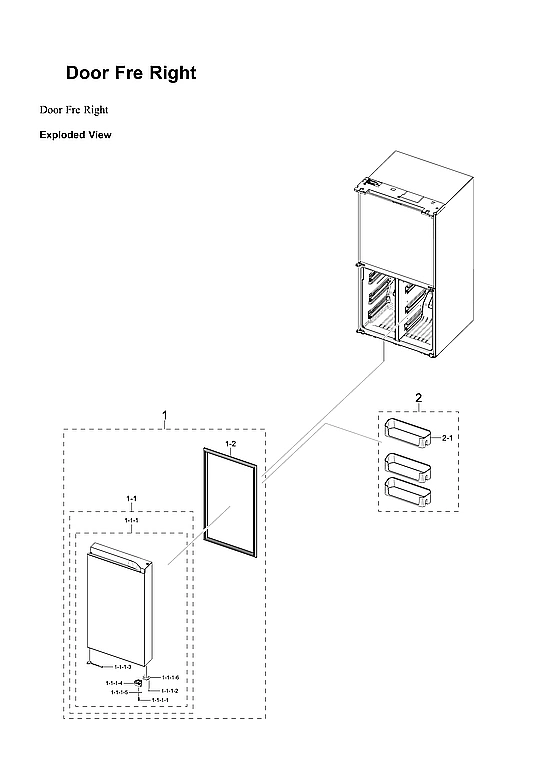

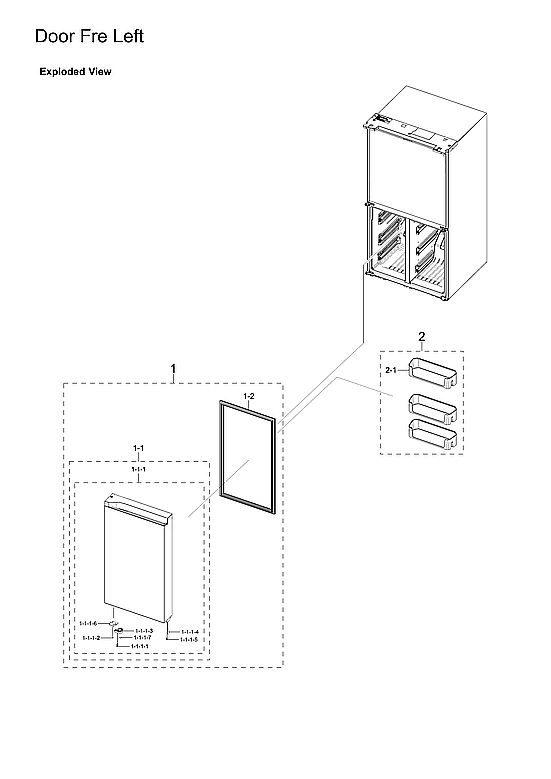

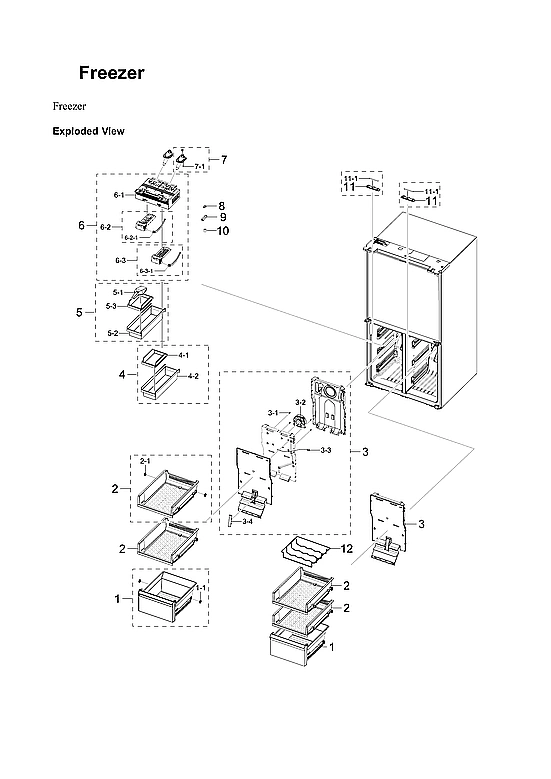

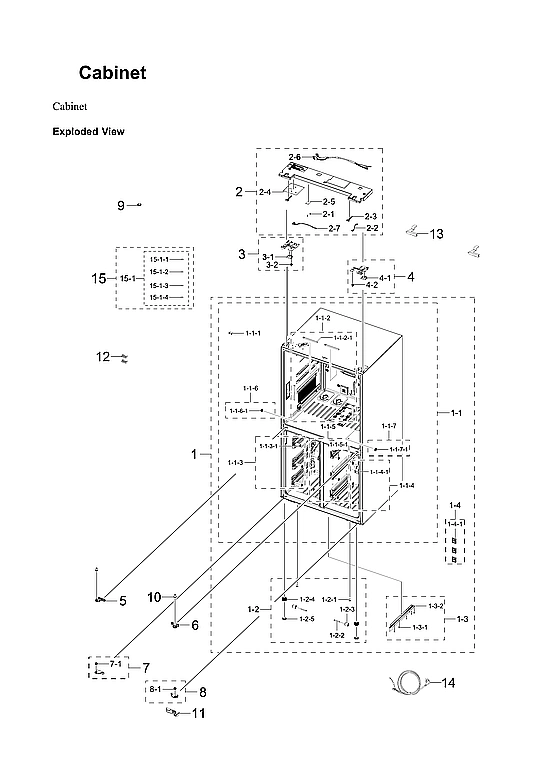

Model Samsung RF29A9771SR/AA-00 Refrigerator – Common Parts &amp; Diagrams

1

NON-SERVICEABLE PART SMG N/P Contact Us For Availability

1-1

DA31-00334D Samsung Refrigerator BLDC Fan Mot Backorder SMG DA31-00334D $147.82

1-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $24.87

1-1-1

DA91-05485H Samsung Refrigerator Right Door F Backorder SMG DA91-05485H $304.61

1-1-1-1

6001-000715 Samsung Machine Screw Backorder SMG 6001-000715 $12.24

1-1-1-1

6001-000716 Samsung Refrigerator Machine Scre Backorder SMG 6001-000716 $1.18

1-1-1-2

6002-001120 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001120 $1.18

1-1-1-3

DA34-00043L Samsung Refrigerator Reed Switch Backorder SMG DA34-00043L $71.79

1-1-1-4

DA61-03769B Samsung Refrigerator Dispenser Dr Backorder SMG DA61-03769B $3.35

1-1-1-4

DA61-15273A Samsung Refrigerator Door Close S Backorder SMG DA61-15273A $8.38

1-1-1-6

DA61-08816A Samsung Refrigerator Door Stopper Backorder SMG DA61-08816A $38.82

1-1-1-6

DA61-08817A Samsung Refrigerator Door Stopper Backorder SMG DA61-08817A $22.35

1-1-1-7

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

1-1-2

DA91-05473D Samsung Assembly Left Door Foam Backorder SMG DA91-05473D $317.56

1-1-2-1

DA96-01119A Samsung Refrigerator LED Lamp Ass Backorder SMG DA96-01119A $70.47

1-1-2-4

6002-001547 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001547 $1.69

1-1-2-8

DA61-14211B Samsung Door Stopper - Left Backorder SMG DA61-14211B $54.45

1-1-2-9

DA97-21336A Samsung Hinge Assembly Low Left Backorder SMG DA97-21336A $67.09

1-1-2-11

DA66-01342A Samsung Refrigerator Lever Backorder SMG DA66-01342A $7.82

1-1-2-14

DA63-11272A Samsung Refrigerator Left Door Co Backorder SMG DA63-11272A $43.75

1-1-3

DA97-17399E Samsung Refrigerator Inner Case A In Stock SMG DA97-17399E $309.81

1-1-3-1

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $17.83

1-1-3-2

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $1.18

1-1-3-4

DA34-00043M Samsung Refrigerator Reed Switch Backorder SMG DA34-00043M $33.53

1-1-3-5

DA97-17297C Samsung Refrigerator Dispenser Le Backorder SMG DA97-17297C $114.50

1-1-3-9

DA61-13987A Samsung CASE DISPENSER;RS5000T,ST Backorder SMG DA61-13987A $114.02

1-1-3-10

DA62-02414A Samsung Refrigerator Fitting Tube Backorder SMG DA62-02414A $21.29

1-1-5

DA97-21788A Samsung Basket Cover Assembly Backorder SMG DA97-21788A $231.15

1-1-6

COVER CAP DO SMG DA63-09958A Contact Us For Availability

1-1-8

DA97-20608F Samsung Refrigerator French Assem Backorder SMG DA97-20608F $424.69

1-1-8-2

DA63-06842B Samsung Refrigerator Low French G Backorder SMG DA63-06842B $6.91

1-1-8-3

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.33

1-1-8-4

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $6.77

1-1-8-5

DA63-00991A Samsung Refrigerator Door Recess Backorder SMG DA63-00991A $1.18

1-1-8-6

DA63-02750A Samsung Refrigerator Cover Slide Backorder SMG DA63-02750A $2.14

1-1-9

6002-001406 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001406 $1.18

1-1-10

DA67-30266Q Samsung Cap Screw Backorder SMG DA67-30266Q $75.44

DA31-00346B Samsung Motor Gear DC Damper Asse Backorder SMG DA31-00346B $118.45

DA47-00301D Samsung Refrigerator Defrost Sens In Stock SMG DA47-00301D $25.76

DA97-21224A Samsung Refrigerator Gasket Backorder SMG DA97-21224A $137.16

DA97-21330A Samsung Refrigerator Gasket Assem Backorder SMG DA97-21330A $147.98

1-2-1

DA91-05493A Samsung Refrigerator Left Out Doo Backorder SMG DA91-05493A $308.05

1-2-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.07

1-2-2

DA97-20057A Samsung Refrigerator Gasket Assem Backorder SMG DA97-20057A $109.43

1-2-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.99

1-3

DA32-00070E Samsung Refrigerator Temperature Backorder SMG DA32-00070E $30.18

1-3

DA97-20039B Samsung Upper Left Hinge Assembly Backorder SMG DA97-20039B $56.54

1-3

DA97-20810L Samsung Refrigerator Display Cove Backorder SMG DA97-20810L $621.08

1-3-1

3001-002858 Samsung Refrigerator Speaker Backorder SMG 3001-002858 $204.00

1-3-3

DA32-00080A Samsung Refrigerator PSD Sensor Backorder SMG DA32-00080A $119.07

1-3-4

DA92-01368A Samsung Assembly PBA Voice Module Backorder SMG DA92-01368A $76.83

1-3-5

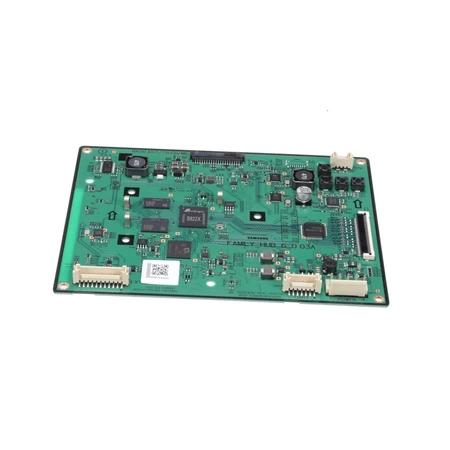

DA94-05860G Samsung Refrigerator Assembly Pri Backorder SMG DA94-05860G $366.46

1-3-6

DA96-01253B Samsung Assembly Wire Harness Backorder SMG DA96-01253B $28.22

1-3-7

DA97-19330C Samsung Assembly COVER FRONT;RF95 Backorder SMG DA97-19330C $169.35

1-3-8

WIRE HARNESS SMG DA96-01368C Contact Us For Availability

1-4

DA61-11032A Samsung Refrigerator Fixer Assemb Backorder SMG DA61-11032A $7.45

1-4

DA67-03218A Samsung Refrigerator Interlock Sw Backorder SMG DA67-03218A $2.66

1-5

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $1.18

1-5

DA32-00070D Samsung Refrigerator Temperature Backorder SMG DA32-00070D $27.95

1-6

DA61-14455A Samsung Refrigerator Angle Shelf Backorder SMG DA61-14455A $150.59

2

DA97-21261E Samsung Refrigerator Assembly Wat Backorder SMG DA97-21261E $187.64

2

DA97-21938A Samsung Refrigerator Filter Case Backorder SMG DA97-21938A $328.63

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $6.71

DA97-19996A Samsung Refrigerator Guard Assemb Backorder SMG DA97-19996A $59.50

DA97-21915A Samsung Refrigerator Guard Assemb Backorder SMG DA97-21915A $90.53

2-2

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $78.50

2-2

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.69

2-3

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $22.92

2-4

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

3

DA63-08449A Samsung Refrigerator Lock Cover Backorder SMG DA63-08449A $12.24

3

DA97-16139B Samsung Refrigerator Assembly Cov Backorder SMG DA97-16139B $199.52

3-1

DA32-10104W Samsung Refrigerator Temperature Backorder SMG DA32-10104W $35.07

3-1

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.60

3-1

DA97-15186E Samsung Refrigerator Guard Assemb Backorder SMG DA97-15186E $62.94

3-2

DA31-00334C Samsung Refrigerator BLDC Fan Mot In Stock SMG DA31-00334C $148.01

3-2

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $5.04

3-2

DA97-21960A Samsung Refrigerator Middle Ref G Backorder SMG DA97-21960A $115.27

3-3

DA32-00011C Samsung Refrigerator Temperature In Stock SMG DA32-00011C $14.76

3-3

DA97-21914A Samsung Refrigerator Low Ref Guar Backorder SMG DA97-21914A $84.72

4

DA97-21871A Samsung Assembly Left Middle Rail Backorder SMG DA97-21871A $48.76

4-1

6006-001170 Samsung Appliance Tapping Screw T Backorder SMG 6006-001170 $1.69

4-1

DA97-19988A Samsung Refrigerator Roller Assem Backorder SMG DA97-19988A $98.02

4-2

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $5.04

4-5-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.77

4-5-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $5.54

4-6-1

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

5

Refrigerator Wire Harness SMG DA97-04049E No Longer Available

5

DA97-21873B Samsung Refrigerator Low Vegetabl Backorder SMG DA97-21873B $217.71

5-1

DA61-14309A Samsung Refrigerator Ice Scoop Ca Backorder SMG DA61-14309A $99.25

6

DA97-21873C Samsung Refrigerator Low Drawer V Backorder SMG DA97-21873C $163.49

6-1

DA61-14435A Samsung Refrigerator Ice Maker Su Backorder SMG DA61-14435A $119.92

6-2

DA97-22160A Samsung Refrigerator Ice Case Ass Backorder SMG DA97-22160A $179.45

6-2-1

DA61-14661A Samsung Refrigerator Ice Guide Backorder SMG DA61-14661A $73.57

6-3

DA97-22162A Samsung Refrigerator Ice Case Ass Backorder SMG DA97-22162A $176.01

7

PIPE WATER I SMG DA97-21801A Contact Us For Availability

7-1

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $1.18

7-1

DA63-11226A Samsung Refrigerator Vegetable Dr Backorder SMG DA63-11226A $171.26

7-2

COVER VEG-UP SMG DA63-11227A Contact Us For Availability

7-3

DA97-21901A Samsung Refrigerator Low Vegetabl Backorder SMG DA97-21901A $202.99

7-3-1

DA64-03784A Samsung Refrigerator Shelf Trim Backorder SMG DA64-03784A $53.16

8

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $31.82

8

DA97-20047B Samsung Refrigerator Shelf Assemb Backorder SMG DA97-20047B $259.77

8-1

6002-001397 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001397 $1.18

9

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $22.92

9

DA97-20044B Samsung Refrigerator Shelf Assemb Backorder SMG DA97-20044B $175.62

10

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.86

10

DA97-21897A Samsung Refrigerator Assembly She Backorder SMG DA97-21897A $192.51

11

DA62-04617B Samsung Refrigerator Step Valve M In Stock SMG DA62-04617B $186.12

11

DA97-21827D Samsung Refrigerator Deodorizer A Backorder SMG DA97-21827D $218.03

11-2

CATALYST SMG DA02-00249A Contact Us For Availability

11-3

DA96-00392G Samsung Refrigerator LED Lamp Backorder SMG DA96-00392G $149.97

11-4

WIRE HARNESS SMG DA96-00852E Contact Us For Availability

12

ASSEMBLY COVER LAMP (4) SMG DA97-16143B Contact Us For Availability

13

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $6.15

13

DA61-04932B Samsung Refrigerator Hinge Fixer Backorder SMG DA61-04932B $15.65

13

DA63-00951C Samsung Refrigerator Drain Hose G Backorder SMG DA63-00951C $8.38

14

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $63.58

14

DA67-30266K Samsung Refrigerator Cap Screw Backorder SMG DA67-30266K $1.18

15

DA92-00795A Samsung Refrigerator Standard Mod Backorder SMG DA92-00795A $207.81

15-1

DA99-04158A Samsung Refrigerator Accessory Ad In Stock SMG DA99-04158A $82.29

15-1-1

DA60-00314A Samsung Refrigerator Hinge Fasten Backorder SMG DA60-00314A $1.69

18

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.32

19

DA92-00945F Samsung Refrigerator Fuse Block P Backorder SMG DA92-00945F $63.81

11111

6021-000258 Samsung Hexagon Nut Backorder SMG 6021-000258 $1.18

11113

DA61-14210B Samsung Door Right Stopper Backorder SMG DA61-14210B $35.98

11114

DA61-13385A Samsung Refrigerator Door Close S Backorder SMG DA61-13385A $5.04

11115

DA63-09933A Samsung Refrigerator Door Cap Gro Backorder SMG DA63-09933A $3.90

11116

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $30.23

11118

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $22.75

11381

DA61-07581A Samsung Refrigerator LED Case Lam Backorder SMG DA61-07581A $2.66

11382

DA63-06505A Samsung Cover LED Lamp Backorder SMG DA63-06505A $2.66

12113

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $3.07

12114

DA61-13384A Samsung Refrigerator Door Stopper Backorder SMG DA61-13384A $22.92

12115

DA63-07545B Samsung Refrigerator Middle Hinge Backorder SMG DA63-07545B $3.35

12116

COVER LOCK SMG DA63-09537A Contact Us For Availability

12117

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $1.69

12218

GROMMET-COVE SMG DA63-02750B Contact Us For Availability

12219

DA63-09942A Samsung Door Grommet Backorder SMG DA63-09942A $2.66

111110

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $1.76

111111

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

111113

DA63-08826A Samsung COVER CAP DOOR-REF UP;ABS Backorder SMG DA63-08826A $23.43

111114

6009-001475 Samsung Refrigerator Special Scre Backorder SMG 6009-001475 $1.18

112121

DA66-00440A Samsung Refrigerator Auto Close R Backorder SMG DA66-00440A $1.69

NI

Samsung Refrigerator Water Filter SMG HAF-QIN Contact Us For Availability
