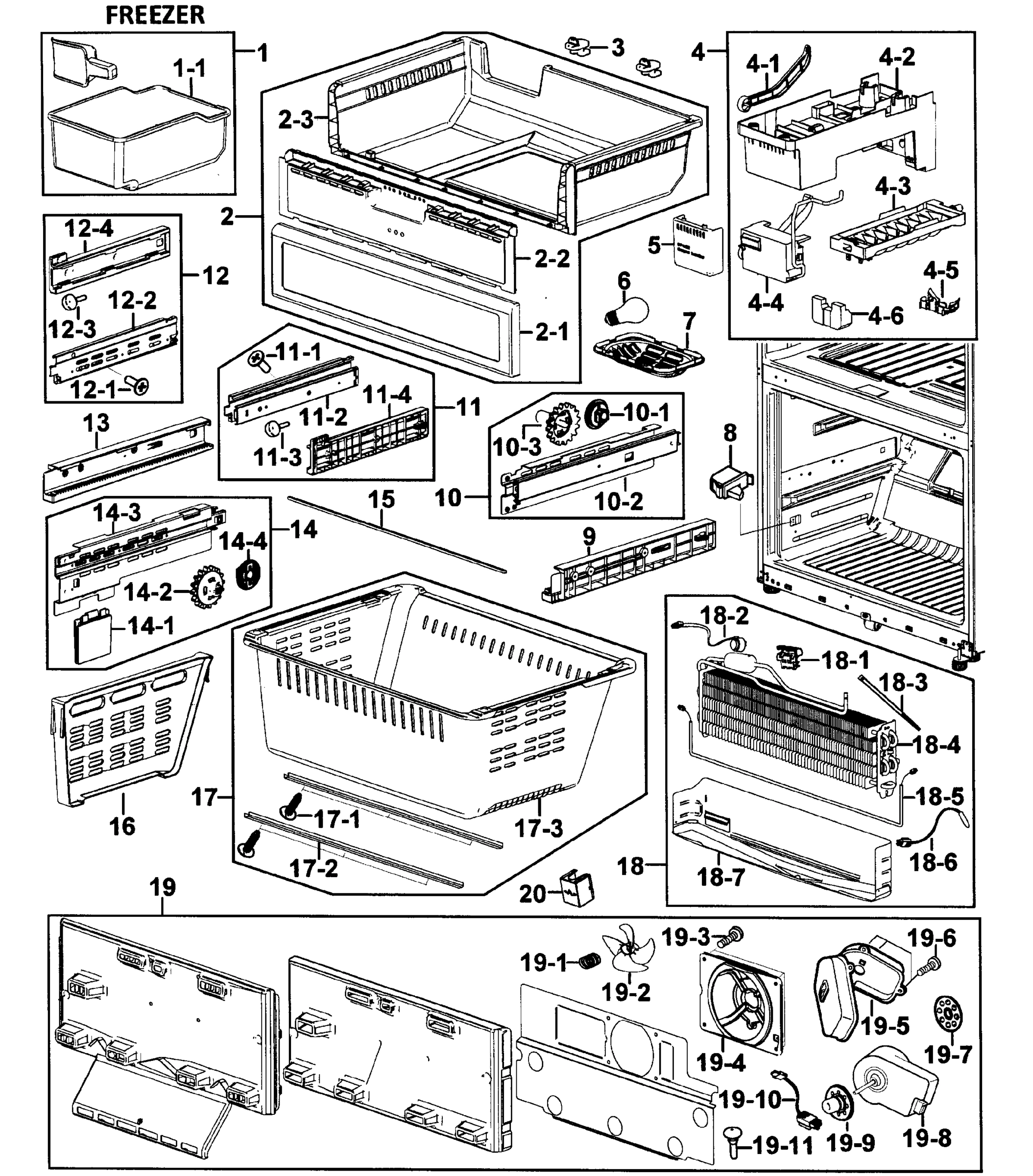

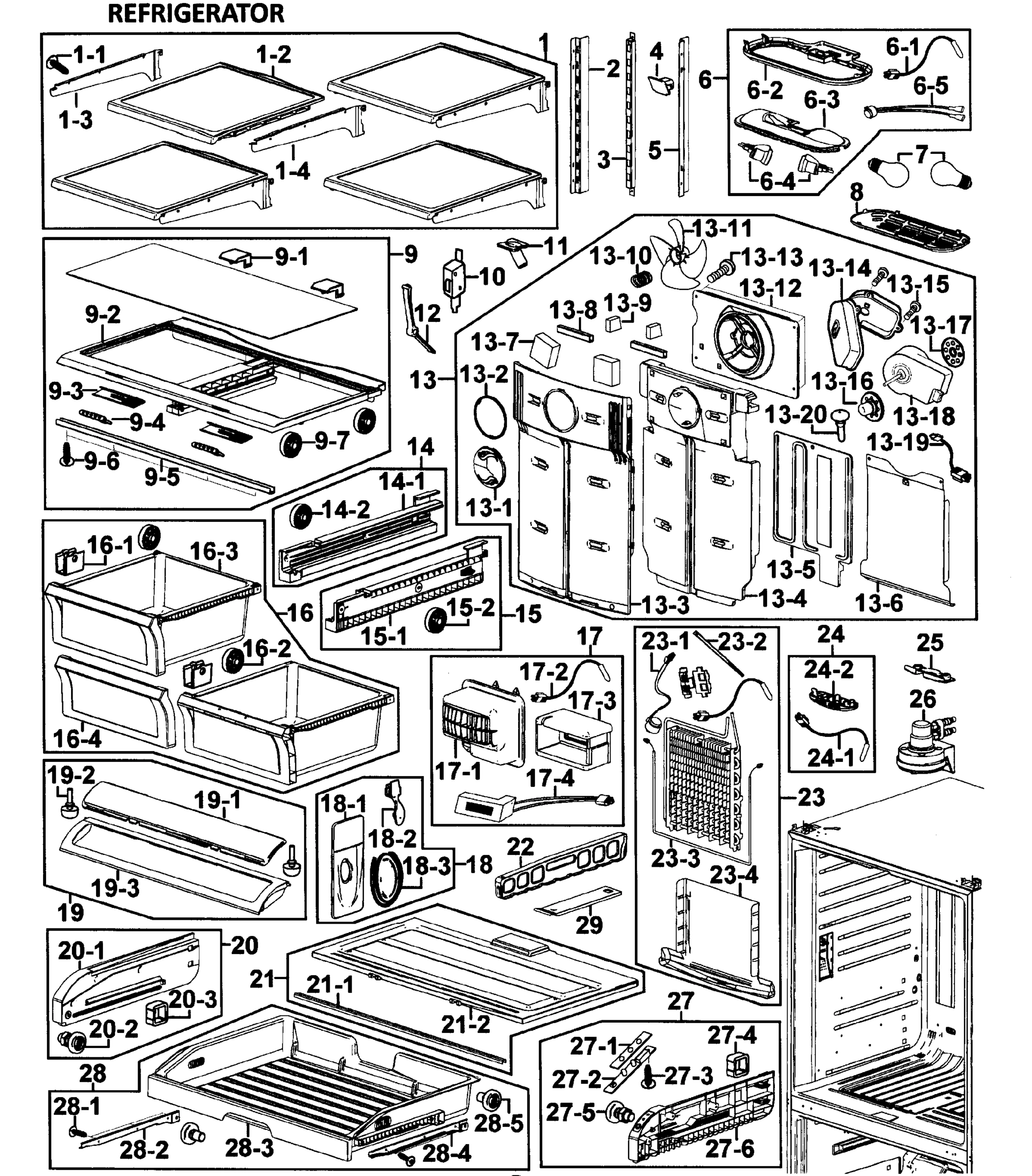

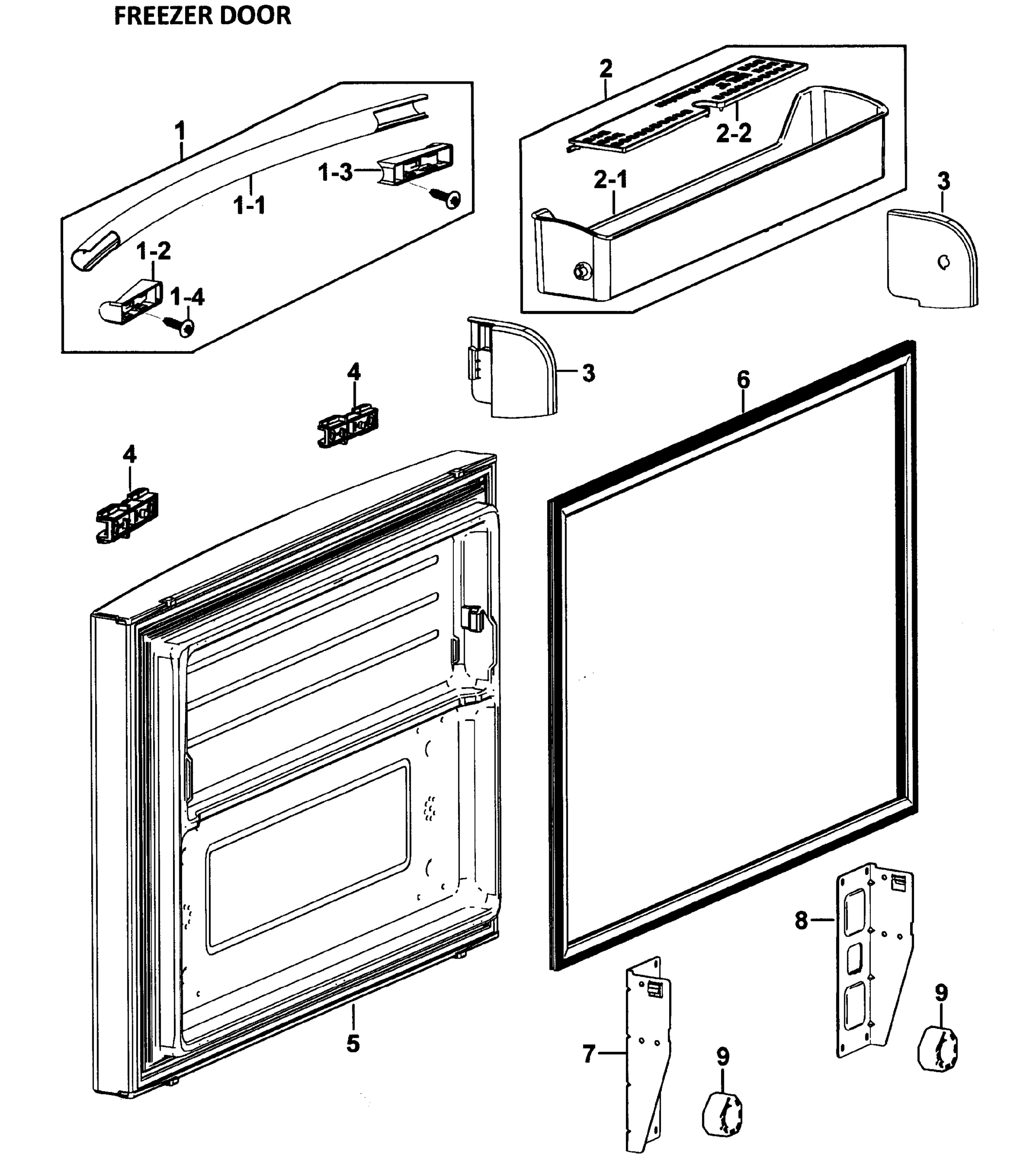

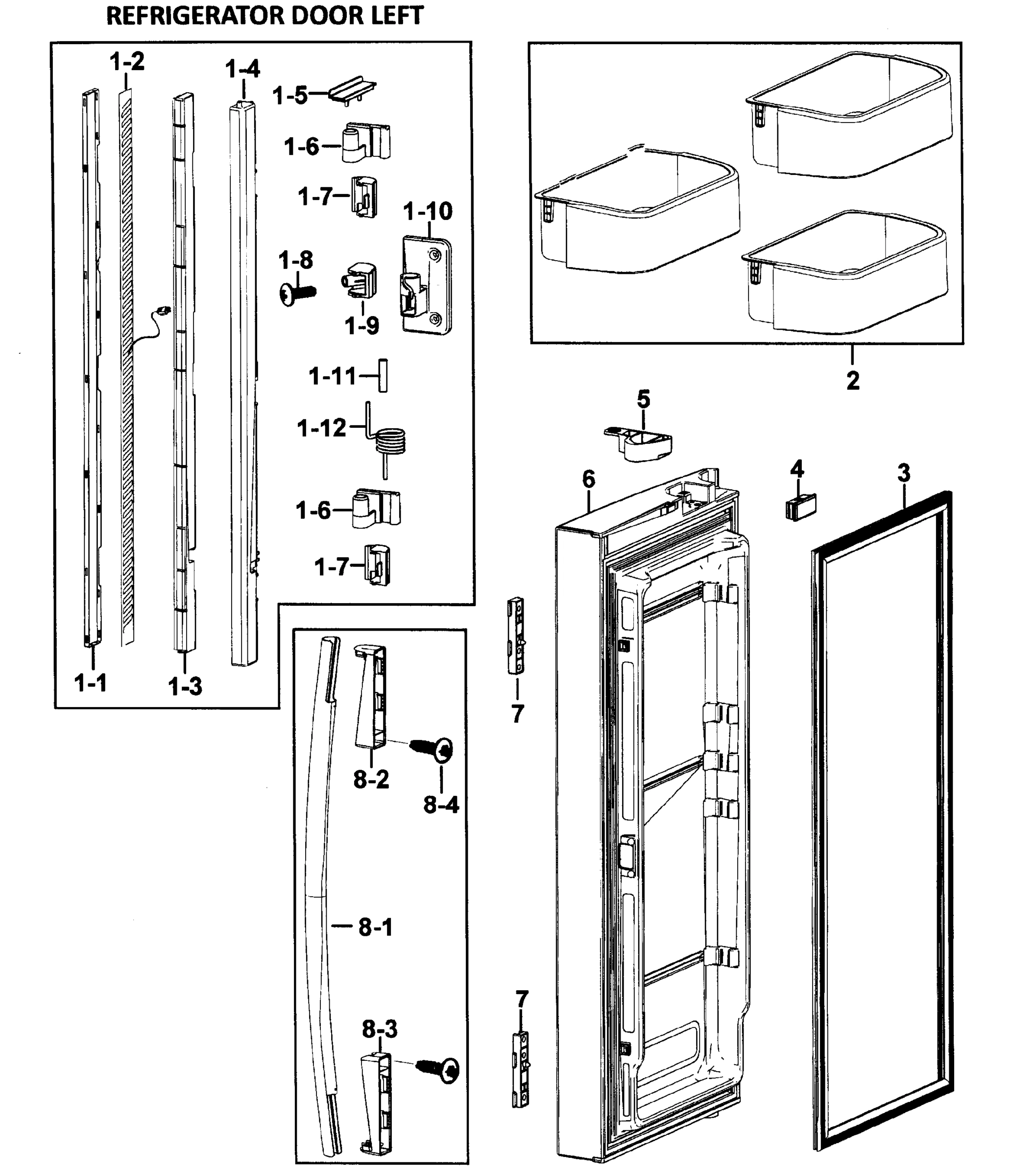

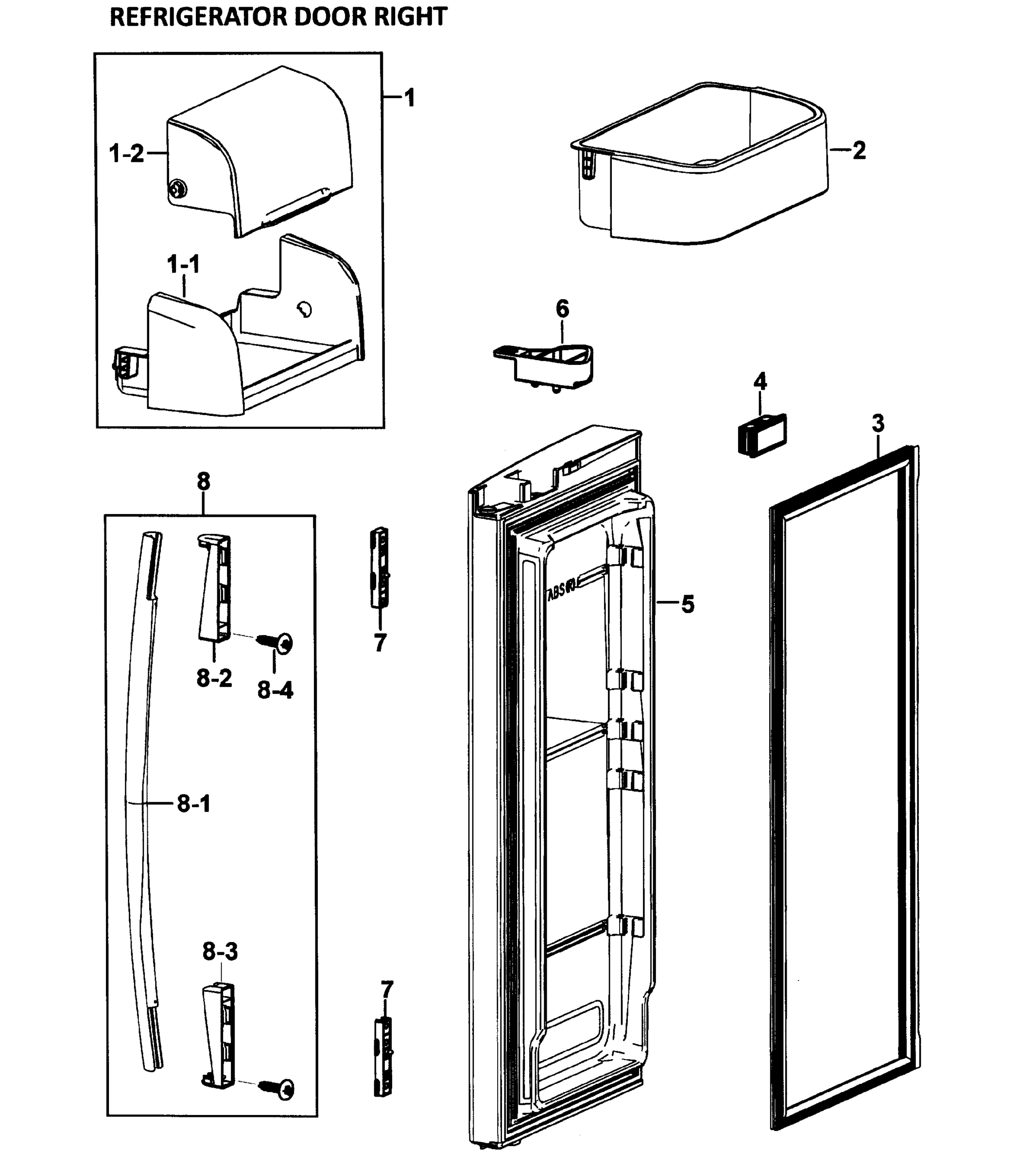

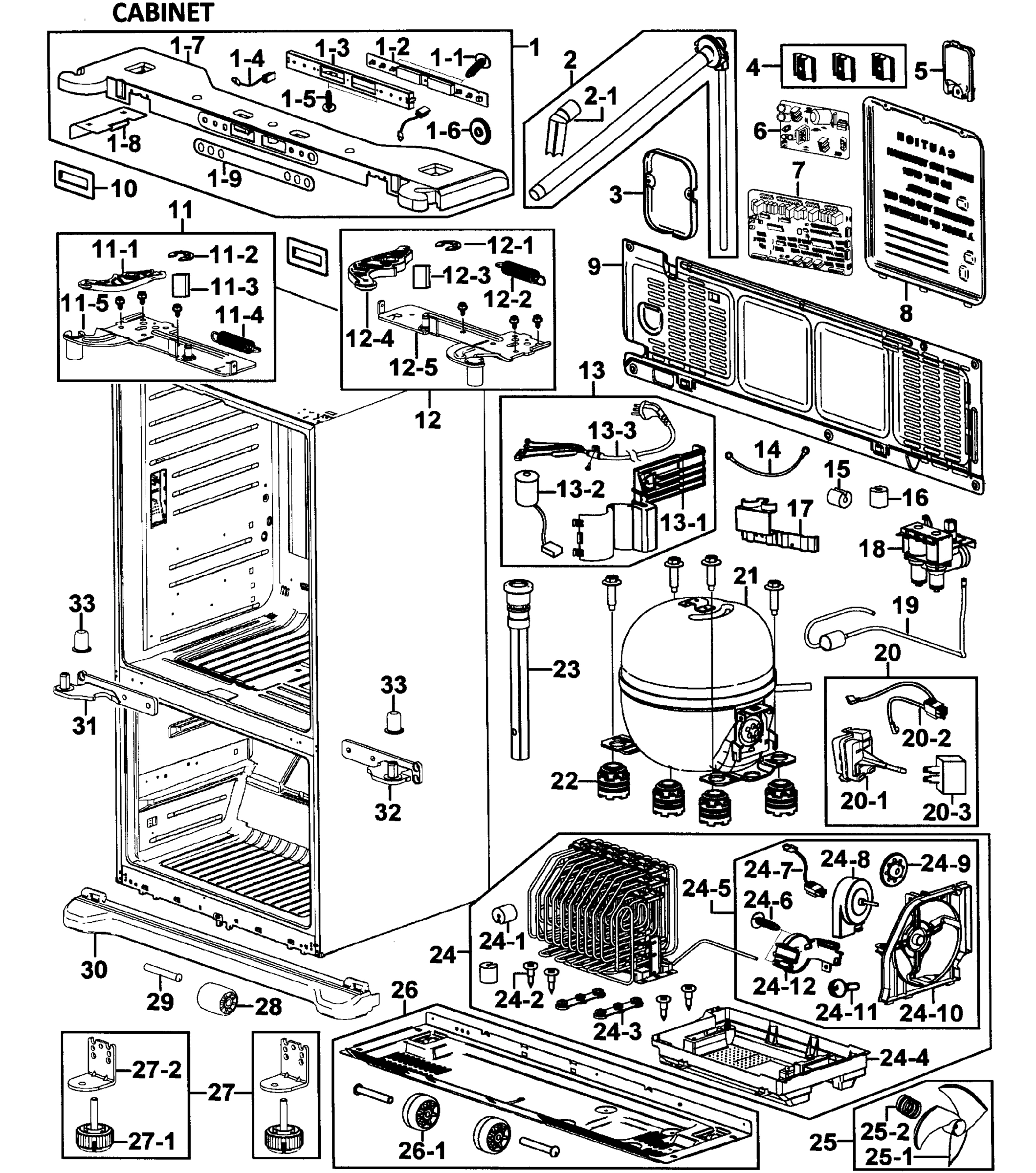

Model Samsung RF266AASH/XAA-00 Refrigerator – Common Parts &amp; Diagrams

1

DA97-05021E Samsung Refrigerator French Assem Backorder SMG DA97-05021E $173.78

1

Refrigerator door handle SMG DA97-04869G Contact Us For Availability

1

Refrigerator ice case SMG DA97-04845A Contact Us For Availability

1

Refrigerator dairy bin and cover SMG DA97-04881B Contact Us For Availability

1-1

DA61-03189A Samsung Refrigerator Ice Cube Buc Backorder SMG DA61-03189A $50.88

1-1

DA63-03455A Samsung Refrigerator Dairy Guard Backorder SMG DA63-03455A $37.62

1-1

Refrigerator freezer door handle SMG DA64-02068B Contact Us For Availability

DA47-00245A Samsung Refrigerator French Heate Backorder SMG DA47-00245A $70.19

DA67-01606D Samsung Refrigerator Glass Shelf Backorder SMG DA67-01606D $70.12

Refrigerator dairy bin cover SMG DA63-03462A Contact Us For Availability

Refrigerator dispenser display assembly SMG DA41-00412A Contact Us For Availability

Refrigerator freezer door handle end cap, rig SMG DA67-01717D Contact Us For Availability

1-3

DA61-03234A Samsung Refrigerator French Door Backorder SMG DA61-03234A $54.83

1-3

Refrigerator freezer door handle end cap, lef SMG DA67-01716D Contact Us For Availability

1-4

DA34-00043B Samsung Refrigerator Reed Switch Backorder SMG DA34-00043B $28.32

1-5

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.18

1-6

DA61-03230B Samsung Refrigerator French Door In Stock SMG DA61-03230B $2.98

1-7

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.98

1-9

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.98

1-9

Inlay dsp. SMG DA64-02076D Contact Us For Availability

1-10

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $7.47

1-11

DA81-01346A Samsung Refrigerator French Sprin In Stock SMG DA81-01346A $1.18

2

DA63-03467A Samsung Refrigerator Guard Backorder SMG DA63-03467A $43.80

2

DA97-04880A Samsung Refrigerator Guard Assemb Backorder SMG DA97-04880A $66.65

3

DA61-03763A Samsung Refrigerator Aw Pjt Suppo Backorder SMG DA61-03763A $11.94

3

DA97-05253B Samsung Refrigerator Door Gasket In Stock SMG DA97-05253B $124.48

4

DA61-02738F Samsung Refrigerator Magnet Assem Backorder SMG DA61-02738F $4.98

4

DA67-01688A Samsung Refrigerator Angle Cap As Backorder SMG DA67-01688A $1.18

4-1

DA61-00954B Samsung Refrigerator Full Ice Gui In Stock SMG DA61-00954B $2.49

4-3

DA63-02284B Samsung Refrigerator Ice Cube Tra In Stock SMG DA63-02284B $33.25

4-4

DA59-00294B Samsung Refrigerator Ice Maker As In Stock SMG DA59-00294B $218.29

4-6

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $33.18

5

DA63-03613A Samsung Refrigerator Cover-Ice Ma Backorder SMG DA63-03613A $12.93

5

DA66-00442B Samsung Refrigerator Auto Close C Backorder SMG DA66-00442B $4.49

5

Refrigerator door foam SMG DA91-02461D Contact Us For Availability

6

DA66-00441B Samsung Refrigerator Auto Close C Backorder SMG DA66-00441B $4.98

6

DA97-05557Y Samsung Freezer Door Gasket Assem In Stock SMG DA97-05557Y $230.30

6

Refrigerator power control board SMG DA41-00320A Contact Us For Availability

6-5

DA47-00243D Samsung Refrigerator Bimetal Ther Backorder SMG DA47-00243D $46.46

7

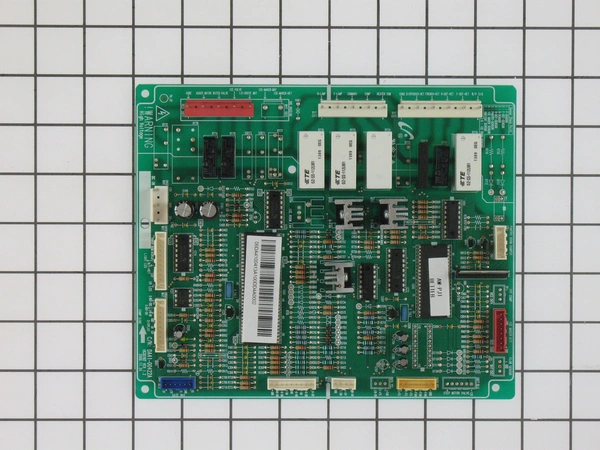

DA41-00413A Samsung Refrigerator Main Printed Backorder SMG DA41-00413A $269.97

7

DA61-02984A Samsung Refrigerator Handle Fixer In Stock SMG DA61-02984A $6.34

7

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $102.60

7

DA63-03420A Samsung Refrigerator Lamp Cover A Backorder SMG DA63-03420A $27.42

8

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $33.63

8

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $92.17

8

DA97-04417K Samsung Refrigerator Handle Bar A Backorder SMG DA97-04417K $159.47

8-1

DA64-01979B Samsung Refrigerator Handle Bar Backorder SMG DA64-01979B $98.82

8-2

Refrigerator door handle end cap, upper SMG DA67-01527F Contact Us For Availability

8-3

Refrigerator door handle end cap, lower SMG DA67-01528F Contact Us For Availability

8-4

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $1.18

9

DA63-03415A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03415A $51.32

9-1

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $1.18

10

DA67-01613B Samsung Refrigerator Top Cap Tabl Backorder SMG DA67-01613B $1.50

10

DA97-08806B Samsung Refrigerator Low Slide Ra Backorder SMG DA97-08806B $194.06

10-3

Refrigerator gear rail SMG DA66-00750A Contact Us For Availability

13

DA63-03414A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03414A $41.15

13

DA97-04939L Samsung Refrigerator Evaporator C Backorder SMG DA97-04939L $212.30

13-3

Refrigerator power cord SMG DA39-10165E Contact Us For Availability

13-5

DA62-01382A Samsung Refrigerator Rear Evapora Backorder SMG DA62-01382A $10.95

14

DA97-04839A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04839A $27.00

14

DA97-08805B Samsung Refrigerator Low Slide Ra Backorder SMG DA97-08805B $192.65

14-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $4.28

14-1

DA61-03172A Samsung Refrigerator Crisper Draw Backorder SMG DA61-03172A $24.89

14-4

Refrigerator freezer drawer gear SMG DA66-00751A Contact Us For Availability

15

DA66-00437A Samsung Refrigerator Gear Shaft A Backorder SMG DA66-00437A $39.39

15

DA97-04840A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04840A $26.37

15-1

DA61-03177A Samsung Refrigerator Vegetable Cr Backorder SMG DA61-03177A $26.37

16

DA97-04846A Samsung Refrigerator Vegetable Ca Backorder SMG DA97-04846A $142.08

16-4

DA63-03426A Samsung Refrigerator Vegetable Co Backorder SMG DA63-03426A $30.08

17

DA97-06324C Samsung Refrigerator Motor Damper Backorder SMG DA97-06324C $128.90

17-1

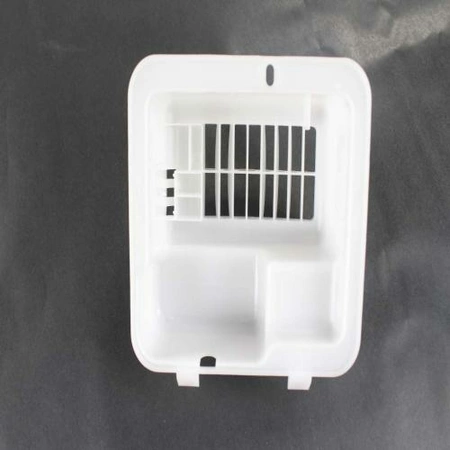

DA63-04274B Samsung Refrigerator Front Motor Backorder SMG DA63-04274B $11.94

17-2

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $23.38

17-3

DA62-01380A Samsung Refrigerator Damper DC Mo Backorder SMG DA62-01380A $5.97

17-4

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $185.67

18

DA62-00914B Samsung Refrigerator Water Inlet In Stock SMG DA62-00914B $151.50

18

DA97-04952B Samsung Refrigerator Water Dispen Backorder SMG DA97-04952B $35.39

18-1

DA61-02901A Samsung Refrigerator Evaporator S In Stock SMG DA61-02901A $1.54

18-1

DA63-03516B Samsung Refrigerator Dispenser Co Backorder SMG DA63-03516B $16.43

18-2

DA64-02113A Samsung Refrigerator Dispenser Co Backorder SMG DA64-02113A $2.49

18-3

DA73-00230A Samsung Refrigerator Dispenser Ru Backorder SMG DA73-00230A $4.49

18-5

DA47-00244A Samsung Refrigerator Metal Sheath Backorder SMG DA47-00244A $158.78

18-6

DA32-00006Q Samsung Refrigerator Defrost Temp In Stock SMG DA32-00006Q $24.89

19

DA97-06085B Samsung Refrigerator Suction Pipe Backorder SMG DA97-06085B $53.11

19

Refrigerator evaporator cover SMG DA97-04938A Contact Us For Availability

19

Refrigerator pantry drawer door SMG DA97-04831C Contact Us For Availability

19-1

Refrigerator pantry drawer cover insert SMG DA63-03424A Contact Us For Availability

19-3

Refrigerator pantry drawer door frame SMG DA63-03425A Contact Us For Availability

19-5

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $12.93

19-9

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.97

20

Refrigerator pantry shelf rail cover SMG DA97-04830C Contact Us For Availability

20-1

Refrigerator drawer slide rail cover SMG DA63-03422A Contact Us For Availability

20-3

2301-001837 Samsung Refrigerator Run Capacito Backorder SMG 2301-001837 $56.40

21

DA97-04841A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-04841A $230.30

21-1

DA61-03174A Samsung Refrigerator Reinforcemen Backorder SMG DA61-03174A $27.35

21-2

Refrigerator pantry shelf SMG DA67-01604A Contact Us For Availability

22

DA61-03167A Samsung Refrigerator Cool White P Backorder SMG DA61-03167A $14.43

22

DA63-02017A Samsung Refrigerator Compressor G Backorder SMG DA63-02017A $3.97

23

DA97-04049H Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049H $15.91

23

Refrigerator evaporator assembly SMG DA96-00762C Contact Us For Availability

23-1

Refrigerator defrost bi-metal thermostat SMG DA47-00243S Contact Us For Availability

23-2

6501-000123 Samsung Refrigerator Cable Tie Backorder SMG 6501-000123 $1.18

23-3

Refrigerator defrost heater SMG DA47-00244D Contact Us For Availability

23-4

DA61-06186B Samsung Refrigerator Drain Plate Backorder SMG DA61-06186B $47.35

24

Refrigerator freezer temperature sensor SMG DA97-02019A Contact Us For Availability

24-1

DA32-10105B Samsung Refrigerator Temperature In Stock SMG DA32-10105B $18.92

24-2

DA63-10467B Samsung Sensor Cover Refrigerator Backorder SMG DA63-10467B $2.00

24-5

DA97-03145N Samsung Refrigerator Circuit Moto Backorder SMG DA97-03145N $178.51

24-7

DA96-00042A Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042A $13.94

24-8

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $144.67

25

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $16.92

25

DA61-03202A Samsung Refrigerator Guide French Backorder SMG DA61-03202A $5.97

26

DA97-06317A Samsung Refrigerator Replacement In Stock SMG DA97-06317A $116.87

26-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.96

27

DA97-04829C Samsung Assy Cover-Rail Pantry R Backorder SMG DA97-04829C $94.24

27-1

Refrigerator panel inlay SMG DA64-02064B Contact Us For Availability

27-2

DA41-00423B Samsung Refrigerator Printed Circ Backorder SMG DA41-00423B $30.53

27-3

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

27-6

DA63-03423A Samsung COVER-RAIL PANTRY R;AW,HI Backorder SMG DA63-03423A $43.80

28

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $8.46

28

DA97-04847D Samsung Refrigerator Case Pantry Backorder SMG DA97-04847D $230.30

28-2

DA97-04837A Samsung Pantry Rail Assembly Backorder SMG DA97-04837A $27.00

28-3

Refrigerator case SMG DA61-03164A Contact Us For Availability

28-4

DA97-04838A Samsung Refrigerator Right Pantry Backorder SMG DA97-04838A $27.87

28-5

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $14.92

29

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.97

29

DA61-03175A Samsung Refrigerator Pantry Suppo Backorder SMG DA61-03175A $6.96

1310

DA61-20128A Samsung Refrigerator Spring and F Backorder SMG DA61-20128A $1.18

1311

Refrigerator evaporator fan blade SMG DA31-00124A Contact Us For Availability

1312

DA61-03181A Samsung Refrigerator Bubble Pjt A Backorder SMG DA61-03181A $14.43

1317

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.49

1910

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $147.25

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.50

DA61-03176A Samsung Refrigerator Pantry Suppo Backorder SMG DA61-03176A $1.50

DA61-03180A Samsung Refrigerator Side Angle S Backorder SMG DA61-03180A $59.15

DA61-03301A Samsung Refrigerator Door Auto Cl Backorder SMG DA61-03301A $6.96

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $2.49

DA63-40167A Samsung Refrigerator Grommet Cove Backorder SMG DA63-40167A $1.50

DA97-04903B Samsung Refrigerator Auto Close L Backorder SMG DA97-04903B $23.38

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $13.44

DA97-22036A Samsung Refrigerator Roller Assem In Stock SMG DA97-22036A $5.97
