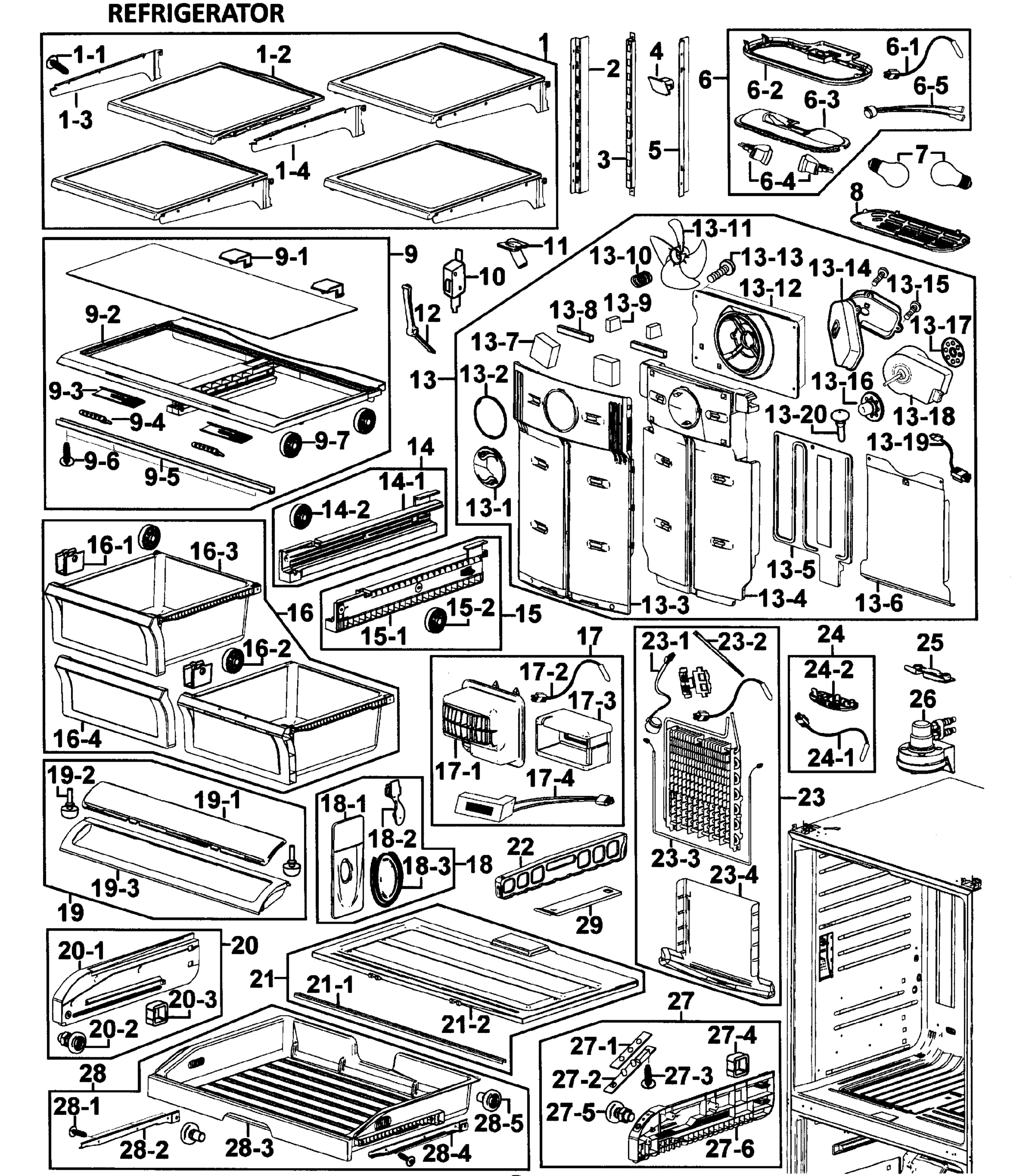

Samsung RF266AABP/XAA-00 Refrigerator Parts List

1

DA97-05021D Samsung Refrigerator French Assem Backorder SMG DA97-05021D $164.32

View on Model

1

Refrigerator Ice Case SMG DA97-04845A Contact Us For Availability

View on Model

1

Refrigerator door handle SMG DA97-04869G Contact Us For Availability

View on Model

1

Refrigerator dairy bin and cover SMG DA97-04881B Contact Us For Availability

View on Model

1-1

DA61-03189A Samsung Refrigerator Ice Cube Buc Backorder SMG DA61-03189A $57.19

View on Model

1-1

DA63-03455A Samsung Refrigerator Dairy Guard Backorder SMG DA63-03455A $37.62

View on Model

1-2

DA67-01606D Samsung Refrigerator Glass Shelf Backorder SMG DA67-01606D $75.04

View on Model

1-2

Refrigerator dairy bin cover SMG DA63-03462A Contact Us For Availability

View on Model

1-2

Refrigerator Dispenser Display Assembly SMG DA41-00412A Contact Us For Availability

View on Model

1-2

Refrigerator flipper heater SMG DA47-00245A Contact Us For Availability

View on Model

1-3

DA61-03234A Samsung Refrigerator French Door Backorder SMG DA61-03234A $58.66

View on Model

1-3

Refrigerator freezer door handle end cap, lef SMG DA67-01716A Contact Us For Availability

View on Model

1-4

DA34-00043B Samsung Refrigerator Reed Switch Backorder SMG DA34-00043B $32.41

View on Model

1-5

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

View on Model

1-6

DA61-03230B Samsung Refrigerator French Door In Stock SMG DA61-03230B $3.68

View on Model

1-7

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $5.04

View on Model

1-9

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.33

View on Model

1-9

Inlay Dsp. SMG DA64-02076D Contact Us For Availability

View on Model

1-10

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $8.38

View on Model

1-11

DA81-01346A Samsung Refrigerator French Sprin In Stock SMG DA81-01346A $1.69

View on Model

2

DA63-03467A Samsung Refrigerator Guard Backorder SMG DA63-03467A $46.88

View on Model

2

DA97-04880A Samsung Refrigerator Guard Assemb Backorder SMG DA97-04880A $72.37

View on Model

3

DA97-05253A Samsung Refrigerator Door Assembl Backorder SMG DA97-05253A $155.95

View on Model

3

Refrigerator freezer door shelf rail end cap SMG DA61-03763A Contact Us For Availability

View on Model

4

DA61-02738E Samsung Refrigerator Assembly Mag Backorder SMG DA61-02738E $4.25

View on Model

4

DA67-01688A Samsung Refrigerator Angle Cap As Backorder SMG DA67-01688A $1.18

View on Model

4-1

DA61-00954B Samsung Refrigerator Full Ice Gui In Stock SMG DA61-00954B $2.79

View on Model

4-2

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $3.07

View on Model

4-3

DA63-02284B Samsung Refrigerator Ice Cube Tra Backorder SMG DA63-02284B $30.17

View on Model

4-4

DA59-00294B Samsung Refrigerator Ice Maker As In Stock SMG DA59-00294B $181.86

View on Model

4-6

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $35.66

View on Model

5

DA63-03613A Samsung Refrigerator Cover-Ice Ma Backorder SMG DA63-03613A $14.53

View on Model

5

Refrigerator door assembly, right SMG DA91-02461A Contact Us For Availability

View on Model

6

DA66-00441A Samsung Auto Close Cam Assembly Backorder SMG DA66-00441A $7.45

View on Model

6

DA97-05557X Samsung Refrigerator Freezer Door Backorder SMG DA97-05557X $209.90

View on Model

6

Refrigerator Power Control Board SMG DA41-00320A Contact Us For Availability

View on Model

6-5

DA47-00243D Samsung Refrigerator Bimetal Ther Backorder SMG DA47-00243D $52.22

View on Model

7

DA41-00413A Samsung Refrigerator Main Printed Backorder SMG DA41-00413A $295.12

View on Model

7

DA61-02984A Samsung Refrigerator Handle Fixer In Stock SMG DA61-02984A $6.08

View on Model

7

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $109.77

View on Model

7

DA63-03420A Samsung Refrigerator Lamp Cover A Backorder SMG DA63-03420A $27.42

View on Model

8

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $34.81

View on Model

8

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $98.61

View on Model

8

DA97-04417N Samsung Refrigerator Bar Handle A Backorder SMG DA97-04417N $95.65

View on Model

8-1

DA64-01979A Samsung Refrigerator Bar Handle Backorder SMG DA64-01979A $93.91

View on Model

8-2

Refrigerator door handle end cap, upper SMG DA67-01527E Contact Us For Availability

View on Model

8-3

Refrigerator door handle end cap, lower SMG DA67-01528E Contact Us For Availability

View on Model

8-4

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $1.18

View on Model

9

DA63-03415A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03415A $54.92

View on Model

9-1

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $1.69

View on Model

9-6

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

View on Model

9-7

DA97-22036A Samsung Refrigerator Roller Assem Backorder SMG DA97-22036A $6.71

View on Model

10

DA34-00011A Samsung Refrigerator Micro Switch Backorder SMG DA34-00011A $10.46

View on Model

10

DA97-08806B Samsung Refrigerator Low Slide Ra Backorder SMG DA97-08806B $194.43

View on Model

10-1

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.69

View on Model

10-3

Refrigerator Gear Rail SMG DA66-00750A Contact Us For Availability

View on Model

11

DA61-03327A Samsung Fixer Water Hose Aw Pjt P Backorder SMG DA61-03327A $1.18

View on Model

11-4

DA61-03301A Samsung Refrigerator Door Auto Cl Backorder SMG DA61-03301A $7.82

View on Model

12

DA66-00451A Samsung Refrigerator Dispenser Ca Backorder SMG DA66-00451A $2.14

View on Model

13

DA63-03414A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03414A $44.04

View on Model

13

DA97-04939L Samsung Refrigerator Evaporator C Backorder SMG DA97-04939L $231.31

View on Model

13-1

DA63-03517A Samsung COVER-EVAP REF SUB;AW-PJT Backorder SMG DA63-03517A $12.43

View on Model

13-2

DA64-02065A Samsung Refrigerator Evaporator C Backorder SMG DA64-02065A $22.89

View on Model

13-3

DA63-03430A Samsung Assembly Refrigerator Eva Backorder SMG DA63-03430A $86.36

View on Model

13-3

Refrigerator Power Cord SMG DA39-10165E Contact Us For Availability

View on Model

13-4

Refrigerator Evaporator Cover Insulation Pad SMG DA62-01381A Contact Us For Availability

View on Model

13-5

Refrigerator Evaporator Insulation SMG DA62-01382A Contact Us For Availability

View on Model

13-6

DA61-03186C Samsung Refrigerator Evaporator I Backorder SMG DA61-03186C $36.45

View on Model

13-7

DA62-01423A Samsung Refrigerator Insulation E Backorder SMG DA62-01423A $1.18

View on Model

13-8

DA61-03182A Samsung Refrigerator Evaporator G Backorder SMG DA61-03182A $1.69

View on Model

13-9

DA62-01383A Samsung Refrigerator Evaporator I Backorder SMG DA62-01383A $1.69

View on Model

14

DA97-04839A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04839A $30.34

View on Model

14

DA97-08805B Samsung Refrigerator Low Slide Ra Backorder SMG DA97-08805B $219.06

View on Model

14-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $4.48

View on Model

14-1

DA61-03172A Samsung Refrigerator Crisper Draw Backorder SMG DA61-03172A $27.95

View on Model

14-4

Refrigerator Freezer Drawer Gear SMG DA66-00751A Contact Us For Availability

View on Model

15

DA66-00437A Samsung Refrigerator Gear Shaft A Backorder SMG DA66-00437A $37.79

View on Model

15

DA97-04840A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04840A $28.51

View on Model

15-1

DA61-03177A Samsung Refrigerator Vegetable Cr Backorder SMG DA61-03177A $29.63

View on Model

16

DA97-04846A Samsung Refrigerator Vegetable Ca Backorder SMG DA97-04846A $154.47

View on Model

16-1

DA71-20145A Samsung Refrigerator Roller Fixer Backorder SMG DA71-20145A $1.18

View on Model

16-3

DA61-03165A Samsung Refrigerator Vegetable Ca Backorder SMG DA61-03165A $136.35

View on Model

16-4

DA63-03426A Samsung Refrigerator Vegetable Co Backorder SMG DA63-03426A $32.20

View on Model

17

DA97-06324C Samsung Refrigerator Motor Damper Backorder SMG DA97-06324C $137.66

View on Model

17-1

DA63-04274B Samsung Refrigerator Front Motor Backorder SMG DA63-04274B $12.12

View on Model

17-2

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $23.97

View on Model

17-3

DA62-01380A Samsung Refrigerator Damper DC Mo Backorder SMG DA62-01380A $6.39

View on Model

17-4

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $188.79

View on Model

18

DA62-00914B Samsung Refrigerator Water Inlet In Stock SMG DA62-00914B $130.45

View on Model

18

DA97-04952B Samsung Refrigerator Water Dispen In Stock SMG DA97-04952B $32.07

View on Model

18-1

DA61-02901A Samsung Refrigerator Evaporator S In Stock SMG DA61-02901A $1.72

View on Model

18-1

DA63-03516B Samsung Refrigerator Dispenser Co Backorder SMG DA63-03516B $18.44

View on Model

18-2

DA64-02113A Samsung Refrigerator Dispenser Co Backorder SMG DA64-02113A $2.79

View on Model

18-3

Refrigerator Cover SMG DA73-00230A Contact Us For Availability

View on Model

18-5

DA47-00244A Samsung Refrigerator Metal Sheath Backorder SMG DA47-00244A $143.80

View on Model

18-6

DA32-00006Q Samsung Refrigerator Defrost Temp In Stock SMG DA32-00006Q $25.70

View on Model

19

DA97-06085B Samsung Refrigerator Suction Pipe Backorder SMG DA97-06085B $53.88

View on Model

19

Refrigerator Evaporator Cover SMG DA97-04938A Contact Us For Availability

View on Model

19

Refrigerator Pantry Drawer Door SMG DA97-04831C Contact Us For Availability

View on Model

19-1

Refrigerator Pantry Drawer Cover Insert SMG DA63-03424A Contact Us For Availability

View on Model

19-2

DA63-40167A Samsung Refrigerator Grommet Cove Backorder SMG DA63-40167A $1.60

View on Model

19-3

Refrigerator Pantry Drawer Door Frame SMG DA63-03425A Contact Us For Availability

View on Model

19-5

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $14.53

View on Model

19-9

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.25

View on Model

20

Refrigerator Pantry Shelf Rail Cover SMG DA97-04830C Contact Us For Availability

View on Model

20-1

Refrigerator Drawer Slide Rail Cover SMG DA63-03422A Contact Us For Availability

View on Model

20-2

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $15.09

View on Model

20-3

2301-001837 Samsung Refrigerator Run Capacito Backorder SMG 2301-001837 $63.38

View on Model

20-3

DA61-03176A Samsung Refrigerator Pantry Suppo Backorder SMG DA61-03176A $1.60

View on Model

21

DA97-04841A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-04841A $230.30

View on Model

21-1

DA61-03174A Samsung Refrigerator Reinforcemen Backorder SMG DA61-03174A $29.28

View on Model

21-2

Refrigerator Pantry Shelf SMG DA67-01604A Contact Us For Availability

View on Model

22

DA61-03167A Samsung Refrigerator Cool White P Backorder SMG DA61-03167A $15.44

View on Model

22

DA63-02017A Samsung Refrigerator Compressor G Backorder SMG DA63-02017A $4.25

View on Model

23

DA97-04049H Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049H $15.91

View on Model

23

Refrigerator Evaporator Assembly SMG DA96-00762C Contact Us For Availability

View on Model

23-1

Refrigerator Defrost Bi-Metal Thermostat SMG DA47-00243S Contact Us For Availability

View on Model

23-2

6501-000123 Samsung Refrigerator Cable Tie Backorder SMG 6501-000123 $1.18

View on Model

23-3

Refrigerator Defrost Heater SMG DA47-00244D No Longer Available

View on Model

23-4

DA61-06186B Samsung Refrigerator Drain Plate Backorder SMG DA61-06186B $55.84

View on Model

24

Refrigerator Freezer Temperature Sensor SMG DA97-02019A Contact Us For Availability

View on Model

24-1

DA32-10105B Samsung Refrigerator Temperature In Stock SMG DA32-10105B $20.13

View on Model

24-2

DA63-10467B Samsung Sensor Cover Refrigerator Backorder SMG DA63-10467B $2.14

View on Model

24-5

DA97-03145N Samsung Refrigerator Circuit Moto Backorder SMG DA97-03145N $184.06

View on Model

24-7

DA96-00042A Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042A $14.90

View on Model

24-8

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $133.46

View on Model

25

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $19.08

View on Model

25

DA61-03202A Samsung Refrigerator Guide French Backorder SMG DA61-03202A $6.39

View on Model

26

DA97-06317A Samsung Refrigerator Replacement In Stock SMG DA97-06317A $97.67

View on Model

26-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.77

View on Model

27

DA97-04829C Samsung Assy Cover-Rail Pantry R Backorder SMG DA97-04829C $94.24

View on Model

27-1

Refrigerator Panel Inlay SMG DA64-02064B Contact Us For Availability

View on Model

27-2

DA41-00423B Samsung Refrigerator Printed Circ Backorder SMG DA41-00423B $30.98

View on Model

27-3

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

View on Model

27-6

DA63-03423A Samsung COVER-RAIL PANTRY R;AW,HI Backorder SMG DA63-03423A $43.80

View on Model

28

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.99

View on Model

28

DA97-04847D Samsung Refrigerator Case Pantry Backorder SMG DA97-04847D $191.22

View on Model

28-2

DA97-04837A Samsung Pantry Rail Assembly Backorder SMG DA97-04837A $28.88

View on Model

28-3

Refrigerator Case SMG DA61-03164A Contact Us For Availability

View on Model

28-4

DA97-04838A Samsung Refrigerator Right Pantry Backorder SMG DA97-04838A $29.82

View on Model

28-5

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $20.13

View on Model

29

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.07

View on Model

29

DA61-03175A Samsung Refrigerator Pantry Suppo Backorder SMG DA61-03175A $6.96

View on Model

1310

DA61-20128A Samsung Refrigerator Spring and F Backorder SMG DA61-20128A $1.18

View on Model

1311

Refrigerator Evaporator Fan Blade SMG DA31-00124A Contact Us For Availability

View on Model

1312

DA61-03181A Samsung Refrigerator Bubble Pjt A Backorder SMG DA61-03181A $15.44

View on Model

1317

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.79

View on Model

1910

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $157.57

View on Model

Model Samsung RF266AABP/XAA-00 Refrigerator – Common Parts & Diagrams

Common parts from model Samsung RF266AABP/XAA-00 Refrigerator

Search result for :

Help

Customer Service

Company

Model Samsung RF266AABP/XAA-00 Refrigerator – Common Parts & Diagrams

Common parts from model Samsung RF266AABP/XAA-00 Refrigerator

Search result for :

Be the First to Know

Help

Customer Service

Company
