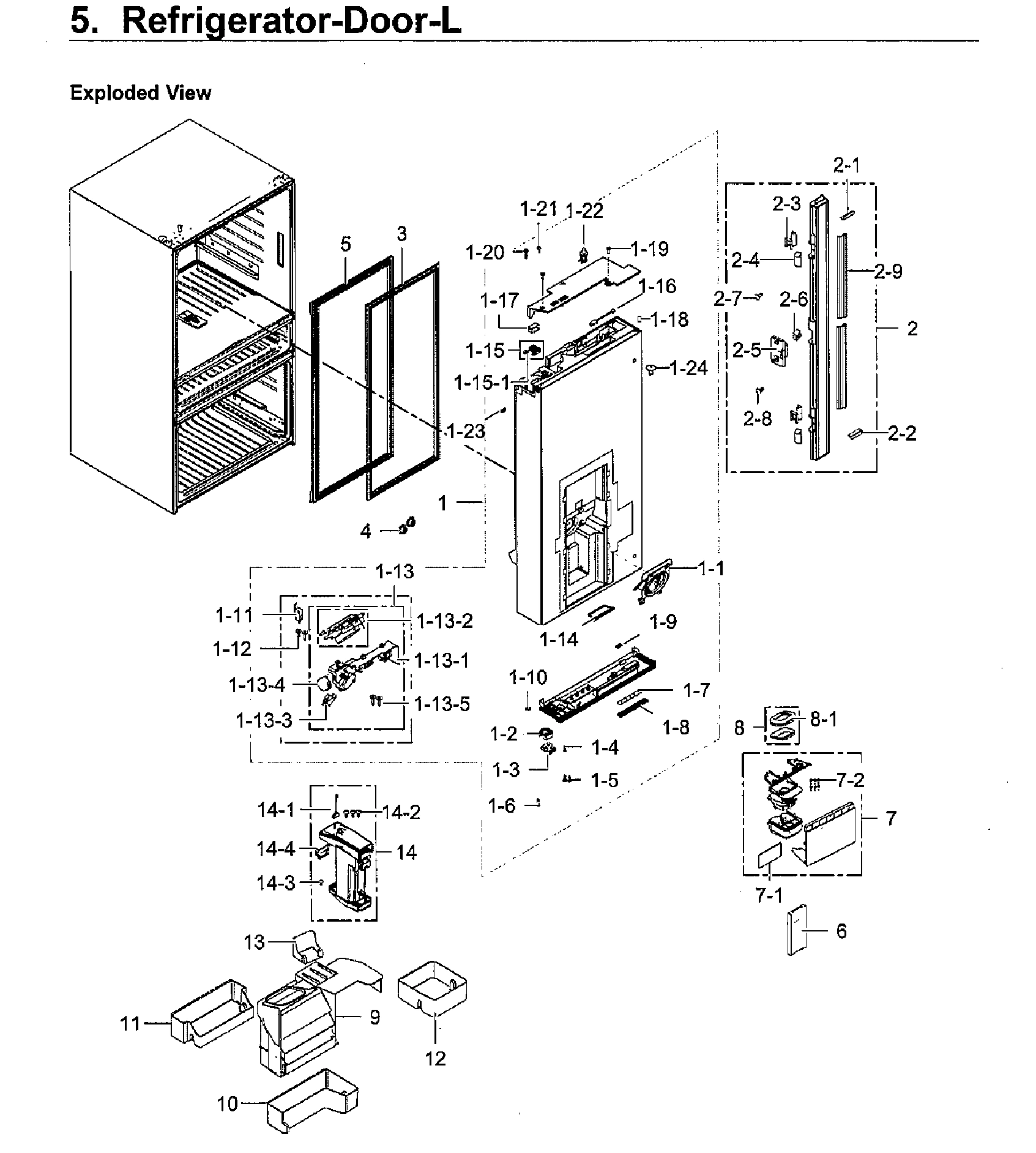

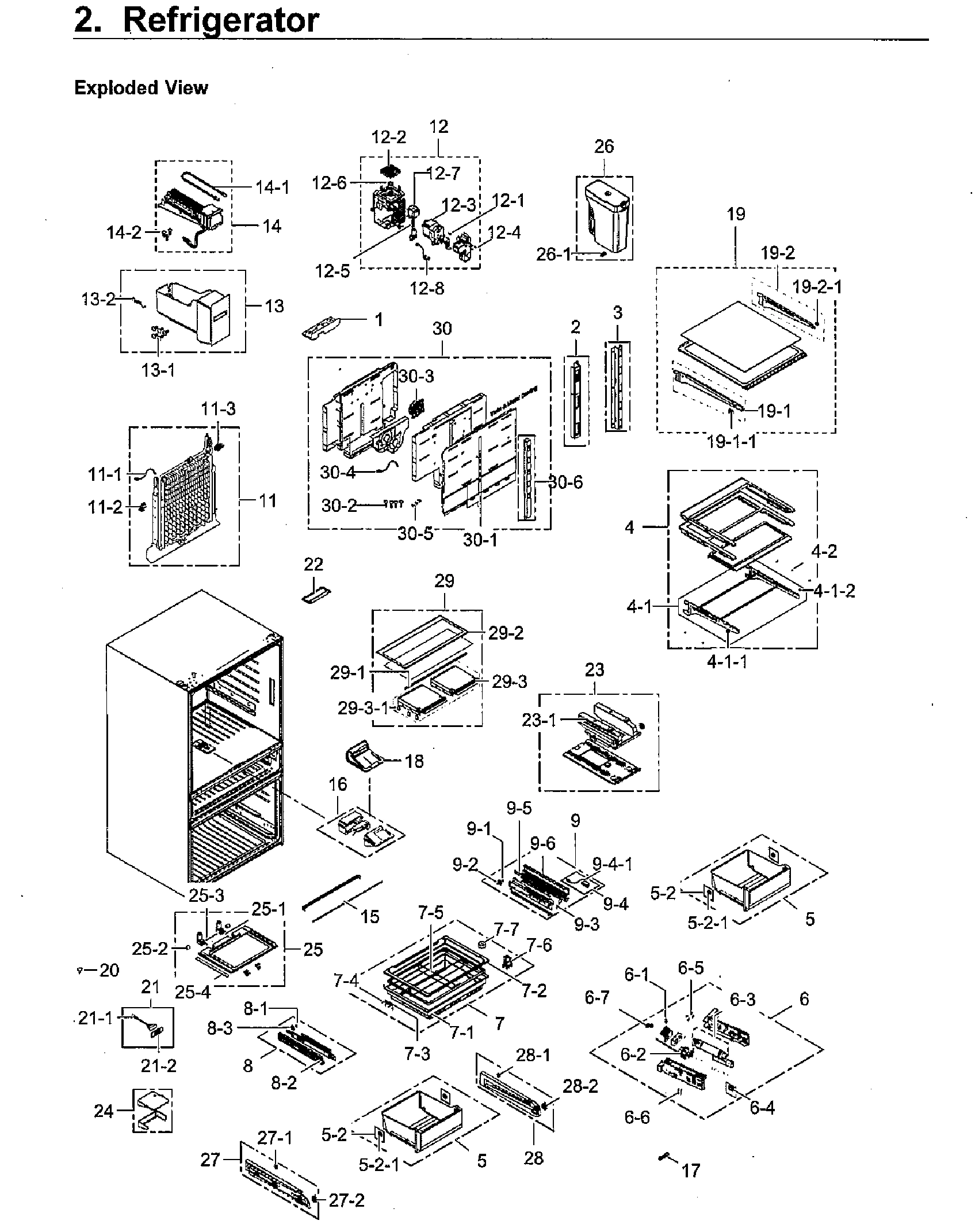

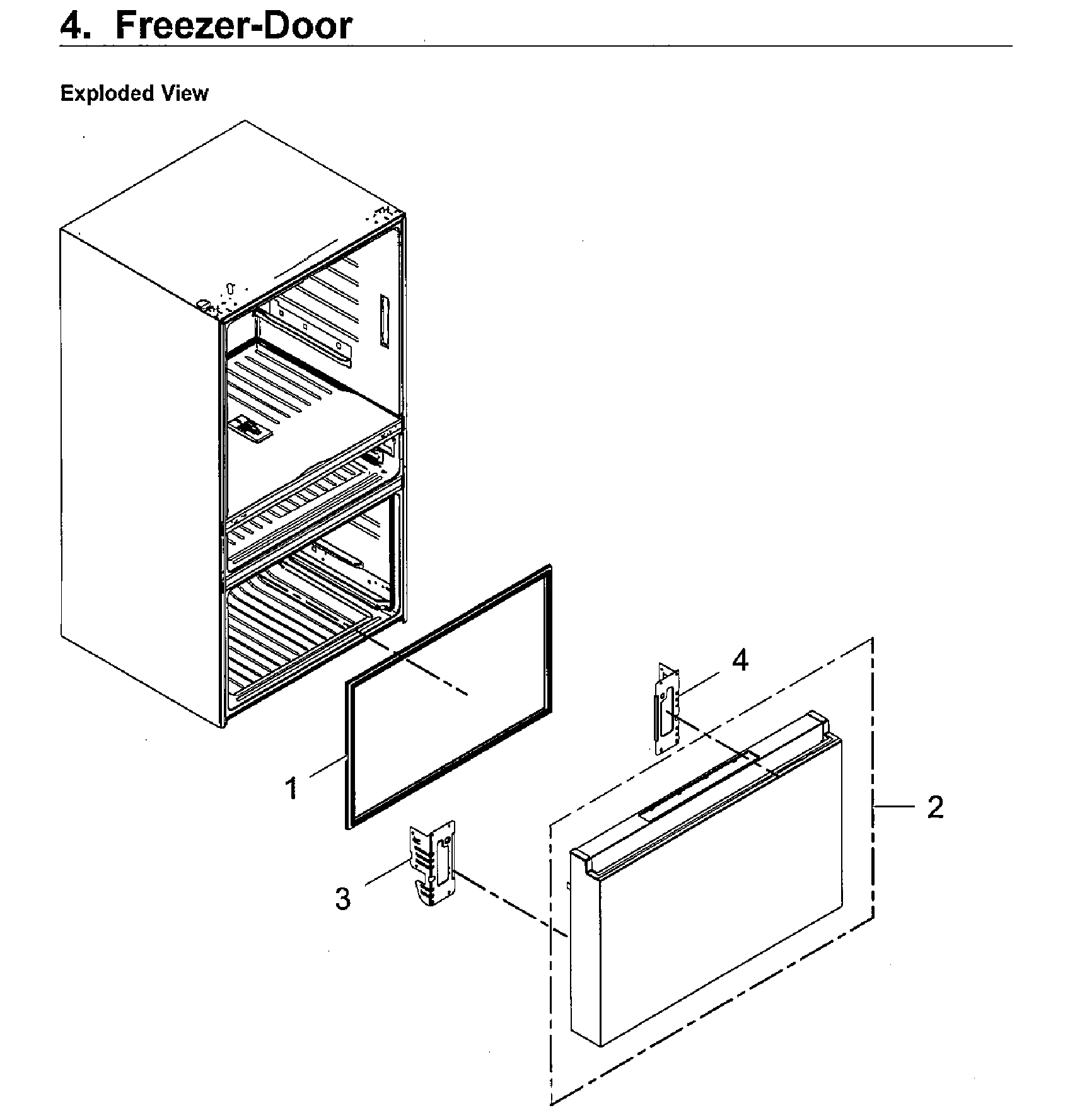

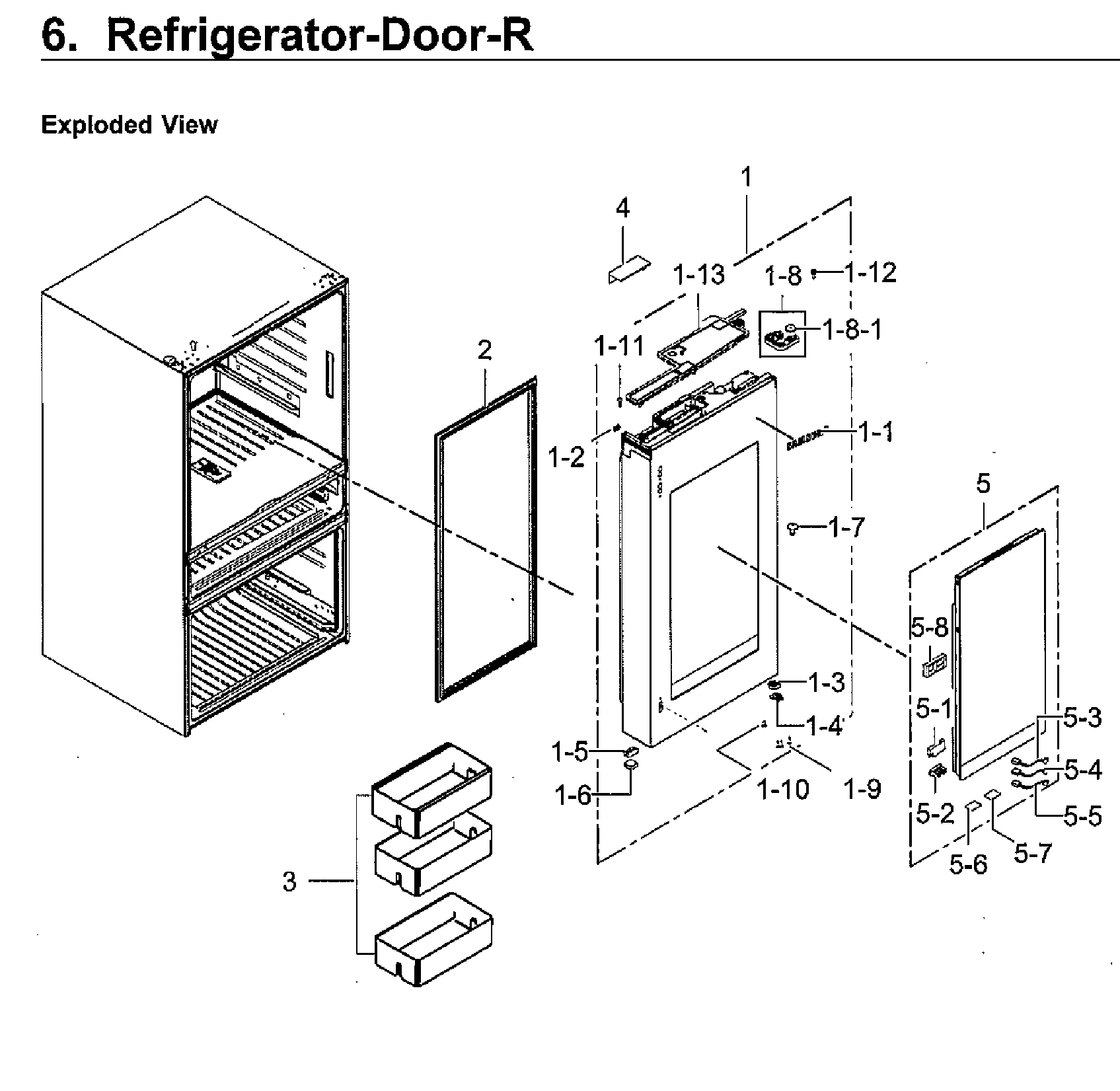

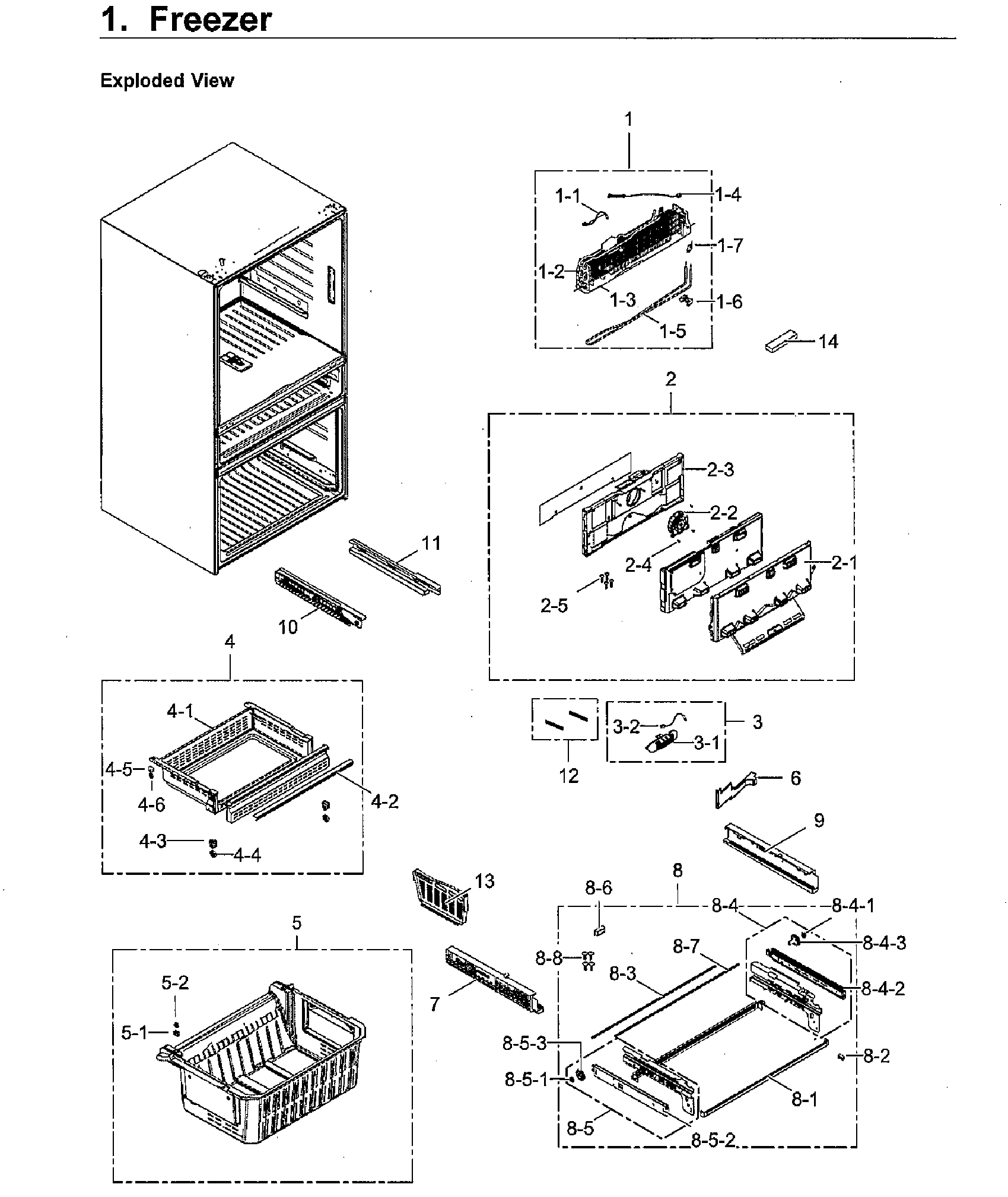

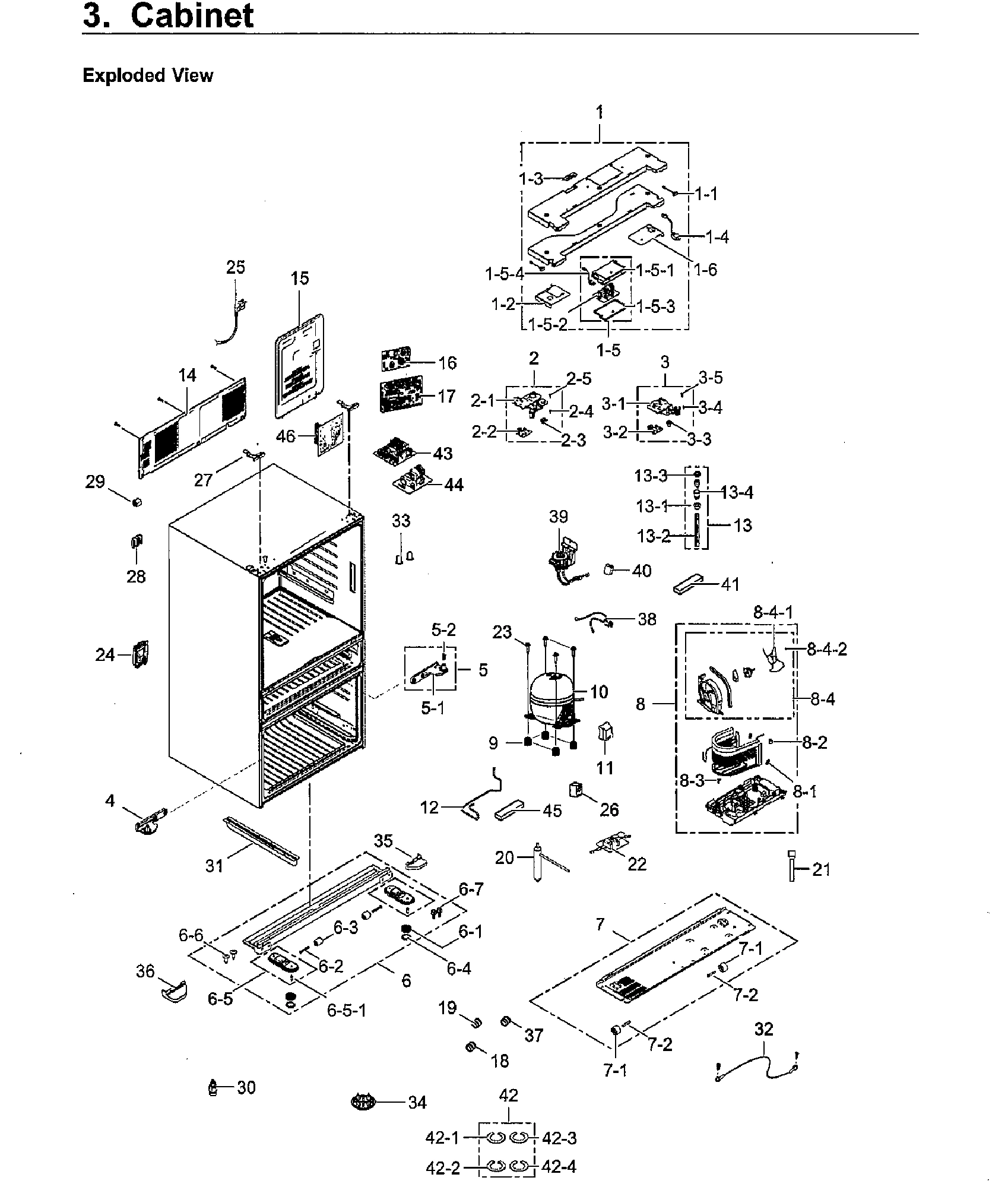

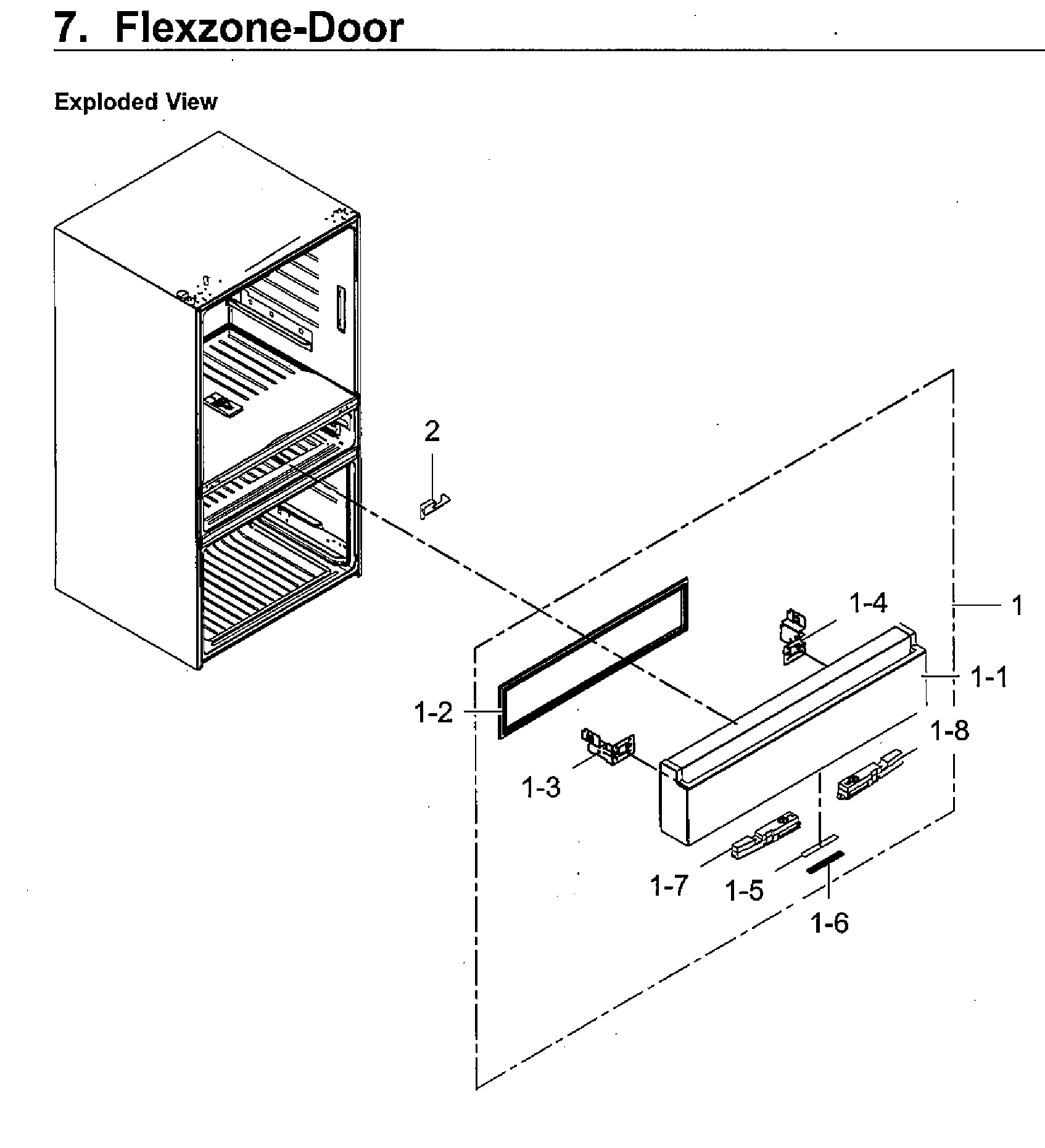

Model Samsung RF23M8570SG/AA-00 Refrigerator – Common Parts &amp; Diagrams

1

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $7.55

1

DA91-04693K Samsung Refrigerator Left Door Fo Backorder SMG DA91-04693K $414.68

1

DA91-04720D Samsung Right Door Foam Assembly Backorder SMG DA91-04720D $348.55

1-1

DA34-00043K Samsung Refrigerator Reed Switch Backorder SMG DA34-00043K $69.80

1-1

DA64-04021D Samsung Refrigerator Mascot All N Backorder SMG DA64-04021D $24.84

1-1

DA97-17298A Samsung Refrigerator Assembly Gui Backorder SMG DA97-17298A $42.76

1-2

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $18.89

1-2

DA61-10856B Samsung Refrigerator Left Door Su Backorder SMG DA61-10856B $10.26

1-3

DA61-10855B Samsung Right Door Cap Support Re Backorder SMG DA61-10855B $13.50

1-3

DA61-11905A Samsung Door Stopper Left Assembl Backorder SMG DA61-11905A $24.72

6001-001377 Samsung Refrigerator Machine Scre Backorder SMG 6001-001377 $1.69

DA47-00301B Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301B $28.44

DA61-09249A Samsung Refrigerator Hanger Front Backorder SMG DA61-09249A $40.85

DA61-11906A Samsung Right Door Stopper Backorder SMG DA61-11906A $29.69

1-5

SCREW-TAPPING;STS304,PASS,L14, Backorder SMG 6002-000473 $1.69

1-5

DA63-04825B Samsung Refrigerator Grommet Cap Backorder SMG DA63-04825B $3.79

1-5

DA97-17698A Samsung Refrigerator Case Safety Backorder SMG DA97-17698A $253.47

1-6

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $9.72

1-6

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

1-7

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $16.83

1-7

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $10.26

1-8

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $39.63

1-8

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $31.34

1-9

6002-001120 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001120 $1.69

1-11

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $1.69

1-12

6002-001615 Samsung Screw Tapping Backorder SMG 6002-001615 $1.69

1-13

DA63-08826B Samsung Refrigerator Door Cover C Backorder SMG DA63-08826B $166.47

1-13

Refrigerator dispenser ice chute door and mot SMG DA97-17296A Contact Us For Availability

1-14

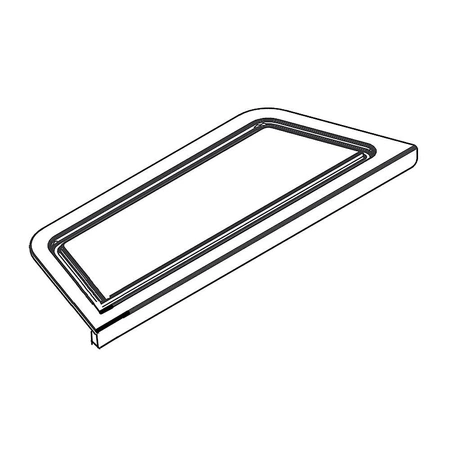

DA63-08789B Samsung Refrigerator Dispenser Tr Backorder SMG DA63-08789B $93.90

1-16

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $56.53

1-17

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $11.34

1-18

DA73-00211A Samsung Refrigerator Hose Rubber Backorder SMG DA73-00211A $1.69

1-20

6002-000466 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000466 $1.69

1-22

DA34-00066B Samsung Refrigerator Interlock Do In Stock SMG DA34-00066B $23.02

1-23

DA61-03769A Samsung Refrigerator Door Magnet Backorder SMG DA61-03769A $6.05

2

DA63-05462C Samsung Refrigerator Convection D Backorder SMG DA63-05462C $3.89

2

DA97-17363A Samsung Refrigerator Evaporator C Backorder SMG DA97-17363A $197.96

2

DA97-17723B Samsung French Assembly Backorder SMG DA97-17723B $387.42

2-1

DA63-06959B Samsung Refrigerator Upper French Backorder SMG DA63-06959B $9.72

2-2

GASKET FRENCH-LOW;RF9000JC,SI, Backorder SMG DA63-08421B $7.57

2-3

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $11.82

2-3

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $5.93

2-4

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $5.41

2-5

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $8.10

2-6

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.41

2-8

6002-000471 Samsung Refrigerator Screw Backorder SMG 6002-000471 $1.69

2-9

DA63-07560B Samsung Refrigerator French Door Backorder SMG DA63-07560B $7.55

3

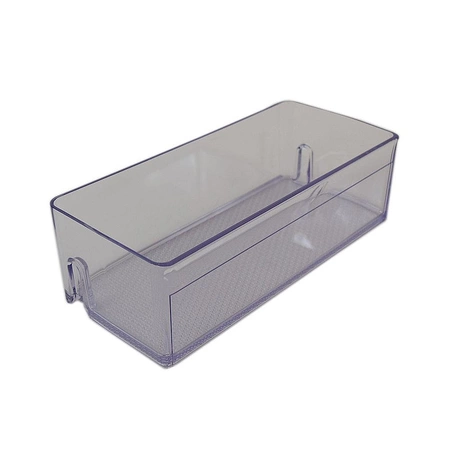

DA63-08937B Samsung Refrigerator Right Guard Backorder SMG DA63-08937B $90.28

3

DA63-09025A Samsung Refrigerator Gasket Assem Backorder SMG DA63-09025A $76.24

3-1

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $4.33

3-2

DA32-00070L Samsung Refrigerator Temperature Backorder SMG DA32-00070L $35.07

3-3

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $5.41

4

DA63-08449B Samsung Refrigerator Lock Cover Backorder SMG DA63-08449B $16.21

4

DA67-30266K Samsung Refrigerator Cap Screw Backorder SMG DA67-30266K $1.69

4

DA97-13773C Samsung Refrigerator Assembly Tra Backorder SMG DA97-13773C $195.70

4-3

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $9.72

4-4

DA66-00554A Samsung Refrigerator Upper Freeze In Stock SMG DA66-00554A $5.93

5

DA82-02261U Samsung Refrigerator Case Display Backorder SMG DA82-02261U $1,517.67

5

DA97-15249F Samsung Refrigerator Gasket Assem Backorder SMG DA97-15249F $151.00

5

DA97-17911A Samsung Refrigerator Case Vegetab Backorder SMG DA97-17911A $153.25

5-1

4709-002552 Samsung Refrigerator W-LAN Module Backorder SMG 4709-002552 $172.16

5-2

DA32-00071A Samsung Refrigerator Sensor PSD G Backorder SMG DA32-00071A $148.43

5-2

DA97-14447A Samsung Refrigerator Roller Assem Backorder SMG DA97-14447A $20.52

5-3

DA96-01224A Samsung Refrigerator Wire Harness Backorder SMG DA96-01224A $81.86

5-4

DA96-01224B Samsung Refrigerator Wire Harness Backorder SMG DA96-01224B $46.12

5-5

DA96-01253A Samsung Refrigerator Assembly Wir Backorder SMG DA96-01253A $46.12

5-6

Module mic SMG DA92-00789B Contact Us For Availability

5-7

DA92-00791A Samsung Refrigerator Module Assem Backorder SMG DA92-00791A $82.67

5-8

Refrigerator reflector SMG DA67-04260A Contact Us For Availability

6

DA63-07496A Samsung Refrigerator Ice Dispense Backorder SMG DA63-07496A $18.35

6

DA97-17297B Samsung Dispenser Lever Assembly Backorder SMG DA97-17297B $147.51

6

DA97-17394B Samsung Refrigerator Case Filter Backorder SMG DA97-17394B $285.07

6-1

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $15.28

6-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $7.46

6-2

DA62-04027A Samsung Refrigerator 2-Way Water In Stock SMG DA62-04027A $180.05

6-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $15.67

6-4

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $3.79

6-5

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.69

6-5

DA97-13807A Samsung Refrigerator Front Suppor Backorder SMG DA97-13807A $46.69

6-7

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $24.30

7

DA97-17299B Samsung Refrigerator Dispenser Co Backorder SMG DA97-17299B $258.65

7-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $12.73

7-1

DA92-00944A Samsung Refrigerator Module Assem Backorder SMG DA92-00944A $156.65

7-2

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $8.27

8

DA97-17451A Samsung Refrigerator Ice Chute Ca Backorder SMG DA97-17451A $78.65

8-1

DA63-09013A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-09013A $63.38

8-3

DA66-00437F Samsung Gear Shaft Refrigerator Backorder SMG DA66-00437F $65.08

8-4

DA97-15765E Samsung Refrigerator Motor Circui Backorder SMG DA97-15765E $158.42

8-7

DA66-00437B Samsung Refrigerator Gear Shaft Backorder SMG DA66-00437B $38.92

8-41

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $26.47

8-43

Refrigerator gear rail SMG DA66-00750A Contact Us For Availability

8-53

Refrigerator freezer drawer gear SMG DA66-00751A Contact Us For Availability

9

DA97-17683A Samsung Refrigerator Utility Guar Backorder SMG DA97-17683A $97.78

9-4

DA96-00640B Samsung Refrigerator Wire Harness In Stock SMG DA96-00640B $148.89

10

DA63-08755B Samsung Refrigerator Low Guard RF In Stock SMG DA63-08755B $89.45

10

NF54K9151AME01 Samsung Refrigerator Compresso Backorder SMG NF54K9151AME01 $285.00

11

DA63-08756B Samsung Refrigerator Middle Guard Backorder SMG DA63-08756B $56.53

11

DA96-01002B Samsung Refrigerator Evaporator F Backorder SMG DA96-01002B $199.35

11-1

DA32-00070M Samsung Refrigerator Temperature In Stock SMG DA32-00070M $34.59

11-3

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

12

DA63-08757B Samsung Guard Up Rf8000m San T3 Backorder SMG DA63-08757B $72.79

12

DA96-01119A Samsung Refrigerator LED Lamp Ass Backorder SMG DA96-01119A $77.84

12

DA97-12540K Samsung Refrigerator Auger Motor In Stock SMG DA97-12540K $276.81

12-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $88.43

12-3

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $216.29

12-7

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $114.88

13

DA63-08761B Samsung Refrigerator Top Guard RF Backorder SMG DA63-08761B $27.55

13

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $37.30

13

DA97-17285A Samsung Refrigerator Ice Tray Ass Backorder SMG DA97-17285A $200.04

13-2

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $6.47

DA72-60040W Samsung Refrigerator Seal-Cutt Ru Backorder SMG DA72-60040W $1.69

DA97-12749B Samsung Refrigerator Compressor C Backorder SMG DA97-12749B $187.03

DA97-17399A Samsung Refrigerator Inner Case A Backorder SMG DA97-17399A $205.65

Refrigerator ice maker SMG DA97-18859A No Longer Available

14-1

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $31.86

14-3

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $1.69

14-4

DA61-12345A Samsung Refrigerator Middle Case In Stock SMG DA61-12345A $11.34

16

DA92-00763K Samsung Refrigerator Inverter Ass In Stock SMG DA92-00763K $205.32

16

DA97-08430B Samsung Refrigerator Insulation D Backorder SMG DA97-08430B $151.96

17

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $47.62

17

DA94-03757B Samsung Refrigerator EEPROM PCB Backorder SMG DA94-03757B $86.19

18

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $7.01

20

DA62-04309D Samsung Refrigerator Single Moist Backorder SMG DA62-04309D $321.10

20

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $1.69

21-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $33.20

24

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $22.68

24

DA97-17685B Samsung Refrigerator Assembly Cov Backorder SMG DA97-17685B $56.21

25

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $71.04

25-1

DA61-03705A Samsung Refrigerator Hinge Shelf Backorder SMG DA61-03705A $2.16

25-2

DA66-00482A Samsung Refrigerator Roller Hinge Backorder SMG DA66-00482A $1.69

25-3

DA66-00483A Samsung Hinge Shaft Shelf Backorder SMG DA66-00483A $3.24

25-4

Trim shelf-ref fold SMG DA64-04685F Contact Us For Availability

26

DA97-17395A Samsung Refrigerator Water Tank R In Stock SMG DA97-17395A $154.61

27

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $8.46

27

Assy rail-ref low left SMG DA97-17368A Contact Us For Availability

28

Assy rail-ref low right SMG DA97-17369A Contact Us For Availability

29

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $8.64

29

DA97-17981A Samsung Refrigerator Vegetable Lo Backorder SMG DA97-17981A $206.94

29-1

DA61-05222B Samsung Reinforcement Cover Veg Backorder SMG DA61-05222B $40.86

29-2

Shelf vegetable-low SMG DA67-04465A Contact Us For Availability

29-3

DA97-17968A Samsung Assembly COVER VEG-UP;RF8 Backorder SMG DA97-17968A $81.86

30

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $23.76

30

DA97-17362B Samsung Refrigerator Evaporator C Backorder SMG DA97-17362B $307.74

30-1

Refrigerator evaporator cover SMG DA63-08772B Contact Us For Availability

30-2

Amana refrigerator screw SMG 6002-001204 Contact Us For Availability

30-3

DA31-00334B Samsung Refrigerator 12035GE-12M- Backorder SMG DA31-00334B $116.37

30-4

DA32-00070K Samsung Refrigerator Temperature Backorder SMG DA32-00070K $34.10

30-6

ASSY ANGLE SHELF-REF MIDDLE;RF Backorder SMG DA97-17944B $154.85

33

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $6.05

39

DA62-04678D Samsung Refrigerator Step Valve Backorder SMG DA62-04678D $134.81

42

DA99-04158A Samsung Refrigerator Accessory Ad In Stock SMG DA99-04158A $22.04

42-1

DA60-00314A Samsung Refrigerator Hinge Fasten Backorder SMG DA60-00314A $2.16

43

DA92-00486A Samsung Refrigerator Module Assem In Stock SMG DA92-00486A $146.34

46

DA92-00941A Samsung Refrigerator Y-Cap Filter Backorder SMG DA92-00941A $75.36

1131

Case ice route SMG DA61-11734A Contact Us For Availability

1132

Non-serviceable part SMG N/P Contact Us For Availability

1134

DA31-00079D Samsung Refrigerator Geared Dispe In Stock SMG DA31-00079D $104.59

1151

DA66-00440A Samsung Refrigerator Auto Close R In Stock SMG DA66-00440A $1.69

2931

Grommet SMG DA63-40305A Contact Us For Availability

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $19.57

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $1.32

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $7.55

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.69

DA61-03176A Samsung Refrigerator Pantry Suppo Backorder SMG DA61-03176A $1.69

DA61-09549A Samsung Fixer Assembly Backorder SMG DA61-09549A $7.57

DA61-09550A Samsung Fixer Assembly Backorder SMG DA61-09550A $6.47

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.69

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.69

DA97-15998A Samsung Refrigerator Roller Assem Backorder SMG DA97-15998A $9.18

Samsung refrigerator water filter SMG HAF-QIN Contact Us For Availability
