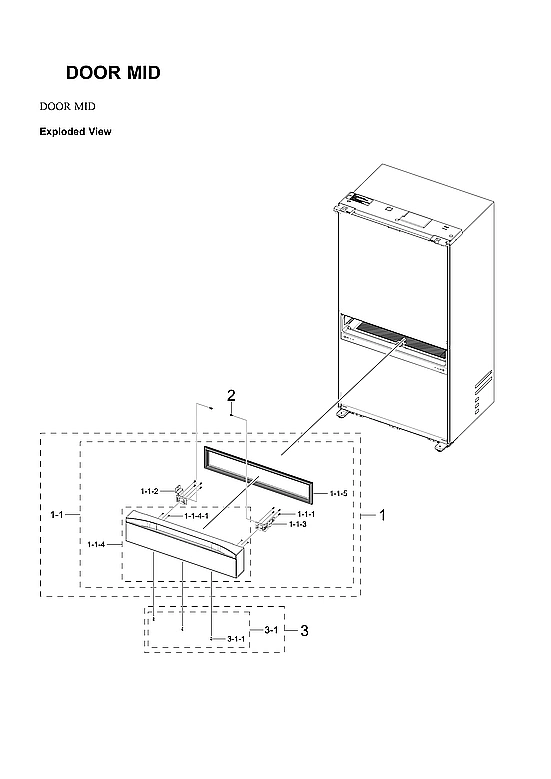

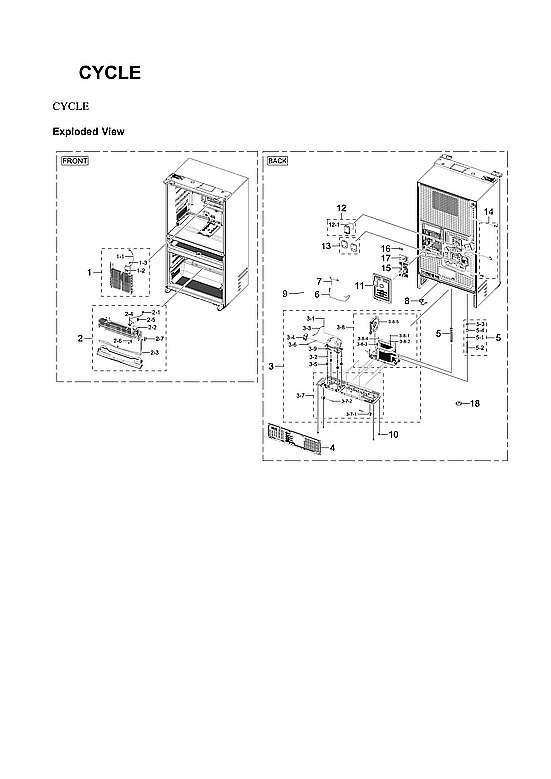

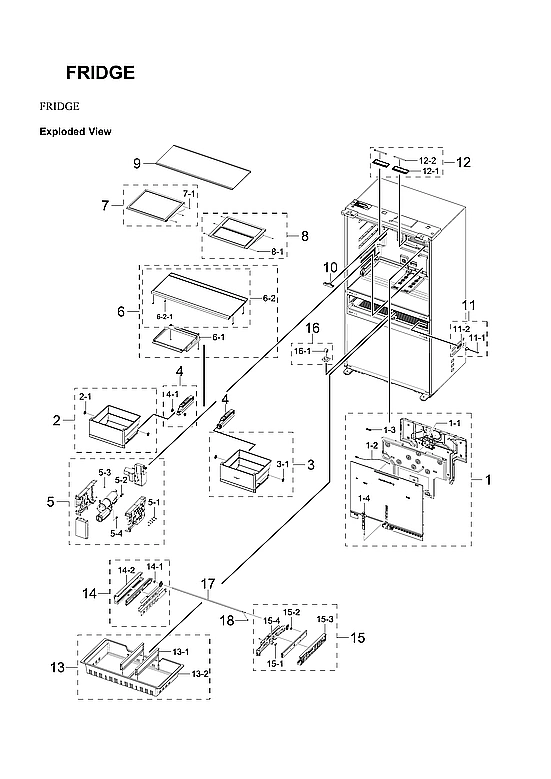

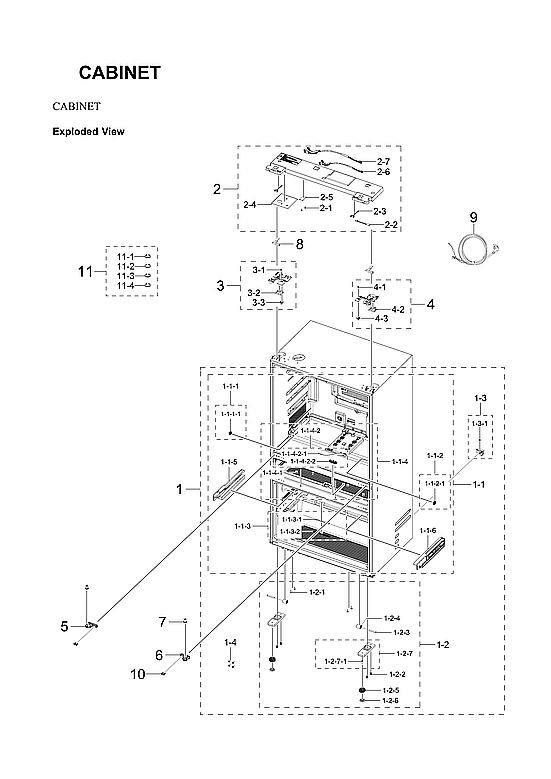

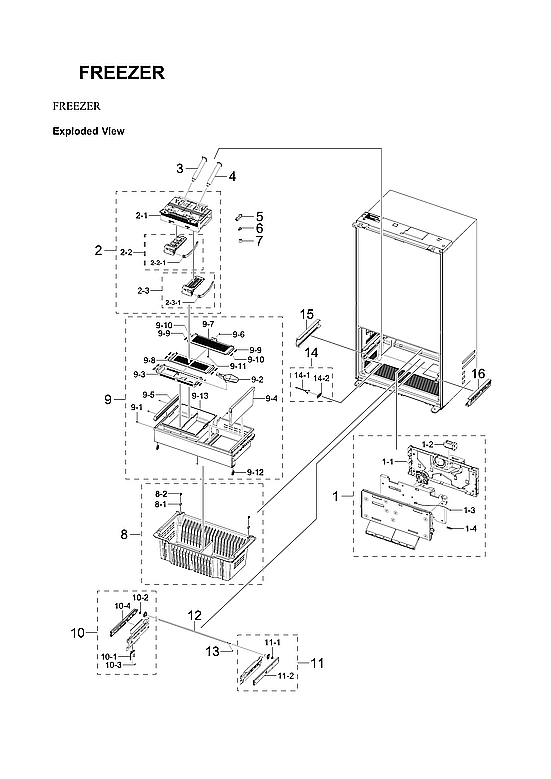

Model Samsung RF23BB8900AW/AA-00 Refrigerator – Common Parts &amp; Diagrams

1

DA97-22973A Samsung Refrigerator Evaporator C Backorder SMG DA97-22973A $319.92

1

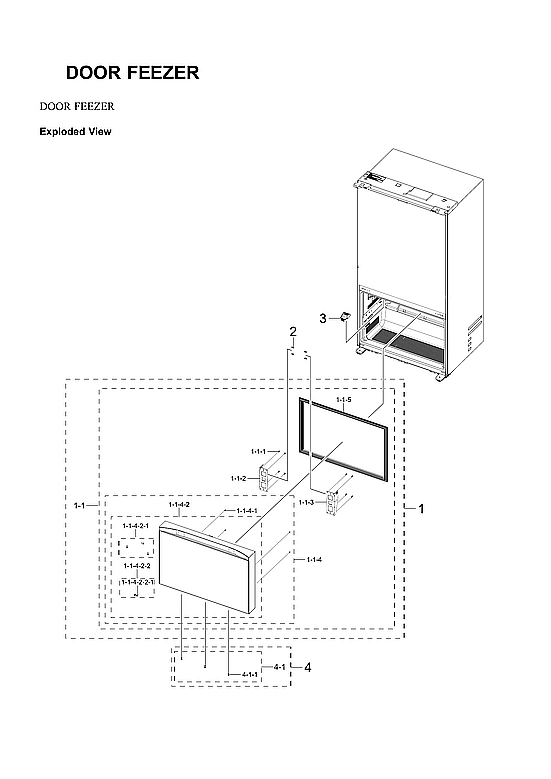

Assy door sub-fre SMG DA93-01236E Contact Us For Availability

1

ASSY DOOR SUB-REF LEFT SMG DA93-01230H Contact Us For Availability

1

Assy door sub-middle SMG DA93-01235E Contact Us For Availability

1

ASSY DOOR SUB-REF RIGHT SMG DA93-01234C Contact Us For Availability

DA31-00334D Samsung Refrigerator BLDC Fan Mot Backorder SMG DA31-00334D $147.82

DA32-00070M Samsung Refrigerator Temperature Backorder SMG DA32-00070M $31.86

Assy door sub-fre door module SMG DA93-01226A Contact Us For Availability

Assy door sub-middle door module SMG DA93-01225A Contact Us For Availability

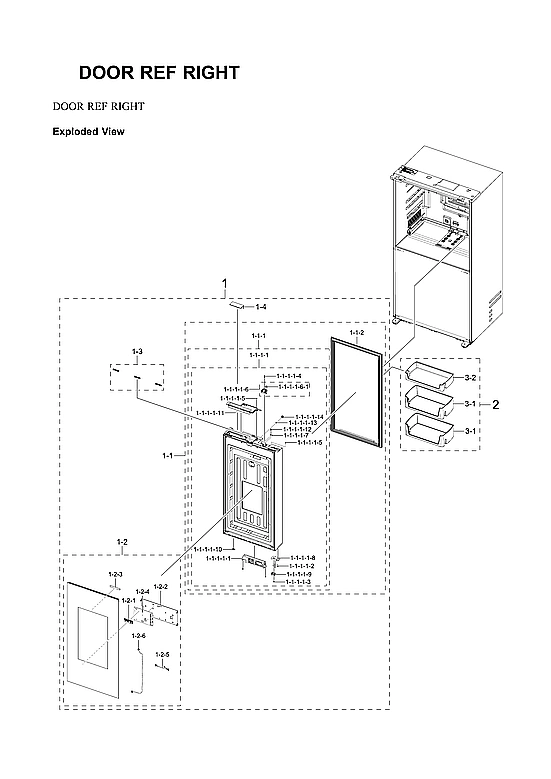

ASSY DOOR SUB-REF RIGHT DOOR MODULE SMG DA93-01224A Contact Us For Availability

1-1-1

DA91-06110A Samsung Refrigerator Right Door F Backorder SMG DA91-06110A $305.27

1-1-1-1

ASSY PLATE DOOR-REF RIGHT SMG DA97-23006A Contact Us For Availability

1-1-2

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $98.61

1-1-2

DA61-09248A Samsung Refrigerator Left Middle Backorder SMG DA61-09248A $54.45

1-1-2

DA97-21890B Samsung Refrigerator Dark Gray Ga Backorder SMG DA97-21890B $223.50

1-1-3

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $109.77

1-1-3

DA61-09249A Samsung Refrigerator Hanger Front Backorder SMG DA61-09249A $40.26

1-1-4

DA91-06107A Samsung Refrigerator Middle Door Backorder SMG DA91-06107A $211.76

1-1-4

DA91-06108A Samsung Refrigerator Foam Door As Backorder SMG DA91-06108A $285.34

1-1-4-1

Tapping screw SMG 6002-001149 Contact Us For Availability

1-1-4-2

DA97-08608A Samsung Refrigerator Sensor Cover Backorder SMG DA97-08608A $32.41

1-1-4-2

Assy plate door-fre SMG DA97-23003A Contact Us For Availability

1-1-5

DA97-23011A Samsung Refrigerator Middle Gaske Backorder SMG DA97-23011A $193.40

1-1-5

DA97-23012A Samsung Refrigerator Gasket Assem Backorder SMG DA97-23012A $216.05

DA32-00070A Samsung Refrigerator Temperature Backorder SMG DA32-00070A $17.88

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

DA99-04371N Samsung Refrigerator Custom Panel Backorder SMG DA99-04371N $1,351.75

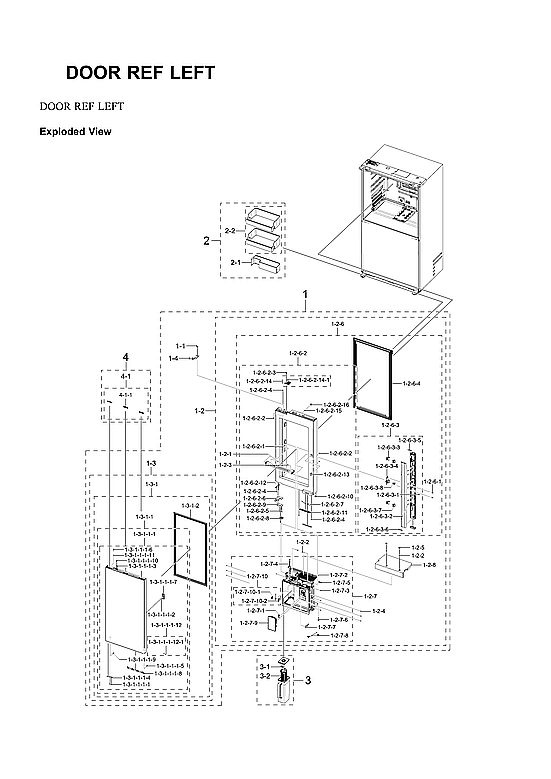

ASSY DOOR SUB-REF IN LEFT DOOR MODULE SMG DA93-01228B Contact Us For Availability

1-2-1

6001-000715 Samsung Machine Screw Backorder SMG 6001-000715 $12.24

1-2-1

NON-SERVICEABLE PART SMG N/P Contact Us For Availability

1-2-2

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $1.18

1-2-2

DA60-10123E Samsung Refrigerator Hex Bolt M6 Backorder SMG DA60-10123E $2.23

1-2-2

DA63-09838A Samsung Cover Display-Rear;Rf9500 Backorder SMG DA63-09838A $82.53

1-2-3

6002-000244 Samsung Tapping Screw Backorder SMG 6002-000244 $1.69

1-2-3

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.07

1-2-3

DA92-01368A Samsung Assembly PBA Voice Module Backorder SMG DA92-01368A $76.83

1-2-4

6002-001547 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001547 $1.69

1-2-4

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.99

1-2-4

DA94-06039D Samsung Assy Pcb Eeprom;dat6 0x01 Backorder SMG DA94-06039D $496.06

1-2-5

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $9.22

1-2-5

DA67-30266Q Samsung Cap Screw Backorder SMG DA67-30266Q $75.44

1-2-5

WIRE HARNESS SMG DA96-01368B Contact Us For Availability

1-2-6

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.79

1-2-6

ASSY DOOR SUB-REF IN LEFT SMG DA93-01262B Contact Us For Availability

1-2-6

WIRE HARNESS SMG DA96-01421C Contact Us For Availability

1-2-6-1

6002-001406 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001406 $1.18

1-2-6-2

DA91-05462D Samsung Refrigerator Left Side Fo Backorder SMG DA91-05462D $305.92

1-2-6-3

DA97-17723L Samsung French Refrigerator Assem Backorder SMG DA97-17723L $393.47

1-2-7

DA97-17399U Samsung Assy Case Inner;rf7000ac, Backorder SMG DA97-17399U $389.21

1-2-7-1

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $17.83

1-2-7-2

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $1.18

1-2-7-4

DA34-00043M Samsung Refrigerator Reed Switch Backorder SMG DA34-00043M $33.53

1-2-7-5

DA61-11032A Samsung Refrigerator Fixer Assemb Backorder SMG DA61-11032A $7.45

1-2-7-6

DA61-13987A Samsung CASE DISPENSER;RS5000T,ST Backorder SMG DA61-13987A $114.02

1-2-7-7

DA67-04504D Samsung Refrigerator Tube Cap Fix Backorder SMG DA67-04504D $8.51

1-2-7-8

DA96-01471C Samsung Assy Wire Harness-Dispens Backorder SMG DA96-01471C $111.07

1-2-7-9

DA97-17297C Samsung Refrigerator Dispenser Le Backorder SMG DA97-17297C $114.50

1-2-8

DA97-21788A Samsung Basket Cover Assembly Backorder SMG DA97-21788A $231.15

DA32-00070B Samsung Refrigerator Temperature Backorder SMG DA32-00070B $14.77

FIXER;RT5000K,PA66,-,WHITE,-,K Backorder SMG DA61-11034A $22.36

DA63-09686A Samsung Refrigerator Dark ABS Doo Backorder SMG DA63-09686A $5.54

ASSY DOOR SUB-REF OUT LEFT SMG DA93-01231G Contact Us For Availability

1-3-1

ASSY DOOR SUB-REF OUT LEFT DOOR MODULE SMG DA93-01227A Contact Us For Availability

1-3-1-1

DA91-06109A Samsung Refrigerator Left Outer D Backorder SMG DA91-06109A $284.80

1-3-1-2

DA97-22008A Samsung Refrigerator Gasket Assem Backorder SMG DA97-22008A $203.85

1-4

DA61-14455A Samsung Refrigerator Angle Shelf Backorder SMG DA61-14455A $150.59

1-4

DA63-08449B Samsung Refrigerator Lock Cover Backorder SMG DA63-08449B $15.98

1-4

DA97-20039C Samsung Refrigerator Left Upper H Backorder SMG DA97-20039C $141.98

2

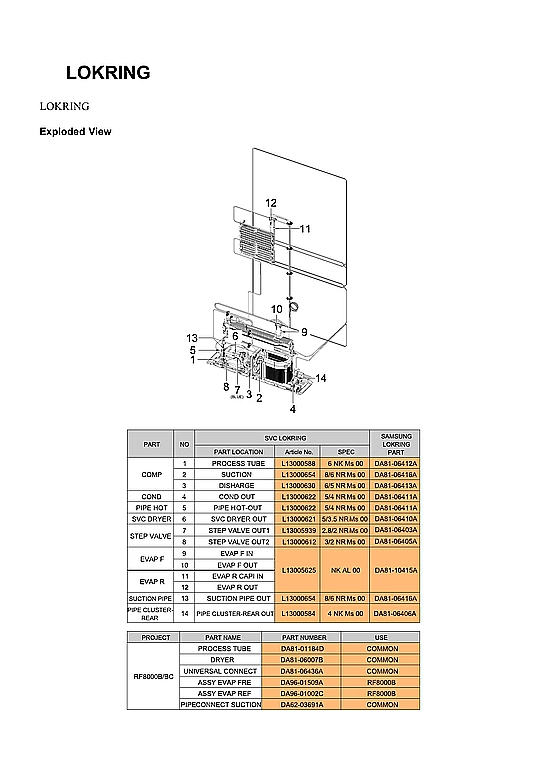

L13000654 American Vulkan Lokring Brass Reduc In Stock ALC L13000654 $5.87

2

6011-001656 Samsung Refrigerator Hex Bolt Backorder SMG 6011-001656 $1.69

2

DA97-21878M Samsung Assy Case Veg;Rf9000Ac,Ve Backorder SMG DA97-21878M $126.19

2

ASSY GUARD PACKING-DOOR BIN MODULE SMG DA97-22181A Contact Us For Availability

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $24.87

DA97-19988A Samsung Refrigerator Roller Assem Backorder SMG DA97-19988A $98.02

DA97-21914A Samsung Refrigerator Low Ref Guar Backorder SMG DA97-21914A $84.72

2-2

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $78.50

2-2

DA47-00301B Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301B $29.65

2-2

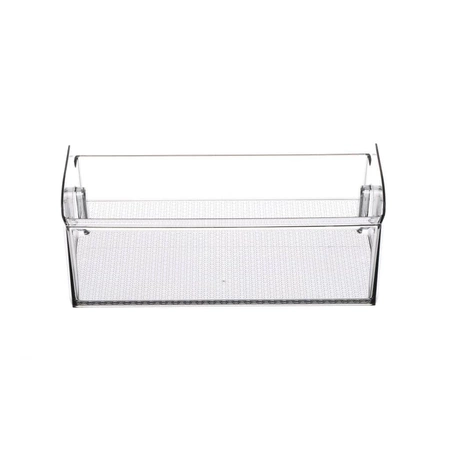

DA97-21960A Samsung Refrigerator Middle Ref G Backorder SMG DA97-21960A $115.27

3

L13000630 American Vulkan Lokring Refrigerati In Stock ALC L13000630 $5.87

3

DA97-21261K Samsung Refrigerator Water Filter Backorder SMG DA97-21261K $274.74

3

DA97-21878B Samsung Refrigerator Low Vegetabl Backorder SMG DA97-21878B $154.03

3

DA97-23024A Samsung Refrigerator Stopper Asse Backorder SMG DA97-23024A $95.52

3

Assy manual SMG DA98-03263H Contact Us For Availability

6006-001170 Samsung Appliance Tapping Screw T Backorder SMG 6006-001170 $1.69

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $6.71

DA91-05369L Samsung Refrigerator Installation Backorder SMG DA91-05369L $55.70

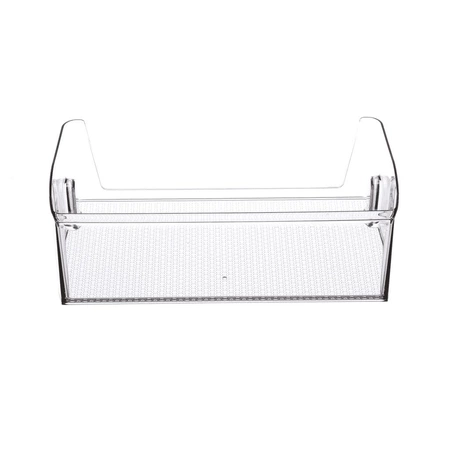

DA97-21915A Samsung Refrigerator Guard Assemb Backorder SMG DA97-21915A $90.53

3-1-1

DA67-04961A Samsung Refrigerator Cap Screw As Backorder SMG DA67-04961A $67.94

3-2

DA61-15091A Samsung Refrigerator Filter Case Backorder SMG DA61-15091A $44.04

3-2

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.60

3-2

DA97-22566A Samsung Refrigerator Guard Assemb Backorder SMG DA97-22566A $116.98

3-7-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.77

3-7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $5.54

4

L13000622 American Vulkan Lokring Refrigerati In Stock ALC L13000622 $7.26

4

DA97-21876A Samsung Refrigerator Middle Left Backorder SMG DA97-21876A $64.71

5

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $22.92

5

COVER COMP SMG DA97-04049E No Longer Available

5

DA97-23026A Samsung Refrigerator Case Filter Backorder SMG DA97-23026A $407.98

5-1

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

5-2

DA60-00393A Samsung Refrigerator Tube Fitting Backorder SMG DA60-00393A $33.82

5-3

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.69

5-4

DA62-02414A Samsung Refrigerator Fitting Tube Backorder SMG DA62-02414A $21.29

6

L13000621 American Vulkan Lokring .197 or 3/1 In Stock ALC L13000621 $6.37

6

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $31.82

6

ASSY SHELF VEG-LOW SMG DA97-21902M Contact Us For Availability

6-1

COVER VEG-UP SMG DA63-11228A Contact Us For Availability

6-2

DA97-21902L Samsung Refrigerator Low Veg Shel Backorder SMG DA97-21902L $182.20

6-2-1

DA64-03784A Samsung Refrigerator Shelf Trim Backorder SMG DA64-03784A $53.16

7

L13000612 American Vulkan Lokring .118" to .0 In Stock ALC L13000612 $7.69

7

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.86

7

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $21.80

7

DA97-22970A Samsung Assembly SHELF INSERT-REF Backorder SMG DA97-22970A $146.96

7-1

6002-001397 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001397 $1.18

8

DA61-04932B Samsung Refrigerator Hinge Fixer Backorder SMG DA61-04932B $15.65

8

DA97-21895A Samsung Refrigerator Quick Space In Stock SMG DA97-21895A $268.20

9

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $63.58

9

DA81-10415A Samsung Refrigerator Lock Ring As In Stock SMG DA81-10415A $157.88

9

DA97-21898A Samsung Refrigerator Upper Shelf Backorder SMG DA97-21898A $294.33

9-7

DA63-11587A Samsung Cover Front-Up;Rf8000Bc,H Backorder SMG DA63-11587A $157.27

9-8

DA63-11590A Samsung Refrigerator Rear Cover A Backorder SMG DA63-11590A $133.32

9-9

DA63-11592A Samsung GROMMET-A;RF8000BC,POM,NA Backorder SMG DA63-11592A $2.14

9-10

DA63-11593A Samsung Refrigerator Grommet Backorder SMG DA63-11593A $2.14

9-11

Grommet SMG DA63-40305A Contact Us For Availability

9-12

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $5.59

9-13

DA97-23081A Samsung Refrigerator Ice Case Ass Backorder SMG DA97-23081A $193.40

10

6003-001727 Samsung Refrigerator Television T Backorder SMG 6003-001727 $2.23

10

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $6.15

10

DA97-13261D Samsung Refrigerator Low Left Rai Backorder SMG DA97-13261D $215.38

10-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $4.48

10-3

DA61-03769B Samsung Refrigerator Dispenser Dr Backorder SMG DA61-03769B $3.35

10-4

DA61-08818A Samsung Refrigerator Low Slide Ra Backorder SMG DA61-08818A $198.91

11

DA97-13262B Samsung Refrigerator Low Slide Ra Backorder SMG DA97-13262B $239.86

11

DA97-13783A Samsung Refrigerator Assembly Cov Backorder SMG DA97-13783A $29.07

11

DA99-04158A Samsung Refrigerator Accessory Ad In Stock SMG DA99-04158A $82.29

11-1

DA60-00314A Samsung Refrigerator Hinge Fasten Backorder SMG DA60-00314A $1.69

11-2

DA61-08819A Samsung Refrigerator Low Slide Ra Backorder SMG DA61-08819A $170.37

11-2

DA63-07513A Samsung Refrigerator Reed Switch Backorder SMG DA63-07513A $6.39

12

DA66-00437H Samsung Refrigerator Shaft Backorder SMG DA66-00437H $34.81

12

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.32

12

DA97-21951A Samsung Cover Lamp Assembly Backorder SMG DA97-21951A $49.56

12-1

COVER LAMP-REF (2) SMG DA63-11218A Contact Us For Availability

12-2

DA96-01119B Samsung Refrigerator LED Lamp Backorder SMG DA96-01119B $116.07

13

ASSY CASE CONVERTIBLE SMG DA97-22987A Contact Us For Availability

13-1

DA61-15161A Samsung Refrigerator Middle Guide Backorder SMG DA61-15161A $132.09

13-2

DA61-15163A Samsung Refrigerator Convertible Backorder SMG DA61-15163A $270.87

14

L13000584 American Vulkan Lokring Refrigerati In Stock ALC L13000584 $4.43

14

DA97-13779E Samsung Refrigerator Middle Left Backorder SMG DA97-13779E $193.79

14-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $30.12

14-1

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.69

14-2

DA63-07515A Samsung Cover Rail Middle Left As Backorder SMG DA63-07515A $56.82

15

DA63-04942A Samsung Refrigerator Freezer Cove Backorder SMG DA63-04942A $72.15

15

RAIL-MIDDLE SMG DA97-13778E Contact Us For Availability

15-3

DA63-11579A Samsung Cover Rail-Middle Right;r Backorder SMG DA63-11579A $58.23

15-4

DA63-11585A Samsung Cover Fixer Magnet;rf8000 Backorder SMG DA63-11585A $3.74

16

DA63-04941A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-04941A $69.63

16

DA97-23068A Samsung Refrigerator Roller Assem Backorder SMG DA97-23068A $7.45

16-1

DA66-00276B Samsung Roller Vegetable Backorder SMG DA66-00276B $1.18

17

DA66-00733B Samsung Refrigerator Shaft Backorder SMG DA66-00733B $154.96

11111

3001-002863 Samsung Speaker;4ohm, 803db, 20 Backorder SMG 3001-002863 $175.10

11112

6001-000570 Samsung Machine Screw Backorder SMG 6001-000570 $1.69

11113

Refrigerator Screw SMG 6002-000538 Contact Us For Availability

11114

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $1.76

11118

DA61-09952B Samsung Refrigerator Door Stopper Backorder SMG DA61-09952B $11.19

11119

DA61-13385A Samsung Refrigerator Door Close S Backorder SMG DA61-13385A $5.04

11421

DA32-00033C Samsung Refrigerator Temperature In Stock SMG DA32-00033C $26.43

11422

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $5.04

11422

Assy lever handle SMG DA97-22986A Contact Us For Availability

12622

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $1.18

12624

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

12625

6009-001475 Samsung Refrigerator Special Scre Backorder SMG 6009-001475 $1.18

12626

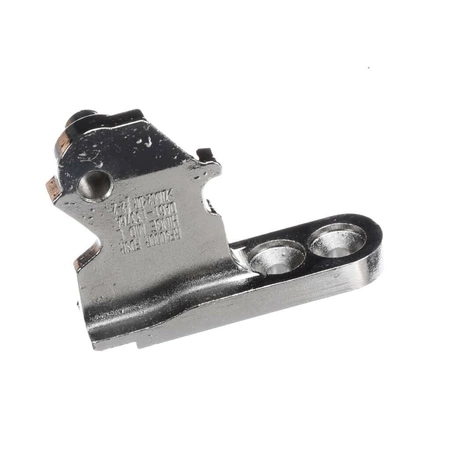

DA97-20041B Samsung Refrigerator Low Left Hin Backorder SMG DA97-20041B $145.56

12627

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $21.17

12629

DA61-13422A Samsung Refrigerator Low Door Sto Backorder SMG DA61-13422A $67.80

12633

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $6.77

12634

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $8.38

12635

DA63-06959A Samsung Refrigerator Upper French Backorder SMG DA63-06959A $5.85

12636

DA63-08421A Samsung Gasket Low French Backorder SMG DA63-08421A $10.65

12637

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $5.04

12638

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.33

13111

ASSY PLATE DOOR-REF OUT LEFT SMG DA97-23004A Contact Us For Availability

111110

DA63-04825B Samsung Refrigerator Grommet Cap Backorder SMG DA63-04825B $2.79

111111

Refrigerator Grommet SMG DA63-11578A Contact Us For Availability

111113

6021-000258 Samsung Hexagon Nut Backorder SMG 6021-000258 $1.18

111114

DA97-20572A Samsung Assy Fixer-Up Backorder SMG DA97-20572A $9.05

126211

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $41.02

126212

DA63-11272A Samsung Refrigerator Left Door Co Backorder SMG DA63-11272A $43.75

126213

DA66-01342A Samsung Refrigerator Lever Backorder SMG DA66-01342A $7.82

126214

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $22.75

127101

DA61-07581A Samsung Refrigerator LED Case Lam Backorder SMG DA61-07581A $2.66

127102

DA63-06505A Samsung Cover LED Lamp Backorder SMG DA63-06505A $2.66

131113

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $3.07

131114

DA61-13384A Samsung Refrigerator Door Stopper Backorder SMG DA61-13384A $22.92

131115

GROMMET-COVE SMG DA63-02750B Contact Us For Availability

131116

DA63-07545B Samsung Refrigerator Middle Hinge Backorder SMG DA63-07545B $3.35

131117

COVER LOCK SMG DA63-09537A Contact Us For Availability

131118

DA63-09639A Samsung Door Cap Cover Backorder SMG DA63-09639A $17.58

131119

DA63-09942A Samsung Door Grommet Backorder SMG DA63-09942A $2.66

1262141

DA66-00440A Samsung Refrigerator Auto Close R Backorder SMG DA66-00440A $1.69

1311110

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $1.69

1311111

DA73-00211A Samsung Refrigerator Hose Rubber Backorder SMG DA73-00211A $1.18

1311112

ASSY LEVER HANDLE SMG DA97-22967A Contact Us For Availability

DA62-03691A Samsung Refrigerator Suction Pipe Backorder SMG DA62-03691A $95.15

DA81-01184D Samsung Refrigerator Check Plug A Backorder SMG DA81-01184D $25.00

DA81-06007B Samsung Refrigerator Dryer Assemb Backorder SMG DA81-06007B $127.51

DA81-06436A Samsung Pipe Connection Assembly Backorder SMG DA81-06436A $25.70

DA96-01002C Samsung Refrigerator Evaporator M Backorder SMG DA96-01002C $225.08

DA96-01509A Samsung Refrigerator EVAP-FRE Mod Backorder SMG DA96-01509A $329.35

Samsung Refrigerator Water Filter SMG HAF-QIN Contact Us For Availability
