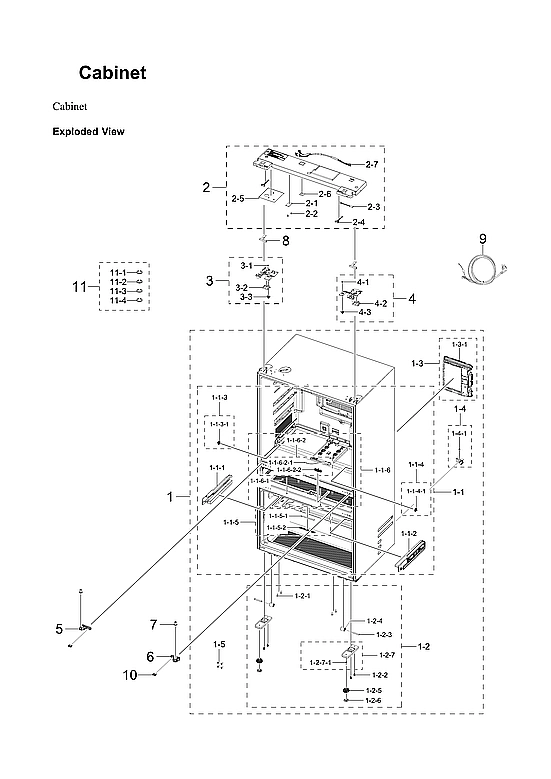

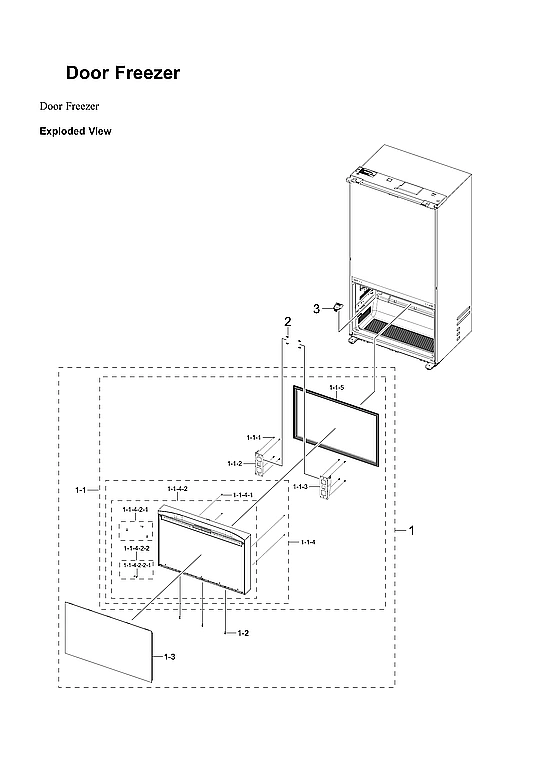

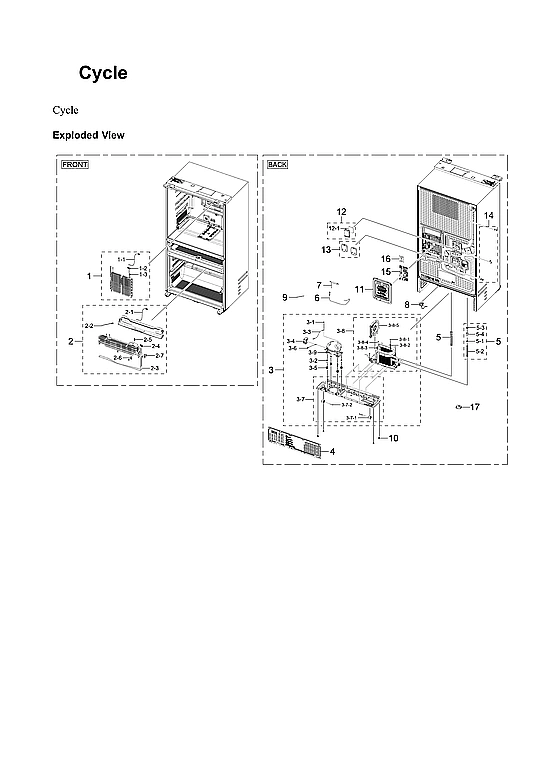

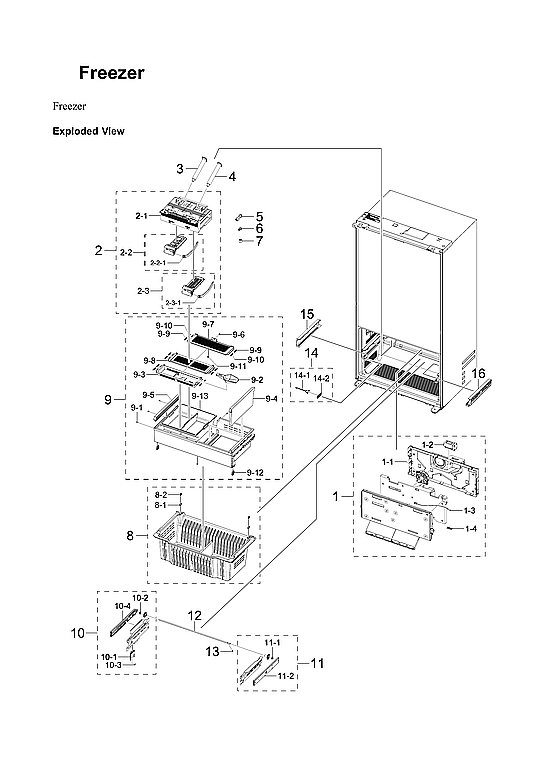

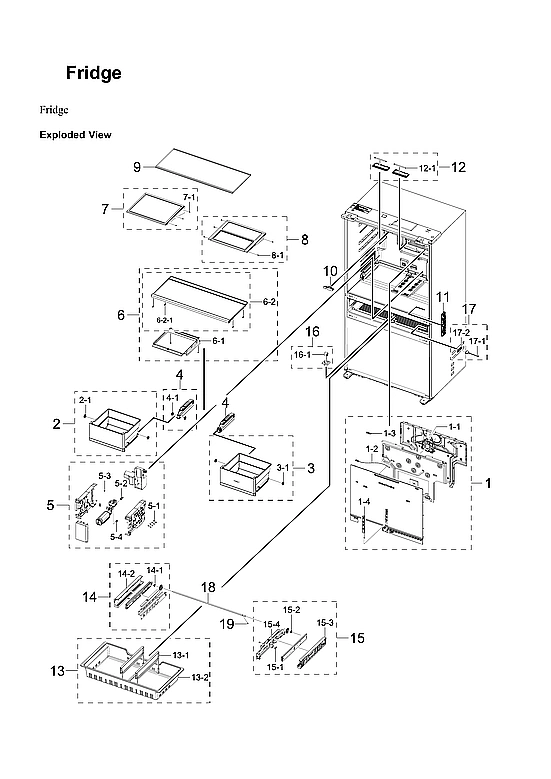

Model Samsung RF23BB8200QL/AA-00 Refrigerator – Common Parts &amp; Diagrams

1

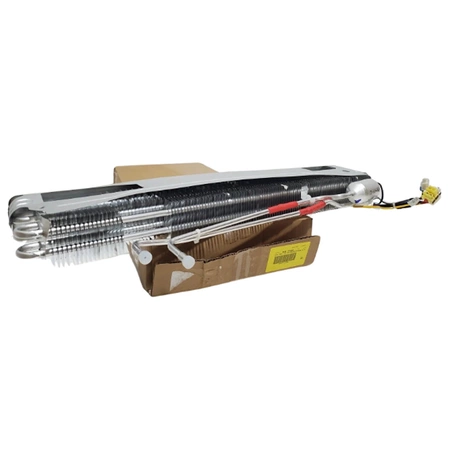

DA97-22973A Samsung Refrigerator Evaporator C Backorder SMG DA97-22973A $319.92

1

Assy door sub-fre SMG DA93-01236A Contact Us For Availability

1

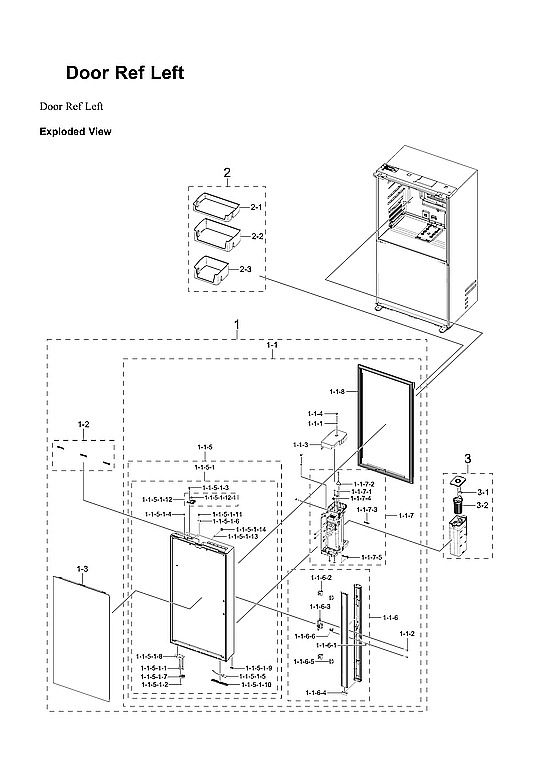

ASSY DOOR SUB-REF LEFT SMG DA93-01229A Contact Us For Availability

1

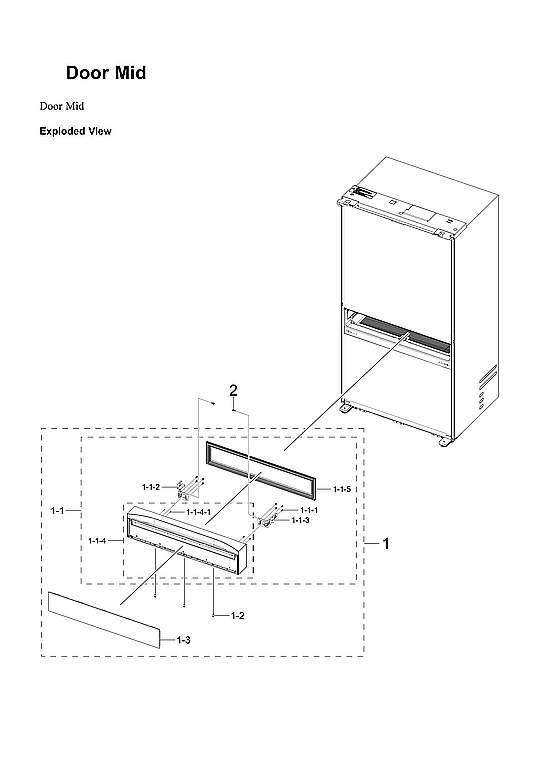

Assy door sub-middle SMG DA93-01235A Contact Us For Availability

1

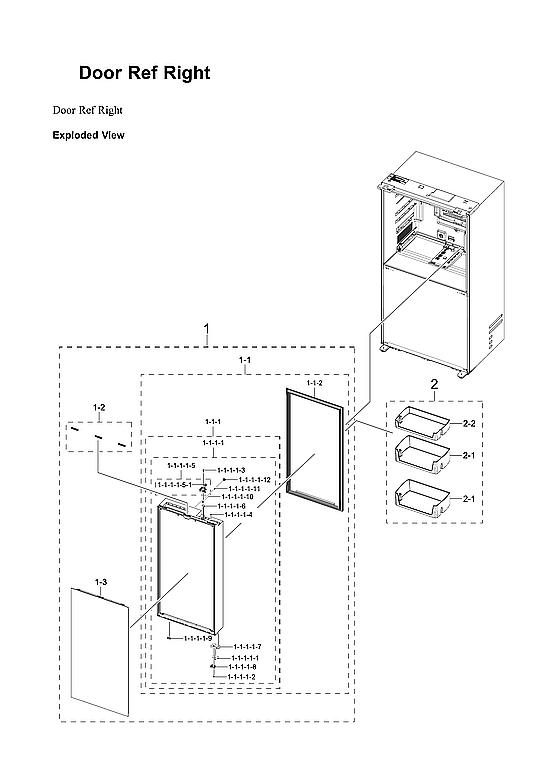

Assy door sub-ref right SMG DA93-01233A Contact Us For Availability

DA31-00334D Samsung Refrigerator BLDC Fan Mot Backorder SMG DA31-00334D $147.82

DA32-00070M Samsung Refrigerator Temperature Backorder SMG DA32-00070M $31.86

Assy door sub-fre door module SMG DA93-01226A Contact Us For Availability

ASSY DOOR SUB-REF LEFT DOOR MODULE SMG DA93-01221A Contact Us For Availability

Assy door sub-middle door module SMG DA93-01225A Contact Us For Availability

Assy door sub-ref right door module SMG DA93-01223A Contact Us For Availability

1-1-1

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $1.18

1-1-1

DA91-06111A Samsung Right Door Foam Assembly Backorder SMG DA91-06111A $253.45

1-1-1-1

Assy plate door-ref right SMG DA97-23001A Contact Us For Availability

6002-001406 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001406 $1.18

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $98.61

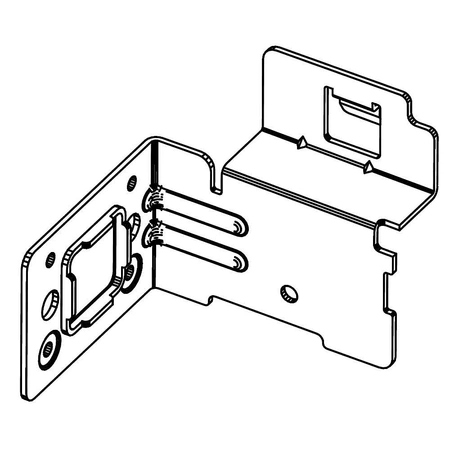

DA61-09248A Samsung Refrigerator Left Middle Backorder SMG DA61-09248A $54.45

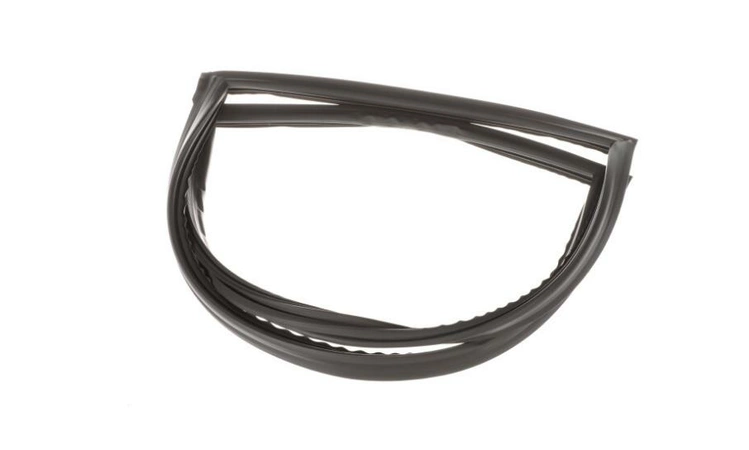

DA97-21890B Samsung Refrigerator Dark Gray Ga Backorder SMG DA97-21890B $223.50

1-1-3

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $109.77

1-1-3

DA61-09249A Samsung Refrigerator Hanger Front Backorder SMG DA61-09249A $40.26

1-1-3

DA63-11213A Samsung Refrigerator Autofill Cov Backorder SMG DA63-11213A $136.47

1-1-4

DA67-30266Q Samsung Cap Screw Backorder SMG DA67-30266Q $75.44

1-1-4

DA91-06107A Samsung Refrigerator Middle Door Backorder SMG DA91-06107A $211.76

1-1-4

DA91-06108A Samsung Refrigerator Foam Door As Backorder SMG DA91-06108A $285.34

1-1-4-1

Tapping screw SMG 6002-001149 Contact Us For Availability

1-1-4-2

Assy plate door-fre SMG DA97-23003A Contact Us For Availability

1-1-5

DA91-06105A Samsung Refrigerator Left Door Fo Backorder SMG DA91-06105A $284.37

1-1-5

DA97-23011A Samsung Refrigerator Middle Gaske Backorder SMG DA97-23011A $193.40

1-1-5

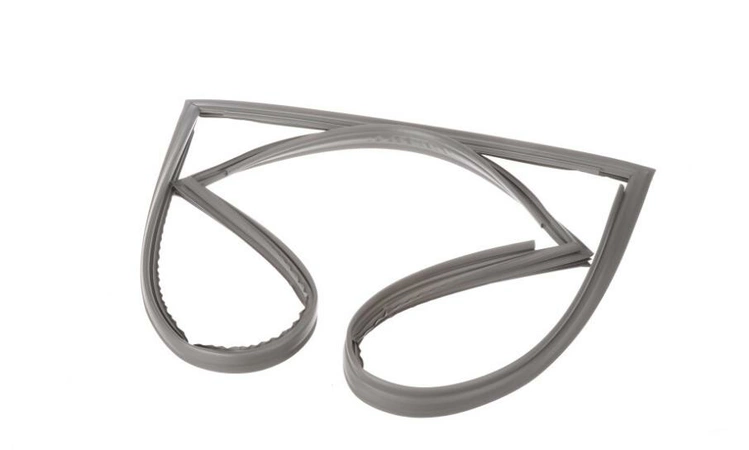

DA97-23012A Samsung Refrigerator Gasket Assem Backorder SMG DA97-23012A $216.05

1-1-5-1

ASSY PLATE DOOR-REF LEFT SMG DA97-22999A Contact Us For Availability

1-1-6

DA97-14049G Samsung Refrigerator French Door Backorder SMG DA97-14049G $196.92

1-1-6-2

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $6.77

1-1-6-2

DA97-08608A Samsung Refrigerator Sensor Cover Backorder SMG DA97-08608A $32.41

1-1-6-3

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $8.38

1-1-6-4

DA63-08421A Samsung Gasket Low French Backorder SMG DA63-08421A $10.65

1-1-6-5

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $5.04

1-1-6-6

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.33

1-1-7

DA97-17399F Samsung Refrigerator Inner Case Backorder SMG DA97-17399F $245.13

1-1-7-2

DA34-00043M Samsung Refrigerator Reed Switch Backorder SMG DA34-00043M $33.53

1-1-7-3

DA61-11032A Samsung Refrigerator Fixer Assemb Backorder SMG DA61-11032A $7.45

1-1-7-4

DA62-03914C Samsung Fitting Tube;Pom,Id1/4,1/ Backorder SMG DA62-03914C $71.30

1-1-7-5

DA67-04504D Samsung Refrigerator Tube Cap Fix Backorder SMG DA67-04504D $8.51

DA32-00070A Samsung Refrigerator Temperature Backorder SMG DA32-00070A $17.88

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

DA63-09686A Samsung Refrigerator Dark ABS Doo Backorder SMG DA63-09686A $5.54

DA67-04961A Samsung Refrigerator Cap Screw As Backorder SMG DA67-04961A $67.94

1-2-2

DA60-10123E Samsung Refrigerator Hex Bolt M6 Backorder SMG DA60-10123E $2.23

1-2-3

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.07

1-2-4

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.99

1-2-5

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $9.22

1-2-6

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.79

DA32-00070B Samsung Refrigerator Temperature Backorder SMG DA32-00070B $14.77

FIXER;RT5000K,PA66,-,WHITE,-,K Backorder SMG DA61-11034A $22.36

DA99-05047A Samsung Refrigerator Custom Panel Backorder SMG DA99-05047A $182.95

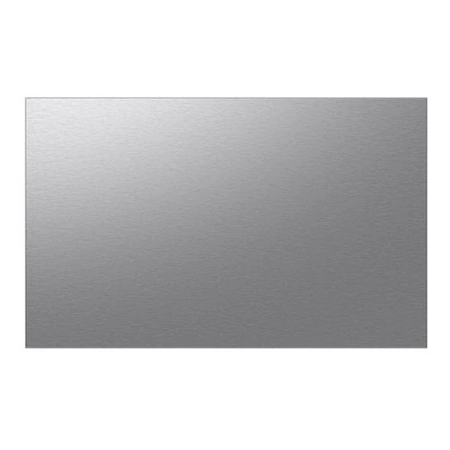

DA99-05049A Samsung Refrigerator Custom Panel Backorder SMG DA99-05049A $198.76

RA-F36DMMQL/AA Samsung Refrigerator French Do Backorder SMG RA-F36DMMQL/AA $220.76

1-4

DA61-14455A Samsung Refrigerator Angle Shelf Backorder SMG DA61-14455A $150.59

2

L13000654 American Vulkan Lokring Brass Reduc In Stock ALC L13000654 $5.87

2

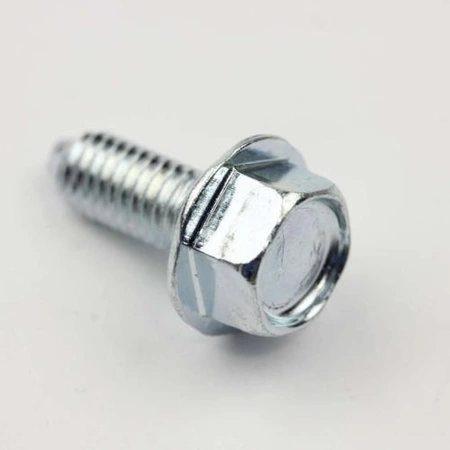

6011-001656 Samsung Refrigerator Hex Bolt Backorder SMG 6011-001656 $1.69

2

DA97-21878M Samsung Assy Case Veg;Rf9000Ac,Ve Backorder SMG DA97-21878M $126.19

2

ASSY GUARD PACKING-DOOR BIN MODULE SMG DA97-21907A Contact Us For Availability

2

Assy guard packing-door bin module SMG DA97-21906A Contact Us For Availability

2-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $24.87

2-1

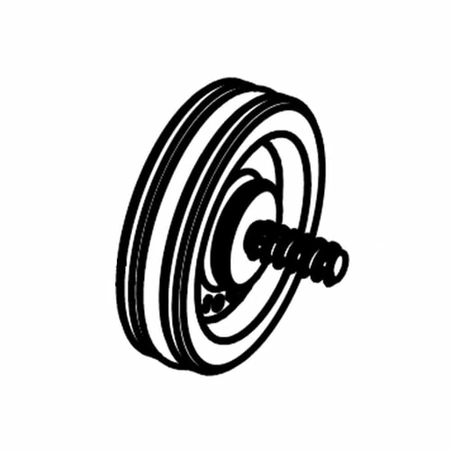

DA97-19988A Samsung Refrigerator Roller Assem Backorder SMG DA97-19988A $98.02

2-1

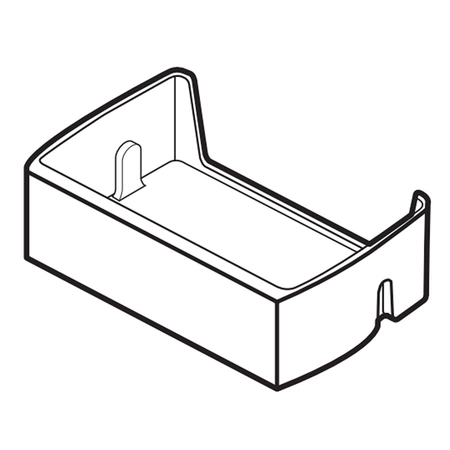

DA97-21912A Samsung Refrigerator Door Bin Ass Backorder SMG DA97-21912A $85.55

2-2

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

2-2

DA47-00301B Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301B $29.65

2-2

DA97-21916A Samsung Refrigerator Guard Assemb Backorder SMG DA97-21916A $98.98

2-3

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $78.50

2-3

DA97-21913A Samsung Refrigerator Guard Assemb Backorder SMG DA97-21913A $71.89

2-6

DA92-00817A Samsung Refrigerator Module Buzze Backorder SMG DA92-00817A $34.31

3

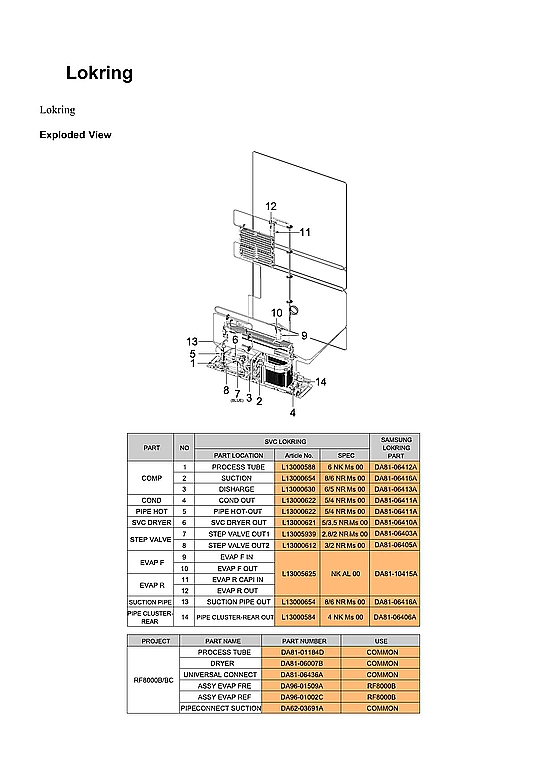

L13000630 American Vulkan Lokring Refrigerati In Stock ALC L13000630 $5.87

3

DA97-21261K Samsung Refrigerator Water Filter Backorder SMG DA97-21261K $274.74

3

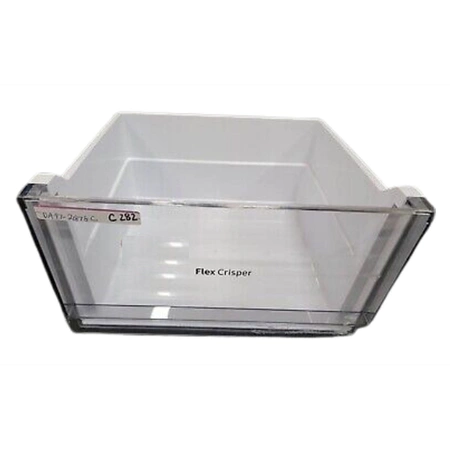

DA97-21878B Samsung Refrigerator Low Vegetabl Backorder SMG DA97-21878B $154.03

3

DA97-23024A Samsung Refrigerator Stopper Asse Backorder SMG DA97-23024A $95.52

3-1

6006-001170 Samsung Appliance Tapping Screw T Backorder SMG 6006-001170 $1.69

3-1

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $6.71

3-2

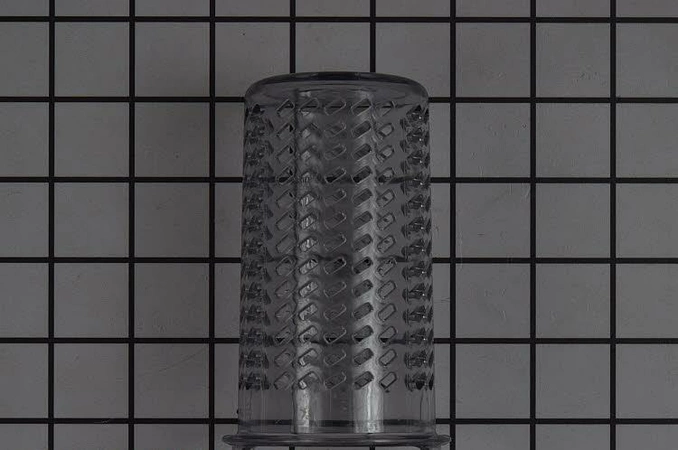

DA61-15091A Samsung Refrigerator Filter Case Backorder SMG DA61-15091A $44.04

3-2

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.60

3-7-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.77

3-7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $5.54

4

L13000622 American Vulkan Lokring Refrigerati In Stock ALC L13000622 $7.26

4

DA97-21876A Samsung Refrigerator Middle Left Backorder SMG DA97-21876A $64.71

5

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $22.92

5

COVER COMP SMG DA97-04049E No Longer Available

5

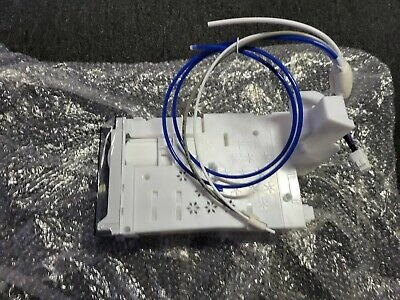

DA97-23063A Samsung Refrigerator Filter Case Backorder SMG DA97-23063A $385.12

5-1

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

5-2

DA60-00393A Samsung Refrigerator Tube Fitting Backorder SMG DA60-00393A $33.82

5-3

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.69

5-4

DA62-02414A Samsung Refrigerator Fitting Tube Backorder SMG DA62-02414A $21.29

6

L13000621 American Vulkan Lokring .197 or 3/1 In Stock ALC L13000621 $6.37

6

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $31.82

6

ASSY SHELF VEG-LOW SMG DA97-21902M Contact Us For Availability

6-1

COVER VEG-UP SMG DA63-11228A Contact Us For Availability

6-2

DA97-21902L Samsung Refrigerator Low Veg Shel Backorder SMG DA97-21902L $182.20

6-2-1

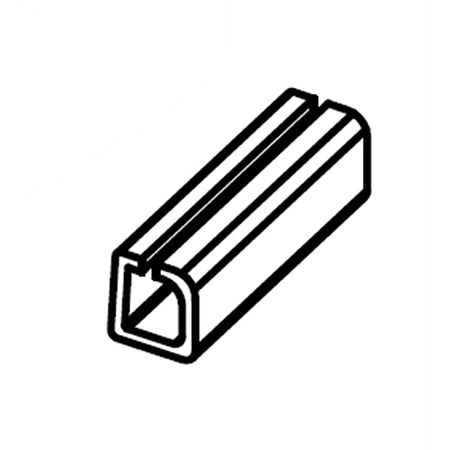

DA64-03784A Samsung Refrigerator Shelf Trim Backorder SMG DA64-03784A $53.16

7

L13000612 American Vulkan Lokring .118" to .0 In Stock ALC L13000612 $7.69

7

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.86

7

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $21.80

7

DA97-22970A Samsung Assembly SHELF INSERT-REF Backorder SMG DA97-22970A $146.96

7-1

6002-001397 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001397 $1.18

8

DA61-04932B Samsung Refrigerator Hinge Fixer Backorder SMG DA61-04932B $15.65

8

DA97-21895A Samsung Refrigerator Quick Space In Stock SMG DA97-21895A $268.20

8-2

DA71-20145A Samsung Refrigerator Roller Fixer Backorder SMG DA71-20145A $1.18

9

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $63.58

9

DA81-10415A Samsung Refrigerator Lock Ring As In Stock SMG DA81-10415A $157.88

9

DA97-21898A Samsung Refrigerator Upper Shelf Backorder SMG DA97-21898A $294.33

9

DA97-22996A Samsung Refrigerator Upper Tray Backorder SMG DA97-22996A $242.26

9-1

6002-000473 Samsung Tapping Screw Backorder SMG 6002-000473 $1.69

9-2

DA61-14309A Samsung Refrigerator Ice Scoop Ca Backorder SMG DA61-14309A $99.25

9-3

DA61-15174A Samsung Refrigerator Case Basket Backorder SMG DA61-15174A $209.14

9-4

DA61-15176A Samsung Guide Tray-Fre;rf8000bc, Backorder SMG DA61-15176A $90.96

9-5

DA61-15178A Samsung Rail-Left;rf8000bc, Hips, Backorder SMG DA61-15178A $43.10

9-6

DA63-11374A Samsung Refrigerator Door Grommet Backorder SMG DA63-11374A $6.91

9-7

DA63-11587A Samsung Cover Front-Up;Rf8000Bc,H Backorder SMG DA63-11587A $157.27

9-8

DA63-11590A Samsung Refrigerator Rear Cover A Backorder SMG DA63-11590A $133.32

9-9

DA63-11592A Samsung GROMMET-A;RF8000BC,POM,NA Backorder SMG DA63-11592A $2.14

9-10

DA63-11593A Samsung Refrigerator Grommet Backorder SMG DA63-11593A $2.14

9-11

Grommet SMG DA63-40305A Contact Us For Availability

9-12

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $5.59

9-13

DA97-23081A Samsung Refrigerator Ice Case Ass Backorder SMG DA97-23081A $193.40

10

6003-001727 Samsung Refrigerator Television T Backorder SMG 6003-001727 $2.23

10

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $6.15

10

DA97-13261D Samsung Refrigerator Low Left Rai Backorder SMG DA97-13261D $215.38

10-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $4.48

10-3

DA61-03769B Samsung Refrigerator Dispenser Dr Backorder SMG DA61-03769B $3.35

10-4

DA61-08818A Samsung Refrigerator Low Slide Ra Backorder SMG DA61-08818A $198.91

11

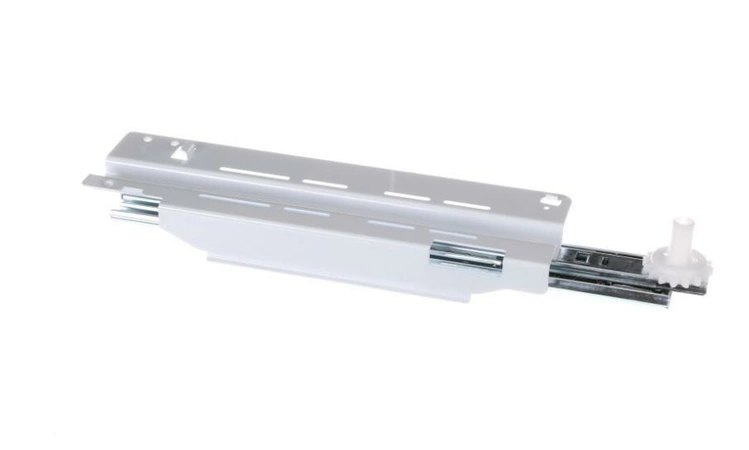

DA97-13262B Samsung Refrigerator Low Slide Ra Backorder SMG DA97-13262B $239.86

11

DA97-20552R Samsung Refrigerator Control Cove Backorder SMG DA97-20552R $199.50

11

DA99-04158A Samsung Refrigerator Accessory Ad In Stock SMG DA99-04158A $82.29

11-1

DA60-00314A Samsung Refrigerator Hinge Fasten Backorder SMG DA60-00314A $1.69

11-2

DA61-08819A Samsung Refrigerator Low Slide Ra Backorder SMG DA61-08819A $170.37

12

DA66-00437H Samsung Refrigerator Shaft Backorder SMG DA66-00437H $34.81

12

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.32

12

DA97-21951A Samsung Cover Lamp Assembly Backorder SMG DA97-21951A $49.56

12-1

DA96-01119B Samsung Refrigerator LED Lamp Backorder SMG DA96-01119B $116.07

13

ASSY CASE CONVERTIBLE SMG DA97-22987A Contact Us For Availability

13-1

DA61-15161A Samsung Refrigerator Middle Guide Backorder SMG DA61-15161A $132.09

13-2

DA61-15163A Samsung Refrigerator Convertible Backorder SMG DA61-15163A $270.87

14

L13000584 American Vulkan Lokring Refrigerati In Stock ALC L13000584 $4.43

14

DA97-13779E Samsung Refrigerator Middle Left Backorder SMG DA97-13779E $193.79

14-1

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.69

14-2

DA63-07515A Samsung Cover Rail Middle Left As Backorder SMG DA63-07515A $56.82

15

DA63-04942A Samsung Refrigerator Freezer Cove Backorder SMG DA63-04942A $72.15

15

RAIL-MIDDLE SMG DA97-13778E Contact Us For Availability

15-3

DA63-11579A Samsung Cover Rail-Middle Right;r Backorder SMG DA63-11579A $58.23

15-4

DA63-11585A Samsung Cover Fixer Magnet;rf8000 Backorder SMG DA63-11585A $3.74

16

DA63-04941A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-04941A $69.63

16

DA97-23068A Samsung Refrigerator Roller Assem Backorder SMG DA97-23068A $7.45

16-1

DA66-00276B Samsung Roller Vegetable Backorder SMG DA66-00276B $1.18

17

DA97-13783A Samsung Refrigerator Assembly Cov Backorder SMG DA97-13783A $29.07

17-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $30.12

17-2

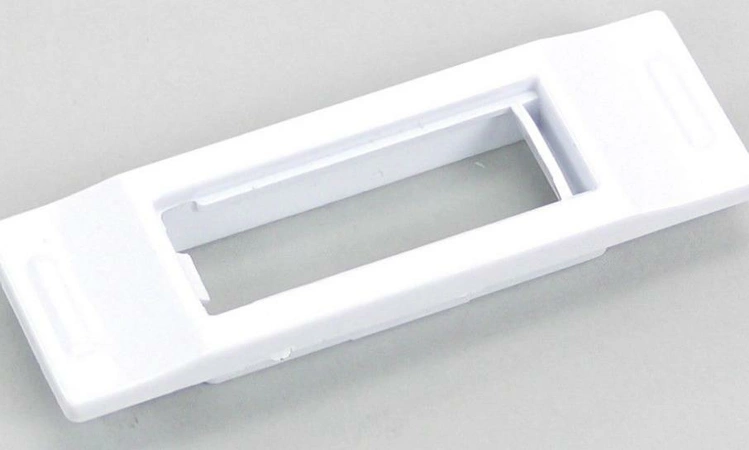

DA63-07513A Samsung Refrigerator Reed Switch Backorder SMG DA63-07513A $6.39

18

DA66-00733B Samsung Refrigerator Shaft Backorder SMG DA66-00733B $154.96

11111

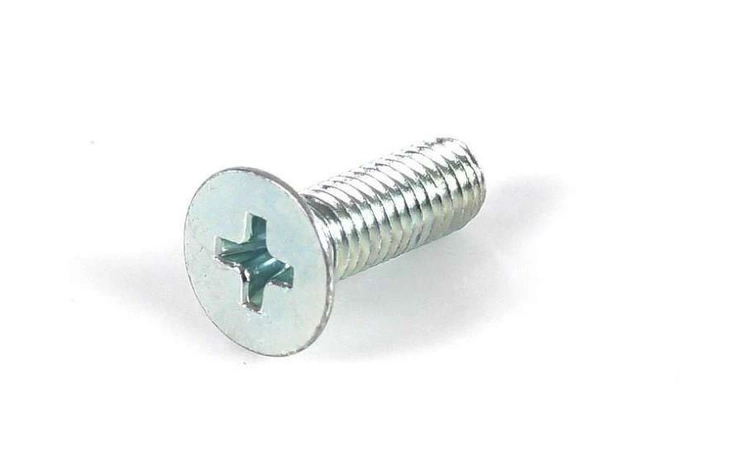

6001-000570 Samsung Machine Screw Backorder SMG 6001-000570 $1.69

11112

Screw SMG 6002-000538 Contact Us For Availability

11113

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $1.76

11117

DA61-09952B Samsung Refrigerator Door Stopper Backorder SMG DA61-09952B $11.19

11118

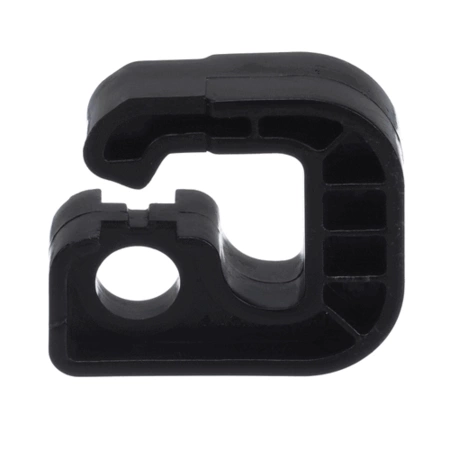

DA61-13385A Samsung Refrigerator Door Close S Backorder SMG DA61-13385A $5.04

11119

DA63-04825B Samsung Refrigerator Grommet Cap Backorder SMG DA63-04825B $2.79

11422

Assy lever handle SMG DA97-22986A Contact Us For Availability

11514

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

11515

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $21.17

11516

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $3.07

11518

DA61-13422A Samsung Refrigerator Low Door Sto Backorder SMG DA61-13422A $67.80

11621

DA32-00033C Samsung Refrigerator Temperature In Stock SMG DA32-00033C $26.43

11622

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $5.04

111111

6021-000258 Samsung Hexagon Nut Backorder SMG 6021-000258 $1.18

111112

DA97-20572A Samsung Assy Fixer-Up Backorder SMG DA97-20572A $9.05

114221

6002-001547 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001547 $1.69

115110

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $41.02

115111

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $1.69

115112

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $22.75

1151121

DA66-00440A Samsung Refrigerator Auto Close R Backorder SMG DA66-00440A $1.69

DA62-03691A Samsung Refrigerator Suction Pipe Backorder SMG DA62-03691A $95.15

DA81-01184D Samsung Refrigerator Check Plug A Backorder SMG DA81-01184D $25.00

DA81-06007B Samsung Refrigerator Dryer Assemb Backorder SMG DA81-06007B $127.51

DA81-06436A Samsung Pipe Connection Assembly Backorder SMG DA81-06436A $25.70

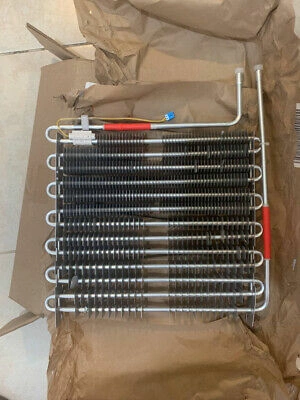

DA96-01002C Samsung Refrigerator Evaporator M Backorder SMG DA96-01002C $225.08

DA96-01509A Samsung Refrigerator EVAP-FRE Mod Backorder SMG DA96-01509A $329.35

Samsung Refrigerator Water Filter SMG HAF-QIN Contact Us For Availability
