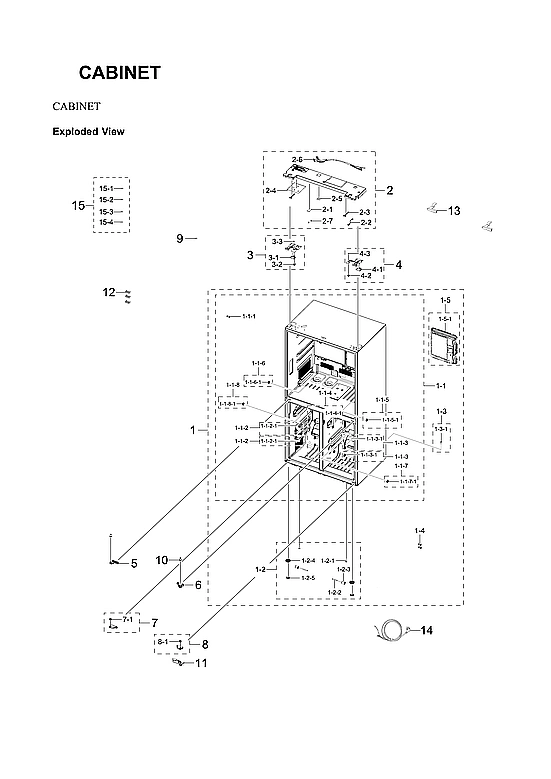

Model Samsung RF23A967512/AA-00 Refrigerator – Common Parts &amp; Diagrams

1

DA97-21806E Samsung Assembly Evaporator Cover Backorder SMG DA97-21806E $449.88

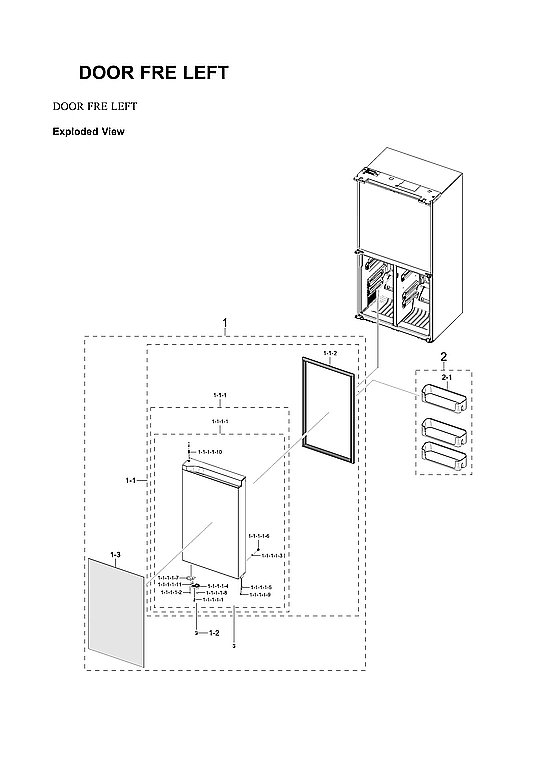

1

Assy door sub-fre left SMG DA93-01071S Contact Us For Availability

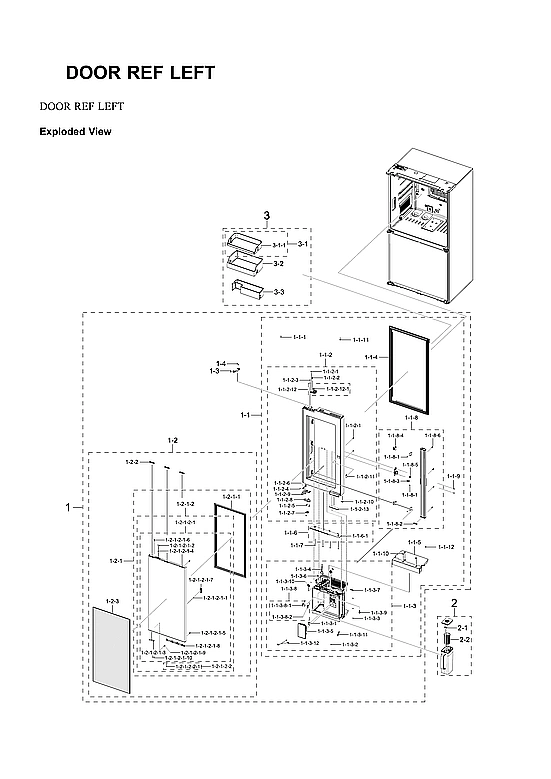

1

ASSY DOOR SUB-REF LEFT SMG DA93-01080R Contact Us For Availability

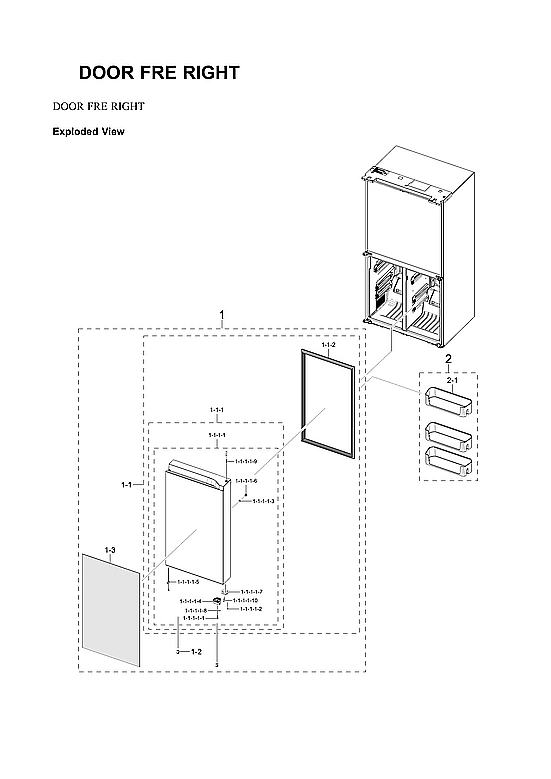

1

Assy door sub-fre right SMG DA93-01070S Contact Us For Availability

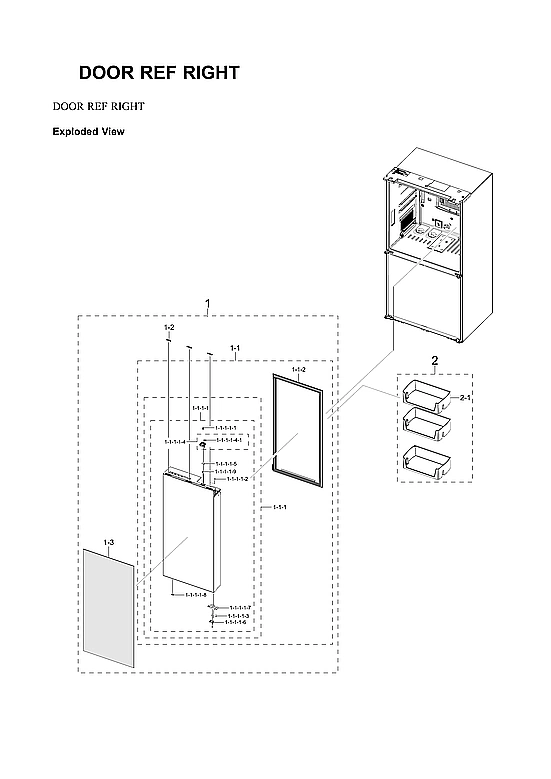

1

ASSY DOOR SUB-REF RIGHT SMG DA93-01290C Contact Us For Availability

DA31-00334D Samsung Refrigerator BLDC Fan Mot Backorder SMG DA31-00334D $147.82

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $24.87

Assy door sub-fre left door module SMG DA93-00943F Contact Us For Availability

NON-SERVICEABLE PART SMG N/P Contact Us For Availability

Assy door sub-fre right door module SMG DA93-00942F Contact Us For Availability

6001-000715 Samsung Machine Screw Backorder SMG 6001-000715 $12.24

DA91-05346K Samsung Refrigerator Left Door Fo Backorder SMG DA91-05346K $249.41

DA91-05347K Samsung Refrigerator Right Door F Backorder SMG DA91-05347K $261.79

DA91-05489A Samsung Assembly Door Foam-REF RI Backorder SMG DA91-05489A $296.04

1-1-1-1

Assy plate door-fre left SMG DA97-21156K Contact Us For Availability

1-1-1-1

Assy plate door-fre right SMG DA97-21157K Contact Us For Availability

1-1-2

DA91-05047R Samsung Refrigerator Left Door Fo Backorder SMG DA91-05047R $300.75

1-1-2

DA97-21330B Samsung Refrigerator Gasket Assem Backorder SMG DA97-21330B $138.25

1-1-2

DA97-21331B Samsung ASKET-FRE Backorder SMG DA97-21331B $138.25

1-1-2-4

6002-001547 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001547 $1.69

1-1-2-6

DA63-11272A Samsung Refrigerator Left Door Co Backorder SMG DA63-11272A $43.75

1-1-2-8

DA61-14211B Samsung Door Stopper - Left Backorder SMG DA61-14211B $54.45

1-1-2-9

DA97-21336A Samsung Hinge Assembly Low Left Backorder SMG DA97-21336A $67.09

1-1-2-11

DA66-01342A Samsung Refrigerator Lever Backorder SMG DA66-01342A $7.82

1-1-2-13

DA64-06535A Samsung Trim Handle;rf9000a, Abs, Backorder SMG DA64-06535A $44.98

1-1-3

DA97-17399E Samsung Refrigerator Inner Case A In Stock SMG DA97-17399E $309.81

1-1-3-1

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $17.83

1-1-3-2

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $1.18

1-1-3-4

DA34-00043M Samsung Refrigerator Reed Switch Backorder SMG DA34-00043M $33.53

1-1-3-5

DA97-17297C Samsung Refrigerator Dispenser Le Backorder SMG DA97-17297C $114.50

1-1-3-9

DA61-13987A Samsung CASE DISPENSER;RS5000T,ST Backorder SMG DA61-13987A $114.02

1-1-3-10

DA62-02414A Samsung Refrigerator Fitting Tube Backorder SMG DA62-02414A $21.29

1-1-3-11

DA67-04504D Samsung Refrigerator Tube Cap Fix Backorder SMG DA67-04504D $8.51

1-1-3-12

DA96-01471C Samsung Assy Wire Harness-Dispens Backorder SMG DA96-01471C $111.07

1-1-5

DA97-21788A Samsung Basket Cover Assembly Backorder SMG DA97-21788A $231.15

1-1-6

COVER DOOR-L SMG DA97-22322A Contact Us For Availability

1-1-6-1

COVER CAP DO SMG DA63-09958B Contact Us For Availability

1-1-7

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $1.18

1-1-8

DA97-20599J Samsung Refrigerator French Assem Backorder SMG DA97-20599J $269.49

1-1-8-2

DA63-06842B Samsung Refrigerator Low French G Backorder SMG DA63-06842B $6.91

1-1-8-3

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.33

1-1-8-4

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $6.77

1-1-8-5

DA63-00991A Samsung Refrigerator Door Recess Backorder SMG DA63-00991A $1.18

1-1-8-6

DA63-02750A Samsung Refrigerator Cover Slide Backorder SMG DA63-02750A $2.14

1-1-9

6002-001406 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001406 $1.18

1-1-10

DA67-30266Q Samsung Cap Screw Backorder SMG DA67-30266Q $75.44

1-1-11

6002-000244 Samsung Tapping Screw Backorder SMG 6002-000244 $1.69

DA31-00346B Samsung Motor Gear DC Damper Asse Backorder SMG DA31-00346B $118.45

DA47-00301D Samsung Refrigerator Defrost Sens In Stock SMG DA47-00301D $25.76

DA63-09686A Samsung Refrigerator Dark ABS Doo Backorder SMG DA63-09686A $5.54

DA67-04961A Samsung Refrigerator Cap Screw As Backorder SMG DA67-04961A $67.94

ASSY DOOR SUB-REF OUT LEFT SMG DA93-01206C Contact Us For Availability

1-2-1

ASSY DOOR SUB-REF OUT LEFT DOOR MODULE SMG DA93-00946F Contact Us For Availability

1-2-1-1

DA97-20057A Samsung Refrigerator Gasket Assem Backorder SMG DA97-20057A $109.43

1-2-1-2

Samsung DOOR FOAM-RE SMG DA91-05490F Contact Us For Availability

1-2-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.07

1-2-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.99

DA32-00070E Samsung Refrigerator Temperature Backorder SMG DA32-00070E $30.18

DA97-20039C Samsung Refrigerator Left Upper H Backorder SMG DA97-20039C $141.98

RA-F18DBB12/AA Samsung Refrigerator White Bes Backorder SMG RA-F18DBB12/AA $288.48

RA-F18DUU12/AA Samsung Rfd,0.0,115V 60Hz Backorder SMG RA-F18DUU12/AA $290.60

1-4

DA61-11032A Samsung Refrigerator Fixer Assemb Backorder SMG DA61-11032A $7.45

1-5

DA32-00070D Samsung Refrigerator Temperature Backorder SMG DA32-00070D $27.95

1-6

DA61-14455A Samsung Refrigerator Angle Shelf Backorder SMG DA61-14455A $150.59

2

L13000654 American Vulkan Lokring Brass Reduc In Stock ALC L13000654 $5.87

2

DA97-21261E Samsung Refrigerator Assembly Wat Backorder SMG DA97-21261E $187.64

2

DA97-21797A Samsung Refrigerator Filter Case Backorder SMG DA97-21797A $327.88

2-1

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $6.71

2-1

DA97-19996A Samsung Refrigerator Guard Assemb Backorder SMG DA97-19996A $59.50

2-1

DA97-21912A Samsung Refrigerator Door Bin Ass Backorder SMG DA97-21912A $85.55

2-2

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $78.50

2-2

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.69

2-2

DA61-15091A Samsung Refrigerator Filter Case Backorder SMG DA61-15091A $44.04

2-3

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $22.92

2-4

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

2-5

DA92-00817A Samsung Refrigerator Module Buzze Backorder SMG DA92-00817A $34.31

2-7

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

3

L13000630 American Vulkan Lokring Refrigerati In Stock ALC L13000630 $5.87

3

DA67-30266K Samsung Refrigerator Cap Screw Backorder SMG DA67-30266K $1.18

3-1

DA32-10104W Samsung Refrigerator Temperature Backorder SMG DA32-10104W $35.07

3-1

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.60

3-1

DA97-15186E Samsung Refrigerator Guard Assemb Backorder SMG DA97-15186E $62.94

3-2

DA31-00334C Samsung Refrigerator BLDC Fan Mot In Stock SMG DA31-00334C $148.01

3-2

DA97-21960A Samsung Refrigerator Middle Ref G Backorder SMG DA97-21960A $115.27

3-3

DA32-00011C Samsung Refrigerator Temperature In Stock SMG DA32-00011C $14.76

3-3

DA97-21914A Samsung Refrigerator Low Ref Guar Backorder SMG DA97-21914A $84.72

4

L13000622 American Vulkan Lokring Refrigerati In Stock ALC L13000622 $7.26

4

DA97-21876A Samsung Refrigerator Middle Left Backorder SMG DA97-21876A $64.71

4-1

6006-001170 Samsung Appliance Tapping Screw T Backorder SMG 6006-001170 $1.69

4-1

DA97-19988A Samsung Refrigerator Roller Assem Backorder SMG DA97-19988A $98.02

4-3

DA63-11280A Samsung Refrigerator Ice Cover As Backorder SMG DA63-11280A $46.24

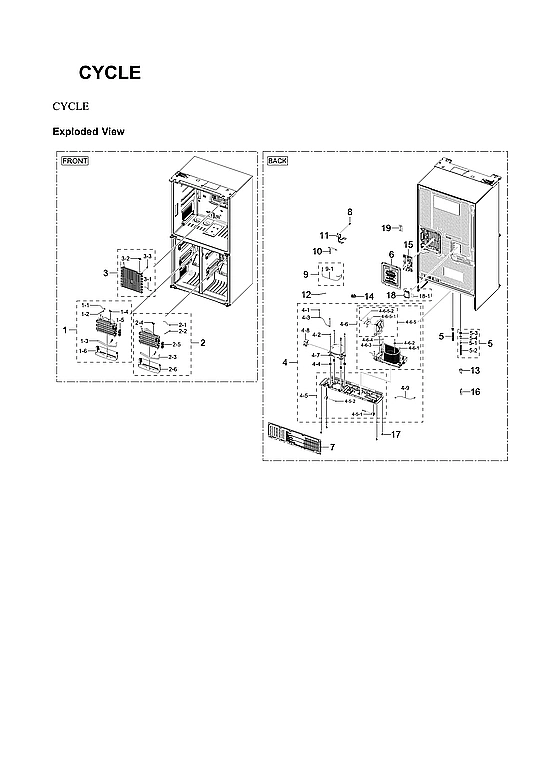

4-5-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.77

4-5-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $5.54

4-6-1

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

4-6-5

DA97-15765C Samsung Refrigerator Circuit Moto In Stock SMG DA97-15765C $201.27

4-6-5-1

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $26.26

5

Refrigerator Wire Harness SMG DA97-04049E No Longer Available

5

DA97-21878B Samsung Refrigerator Low Vegetabl Backorder SMG DA97-21878B $154.03

6

L13000621 American Vulkan Lokring .197 or 3/1 In Stock ALC L13000621 $6.37

6

DA97-21878C Samsung Refrigerator Case Assembl Backorder SMG DA97-21878C $154.91

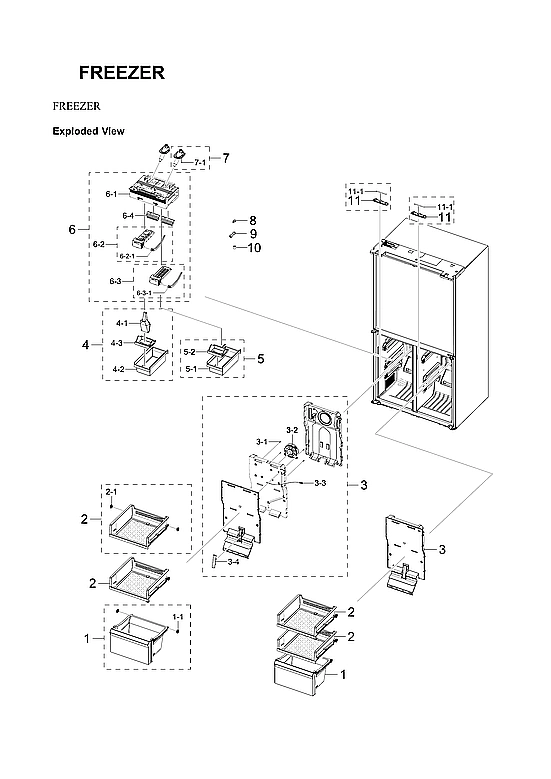

6

ICE MAKER SMG DA97-21804D Contact Us For Availability

6-1

DA61-14435A Samsung Refrigerator Ice Maker Su Backorder SMG DA61-14435A $119.92

6-2

DA97-22160A Samsung Refrigerator Ice Case Ass Backorder SMG DA97-22160A $179.45

6-2-1

DA61-14661A Samsung Refrigerator Ice Guide Backorder SMG DA61-14661A $73.57

6-3

DA97-22162A Samsung Refrigerator Ice Case Ass Backorder SMG DA97-22162A $176.01

6-4

DA63-11369A Samsung Cover Ice-Fre;rf9000a, Pp Backorder SMG DA63-11369A $17.88

7

L13000612 American Vulkan Lokring .118" to .0 In Stock ALC L13000612 $7.69

7

PIPE WATER I SMG DA97-21801A Contact Us For Availability

7-1

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $1.18

7-1

COVER VEG-UP SMG DA63-11228A Contact Us For Availability

7-2

DA63-11229A Samsung Vegetable Cover Assembly Backorder SMG DA63-11229A $62.02

7-3

DA97-21902A Samsung Assy Shelf Veg-Low;Rf9000 Backorder SMG DA97-21902A $201.54

7-3-1

DA64-03784A Samsung Refrigerator Shelf Trim Backorder SMG DA64-03784A $53.16

8

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $31.82

8

DA97-21895A Samsung Refrigerator Quick Space In Stock SMG DA97-21895A $268.20

8-1

6002-001397 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001397 $1.18

9

L13000657 American Vulkan Lokring Vulkan 5/16 In Stock ALC L13000657 $5.87

9

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $22.92

9

DA97-20042G Samsung Refrigerator Shelf Assemb Backorder SMG DA97-20042G $167.75

L13000592 American Vulkan Lokring Refrigerati In Stock ALC L13000592 $5.61

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.86

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $21.80

DA97-21898A Samsung Refrigerator Upper Shelf Backorder SMG DA97-21898A $294.33

L13000619 American Vulkan Lokring Refrigerato In Stock ALC L13000619 $7.69

DA62-04617B Samsung Refrigerator Step Valve M In Stock SMG DA62-04617B $186.12

DA63-04921B Samsung Front LED Lamp Cover Backorder SMG DA63-04921B $7.47

DA96-01119A Samsung Refrigerator LED Lamp Ass Backorder SMG DA96-01119A $70.47

11-1

DA41-00519R Samsung Refrigerator LED Lamp PBA In Stock SMG DA41-00519R $12.98

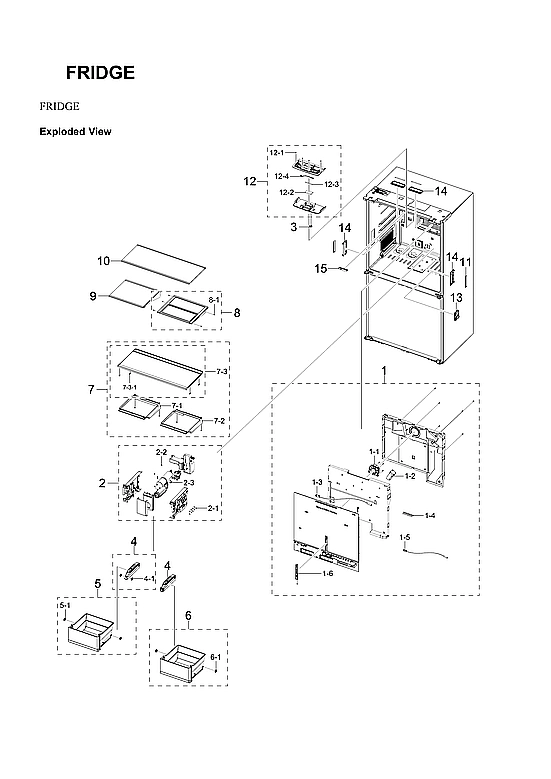

12

DA97-21827D Samsung Refrigerator Deodorizer A Backorder SMG DA97-21827D $218.03

12-2

CATALYST SMG DA02-00249A Contact Us For Availability

12-3

DA96-00392G Samsung Refrigerator LED Lamp Backorder SMG DA96-00392G $149.97

12-4

WIRE HARNESS SMG DA96-00852E Contact Us For Availability

13

DA61-04932B Samsung Refrigerator Hinge Fixer Backorder SMG DA61-04932B $15.65

13

DA63-00951C Samsung Refrigerator Drain Hose G Backorder SMG DA63-00951C $8.38

13

DA97-21808N Samsung Control Cover Assembly Backorder SMG DA97-21808N $282.54

14

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $63.58

14

ASSEMBLY COVER LAMP (4) SMG DA97-16143B Contact Us For Availability

15

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $6.15

15

DA99-04158A Samsung Refrigerator Accessory Ad In Stock SMG DA99-04158A $82.29

15-1

DA60-00314A Samsung Refrigerator Hinge Fasten Backorder SMG DA60-00314A $1.69

16

L13000584 American Vulkan Lokring Refrigerati In Stock ALC L13000584 $4.43

18

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.32

19

DA92-00945F Samsung Refrigerator Fuse Block P Backorder SMG DA92-00945F $63.81

11111

6001-000716 Samsung Refrigerator Machine Scre Backorder SMG 6001-000716 $1.18

11111

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $1.76

11112

6002-001120 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001120 $1.18

11112

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

11113

6009-001475 Samsung Refrigerator Special Scre Backorder SMG 6009-001475 $1.18

11113

6021-000258 Samsung Hexagon Nut Backorder SMG 6021-000258 $1.18

11114

DA61-15273A Samsung Refrigerator Door Close S Backorder SMG DA61-15273A $8.38

11114

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $22.75

11115

DA61-03769B Samsung Refrigerator Dispenser Dr Backorder SMG DA61-03769B $3.35

11116

DA61-13385A Samsung Refrigerator Door Close S Backorder SMG DA61-13385A $5.04

11116

DA97-20572A Samsung Assy Fixer-Up Backorder SMG DA97-20572A $9.05

11117

DA61-08816A Samsung Refrigerator Door Stopper Backorder SMG DA61-08816A $38.82

11117

DA61-08817A Samsung Refrigerator Door Stopper Backorder SMG DA61-08817A $22.35

11117

DA61-14210B Samsung Door Right Stopper Backorder SMG DA61-14210B $35.98

11118

DA63-09933A Samsung Refrigerator Door Cap Gro Backorder SMG DA63-09933A $3.90

11118

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

11119

DA61-05366A Samsung Assembly Refrigerator Han Backorder SMG DA61-05366A $1.18

11381

DA61-07581A Samsung Refrigerator LED Case Lam Backorder SMG DA61-07581A $2.66

11382

DA63-06505A Samsung Cover LED Lamp Backorder SMG DA63-06505A $2.66

12121

ASSY PLATE DOOR-REF OUT LEFT SMG DA97-21158F Contact Us For Availability

12122

ASSY PANEL SMG DA97-20029F Contact Us For Availability

111110

6001-000570 Samsung Machine Screw Backorder SMG 6001-000570 $1.69

112121

DA66-00440A Samsung Refrigerator Auto Close R Backorder SMG DA66-00440A $1.69

121212

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $3.07

121213

DA61-13384A Samsung Refrigerator Door Stopper Backorder SMG DA61-13384A $22.92

121214

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $1.69

121215

GROMMET-COVE SMG DA63-02750B Contact Us For Availability

121216

DA63-07545B Samsung Refrigerator Middle Hinge Backorder SMG DA63-07545B $3.35

121217

COVER LOCK SMG DA63-09537A Contact Us For Availability

121218

DA63-09639A Samsung Door Cap Cover Backorder SMG DA63-09639A $17.58

121219

DA63-09942A Samsung Door Grommet Backorder SMG DA63-09942A $2.66

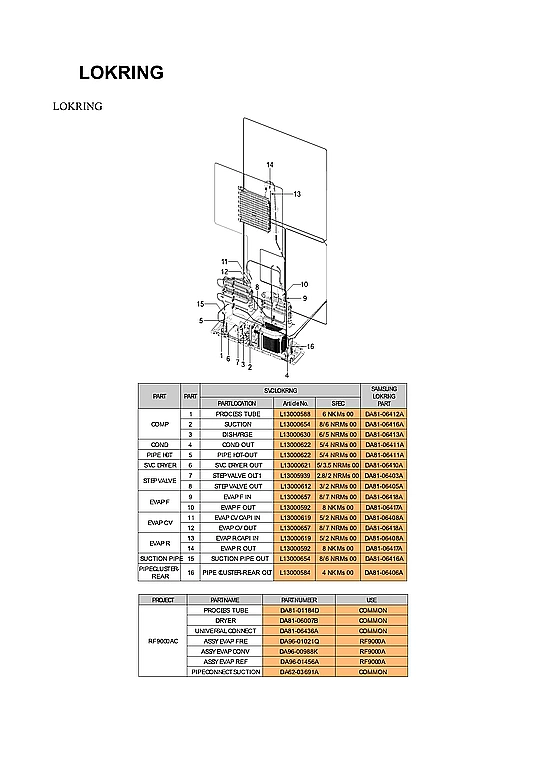

DA62-03691A Samsung Refrigerator Suction Pipe Backorder SMG DA62-03691A $95.15

DA81-01184D Samsung Refrigerator Check Plug A Backorder SMG DA81-01184D $25.00

DA81-06007B Samsung Refrigerator Dryer Assemb Backorder SMG DA81-06007B $127.51

DA81-06436A Samsung Pipe Connection Assembly Backorder SMG DA81-06436A $25.70

DA96-00988K Samsung Refrigerator Evaporator C Backorder SMG DA96-00988K $226.31

DA96-01021Q Samsung Refrigerator Evaporator A Backorder SMG DA96-01021Q $198.52

DA96-01456A Samsung Refrigerator EVAP Module Backorder SMG DA96-01456A $211.30

Samsung Refrigerator Water Filter SMG HAF-QIN Contact Us For Availability
