Model Bosch RDF30QW/01 Range Oven – Common Parts & Diagrams

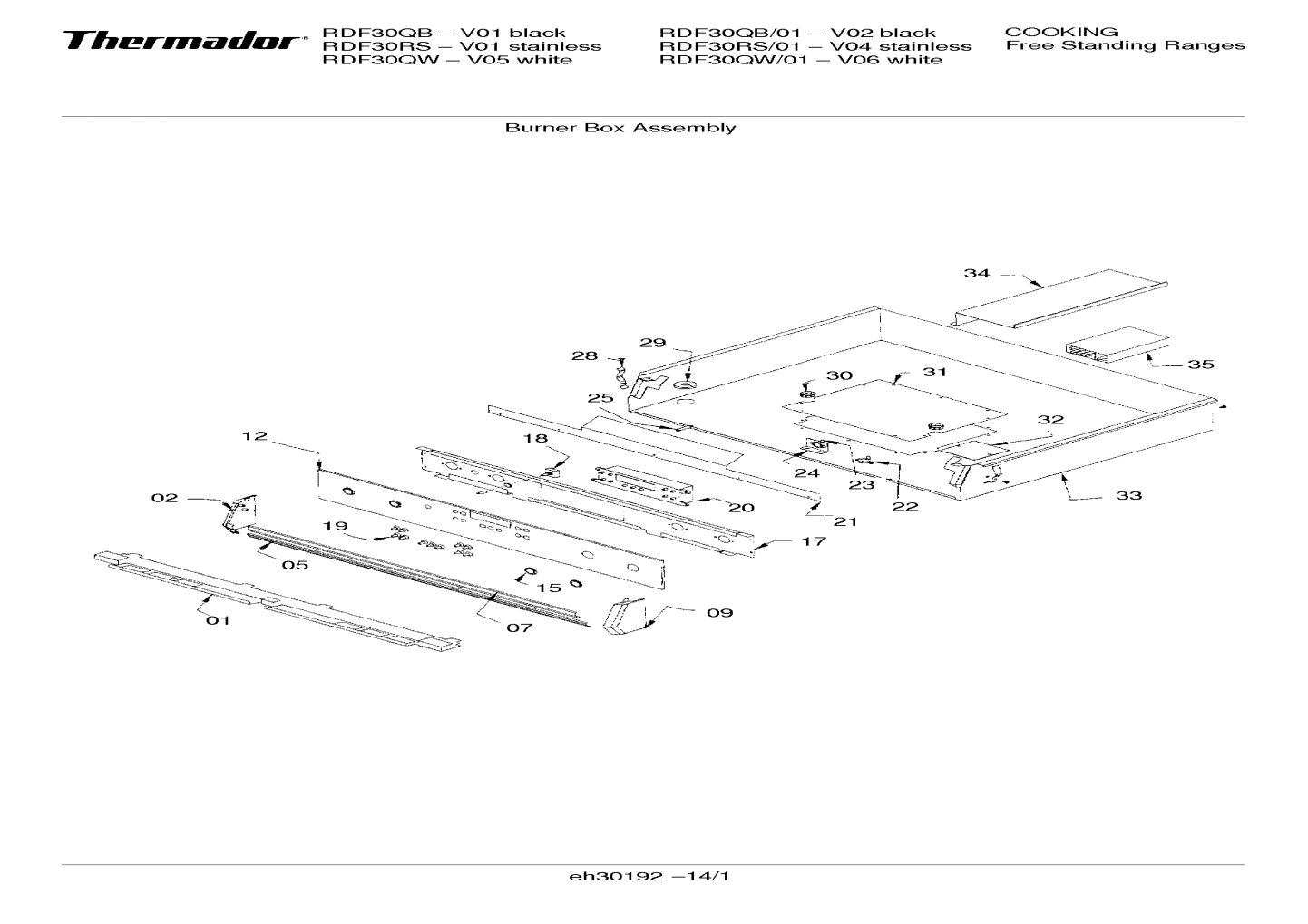

Diagram 1

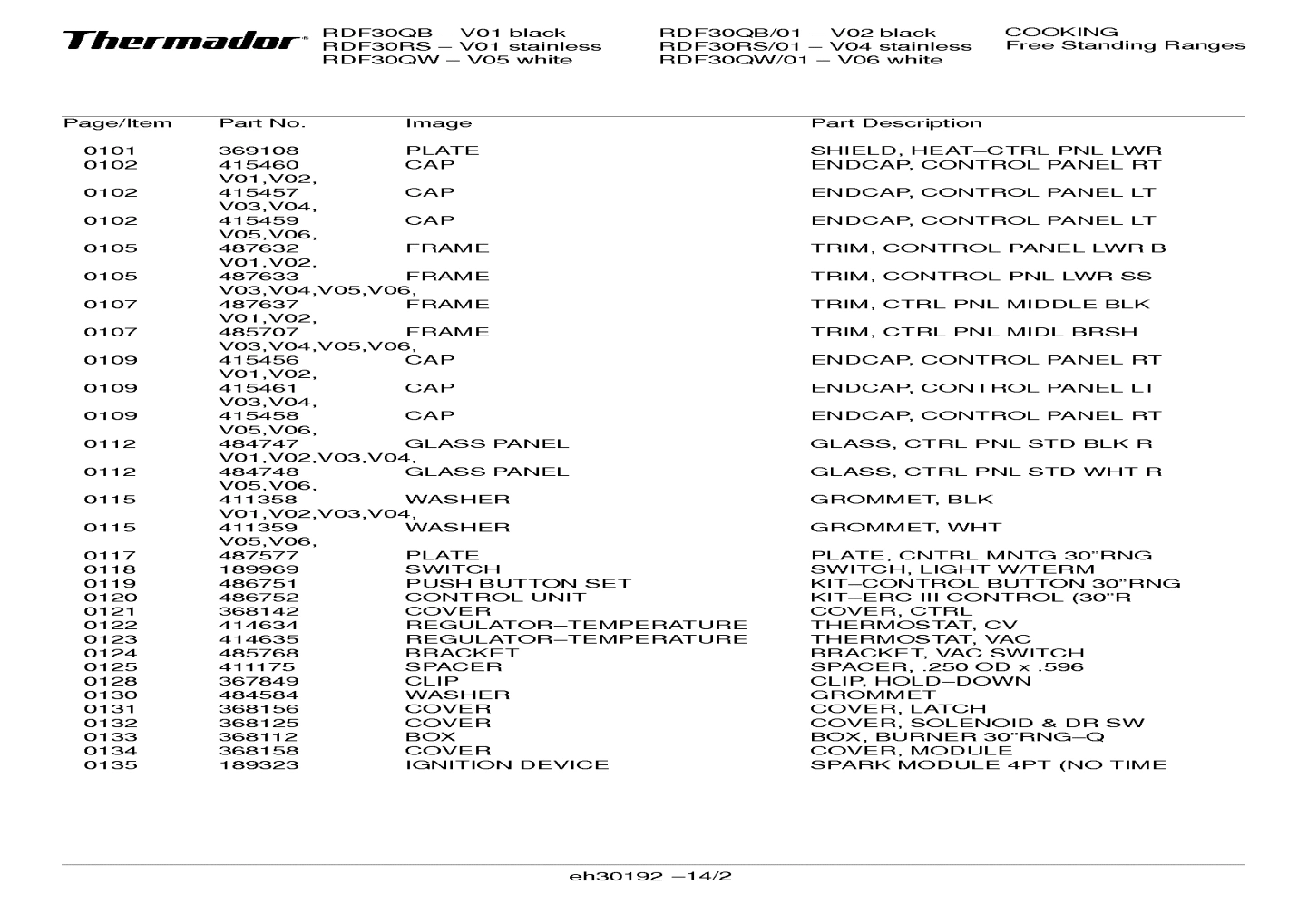

Diagram 2

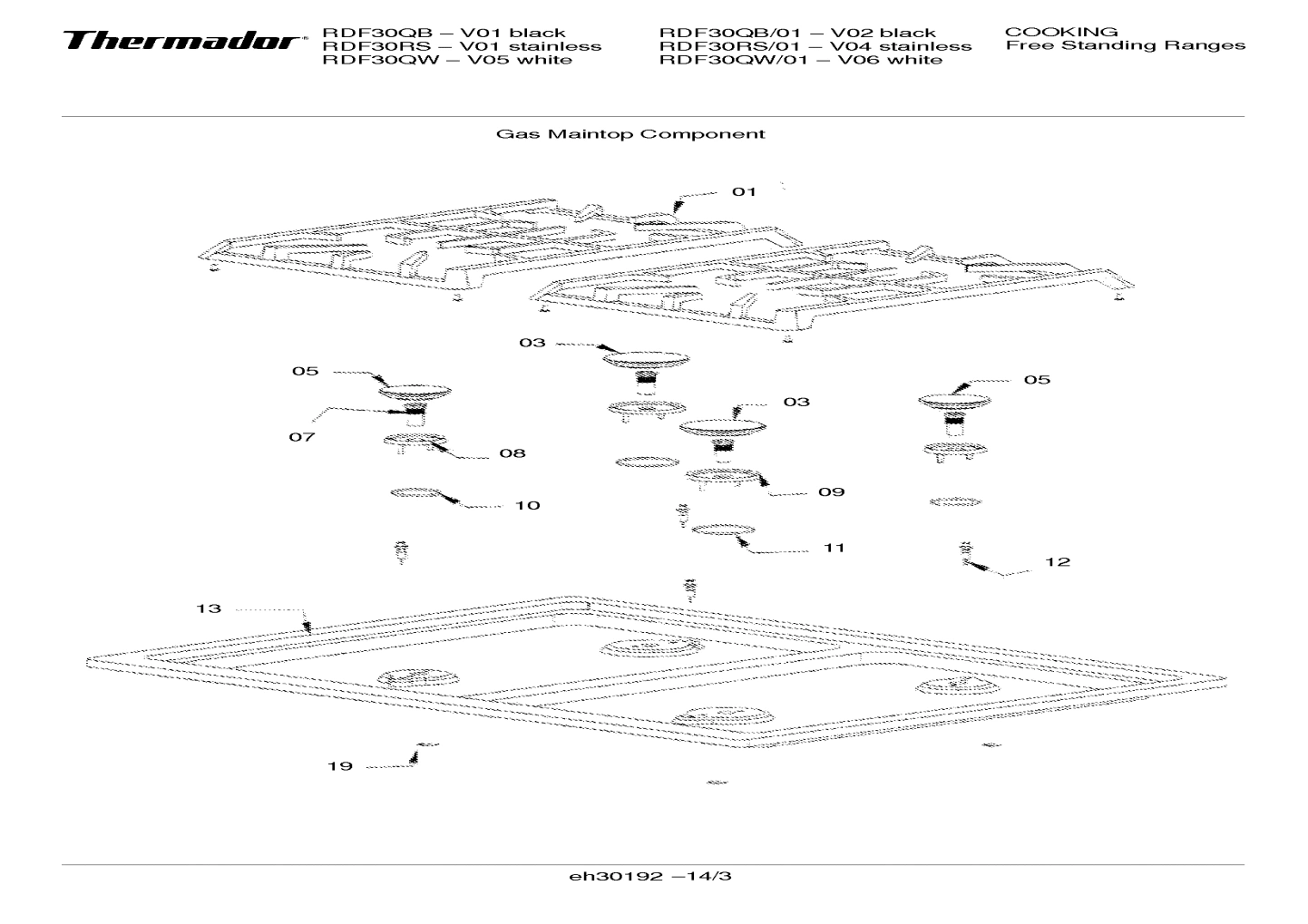

Diagram 3

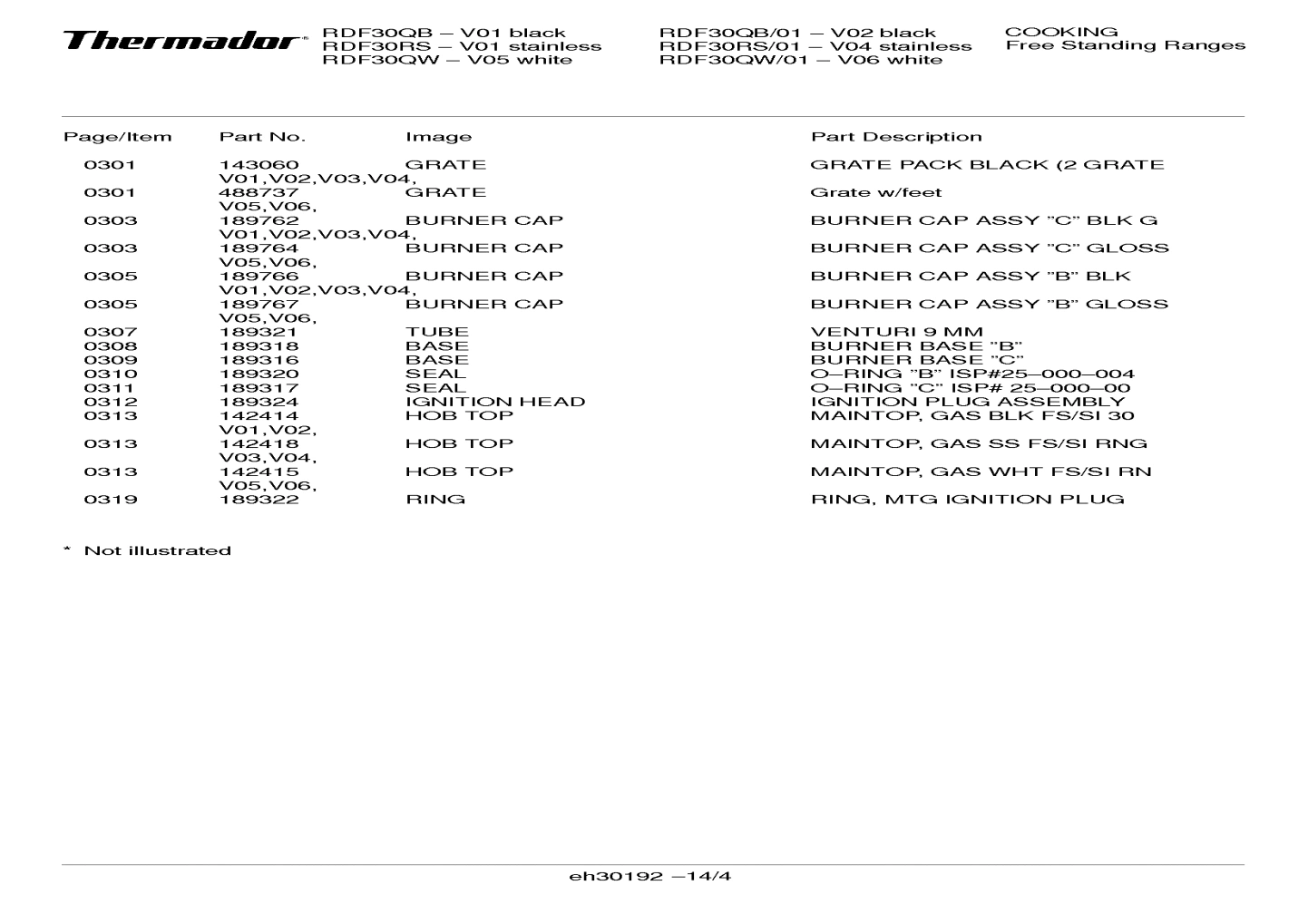

Diagram 4

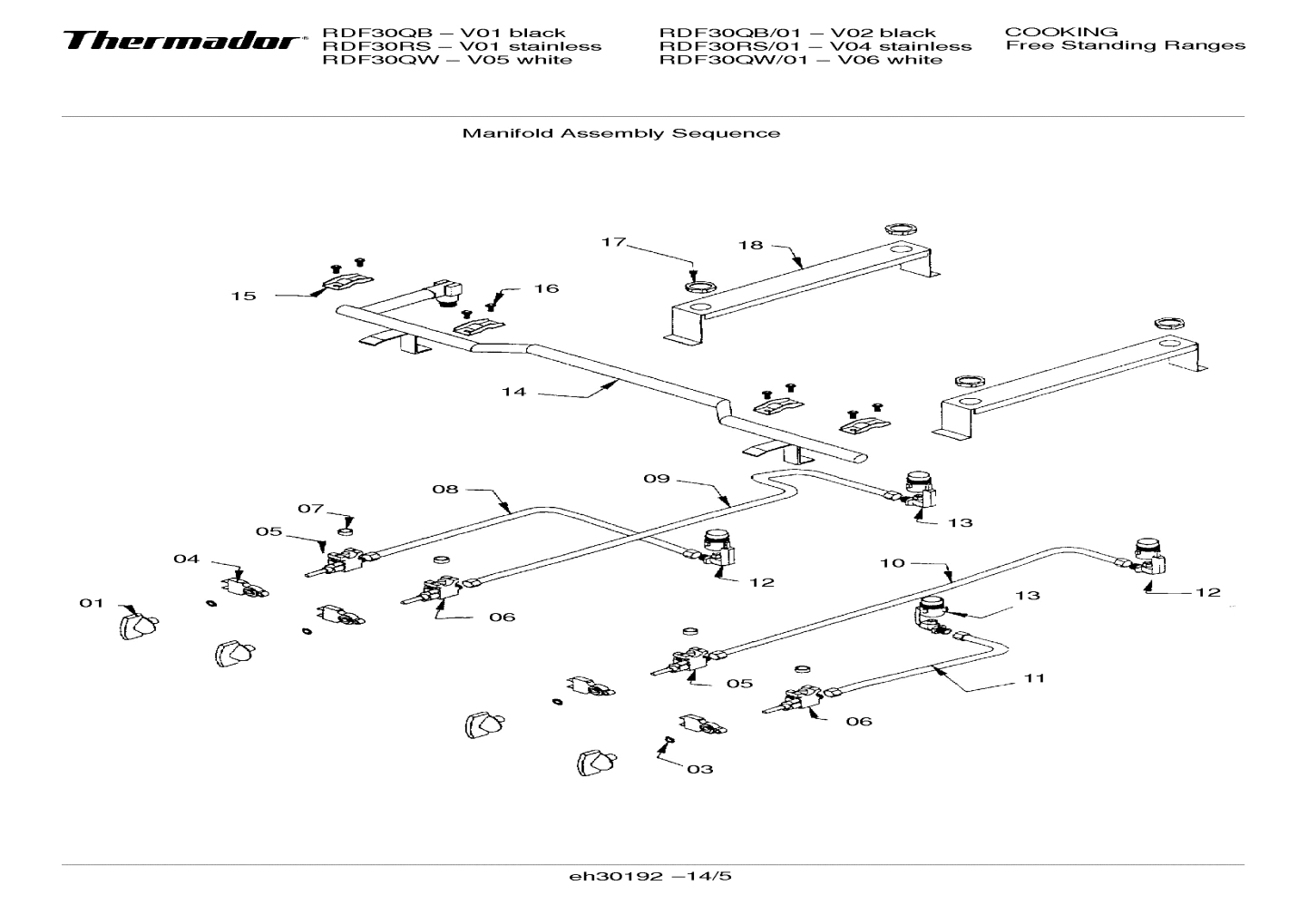

Diagram 5

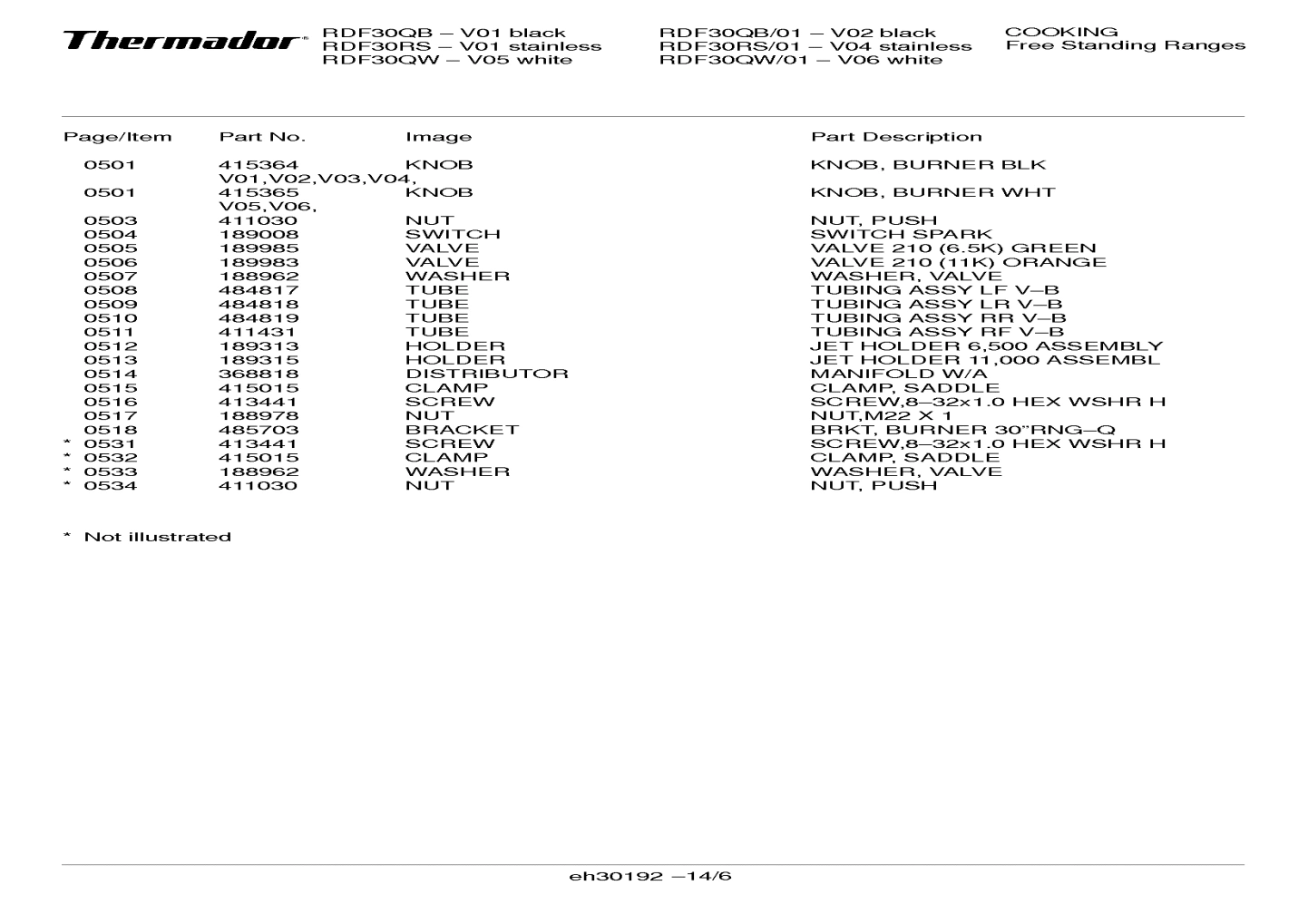

Diagram 6

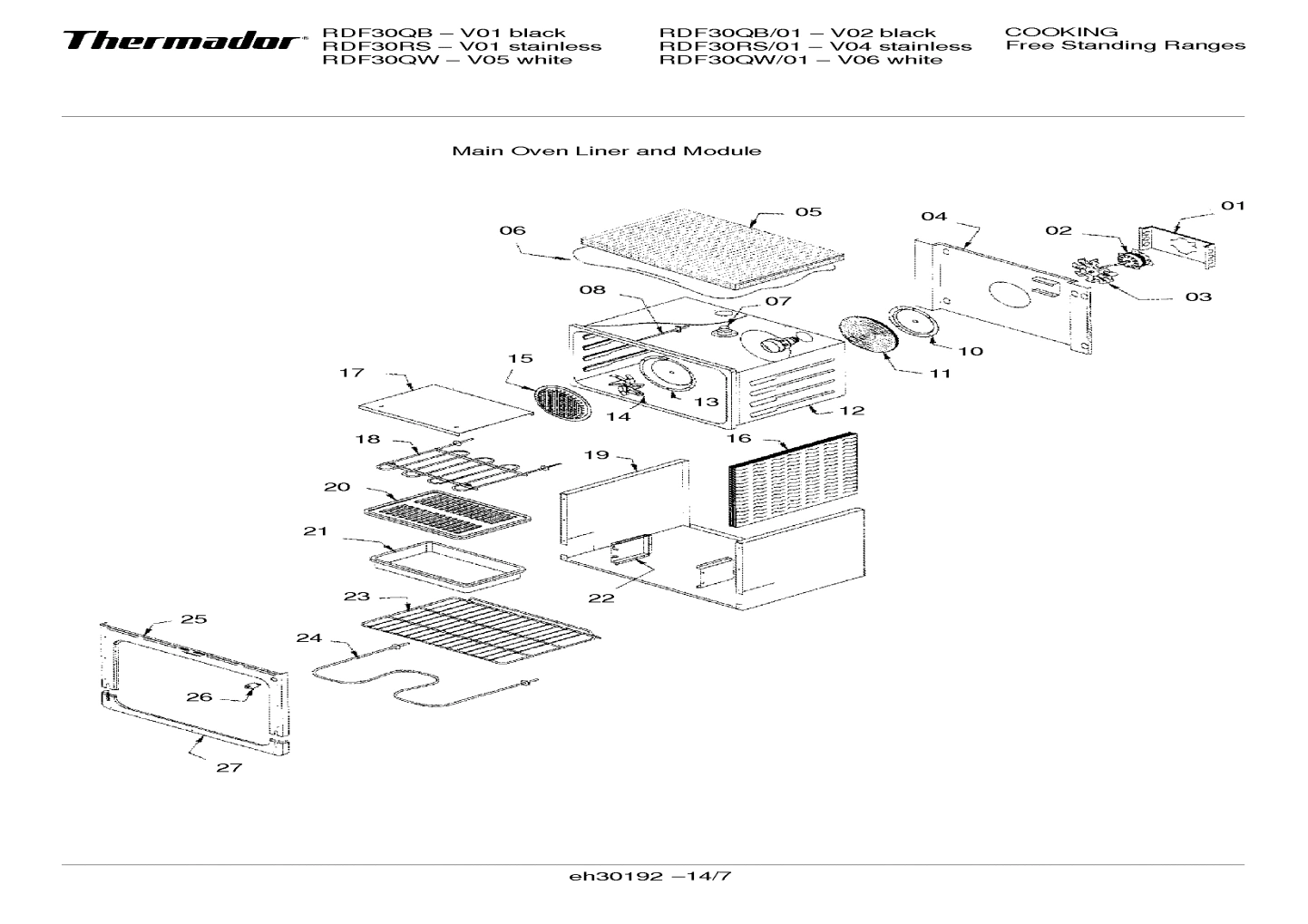

Diagram 7

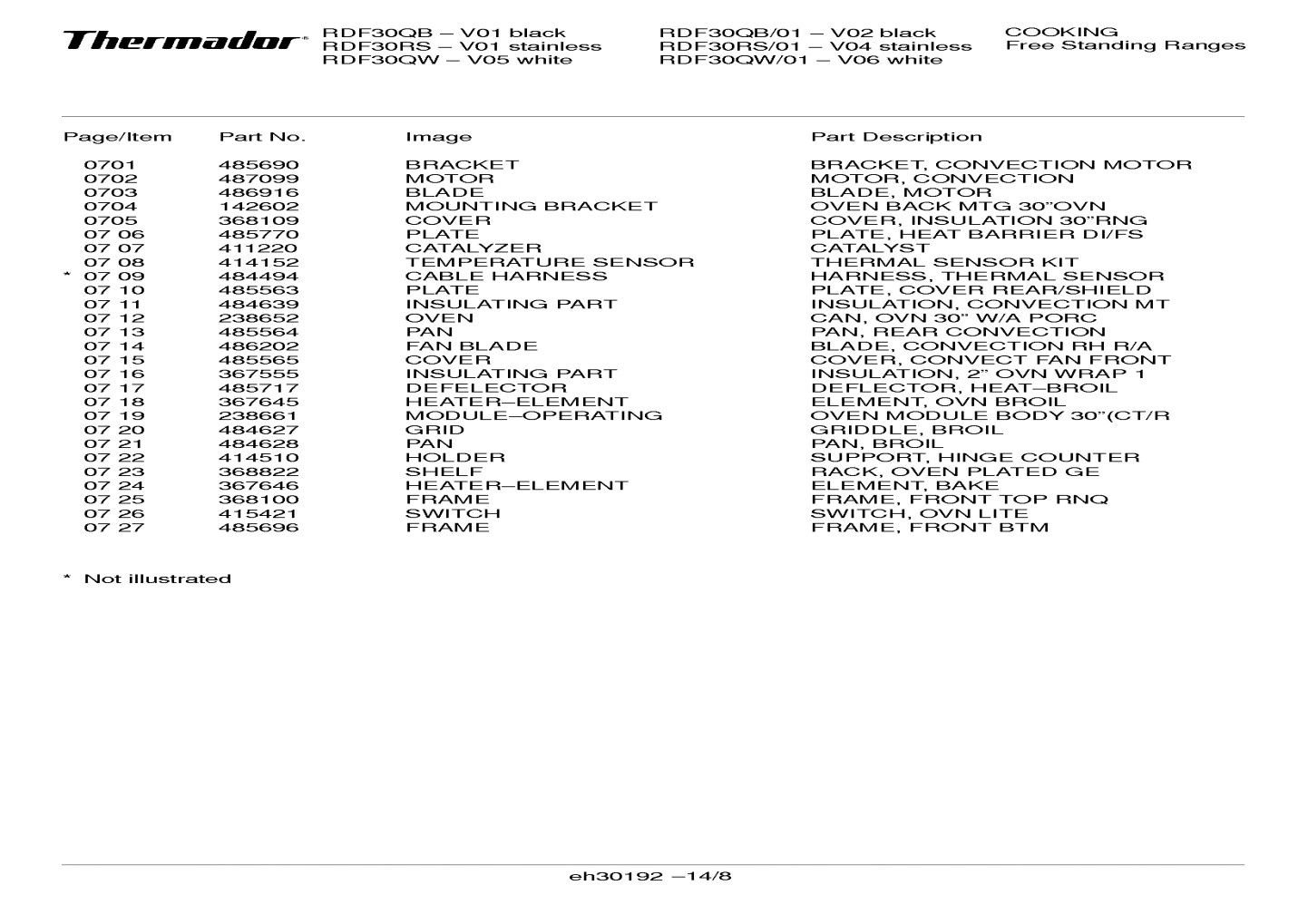

Diagram 8

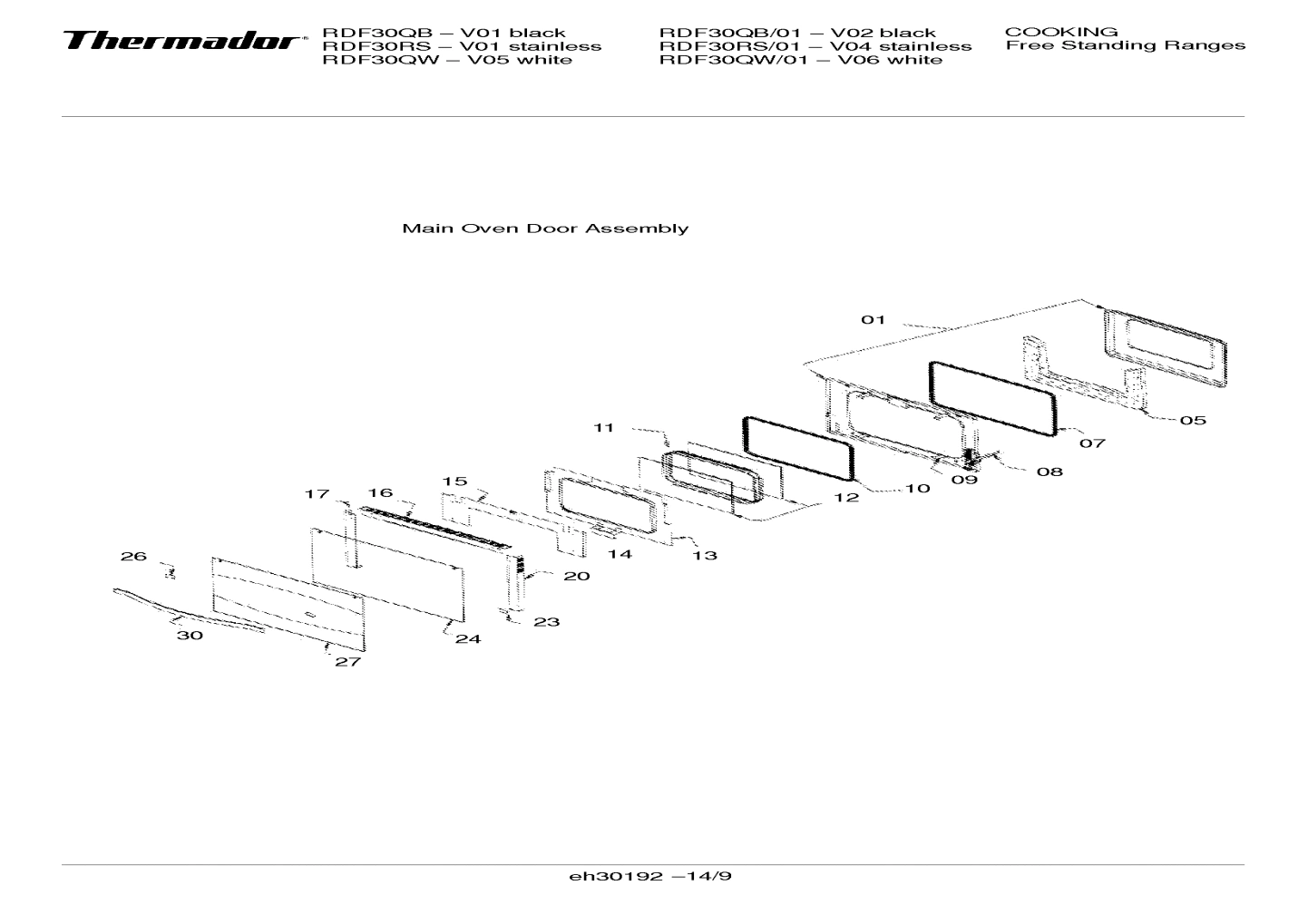

Diagram 9

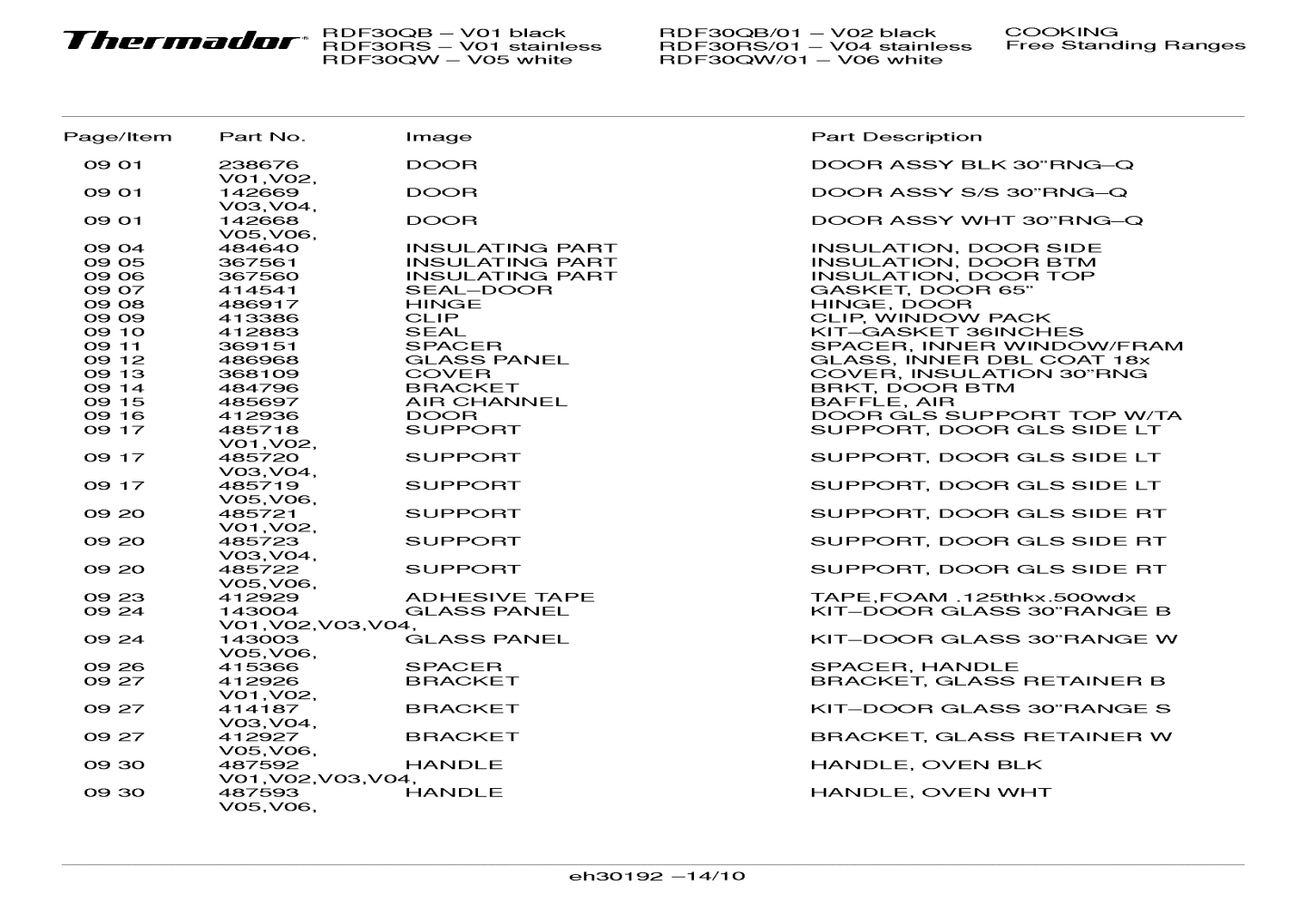

Diagram 10

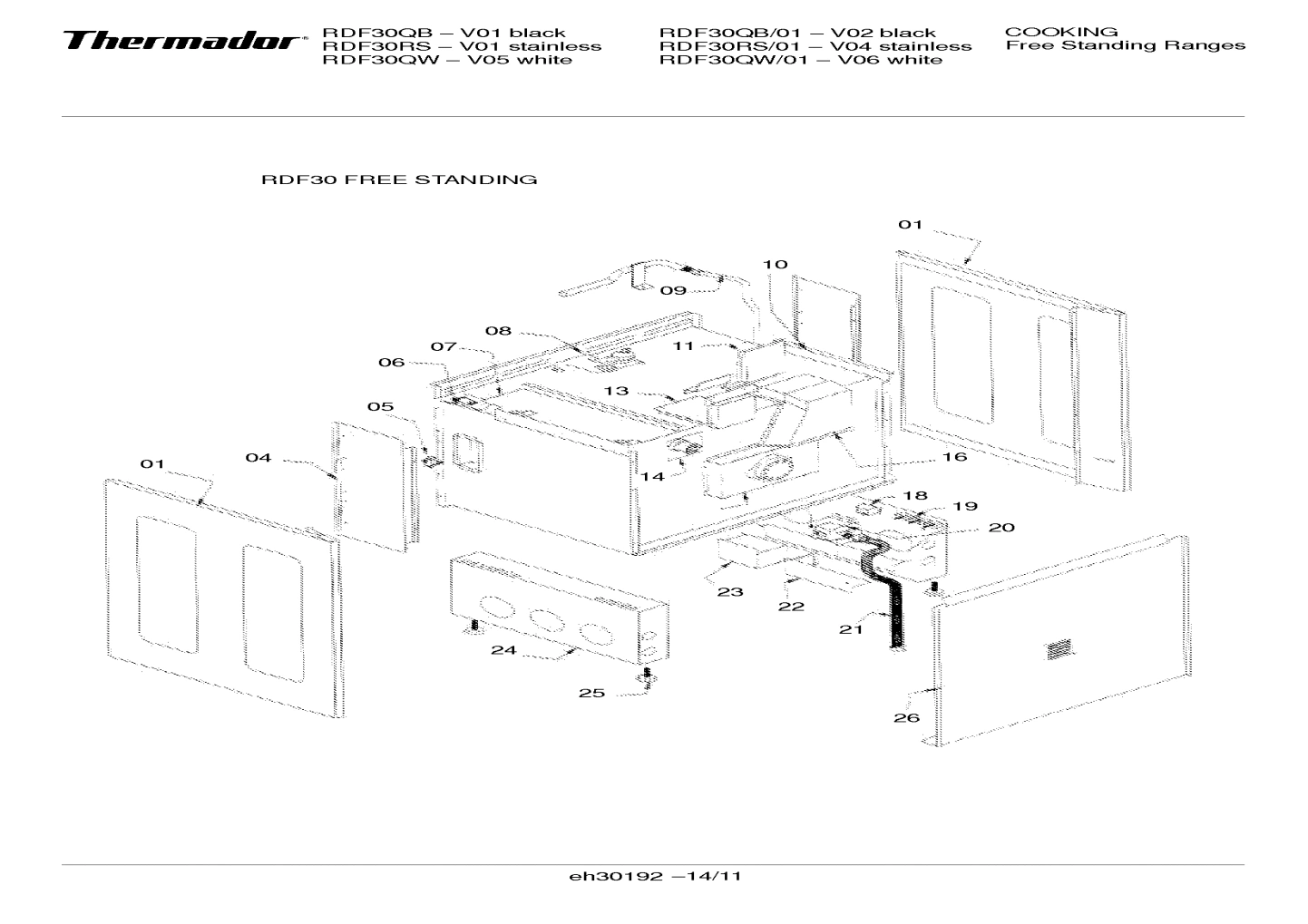

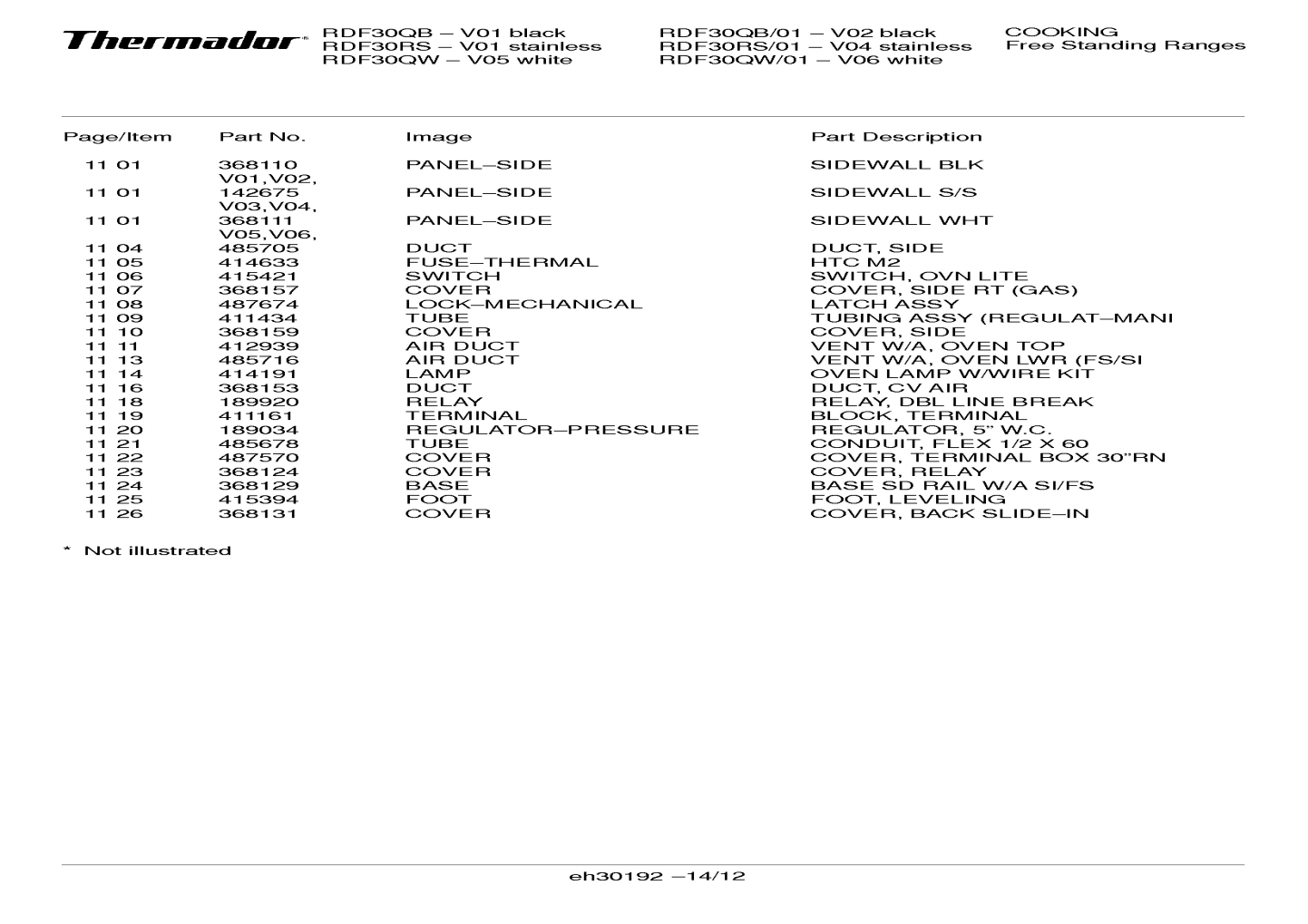

Diagram 11
Diagram 12

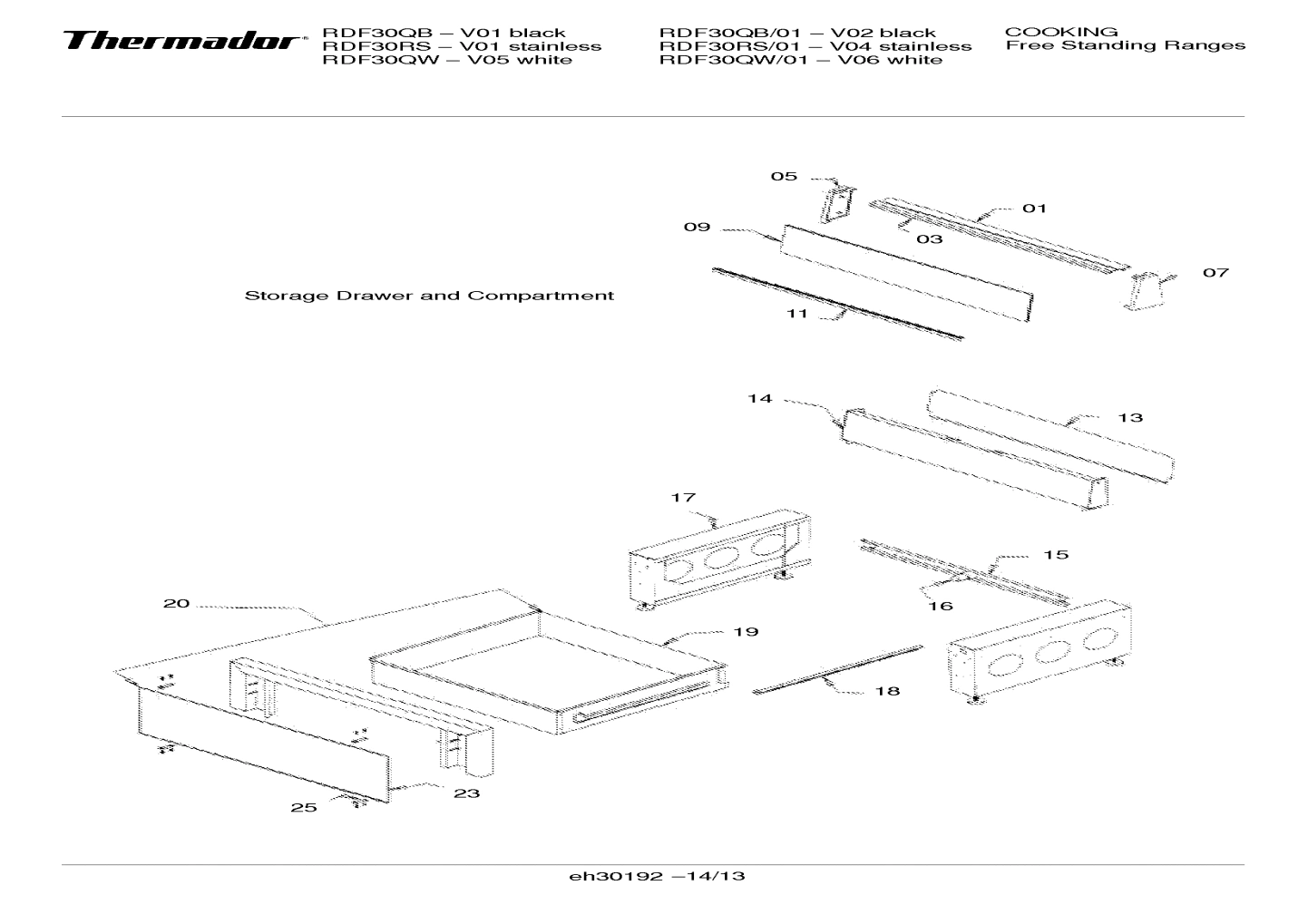

Diagram 13

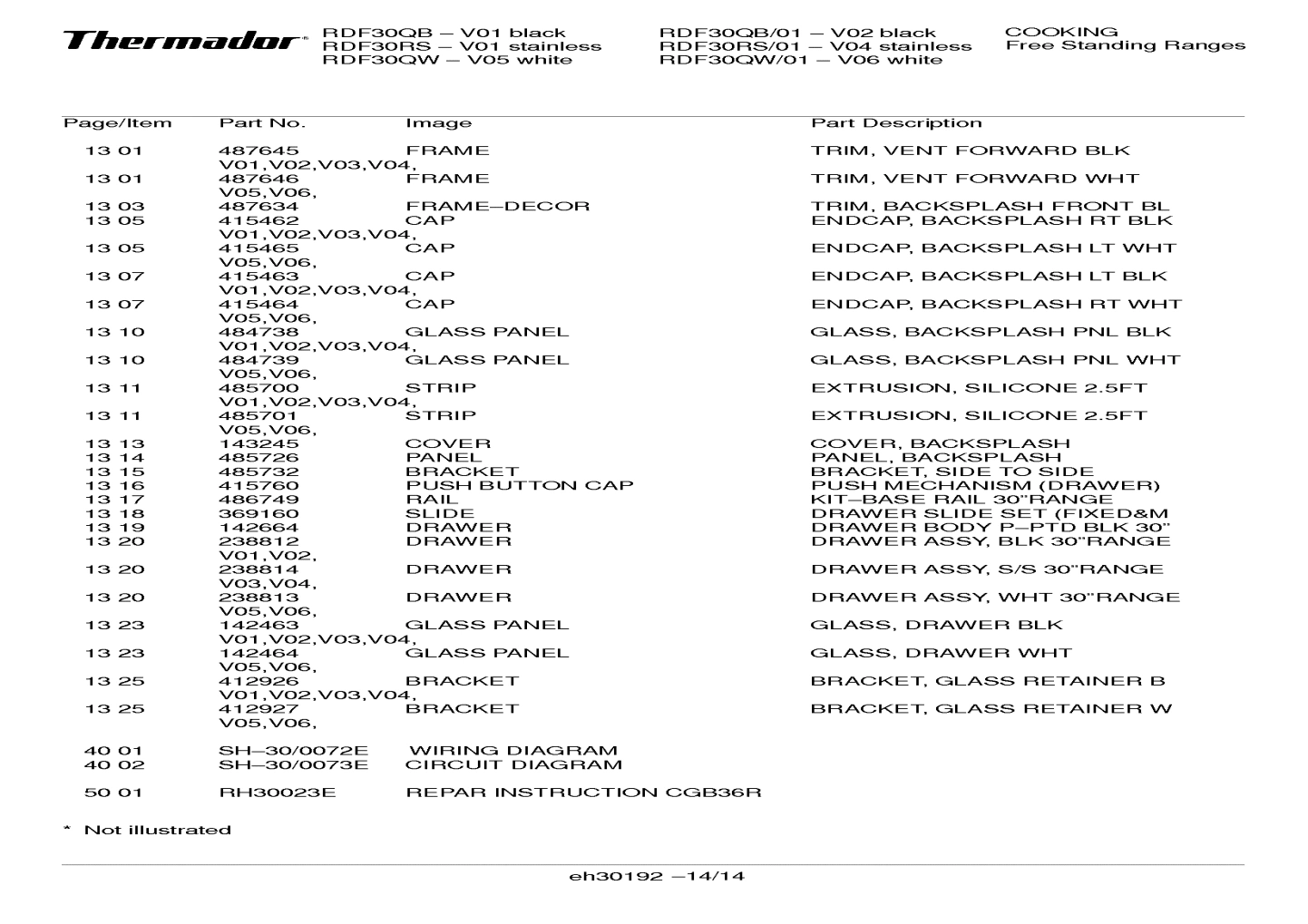

Diagram 14
Common parts from model Bosch RDF30QW/01 Range Oven
0101
Screening BOS 00369108 Contact Us For Availability
0102
Cap BOS 00415459 Contact Us For Availability
0105
Frame BOS 00487633 Contact Us For Availability
0107
Frame BOS 00485707 Contact Us For Availability
0109
Cap BOS 00415458 Contact Us For Availability
0112
Glass panel BOS 00484748 Contact Us For Availability
0115
Washer BOS 00411359 Contact Us For Availability
0117
Mounting bracket BOS 00487577 Contact Us For Availability
0118
Switch BOS 00189969 Contact Us For Availability
0119
Push button set BOS 00486751 Contact Us For Availability
0120
Control unit BOS 00486752 Contact Us For Availability
0121
Covering BOS 00368142 Contact Us For Availability
0122
Regulator-temperature BOS 00414634 Contact Us For Availability
0123
Regulator-temperature BOS 00414635 Contact Us For Availability
0124
Bracket BOS 00485768 Contact Us For Availability
0125
Spacer BOS 00411175 Contact Us For Availability
0128
Clip BOS 00367849 Contact Us For Availability
0130
Washer BOS 00484584 Contact Us For Availability
0131
Covering BOS 00368156 Contact Us For Availability
0132
Covering BOS 00368125 Contact Us For Availability
0133
Box BOS 00368112 Contact Us For Availability
0134
Covering BOS 00368158 Contact Us For Availability
0139
Spacer BOS 00411194 Contact Us For Availability
0303
Burner cap BOS 00189764 Contact Us For Availability
0305
Burner cap BOS 00189767 Contact Us For Availability
0310
Seal BOS 00189320 No Longer Available
0311
Seal BOS 00189317 Contact Us For Availability
0313
Hob top BOS 00142415 Contact Us For Availability
0350
Grille BOS 00142537 Contact Us For Availability
0501
Button BOS 00415365 Contact Us For Availability
0505
Valve BOS 00189985 Contact Us For Availability
0506
Valve BOS 00189983 Contact Us For Availability
0508
Tube BOS 00484817 Contact Us For Availability
0509
Tube BOS 00484818 Contact Us For Availability
0510
Tube BOS 00484819 Contact Us For Availability
0511
Tube BOS 00411431 Contact Us For Availability
0514
Manifold BOS 00368818 Contact Us For Availability
0518
Bracket BOS 00485703 Contact Us For Availability
0531
Screw BOS 00413441 Contact Us For Availability
0532
Clamp BOS 00415015 Contact Us For Availability
0533
Washer BOS 00188962 Contact Us For Availability
0534
Nut BOS 00411030 Contact Us For Availability
0701
Bracket BOS 00485690 Contact Us For Availability
0702
Motor BOS 00487099 Contact Us For Availability
0703
Blade BOS 00486916 Contact Us For Availability
0704
Mounting bracket BOS 00142602 Contact Us For Availability
0706
Plate BOS 00485770 Contact Us For Availability
0707
Catalyzer BOS 00411220 Contact Us For Availability
0708
Temperature sensor BOS 00414152 Contact Us For Availability
0709
Cable harness BOS 00484494 Contact Us For Availability
0710
Plate BOS 00485563 Contact Us For Availability
0711
Insulating part BOS 00484639 Contact Us For Availability
0712
Oven cavity BOS 00238652 Contact Us For Availability
0713
Cover BOS 00485564 Contact Us For Availability
0714
Fan blade BOS 00486202 Contact Us For Availability
0715
Cover BOS 00485565 Contact Us For Availability
0716
Insulating part BOS 00367555 Contact Us For Availability
0717
Deflector BOS 00485717 Contact Us For Availability
0718
Heating element BOS 00367645 Contact Us For Availability
0719
Panel BOS 00238661 Contact Us For Availability
0720
Grid BOS 00484627 Contact Us For Availability
0721
Universal pan BOS 00449757 Contact Us For Availability
0722
Holder BOS 00414510 Contact Us For Availability
0723
Shelf BOS 00368822 Contact Us For Availability
0724
Heating element BOS 00367646 Contact Us For Availability
0725
Frame BOS 00368100 Contact Us For Availability
0727
Frame BOS 00485696 Contact Us For Availability
0901
Door BOS 00142668 Contact Us For Availability
0904
Insulating part BOS 00484640 Contact Us For Availability
0905
Insulating part BOS 00367561 Contact Us For Availability
0906
Insulating part BOS 00367560 Contact Us For Availability
0907
Sealing BOS 00414541 Contact Us For Availability
0908
Hinge BOS 00486917 Contact Us For Availability
0909
Clip BOS 00413386 Contact Us For Availability
0910
Sealing kit BOS 00412883 Contact Us For Availability
0911
Spacer BOS 00369151 Contact Us For Availability
0912
Glass panel BOS 00486968 Contact Us For Availability
0913
Covering BOS 00368109 Contact Us For Availability
0914
Bracket BOS 00484796 Contact Us For Availability
0915
Ventilation duct BOS 00485697 Contact Us For Availability
0916
Support BOS 00412936 Contact Us For Availability
0917
Seating BOS 00485719 Contact Us For Availability
0920
Seating BOS 00485722 Contact Us For Availability
0923
Adhesive tape BOS 00412929 Contact Us For Availability
0924
Glass panel BOS 00143003 Contact Us For Availability
0926
Spacer BOS 00415366 Contact Us For Availability
0930
Handle BOS 00487593 Contact Us For Availability
1101
Panel side BOS 00368111 Contact Us For Availability
1104
Duct BOS 00485705 Contact Us For Availability
1106
Switch BOS 00415421 Contact Us For Availability
1107
Covering BOS 00368157 Contact Us For Availability
1108
Lock-mechanical BOS 00487674 Contact Us For Availability
1109
Tube BOS 00411434 Contact Us For Availability
1110
Covering BOS 00368159 Contact Us For Availability
1111
Installation set BOS 00486787 Contact Us For Availability
1113
Air duct BOS 00485716 Contact Us For Availability
1114
Lamp BOS 00414191 Contact Us For Availability
1116
Duct BOS 00368153 Contact Us For Availability
1118
Relay BOS 00189920 Contact Us For Availability
1119
Terminal BOS 00411161 Contact Us For Availability
1120
Regulator-pressure BOS 00189034 No Longer Available
1122
Cover BOS 00487570 Contact Us For Availability
1123
Covering BOS 00368124 Contact Us For Availability
1124
Base BOS 00368129 Contact Us For Availability
1125
Foot BOS 00415394 Contact Us For Availability
1126
Covering BOS 00368131 Contact Us For Availability
1301
Frame BOS 00487646 Contact Us For Availability
1303
Frame-decor BOS 00487634 Contact Us For Availability
1307
Cap BOS 00415464 Contact Us For Availability
1310
Glass panel BOS 00484739 Contact Us For Availability
1311
Strip BOS 00485701 Contact Us For Availability
1313
Cover BOS 00143245 Contact Us For Availability
1314
Panel BOS 00485726 Contact Us For Availability
1315
Bracket BOS 00485732 Contact Us For Availability
1316
Push button cap BOS 00415760 Contact Us For Availability
1317
Rail BOS 00486749 Contact Us For Availability
1319
Drawer BOS 00142664 Contact Us For Availability
1320
Drawer BOS 00238813 Contact Us For Availability
1323
Glass panel BOS 00142464 Contact Us For Availability
1325
Bracket BOS 00412927 Contact Us For Availability
× ![]()
