Model Bosch PRH626B90E/01 Range Oven – Common Parts & Diagrams

Common parts from model Bosch PRH626B90E/01 Range Oven

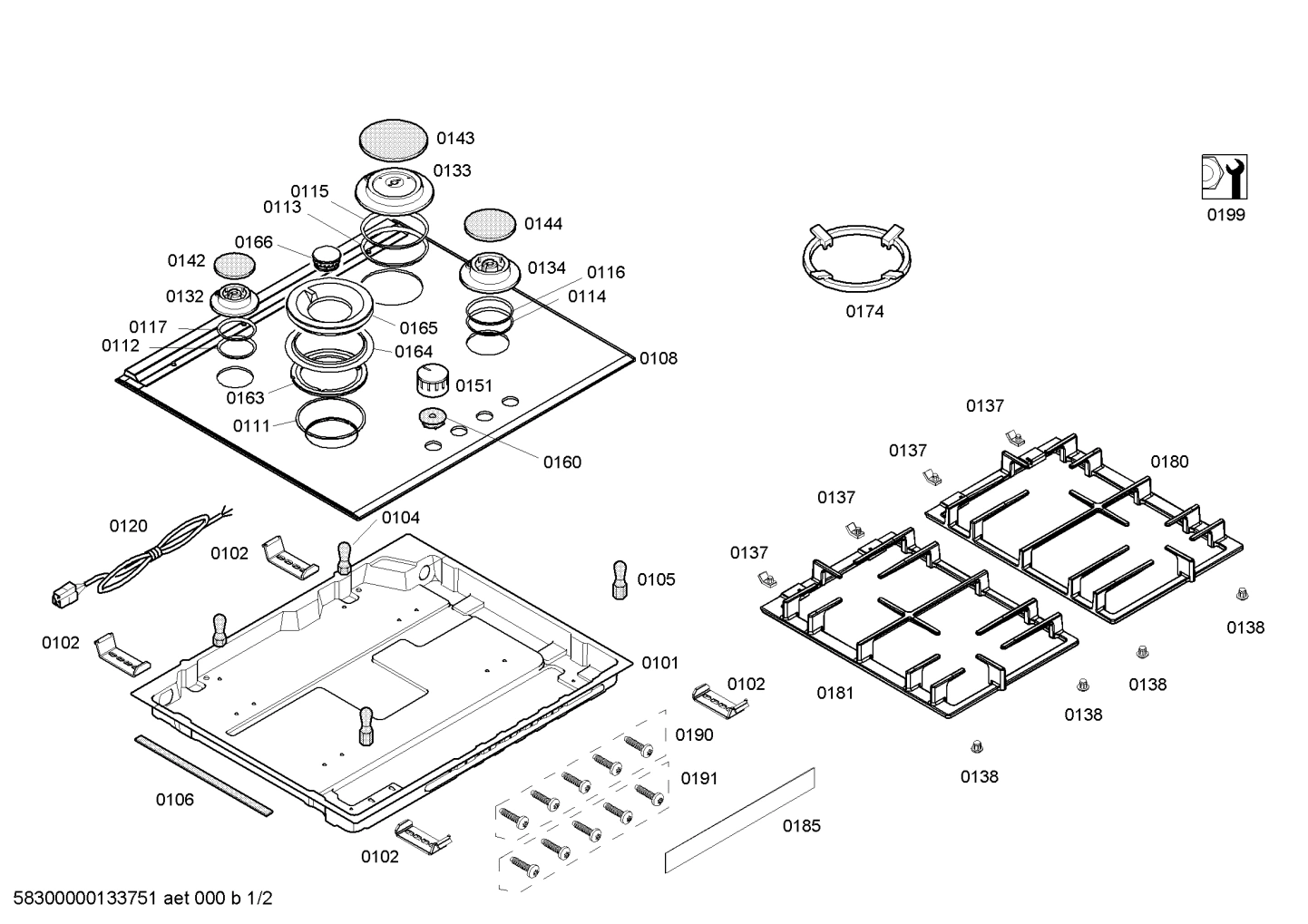

Diagram 1

Print

• This Diagram
• All Diagrams

0115

Ring BOS 00425510 Contact Us For Availability

View on Model

0116

Ring BOS 00425508 Contact Us For Availability

View on Model

0117

Ring BOS 00425509 Contact Us For Availability

View on Model

0120

Power cord BOS 00423551 Contact Us For Availability

View on Model

0132

Burner ring BOS 00633112 Contact Us For Availability

View on Model

0133

Burner ring BOS 00633110 Contact Us For Availability

View on Model

0134

Burner ring BOS 00633111 Contact Us For Availability

View on Model

0138

00632783 Bosch Range Rubber Foot Backorder BOS 00632783 View Details $5.67

View on Model

0142

Burner cap BOS 00627034 Contact Us For Availability

View on Model

0143

00627032 Bosch Range Burner Cap Backorder BOS 00627032 View Details $59.23

View on Model

0144

00627033 Bosch Range Burner Cap Backorder BOS 00627033 View Details $43.25

View on Model

0160

Sealing kit BOS 00600391 Contact Us For Availability

View on Model

0174

17005938 Bosch Range Wok Ring Backorder BOS 17005938 View Details $81.37

View on Model

0190

00613175 Bosch Range Set Screw Backorder BOS 00613175 View Details $7.73

View on Model

0199

Repair-set BOS 00642319 Contact Us For Availability

View on Model

0201

00602117 Bosch Range Ignition Transformer Backorder BOS 00602117 View Details $54.08

View on Model

0205

Burner pipe BOS 00437821 Contact Us For Availability

View on Model

0206

Burner pipe BOS 00437820 Contact Us For Availability

View on Model

0213

Sealing BOS 00600429 Contact Us For Availability

View on Model

0214

00619252 Bosch Range Sealing Backorder BOS 00619252 View Details $12.35

View on Model

0215

Sealing BOS 00600430 Contact Us For Availability

View on Model

0216

Burner ring BOS 00600431 Contact Us For Availability

View on Model

0217

Burner ring BOS 00600400 Contact Us For Availability

View on Model

0218

Burner ring BOS 00600403 Contact Us For Availability

View on Model

0225

00421964 Bosch Range Electromagnet In Stock BOS 00421964 View Details $38.73

View on Model

0226

00036011 Bosch Oven Sealing Backorder BOS 00036011 View Details $5.14

View on Model

0228

00621019 Bosch Range Retaining Washer In Stock BOS 00621019 View Details $4.64

View on Model

0245

Connection BOS 10008510 Contact Us For Availability

View on Model

0251

Wok Thermocouple BOS 12037115 Contact Us For Availability

View on Model

0252

00181743 Bosch Range Holder Backorder BOS 00181743 View Details $5.14

View on Model

0254

Washer BOS 00424237 Contact Us For Availability

View on Model

0259

00034308 Bosch Range Seal Backorder BOS 00034308 View Details $4.64

View on Model

0297

Screw BOS 10012969 Contact Us For Availability

View on Model

0298

10012812 Bosch Range Screw Backorder BOS 10012812 View Details $23.18

View on Model

×
