  • Bosch PGV975K01E/07 Parts List

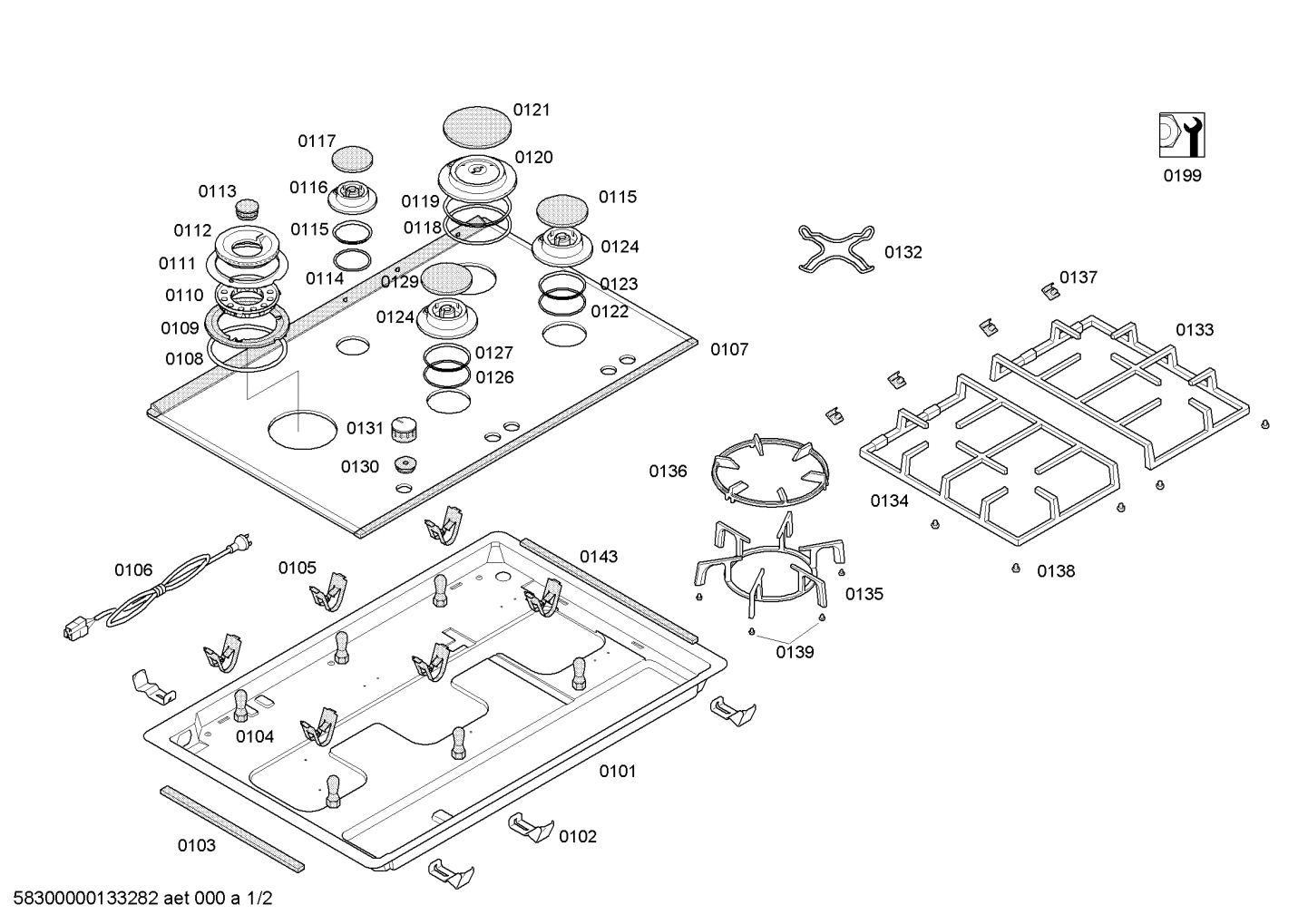

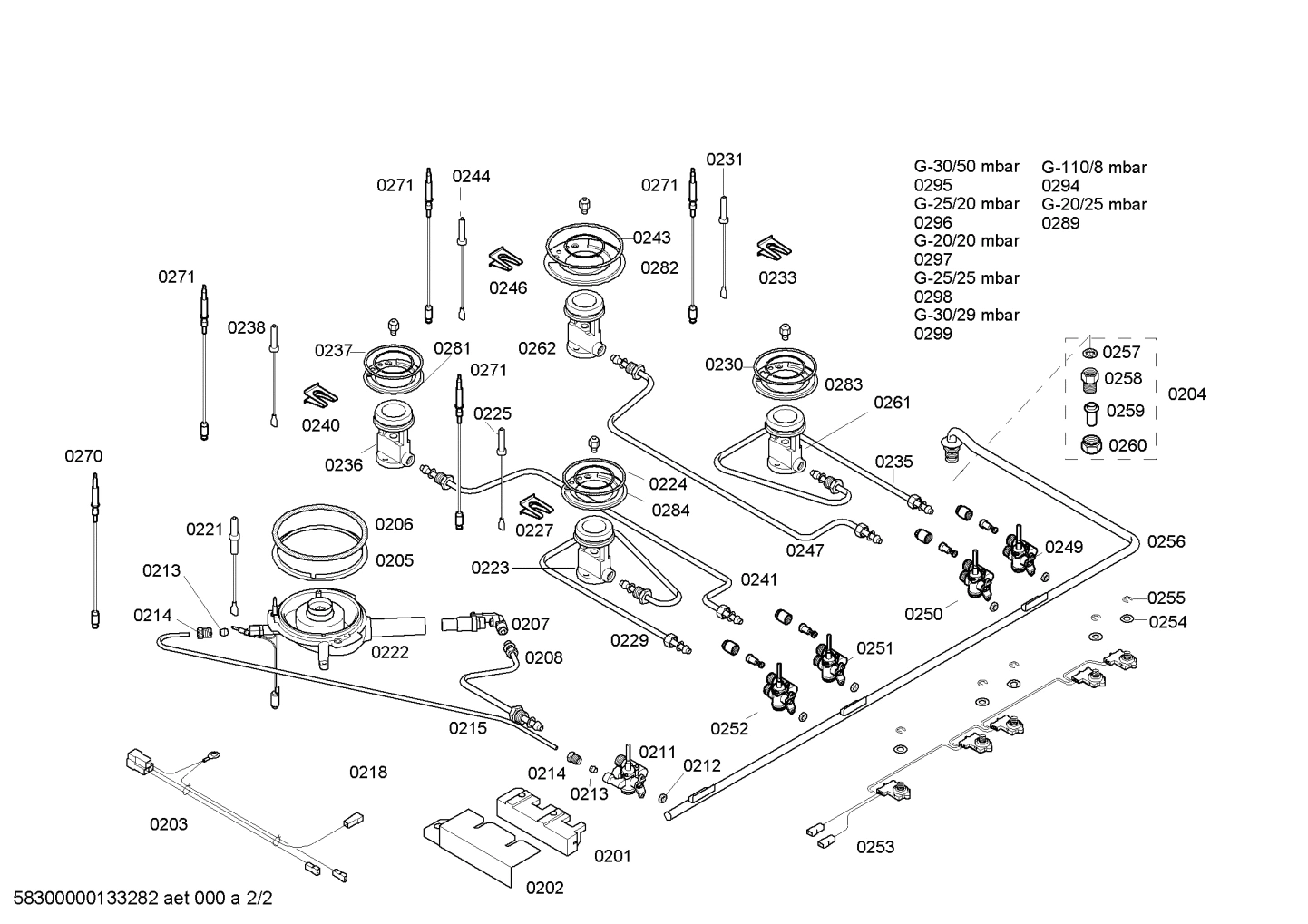

Model Bosch PGV975K01E/07 Range Oven – Common Parts & Diagrams

0112
Burner cap
Burner cap BOS 00495754 Contact Us For Availability
View on Model
0113
Burner cap
Burner cap BOS 00494638 Contact Us For Availability
View on Model
0115
Ring
Ring BOS 00425509 Contact Us For Availability
View on Model
0116
Burner ring
Burner ring BOS 00633112 Contact Us For Availability
View on Model
0117
Burner cap
Burner cap BOS 00627034 Contact Us For Availability
View on Model
0118
Sealing
Sealing BOS 00600404 Contact Us For Availability
View on Model
0119
Ring
Ring BOS 00425510 Contact Us For Availability
View on Model
0130
Sealing kit
Sealing kit BOS 00600391 Contact Us For Availability
View on Model
0135
Grille
Grille BOS 00442717 Contact Us For Availability
View on Model
0136
Grid
Grid BOS 00495753 Contact Us For Availability
View on Model
0143
Sealing
Sealing BOS 00428788 Contact Us For Availability
View on Model
0197
Screw
Screw BOS 10012969 Contact Us For Availability
View on Model
0197
Adapter
Adapter BOS 12015189 Contact Us For Availability
View on Model
0199
Repair-set
Repair-set BOS 00642319 Contact Us For Availability
View on Model
0202
Screening
Screening BOS 00427930 Contact Us For Availability
View on Model
0206
Sealing
Sealing BOS 00425765 Contact Us For Availability
View on Model
0208
Burner pipe
Burner pipe BOS 00443493 Contact Us For Availability
View on Model
0213
Huls
Huls BOS 00425663 Contact Us For Availability
View on Model
0214
Huls
Huls BOS 00425664 Contact Us For Availability
View on Model
0215
Burner pipe
Burner pipe BOS 00443494 Contact Us For Availability
View on Model
0220
Retaining washer
Retaining washer BOS 00427430 Contact Us For Availability
View on Model
0221
Ignition head
Ignition head BOS 00600553 Contact Us For Availability
View on Model
0222
Burner housing
Burner housing BOS 00428846 Contact Us For Availability
View on Model
0230
Sealing
Sealing BOS 00600430 Contact Us For Availability
View on Model
0244
Ignition head
Ignition head BOS 00613118 Contact Us For Availability
View on Model
0254
Washer
Washer BOS 00424237 Contact Us For Availability
View on Model
0258
Terminal
Terminal BOS 00427950 Contact Us For Availability
View on Model
0270
Thermocouple
Thermocouple BOS 00427332 Contact Us For Availability
View on Model
0271
Wok Thermocouple
Wok Thermocouple BOS 12037115 Contact Us For Availability
View on Model
0281
Burner ring
Burner ring BOS 00600431 Contact Us For Availability
View on Model
0282
Burner ring
Burner ring BOS 00600400 Contact Us For Availability
View on Model
0284
Burner ring
Burner ring BOS 00600403 Contact Us For Availability
View on Model
0295
Nozzle set liquid gas
Nozzle set liquid gas BOS 00619313 Contact Us For Availability
View on Model
0298
Part not included in this appliance
Part not included in this appliance BOS 00552829 Contact Us For Availability
View on Model
