Model Bosch PGF375W/01 Range Oven – Common Parts & Diagrams

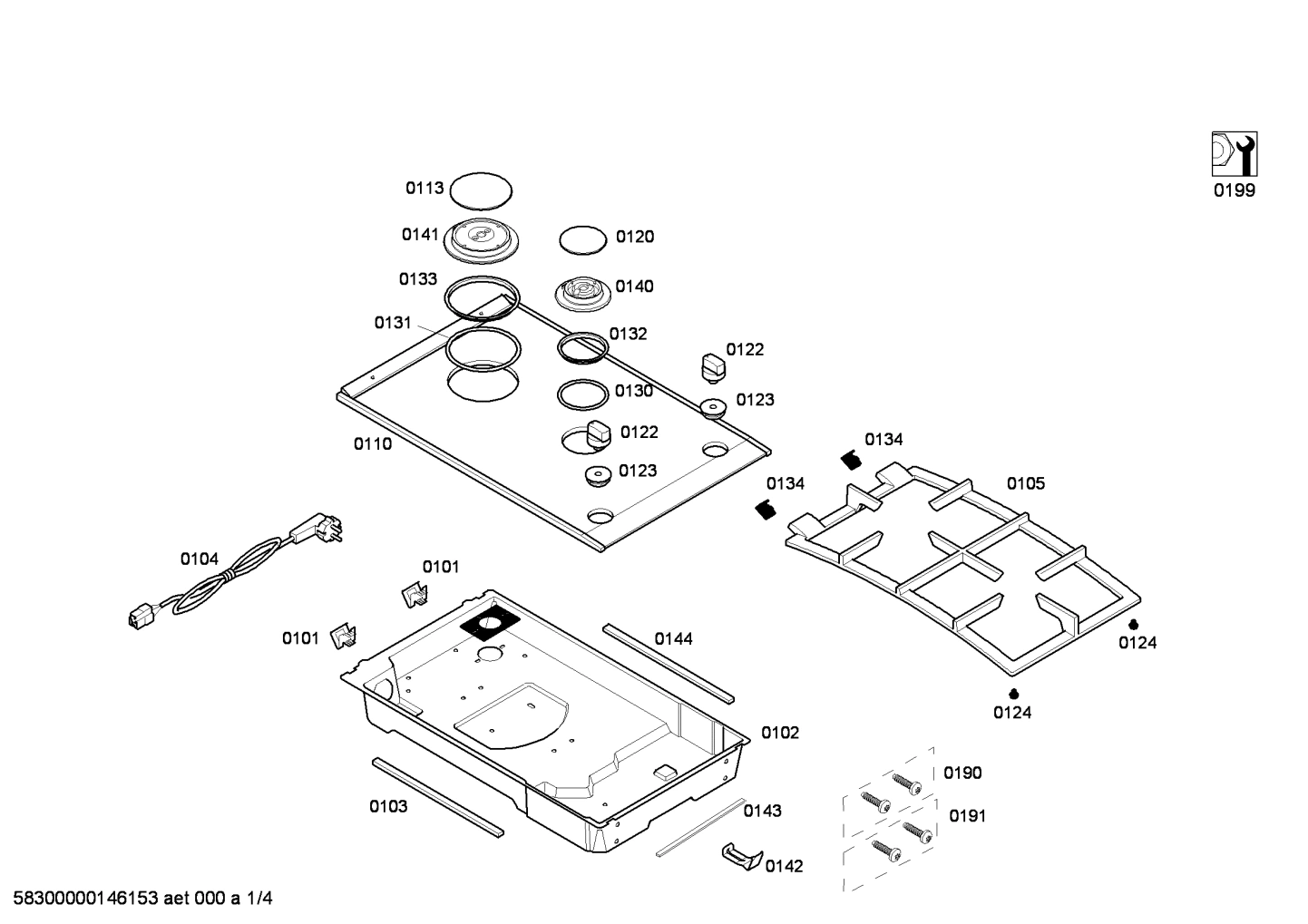

Diagram 1

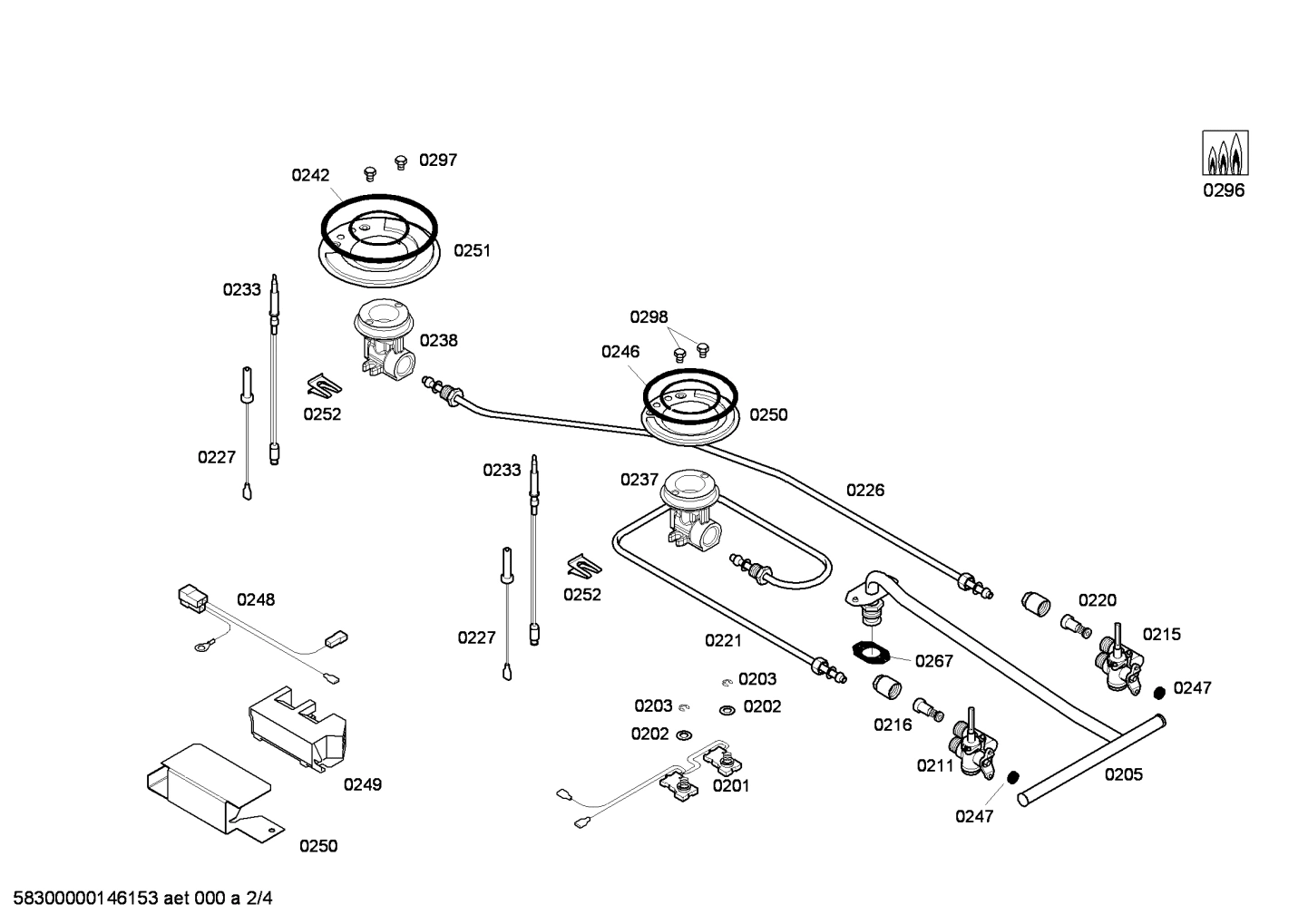

Diagram 2

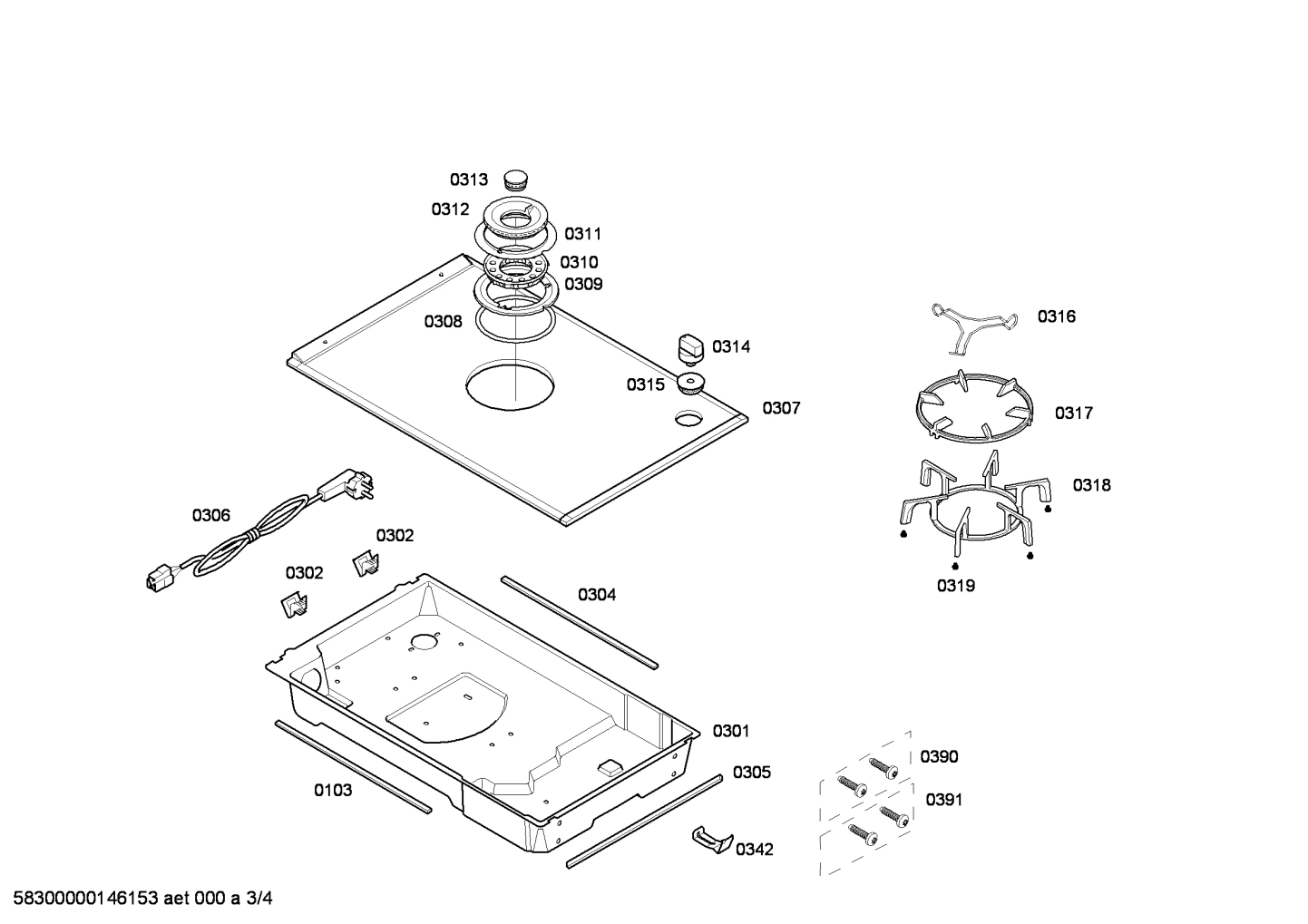

Diagram 3

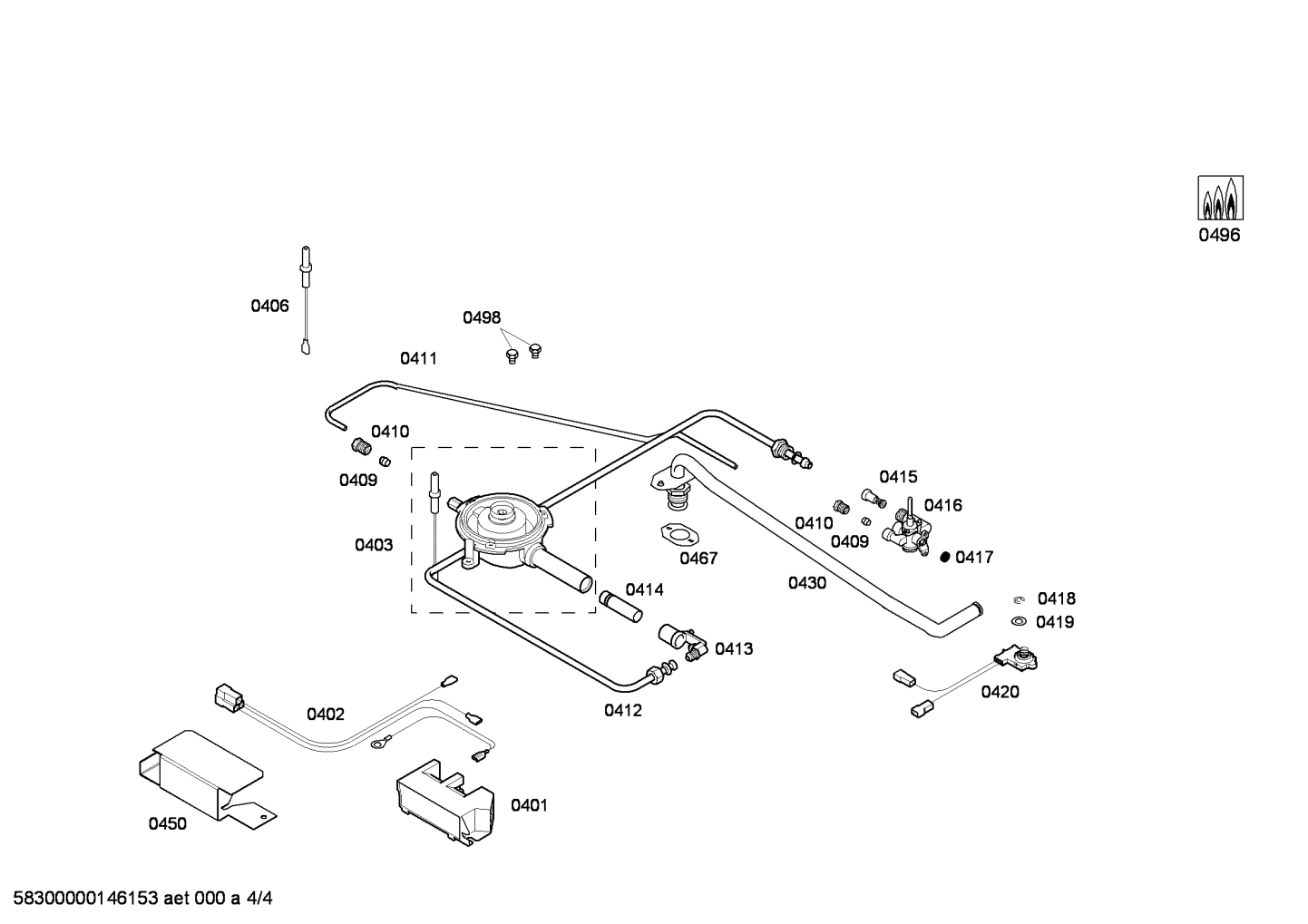

Diagram 4
Common parts from model Bosch PGF375W/01 Range Oven
0133
Ring BOS 00425510 Contact Us For Availability
0134
Rubber foot BOS 00605321 Contact Us For Availability
0199
Part not included in this appliance BOS 00552829 Contact Us For Availability
0199
Repair-set BOS 00642319 Contact Us For Availability
0233
Wok Thermocouple BOS 12037115 Contact Us For Availability
0246
Sealing BOS 00600430 Contact Us For Availability
0250
Burner ring BOS 00600403 Contact Us For Availability
0251
Burner ring BOS 00600400 Contact Us For Availability
0297
Screw BOS 10012969 Contact Us For Availability
0302
Mounting set BOS 00615040 Contact Us For Availability
0308
Sealing BOS 00425765 Contact Us For Availability
0309
Ring BOS 00425767 Contact Us For Availability
0310
Burner tip BOS 00494636 Contact Us For Availability
0311
Ring BOS 00427313 Contact Us For Availability
0312
Burner cap BOS 00495754 Contact Us For Availability
0313
Burner cap BOS 00494638 Contact Us For Availability
0315
Sealing kit BOS 00600391 Contact Us For Availability
0317
Grid BOS 00495753 Contact Us For Availability
0318
Grille BOS 00442717 Contact Us For Availability
0391
Screw BOS 00613394 Contact Us For Availability
0403
Burner housing BOS 00428846 Contact Us For Availability
0406
Ignition head BOS 00600553 Contact Us For Availability
0409
Huls BOS 00425663 Contact Us For Availability
0410
Huls BOS 00425664 Contact Us For Availability
0414
Tubular BOS 00427289 Contact Us For Availability
0419
Washer BOS 00424237 Contact Us For Availability
0467
Sealing BOS 00427304 Contact Us For Availability
× ![]()
