Model Bosch PGF375K03P/01 Range Oven – Common Parts & Diagrams

Common parts from model Bosch PGF375K03P/01 Range Oven

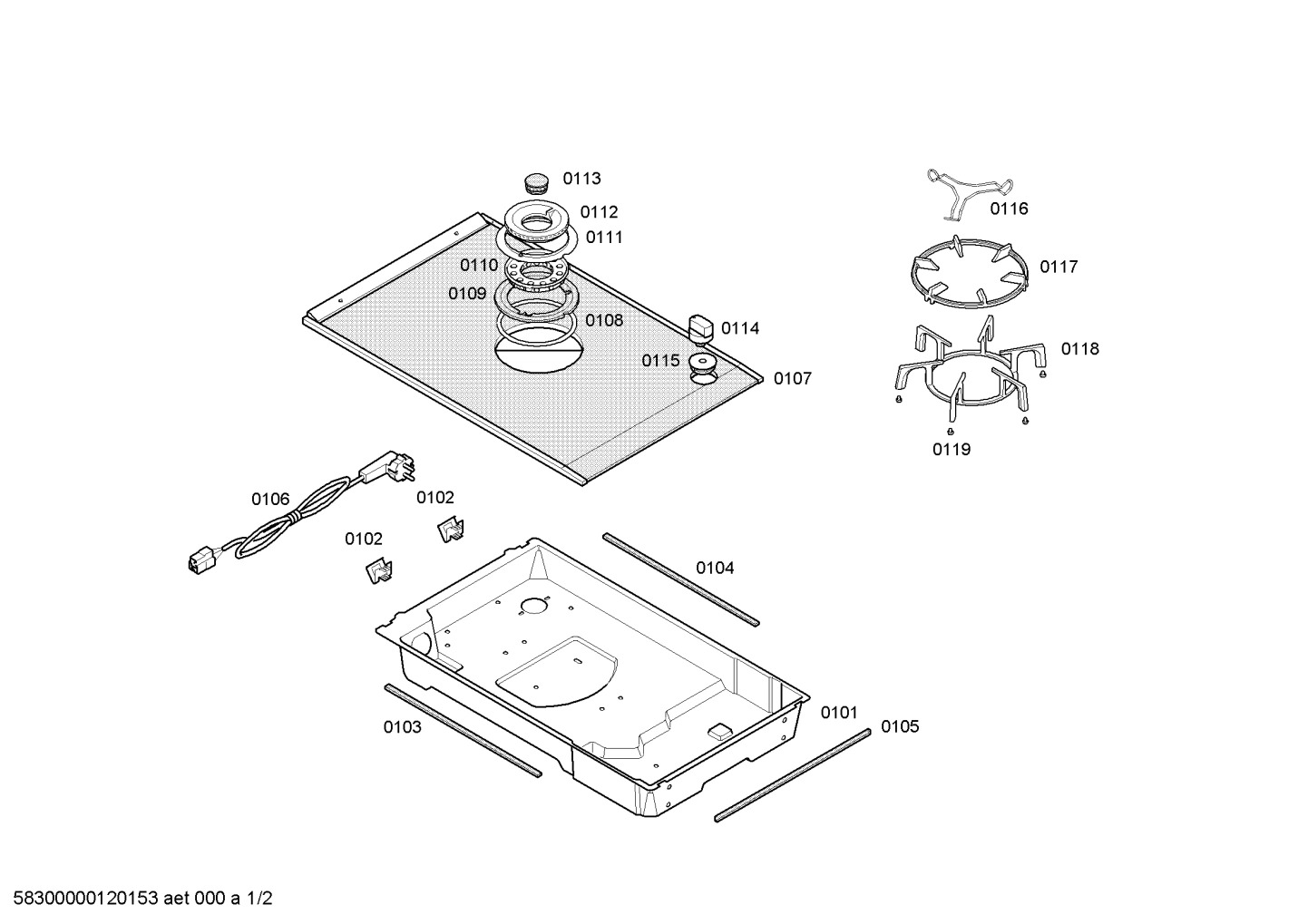

Diagram 1

Print

• This Diagram
• All Diagrams

0110

Burner tip BOS 00494636 Contact Us For Availability

View on Model

0113

Burner cap BOS 00494638 Contact Us For Availability

View on Model

0115

Sealing kit BOS 00600391 Contact Us For Availability

View on Model

0119

00632783 Bosch Range Rubber Foot Backorder BOS 00632783 View Details $6.17

View on Model

0199

Repair-set BOS 00642319 Contact Us For Availability

View on Model

0201

00605136 Bosch Range Ignition Transformer Backorder BOS 00605136 View Details $66.94

View on Model

0204

Thermocouple BOS 00427332 Contact Us For Availability

View on Model

0205

Retaining washer BOS 00427430 Contact Us For Availability

View on Model

0206

Ignition head BOS 00600553 Contact Us For Availability

View on Model

0215

00421964 Bosch Range Electromagnet In Stock BOS 00421964 View Details $41.18

View on Model

0217

00036011 Bosch Oven Sealing Backorder BOS 00036011 View Details $6.17

View on Model

0218

00621019 Bosch Range Retaining Washer In Stock BOS 00621019 View Details $5.14

View on Model

0219

Washer BOS 00424237 Contact Us For Availability

View on Model

0221

00034308 Bosch Range Seal Backorder BOS 00034308 View Details $5.14

View on Model

0222

Mounting set BOS 00498925 Contact Us For Availability

View on Model

0224

Terminal BOS 00427950 Contact Us For Availability

View on Model

×
