Model Samsung NX60T8311SS/AA-04 SLIDE-IN GAS RANGE – Common Parts &amp; Diagrams

1

DG94-03580A Samsung Control Box Module Assemb Backorder SMG DG94-03580A $409.23

1

DG94-03597A Samsung Oven Door Assembly Backorder SMG DG94-03597A $401.49

1

ASSY MECHANICAL PARTS SMG DG90-01069B Contact Us For Availability

1

ASSY COOKTOP SMG DG94-03630D Contact Us For Availability

DG61-01943A Samsung NX60T8311 LED PCB Holder Backorder SMG DG61-01943A $51.14

DG61-01952A Samsung Bracket Cook Top;electric Backorder SMG DG61-01952A $7.27

DG94-03731B Samsung Cooktop Frame Assembly Backorder SMG DG94-03731B $293.94

DG94-04104A Samsung Assembly Drawer NE63A67 N Backorder SMG DG94-04104A $235.18

ASSY DOOR E SMG DG94-03598A Contact Us For Availability

1-1-1

ASSY COOKTOP FRAME SMG DG94-03626B Contact Us For Availability

1-1-1

Inner Frame SMG DG61-00121C Contact Us For Availability

1-1-1

CAVITY DRAWER SMG DG61-02022A Contact Us For Availability

1-1-2

BRACKET GUIDE-LOW SMG DG61-01996A Contact Us For Availability

1-1-2

BAFFLE DOOR SMG DG62-00293A Contact Us For Availability

1-1-2

PANEL DRAWER SMG DG64-00913A Contact Us For Availability

1-1-3

BRACKET GUIDE-LOW SMG DG61-01999A Contact Us For Availability

1-1-3

Frame Cover SMG DG63-00077C Contact Us For Availability

1-1-3

CHASSIS PANEL-DRAWER SMG DG64-00925A Contact Us For Availability

1-1-4

DG64-00092B Samsung Inner Glass Assembly Backorder SMG DG64-00092B $168.04

1-1-4

ASSY HOLDER-TUBE SMG DG94-03625A Contact Us For Availability

1-1-4

ASSY SLIDER (2) SMG DG94-03764A Contact Us For Availability

1-1-5

DG94-00358E Samsung Single 30" Hinge Assembly Backorder SMG DG94-00358E $148.72

1-1-5

BRACKET BARRIER SMG DG61-01930A Contact Us For Availability

1-1-6

ASSY DOOR E-COATING SMG DG94-03605A Contact Us For Availability

DG94-01441A Samsung Range Heater Igniter Backorder SMG DG94-01441A $192.58

DG94-03604A Samsung Assembly Door NE/NX9000T Backorder SMG DG94-03604A $213.89

DG94-03673B Samsung EEPROM Printed Circuit Bo Backorder SMG DG94-03673B $314.53

DG94-03785B Samsung Air Cover Assembly NX60T8 Backorder SMG DG94-03785B $152.47

DG94-04107A Samsung Assembly PEDESTAL NE63A67 Backorder SMG DG94-04107A $299.64

SUPPORT FRAME-BOTTOM (4) SMG DG61-01993A Contact Us For Availability

1-2-1

DG60-00007B Samsung Range Side Panel Spacer Backorder SMG DG60-00007B $2.79

1-2-1

DG61-01866A Samsung Handle Holder Backorder SMG DG61-01866A $18.10

1-2-1

BRACKET HOLDER SMG DG61-02002B Contact Us For Availability

1-2-2

DG61-00525A Samsung Range Leveling Leg Assemb In Stock SMG DG61-00525A $17.88

1-2-2

DG61-01997A Samsung Door Chassis Bracket Backorder SMG DG61-01997A $5.33

1-2-2

DG94-03748A Samsung Assembly COVER AIR-RIGHT; Backorder SMG DG94-03748A $150.92

1-2-3

ASSY SUPPORT GLASS SMG DG94-03608A Contact Us For Availability

1-2-3

BRACKET-LEG (2) SMG DG61-01878A Contact Us For Availability

1-2-4

DG61-01956A Samsung LEVELLING LEG Backorder SMG DG61-01956A $27.95

1-2-4

CHASSIS DOOR-UP SMG DG64-00926A Contact Us For Availability

1-2-5

DG94-03005A Samsung NV51R5510 Handle Assembly Backorder SMG DG94-03005A $182.28

1-2-5

SUPPORT FRAME (2) SMG DG61-01957A Contact Us For Availability

1-2-6

ASSY TRIM-LEFT SMG DG94-03606A Contact Us For Availability

1-2-6

SHIELD DRAWER SMG DG63-00721A Contact Us For Availability

1-2-7

ASSY TRIM-RIGHT SMG DG94-03607A Contact Us For Availability

1-2-7

COVER HEATER-TOP SMG DG63-00725A Contact Us For Availability

1-2-8

ASSY TRIM PEDESTAL SMG DG94-04126A Contact Us For Availability

1-2-9

ASSY BASE PLATE-DRAWER SMG DG94-03469A Contact Us For Availability

1-2-9-1

BASE DRAWER-RIGHT SMG DG61-01875A Contact Us For Availability

1-2-9-2

BASE DRAWER-LEFT SMG DG61-01876A Contact Us For Availability

1-2-9-3

BASE DRAWER-REAR SMG DG61-01877A Contact Us For Availability

1-3

DG63-00697A Samsung Cover PCB LED NX60T8311 8 Backorder SMG DG63-00697A $21.80

1-3

DG94-03785A Samsung Air Cover Assembly NX60T8 Backorder SMG DG94-03785A $160.88

1-3

COVER CONNECTOR SMG DG63-00698A Contact Us For Availability

1-3-1

BRACKET HOLDER SMG DG61-02001B Contact Us For Availability

1-3-2

ASSY COVER AIR-LEFT SMG DG94-03747A Contact Us For Availability

1-4

DG94-03461A Samsung Cover Back Assembly Backorder SMG DG94-03461A $204.50

1-4

DG94-03576A Samsung Control Panel Assembly NX Backorder SMG DG94-03576A $278.34

1-4

ASSY COOKTOP BURNER SMG DG94-03629L Contact Us For Availability

1-4-1

SPACER PANEL (5) SMG DG60-00040A Contact Us For Availability

1-4-1

ASSY COOKTOP MANIFOLD SMG DG94-03628H Contact Us For Availability

1-4-1-1

BRACKET MANIFOLD (5) SMG DG61-01764A Contact Us For Availability

1-4-1-2

BRACKET MANIFOLD (2) SMG DG61-01886A Contact Us For Availability

1-4-1-3

DG62-00314D Samsung Burner Cup Assembly Backorder SMG DG62-00314D $73.13

1-4-1-4

DG62-00313C Samsung Burner Cup Backorder SMG DG62-00313C $64.71

1-4-1-5

DG62-00312D Samsung Burner Cup Backorder SMG DG62-00312D $70.91

1-4-1-6

DG62-00315A Samsung Burner Cup Single Backorder SMG DG62-00315A $74.46

1-4-1-7

DG90-01079A Samsung Assembly Burner NX9000T Backorder SMG DG90-01079A $68.26

1-4-1-8

DG94-03449A Samsung Valve Assembly Backorder SMG DG94-03449A $144.13

1-4-1-9

DG94-03637A Samsung Valve Assembly NX9000T Bl Backorder SMG DG94-03637A $130.87

1-4-1-10

DG94-03638A Samsung Valve Assembly NX9000T AL Backorder SMG DG94-03638A $130.52

1-4-1-11

DG94-03639A Samsung Assembly Valve NX9000T Pi Backorder SMG DG94-03639A $131.74

1-4-1-12

ASSY VALVE SMG DG94-03490A Contact Us For Availability

1-4-1-13

DG94-03448A Samsung Valve Assembly Backorder SMG DG94-03448A $155.45

1-4-1-14

Range Surface Burner Valve SMG DG94-03492A Contact Us For Availability

1-4-1-15

Range Surface Burner Valve SMG DG94-03566A Contact Us For Availability

1-4-1-16

ASSY TUBE BURNER-LEFT REAR SMG DG94-03495A Contact Us For Availability

1-4-1-17

DG94-03750A Samsung Tube Assembly Backorder SMG DG94-03750A $129.47

1-4-1-18

DG94-03753A Samsung Assembly Center Manifold Backorder SMG DG94-03753A $56.54

1-4-1-19

DG94-03759A Samsung Assembly Left Manifold Va Backorder SMG DG94-03759A $135.25

1-4-1-20

DG94-03502A Samsung Right Hand Manifold Valve Backorder SMG DG94-03502A $127.66

1-4-1-21

ASSY TUBE SMG DG94-03491A Contact Us For Availability

1-4-1-22

DG96-00790A Samsung Electrodes Assembly Backorder SMG DG96-00790A $58.68

1-4-1-23

DG96-00789A Samsung NX9000T AC18K Electrode A Backorder SMG DG96-00789A $54.96

1-4-1-24

DG96-00788A Samsung Assembly Electrode NX9000 In Stock SMG DG96-00788A $47.24

1-4-1-25

DG96-00791A Samsung Assembly Electrode NX9000 Backorder SMG DG96-00791A $58.68

1-4-2

DG96-00297A Samsung Range/Cooktop Spark Modul In Stock SMG DG96-00297A $115.84

1-4-2

BRACKET PANEL SMG DG61-01944A Contact Us For Availability

1-4-3

COVER DISPLAY SMG DG63-00691A Contact Us For Availability

1-4-4

CHASSIS PANEL SMG DG64-00919A Contact Us For Availability

1-4-5

CAP-RIGHT SMG DG67-00215A Contact Us For Availability

1-4-6

CAP-LEFT SMG DG67-00216A Contact Us For Availability

1-4-7

DG96-00774A Samsung Assembly Touch NX60T8311S Backorder SMG DG96-00774A $221.34

1-4-8

DG61-01955A Samsung Bracket GUIDE;T-PJT NE63T Backorder SMG DG61-01955A $75.11

1-4-9

GASKET-RUBBER SMG DG63-00715A Contact Us For Availability

1-5

DG94-03647A Samsung Assembly Outer Panel NX63 Backorder SMG DG94-03647A $186.14

1-5

DG96-00801C Samsung Wire Harness Assembly Backorder SMG DG96-00801C $216.25

2

DG94-03797N Samsung Range Knob Assembly Backorder SMG DG94-03797N $51.22

2

ASSY CAVITY PARTS SMG DG90-01021D Contact Us For Availability

2

ASSY ELECTRODE SMG DG98-02123A Contact Us For Availability

2-1

ASSY ELECTRODE SMG DG98-02128A Contact Us For Availability

2-1-1

DG62-00319A Samsung Burner Cap Backorder SMG DG62-00319A $111.07

2-1-2

DG62-00320A Samsung Burner Cap Assembly Backorder SMG DG62-00320A $99.25

2-1-3

DG62-00321A Samsung Vulcan PO-SPHC Burner Cap Backorder SMG DG62-00321A $84.31

2-2

DG75-01001D Samsung Range Oven Wire Rack In Stock SMG DG75-01001D $137.29

2-3

DG94-00870B Samsung Range Oven Anti-Tip Brack In Stock SMG DG94-00870B $35.22

2-4

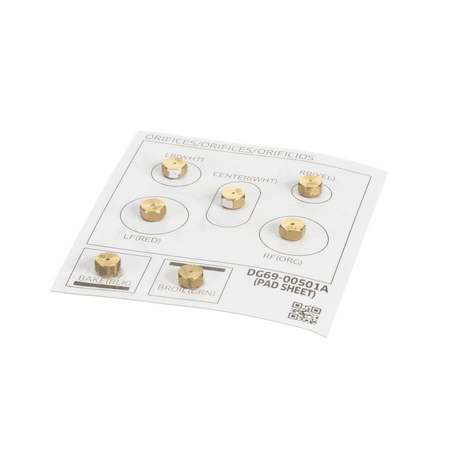

DG96-00825A Samsung Range Assembly Nozzle Kit Backorder SMG DG96-00825A $95.35

2-4-1

DG62-00097A Samsung Nozzle - SEMI Rapid LP Backorder SMG DG62-00097A $9.50

2-4-2

DG62-00098A Samsung Nozzle Assembly AUX LP Backorder SMG DG62-00098A $10.61

3

DG32-00002B Samsung Stove Range Oven Sensor T In Stock SMG DG32-00002B $88.56

3

Range Oven Rack SMG DG98-02126C Contact Us For Availability

3-1

DG62-00316A Samsung Rapid H Burner Head Backorder SMG DG62-00316A $75.78

3-2

DG62-00318A Samsung Burner Head VULCAN ALDC12 Backorder SMG DG62-00318A $48.23

3-3

DG62-00317A Samsung Burner Head Vulcan ALDC12 Backorder SMG DG62-00317A $54.96

3-4

DG94-00606A Samsung Range Burner Head Assembl Backorder SMG DG94-00606A $174.59

4

DG94-03689B Samsung Assembly Bracket SUPPORTE Backorder SMG DG94-03689B $88.88

4

ASSY COOKTOP PARTS SMG DG90-01068F Contact Us For Availability

5

DG67-00225A Samsung Oven Wire Rack Assembly Backorder SMG DG67-00225A $166.28

6

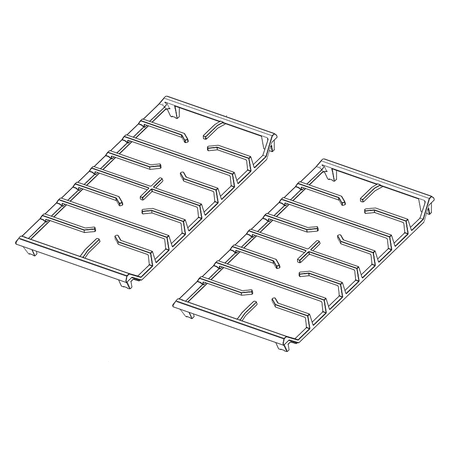

DG98-02112A Samsung Range Grate Accessory Pac Backorder SMG DG98-02112A $361.42

6-1

DG94-03453A Samsung Assembly Right Side Grate Backorder SMG DG94-03453A $238.56

6-2

DG94-03454A Samsung Range Left Side Grate Ass Backorder SMG DG94-03454A $228.30

13-2

DG61-01920B Samsung Regulator Support Backorder SMG DG61-01920B $17.04

13-3

N X 5000A/N X 9000T,Gi-Sgc SMG DG61-01940A Contact Us For Availability

13-4

BRACKET PIPE SMG DG62-00302B Contact Us For Availability

13-5

DG63-00260A Samsung Cover Power Cord FX710BGS In Stock SMG DG63-00260A $5.33

13-6

Power Cover SMG DG94-03520B Contact Us For Availability

13-7

DG94-00761C Samsung Assembly Latch Bracket NE Backorder SMG DG94-00761C $94.96

13-8

DG98-02643A Samsung Gas Pressure Regulator In Stock SMG DG98-02643A $204.25

13-9

DG94-03446A Samsung Safety Valve Assembly NX9 Backorder SMG DG94-03446A $326.41

13-10

DG94-03513A Samsung Assembly Inner Tube NX60T Backorder SMG DG94-03513A $126.19

13-11

DG94-03516A Samsung Inner Tube Assembly NX60T Backorder SMG DG94-03516A $118.45

13-12

ASSY TUBE SMG DG94-03585A Contact Us For Availability

13-13

DG96-00211A Samsung Range Oven Power Cord Ass Backorder SMG DG96-00211A $97.19

14

DG96-00602B Samsung Sensor Assembly Backorder SMG DG96-00602B $54.96

14-1

DG34-00006A Samsung Range Oven Plunger Door S In Stock SMG DG34-00006A $47.26

15

DG94-03561A Samsung Casing Cover Backorder SMG DG94-03561A $165.68

16

DG94-03544A Samsung NX60T8711 Latch Bracket A Backorder SMG DG94-03544A $46.75

17

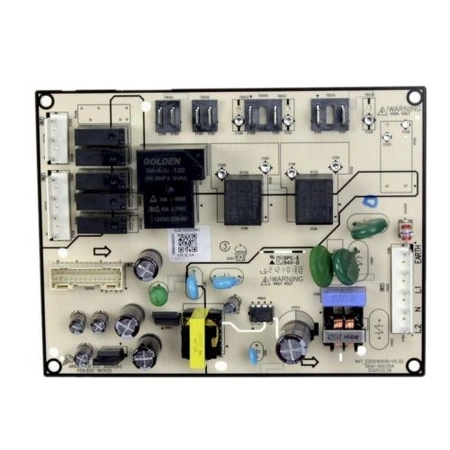

DG92-01207D Samsung Assembly PF4 NX900 Main O Backorder SMG DG92-01207D $202.88

18

DG94-03530A Samsung Adiabatic Top Cover Assem Backorder SMG DG94-03530A $213.40

19

DG94-03514A Samsung Broil Tube Assembly Backorder SMG DG94-03514A $141.01

20

DG94-03512A Samsung Bake Tube Assembly Backorder SMG DG94-03512A $115.27

21

DG73-00003A Samsung Range Oven Door Rubber Cu In Stock SMG DG73-00003A $3.35

22

DG67-00018A Samsung Range Oven Main Convectio In Stock SMG DG67-00018A $13.42

23

Range Convection Fan Blade SMG DG66-00071A Contact Us For Availability

24

LATCH-ROD SMG DG63-00683A Contact Us For Availability

25

SHIELD CAVITY UPPER SMG DG94-03526D Contact Us For Availability

26

ASSY CAVITY-COATING SMG DG94-03540A Contact Us For Availability

27

ASSY VENT COATING SMG DG97-00083A No Longer Available

28

6021-001211 Samsung Range Oven Convection Fan In Stock SMG 6021-001211 $15.37

29

DG31-00014F Samsung Range Oven Convection AC In Stock SMG DG31-00014F $142.75

30

DG94-00362A Samsung Range Hinge Support Assem Backorder SMG DG94-00362A $35.30

31

DG61-00732A Samsung NX583G0VBS Latch Bracket Backorder SMG DG61-00732A $5.33

32

DG61-01912A Samsung Broil Bracket Assembly Backorder SMG DG61-01912A $124.69

33

DG61-01915A Samsung Bottom Cover Bracket NX60 Backorder SMG DG61-01915A $10.61

34

DG61-01945A Samsung Holder Pcb-Main;ne, Nx(85 Backorder SMG DG61-01945A $47.74

35

HOLDER PCB-MAIN SMG DG61-01948A Contact Us For Availability

36

DG94-03713A Samsung Assembly Cavity Coating F Backorder SMG DG94-03713A $209.44

37

DG63-00257A Samsung Cover HSI Wire Assembly Backorder SMG DG63-00257A $3.48

38

DG96-00779A Samsung Motor Assy Backorder SMG DG96-00779A $209.38
