Model Samsung NE63T8711SS/AA-00 SLIDE-IN ELECTRIC RANGE – Common Parts &amp; Diagrams

1

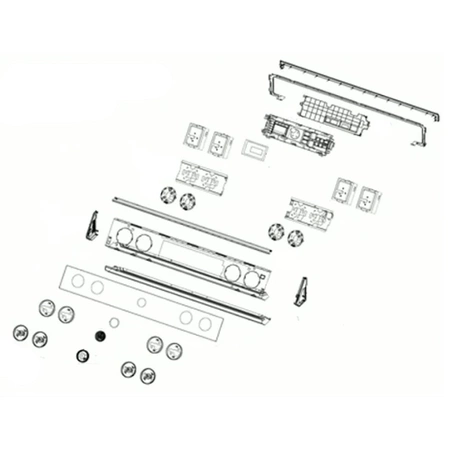

DG94-03550B Samsung Control Box Assembly Backorder SMG DG94-03550B $620.48

1

ASSY CAVITY-COATING SMG DG94-03527B Contact Us For Availability

1

ASSY MECHANICAL PARTS SMG DG90-01071B Contact Us For Availability

DG61-01952A Samsung Bracket Cook Top;electric Backorder SMG DG61-01952A $7.27

DG94-03617A Samsung Range Drawer Assembly Backorder SMG DG94-03617A $237.90

BRACKET ELEC SMG DG61-01881A Contact Us For Availability

HOLDER KNOB (5) SMG DG61-01897A Contact Us For Availability

1-1-4

DG64-00092B Samsung Inner Glass Assembly Backorder SMG DG64-00092B $168.04

1-1-4

DG94-00550A Samsung Range Drawer Slider Assem Backorder SMG DG94-00550A $88.88

1-1-5

DG64-00948A Samsung Glass Door Assembly Backorder SMG DG64-00948A $93.20

1-1-6

DG94-00358E Samsung Single 30" Hinge Assembly Backorder SMG DG94-00358E $148.72

1-1-7

ASSY DOOR E-COATING SMG DG94-03605A Contact Us For Availability

DG63-00674A Samsung LCD PCB Cover Assembly Backorder SMG DG63-00674A $46.24

DG94-03701A Samsung Door Sub Assembly Backorder SMG DG94-03701A $380.66

BRACKET BARRIER SMG DG61-01893A Contact Us For Availability

SUPPORT FRAME-BOTTOM (4) SMG DG61-01993A Contact Us For Availability

1-2-1

DG61-01866A Samsung Handle Holder Backorder SMG DG61-01866A $18.10

1-2-2

DG61-00525A Samsung Range Leveling Leg Assemb In Stock SMG DG61-00525A $17.88

1-2-2

DG94-03005A Samsung NV51R5510 Handle Assembly Backorder SMG DG94-03005A $182.28

1-2-3

DG94-03602A Samsung Range Door Assembly Backorder SMG DG94-03602A $309.38

1-3

DG94-03460A Samsung Assembly Cover Back NE63T Backorder SMG DG94-03460A $176.41

1-3

BRACKET GUIDE-LOW SMG DG61-01996A Contact Us For Availability

1-3

GASKET-RUBBER SMG DG63-00701A Contact Us For Availability

1-4

DG67-00227A Samsung Rubber Ring Backorder SMG DG67-00227A $5.59

1-4

DG94-03647A Samsung Assembly Outer Panel NX63 Backorder SMG DG94-03647A $186.14

1-4

BRACKET GUIDE-LOW SMG DG61-01999A Contact Us For Availability

1-5

DG63-00682A Samsung COVER Wire NE63T,NY63T Backorder SMG DG63-00682A $5.59

1-5

DG94-03552B Samsung Control Panel Sub Assembl Backorder SMG DG94-03552B $453.48

1-5

ADIABATIC SMG DG62-00298A Contact Us For Availability

1-5-1

HOLDER KNOB-REAR (5) SMG DG61-01867A Contact Us For Availability

1-5-2

BRACKET PANEL-RIGHT SMG DG61-01873B Contact Us For Availability

1-5-3

BRACKET PANEL-LEFT SMG DG61-01951B Contact Us For Availability

1-5-4

BRACKET PANEL SMG DG61-01975A Contact Us For Availability

1-5-5

CHASSIS PANEL-UP SMG DG64-00922A Contact Us For Availability

1-5-6

CHASSIS PANEL-LOW SMG DG64-00923A Contact Us For Availability

1-5-7

CAP-RIGHT SMG DG67-00217A Contact Us For Availability

1-5-8

CAP-LEFT SMG DG67-00218A Contact Us For Availability

1-5-9

ASSY TOUCH SMG DG96-00775B Contact Us For Availability

1-6

DG94-03581A Samsung Assembly Knob Select Best In Stock SMG DG94-03581A $186.99

1-6

COVER ADIABATIC SMG DG63-00675A Contact Us For Availability

1-6-1

Range Oven Selector Knob SMG DG94-03439A Contact Us For Availability

1-6-2

SWITCH SMG DG34-00046A Contact Us For Availability

1-7

DG64-00319A Samsung Lamp Assembly Backorder SMG DG64-00319A $160.31

1-7

DG94-03583A Samsung Electrical Holder Assembl Backorder SMG DG94-03583A $235.79

1-7-1

WINDOW DISPLAY SMG DG64-00957A Contact Us For Availability

1-8

DG94-03614B Samsung Assy Holder-Knob Backorder SMG DG94-03614B $58.51

1-8

ASSY COVER AIR SMG DG94-03621A Contact Us For Availability

1-9

DG61-01955A Samsung Bracket GUIDE;T-PJT NE63T Backorder SMG DG61-01955A $75.11

1-9

ASSY COOKTOP FRAME SMG DG94-03622A Contact Us For Availability

1-10

DG44-01006D Samsung Regulator Energy PER001-0 In Stock SMG DG44-01006D $128.53

1-10

ASSY COOKTOP BURNER SMG DG94-03691A Contact Us For Availability

1-10-1

DG47-00024B Samsung Heater Radiant Backorder SMG DG47-00024B $150.97

1-10-2

DG47-00060A Samsung Range Single Radiant Heat In Stock SMG DG47-00060A $207.02

1-10-3

DG47-00065A Samsung Range Triple Surface Radi In Stock SMG DG47-00065A $272.62

1-10-4

DG47-00080A Samsung Dual Radiant Heater AC240 Backorder SMG DG47-00080A $210.08

1-10-5

DG61-00144B Samsung Warming Heater Support Backorder SMG DG61-00144B $7.27

1-10-6

BRACKET BOTTOM-LEFT SMG DG61-00803A Contact Us For Availability

1-10-7

BRACKET HEATER SMG DG61-01967A Contact Us For Availability

1-10-8

DG61-01970A Samsung Spring Etc-Heater;oven Ne Backorder SMG DG61-01970A $19.18

1-10-9

BRACKET BOTTOM-RIGHT SMG DG61-00808A Contact Us For Availability

1-11

DG44-01007C Samsung Energy Regulator In Stock SMG DG44-01007C $138.67

1-12

DG44-01009B Samsung Range Energy Regulator In Stock SMG DG44-01009B $121.96

2

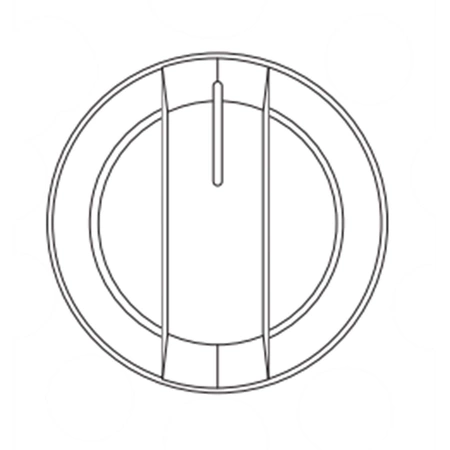

DG94-03500B Samsung Cooking Knob Backorder SMG DG94-03500B $113.28

2

ASSY VENT-MAIN SMG DG94-03531A Contact Us For Availability

2

ASSY CAVITY PARTS SMG DG90-01022B Contact Us For Availability

2-1

Mesh Filter SMG DG63-00148A Contact Us For Availability

2-2

ASSY VENT COATING SMG DG94-03706A Contact Us For Availability

3

DG90-01062A Samsung Assembly Main Drawer NE63 Backorder SMG DG90-01062A $381.23

3

DG94-03500C Samsung Knob Assembly Backorder SMG DG94-03500C $141.98

3

ASSY COVER HEATER SMG DG94-03533A Contact Us For Availability

3-1

DG47-00071C Samsung AC 240V Heater Sheath Bot Backorder SMG DG47-00071C $173.36

3-2

BRACKET HEATER-SUB SMG DG61-01938A Contact Us For Availability

3-3

DG63-00693A Samsung Heater Cover Backorder SMG DG63-00693A $119.43

4

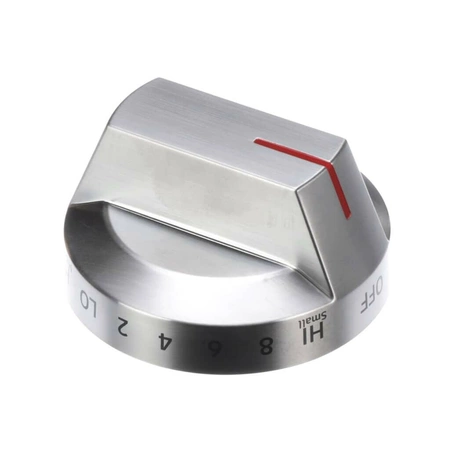

DG94-03500D Samsung Knob Assembly Backorder SMG DG94-03500D $139.61

4

ASSY BRACKET HEATER SMG DG94-03534A Contact Us For Availability

4

ASSY COOKTOP PARTS SMG DG90-01063C Contact Us For Availability

5

DG94-03595A Samsung Assembly Door-Module NE/N Backorder SMG DG94-03595A $474.11

5

DG96-00816A Samsung Wire Harness Assembly Backorder SMG DG96-00816A $177.92

5

Range Oven Light Bulb SMG DG97-00083A No Longer Available

6

DG47-00068A Samsung Range Grille Heater Sheat Backorder SMG DG47-00068A $175.88

7

DG60-00007B Samsung Range Side Panel Spacer Backorder SMG DG60-00007B $2.79

8

BAFFLE DOOR (2) SMG DG62-00292A Contact Us For Availability

9

ADIABATIC-MAIN SMG DG62-00304A Contact Us For Availability

10

DG63-00705A Samsung Gasket Backorder SMG DG63-00705A $104.44

11

DG94-00674B Samsung Range Probe Assembly Backorder SMG DG94-00674B $221.73

12

ASSY COVER BACK-MAIN SMG DG94-03517B Contact Us For Availability

12-1

DE47-20037A Samsung Range Oven High Limit The In Stock SMG DE47-20037A $15.88

12-2

ADIABATIC-REAR SMG DG62-00302D Contact Us For Availability

12-3

DG94-00761C Samsung Assembly Latch Bracket NE Backorder SMG DG94-00761C $94.96

12-4

ASSY COVER BACK SMG DG94-03519B Contact Us For Availability

13

6021-001211 Samsung Range Oven Convection Fan In Stock SMG 6021-001211 $15.37

14

DG31-00014F Samsung Range Oven Convection AC In Stock SMG DG31-00014F $142.75

15

DG47-00017C Samsung Heater Convection Sheath In Stock SMG DG47-00017C $69.14

16

DG94-00362A Samsung Range Hinge Support Assem Backorder SMG DG94-00362A $35.30

17

DG61-00228A Samsung Heater Convection Bracket Backorder SMG DG61-00228A $7.45

18

DG61-00732A Samsung NX583G0VBS Latch Bracket Backorder SMG DG61-00732A $5.33

19

DG61-01919A Samsung Main PCB Holder Backorder SMG DG61-01919A $65.15

20

BRACKET COVER SMG DG61-01937A Contact Us For Availability

21

DG63-00107A Samsung Ground Terminal Block Backorder SMG DG63-00107A $7.07

22

LATCH-ROD SMG DG66-00071A Contact Us For Availability

23

DG67-00018A Samsung Range Oven Main Convectio In Stock SMG DG67-00018A $13.42

24

DG73-00003A Samsung Range Oven Door Rubber Cu In Stock SMG DG73-00003A $3.35

25

DG94-03530B Samsung Top Adiabatic Cover Assem Backorder SMG DG94-03530B $256.15

26

DG94-03544A Samsung NX60T8711 Latch Bracket A Backorder SMG DG94-03544A $46.75

27

DG94-03561A Samsung Casing Cover Backorder SMG DG94-03561A $165.68

28

DG96-00173A Samsung Oven Terminal Block Assem In Stock SMG DG96-00173A $61.51

29

DG96-00602B Samsung Sensor Assembly Backorder SMG DG96-00602B $54.96

30

DG96-00779B Samsung Assembly Motor NE9000T (E Backorder SMG DG96-00779B $233.98

31

DG32-00002B Samsung Stove Range Oven Sensor T In Stock SMG DG32-00002B $88.56
