Bosch HSLP451UC/01 Range Oven Parts List

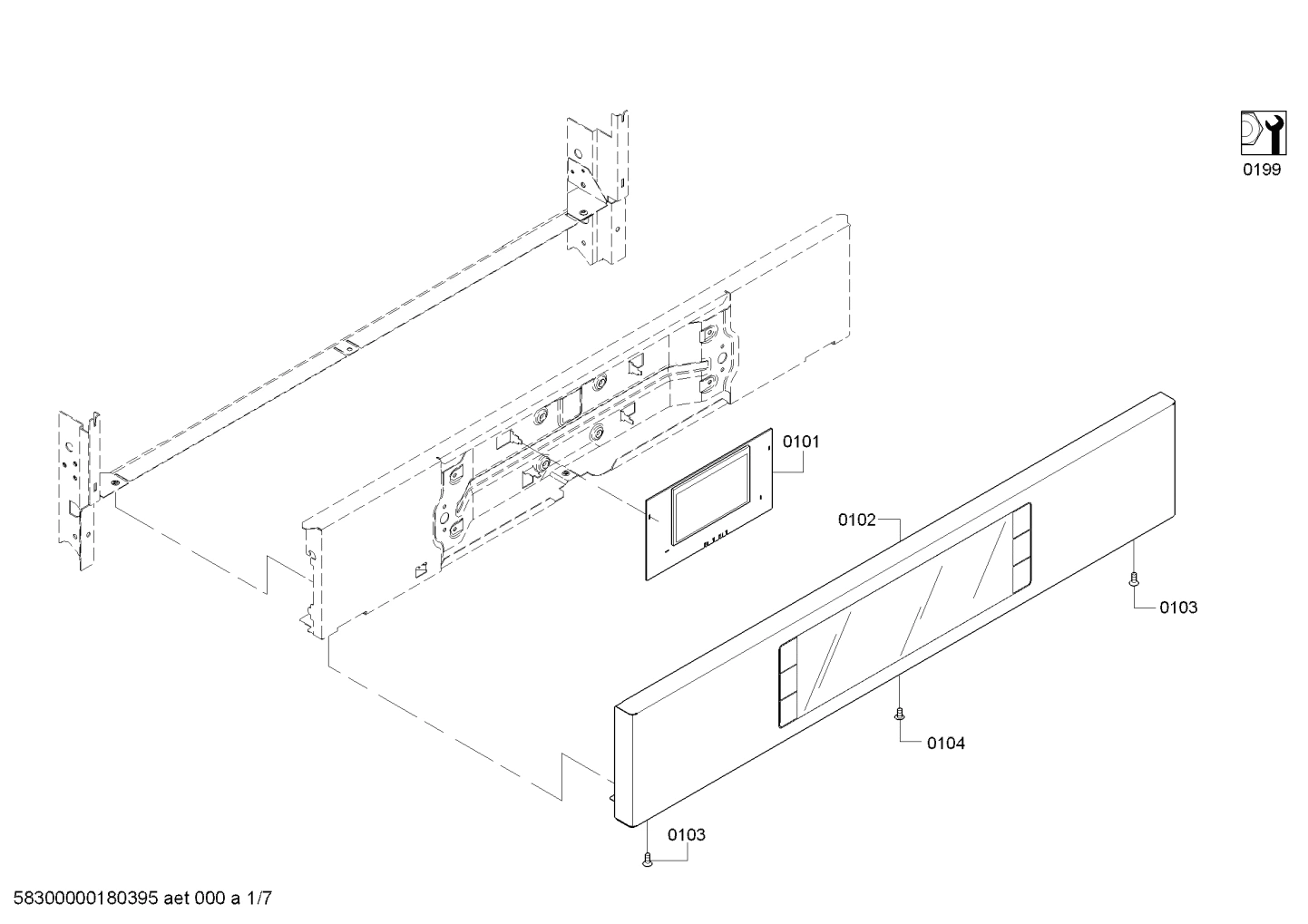

0101

11002615 Bosch Oven Display Module Backorder BOS 11002615 $471.23

View on Model

0102

11005335 Bosch Oven Facia Panel Backorder BOS 11005335 $301.34

View on Model

0103

00422102 Bosch Oven Screw In Stock BOS 00422102 $22.65

View on Model

0104

00422098 Bosch Oven Screw In Stock BOS 00422098 $27.82

View on Model

0199

00637738 Bosch Oven Spacer Backorder BOS 00637738 $23.18

View on Model

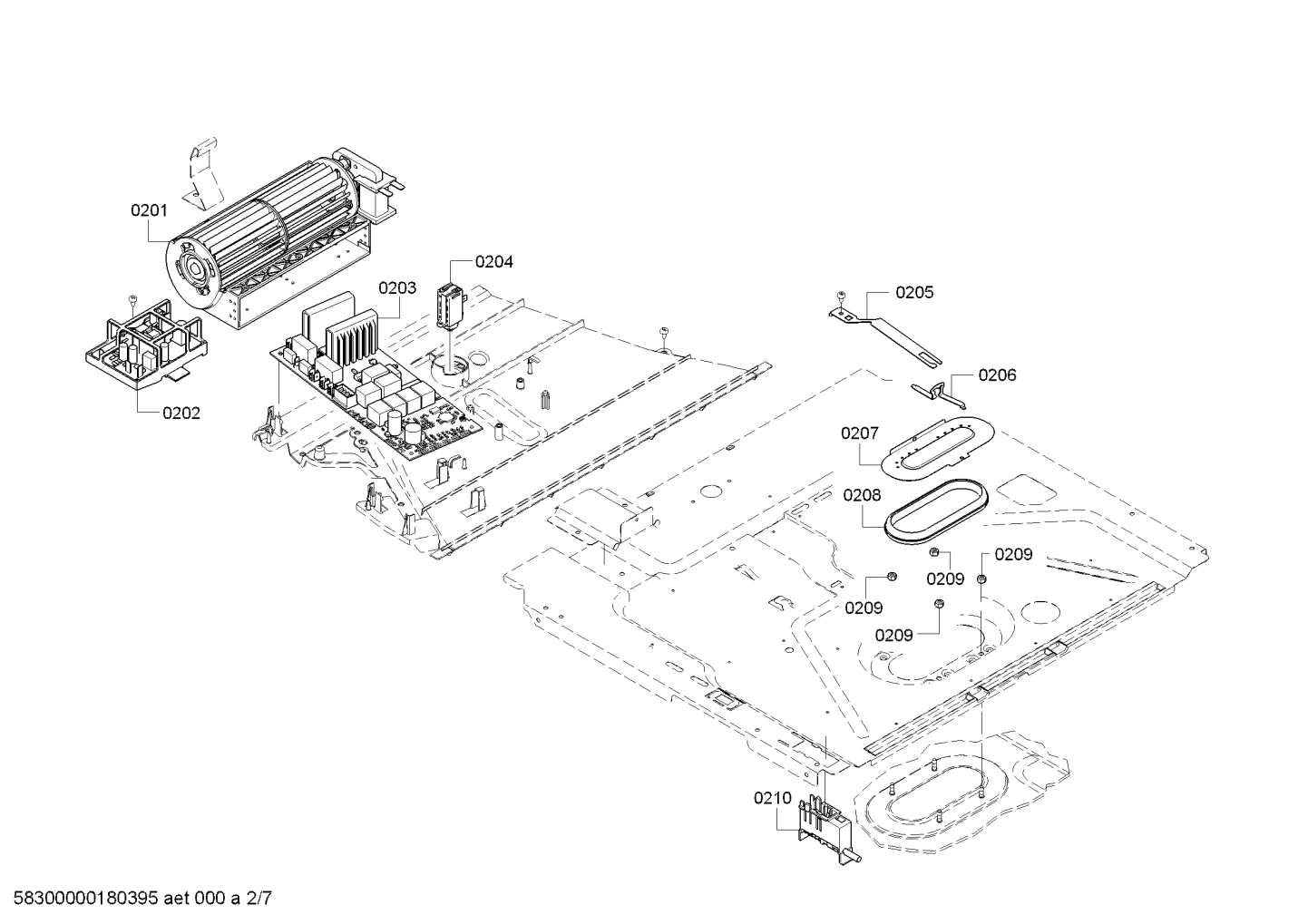

0201

00753584 Bosch Oven Fan Backorder BOS 00753584 $301.28

View on Model

0202

00651994 Bosch Oven Power Mains PCB Assembly Backorder BOS 00651994 $187.58

View on Model

0203

00656294 Bosch Range Power Module Backorder BOS 00656294 $204.22

View on Model

0204

00614466 Bosch Range Drive Backorder BOS 00614466 $53.05

View on Model

0205

00655612 Bosch Range Spring Backorder BOS 00655612 $13.91

View on Model

0206

00623606 Bosch Range Clip Backorder BOS 00623606 $13.38

View on Model

0207

00656358 Bosch Range Flap Backorder BOS 00656358 $57.17

View on Model

0208

00623544 Bosch Range Seal Backorder BOS 00623544 $17.00

View on Model

0210

00630249 Bosch Oven Switch Backorder BOS 00630249 $46.34

View on Model

0251

00630250 Bosch Oven Cable Harness Backorder BOS 00630250 $11.85

View on Model

0253

00755413 Bosch Oven Cable Harness Backorder BOS 00755413 $26.27

View on Model

0255

00655578 Bosch Range Cable Harness Backorder BOS 00655578 $86.01

View on Model

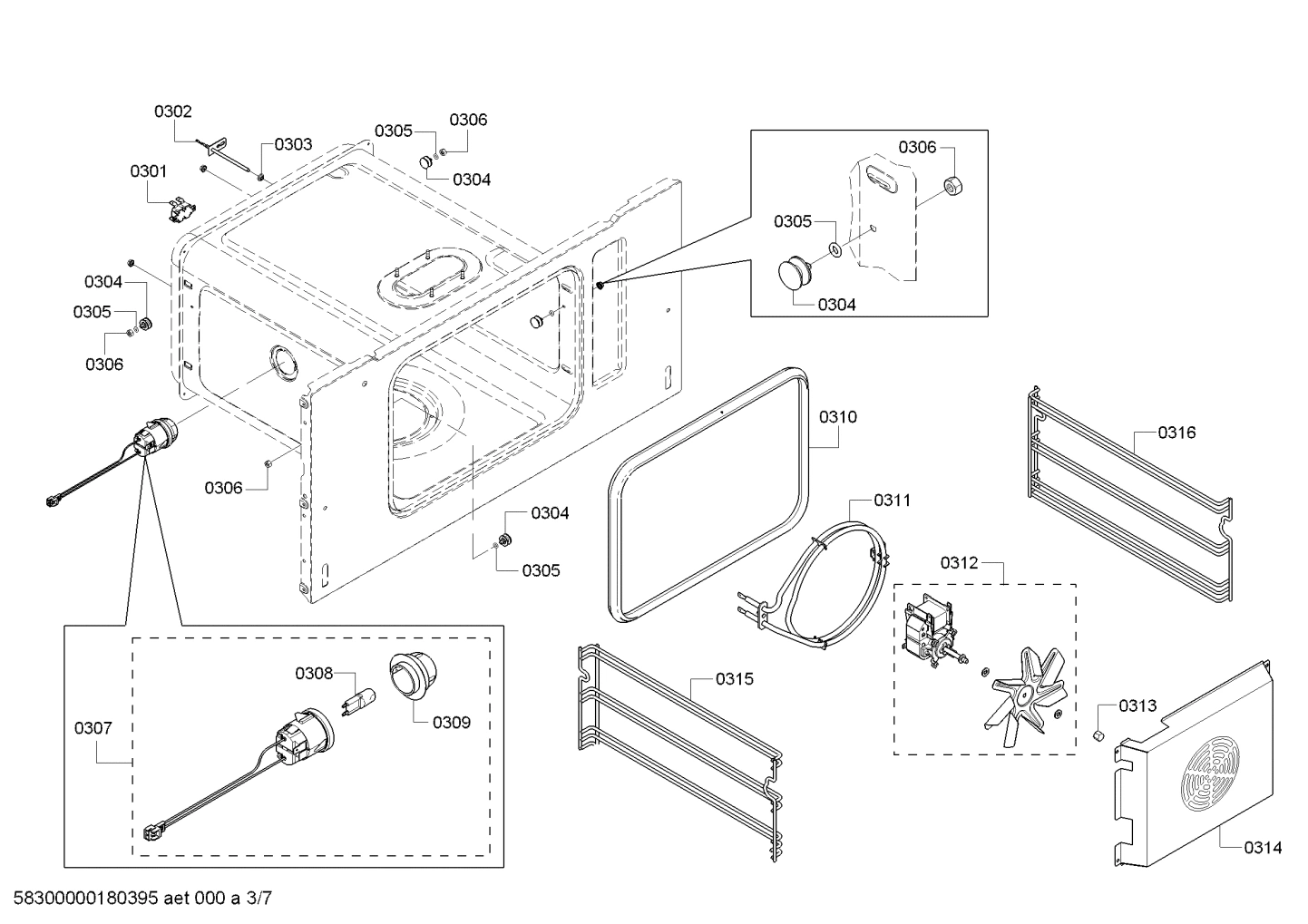

0301

00429173 Bosch Range Temperature Limiter Backorder BOS 00429173 $35.01

View on Model

0302

00608933 Bosch Range Temperature Sensor Backorder BOS 00608933 $130.30

View on Model

0307

00630251 Bosch Oven Complete Lamp Backorder BOS 00630251 $81.36

View on Model

0308

00630293 Bosch Oven Lamp Backorder BOS 00630293 $22.65

View on Model

0309

00608656 Bosch Range Glass Light Cover Backorder BOS 00608656 $76.21

View on Model

0310

00645704 Bosch Range Door Seal Backorder BOS 00645704 $67.47

View on Model

0311

00750884 Bosch Range Ring Heater Backorder BOS 00750884 $101.96

View on Model

0315

00741834 Bosch Range Grille Backorder BOS 00741834 $77.77

View on Model

0316

00741833 Bosch Range Grille Backorder BOS 00741833 $77.77

View on Model

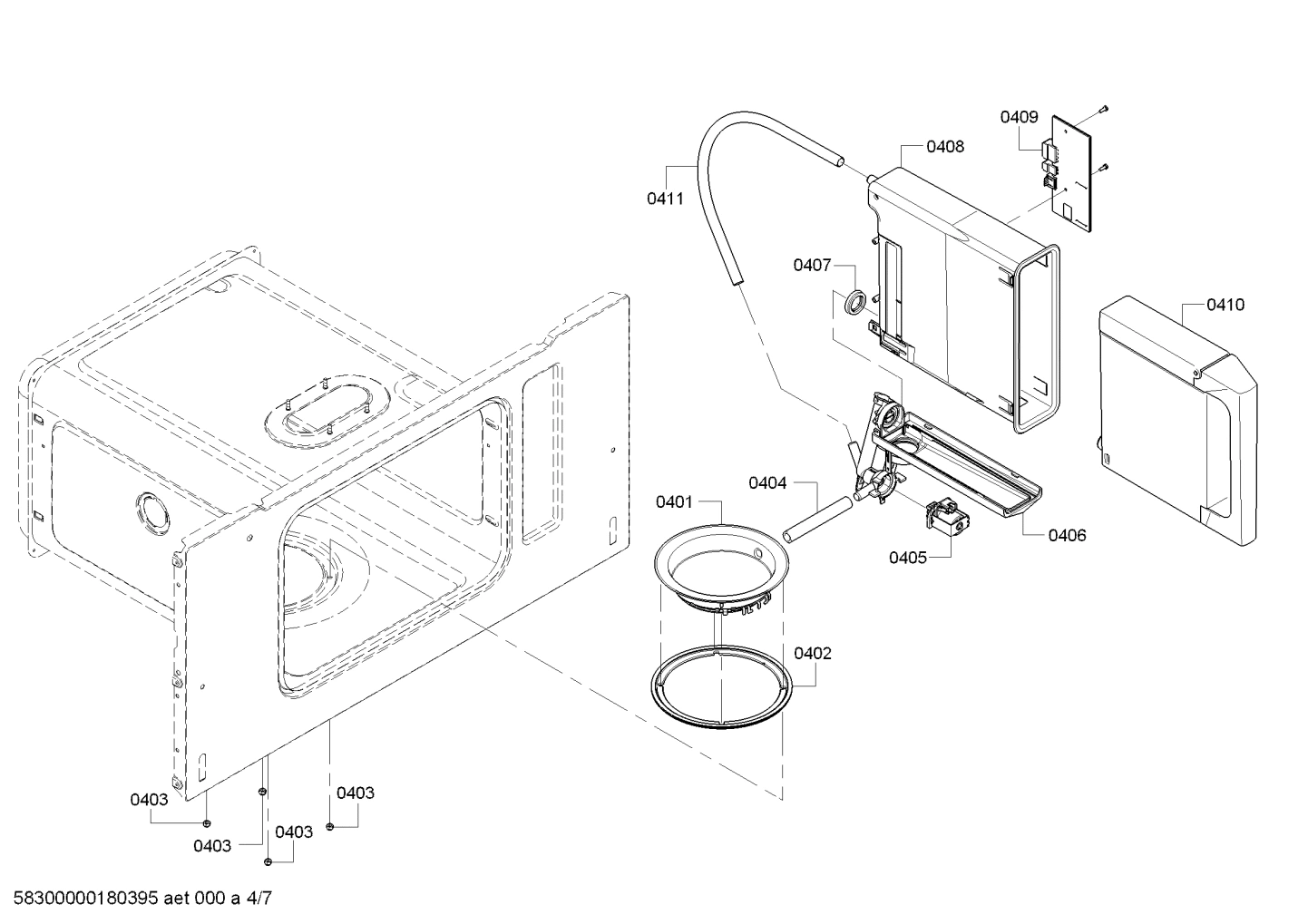

0401

00647076 Bosch Range Salver Backorder BOS 00647076 $336.30

View on Model

0402

00643179 Bosch Range Sealing Backorder BOS 00643179 $47.90

View on Model

0403

00624405 Bosch Range Nut Backorder BOS 00624405 $4.11

View on Model

0404

00643247 Bosch Range Hose Backorder BOS 00643247 $38.63

View on Model

0405

00608739 Bosch Range Magnet Valve Backorder BOS 00608739 $178.18

View on Model

0406

00644010 Bosch Range Holder Backorder BOS 00644010 $86.51

View on Model

0407

00608986 Bosch Range Sealing Backorder BOS 00608986 $35.54

View on Model

0408

00666128 Bosch Range Support Backorder BOS 00666128 $83.95

View on Model

0409

00647003 Bosch Range PC Board Backorder BOS 00647003 $245.66

View on Model

0410

00791032 Bosch Range Tank In Stock BOS 00791032 $116.85

View on Model

0411

00643202 Bosch Range Hose In Stock BOS 00643202 $42.75

View on Model

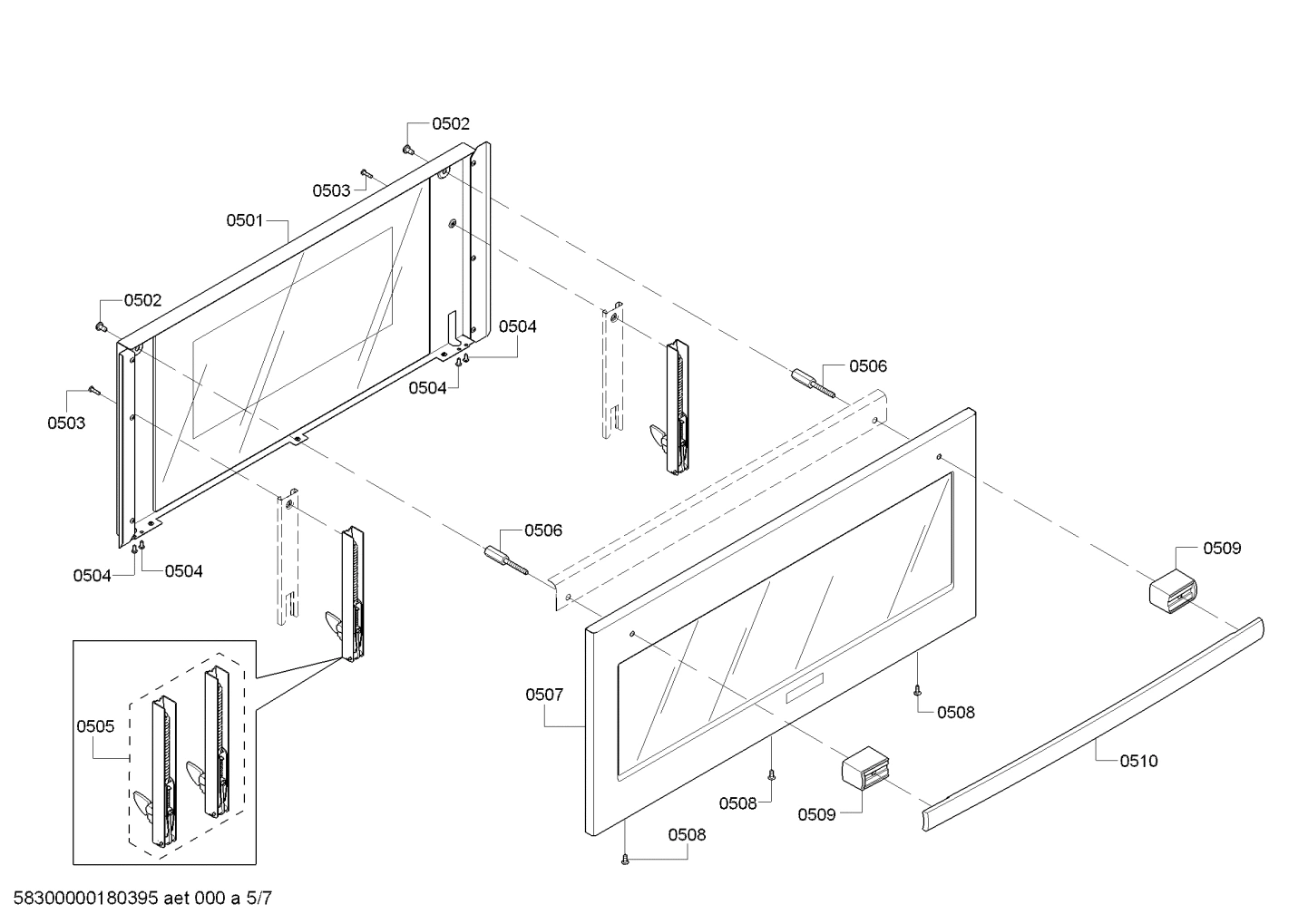

0501

11007256 Bosch Oven Inner Door Backorder BOS 11007256 $380.06

View on Model

0501

Door-inner BOS 11002815 Contact Us For Availability

View on Model

0502

00630295 Bosch Oven Screw Backorder BOS 00630295 $9.26

View on Model

0504

00423896 Bosch Oven Screw Backorder BOS 00423896 $9.28

View on Model

0505

00753653 Bosch Oven Door Hinge Backorder BOS 00753653 $125.65

View on Model

0507

00772527 Bosch Oven Outer Door Backorder BOS 00772527 $478.44

View on Model

0507

Door-outer BOS 00771740 Contact Us For Availability

View on Model

0509

00631899 Bosch Oven Spacer Backorder BOS 00631899 $46.34

View on Model

0510

00798648 Bosch Oven Door Handle In Stock BOS 00798648 $79.83

View on Model

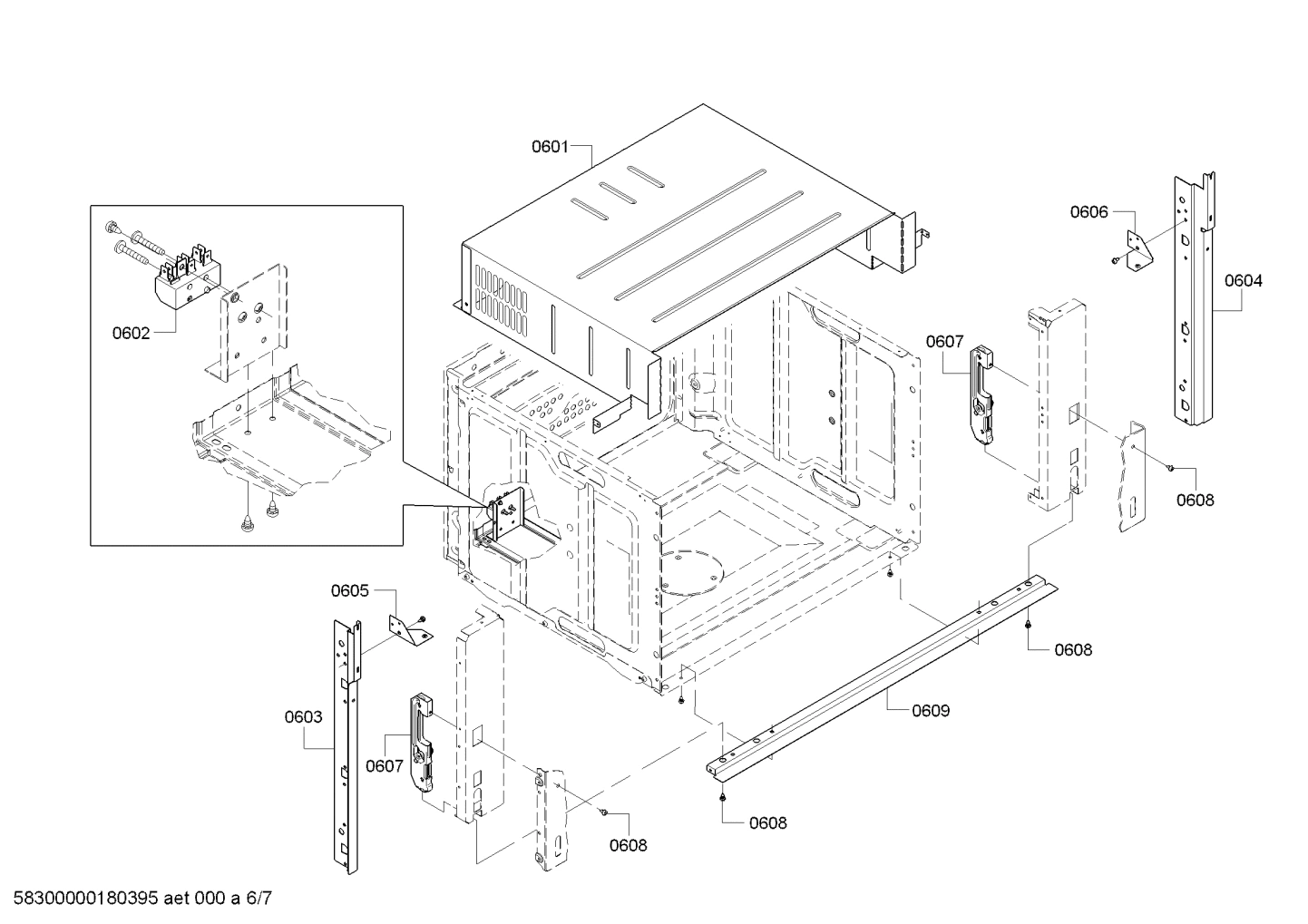

0608

00618862 Bosch Range Screw Backorder BOS 00618862 $3.08

View on Model

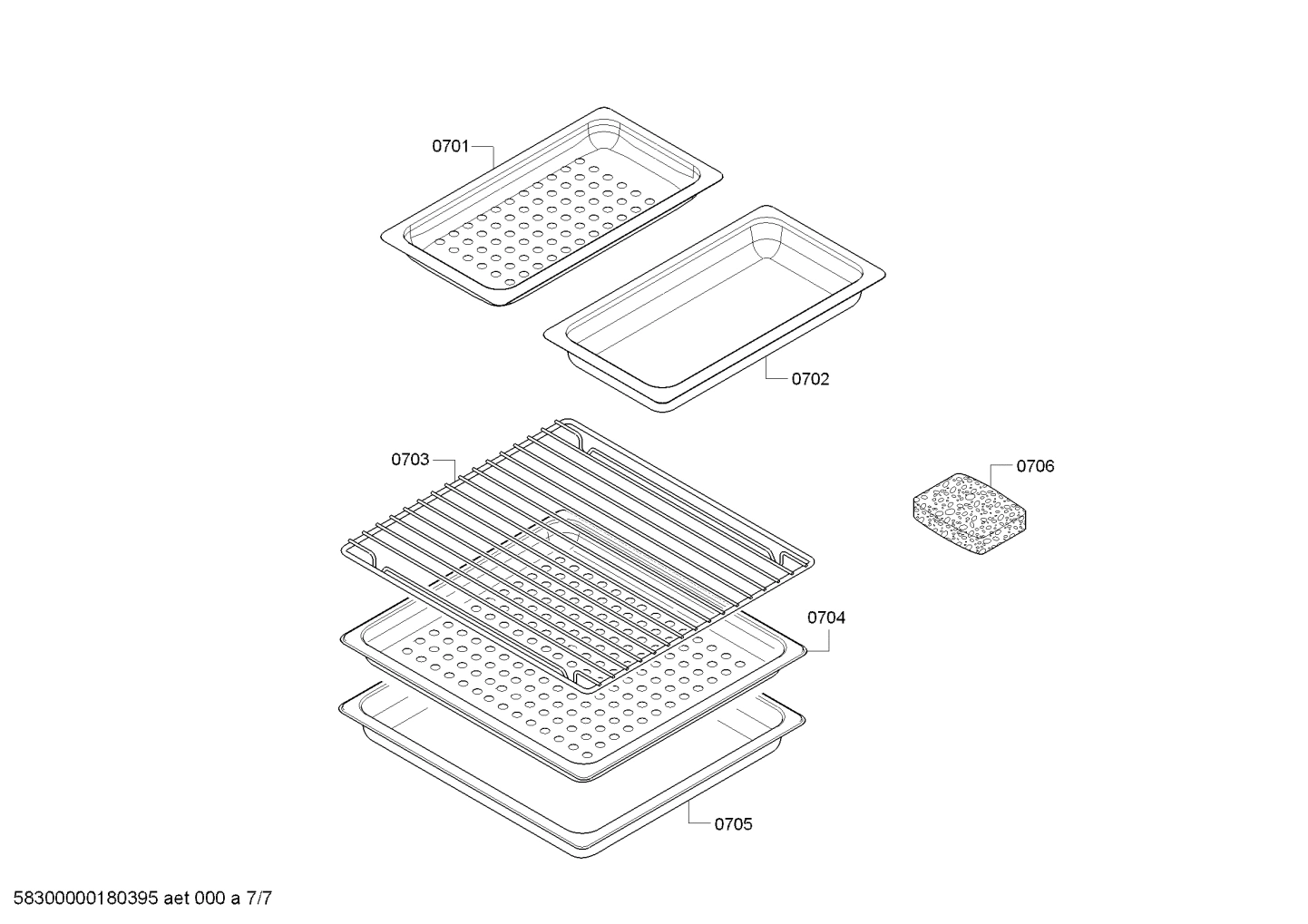

0701

00577553 Bosch Range Dish GN Backorder BOS 00577553 $72.09

View on Model

0703

11006670 Bosch Range Multi Wire Shelf Use Backorder BOS 11006670 $254.93

View on Model

0704

11014476 Bosch Range Dish Assembly Backorder BOS 11014476 $115.35

View on Model

0705

00664949 Bosch Range Dish Guide Backorder BOS 00664949 $160.39

View on Model

0706

00623653 Bosch Range Sponge In Stock BOS 00623653 $12.74

View on Model

0751

00413453 Bosch Oven Screw Backorder BOS 00413453 $10.29

View on Model

0752

00573828 Bosch Descaler In Stock BOS 00573828 $17.50

View on Model

0753

Hard Water Test Strip BOS 00056317 Contact Us For Availability

View on Model
