Bosch HGS445UC/01 Range Oven

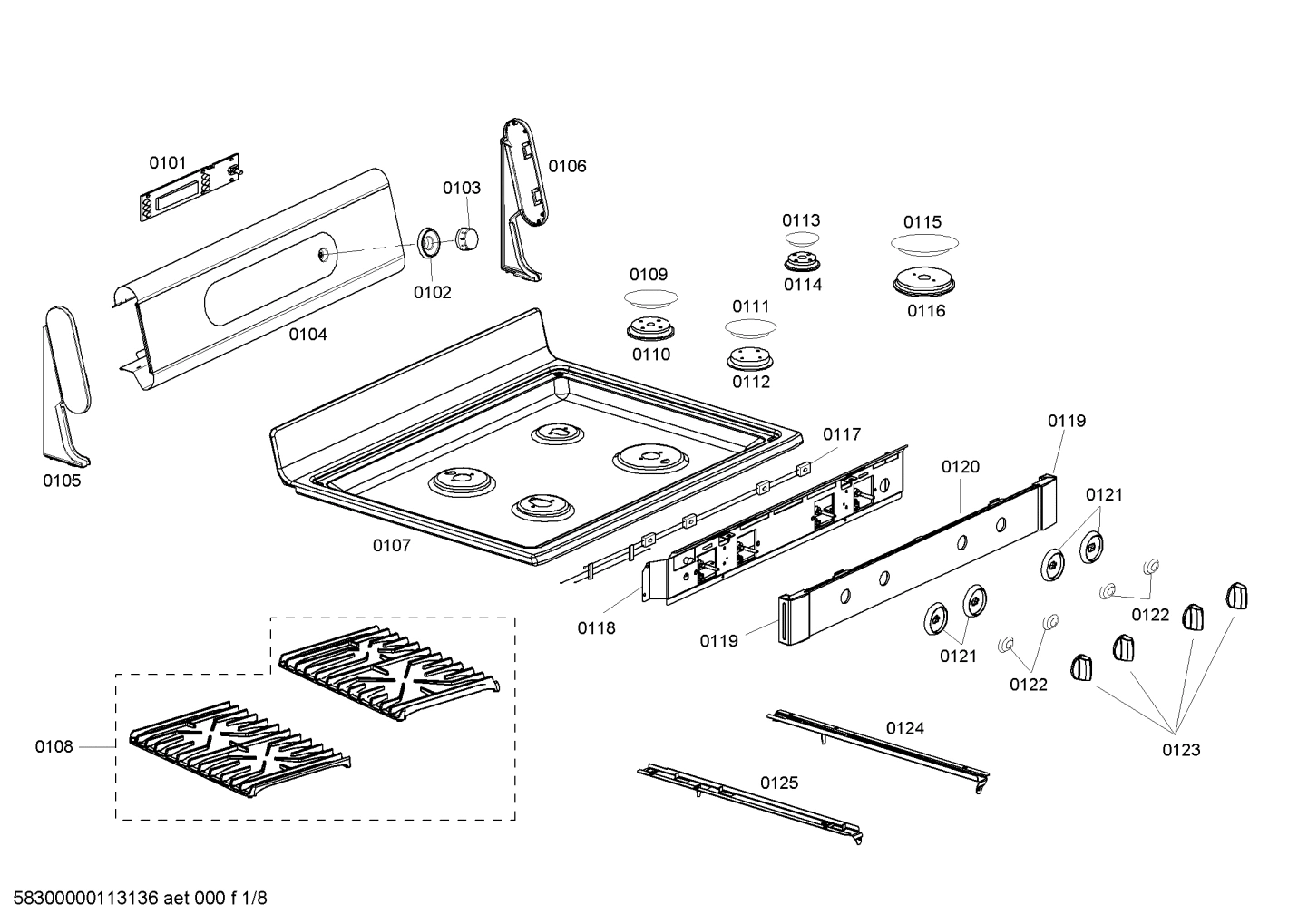

0103

Knob-programme BOS 00422367 Contact Us For Availability

View on Model

0105

00422365 Bosch Range Cap Backorder BOS 00422365 $28.83

View on Model

0106

00422366 Bosch Range Cap Backorder BOS 00422366 $45.31

View on Model

0107

00472272 Bosch Range Hob Top Backorder BOS 00472272 $462.46

View on Model

0110

Burner housing BOS 00423444 No Longer Available

View on Model

0111

Burner cap BOS 00423445 No Longer Available

View on Model

0112

00423446 Bosch Range Burner Housing In Stock BOS 00423446 $46.34

View on Model

0114

00423442 Bosch Range Burner Housing In Stock BOS 00423442 $45.31

View on Model

0117

00658898 Bosch Range Cable Harness Backorder BOS 00658898 $279.44

View on Model

0119

Frame-decor BOS 00436666 Contact Us For Availability

View on Model

0122

Spring BOS 00422105 Contact Us For Availability

View on Model

0153

00416438 Bosch Oven Leg In Stock BOS 00416438 $6.17

View on Model

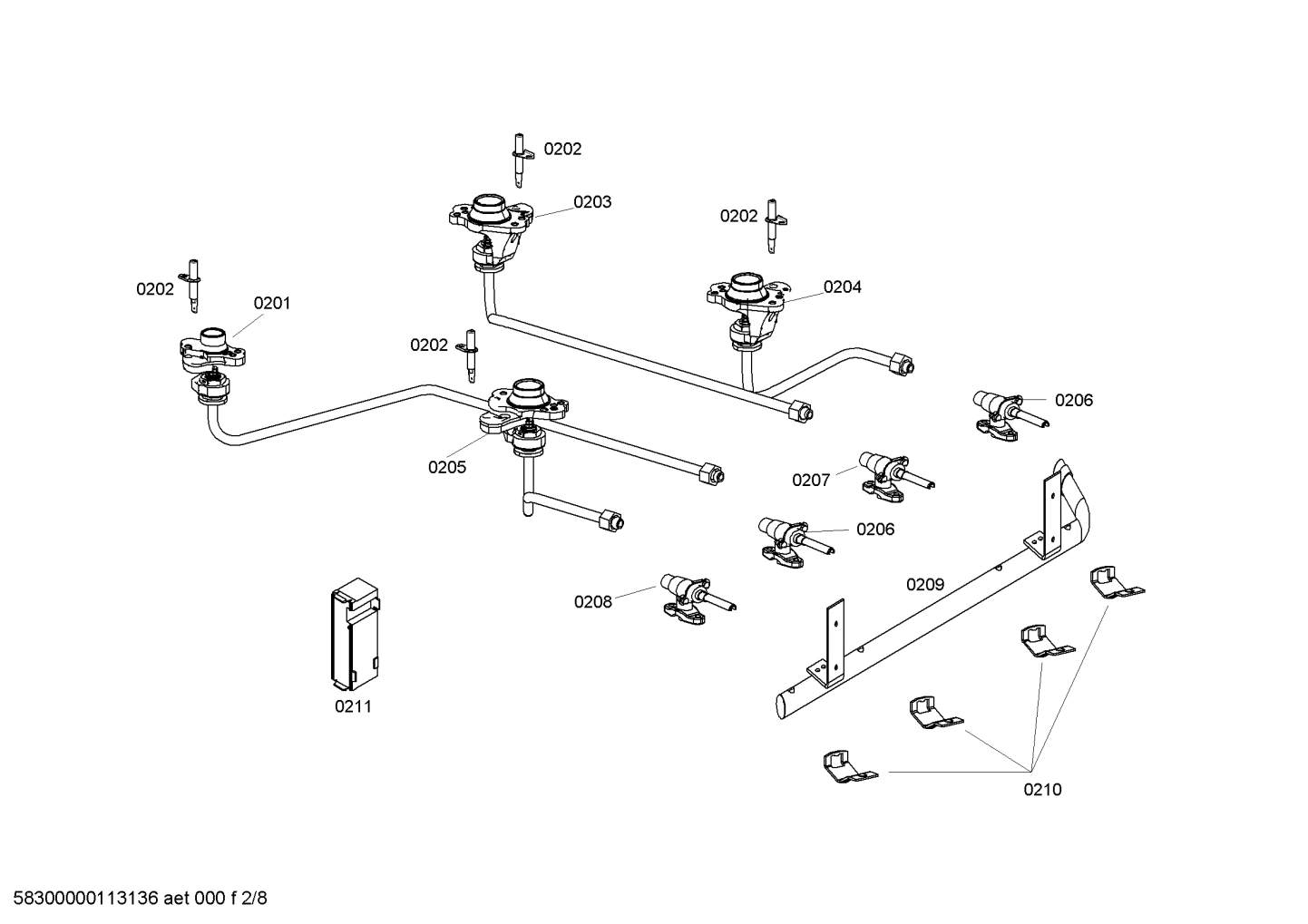

0201

00423486 Bosch Range Holder Backorder BOS 00423486 $54.58

View on Model

0202

00603506 Bosch Range Electrode In Stock BOS 00603506 $20.53

View on Model

0203

00423487 Bosch Range Holder Backorder BOS 00423487 $54.58

View on Model

0204

Holder BOS 00423488 Contact Us For Availability

View on Model

0205

00423485 Bosch Range Holder Backorder BOS 00423485 $55.61

View on Model

0206

00603716 Bosch Range Valve In Stock BOS 00603716 $155.52

View on Model

0207

00492443 Bosch Range Valve In Stock BOS 00492443 $27.80

View on Model

0208

00492444 Bosch Range Valve Backorder BOS 00492444 $44.28

View on Model

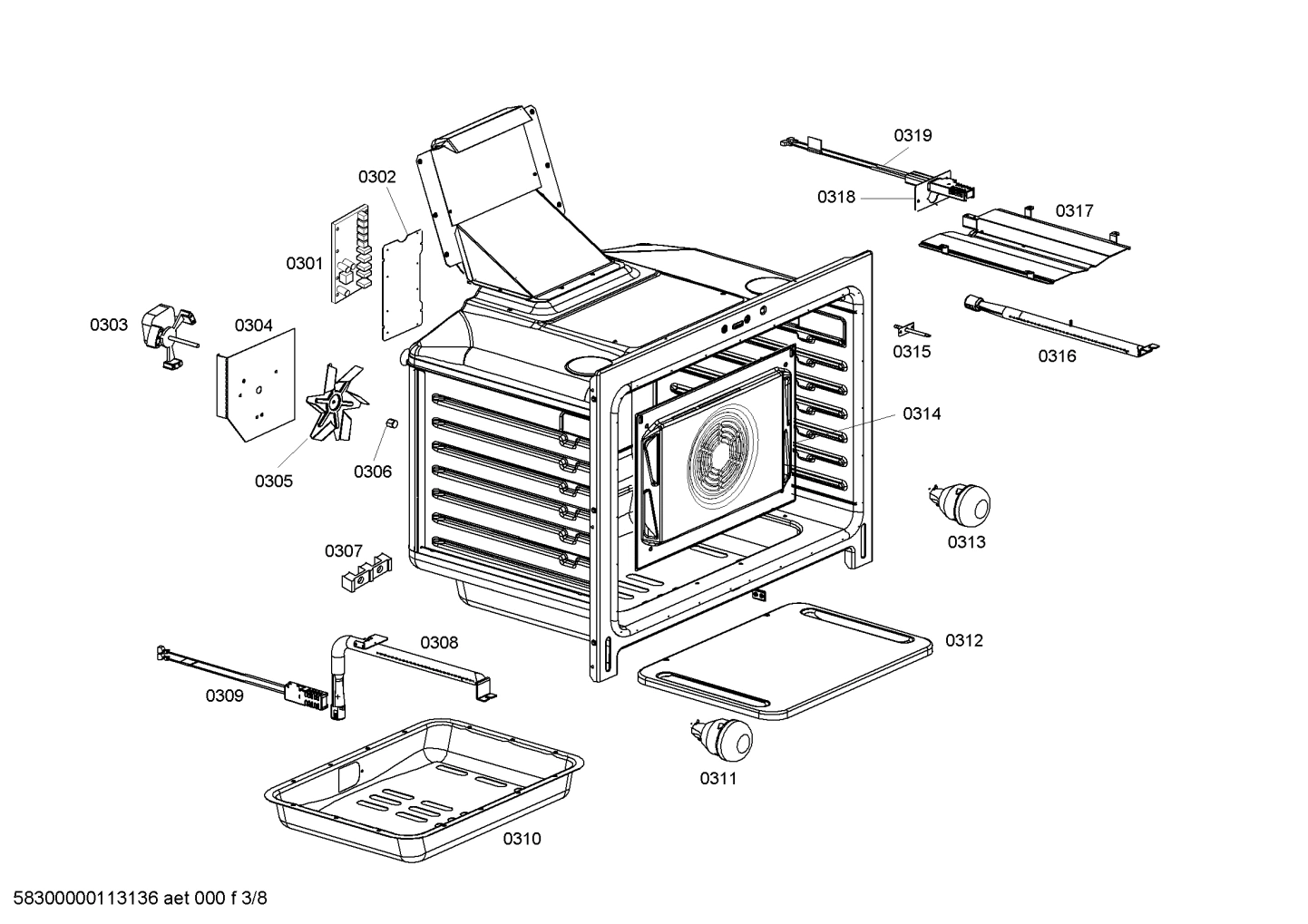

0303

Motor BOS 00491576 Contact Us For Availability

View on Model

0305

00491577 Bosch Oven Fan Blade Backorder BOS 00491577 $30.89

View on Model

0306

00471532 Bosch Oven Nut Backorder BOS 00471532 $10.29

View on Model

0307

00436364 Bosch Oven Terminal Box Backorder BOS 00436364 $30.89

View on Model

0308

00437801 Bosch Range Burner Backorder BOS 00437801 $55.60

View on Model

0309

00492431 Bosch Oven Ignition Device In Stock BOS 00492431 $131.25

View on Model

0313

00415045 Bosch Oven Lamp In Stock BOS 00415045 $79.53

View on Model

0315

00422089 Bosch Range Sensor In Stock BOS 00422089 $58.66

View on Model

0316

00641011 Bosch Range Burner Backorder BOS 00641011 $165.82

View on Model

0317

00666723 Bosch Range Distributor Backorder BOS 00666723 $60.76

View on Model

0318

00492430 Bosch Range Bracket Backorder BOS 00492430 $13.38

View on Model

0319

00492429 Bosch Range Ignition Device In Stock BOS 00492429 $123.29

View on Model

0350

00623710 Bosch Oven Lamp In Stock BOS 00623710 $6.86

View on Model

0351

00414513 Bosch Oven Lens In Stock BOS 00414513 $20.59

View on Model

0404

Panel BOS 00422024 Contact Us For Availability

View on Model

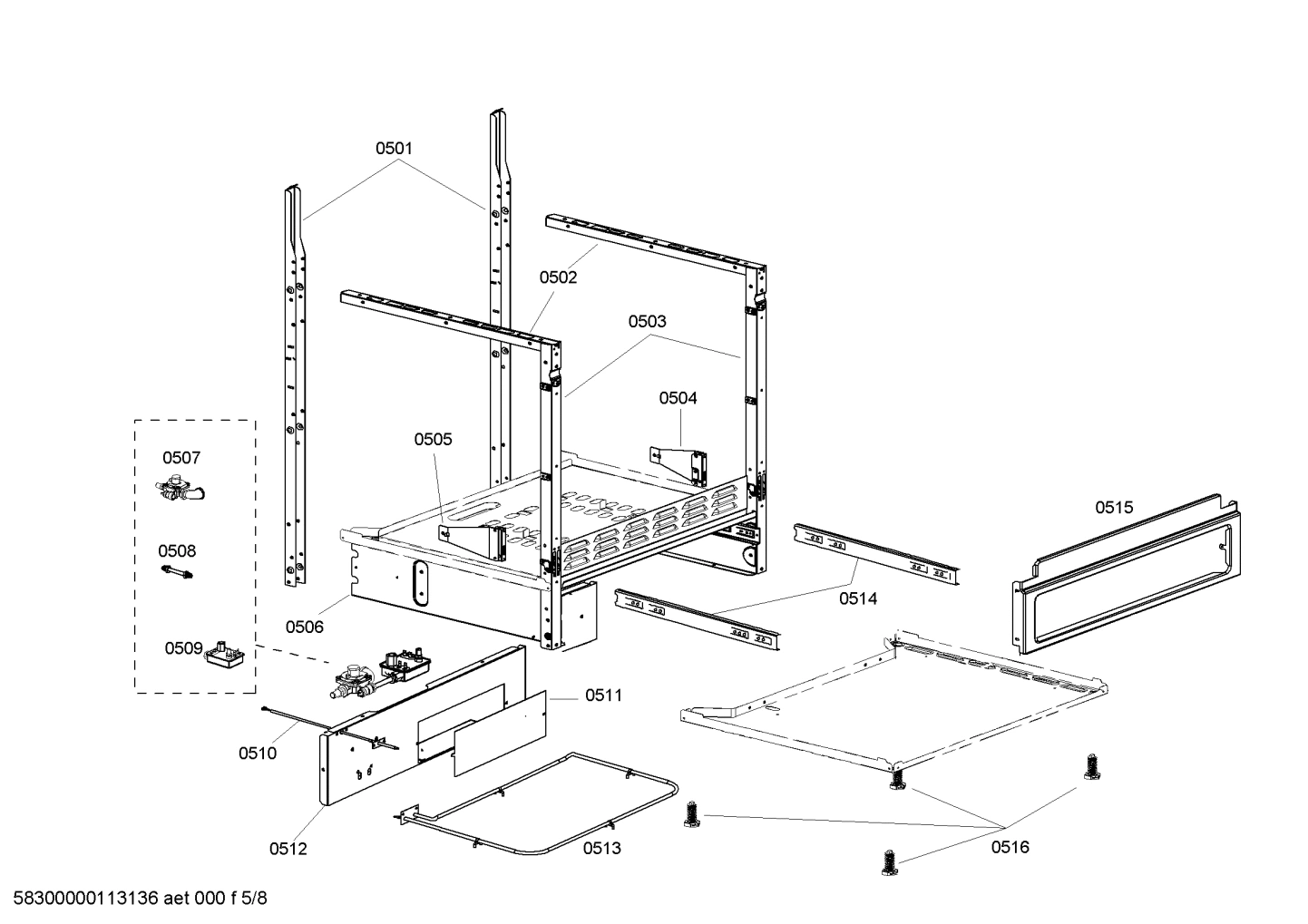

0450

00491569 Bosch Oven Door Seal In Stock BOS 00491569 $83.51

View on Model

0504

Hinge-plate BOS 00491538 No Longer Available

View on Model

0505

Hinge-plate BOS 00491539 No Longer Available

View on Model

0508

Tube BOS 00423447 Contact Us For Availability

View on Model

0510

00619630 Bosch Oven Sensor Backorder BOS 00619630 $60.76

View on Model

0513

Heating element BOS 00491787 Contact Us For Availability

View on Model

0514

00440843 Bosch Oven Slide Backorder BOS 00440843 $65.91

View on Model

0516

00429065 Bosch Range Foot In Stock BOS 00429065 $26.83

View on Model

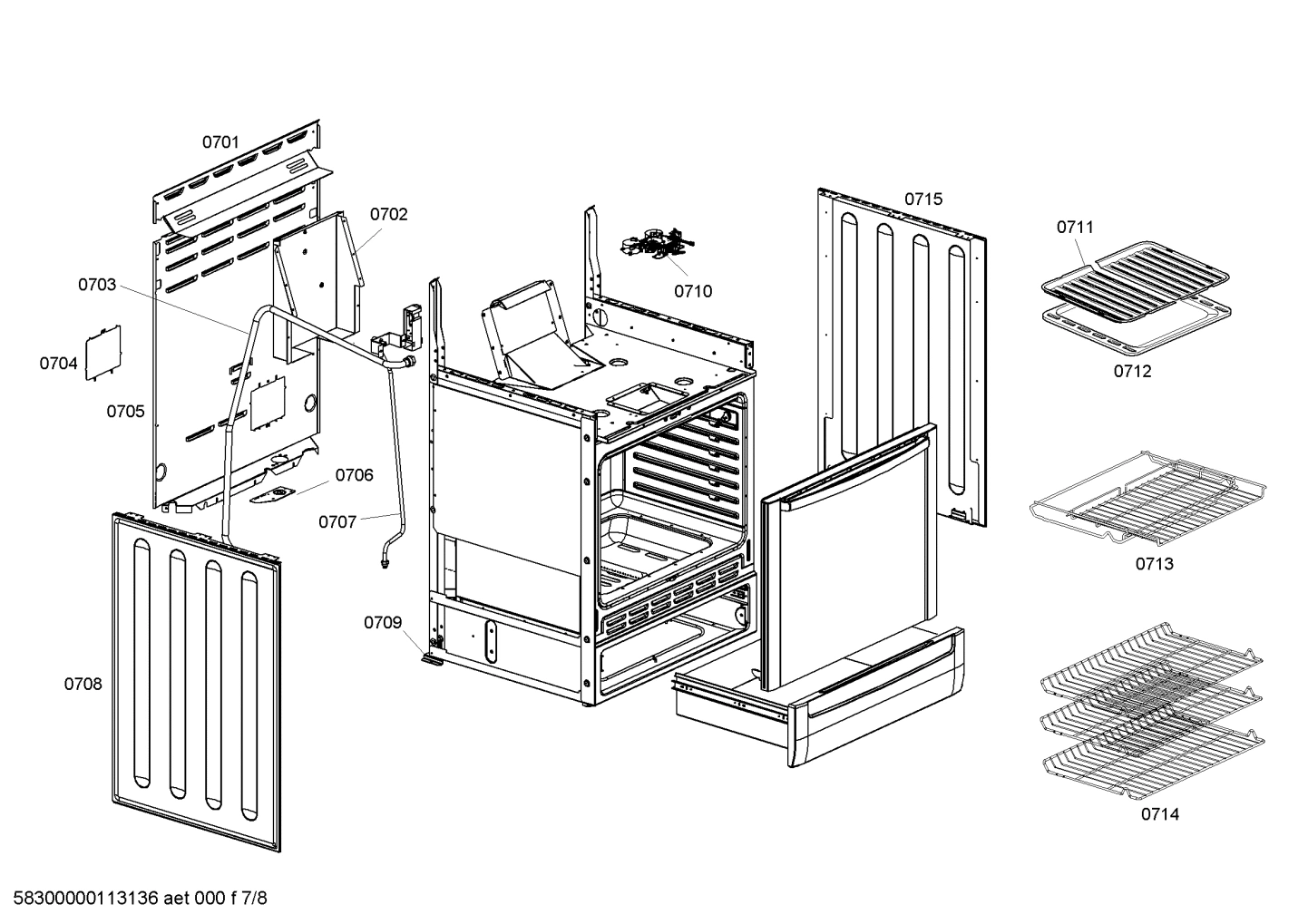

0709

00625466 Bosch Range Bracket Backorder BOS 00625466 $42.22

View on Model

0711

Broiler Pan BOS 00449756 Contact Us For Availability

View on Model

0713

Grille BOS 00438086 Contact Us For Availability

View on Model

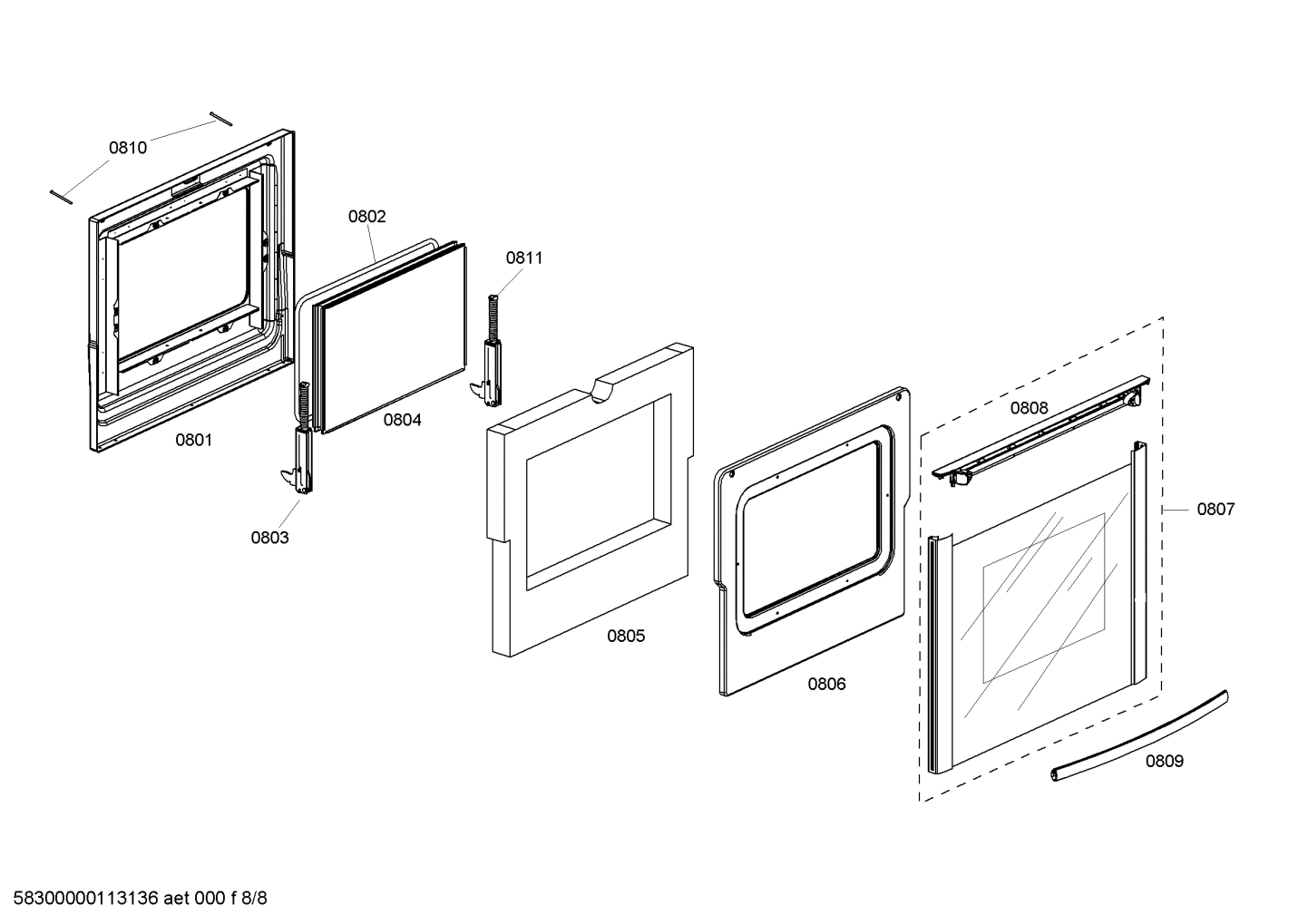

0801

Door-inner BOS 00683705 Contact Us For Availability

View on Model

0802

Sealing BOS 00491899 Contact Us For Availability

View on Model

0804

00436379 Bosch Range Front Glass Panel Backorder BOS 00436379 $202.90

View on Model

0805

Insulating part BOS 00143678 Contact Us For Availability

View on Model

0806

00676010 Bosch Range Heat Shield Backorder BOS 00676010 $105.05

View on Model

0808

Trimplate BOS 00449874 Contact Us For Availability

View on Model

0809

Handle-door BOS 00436646 Contact Us For Availability

View on Model

0810

Screw BOS 00607316 No Longer Available

View on Model

0811

00683867 Bosch Range Fixing Kit In Stock BOS 00683867 $341.09

View on Model
