Bosch HGS3063UC/02 Range Oven Parts List

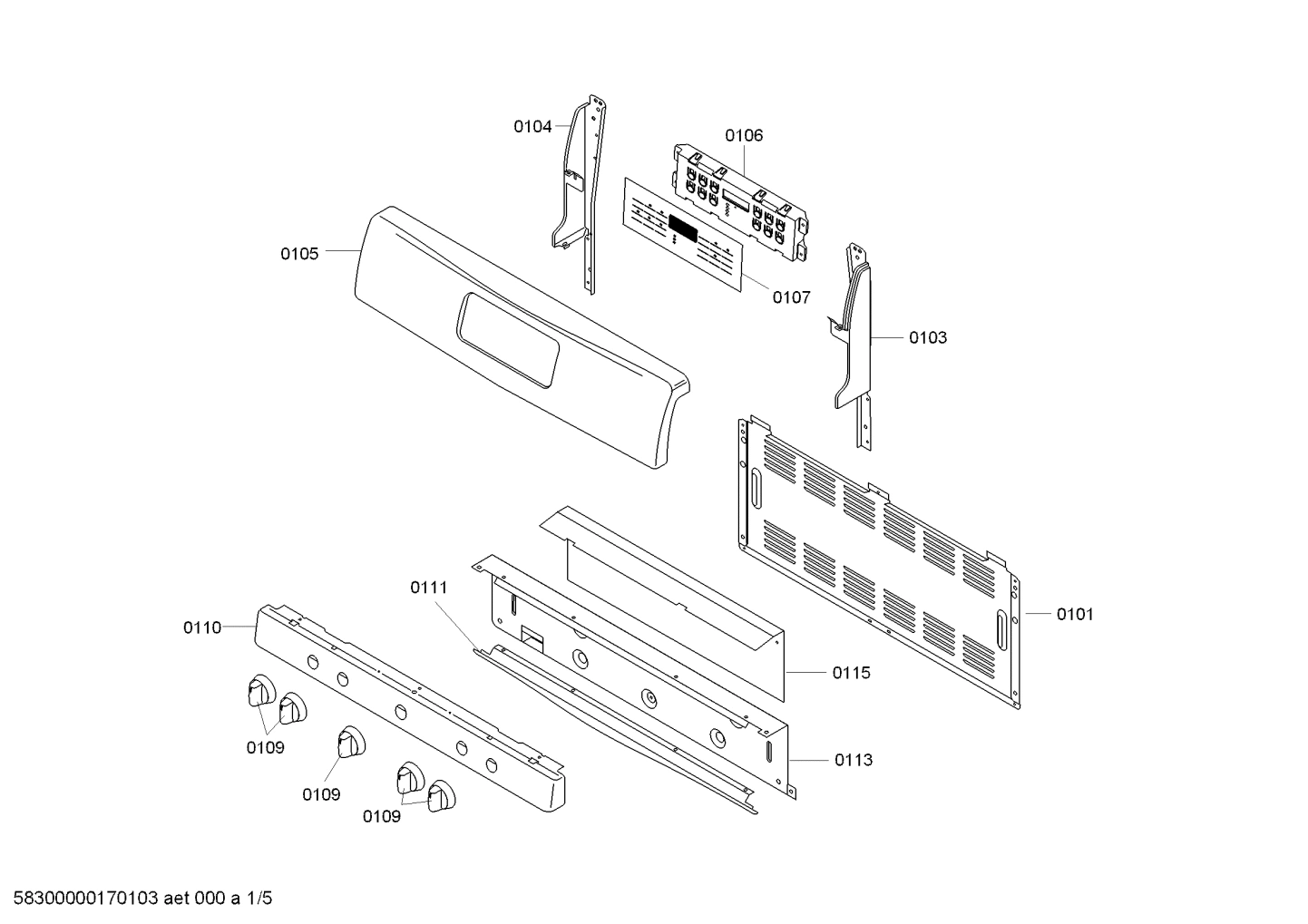

0106

00676846 Bosch Range Control Unit Backorder BOS 00676846 $321.88

View on Model

0107

00676767 Bosch Range Cover Sheet Backorder BOS 00676767 $38.63

View on Model

0109

Knob BOS 00617851 Contact Us For Availability

View on Model

0115

00248797 Bosch Range Cover Backorder BOS 00248797 $98.37

View on Model

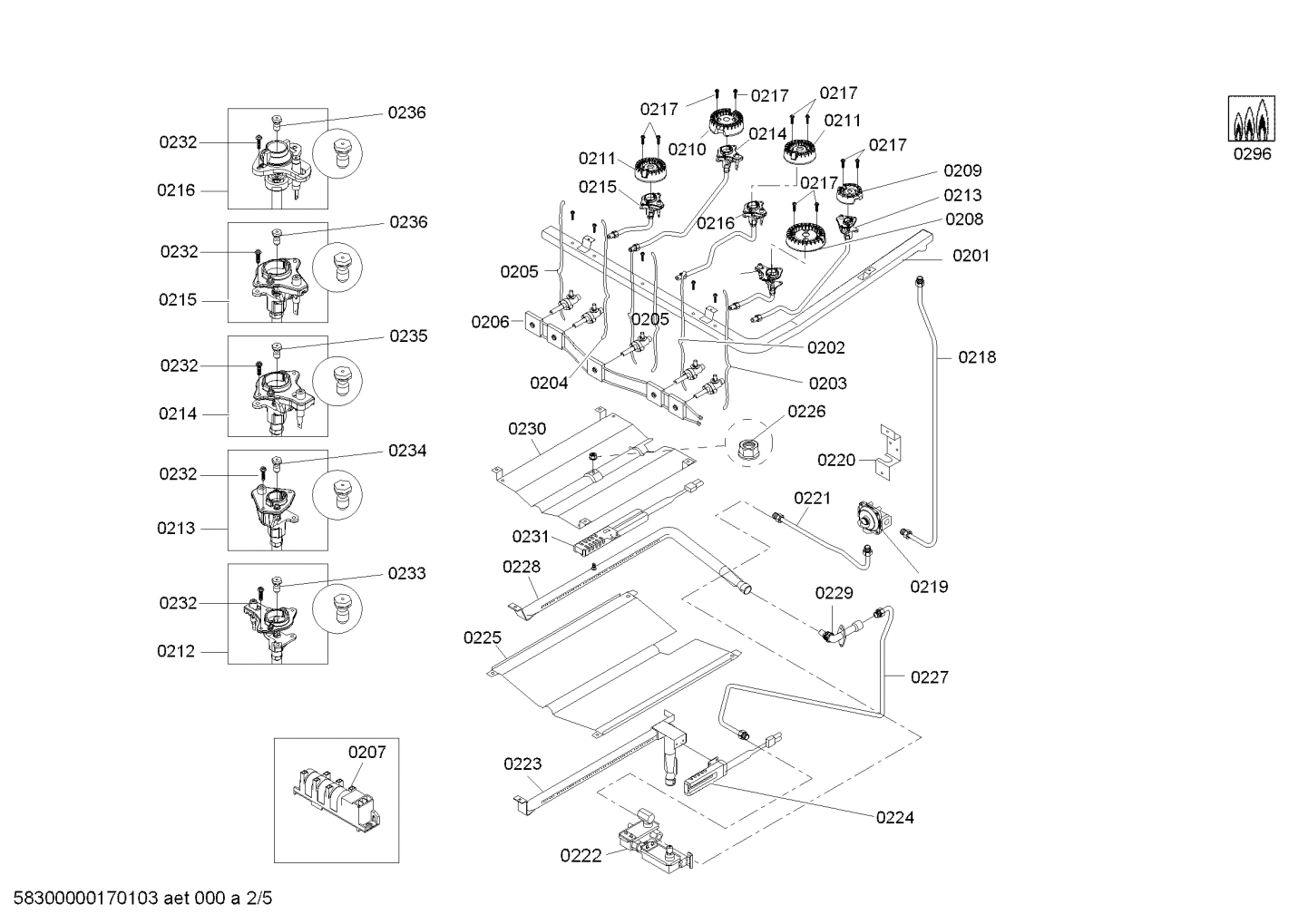

0202

00649225 Bosch Range Valve Backorder BOS 00649225 $254.40

View on Model

0203

00649226 Bosch Range Valve Backorder BOS 00649226 $170.97

View on Model

0206

Cable harness BOS 00684118 Contact Us For Availability

View on Model

0207

00649233 Bosch Range Ignition Device Backorder BOS 00649233 $217.32

View on Model

0209

00649237 Bosch Range Burner Backorder BOS 00649237 $130.30

View on Model

0210

00649238 Bosch Range Burner Backorder BOS 00649238 $130.80

View on Model

0211

00649239 Bosch Range Burner Backorder BOS 00649239 $91.66

View on Model

0213

00651718 Bosch Range Ignition Device Backorder BOS 00651718 $245.13

View on Model

0214

00651719 Bosch Range Ignition Device Backorder BOS 00651719 $238.95

View on Model

0215

00651720 Bosch Range Ignition Device Backorder BOS 00651720 $228.15

View on Model

0216

00652469 Bosch Range Ignition Device Backorder BOS 00652469 $272.94

View on Model

0222

00649262 Bosch Range Valve Backorder BOS 00649262 $714.81

View on Model

0224

00649265 Bosch Range Igniter Backorder BOS 00649265 $475.35

View on Model

0231

00676872 Bosch Range Igniter Backorder BOS 00676872 $364.61

View on Model

0232

00617833 Bosch Range Screw Backorder BOS 00617833 $25.74

View on Model

0234

00617836 Bosch Range Burner Tip Backorder BOS 00617836 $49.96

View on Model

0235

00617837 Bosch Range Burner Tip Backorder BOS 00617837 $31.92

View on Model

0236

00617838 Bosch Range Burner Tip Backorder BOS 00617838 $47.90

View on Model

0296

00617840 Bosch Range Liquid Gas Nozzle Set Backorder BOS 00617840 $218.56

View on Model

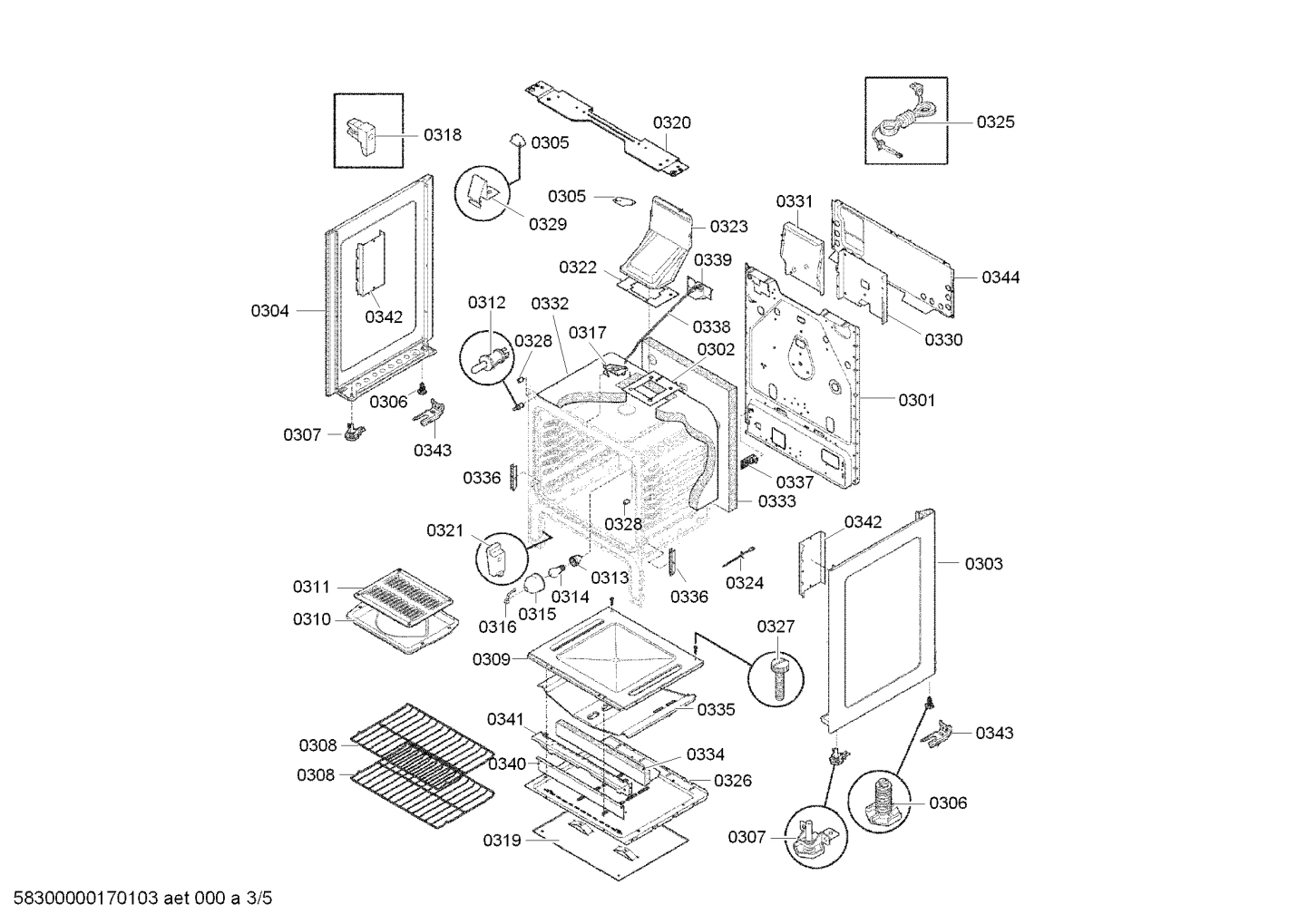

0304

00248787 Bosch Range Panel Backorder BOS 00248787 $222.47

View on Model

0306

00617697 Bosch Range Screw Backorder BOS 00617697 $20.09

View on Model

0308

00676823 Bosch Range Shelf In Stock BOS 00676823 $148.84

View on Model

0309

00684128 Bosch Range Panel Backorder BOS 00684128 $262.14

View on Model

0310

00676722 Bosch Range Pan Backorder BOS 00676722 $211.67

View on Model

0312

00617699 Bosch Range Switch Backorder BOS 00617699 $131.83

View on Model

0313

00617700 Bosch Range Light Socket Backorder BOS 00617700 $133.89

View on Model

0314

00617701 Bosch Range Lamp Backorder BOS 00617701 $39.13

View on Model

0322

00649272 Bosch Range Seal Backorder BOS 00649272 $17.50

View on Model

0324

00617708 Bosch Range Temperature Sensor Backorder BOS 00617708 $149.87

View on Model

0327

00617709 Bosch Range Screw Backorder BOS 00617709 $25.74

View on Model

0328

00617710 Bosch Spacer Backorder BOS 00617710 $20.59

View on Model

0329

Clip BOS 00617843 Contact Us For Availability

View on Model

0330

Cover BOS 00676880 Contact Us For Availability

View on Model

0331

Cover BOS 00676881 Contact Us For Availability

View on Model

0332

Damper BOS 00676882 Contact Us For Availability

View on Model

0333

00684130 Bosch Damper Insulation, Oven Back Backorder BOS 00684130 $187.98

View on Model

0334

00684131 Bosch Range Damper Backorder BOS 00684131 $99.40

View on Model

0335

00684133 Bosch Cover Backorder BOS 00684133 $203.93

View on Model

0336

00617721 Bosch Range Plate Hinge Backorder BOS 00617721 $61.79

View on Model

0337

Bracket BOS 00617845 Contact Us For Availability

View on Model

0338

00649274 Bosch Range Rod Backorder BOS 00649274 $117.41

View on Model

0339

00649160 Bosch Range Latch Backorder BOS 00649160 $285.30

View on Model

0340

Cover BOS 00676883 Contact Us For Availability

View on Model

0341

Cover BOS 00676884 Contact Us For Availability

View on Model

0342

Cover BOS 00676742 Contact Us For Availability

View on Model

0343

00628089 Bosch Range Fixing Kit Backorder BOS 00628089 $39.13

View on Model

0344

Panel BOS 00684129 Contact Us For Availability

View on Model

0350

Clip BOS 00621822 Contact Us For Availability

View on Model

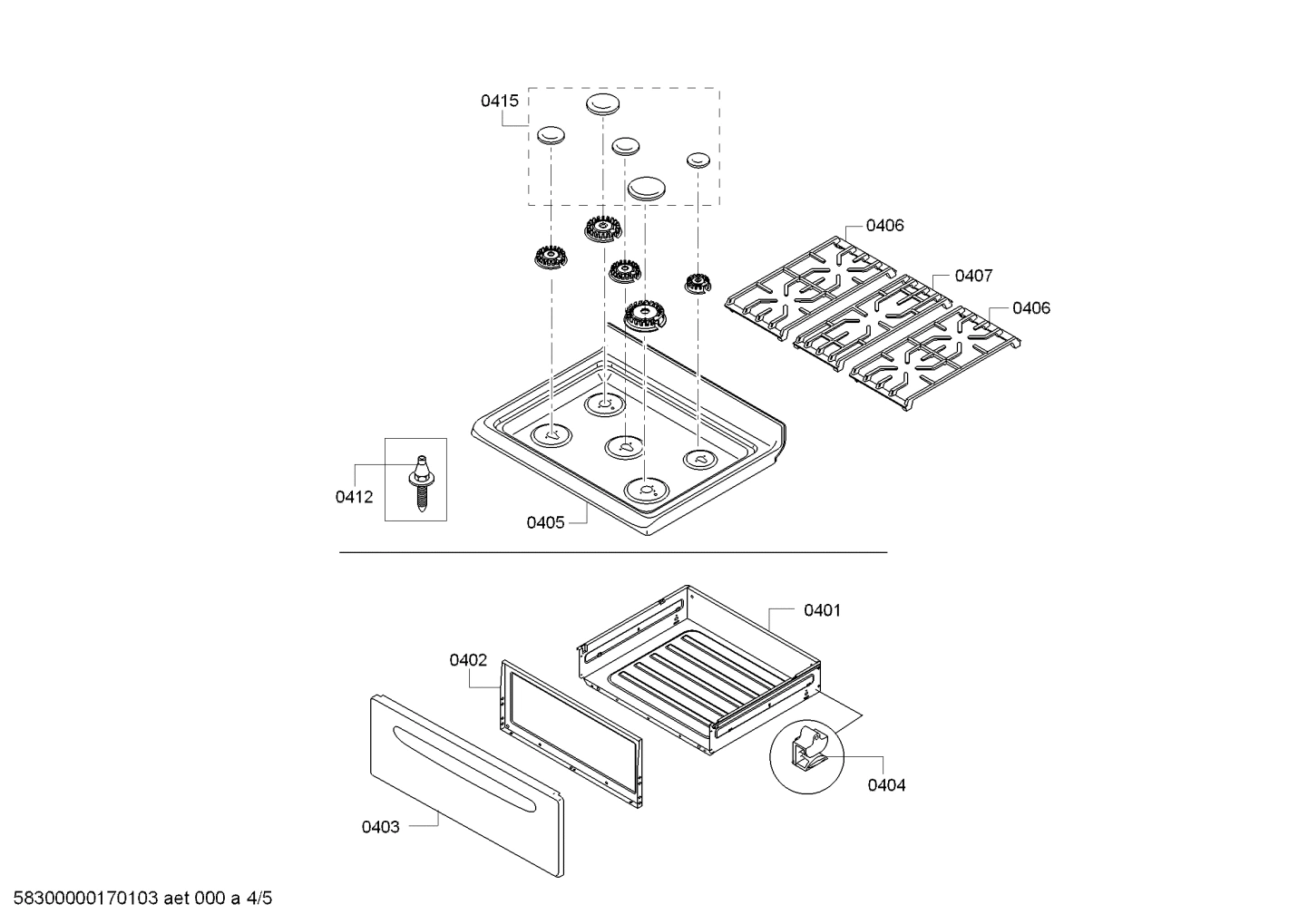

0401

00248775 Bosch Range Drawer Backorder BOS 00248775 $193.63

View on Model

0402

00684134 Bosch Frame Backorder BOS 00684134 $149.34

View on Model

0403

Panel BOS 00684151 Contact Us For Availability

View on Model

0404

Slide BOS 00617732 Contact Us For Availability

View on Model

0405

Panel BOS 00248802 Contact Us For Availability

View on Model

0407

Grid BOS 00685329 Contact Us For Availability

View on Model

0412

00617849 Bosch Range Pin Backorder BOS 00617849 $22.65

View on Model

0415

00658046 Bosch Range Burner Cap In Stock BOS 00658046 $194.66

View on Model

0450

Foot BOS 00619912 Contact Us For Availability

View on Model

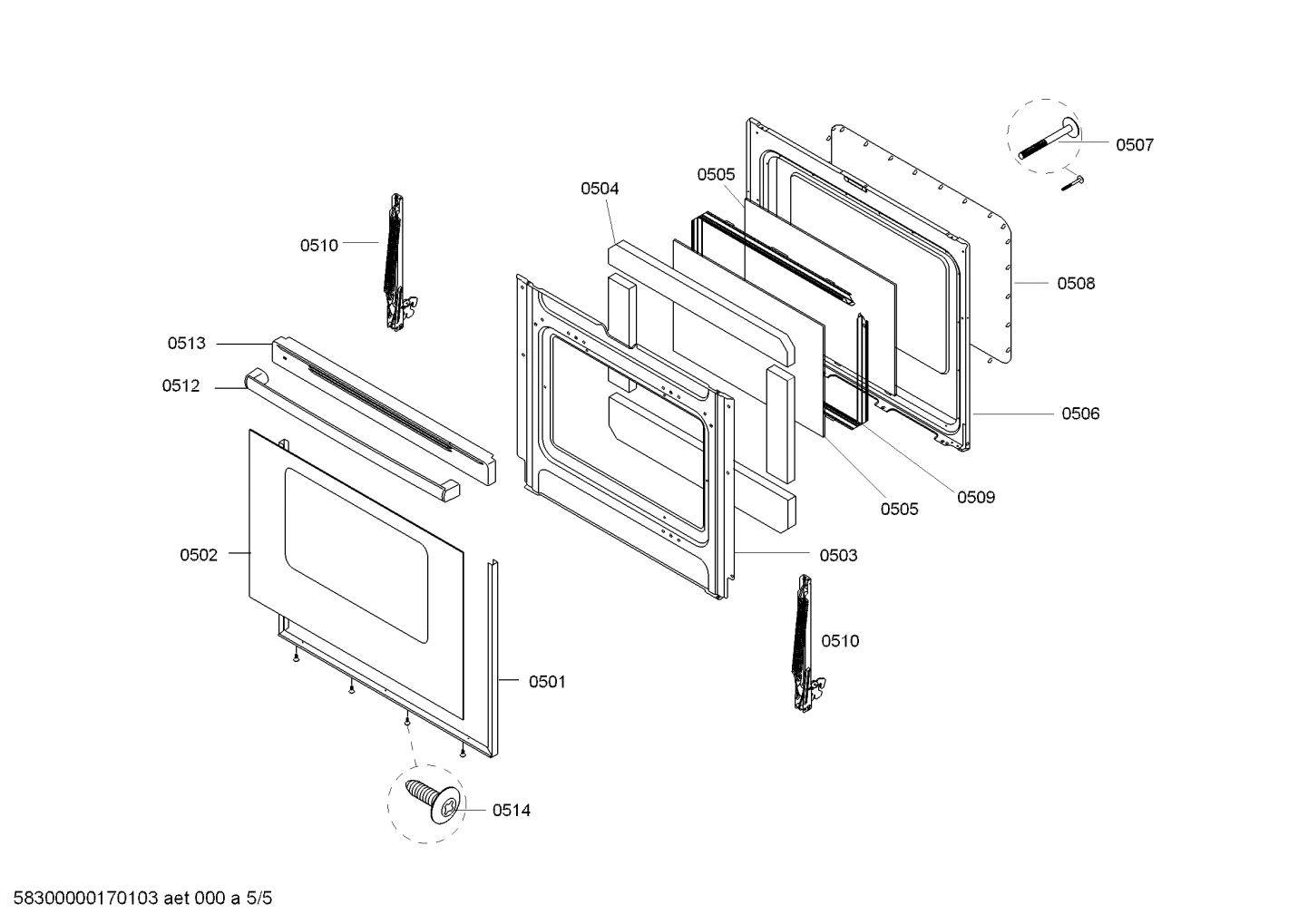

0501

00676926 Bosch Range Cover Strip Backorder BOS 00676926 $110.73

View on Model

0502

Glass plate BOS 00676928 Contact Us For Availability

View on Model

0503

Cover BOS 00676891 Contact Us For Availability

View on Model

0504

00676892 Bosch Range Damper Backorder BOS 00676892 $218.88

View on Model

0505

Glass plate BOS 00684076 Contact Us For Availability

View on Model

0506

00676893 Bosch Range Frame Backorder BOS 00676893 $234.33

View on Model

0507

00617738 Bosch Range Screw Backorder BOS 00617738 $27.80

View on Model

0508

00649284 Bosch Range Seal Backorder BOS 00649284 $367.20

View on Model

0509

00684079 Bosch Range Spacer Backorder BOS 00684079 $100.93

View on Model

0510

Hinge BOS 00649293 Contact Us For Availability

View on Model

0511

00617739 Bosch Screw, Sims LP, #8-32 X 5/16", Backorder BOS 00617739 $25.74

View on Model

0512

Handle BOS 00676814 Contact Us For Availability

View on Model

0513

Cap BOS 00649217 Contact Us For Availability

View on Model

0514

00617695 Bosch Range Screw Backorder BOS 00617695 $25.74

View on Model
