Model Bosch HF36V305/01 Microwave – Common Parts & Diagrams
Diagram 1

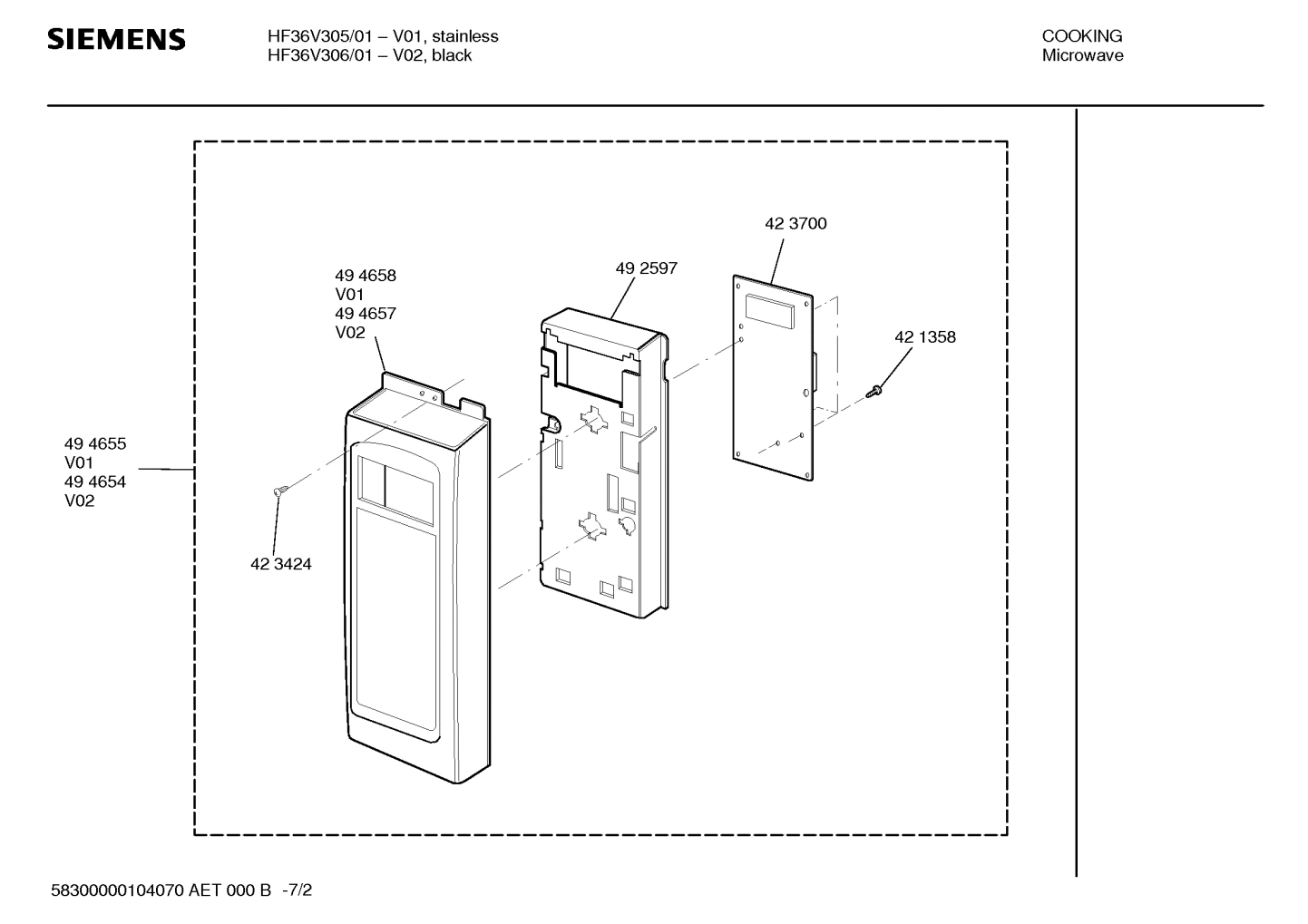

Diagram 2

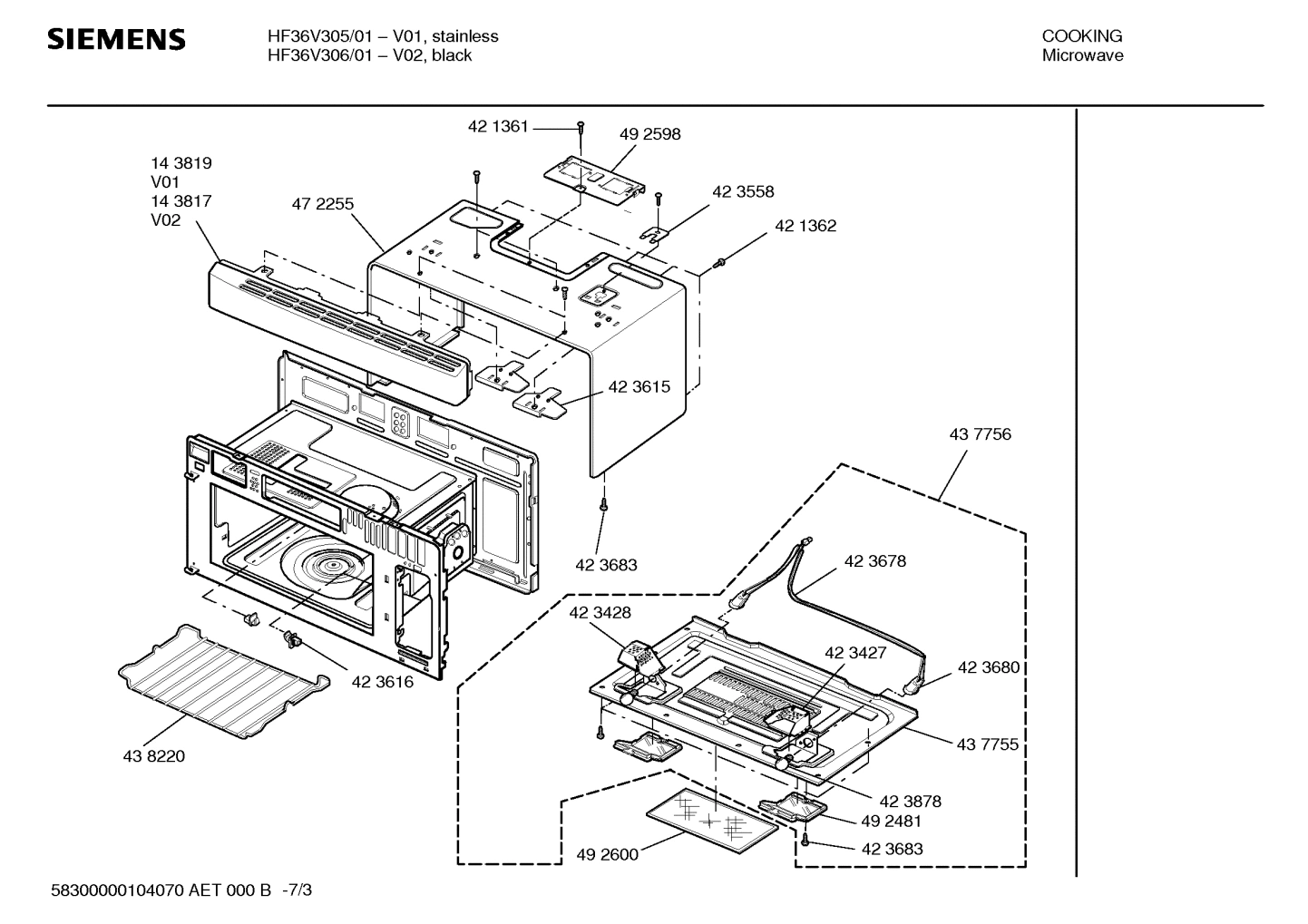

Diagram 3

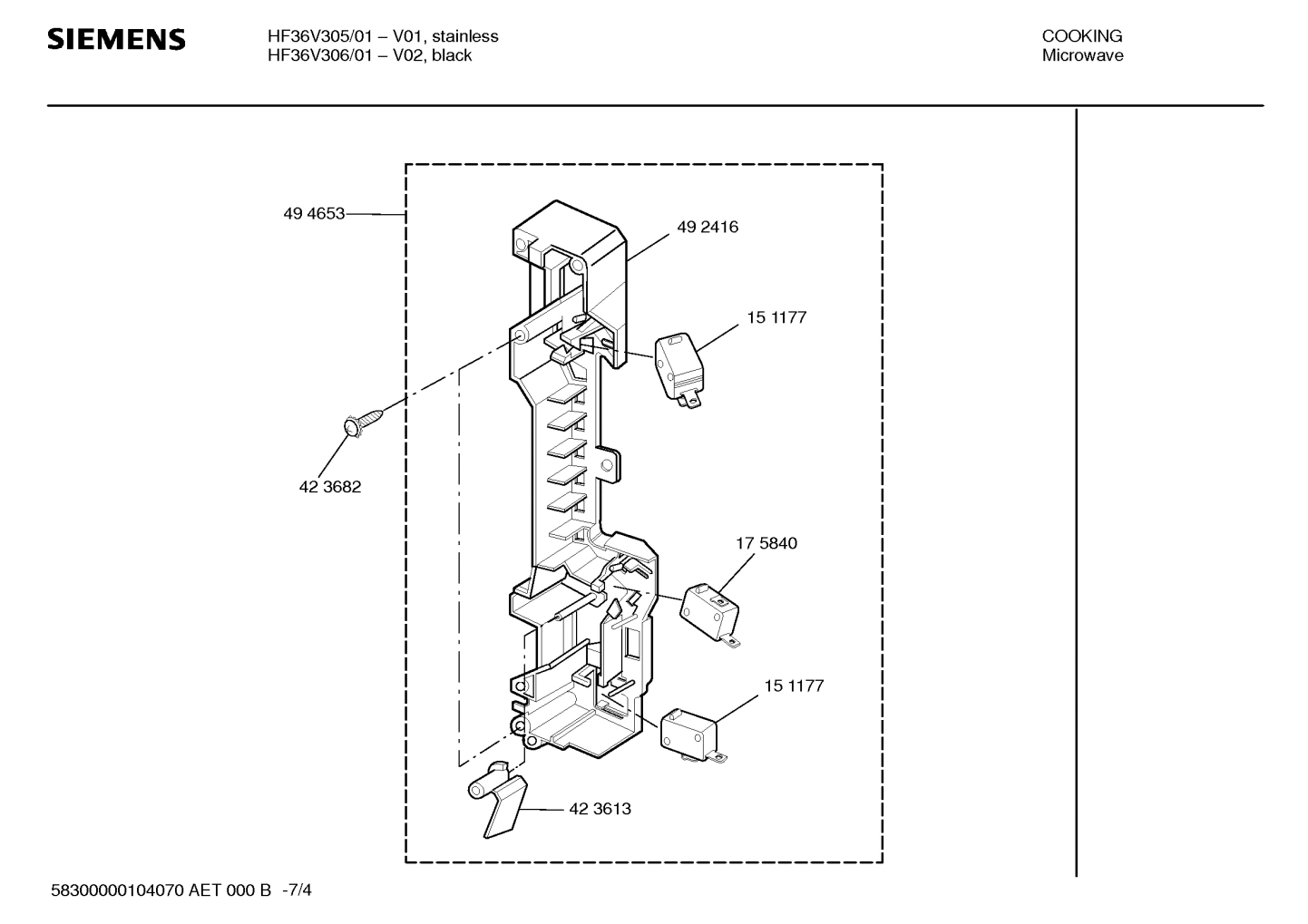

Diagram 4

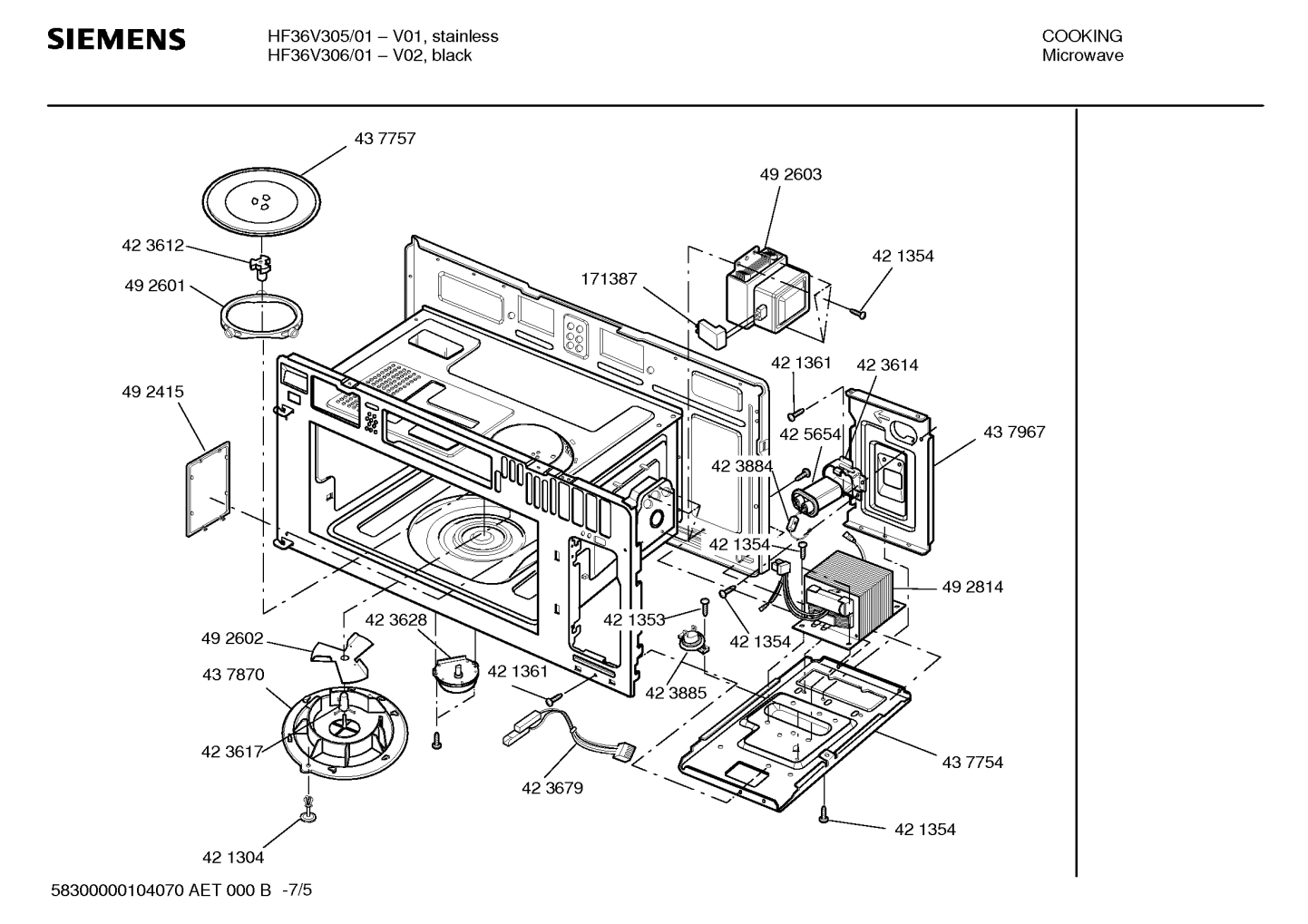

Diagram 5

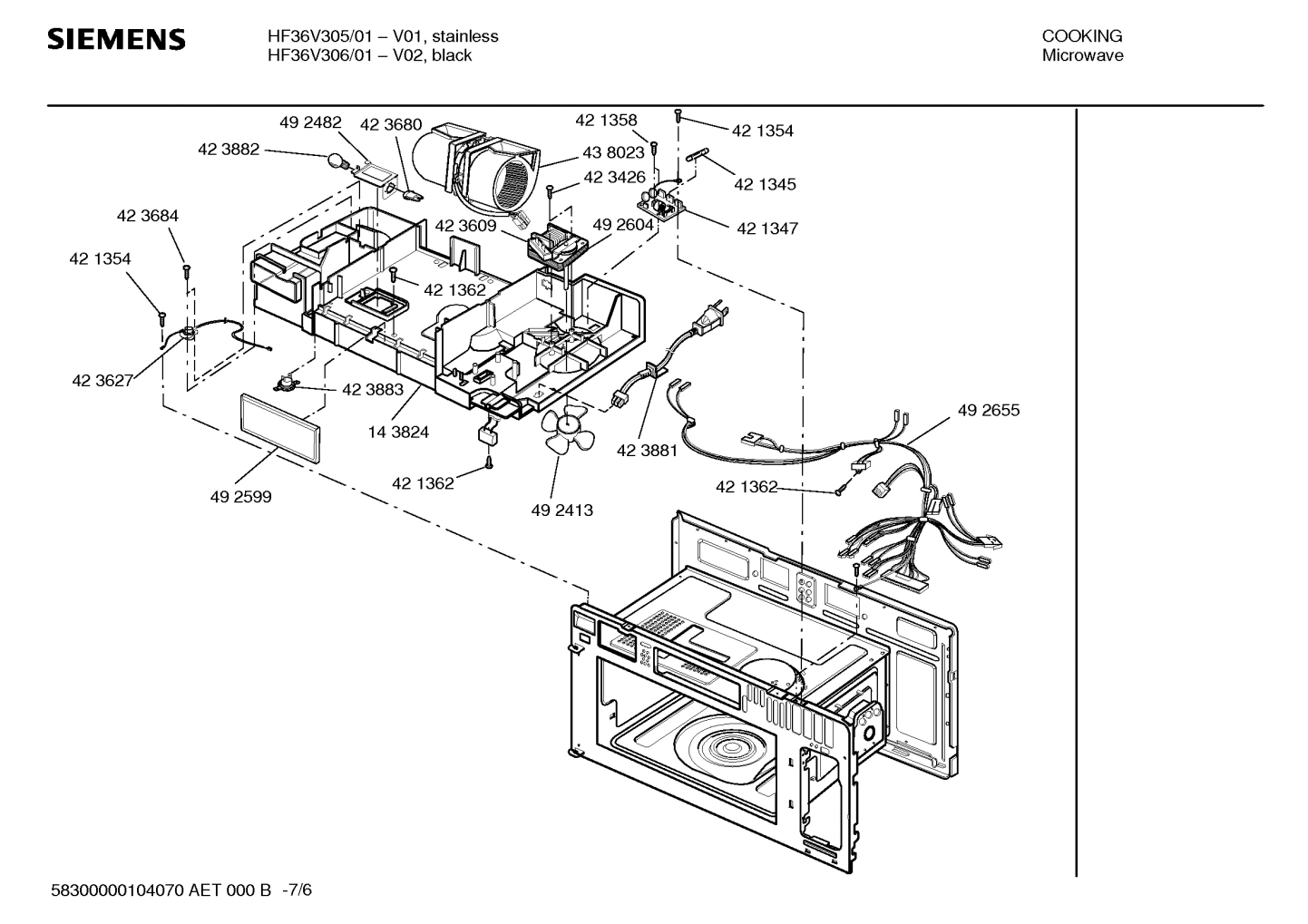

Diagram 6

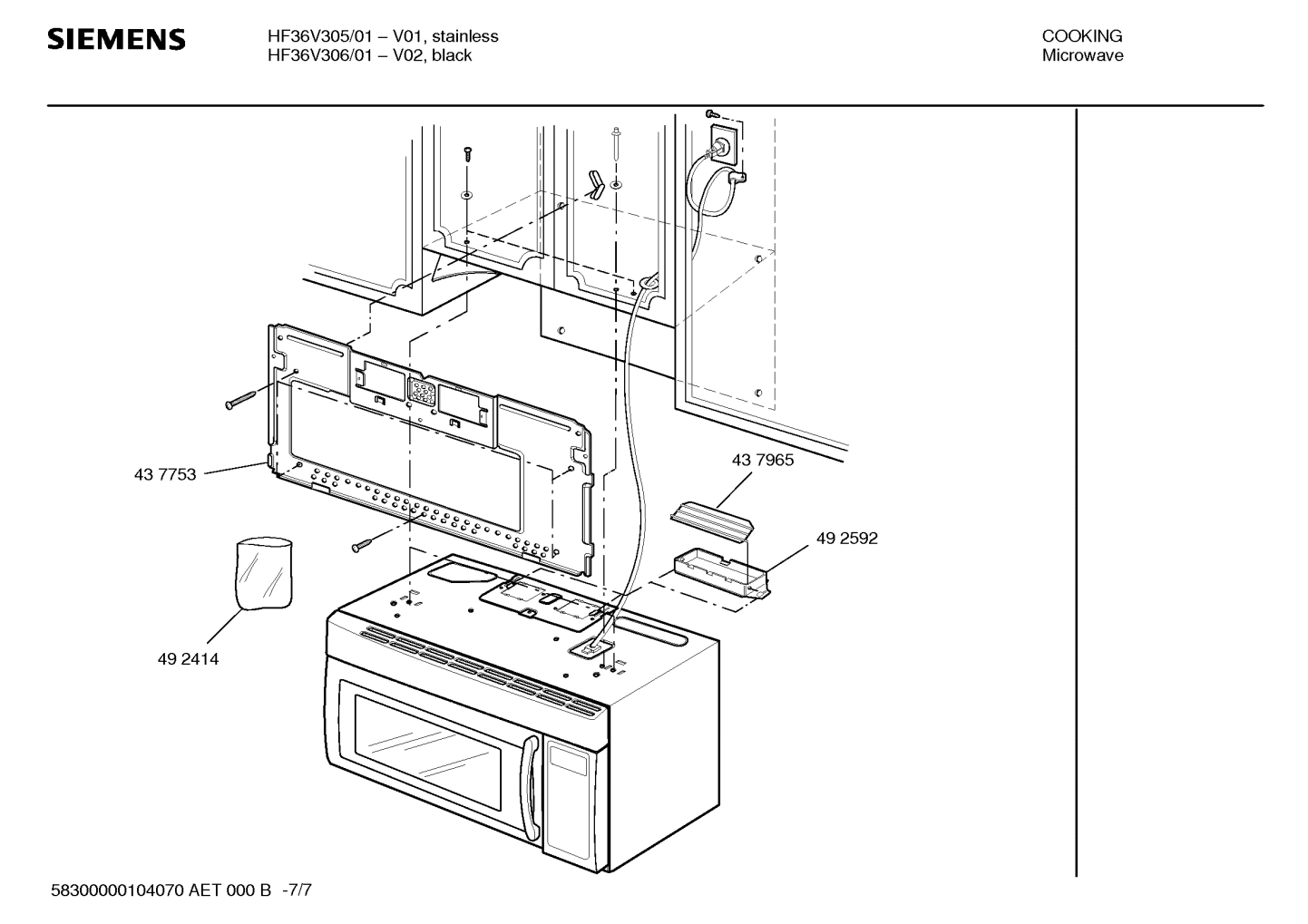

Diagram 7
Common parts from model Bosch HF36V305/01 Microwave
0104
Door-inner BOS 00472257 Contact Us For Availability
0110
Screw BOS 00423420 Contact Us For Availability
0112
Hook BOS 00189077 Contact Us For Availability
0203
Cover BOS 00494658 Contact Us For Availability
0205
PC board assembly-mains power BOS 00423700 Contact Us For Availability
0302
Support BOS 00423616 Contact Us For Availability
0308
Bracket BOS 00423615 Contact Us For Availability
0319
Filter-grease BOS 00492600 Contact Us For Availability
0401
Screw BOS 00423682 Contact Us For Availability
0502
Turntable BOS 00437757 Contact Us For Availability
0504
Ring BOS 00492601 Contact Us For Availability
0506
Fan blade BOS 00492602 Contact Us For Availability
0508
Cover BOS 00437870 Contact Us For Availability
0509
Rivet BOS 00421304 Contact Us For Availability
0517
Screw BOS 00421353 Contact Us For Availability
0518
Transformer-high voltage BOS 00492656 Contact Us For Availability
0521
Capacitor-high voltage BOS 00425654 Contact Us For Availability
0610
Fuse BOS 00423609 Contact Us For Availability
0611
Motor BOS 00438023 Contact Us For Availability
0616
Filter BOS 00421347 Contact Us For Availability
0840
Instruction manual BOS 00591938 Contact Us For Availability
0890
Screw BOS 00421362 Contact Us For Availability
× ![]()
