Model Bosch HES7282U/03 Range Oven – Common Parts & Diagrams

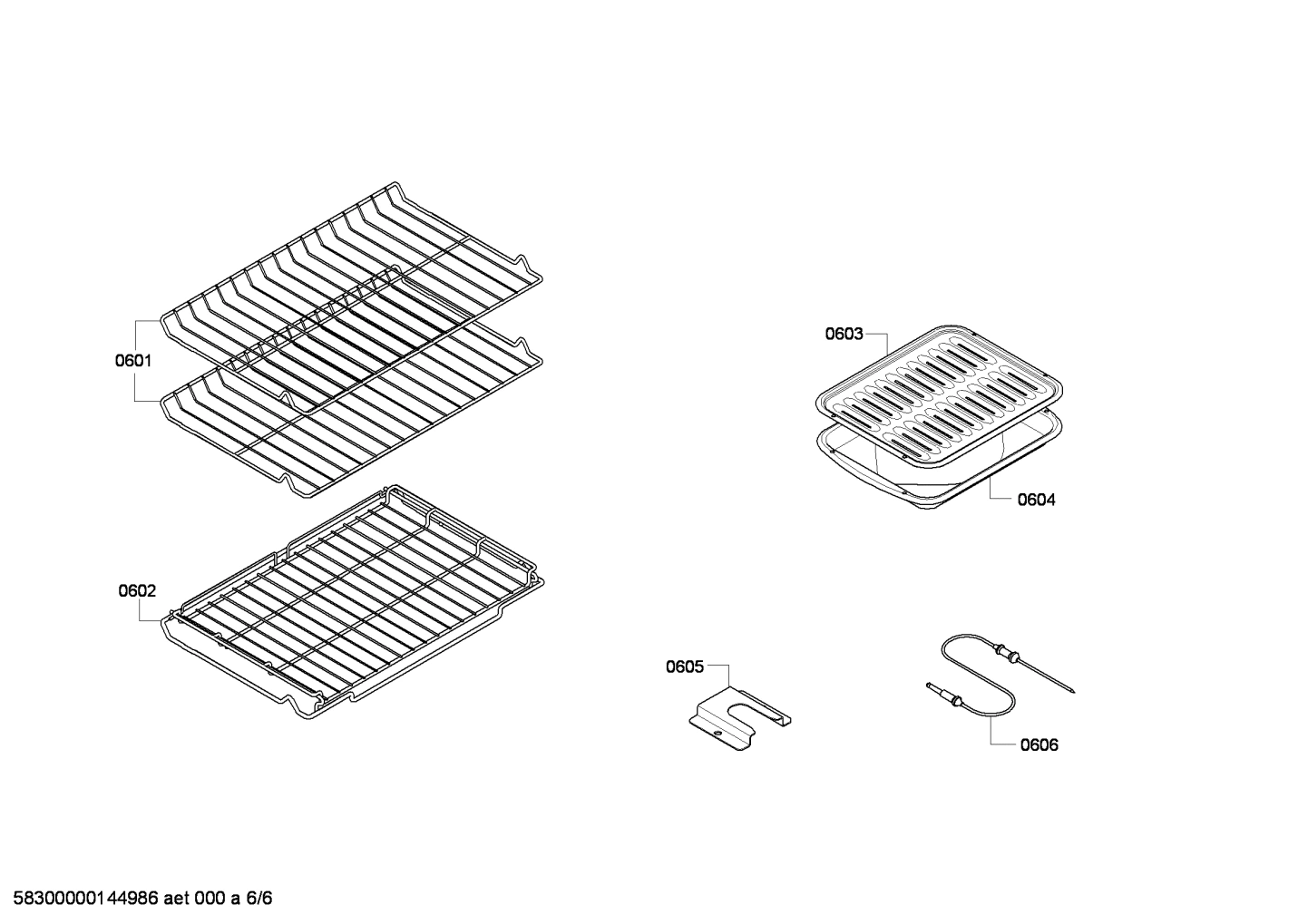

Diagram 1
Diagram 2

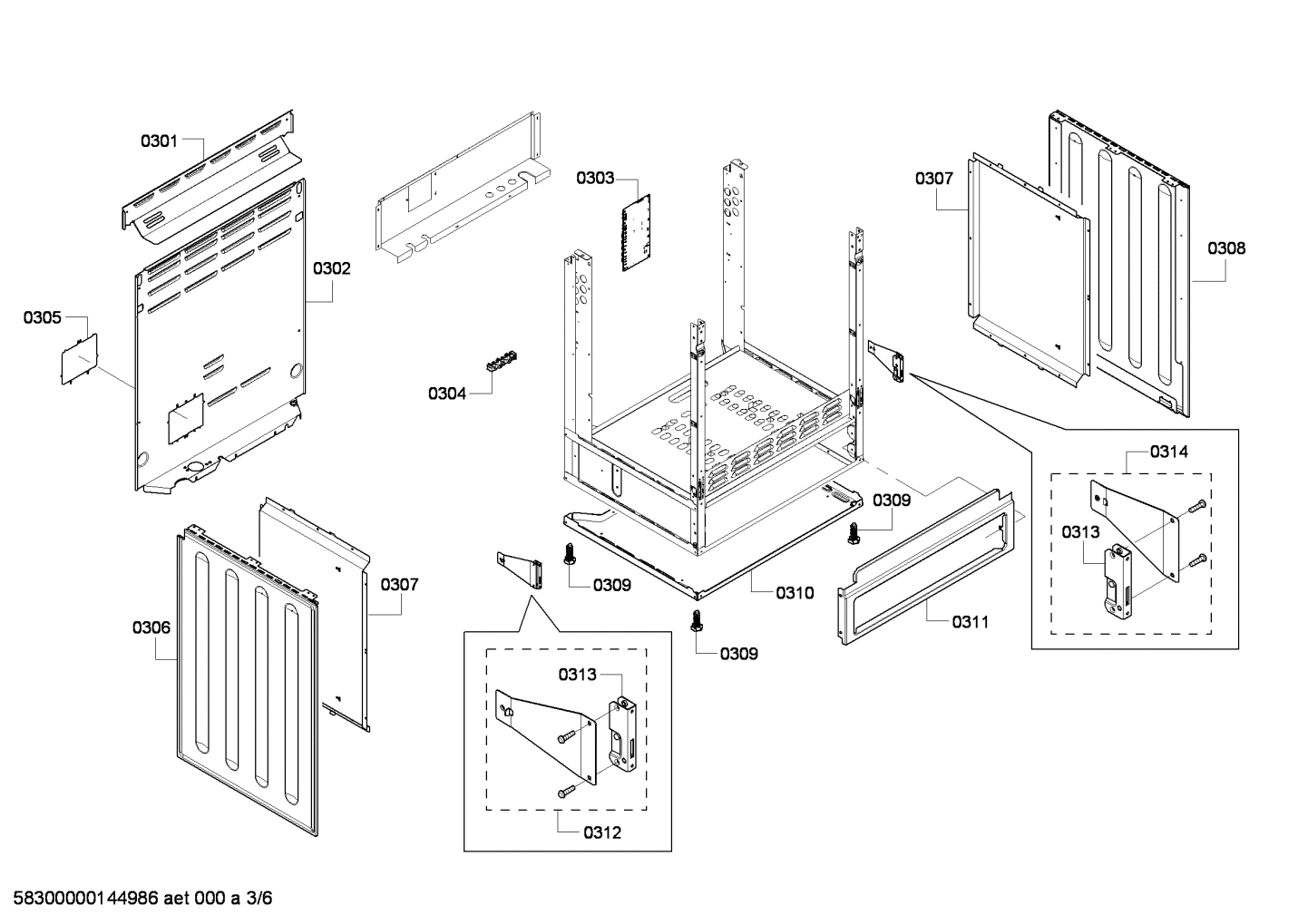

Diagram 3

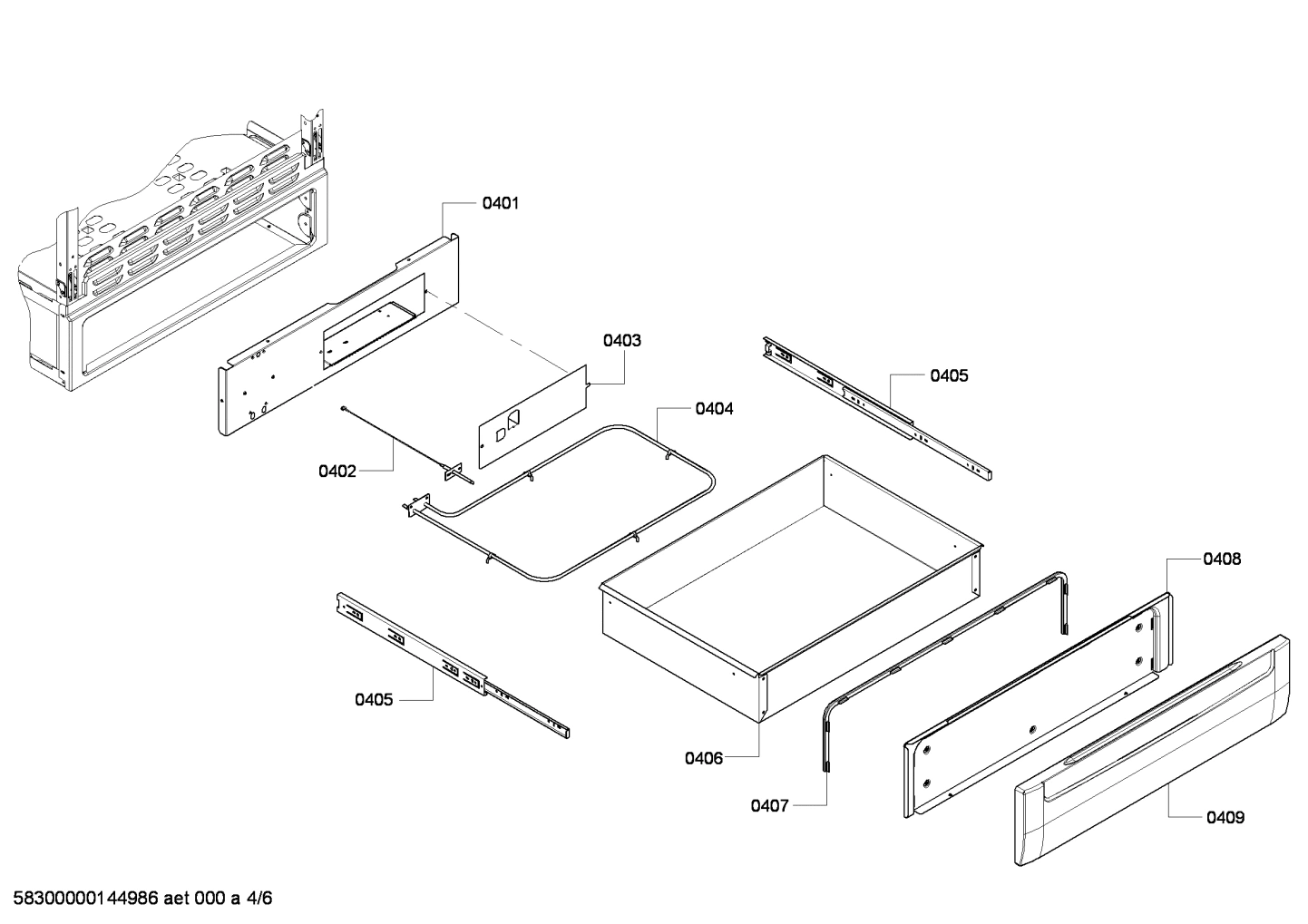

Diagram 4

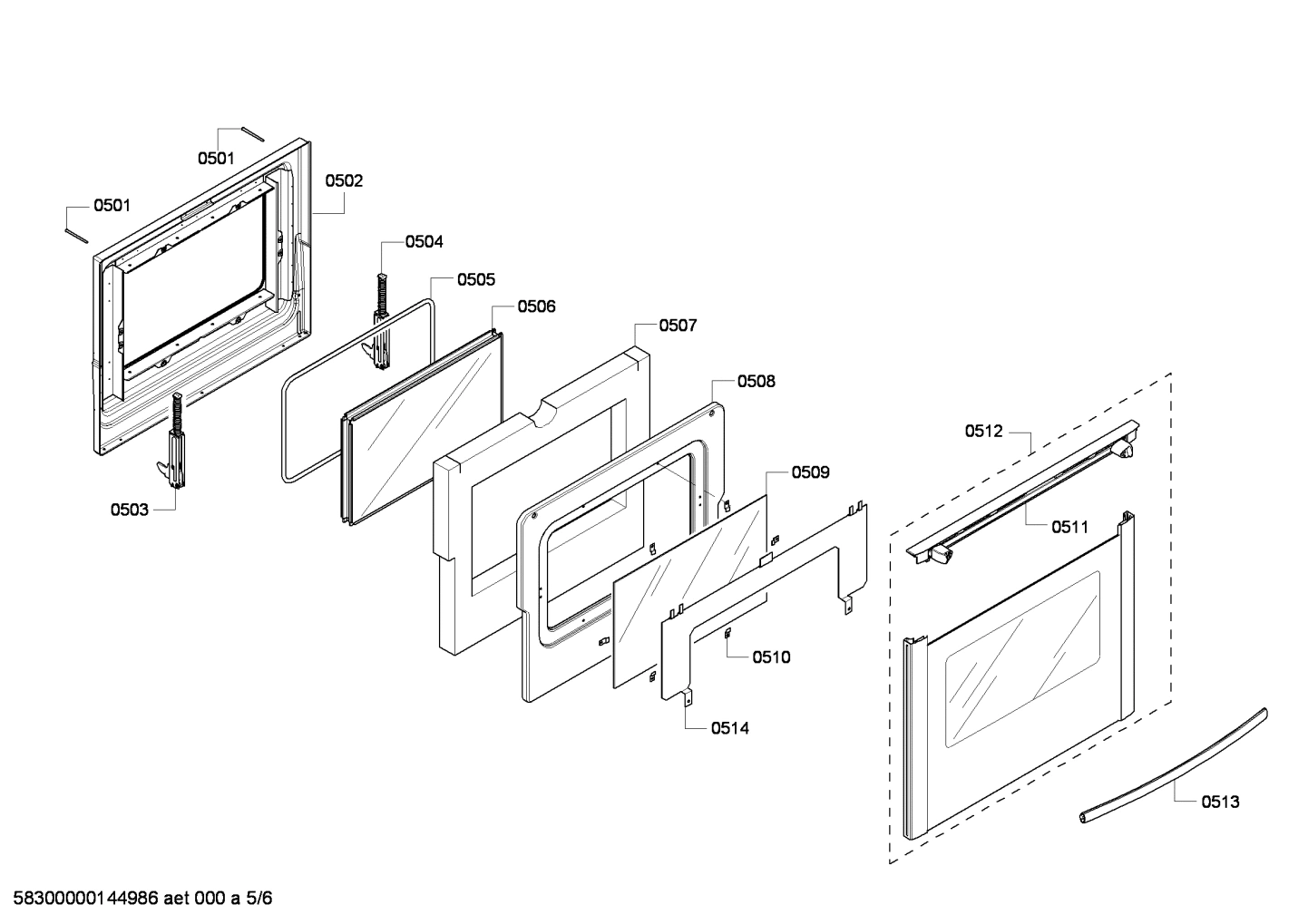

Diagram 5
Diagram 6
Common parts from model Bosch HES7282U/03 Range Oven
0108
Hob top BOS 00243982 Contact Us For Availability
0118
Frame-decor BOS 00436666 Contact Us For Availability
0150
Cable harness BOS 00499773 Contact Us For Availability
0156
Filter BOS 00622395 Contact Us For Availability
0203
Switch BOS 00604808 No Longer Available
0206
Motor BOS 00491576 Contact Us For Availability
0211
Switch BOS 00603747 No Longer Available
0250
Cable harness BOS 00650791 Contact Us For Availability
0251
Wire BOS 00663803 Contact Us For Availability
0307
Panel BOS 00422024 Contact Us For Availability
0312
Hinge-plate BOS 00491539 No Longer Available
0313
Hinge-window BOS 00492295 No Longer Available
0314
Hinge-plate BOS 00491538 No Longer Available
0404
Heating element BOS 00491787 Contact Us For Availability
0502
Door-inner BOS 00683705 Contact Us For Availability
0505
Sealing BOS 00491899 Contact Us For Availability
0507
Insulating part BOS 00143678 Contact Us For Availability
0509
Glass panel BOS 00665308 Contact Us For Availability
0511
Trimplate BOS 00449874 Contact Us For Availability
0513
Handle-door BOS 00436646 Contact Us For Availability
0601
Shelf BOS 00144416 Contact Us For Availability
0602
Grille BOS 00438086 Contact Us For Availability
0603
Broiler Pan BOS 00449756 Contact Us For Availability
× ![]()
