Bosch HES7132U/04 Range Oven Parts List

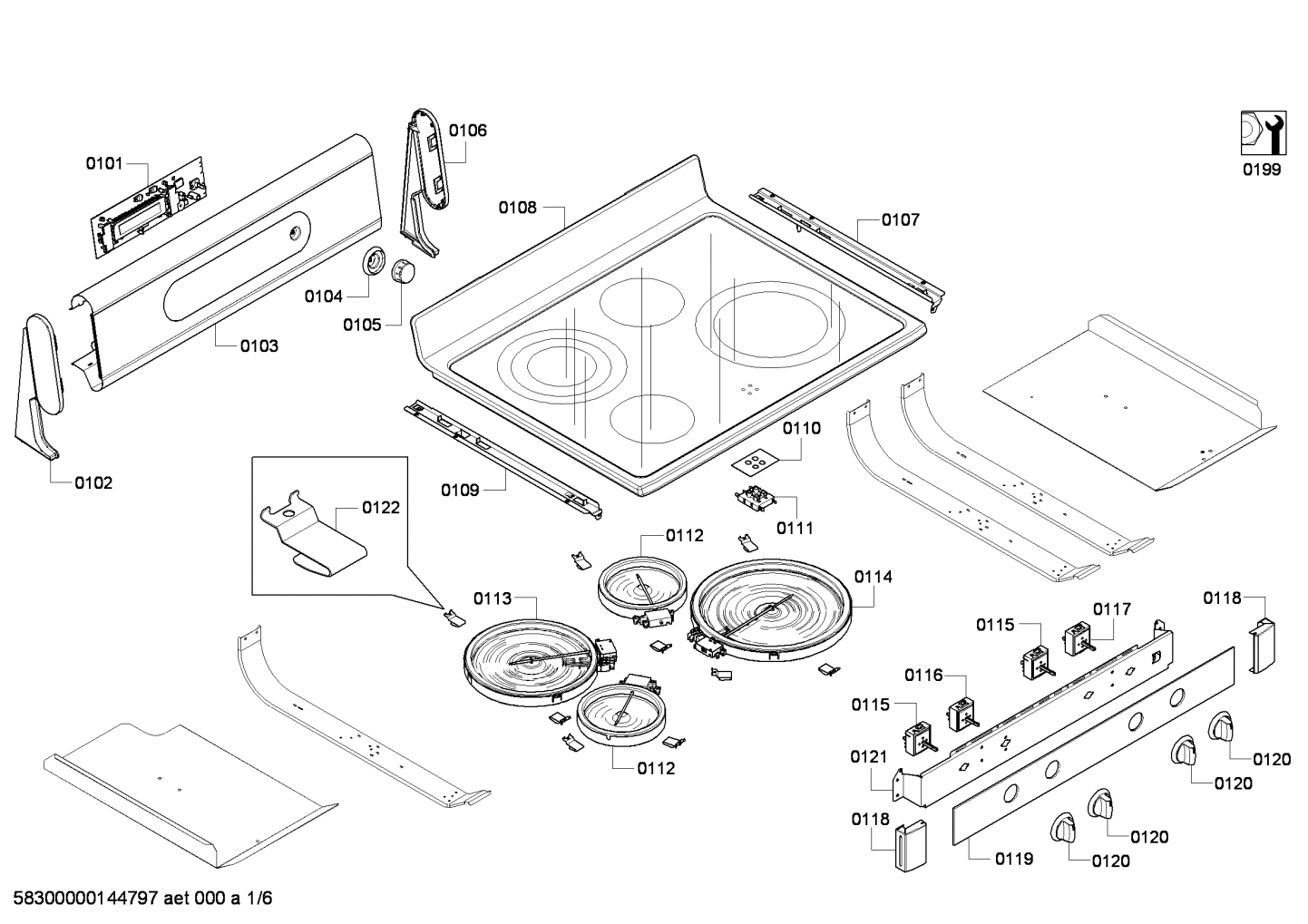

0101

Display module BOS 00653424 Contact Us For Availability

View on Model

0104

00630686 Bosch Range Ring Backorder BOS 00630686 $61.29

View on Model

0105

00630685 Bosch Range Knob Backorder BOS 00630685 $55.11

View on Model

0106

Frame-decor BOS 00422093 Contact Us For Availability

View on Model

0111

00422109 Bosch Range Lamp Backorder BOS 00422109 $71.59

View on Model

0112

00491295 Bosch Oven Hotplate Backorder BOS 00491295 $147.99

View on Model

0113

00499779 Bosch Range Heating Element Backorder BOS 00499779 $235.86

View on Model

0115

00628803 Bosch Range Energy Regulator Backorder BOS 00628803 $69.00

View on Model

0116

00603864 Bosch Range Switch Backorder BOS 00603864 $103.52

View on Model

0117

00422133 Bosch Range Energy Regulator Backorder BOS 00422133 $50.37

View on Model

0118

Frame-decor BOS 00436666 Contact Us For Availability

View on Model

0119

00449963 Bosch Range Panel Backorder BOS 00449963 $162.73

View on Model

0122

00424321 Bosch Range Spring Backorder BOS 00424321 $25.74

View on Model

0151

Cable harness BOS 00650791 Contact Us For Availability

View on Model

0152

Cable harness BOS 00499749 Contact Us For Availability

View on Model

0153

Cable harness BOS 00499773 Contact Us For Availability

View on Model

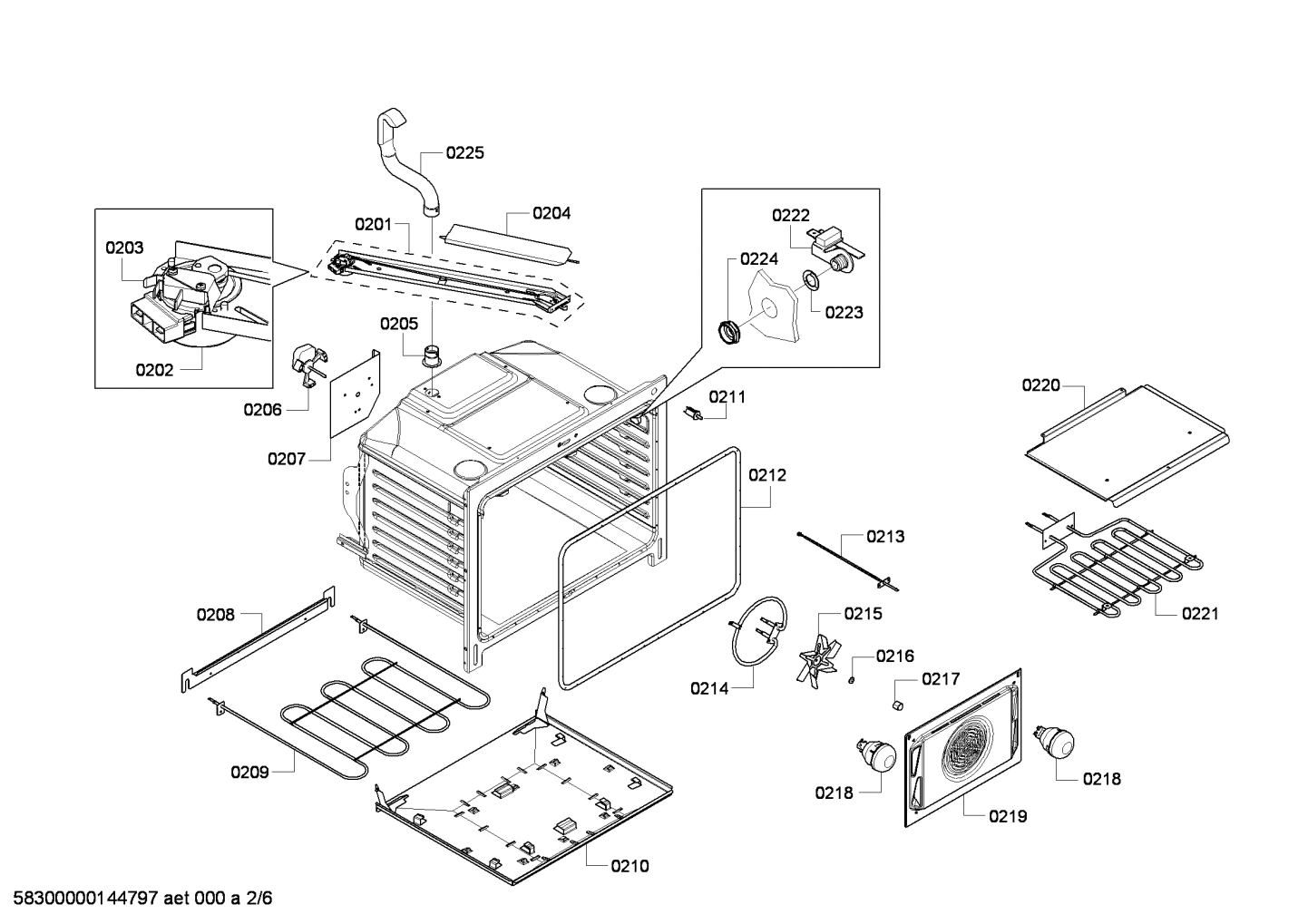

0201

00746648 Bosch Range Latch Backorder BOS 00746648 $124.12

View on Model

0202

Motor BOS 00604807 Contact Us For Availability

View on Model

0203

Switch BOS 00604808 Contact Us For Availability

View on Model

0205

00491572 Bosch Oven Catalyzer In Stock BOS 00491572 $56.14

View on Model

0206

Motor BOS 00491576 Contact Us For Availability

View on Model

0209

Burner BOS 00491571 Contact Us For Availability

View on Model

0211

Switch BOS 00603747 No Longer Available

View on Model

0212

00491569 Bosch Oven Door Seal In Stock BOS 00491569 $99.24

View on Model

0213

00422089 Bosch Range Sensor In Stock BOS 00422089 $68.84

View on Model

0214

00436632 Bosch Range Heating Element Backorder BOS 00436632 $201.34

View on Model

0215

00491577 Bosch Oven Fan Blade Backorder BOS 00491577 $31.92

View on Model

0216

00422090 Bosch Oven Washer Backorder BOS 00422090 $16.47

View on Model

0217

00471532 Bosch Oven Nut Backorder BOS 00471532 $10.29

View on Model

0218

Lamp BOS 00415045 No Longer Available

View on Model

0221

Heating element BOS 00144417 Contact Us For Availability

View on Model

0222

10007567 Bosch Oven Socket Backorder BOS 10007567 $406.71

View on Model

0223

00605039 Bosch Oven Washer Backorder BOS 00605039 $12.35

View on Model

0250

00623710 Bosch Oven Lamp In Stock BOS 00623710 $5.73

View on Model

0251

00414513 Bosch Oven Lens In Stock BOS 00414513 $21.62

View on Model

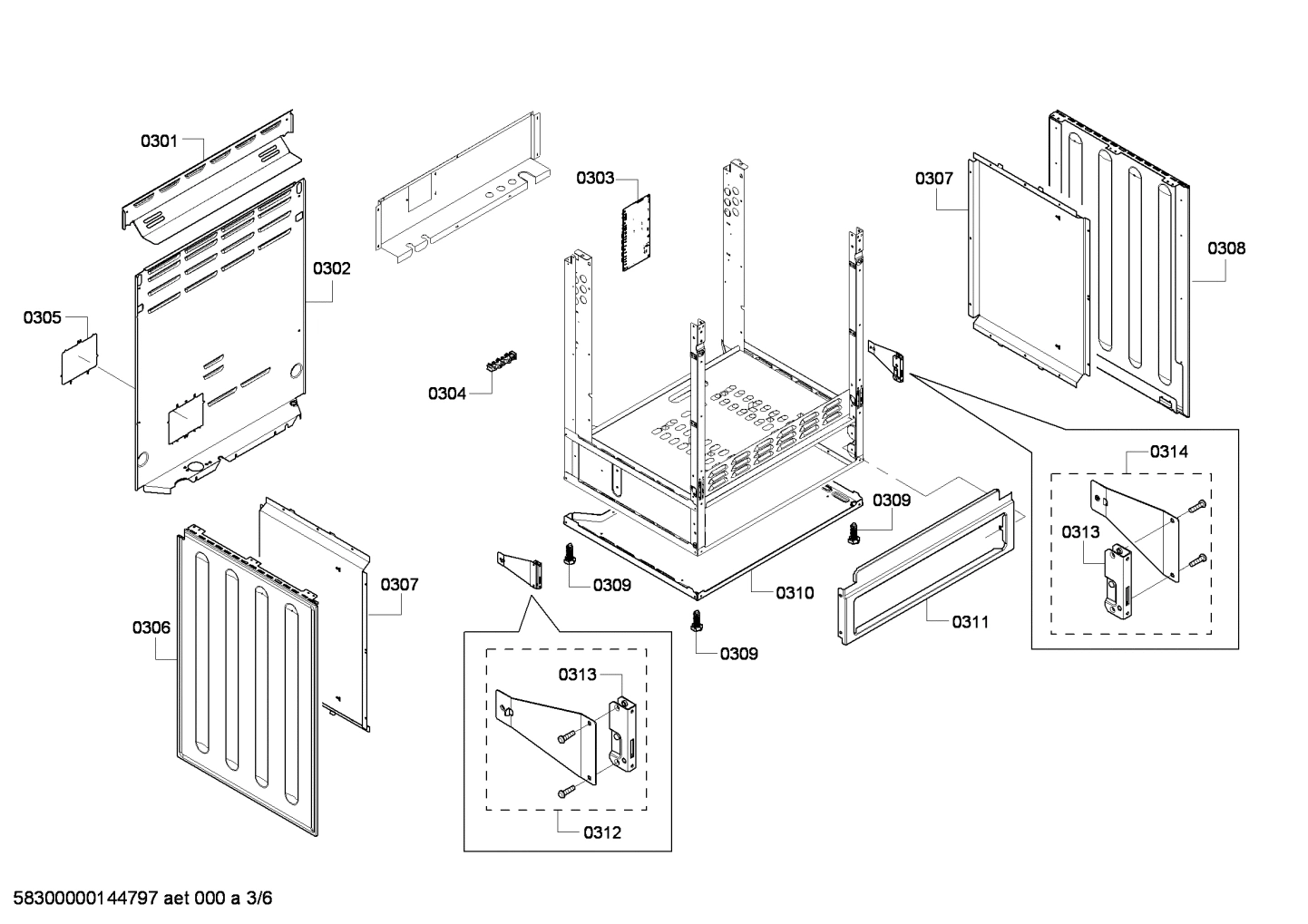

0303

Power module BOS 00657860 Contact Us For Availability

View on Model

0304

00436364 Bosch Oven Terminal Box In Stock BOS 00436364 $31.42

View on Model

0307

Panel BOS 00422024 Contact Us For Availability

View on Model

0309

00429065 Bosch Range Foot In Stock BOS 00429065 $31.55

View on Model

0312

Hinge-plate BOS 00491539 No Longer Available

View on Model

0313

Hinge-window BOS 00492295 No Longer Available

View on Model

0314

Hinge-plate BOS 00491538 No Longer Available

View on Model

0350

00424823 Bosch Range Terminal Backorder BOS 00424823 $28.33

View on Model

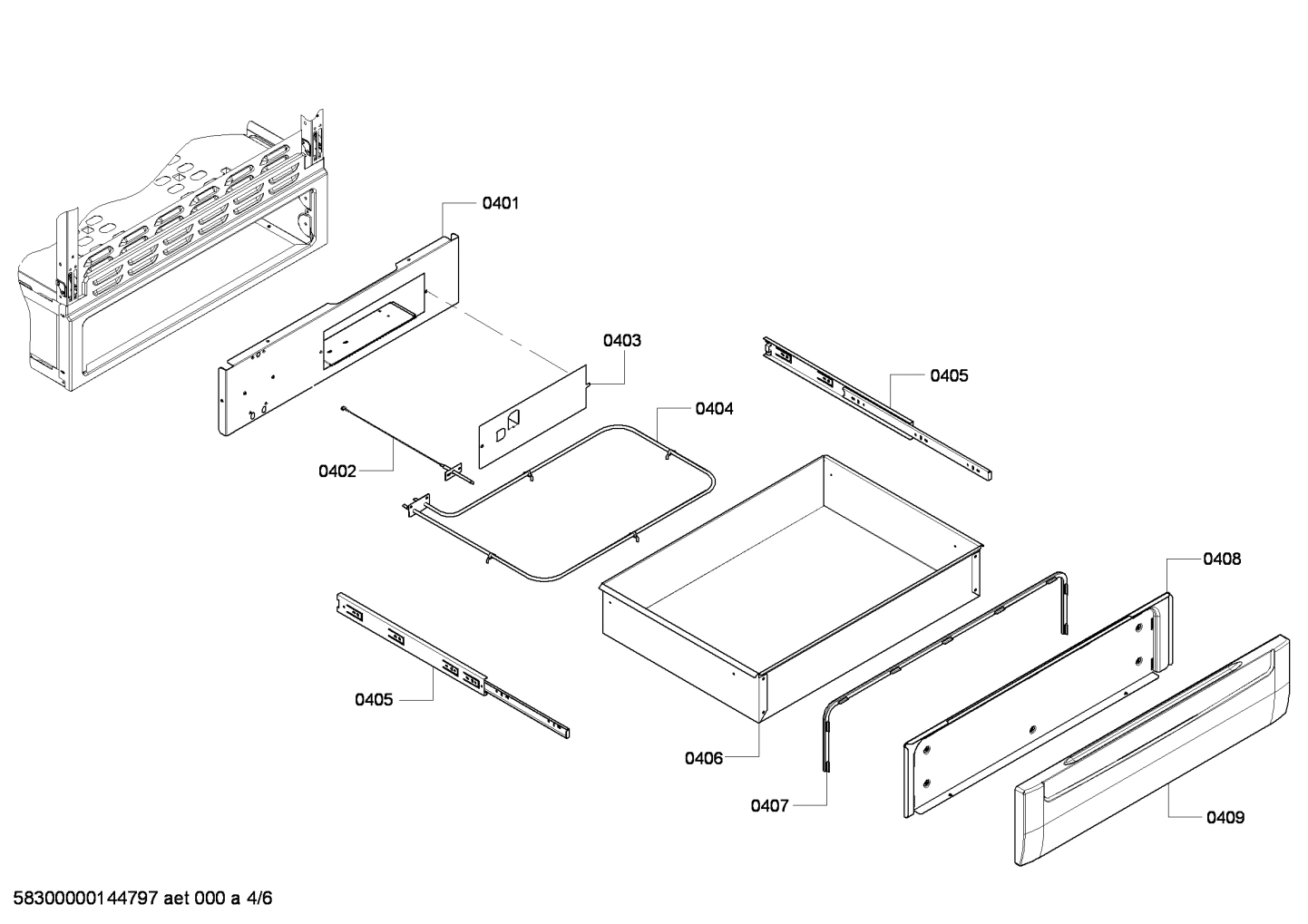

0402

00619630 Bosch Oven Sensor Backorder BOS 00619630 $61.79

View on Model

0404

Heating element BOS 00491787 Contact Us For Availability

View on Model

0405

Slide BOS 00440843 Contact Us For Availability

View on Model

0407

Sealing BOS 00436639 Contact Us For Availability

View on Model

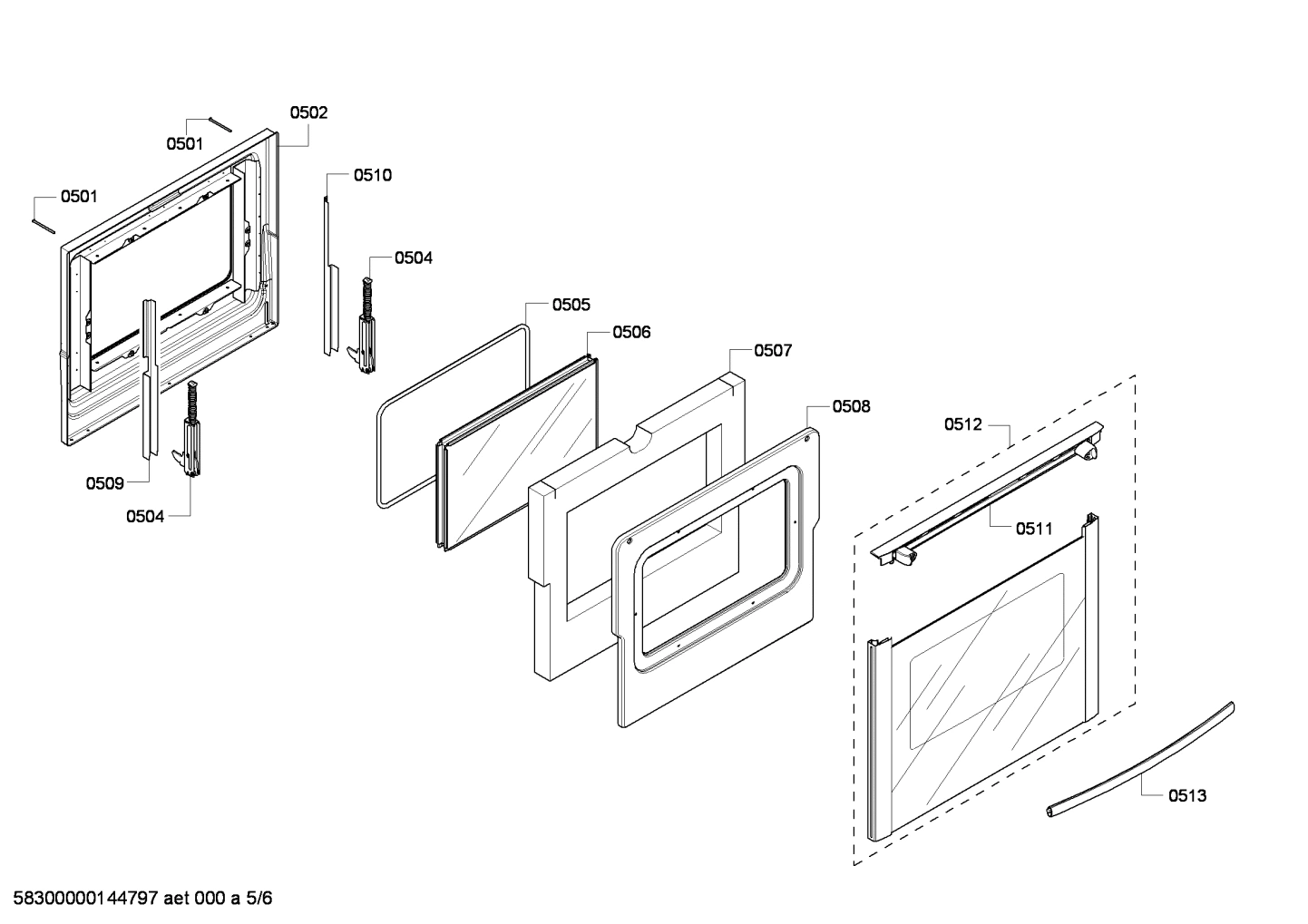

0501

00606952 Bosch Oven Screw Backorder BOS 00606952 $28.33

View on Model

0502

Door-inner BOS 00683705 Contact Us For Availability

View on Model

0504

00648844 Bosch Range Hinge Backorder BOS 00648844 $171.50

View on Model

0505

Sealing BOS 00491899 Contact Us For Availability

View on Model

0506

00436379 Bosch Range Front Glass Panel Backorder BOS 00436379 $208.58

View on Model

0507

Insulating part BOS 00143678 Contact Us For Availability

View on Model

0508

00676010 Bosch Range Heat Shield Backorder BOS 00676010 $108.67

View on Model

0509

00650182 Bosch Range Bracket Backorder BOS 00650182 $53.55

View on Model

0510

00650183 Bosch Range Bracket Backorder BOS 00650183 $31.92

View on Model

0511

00449875 Bosch Range Trim Plate Backorder BOS 00449875 $157.08

View on Model

0512

Door BOS 00476899 Contact Us For Availability

View on Model

0513

Handle-door BOS 00436646 Contact Us For Availability

View on Model

0551

00620814 Bosch Oven Screw Backorder BOS 00620814 $25.74

View on Model

0552

00422137 Bosch Range Screw Backorder BOS 00422137 $25.74

View on Model

0553

00423241 Bosch Oven Adhesive Tape Backorder BOS 00423241 $27.80

View on Model

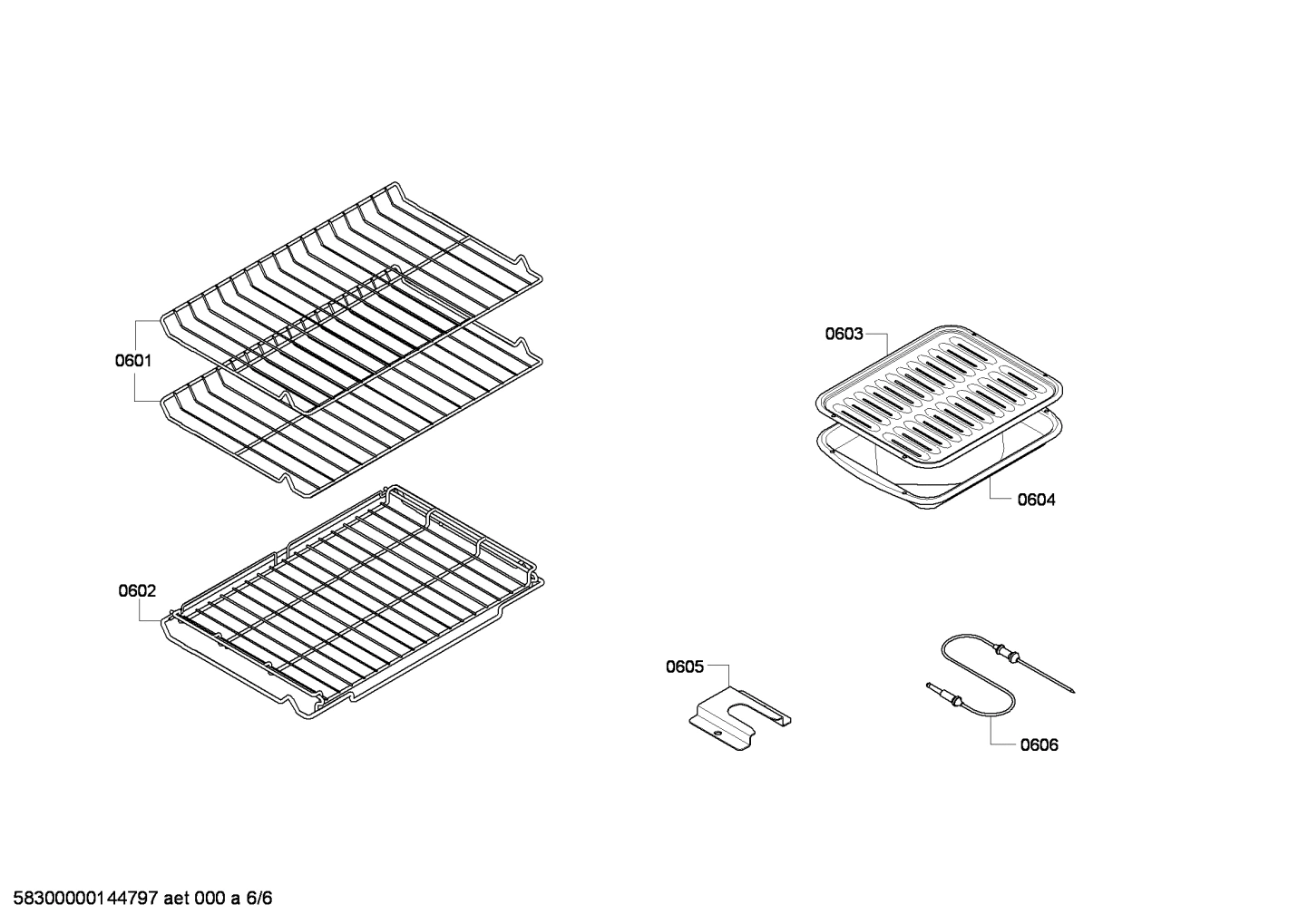

0601

Shelf BOS 00144416 Contact Us For Availability

View on Model

0602

Grille BOS 00438086 Contact Us For Availability

View on Model

0603

Grill tray BOS 00449756 Contact Us For Availability

View on Model

0604

Universal pan BOS 00449757 Contact Us For Availability

View on Model

0605

00625466 Bosch Range Bracket Backorder BOS 00625466 $42.75

View on Model

0606

00755060 Bosch Oven Sensor In Stock BOS 00755060 $111.28

View on Model
