Bosch HES7052U/03 Range Oven

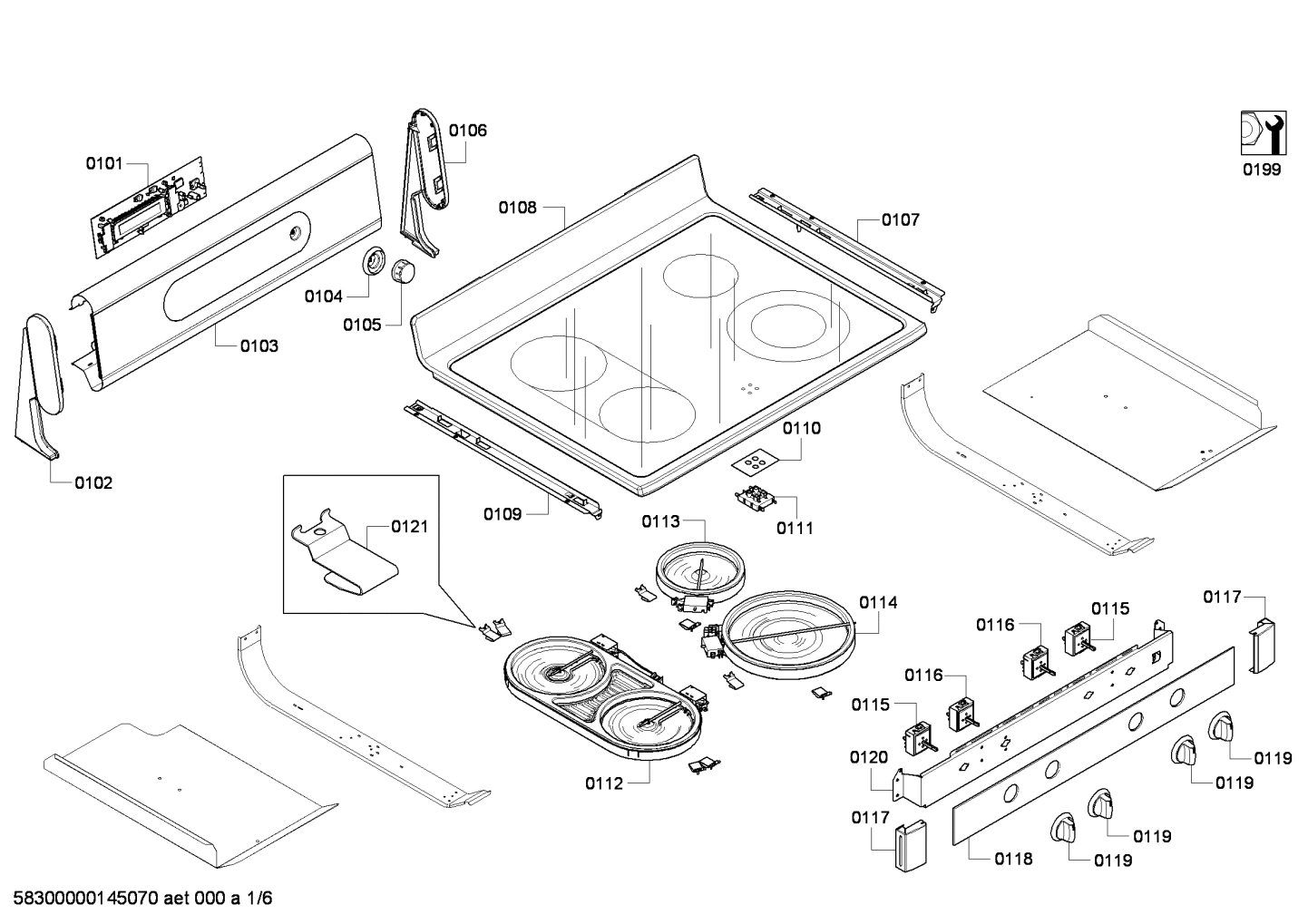

0102

00422365 Bosch Range Cap Backorder BOS 00422365 $28.83

View on Model

0103

00686204 Bosch Range Panel Backorder BOS 00686204 $535.59

View on Model

0104

00630686 Bosch Range Ring Backorder BOS 00630686 $59.73

View on Model

0105

Knob-programme BOS 00422367 Contact Us For Availability

View on Model

0106

00422366 Bosch Range Cap Backorder BOS 00422366 $45.31

View on Model

0108

Hob top BOS 00243978 Contact Us For Availability

View on Model

0111

00422109 Bosch Range Lamp Backorder BOS 00422109 $70.03

View on Model

0112

00443384 Bosch Range Heating Element In Stock BOS 00443384 $424.63

View on Model

0113

00491295 Bosch Oven Hotplate Backorder BOS 00491295 $126.35

View on Model

0115

00422133 Bosch Range Energy Regulator In Stock BOS 00422133 $67.60

View on Model

0116

00629055 Bosch Oven Energy Regulator Backorder BOS 00629055 $81.36

View on Model

0117

Frame-decor BOS 00436666 Contact Us For Availability

View on Model

0121

00424321 Bosch Range Spring Backorder BOS 00424321 $25.74

View on Model

0153

Cable harness BOS 00499773 Contact Us For Availability

View on Model

0158

Filter BOS 00622395 Contact Us For Availability

View on Model

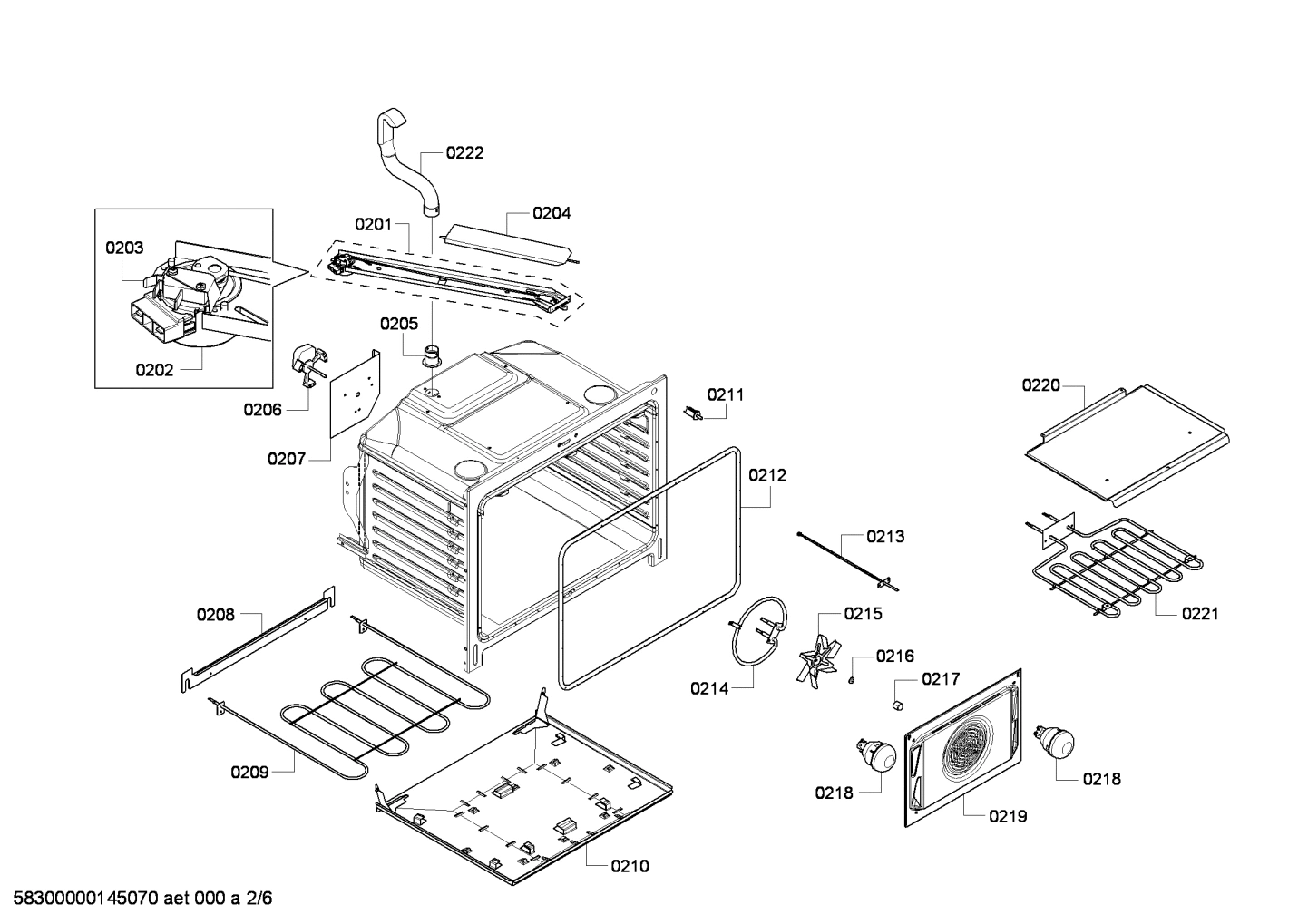

0201

00746648 Bosch Range Latch Backorder BOS 00746648 $120.50

View on Model

0203

Switch BOS 00604808 No Longer Available

View on Model

0205

00491572 Bosch Oven Catalyzer In Stock BOS 00491572 $54.58

View on Model

0206

Motor BOS 00491576 Contact Us For Availability

View on Model

0211

Switch BOS 00603747 No Longer Available

View on Model

0212

00491569 Bosch Oven Door Seal In Stock BOS 00491569 $83.51

View on Model

0213

00422089 Bosch Range Sensor In Stock BOS 00422089 $58.66

View on Model

0214

00436632 Bosch Range Heating Element Backorder BOS 00436632 $169.04

View on Model

0215

00491577 Bosch Oven Fan Blade Backorder BOS 00491577 $30.89

View on Model

0216

00422090 Bosch Oven Washer Backorder BOS 00422090 $16.47

View on Model

0217

00471532 Bosch Oven Nut Backorder BOS 00471532 $10.29

View on Model

0218

00415045 Bosch Oven Lamp In Stock BOS 00415045 $79.53

View on Model

0250

00414513 Bosch Oven Lens In Stock BOS 00414513 $20.59

View on Model

0251

00623710 Bosch Oven Lamp In Stock BOS 00623710 $6.86

View on Model

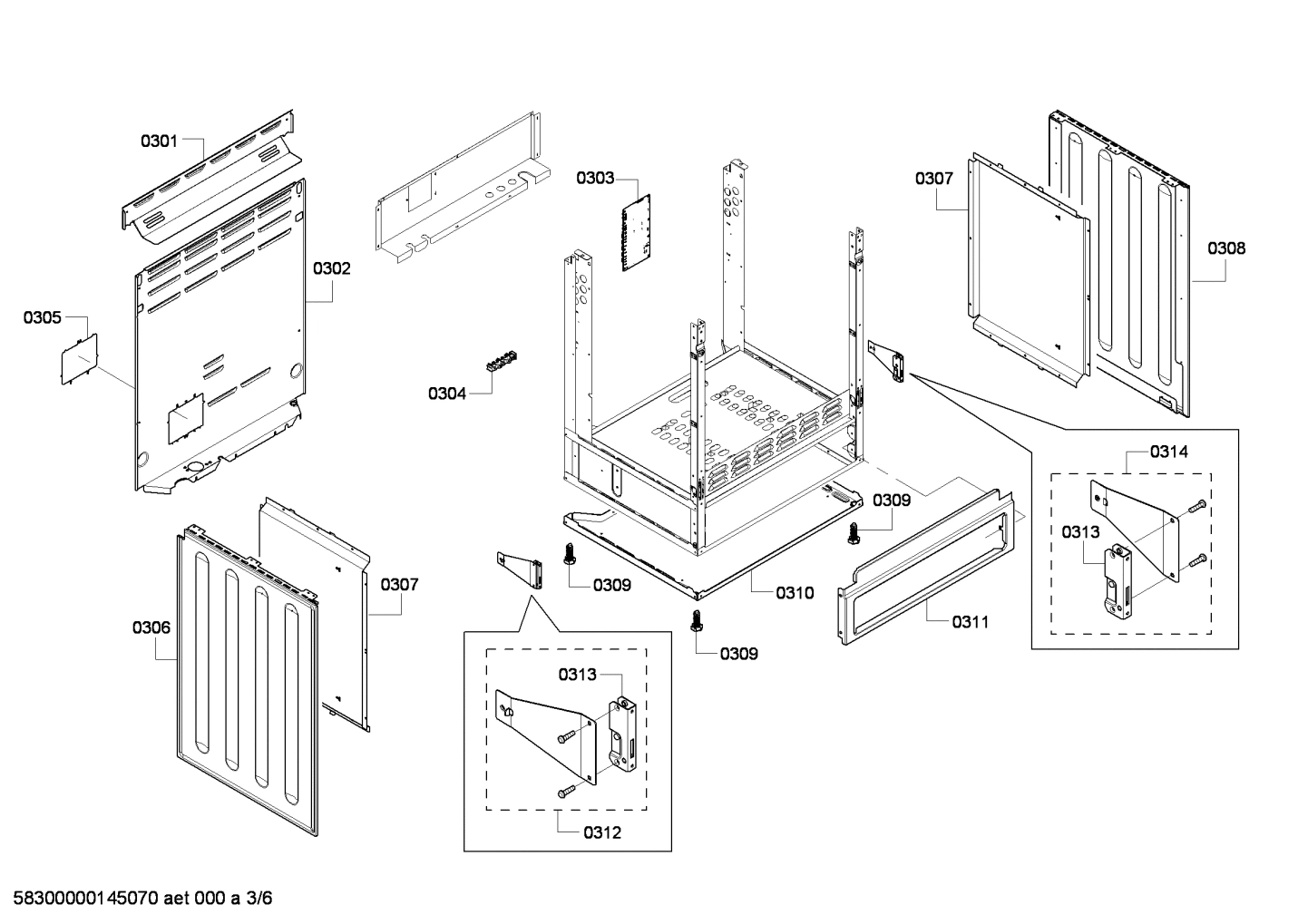

0304

00436364 Bosch Oven Terminal Box Backorder BOS 00436364 $30.89

View on Model

0307

Panel BOS 00422024 Contact Us For Availability

View on Model

0309

00429065 Bosch Range Foot In Stock BOS 00429065 $26.83

View on Model

0312

Hinge-plate BOS 00491539 No Longer Available

View on Model

0313

Hinge-window BOS 00492295 No Longer Available

View on Model

0314

Hinge-plate BOS 00491538 No Longer Available

View on Model

0351

Wire BOS 00663803 Contact Us For Availability

View on Model

0352

00424823 Bosch Range Terminal Backorder BOS 00424823 $27.80

View on Model

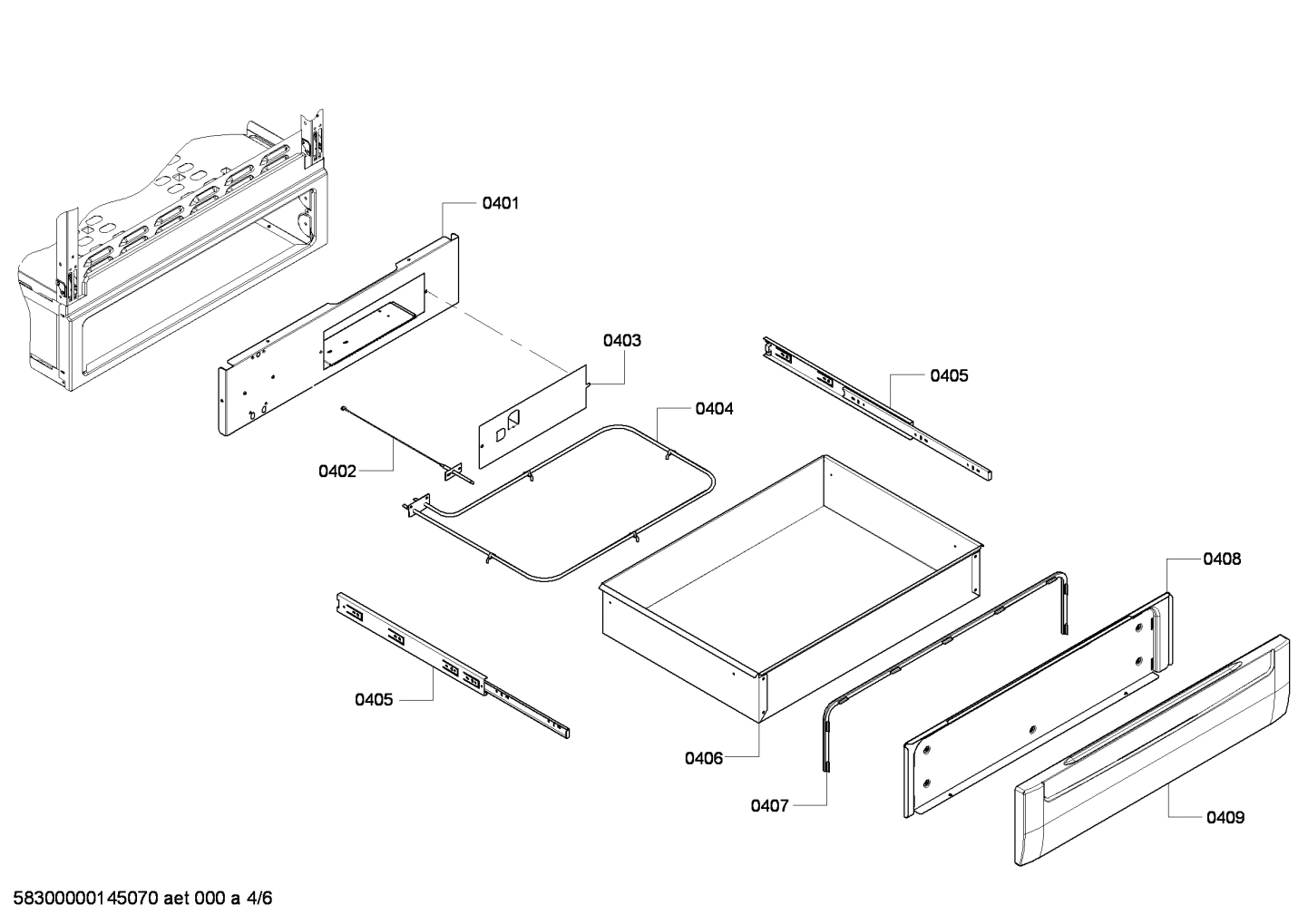

0402

00619630 Bosch Oven Sensor Backorder BOS 00619630 $60.76

View on Model

0404

Heating element BOS 00491787 Contact Us For Availability

View on Model

0405

00440843 Bosch Oven Slide Backorder BOS 00440843 $65.91

View on Model

0453

00423245 Bosch Oven Screw Backorder BOS 00423245 $3.08

View on Model

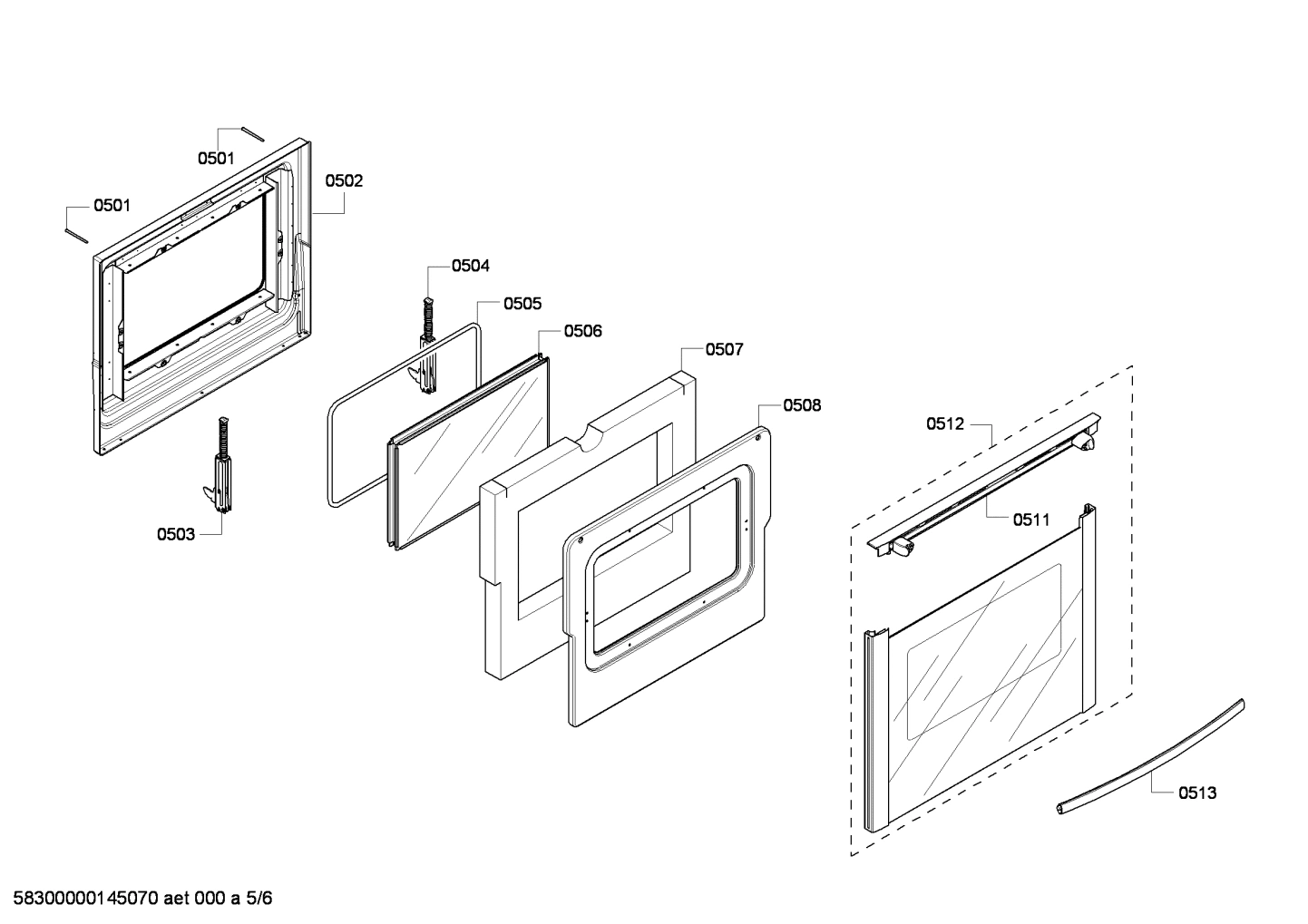

0501

00606952 Bosch Oven Screw Backorder BOS 00606952 $27.80

View on Model

0502

Door-inner BOS 00683705 Contact Us For Availability

View on Model

0504

00683867 Bosch Range Fixing Kit In Stock BOS 00683867 $341.09

View on Model

0505

Sealing BOS 00491899 Contact Us For Availability

View on Model

0506

00436379 Bosch Range Front Glass Panel Backorder BOS 00436379 $202.90

View on Model

0507

Insulating part BOS 00143678 Contact Us For Availability

View on Model

0508

00676010 Bosch Range Heat Shield Backorder BOS 00676010 $105.05

View on Model

0511

Trimplate BOS 00449874 Contact Us For Availability

View on Model

0513

Handle-door BOS 00436646 Contact Us For Availability

View on Model

0551

00422137 Bosch Range Screw Backorder BOS 00422137 $24.71

View on Model

0552

00620814 Bosch Oven Screw Backorder BOS 00620814 $24.71

View on Model

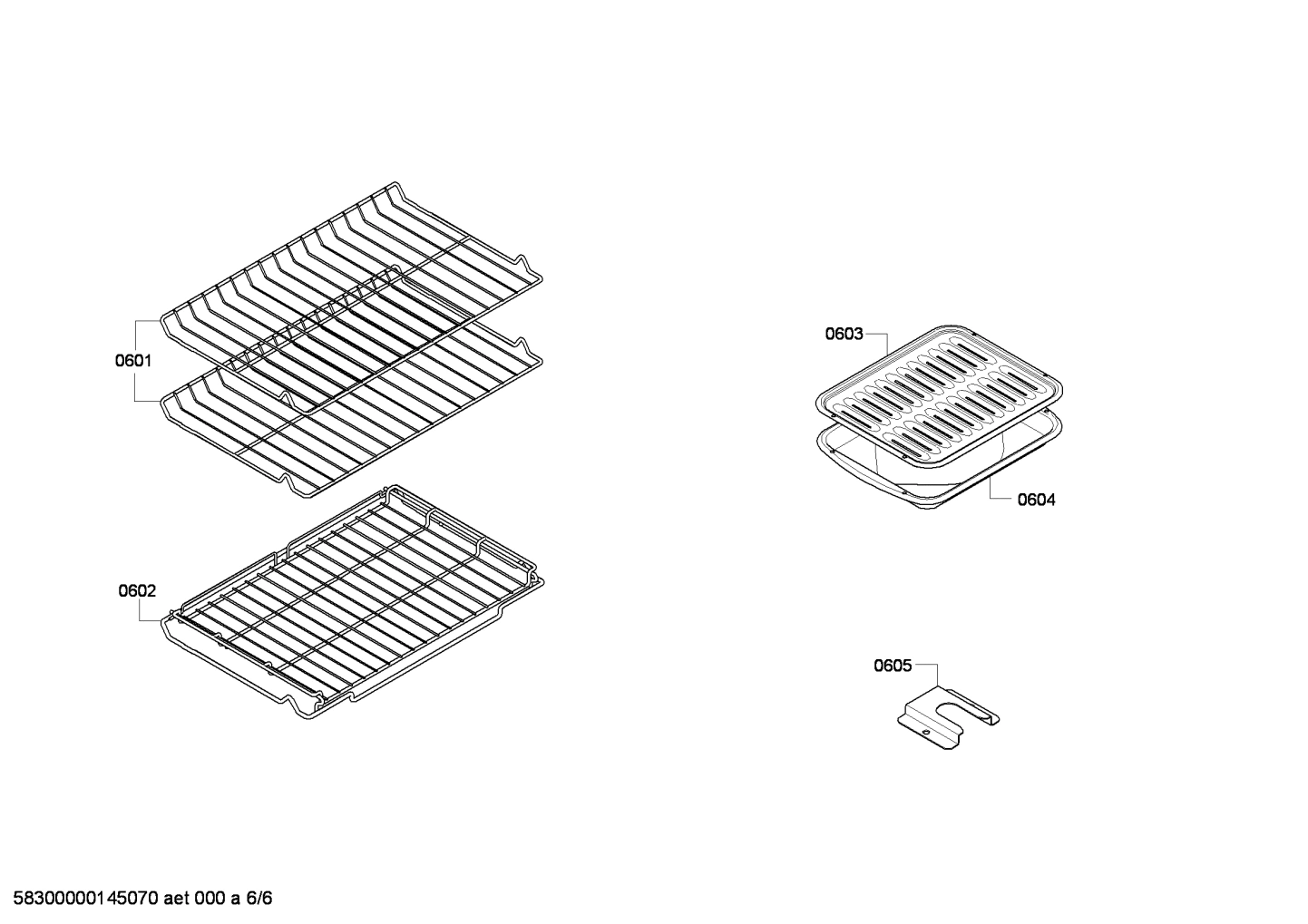

0601

Shelf BOS 00144416 Contact Us For Availability

View on Model

0603

Broiler Pan BOS 00449756 Contact Us For Availability

View on Model

0605

00625466 Bosch Range Bracket Backorder BOS 00625466 $42.22

View on Model

Model Bosch HES7052U/03 Range Oven – Common Parts & Diagrams

Common parts from model Bosch HES7052U/03 Range Oven
