Bosch HES5053C/05 Range Oven Parts List

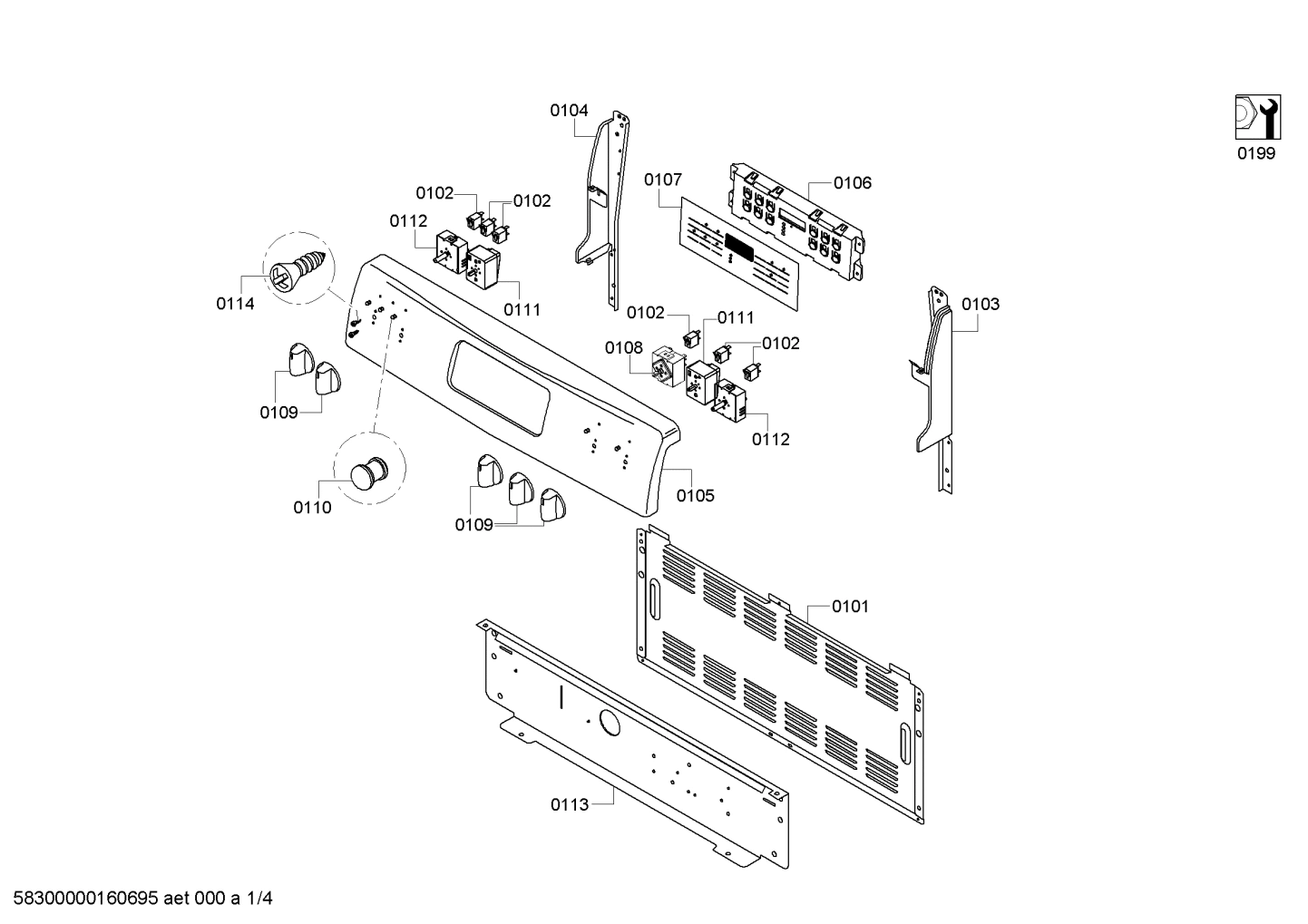

0105

Back panel BOS 00684106 Contact Us For Availability

View on Model

0106

Controller unit BOS 00676821 Contact Us For Availability

View on Model

0107

00676822 Bosch Range Cover Sheet In Stock BOS 00676822 $38.12

View on Model

0110

Lens BOS 00618798 Contact Us For Availability

View on Model

0111

00617691 Bosch Range Switch Backorder BOS 00617691 $136.98

View on Model

0112

00623913 Bosch Range Switch Backorder BOS 00623913 $504.19

View on Model

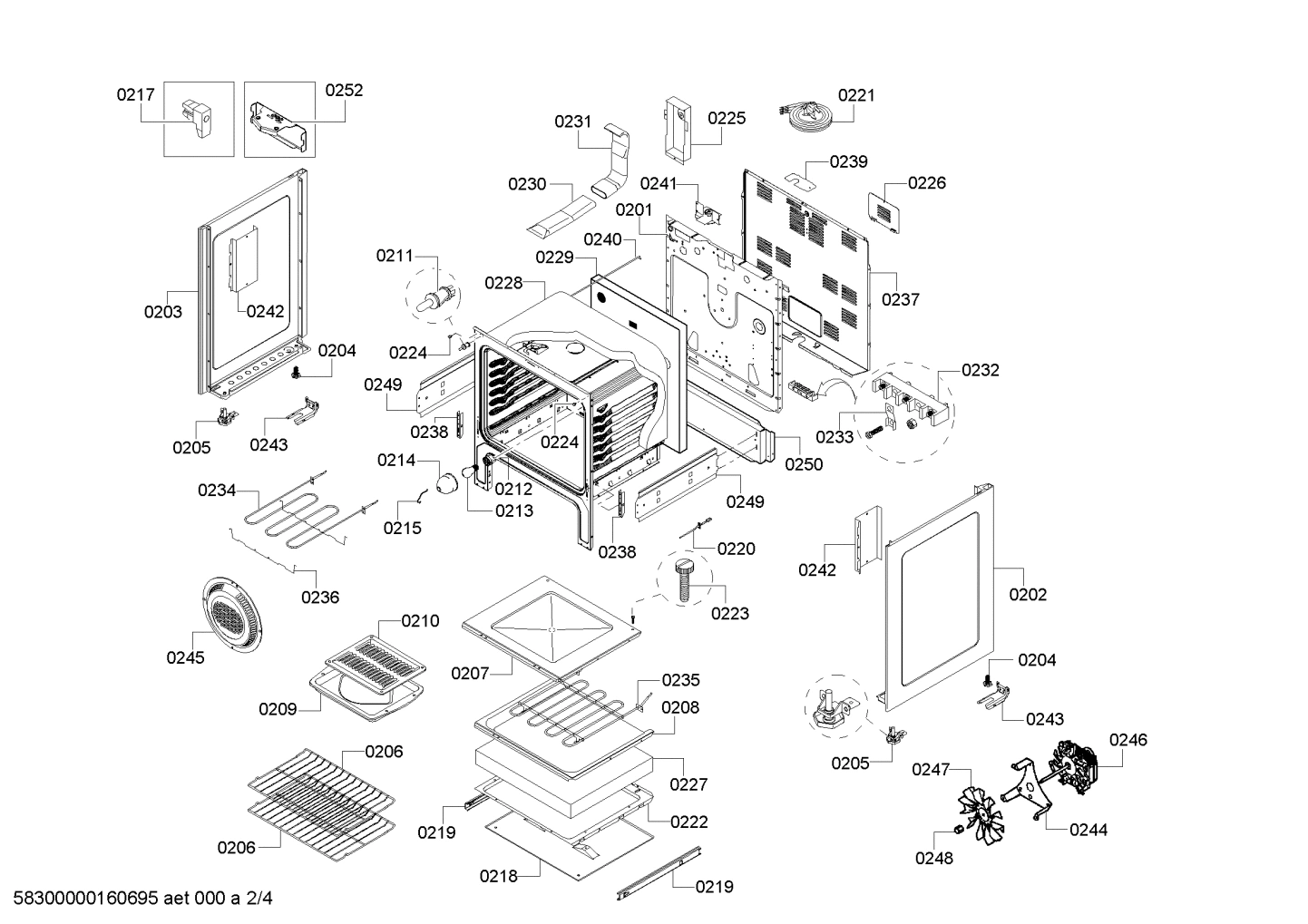

0203

00248787 Bosch Range Panel Backorder BOS 00248787 $222.47

View on Model

0204

00617697 Bosch Range Screw Backorder BOS 00617697 $20.09

View on Model

0206

00676823 Bosch Range Shelf In Stock BOS 00676823 $148.84

View on Model

0207

00684042 Bosch Range Panel In Stock BOS 00684042 $185.92

View on Model

0209

00676722 Bosch Range Pan Backorder BOS 00676722 $211.67

View on Model

0211

00617699 Bosch Range Switch Backorder BOS 00617699 $131.83

View on Model

0212

00617700 Bosch Range Light Socket Backorder BOS 00617700 $133.89

View on Model

0213

00617701 Bosch Range Lamp Backorder BOS 00617701 $39.13

View on Model

0220

00617708 Bosch Range Temperature Sensor Backorder BOS 00617708 $149.87

View on Model

0231

Tube BOS 00676735 Contact Us For Availability

View on Model

0232

00649153 Bosch Range Terminal Box Backorder BOS 00649153 $26.27

View on Model

0233

Bracket BOS 00617719 Contact Us For Availability

View on Model

0234

00676737 Bosch Range Heating Element Backorder BOS 00676737 $456.28

View on Model

0235

00676738 Bosch Range Heating Element Backorder BOS 00676738 $612.84

View on Model

0236

Support BOS 00676740 Contact Us For Availability

View on Model

0237

00711279 Bosch Cover Shield, Rear Wall Backorder BOS 00711279 $123.59

View on Model

0238

00617721 Bosch Range Plate Hinge Backorder BOS 00617721 $61.79

View on Model

0239

Bracket BOS 00617723 Contact Us For Availability

View on Model

0240

Rod BOS 00684048 Contact Us For Availability

View on Model

0241

00649160 Bosch Range Latch Backorder BOS 00649160 $285.30

View on Model

0242

Cover BOS 00676742 Contact Us For Availability

View on Model

0243

00628089 Bosch Range Fixing Kit Backorder BOS 00628089 $39.13

View on Model

0244

Bracket BOS 00676824 Contact Us For Availability

View on Model

0245

Cover BOS 00676825 Contact Us For Availability

View on Model

0246

Blower motor BOS 00649558 Contact Us For Availability

View on Model

0247

Fan blade BOS 00655299 Contact Us For Availability

View on Model

0248

00617802 Bosch Nut Backorder BOS 00617802 $30.89

View on Model

0249

Panel side BOS 00704089 Contact Us For Availability

View on Model

0250

Panel BOS 00686412 Contact Us For Availability

View on Model

0251

Screw BOS 00617722 Contact Us For Availability

View on Model

0252

Bracket BOS 00654030 Contact Us For Availability

View on Model

0253

00649222 Bosch Cable Harness Backorder BOS 00649222 $221.97

View on Model

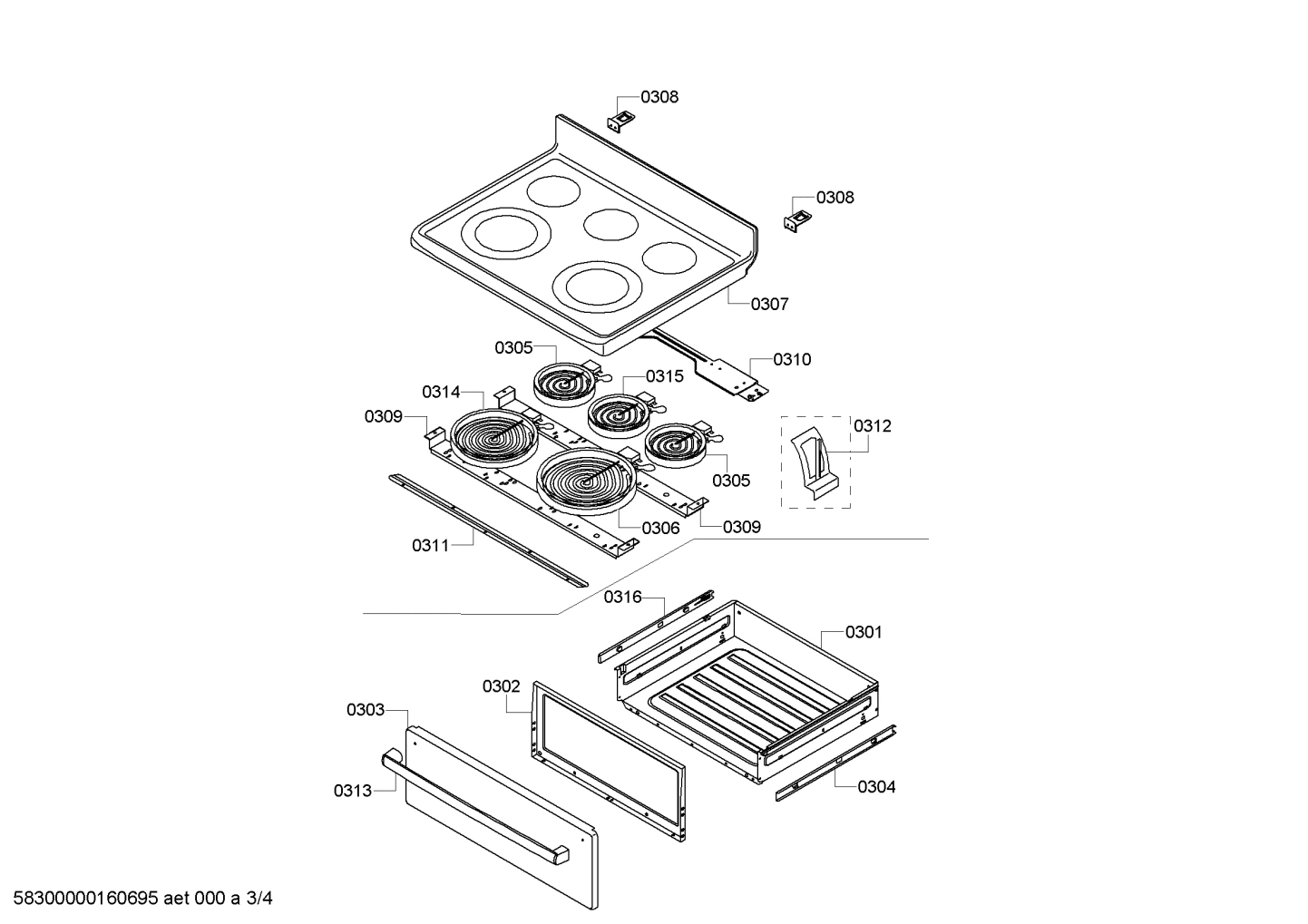

0301

00710376 Bosch Range Drawer Backorder BOS 00710376 $193.63

View on Model

0302

00686411 Bosch Liner, WD Front, Painted Backorder BOS 00686411 $146.78

View on Model

0303

Panel BOS 00684092 Contact Us For Availability

View on Model

0304

00653938 Bosch Range Slide Backorder BOS 00653938 $120.50

View on Model

0305

00701048 Bosch Range Surface Burner Backorder BOS 00701048 $359.46

View on Model

0306

00676842 Bosch Range Surface Burner Backorder BOS 00676842 $474.32

View on Model

0307

Hob top BOS 00684113 Contact Us For Availability

View on Model

0308

00621189 Bosch Snap-On Hinge, Maintop Backorder BOS 00621189 $15.44

View on Model

0309

Support BOS 00676748 Contact Us For Availability

View on Model

0310

00684061 Bosch Support Backorder BOS 00684061 $52.52

View on Model

0311

Support BOS 00684063 Contact Us For Availability

View on Model

0312

Clip BOS 00617734 Contact Us For Availability

View on Model

0313

Handle BOS 00676769 Contact Us For Availability

View on Model

0314

00653734 Bosch Range Surface Burner Backorder BOS 00653734 $595.86

View on Model

0315

Surface burner BOS 00676843 Contact Us For Availability

View on Model

0316

00653939 Bosch Range Slide Backorder BOS 00653939 $93.22

View on Model

0350

Cable harness BOS 00649224 Contact Us For Availability

View on Model

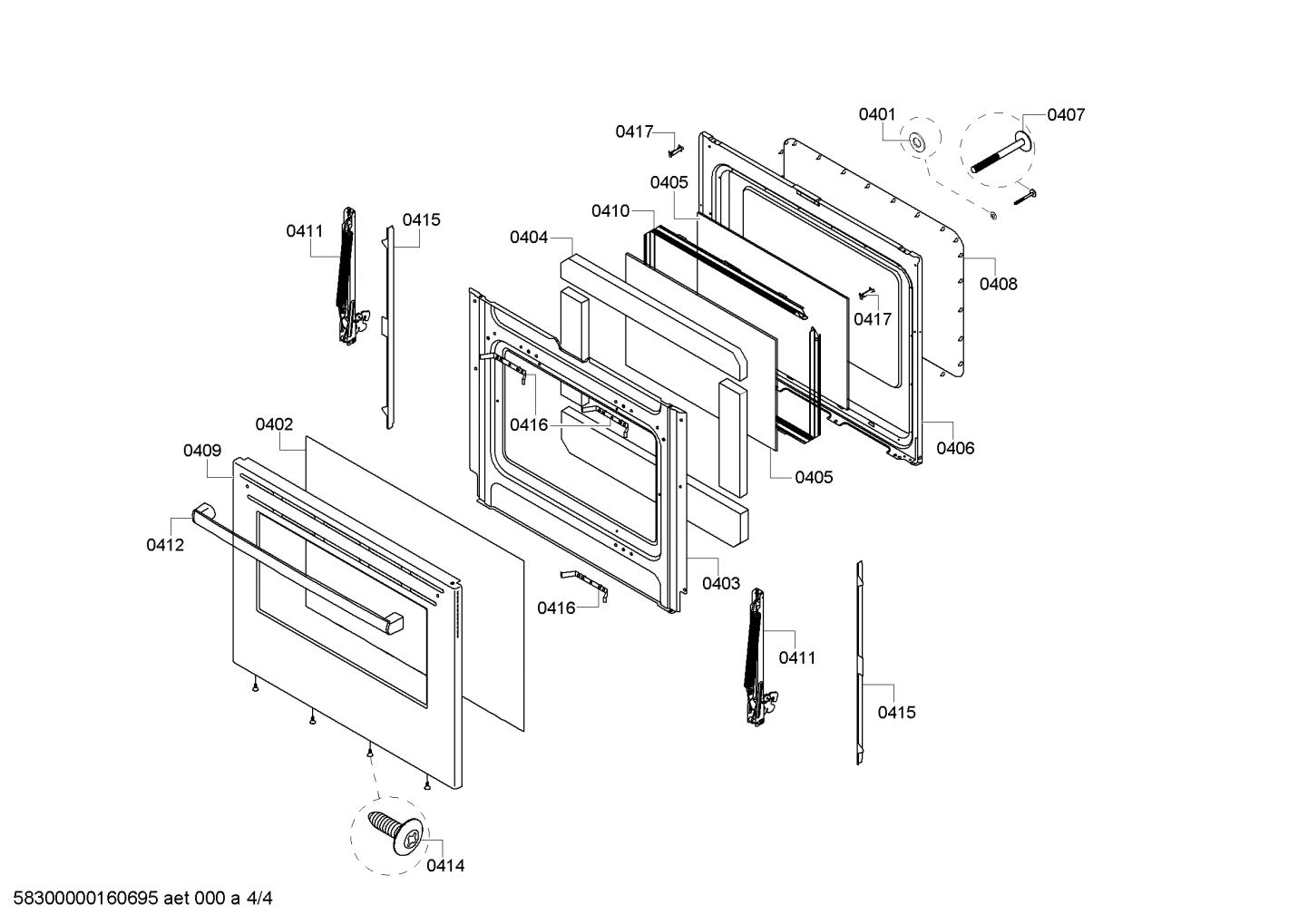

0401

Washer BOS 00617756 Contact Us For Availability

View on Model

0402

Glass plate BOS 00684094 Contact Us For Availability

View on Model

0404

Damper BOS 00684075 Contact Us For Availability

View on Model

0405

00686969 Bosch Glass, Oven Door, Heat Barrier Backorder BOS 00686969 $249.25

View on Model

0406

Frame BOS 00684077 Contact Us For Availability

View on Model

0407

00617738 Bosch Range Screw Backorder BOS 00617738 $27.80

View on Model

0408

00649181 Bosch Range Door Seal Backorder BOS 00649181 $449.60

View on Model

0409

00684095 Bosch Range Outer Door Backorder BOS 00684095 $331.65

View on Model

0410

00684776 Bosch Range Spacer Backorder BOS 00684776 $47.37

View on Model

0411

00657164 Bosch Range Hinge Backorder BOS 00657164 $133.89

View on Model

0414

00617695 Bosch Range Screw Backorder BOS 00617695 $25.74

View on Model

0415

00676770 Bosch Insulating Part Backorder BOS 00676770 $67.47

View on Model

0416

Bracket BOS 00649199 Contact Us For Availability

View on Model

0417

00617760 Bosch Spacer Backorder BOS 00617760 $31.92

View on Model
