Model Bosch HES446U/01 Range Oven – Common Parts & Diagrams

0102
Knob-programme
Knob-programme BOS 00422367 Contact Us For Availability
View on Model
0110
PC board
PC board BOS 00640373 Contact Us For Availability
View on Model
0119
Hilight hotplate
Hilight hotplate BOS 00416306 Contact Us For Availability
View on Model
0120
Hilight hotplate
Hilight hotplate BOS 00491270 Contact Us For Availability
View on Model

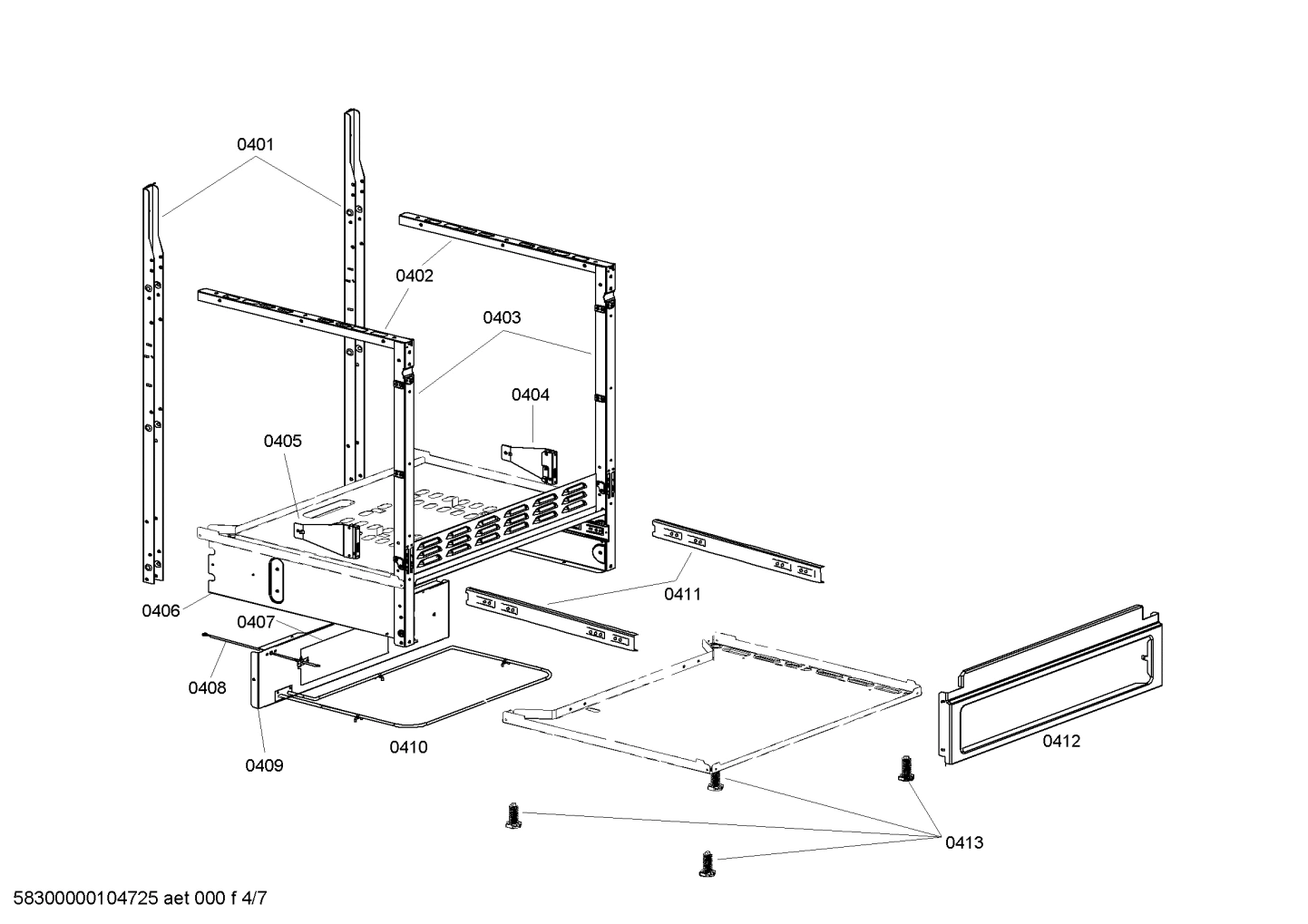

0404
Hinge-plate
Hinge-plate BOS 00491538 No Longer Available
View on Model
0405
Hinge-plate
Hinge-plate BOS 00491539 No Longer Available
View on Model
0410
Heating element
Heating element BOS 00491787 Contact Us For Availability
View on Model

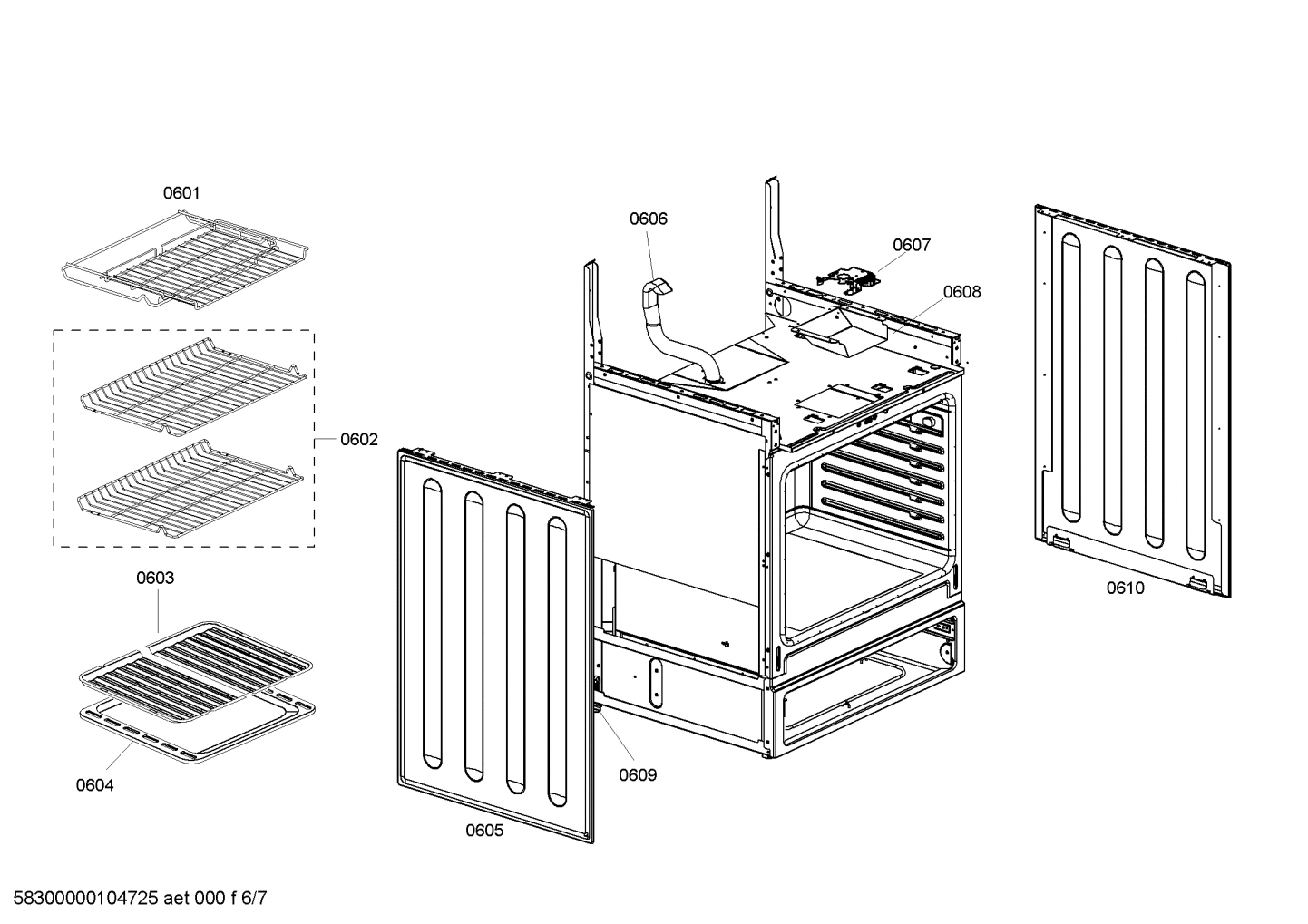

0601
Grille
Grille BOS 00438086 Contact Us For Availability
View on Model
0603
Broiler Pan
Broiler Pan BOS 00449756 Contact Us For Availability
View on Model

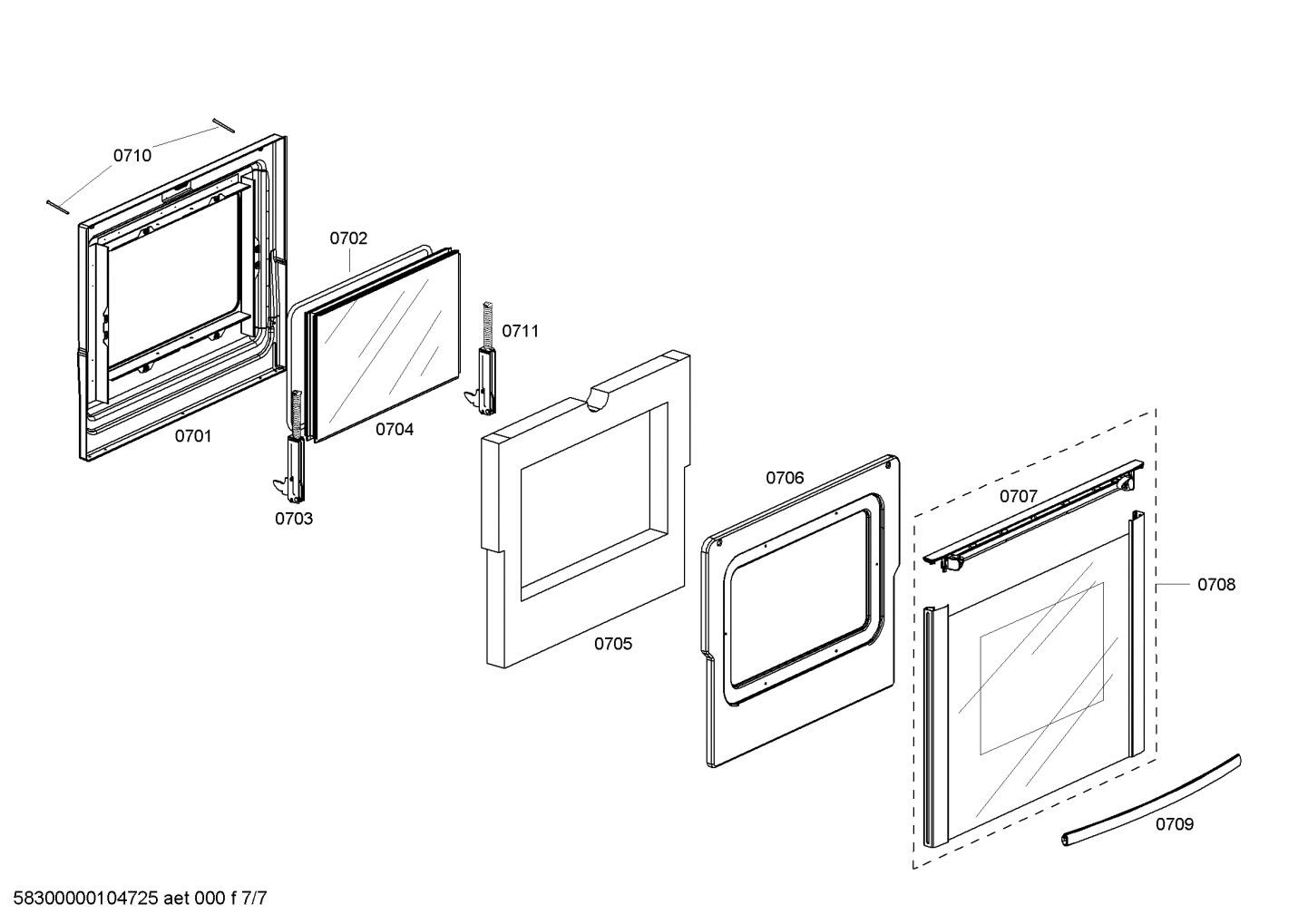

0701
Door-inner
Door-inner BOS 00683705 Contact Us For Availability
View on Model
0702
Sealing
Sealing BOS 00491899 Contact Us For Availability
View on Model
0705
Insulating part
Insulating part BOS 00143678 Contact Us For Availability
View on Model
0707
Trimplate
Trimplate BOS 00449874 Contact Us For Availability
View on Model
0710
Screw
Screw BOS 00607316 No Longer Available
View on Model
