Model Bosch HES442U/02 Range Oven – Common Parts & Diagrams

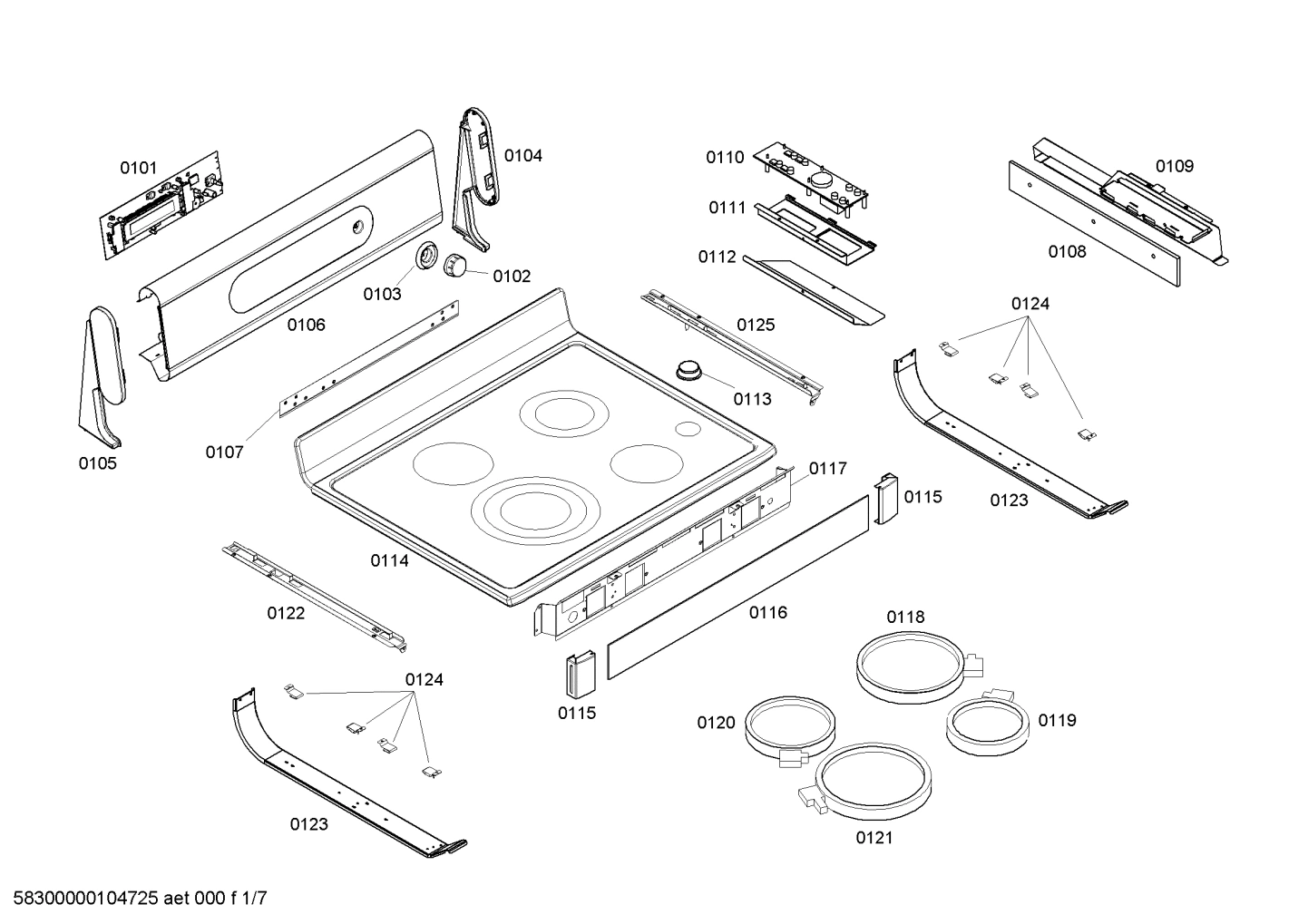

Diagram 1

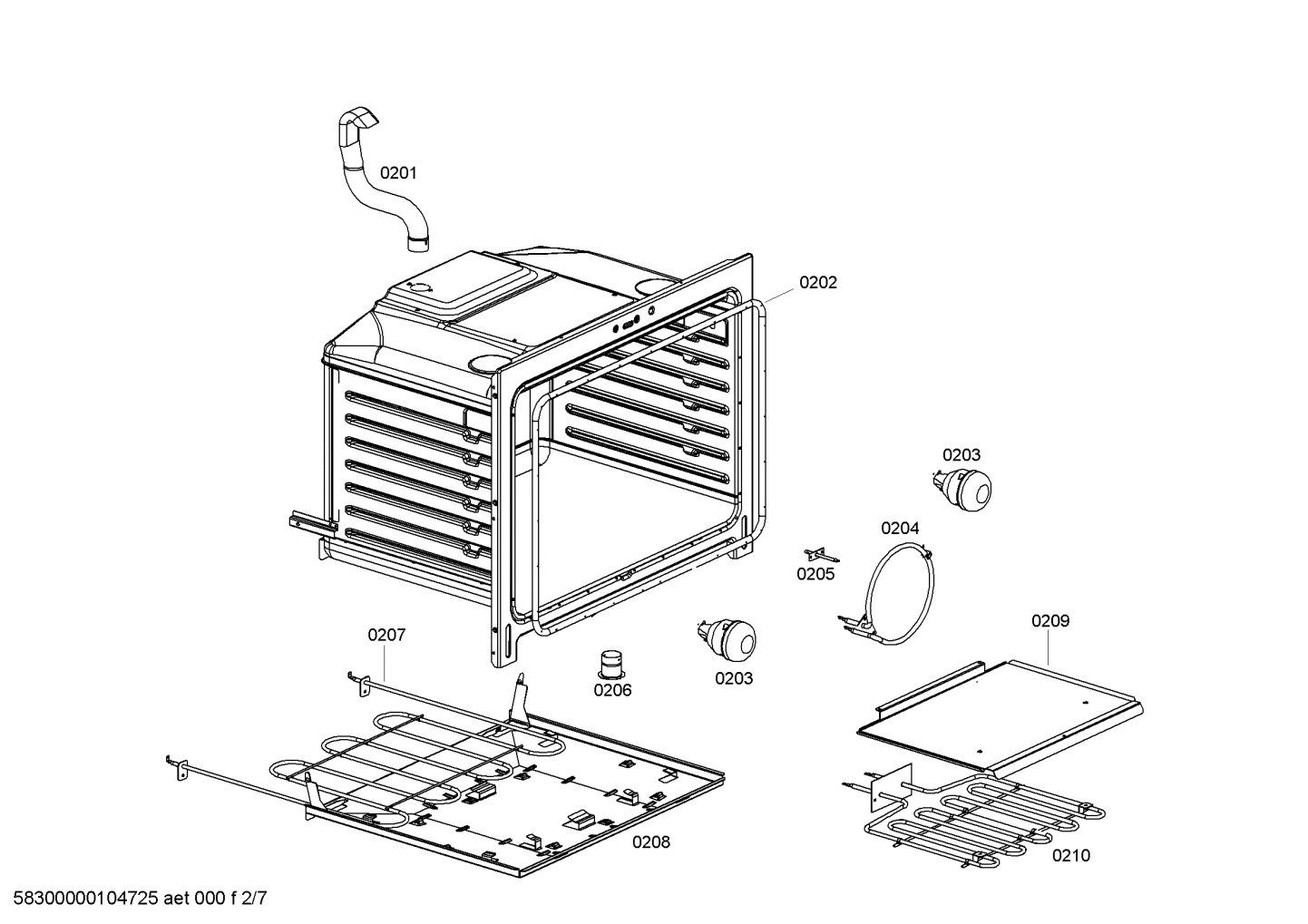

Diagram 2

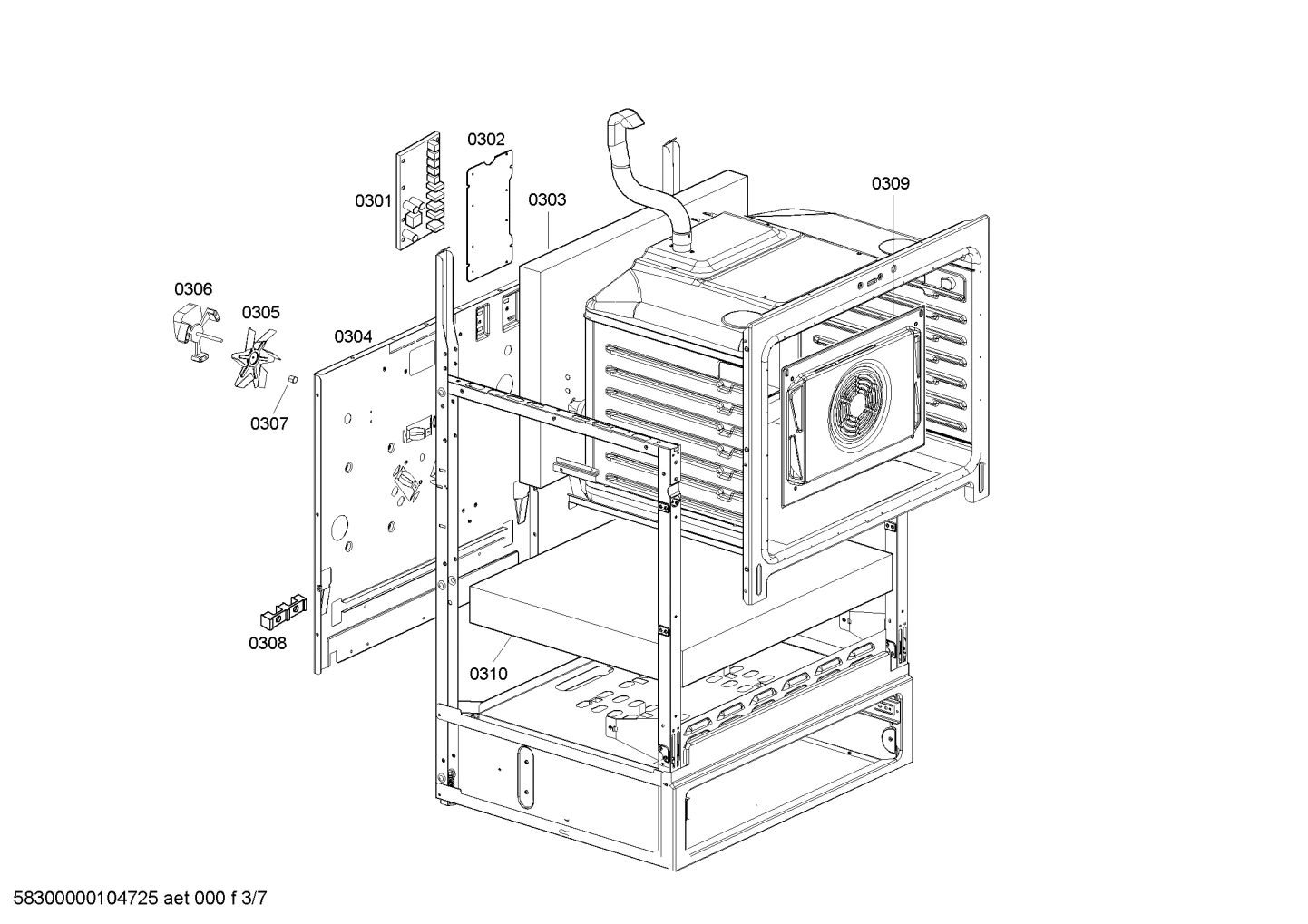

Diagram 3

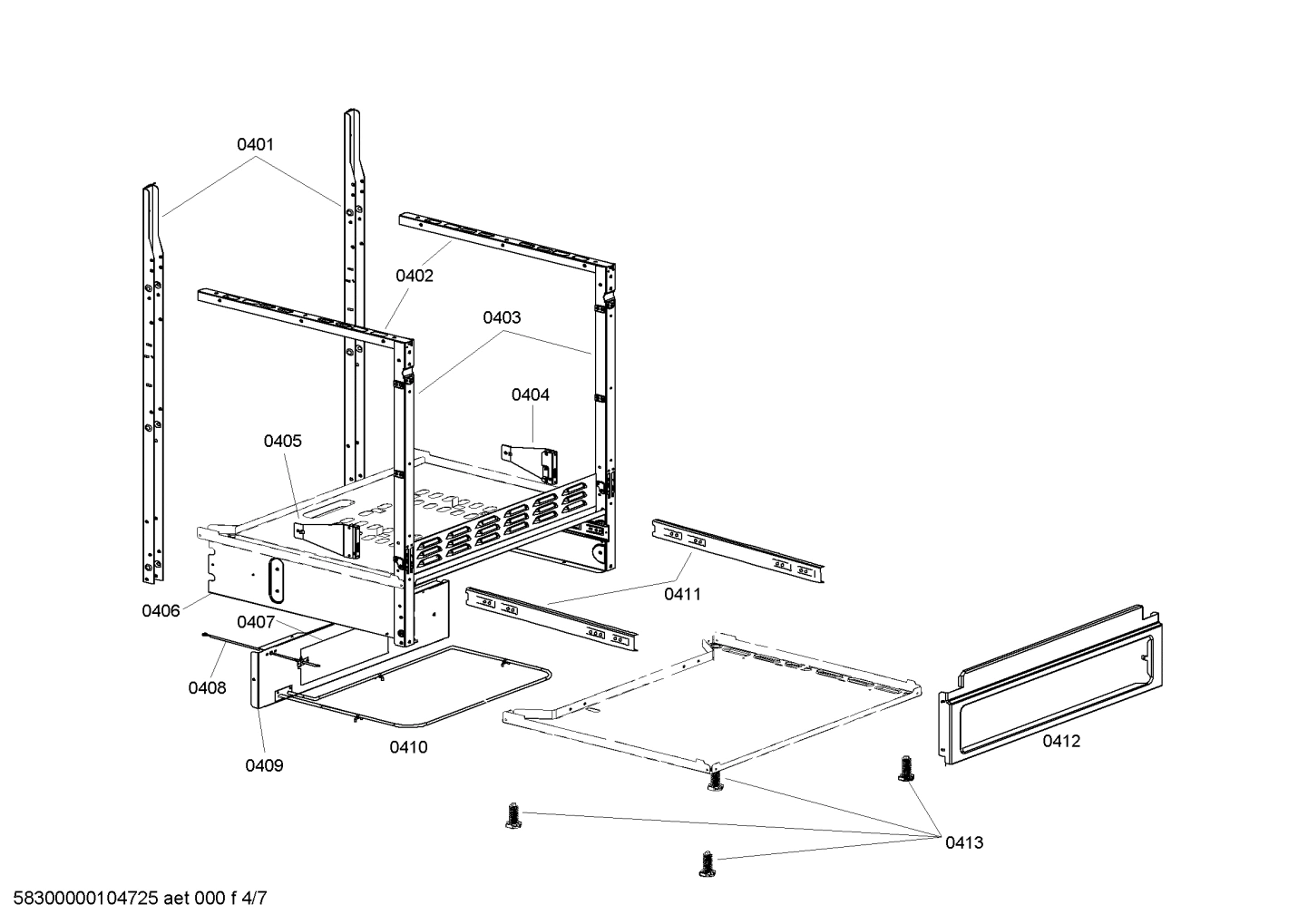

Diagram 4

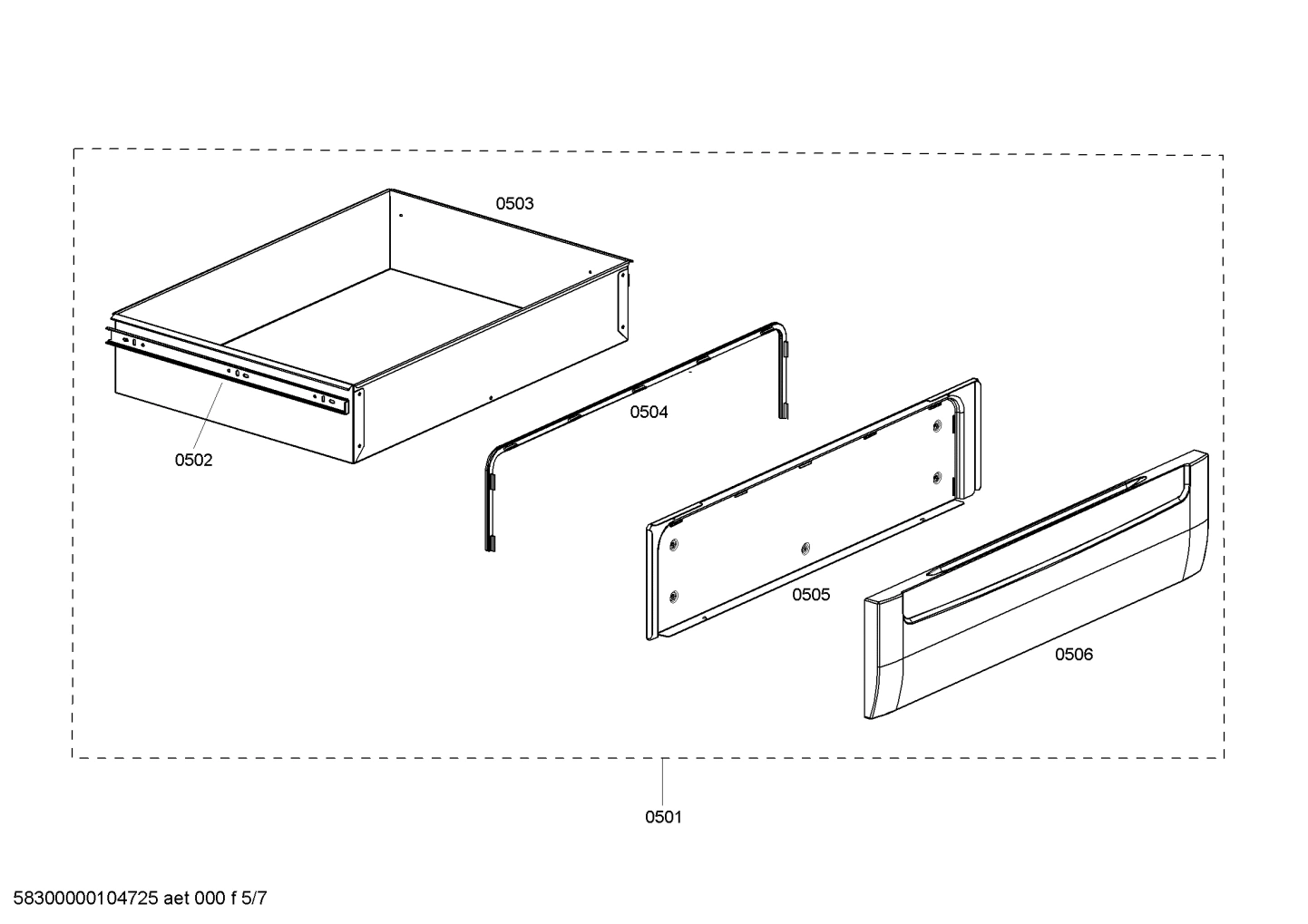

Diagram 5

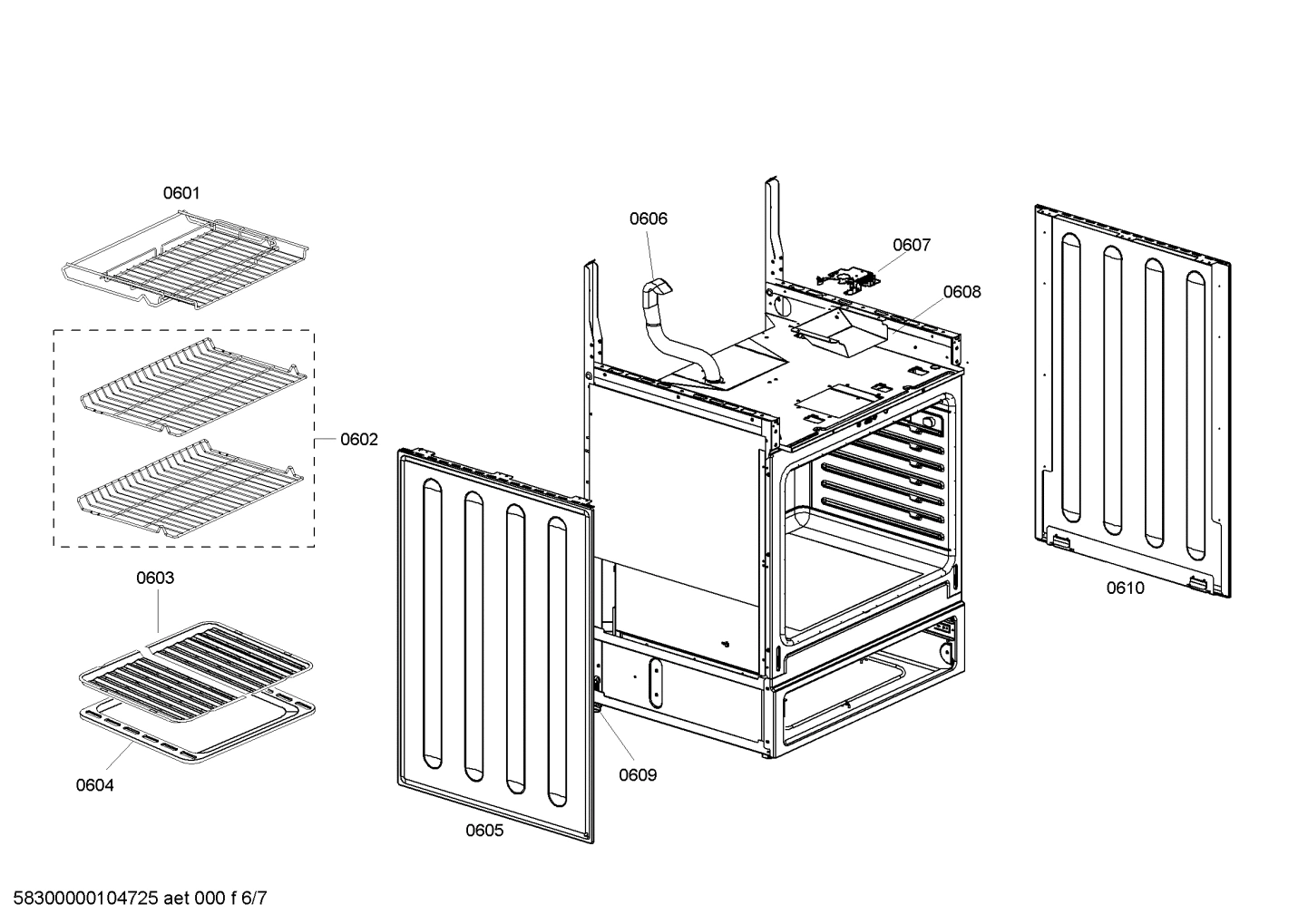

Diagram 6

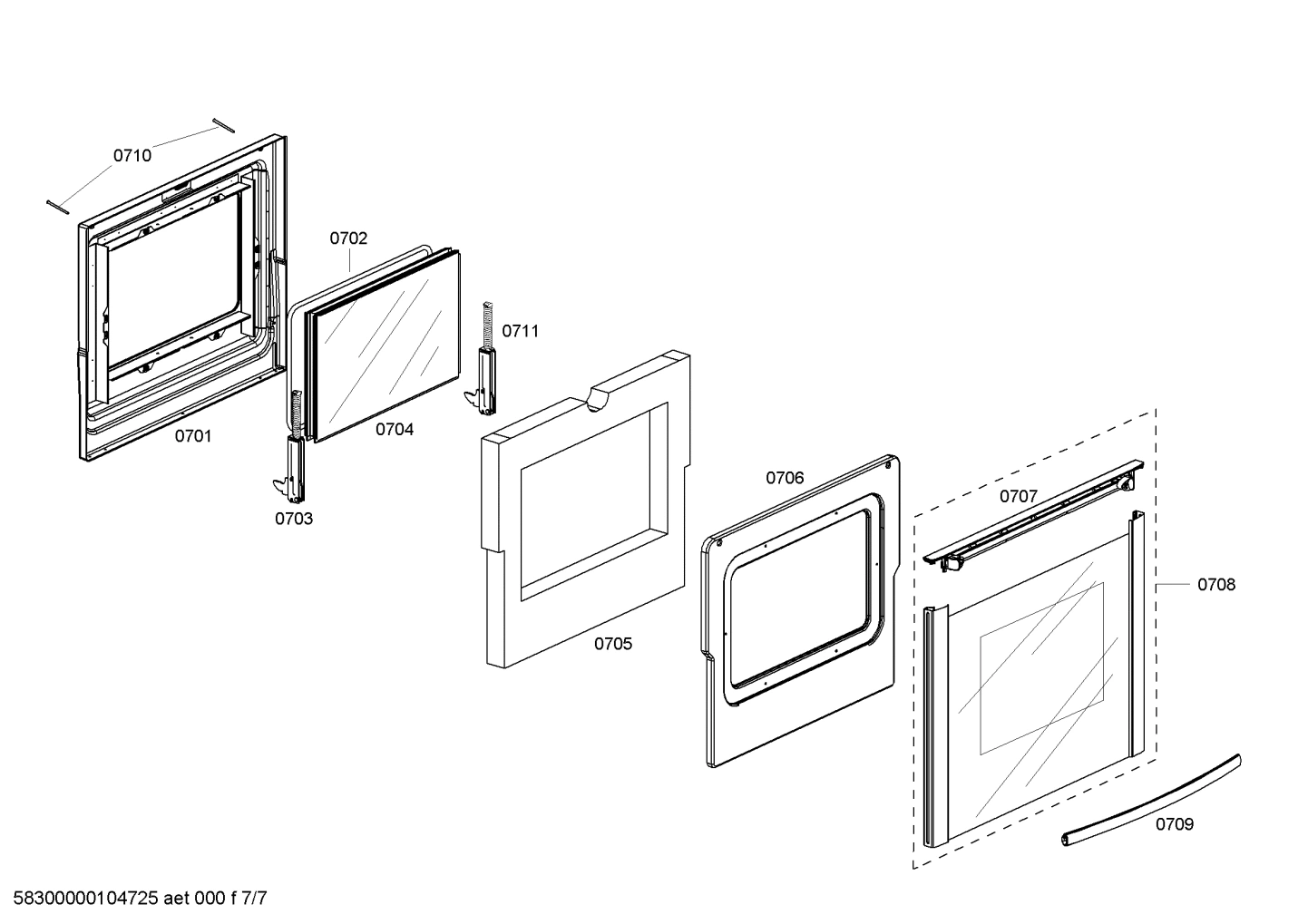

Diagram 7
Common parts from model Bosch HES442U/02 Range Oven
0101
PC board BOS 00497064 Contact Us For Availability
0102
Knob-programme BOS 00422094 Contact Us For Availability
0104
Frame-decor BOS 00422093 Contact Us For Availability
0110
PC board BOS 00640373 Contact Us For Availability
0113
Knob-cooking area BOS 00416296 Contact Us For Availability
0115
Frame-decor BOS 00436375 Contact Us For Availability
0118
Heating element BOS 00445360 Contact Us For Availability
0119
Hilight hotplate BOS 00416306 Contact Us For Availability
0120
Hilight hotplate BOS 00491270 Contact Us For Availability
0121
Hilight hotplate BOS 00416303 Contact Us For Availability
0203
Lamp BOS 00415045 No Longer Available
0207
Burner BOS 00491571 Contact Us For Availability
0306
Motor BOS 00491576 Contact Us For Availability
0404
Hinge-plate BOS 00491538 No Longer Available
0405
Hinge-plate BOS 00491539 No Longer Available
0410
Heating element BOS 00491787 Contact Us For Availability
0411
Slide BOS 00440843 Contact Us For Availability
0504
Sealing BOS 00436639 Contact Us For Availability
0601
Grille BOS 00438086 Contact Us For Availability
0602
Grill grid BOS 00438061 Contact Us For Availability
0603
Grill tray BOS 00449756 Contact Us For Availability
0604
Universal pan BOS 00449757 Contact Us For Availability
0607
Latch BOS 00493095 Contact Us For Availability
0701
Door-inner BOS 00683705 Contact Us For Availability
0702
Sealing BOS 00491899 Contact Us For Availability
0705
Insulating part BOS 00143678 Contact Us For Availability
0709
Handle-door BOS 00436378 Contact Us For Availability
0710
Screw BOS 00607316 No Longer Available
× ![]()
