Model Bosch HES436U/01 Range Oven – Common Parts & Diagrams

Common parts from model Bosch HES436U/01 Range Oven

Diagram 1

Print

• This Diagram
• All Diagrams

0104

Knob-programme BOS 00422367 Contact Us For Availability

View on Model

0105

00422365 Bosch Range Cap Backorder BOS 00422365 View Details $28.83

View on Model

0106

00422366 Bosch Range Cap Backorder BOS 00422366 View Details $45.31

View on Model

0110

00422133 Bosch Range Energy Regulator In Stock BOS 00422133 View Details $67.60

View on Model

0111

00629049 Bosch Range Energy Regulator In Stock BOS 00629049 View Details $44.73

View on Model

0116

Spring BOS 00422105 Contact Us For Availability

View on Model

0118

00422109 Bosch Range Lamp Backorder BOS 00422109 View Details $70.03

View on Model

0122

00491295 Bosch Oven Hotplate Backorder BOS 00491295 View Details $126.35

View on Model

0125

00424321 Bosch Range Spring Backorder BOS 00424321 View Details $25.74

View on Model

0202

00491569 Bosch Oven Door Seal In Stock BOS 00491569 View Details $83.51

View on Model

0203

00422089 Bosch Range Sensor In Stock BOS 00422089 View Details $58.66

View on Model

0204

00415045 Bosch Oven Lamp In Stock BOS 00415045 View Details $79.53

View on Model

0205

00491572 Bosch Oven Catalyzer In Stock BOS 00491572 View Details $54.58

View on Model

0209

00436789 Bosch Range Heating Element Backorder BOS 00436789 View Details $242.04

View on Model

0250

00623710 Bosch Oven Lamp In Stock BOS 00623710 View Details $6.86

View on Model

0251

00414513 Bosch Oven Lens In Stock BOS 00414513 View Details $20.59

View on Model

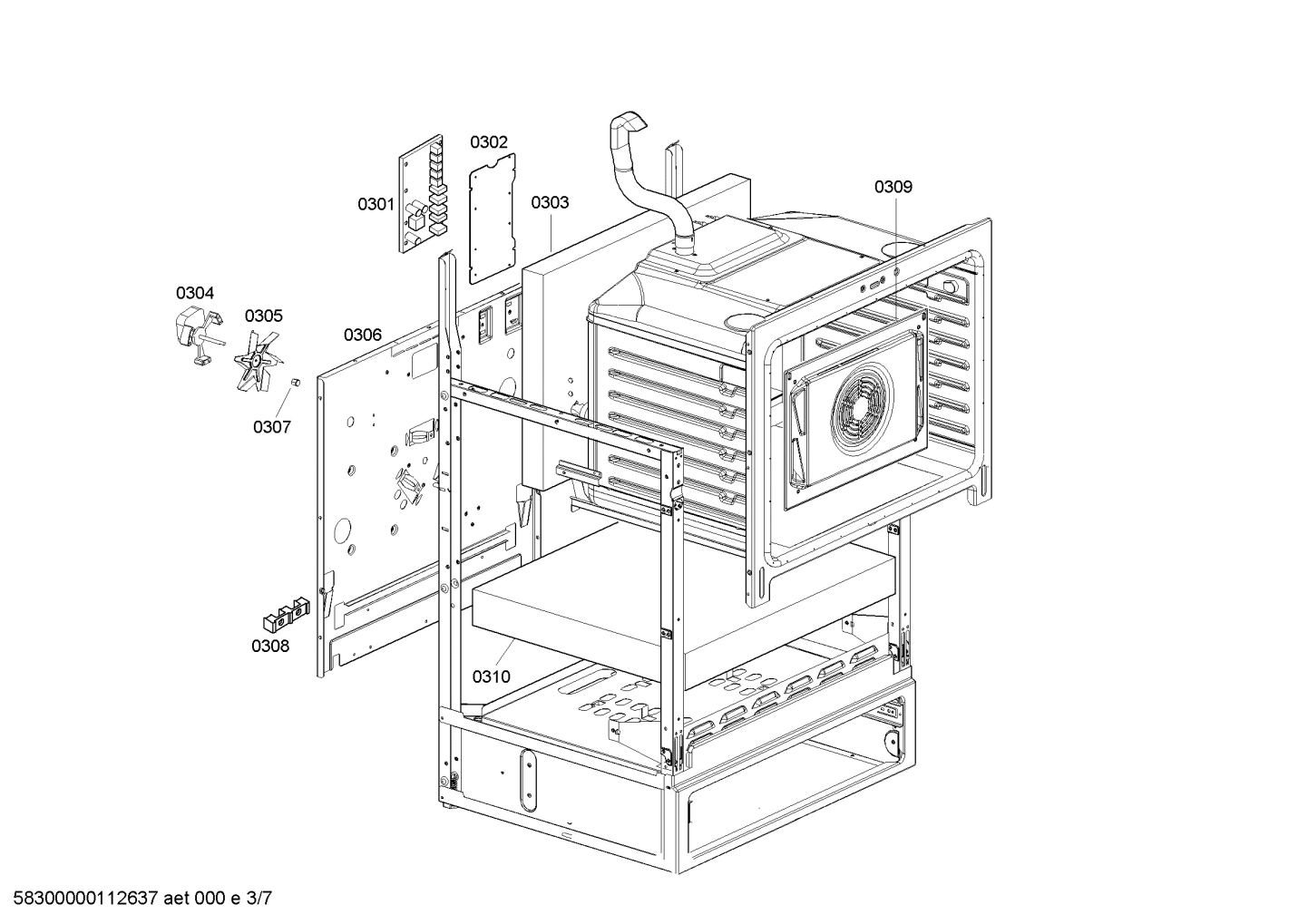

0304

00491576 Bosch Range Motor Backorder BOS 00491576 View Details $111.23

View on Model

0305

00491577 Bosch Oven Fan Blade Backorder BOS 00491577 View Details $30.89

View on Model

0307

00471532 Bosch Oven Nut Backorder BOS 00471532 View Details $10.29

View on Model

0308

00436364 Bosch Oven Terminal Box Backorder BOS 00436364 View Details $30.89

View on Model

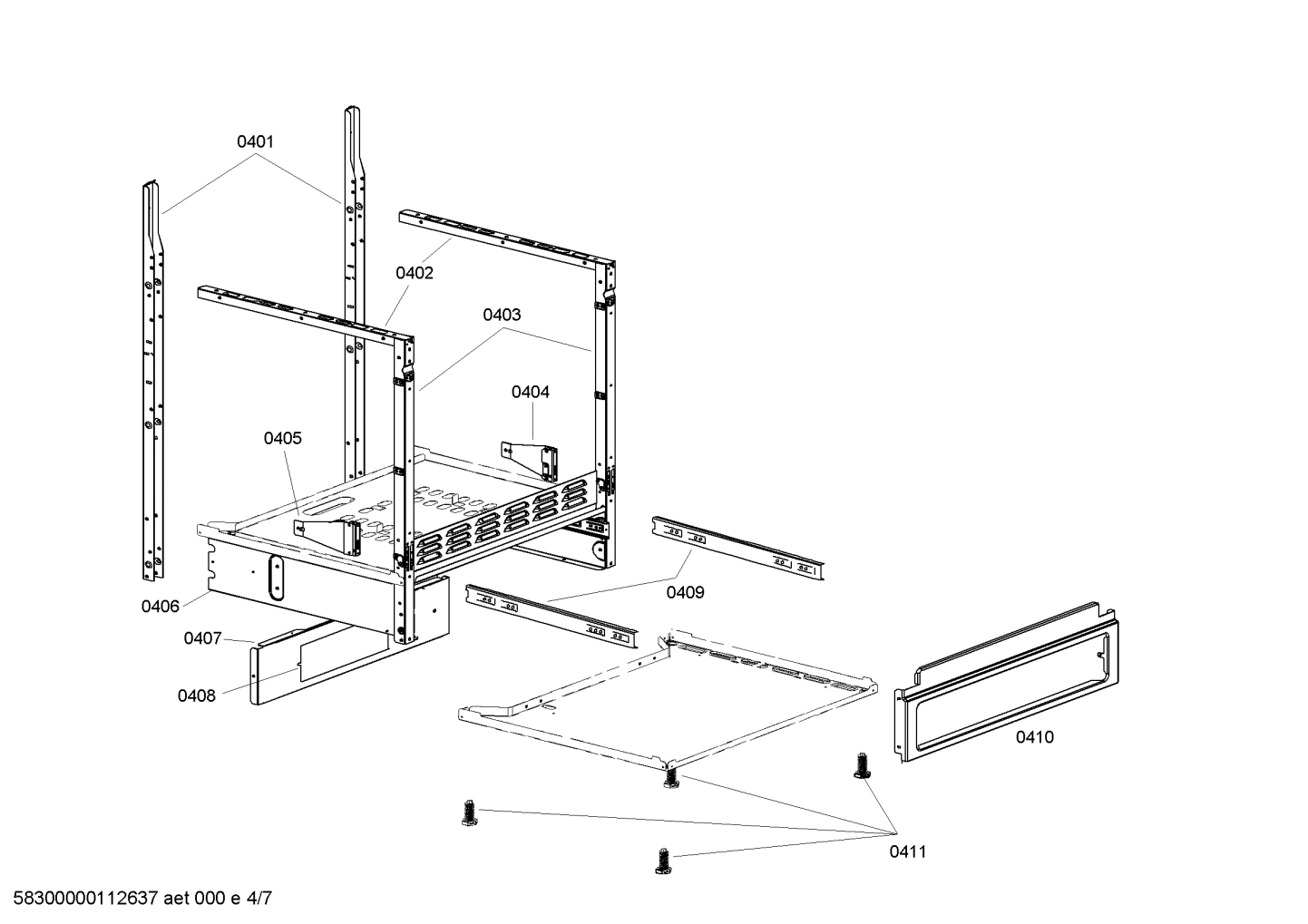

0404

Hinge-plate BOS 00491538 No Longer Available

View on Model

0405

Hinge-plate BOS 00491539 No Longer Available

View on Model

0411

00429065 Bosch Range Foot In Stock BOS 00429065 View Details $26.83

View on Model

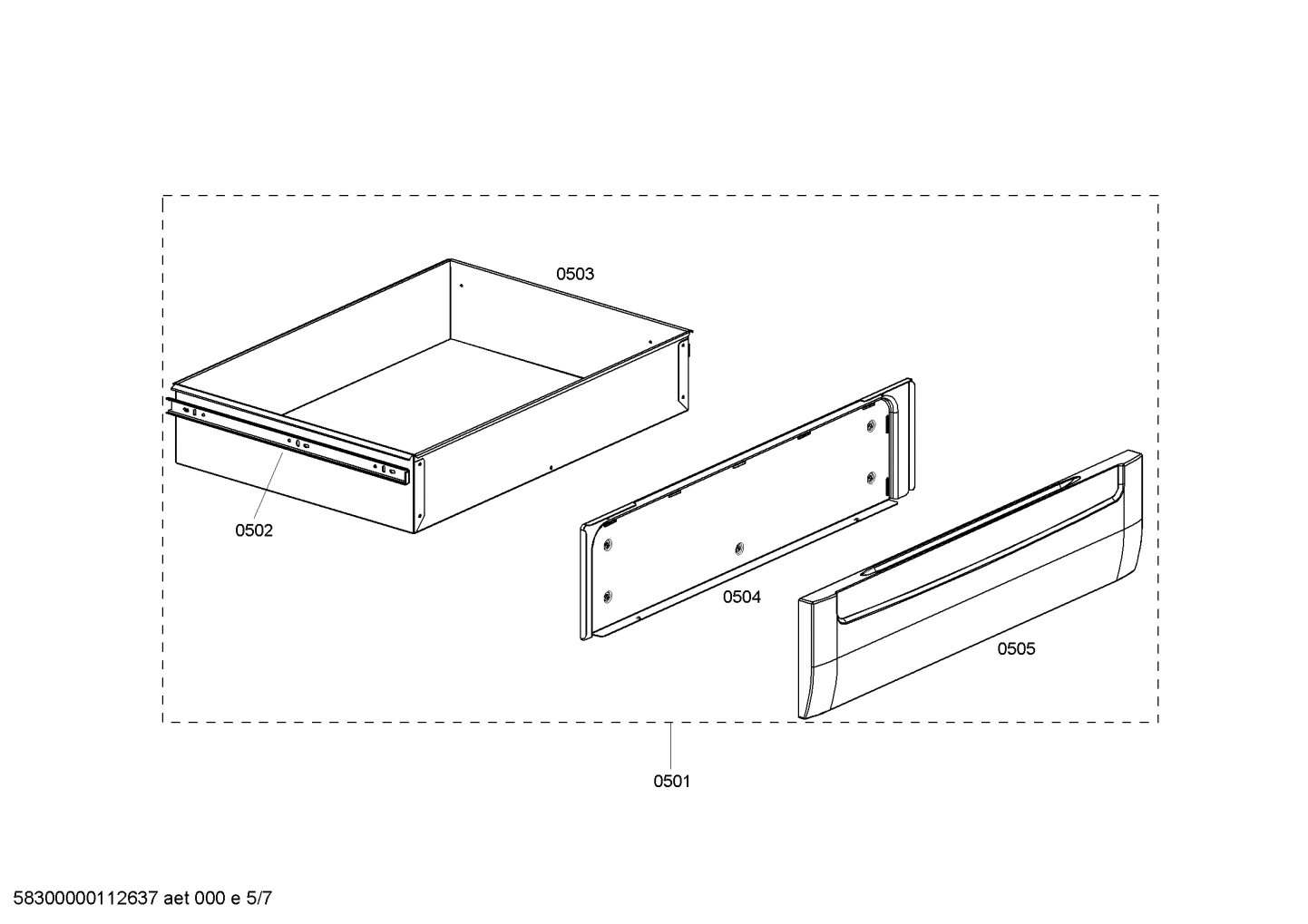

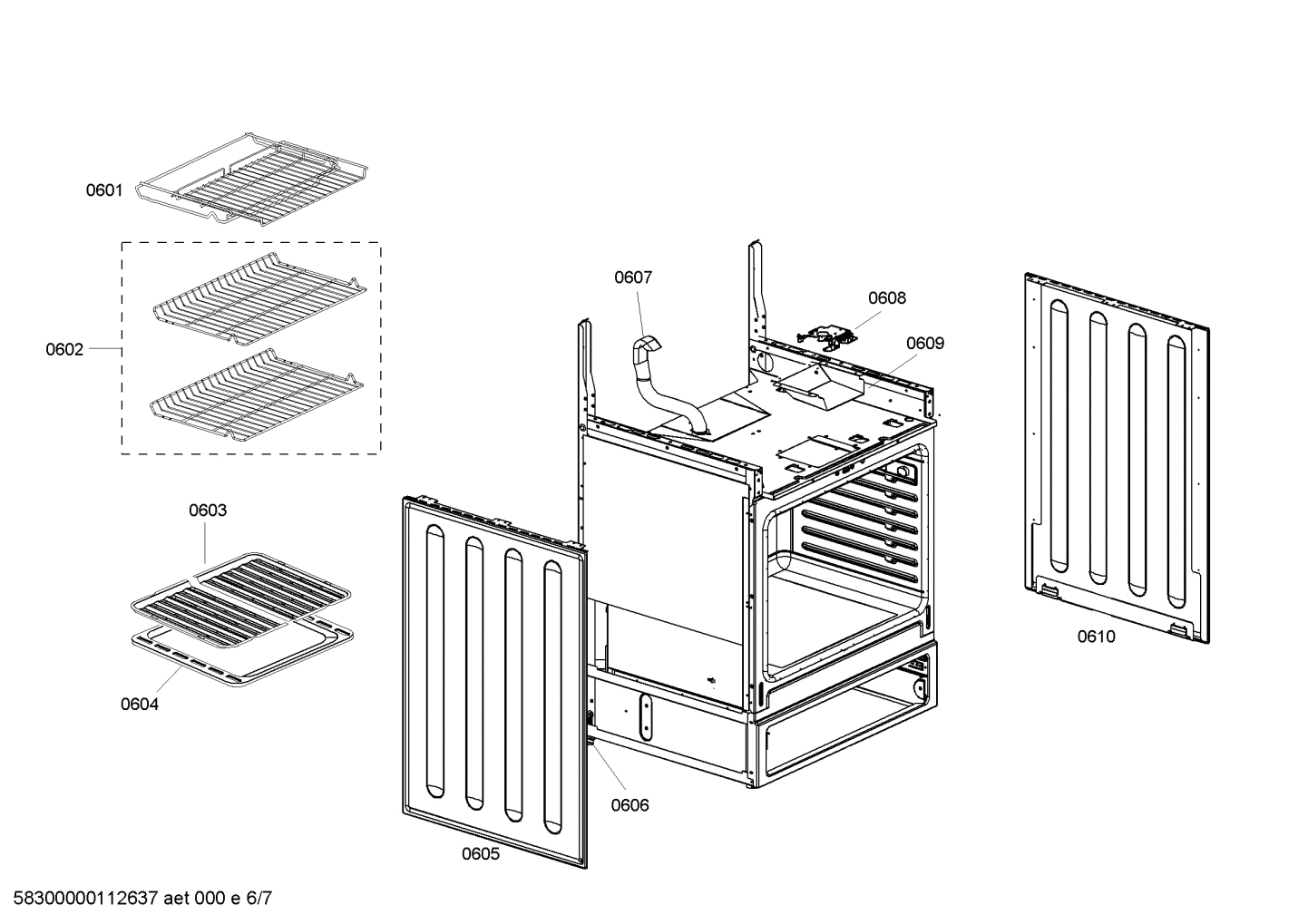

0601

Grille BOS 00438086 Contact Us For Availability

View on Model

0603

Broiler Pan BOS 00449756 Contact Us For Availability

View on Model

0606

00625466 Bosch Range Bracket Backorder BOS 00625466 View Details $42.22

View on Model

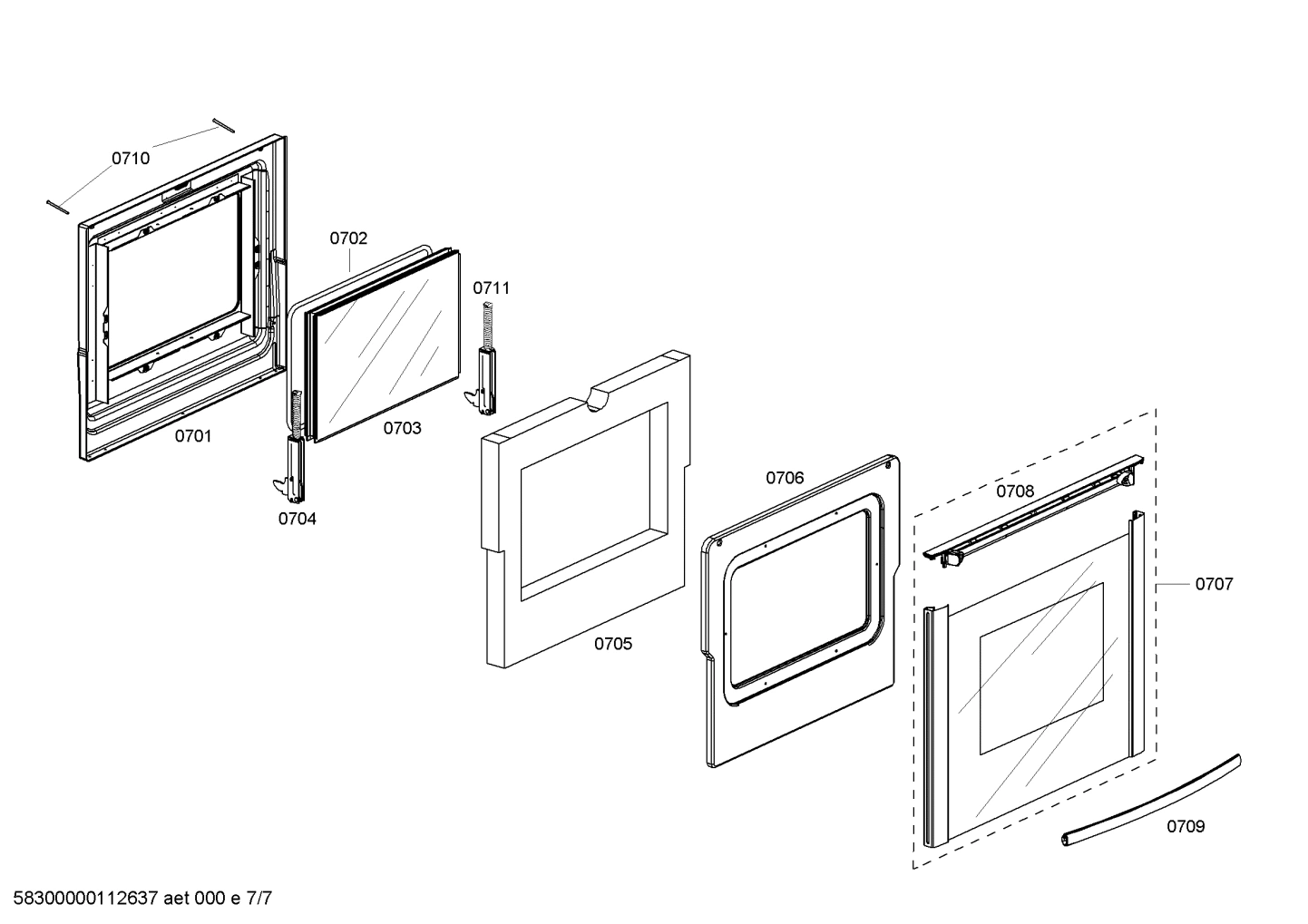

0701

Door-inner BOS 00683705 Contact Us For Availability

View on Model

0702

Sealing BOS 00491899 Contact Us For Availability

View on Model

0703

00436379 Bosch Range Front Glass Panel Backorder BOS 00436379 View Details $202.90

View on Model

0705

Insulating part BOS 00143678 Contact Us For Availability

View on Model

0706

00676010 Bosch Range Heat Shield Backorder BOS 00676010 View Details $105.05

View on Model

0708

Trimplate BOS 00449874 Contact Us For Availability

View on Model

0710

Screw BOS 00607316 No Longer Available

View on Model

0711

00683867 Bosch Range Fixing Kit In Stock BOS 00683867 View Details $341.09

View on Model

×
