Model Bosch HES432U/01 Range Oven – Common Parts & Diagrams

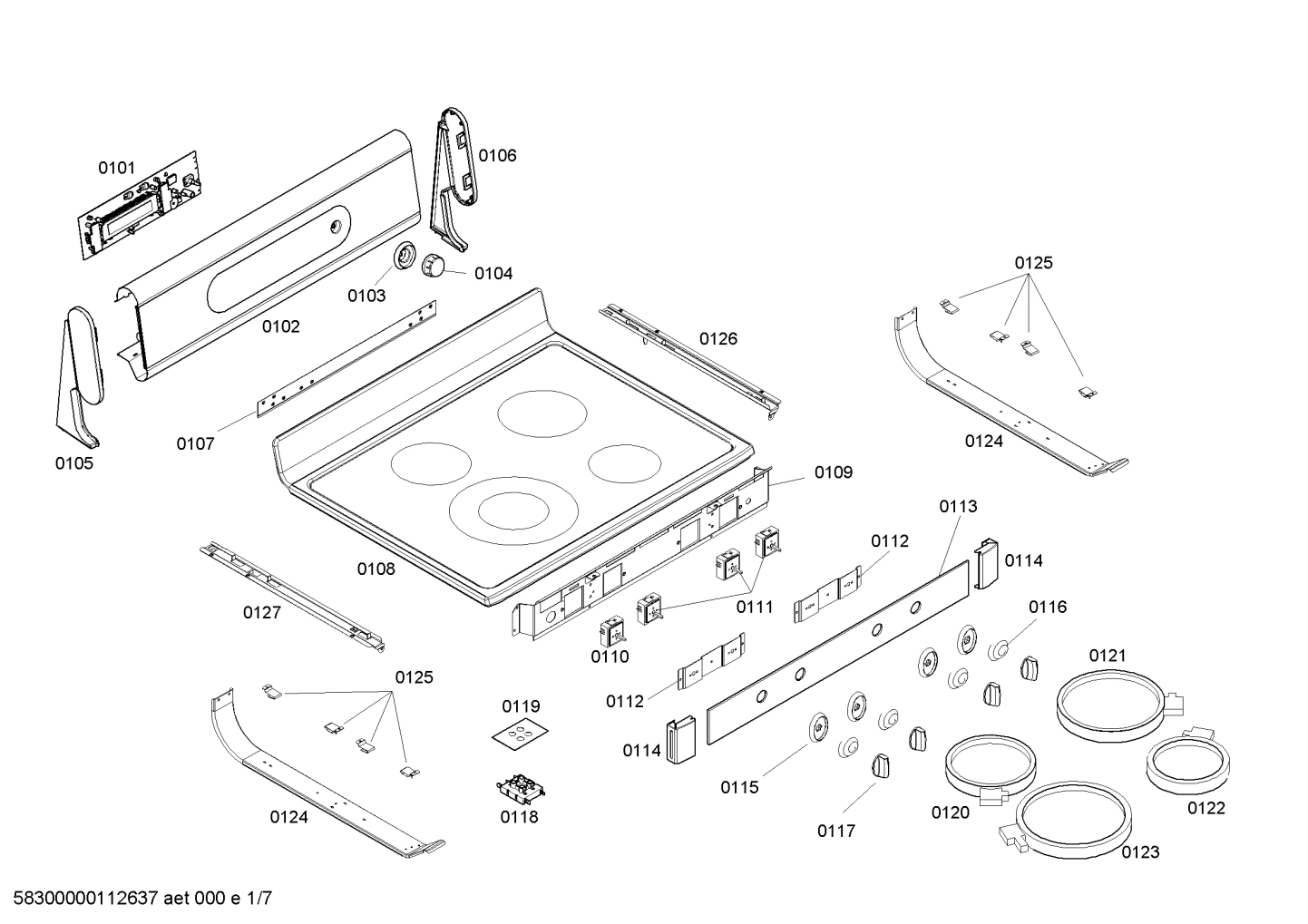

Diagram 1

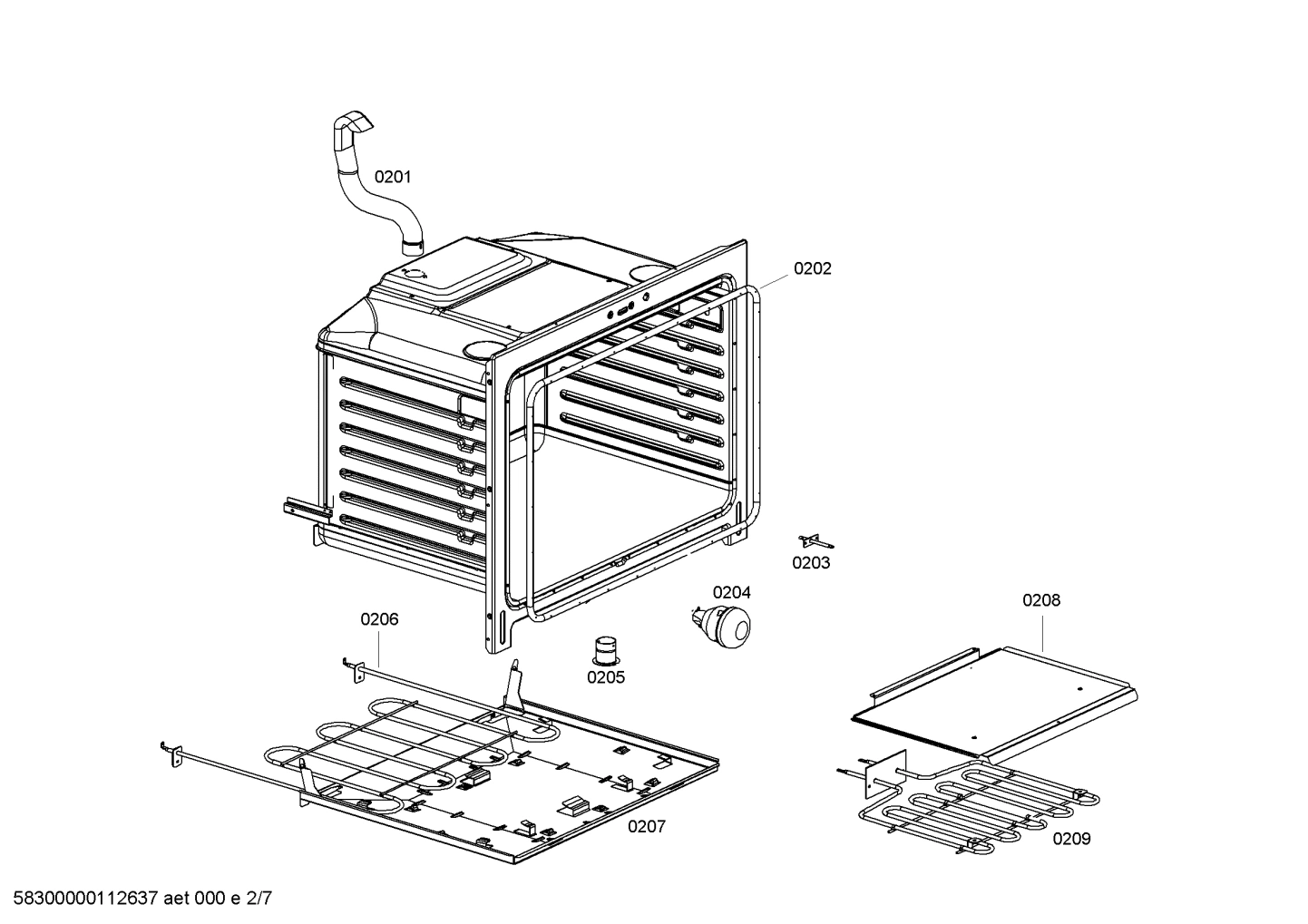

Diagram 2

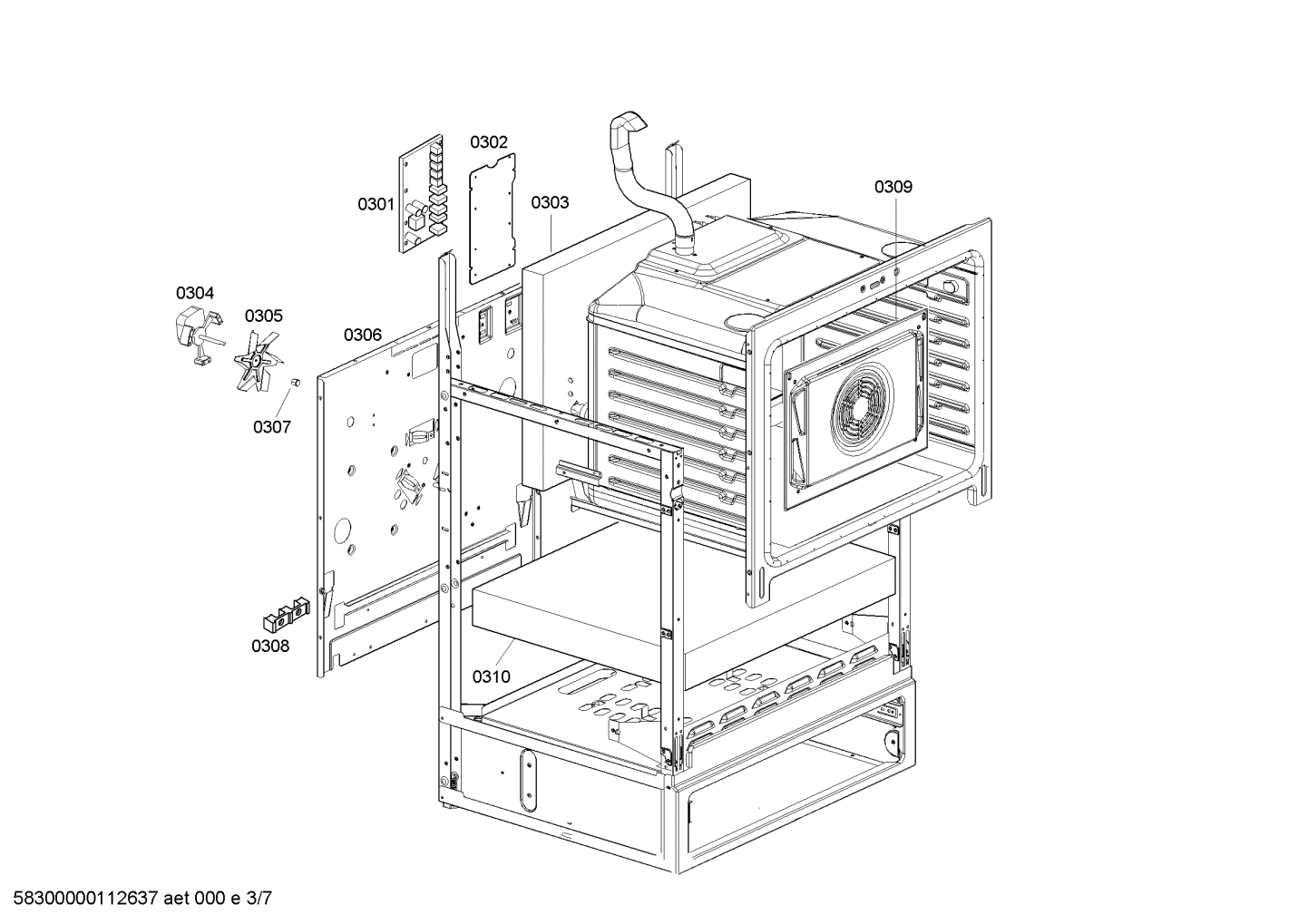

Diagram 3

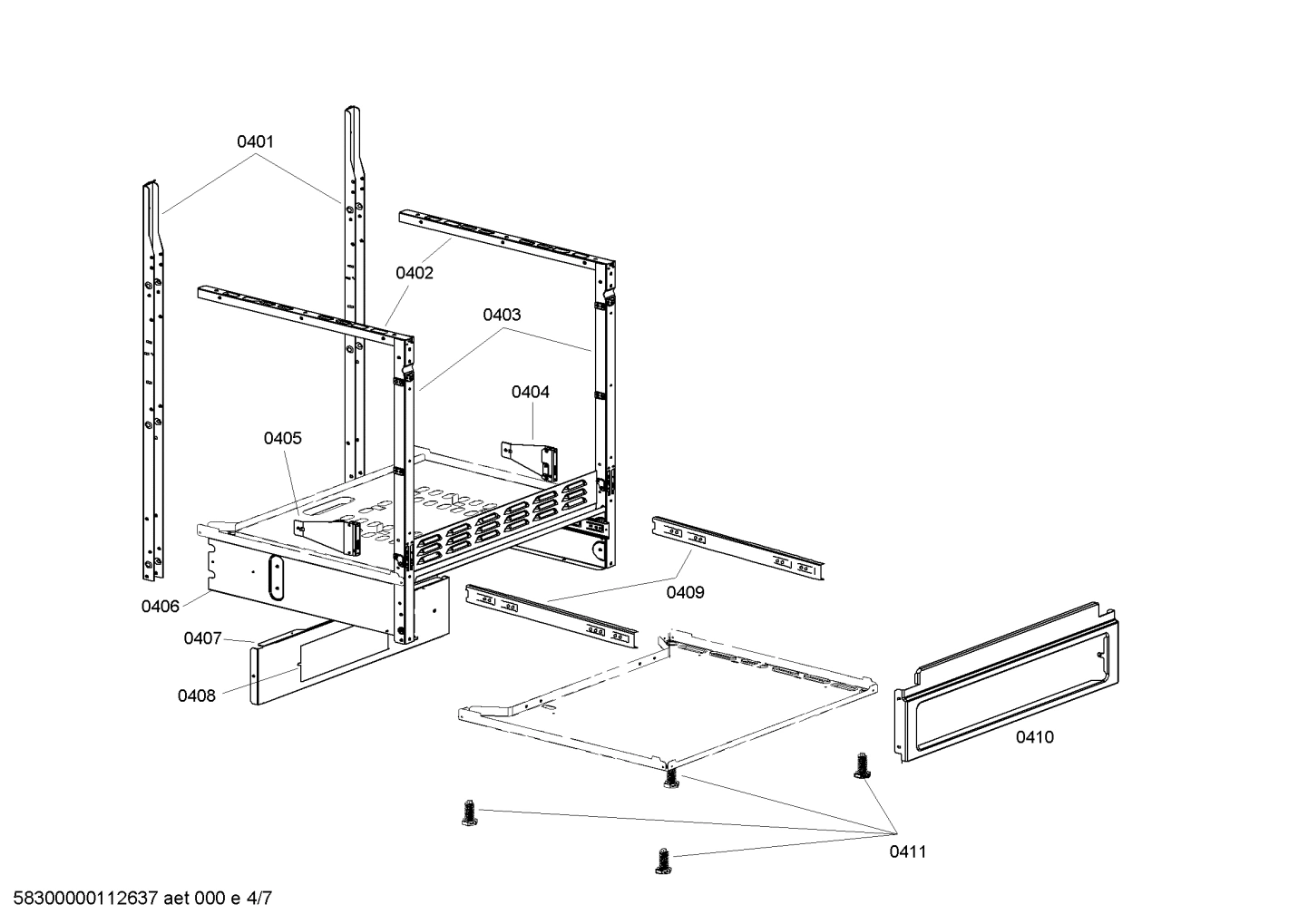

Diagram 4

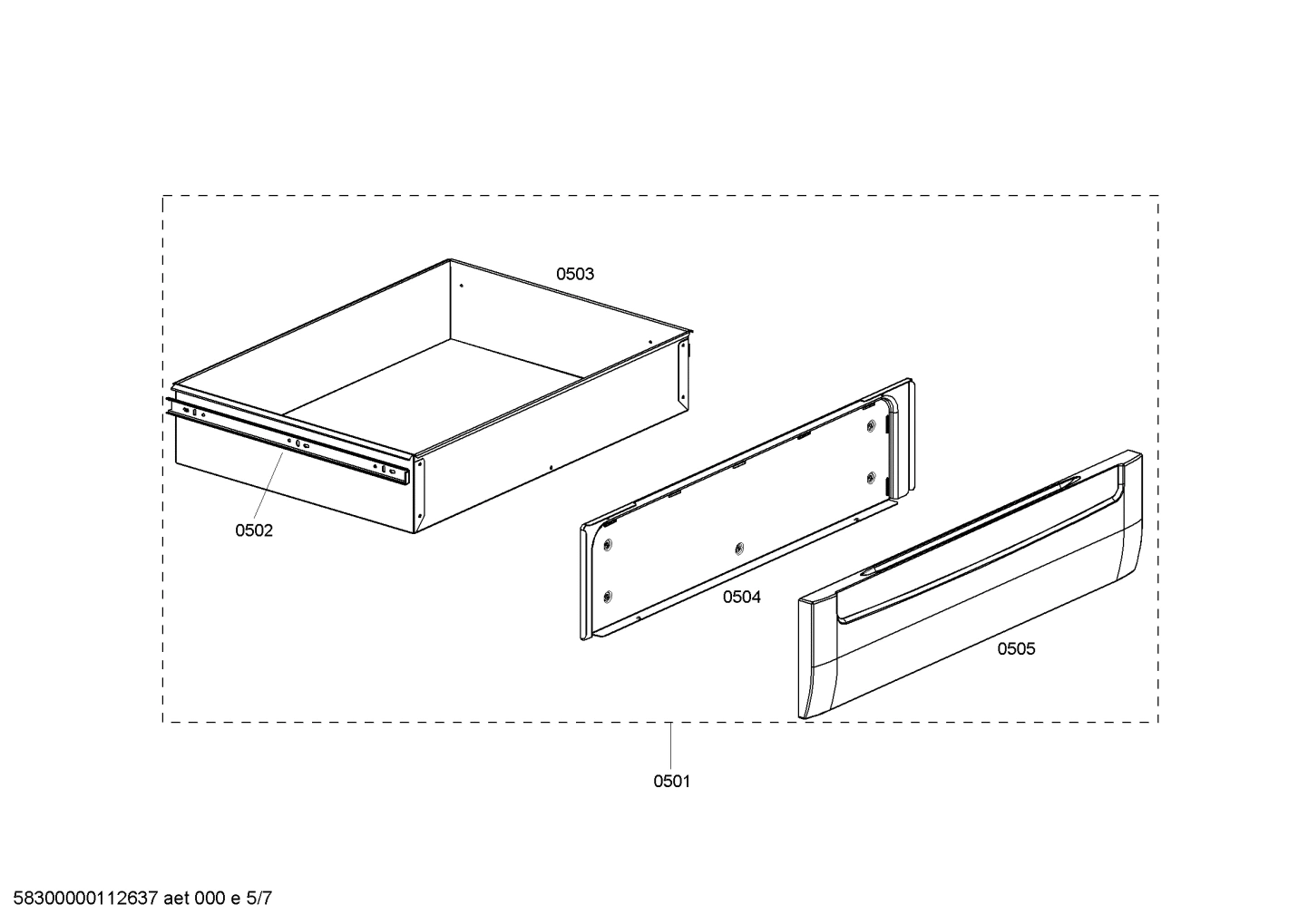

Diagram 5

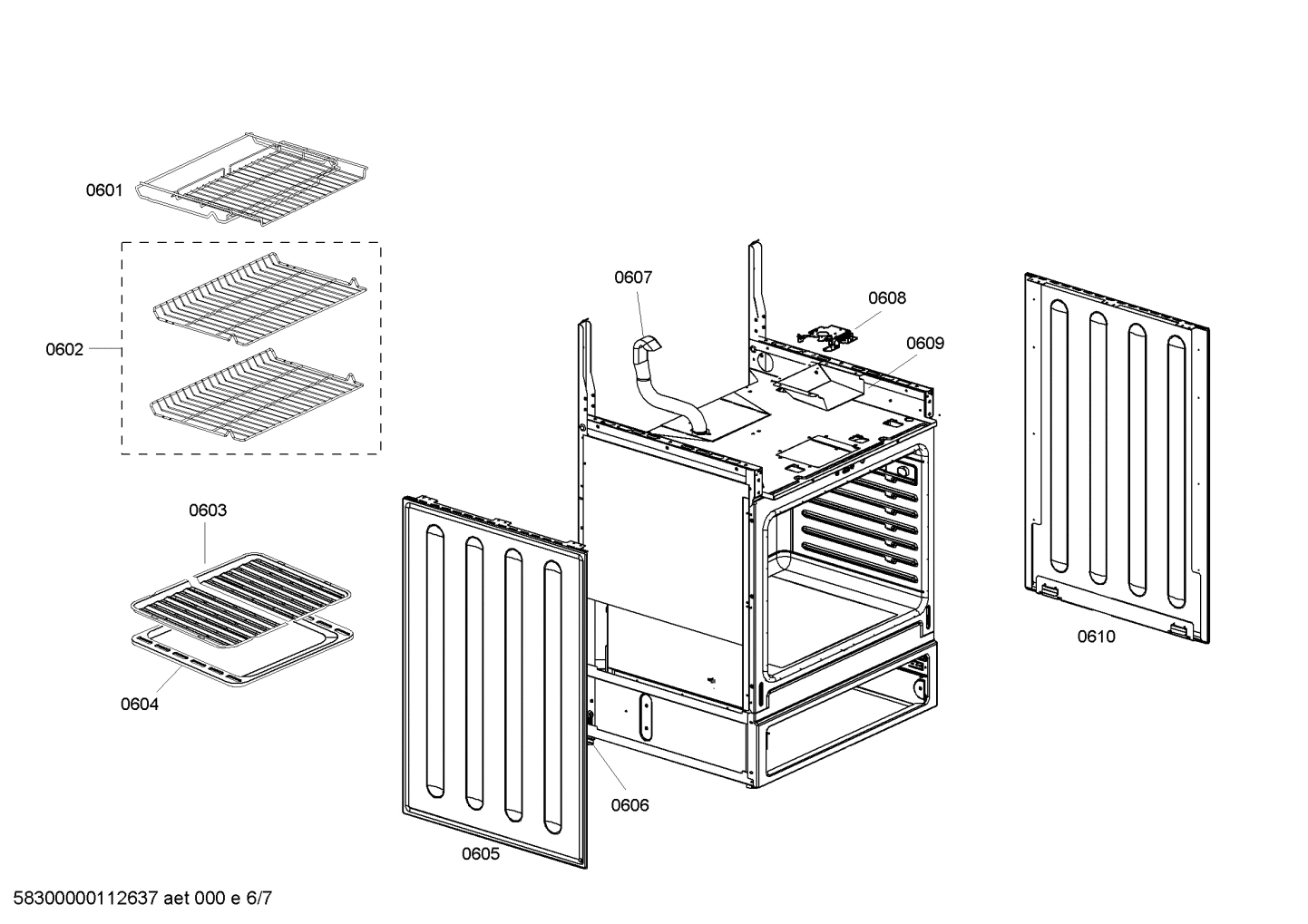

Diagram 6

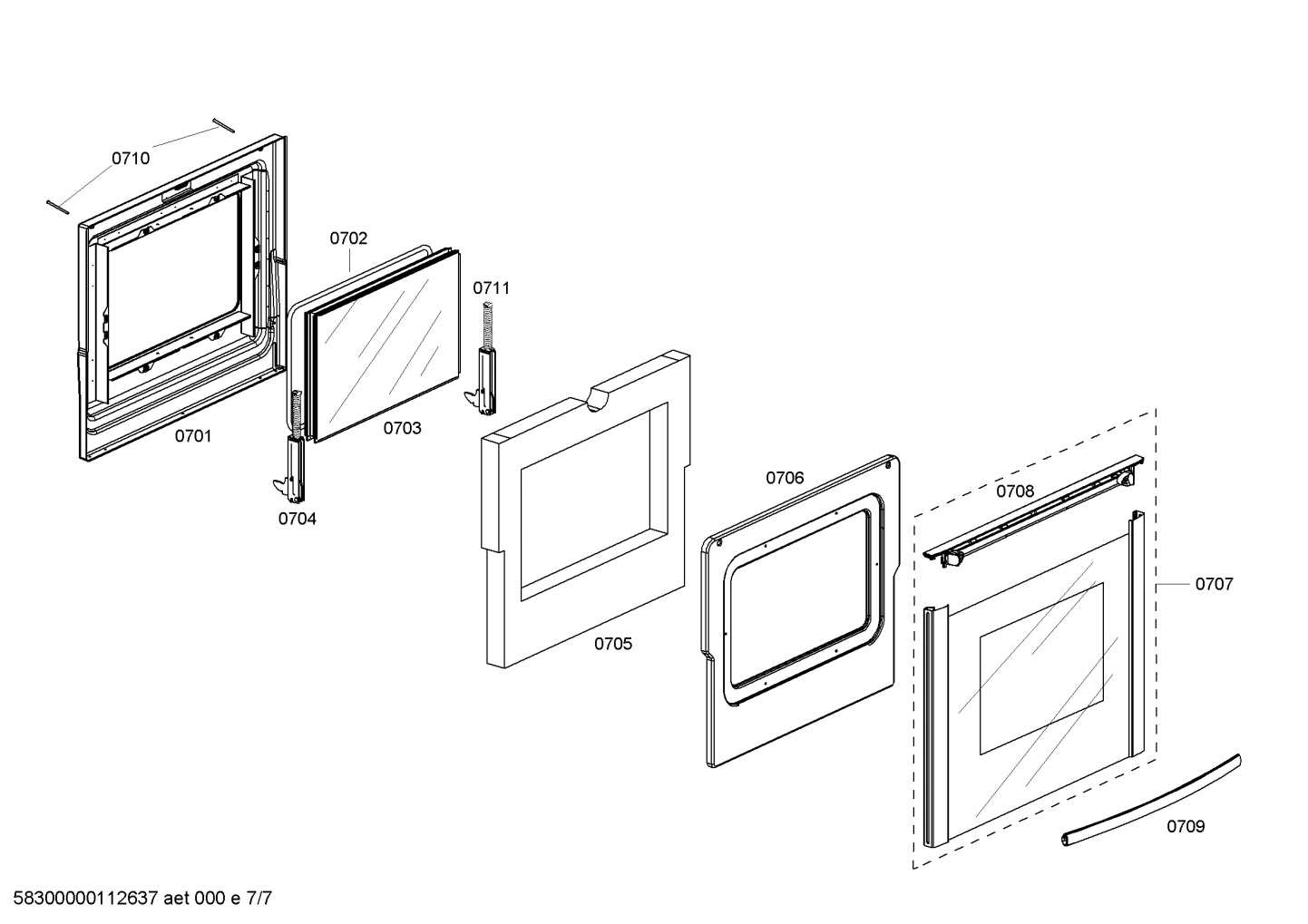

Diagram 7
Common parts from model Bosch HES432U/01 Range Oven
0104
Knob-programme BOS 00422094 Contact Us For Availability
0106
Frame-decor BOS 00422093 Contact Us For Availability
0114
Frame-decor BOS 00436375 Contact Us For Availability
0115
Ring BOS 00436377 No Longer Available
0116
Spring BOS 00422105 Contact Us For Availability
0120
Heating element BOS 00367247 Contact Us For Availability
0121
Heating element BOS 00491581 Contact Us For Availability
0123
Hilight hotplate BOS 00499573 Contact Us For Availability
0204
Lamp BOS 00415045 No Longer Available
0206
Burner BOS 00491571 Contact Us For Availability
0301
PC board BOS 00445290 Contact Us For Availability
0304
Motor BOS 00491576 Contact Us For Availability
0404
Hinge-plate BOS 00491538 No Longer Available
0405
Hinge-plate BOS 00491539 No Longer Available
0701
Door-inner BOS 00683705 Contact Us For Availability
0702
Sealing BOS 00491899 Contact Us For Availability
0705
Insulating part BOS 00143678 Contact Us For Availability
0707
Glass front panel BOS 00436381 Contact Us For Availability
0709
Handle-door BOS 00436378 Contact Us For Availability
0710
Screw BOS 00607316 No Longer Available
× ![]()
