Model Bosch HES342U/01 Range Oven – Common Parts & Diagrams

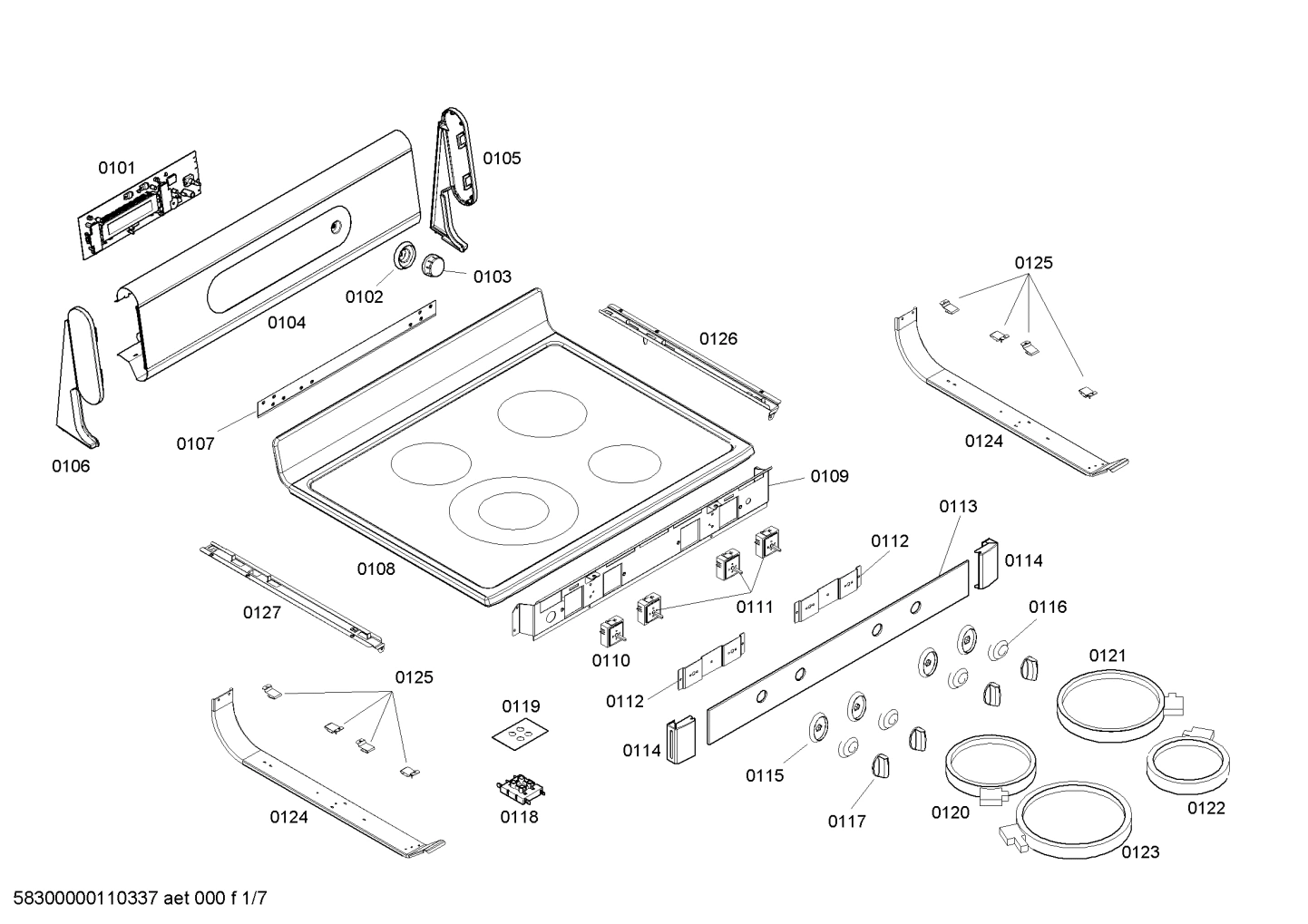

Diagram 1

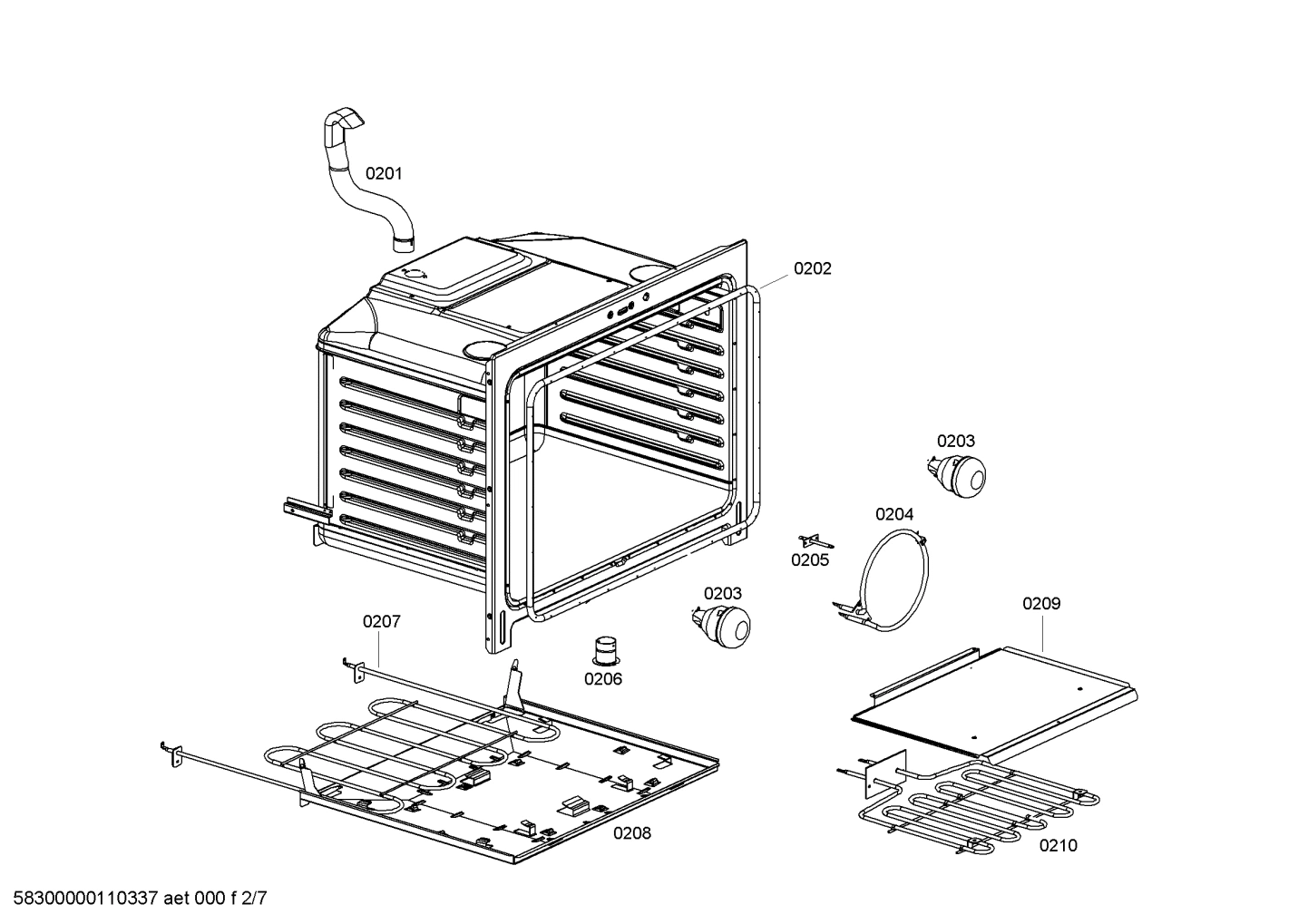

Diagram 2

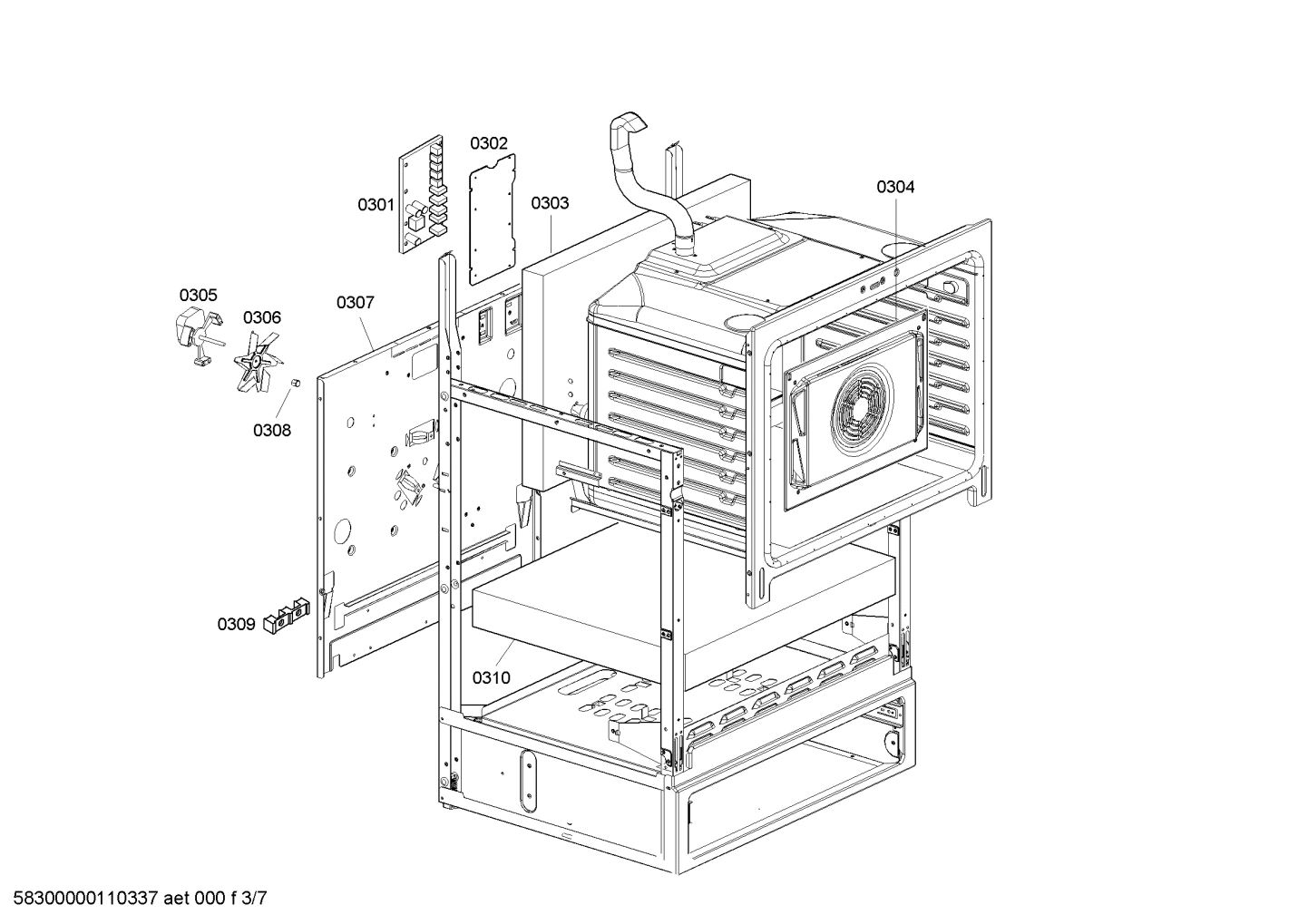

Diagram 3

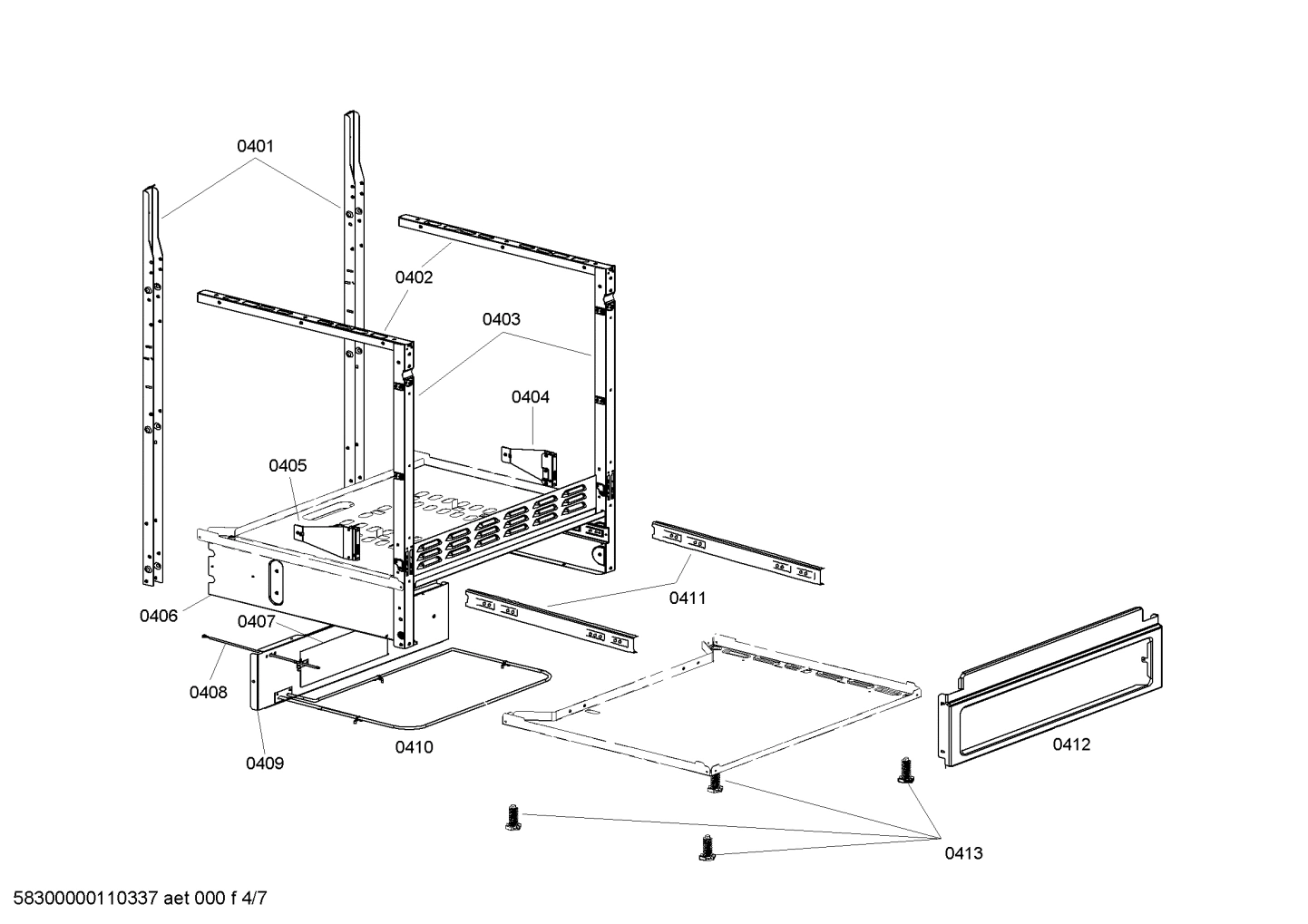

Diagram 4

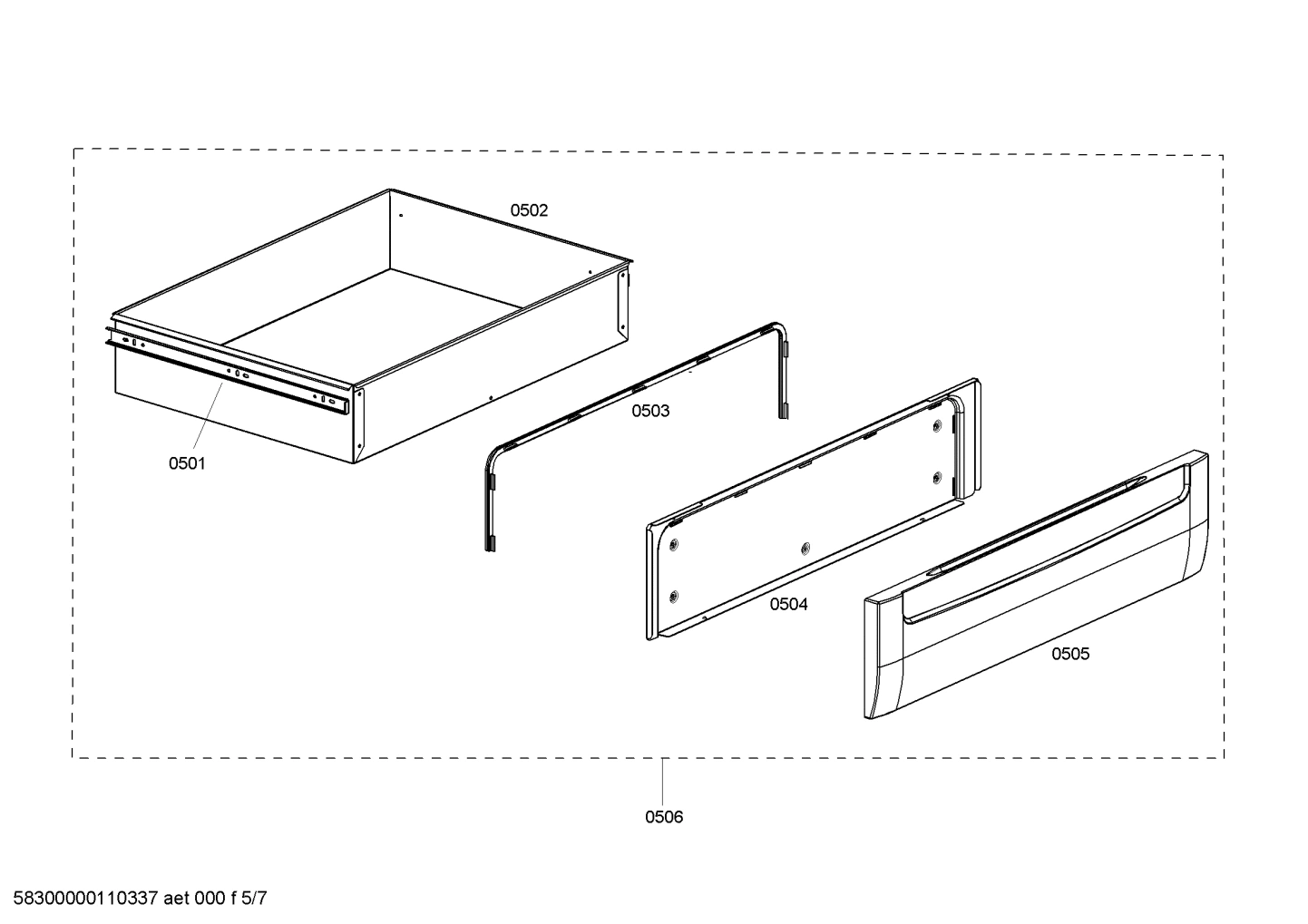

Diagram 5

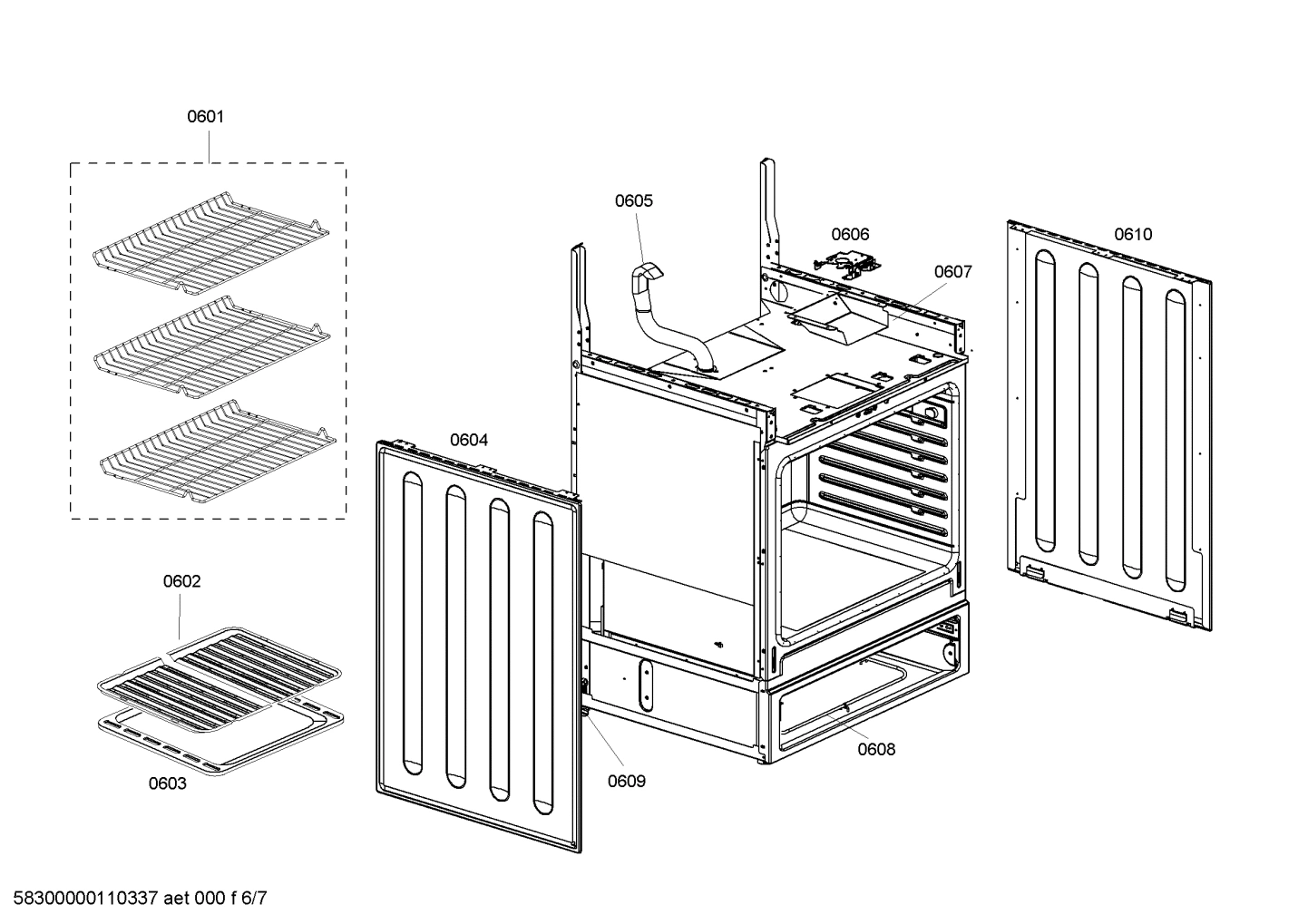

Diagram 6

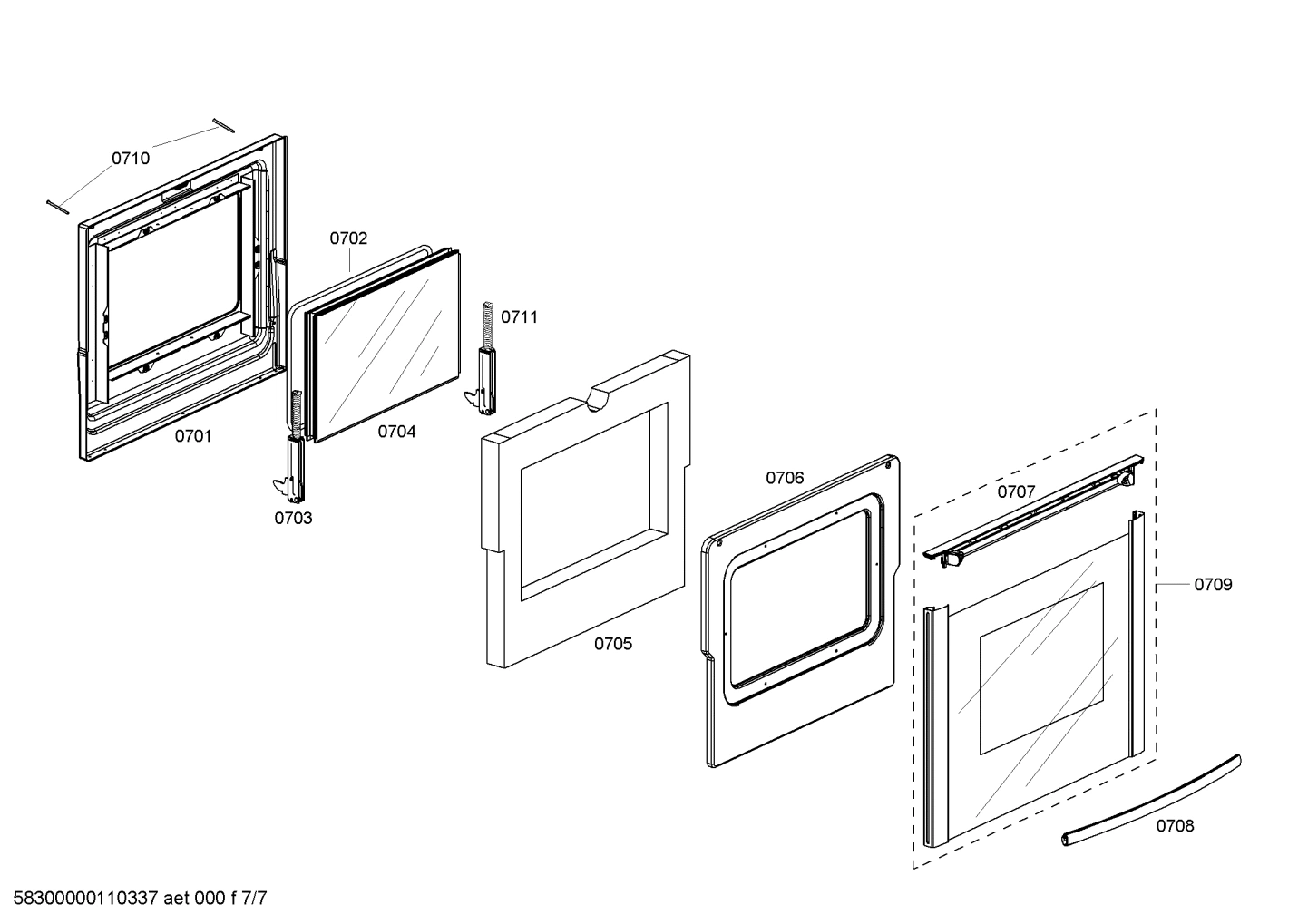

Diagram 7
Common parts from model Bosch HES342U/01 Range Oven
0101
PC board BOS 00445290 Contact Us For Availability
0103
Knob-programme BOS 00422094 Contact Us For Availability
0105
Frame-decor BOS 00422093 Contact Us For Availability
0114
Frame-decor BOS 00436375 Contact Us For Availability
0115
Ring BOS 00436377 No Longer Available
0116
Spring BOS 00422105 Contact Us For Availability
0120
Heating element BOS 00367247 Contact Us For Availability
0121
Heating element BOS 00491581 Contact Us For Availability
0123
Hilight hotplate BOS 00499573 Contact Us For Availability
0203
Lamp BOS 00415045 No Longer Available
0207
Burner BOS 00491571 Contact Us For Availability
0305
Motor BOS 00491576 Contact Us For Availability
0404
Hinge-plate BOS 00491538 No Longer Available
0405
Hinge-plate BOS 00491539 No Longer Available
0410
Heating element BOS 00491787 Contact Us For Availability
0411
Slide BOS 00440843 Contact Us For Availability
0503
Sealing BOS 00436639 Contact Us For Availability
0601
Grill grid BOS 00438061 Contact Us For Availability
0602
Grill tray BOS 00449756 Contact Us For Availability
0603
Universal pan BOS 00449757 Contact Us For Availability
0606
Latch BOS 00493095 Contact Us For Availability
0701
Door-inner BOS 00683705 Contact Us For Availability
0702
Sealing BOS 00491899 Contact Us For Availability
0705
Insulating part BOS 00143678 Contact Us For Availability
0708
Handle-door BOS 00436378 Contact Us For Availability
0710
Screw BOS 00607316 No Longer Available
× ![]()
