Model Bosch HES3052U/01 Range Oven – Common Parts & Diagrams

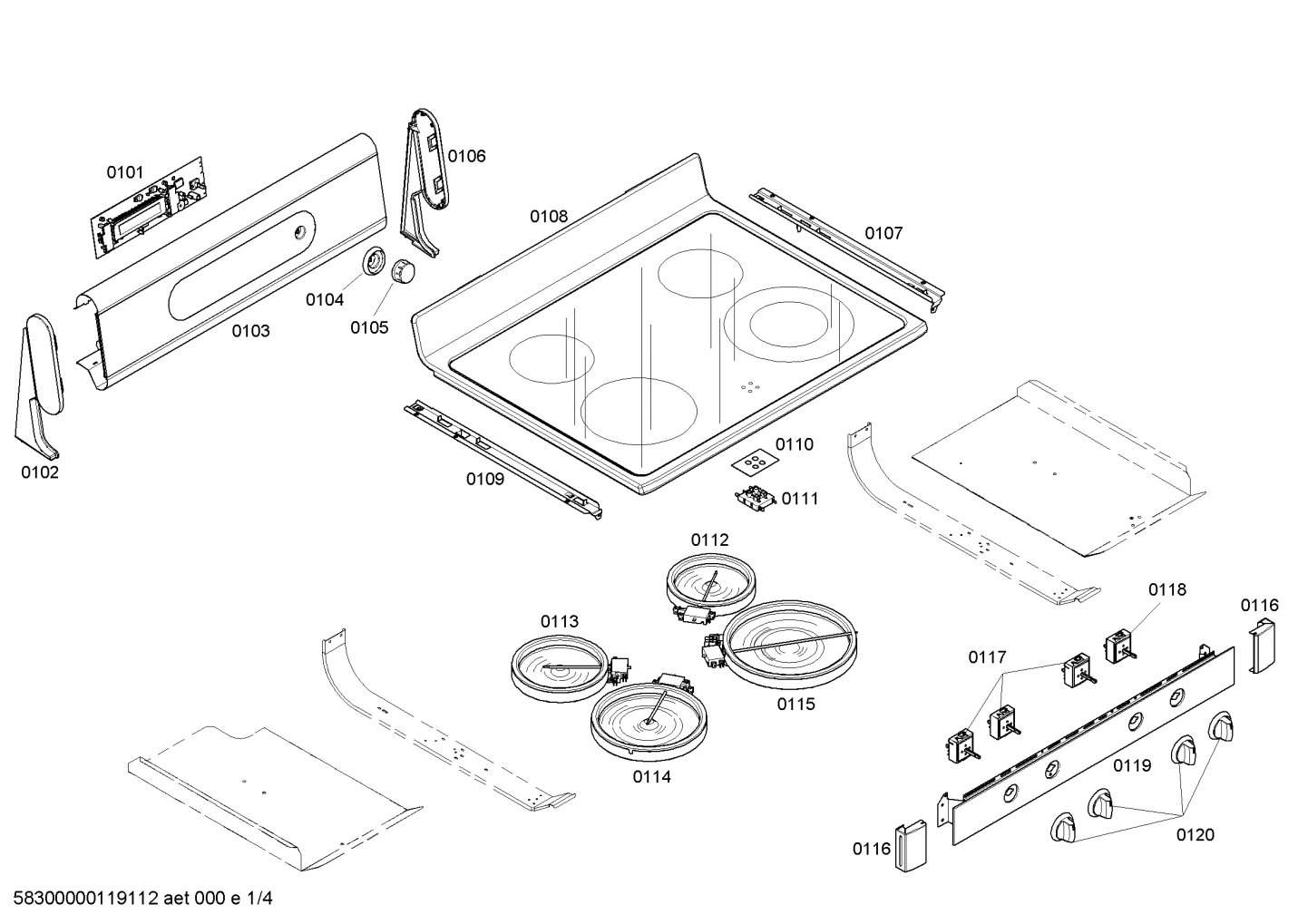

Diagram 1

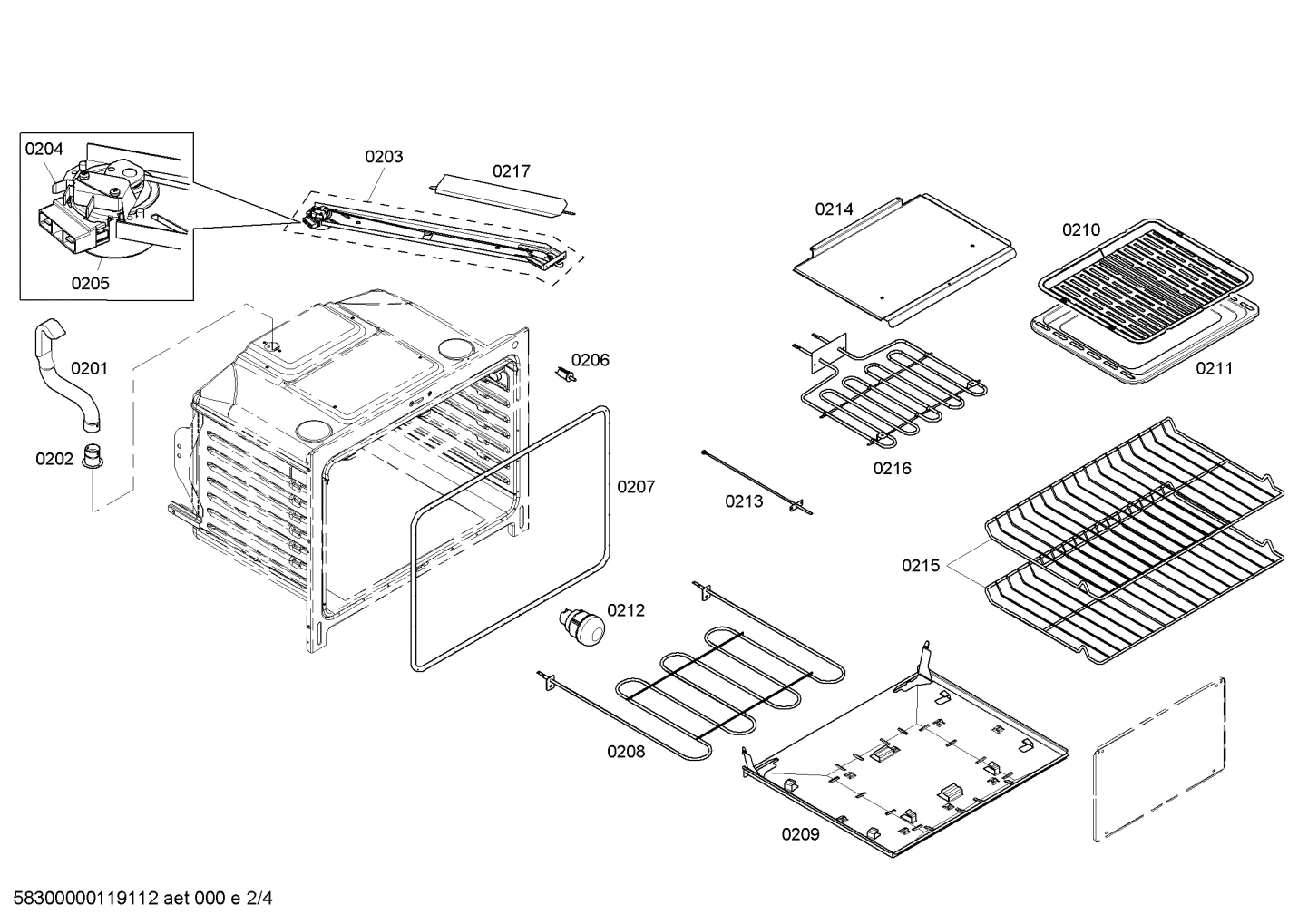

Diagram 2

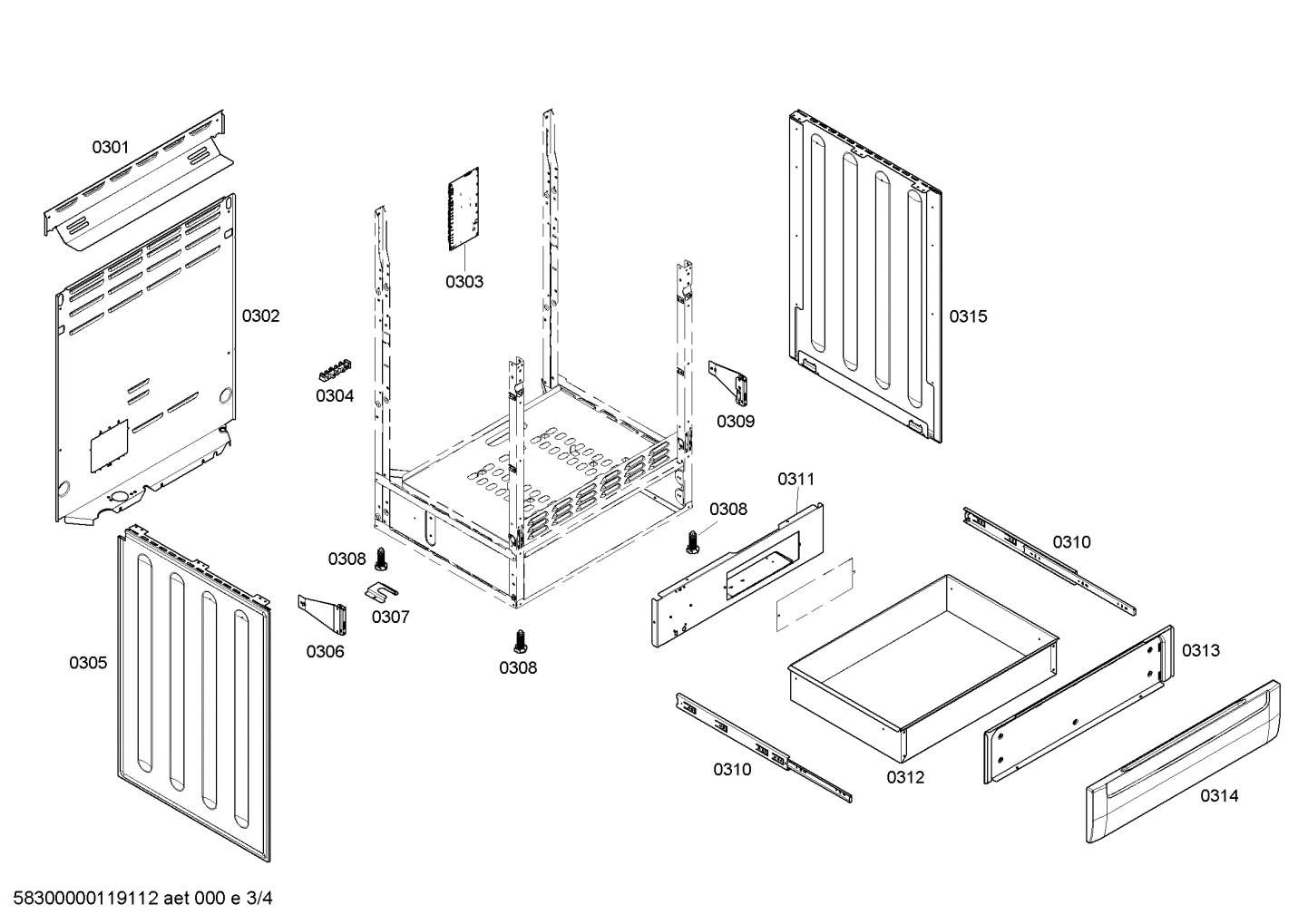

Diagram 3

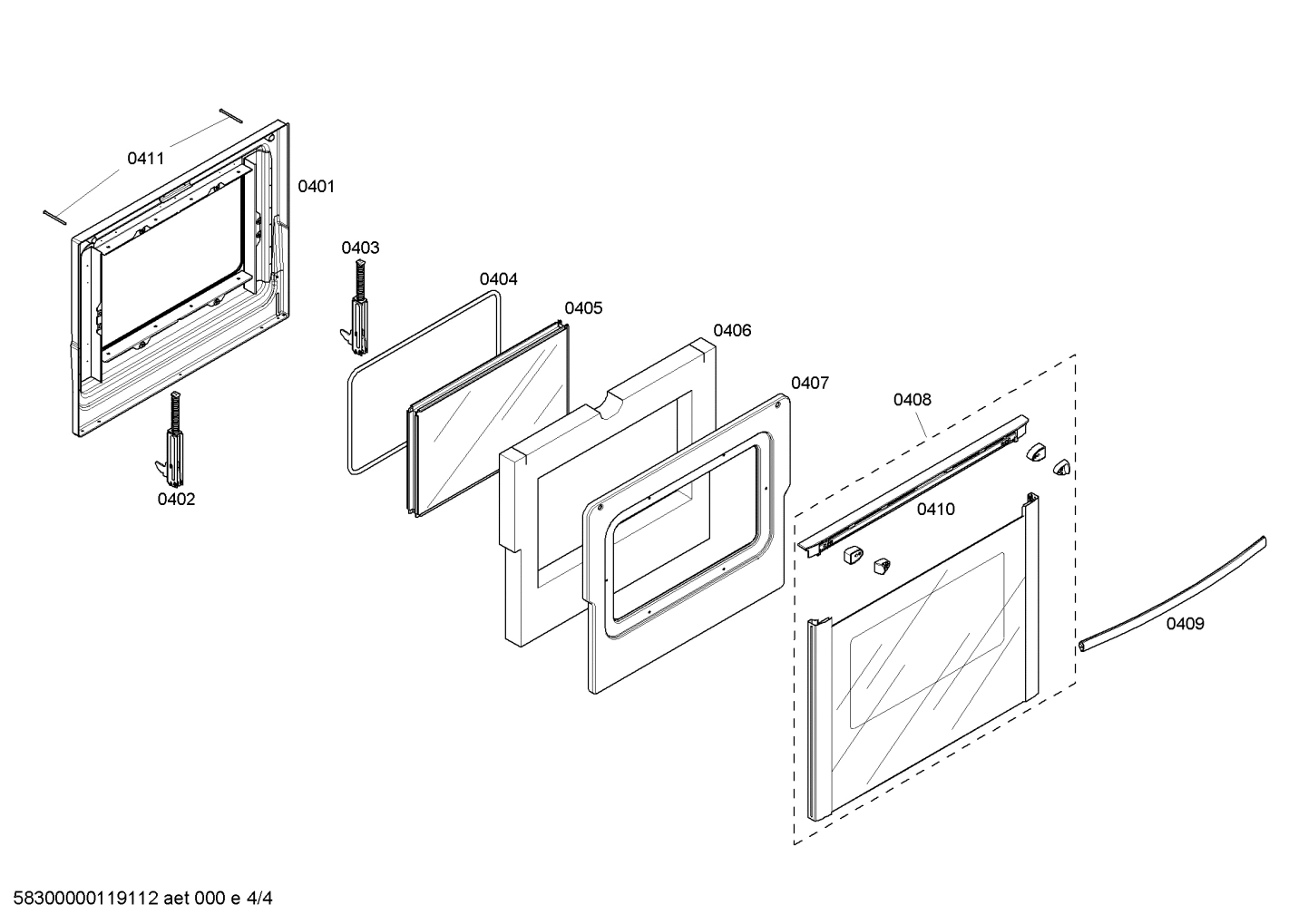

Diagram 4
Common parts from model Bosch HES3052U/01 Range Oven
0101
Display module BOS 00653424 Contact Us For Availability
0105
Knob-programme BOS 00422367 Contact Us For Availability
0113
Heating element BOS 00367247 Contact Us For Availability
0114
Heating element BOS 00491581 Contact Us For Availability
0115
Hilight hotplate BOS 00445258 Contact Us For Availability
0116
Frame-decor BOS 00436666 Contact Us For Availability
0204
Switch BOS 00604808 Contact Us For Availability
0205
Motor BOS 00604807 Contact Us For Availability
0206
Switch BOS 00603747 No Longer Available
0208
Burner BOS 00491571 Contact Us For Availability
0210
Grill tray BOS 00449756 Contact Us For Availability
0211
Universal pan BOS 00449757 Contact Us For Availability
0212
Lamp BOS 00415045 No Longer Available
0215
Shelf BOS 00144416 Contact Us For Availability
0216
Heating element BOS 00144417 Contact Us For Availability
0303
Power module BOS 00657860 Contact Us For Availability
0306
Hinge-plate BOS 00491539 No Longer Available
0309
Hinge-plate BOS 00491538 No Longer Available
0401
Door-inner BOS 00683705 Contact Us For Availability
0404
Sealing BOS 00491899 Contact Us For Availability
0406
Insulating part BOS 00143678 Contact Us For Availability
0408
Door BOS 00680733 Contact Us For Availability
0409
Handle-door BOS 00436646 Contact Us For Availability
0410
Trimplate BOS 00449874 Contact Us For Availability
0411
Screw BOS 00607316 No Longer Available
× ![]()
