Model Bosch HES255U/02 Range Oven – Common Parts & Diagrams

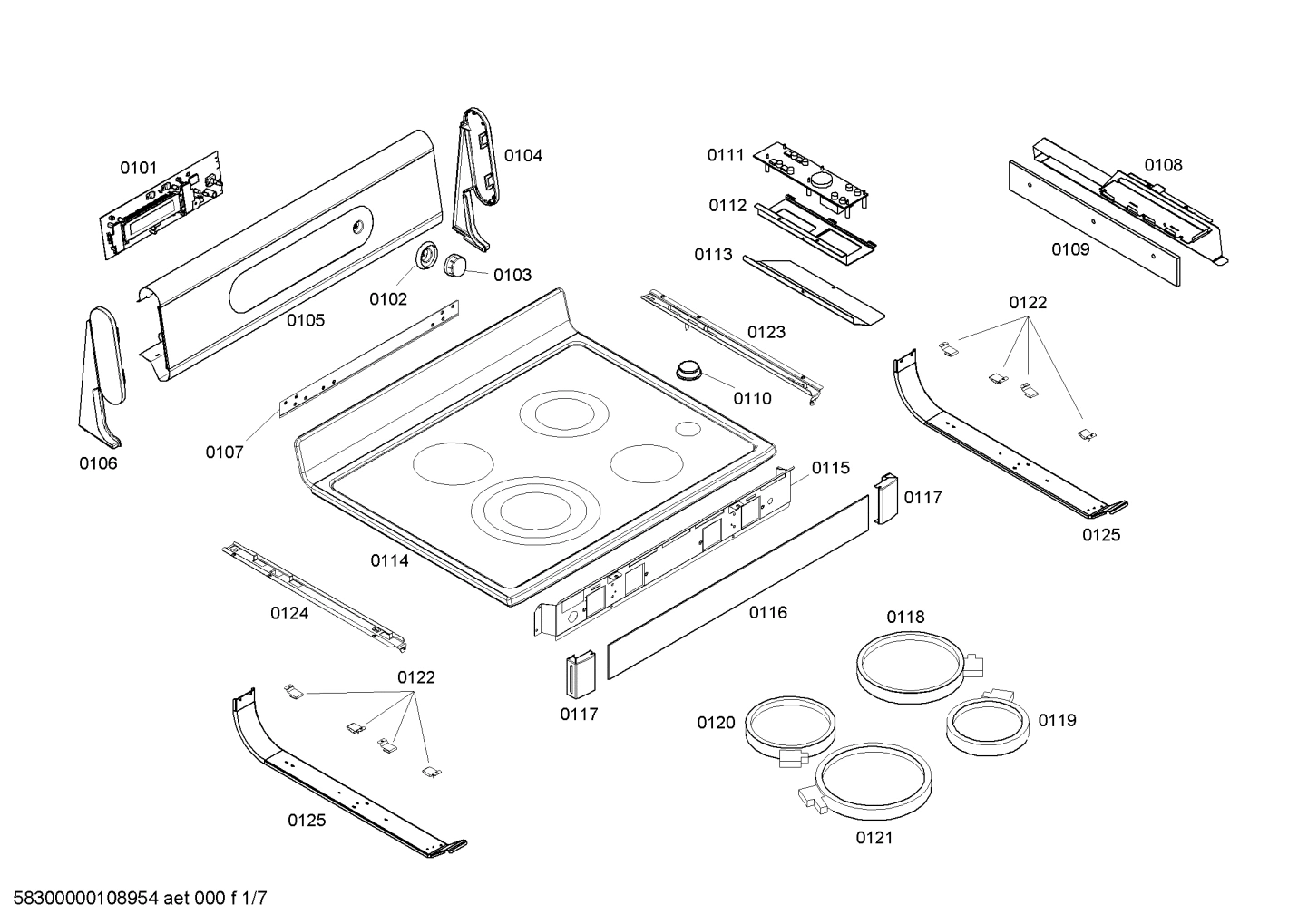

Diagram 1

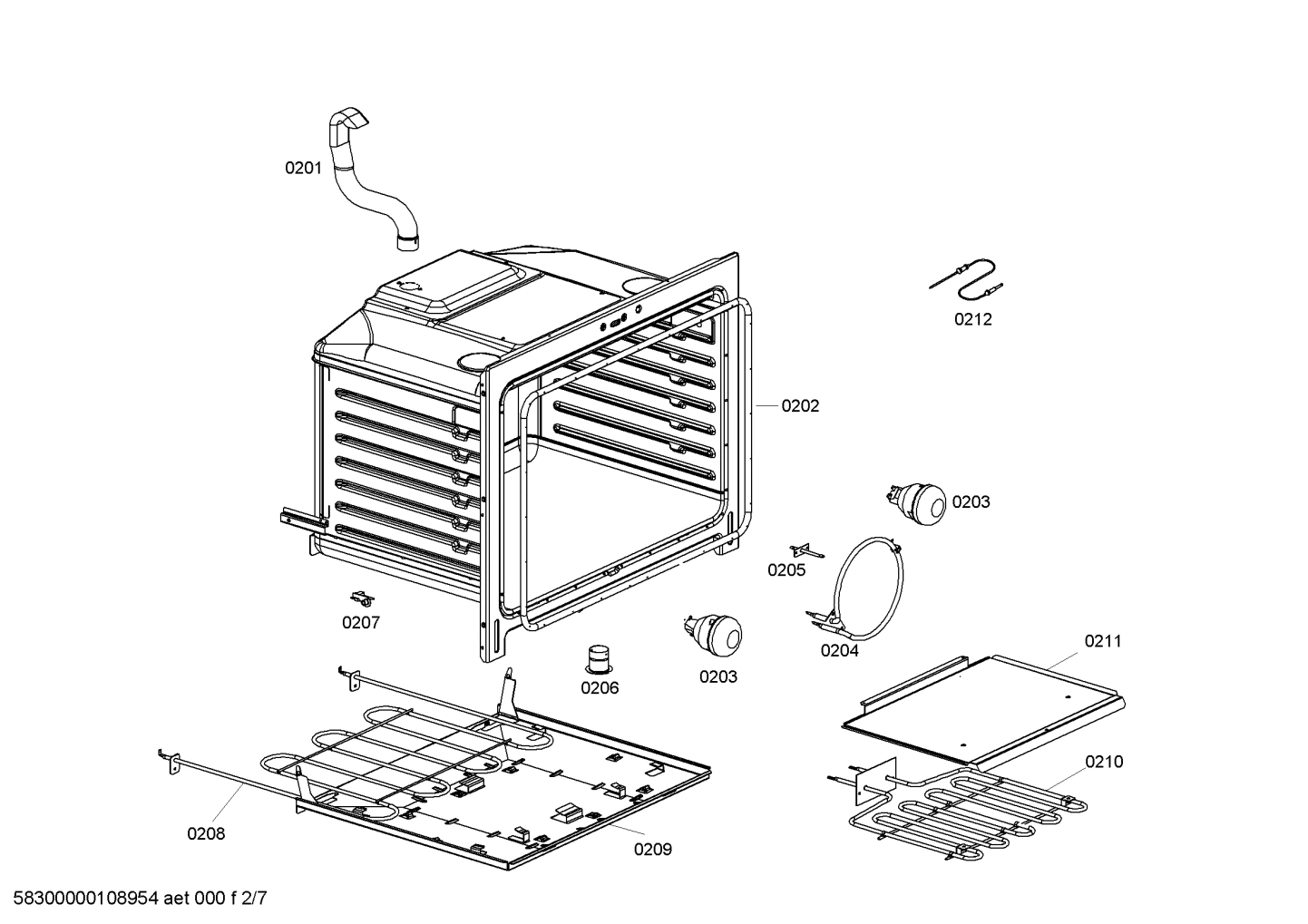

Diagram 2

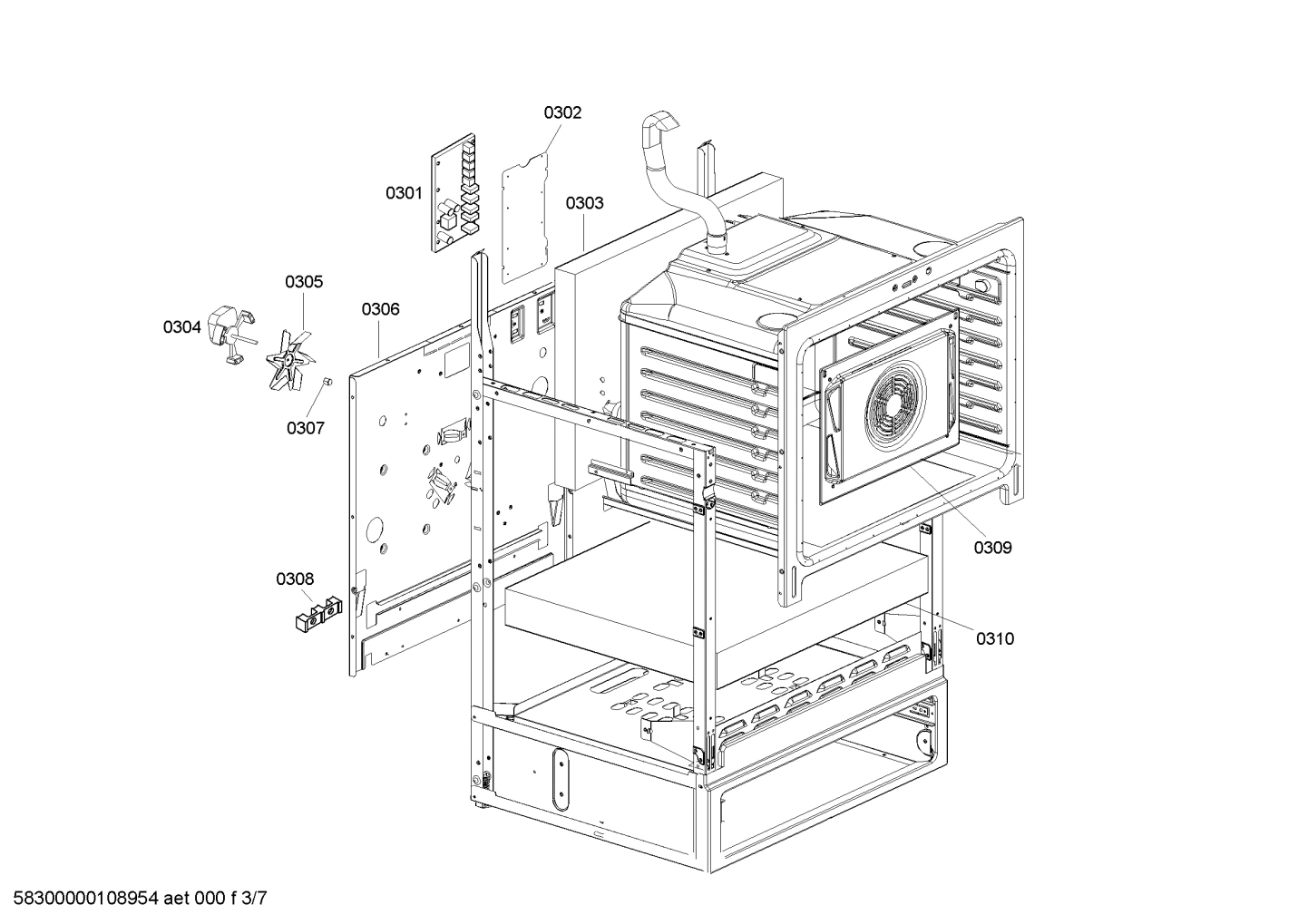

Diagram 3

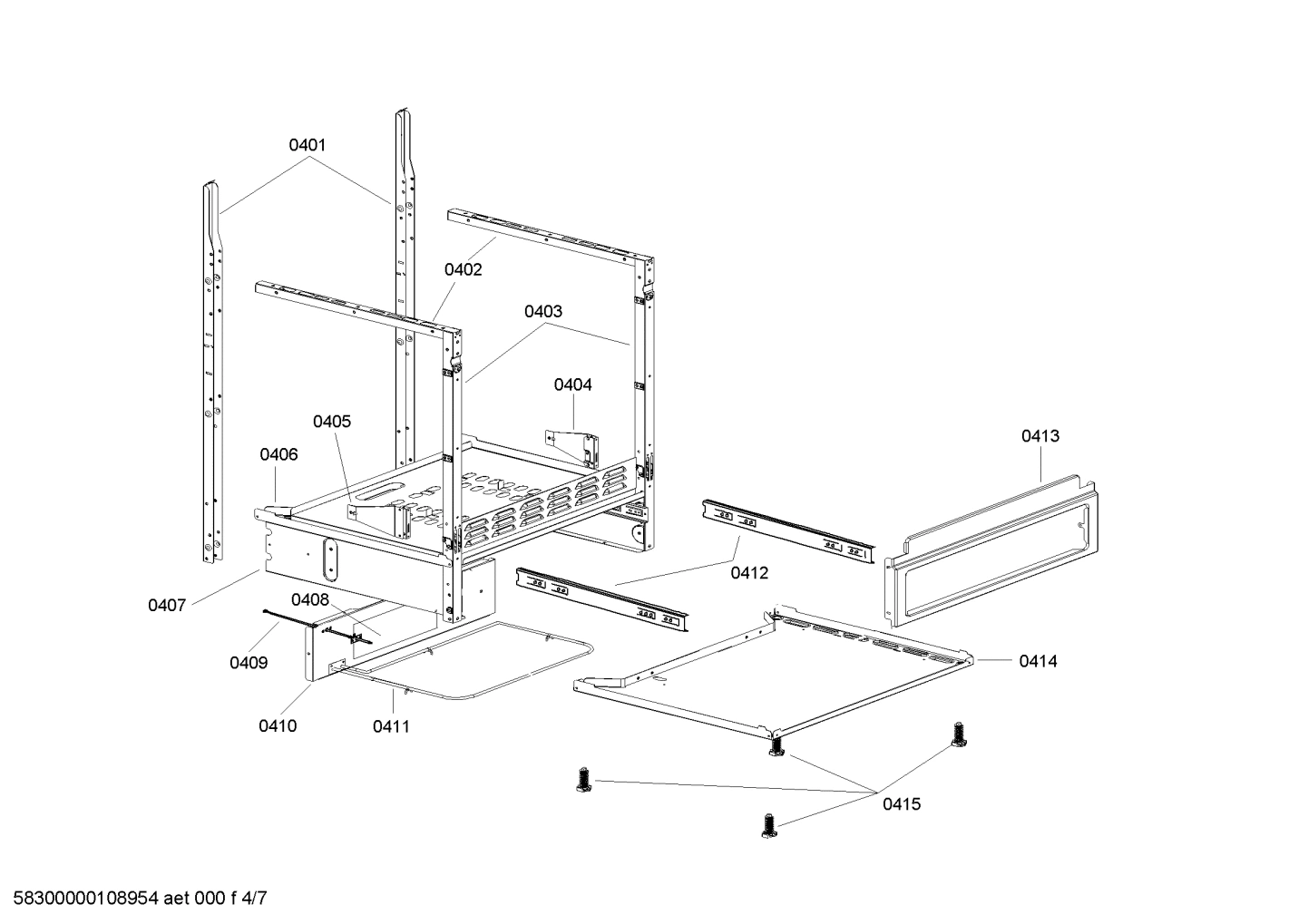

Diagram 4

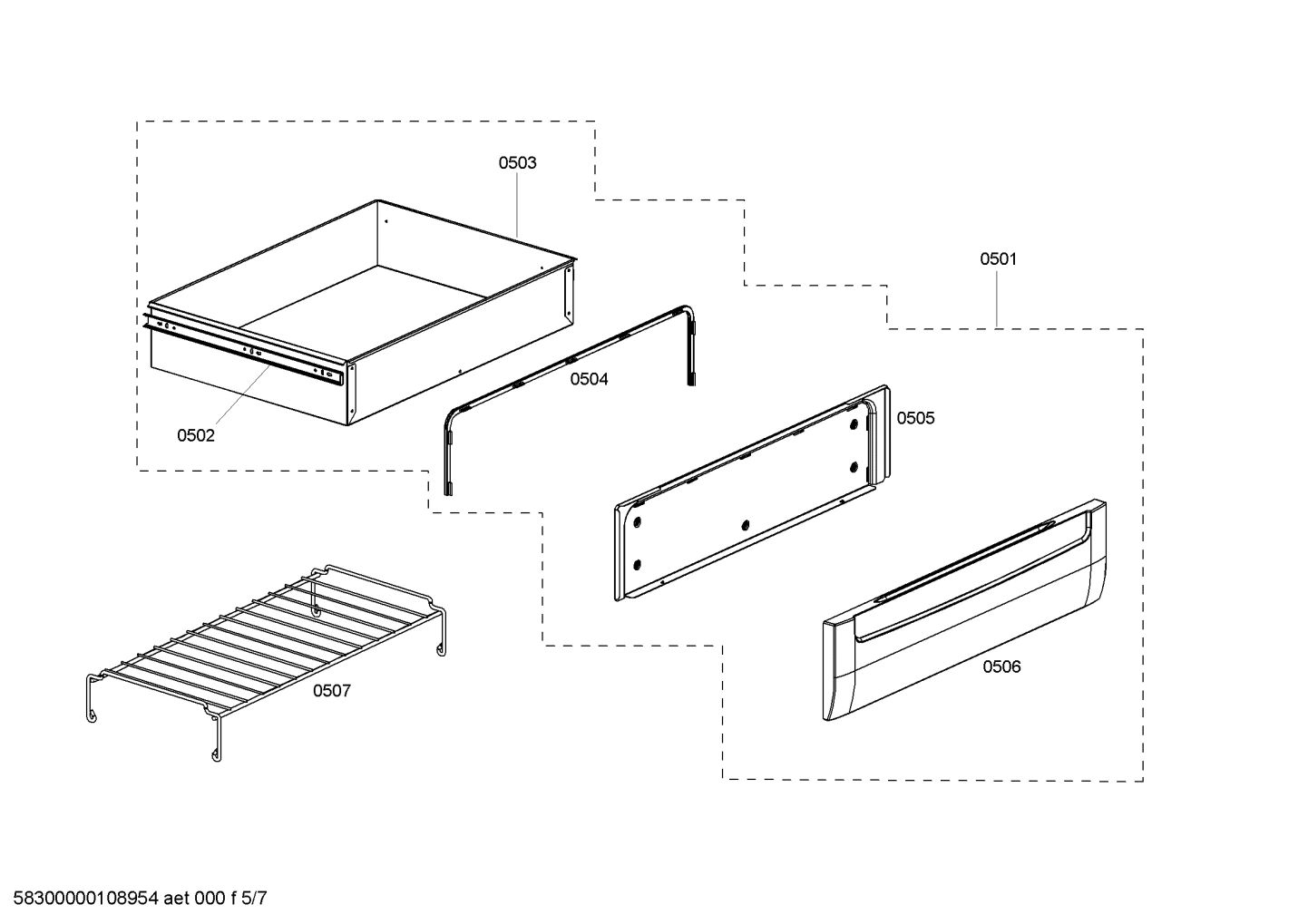

Diagram 5

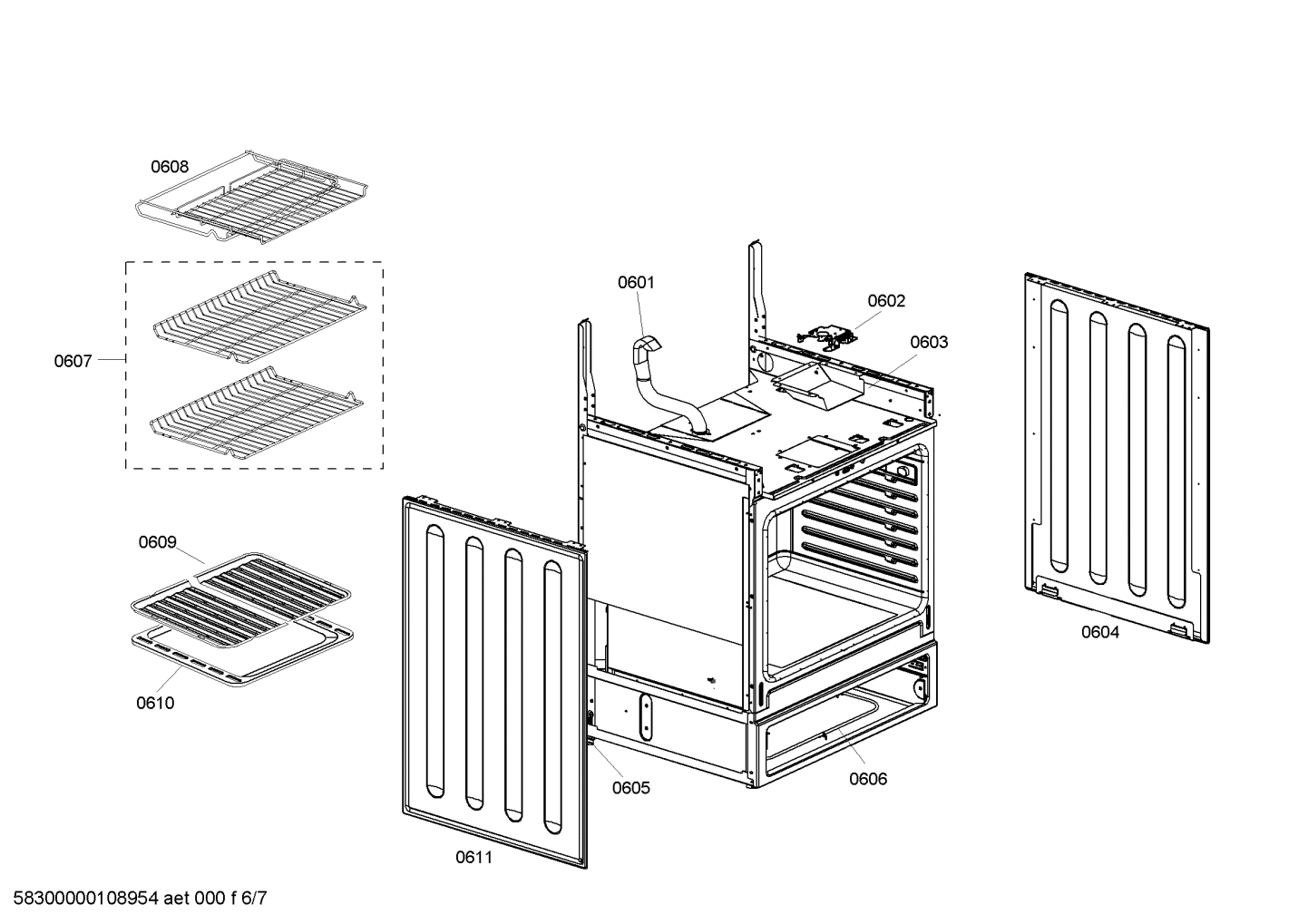

Diagram 6

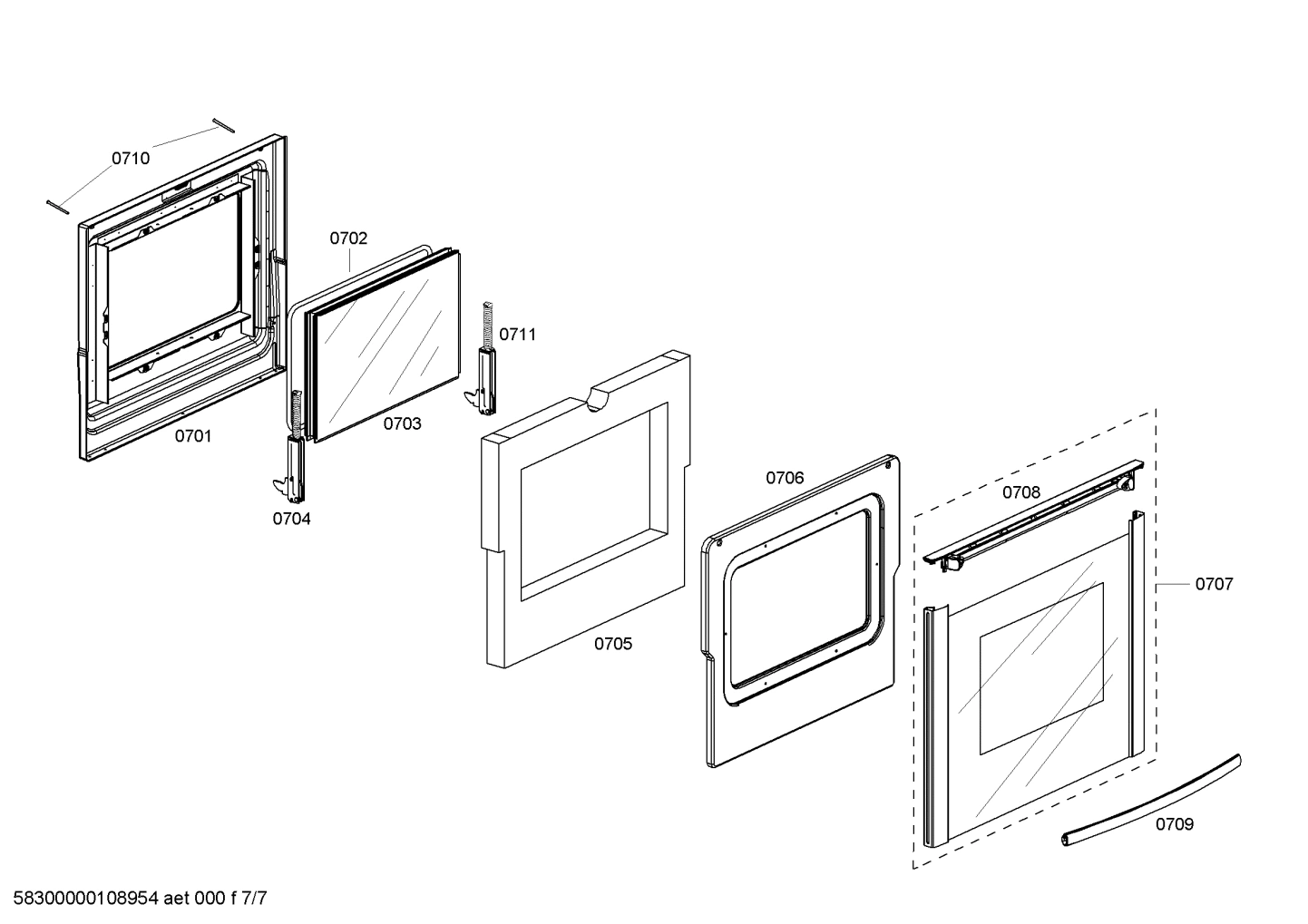

Diagram 7
Common parts from model Bosch HES255U/02 Range Oven
0101
PC board BOS 00497064 Contact Us For Availability
0103
Knob-programme BOS 00422367 Contact Us For Availability
0110
Knob-cooking area BOS 00416295 Contact Us For Availability
0111
PC board BOS 00640374 Contact Us For Availability
0114
Glass ceramic hob top BOS 00241152 Contact Us For Availability
0117
Frame-decor BOS 00436666 Contact Us For Availability
0118
Heating element BOS 00445360 Contact Us For Availability
0119
Hilight hotplate BOS 00416306 Contact Us For Availability
0120
Hilight hotplate BOS 00491270 Contact Us For Availability
0121
Heating element BOS 00435606 Contact Us For Availability
0203
Lamp BOS 00415045 No Longer Available
0208
Burner BOS 00491571 Contact Us For Availability
0304
Motor BOS 00491576 Contact Us For Availability
0404
Hinge-plate BOS 00491538 No Longer Available
0405
Hinge-plate BOS 00491539 No Longer Available
0412
Slide BOS 00440843 Contact Us For Availability
0504
Sealing BOS 00436639 Contact Us For Availability
0602
Latch BOS 00493095 Contact Us For Availability
0606
Heating element BOS 00491787 Contact Us For Availability
0607
Grill grid BOS 00438061 Contact Us For Availability
0608
Grille BOS 00438086 Contact Us For Availability
0609
Grill tray BOS 00449756 Contact Us For Availability
0610
Universal pan BOS 00449757 Contact Us For Availability
0701
Door-inner BOS 00683705 Contact Us For Availability
0702
Sealing BOS 00491899 Contact Us For Availability
0705
Insulating part BOS 00143678 Contact Us For Availability
0707
Glass front panel BOS 00471648 Contact Us For Availability
0708
Trimplate BOS 00449874 Contact Us For Availability
0709
Handle-door BOS 00436646 Contact Us For Availability
0710
Screw BOS 00607316 No Longer Available
× ![]()
