Model Bosch HES245U/02 Range Oven – Common Parts & Diagrams
Diagram 1

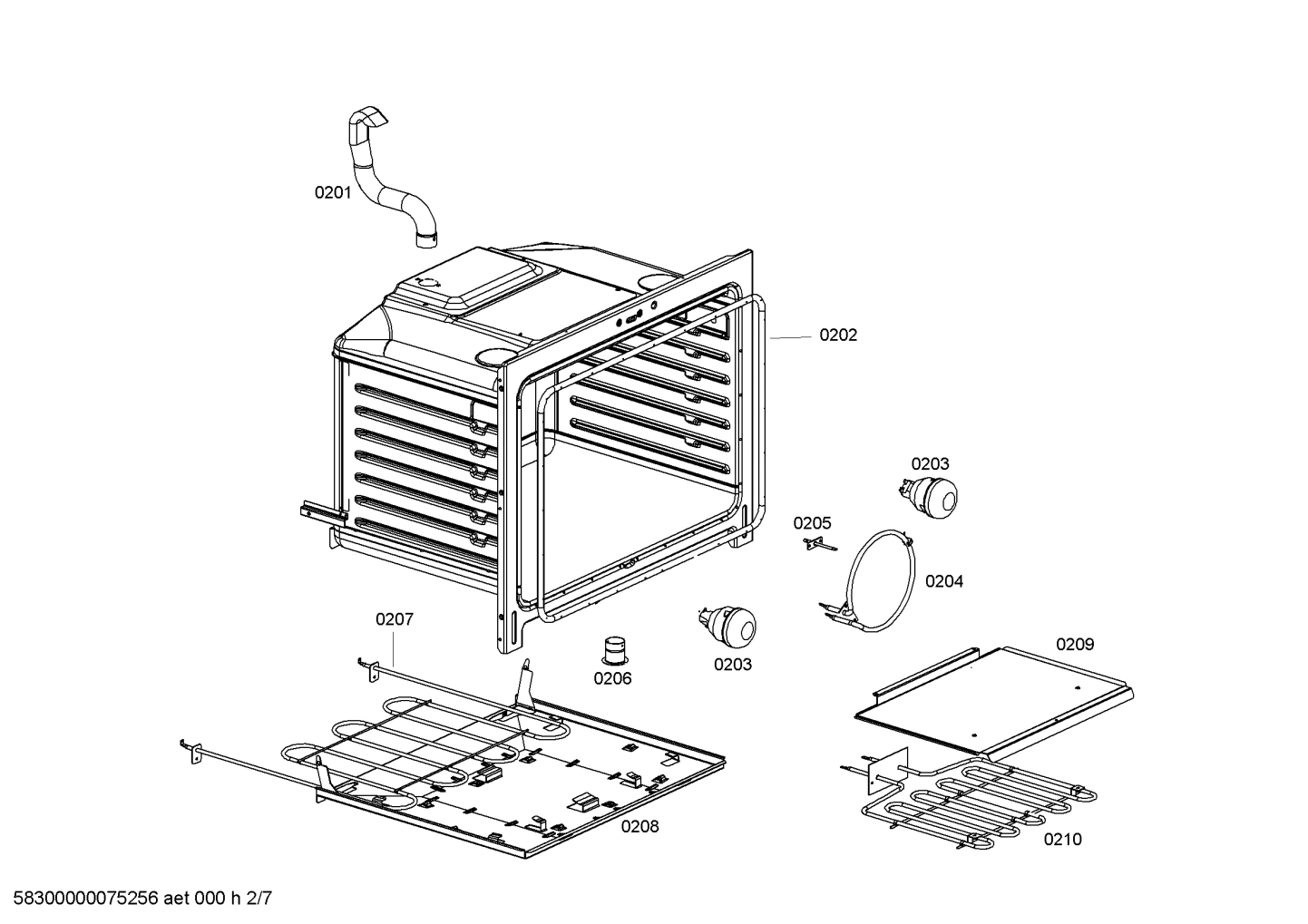

Diagram 2

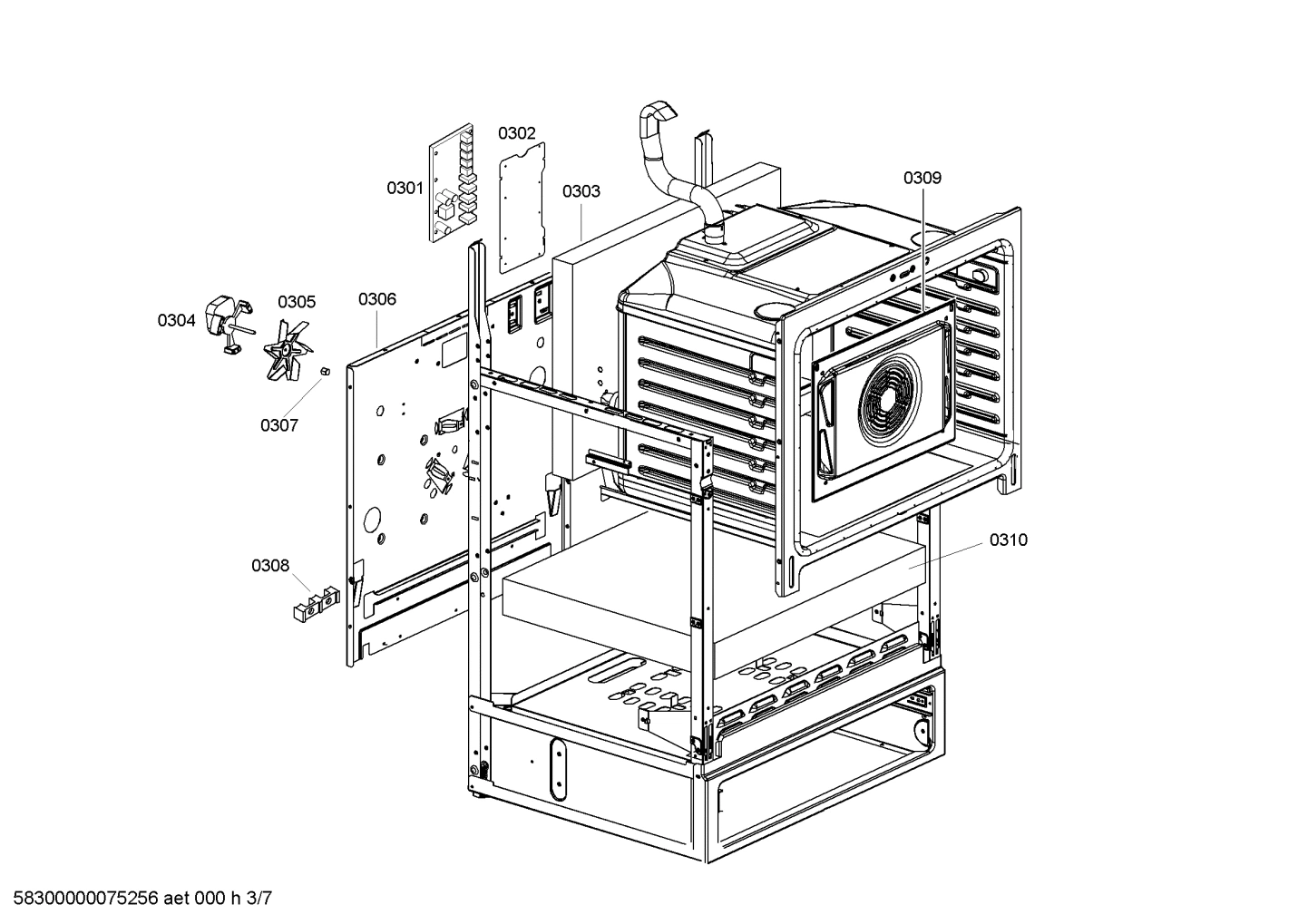

Diagram 3

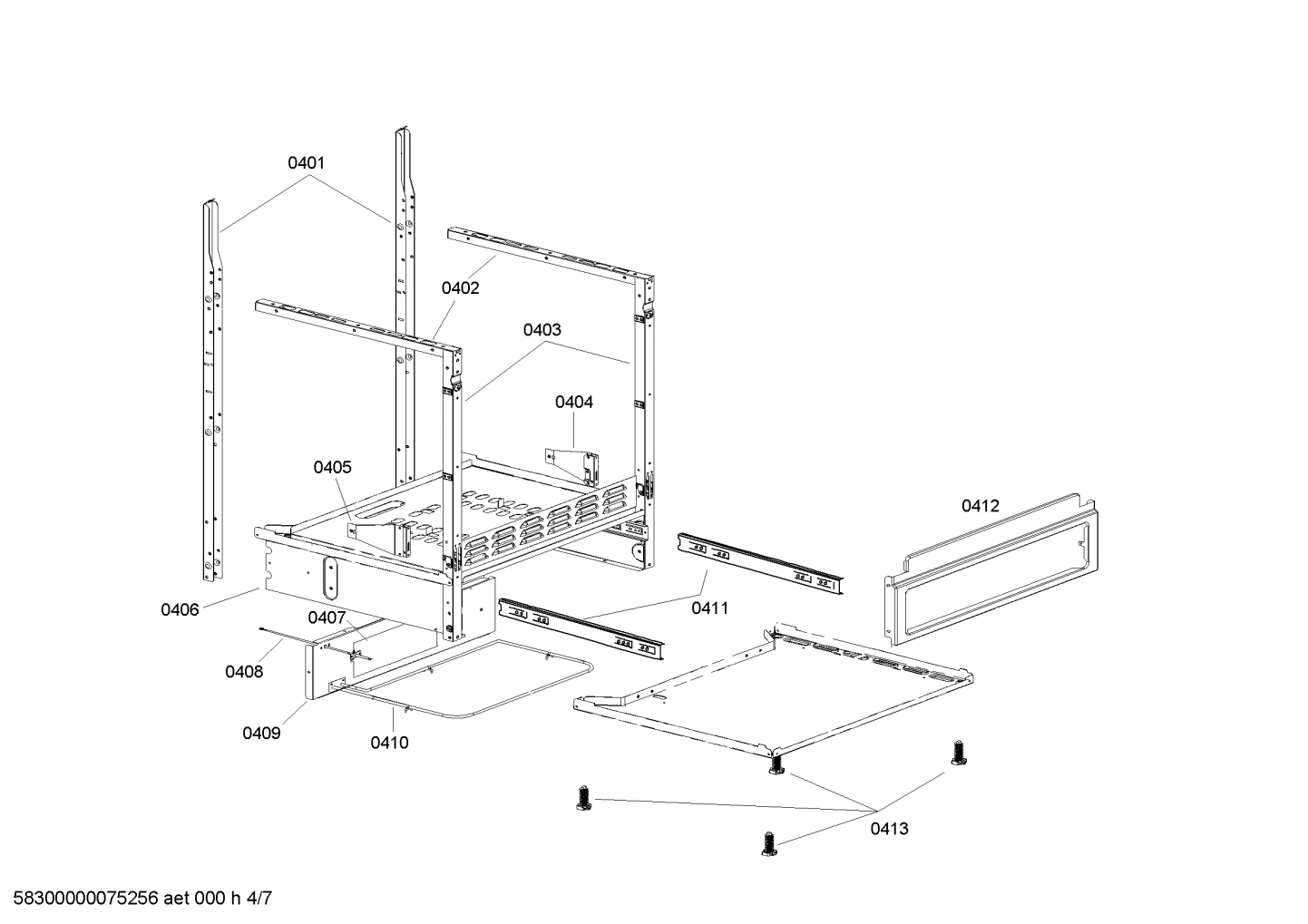

Diagram 4

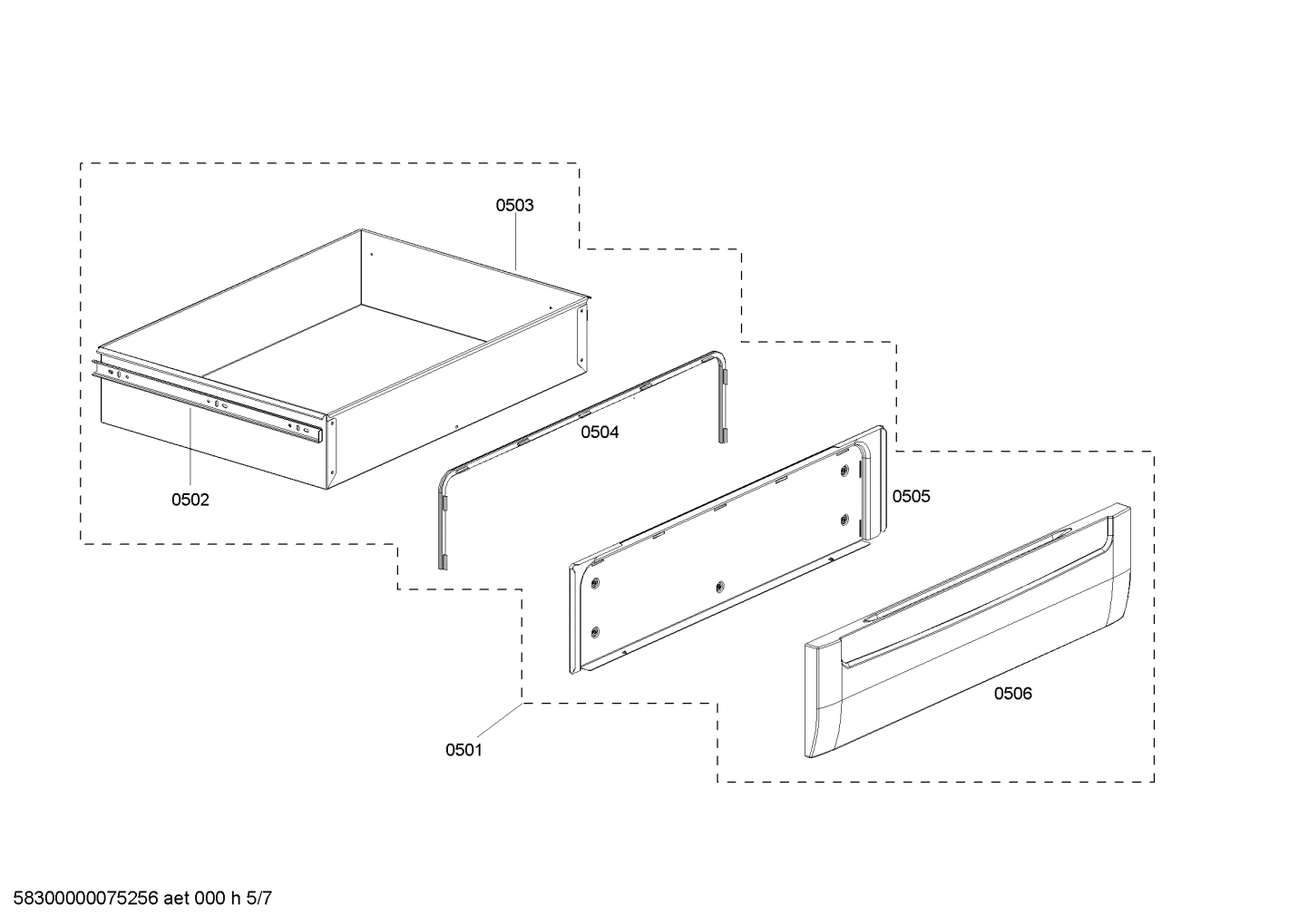

Diagram 5

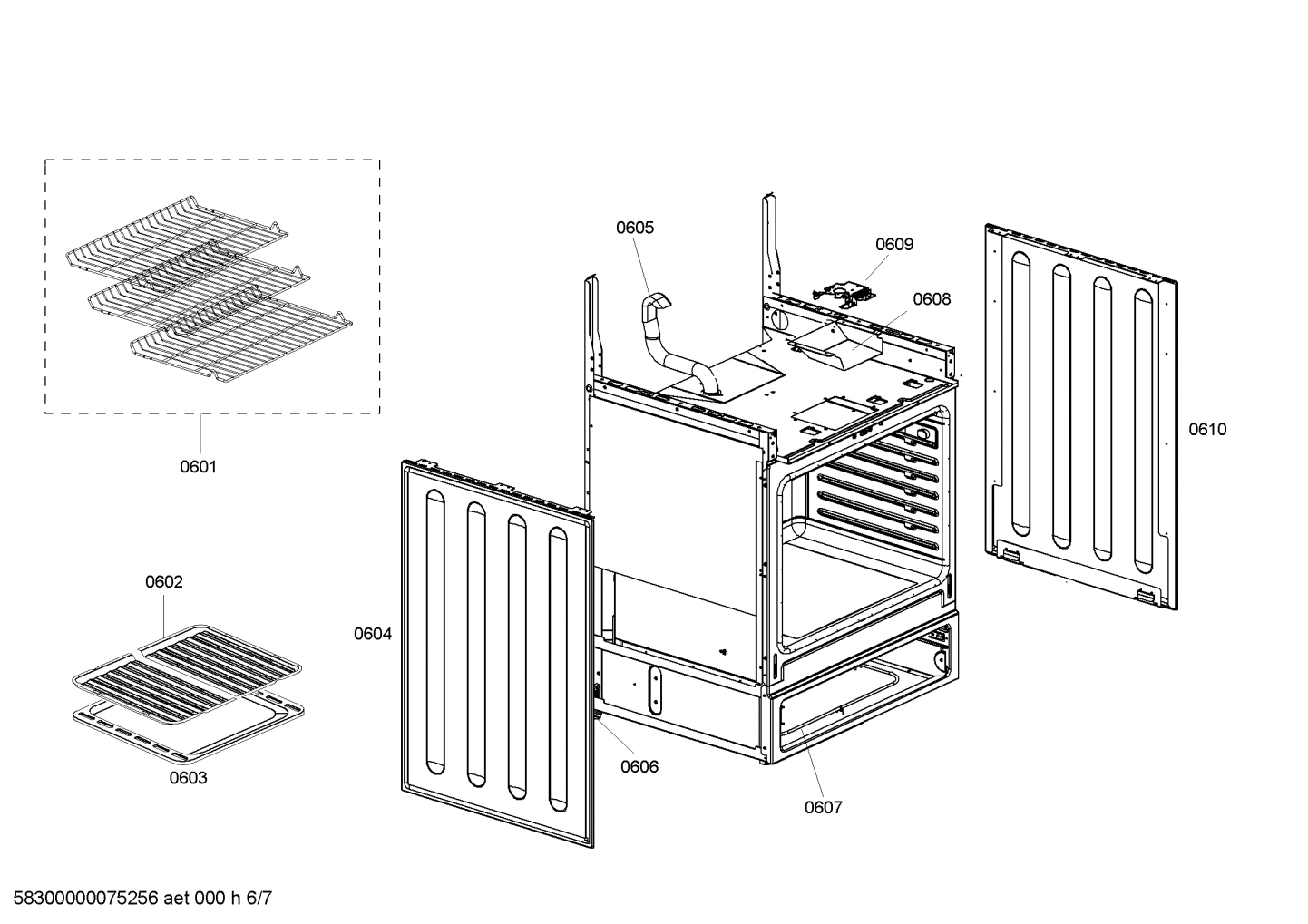

Diagram 6

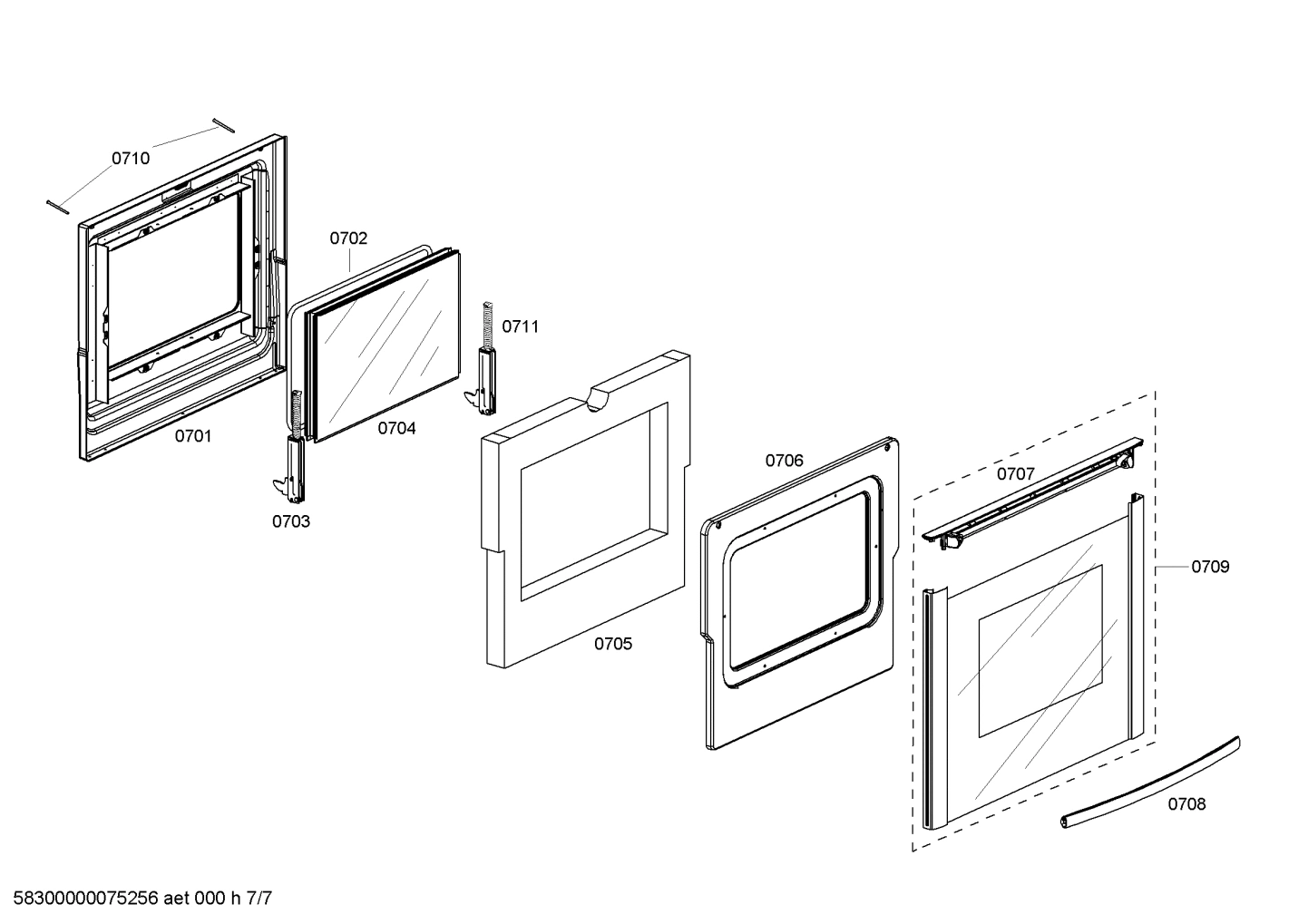

Diagram 7
Common parts from model Bosch HES245U/02 Range Oven
0101
PC board BOS 00497064 Contact Us For Availability
0103
Knob-programme BOS 00422367 Contact Us For Availability
0111
Knob-cooking area BOS 00416295 Contact Us For Availability
0112
PC board BOS 00640373 Contact Us For Availability
0116
Heating element BOS 00445360 Contact Us For Availability
0117
Hilight hotplate BOS 00491270 Contact Us For Availability
0118
Hilight hotplate BOS 00416303 Contact Us For Availability
0119
Hilight hotplate BOS 00416306 Contact Us For Availability
0156
Frame-decor BOS 00436666 Contact Us For Availability
0203
Lamp BOS 00415045 No Longer Available
0207
Burner BOS 00491571 Contact Us For Availability
0304
Motor BOS 00491576 Contact Us For Availability
0404
Hinge-plate BOS 00491538 No Longer Available
0405
Hinge-plate BOS 00491539 No Longer Available
0411
Slide BOS 00440843 Contact Us For Availability
0504
Sealing BOS 00436639 Contact Us For Availability
0601
Grill grid BOS 00438061 Contact Us For Availability
0602
Grill tray BOS 00449756 Contact Us For Availability
0603
Universal pan BOS 00449757 Contact Us For Availability
0607
Heating element BOS 00491787 Contact Us For Availability
0609
Latch BOS 00493095 Contact Us For Availability
0701
Door-inner BOS 00683705 Contact Us For Availability
0702
Sealing BOS 00491899 Contact Us For Availability
0705
Insulating part BOS 00143678 Contact Us For Availability
0707
Trimplate BOS 00449874 Contact Us For Availability
0708
Handle-door BOS 00436646 Contact Us For Availability
0709
Glass front panel BOS 00471648 Contact Us For Availability
0710
Screw BOS 00607316 No Longer Available
× ![]()
