Model Bosch HES245C/01 Range Oven – Common Parts & Diagrams

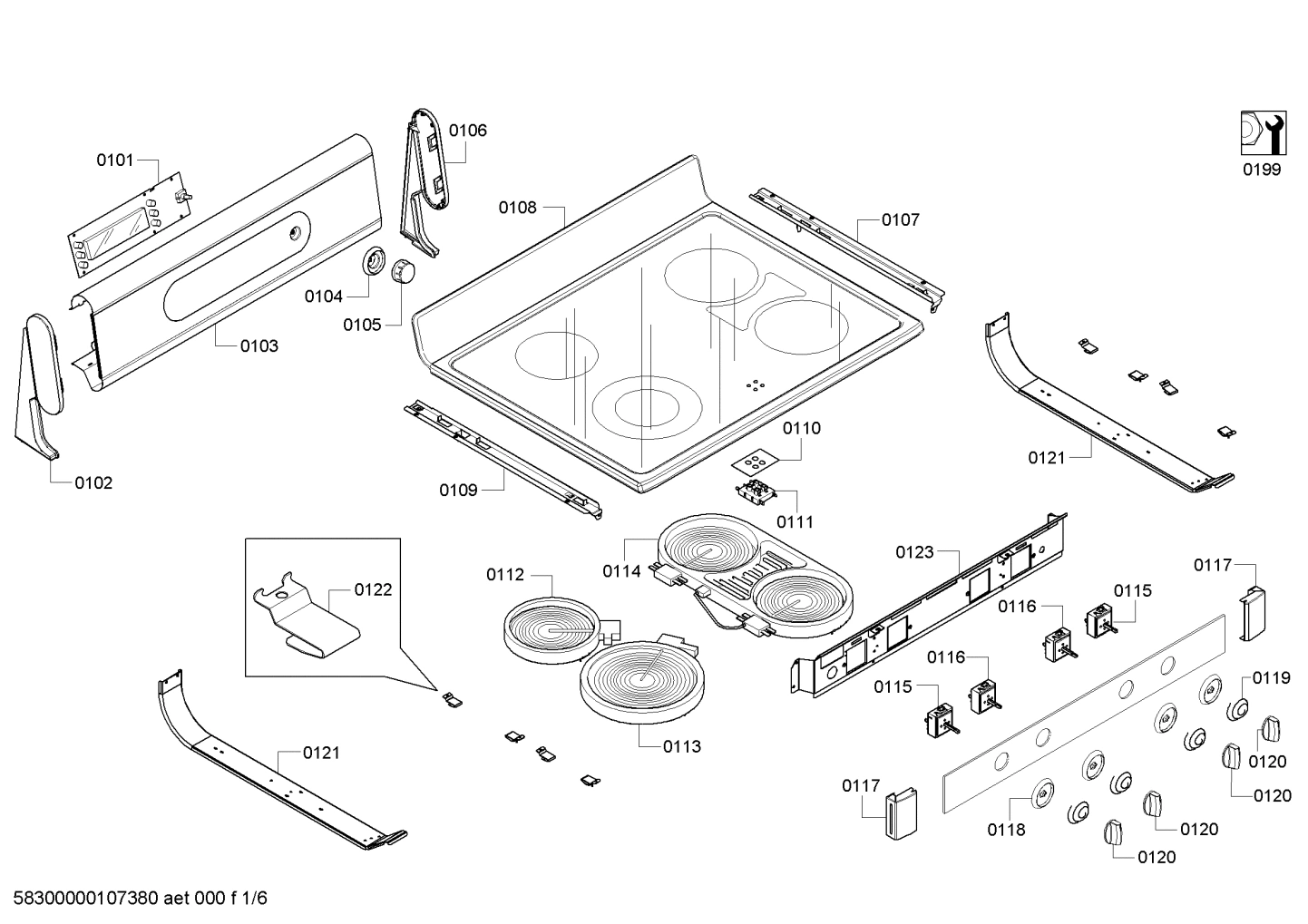

Diagram 1

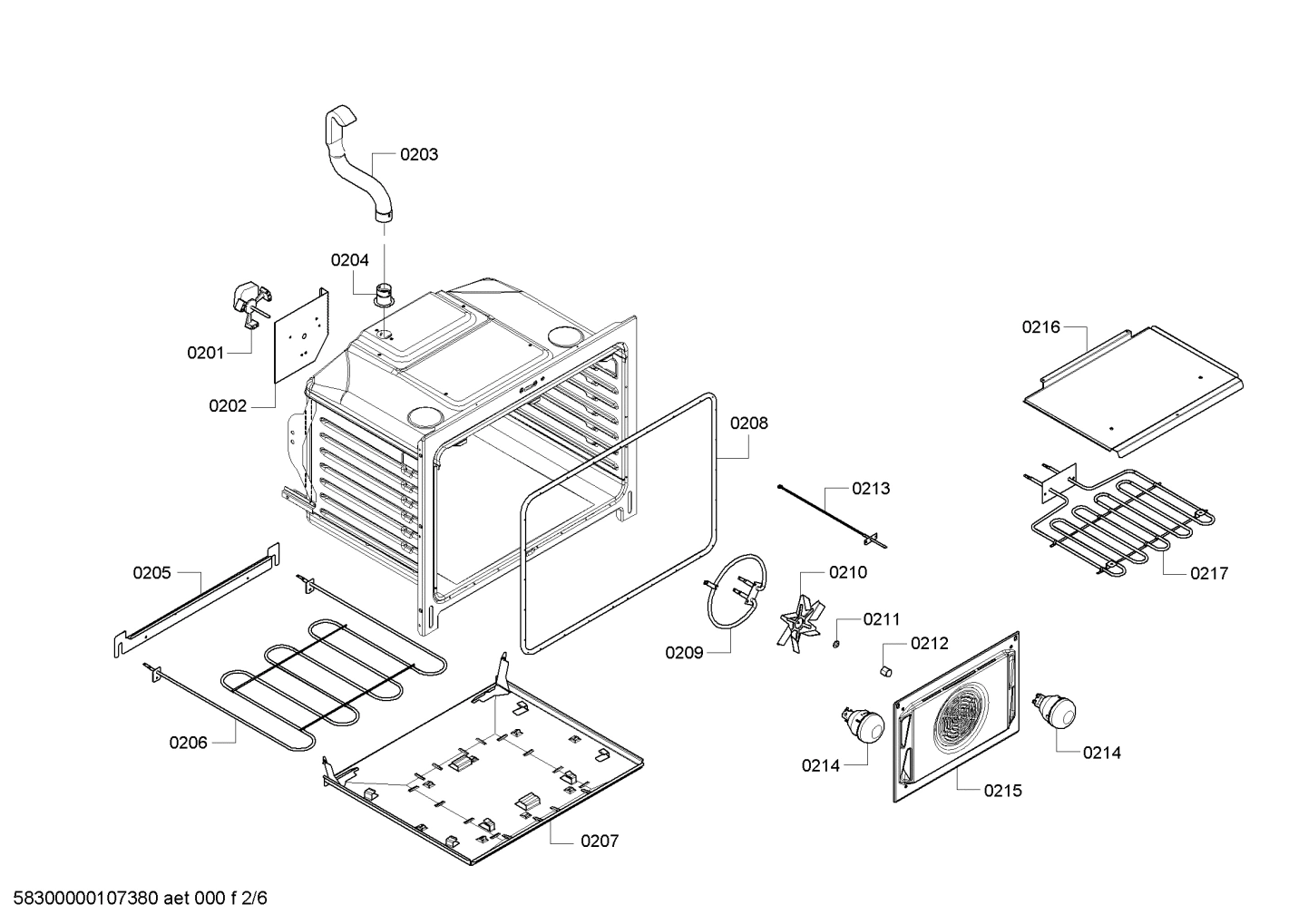

Diagram 2

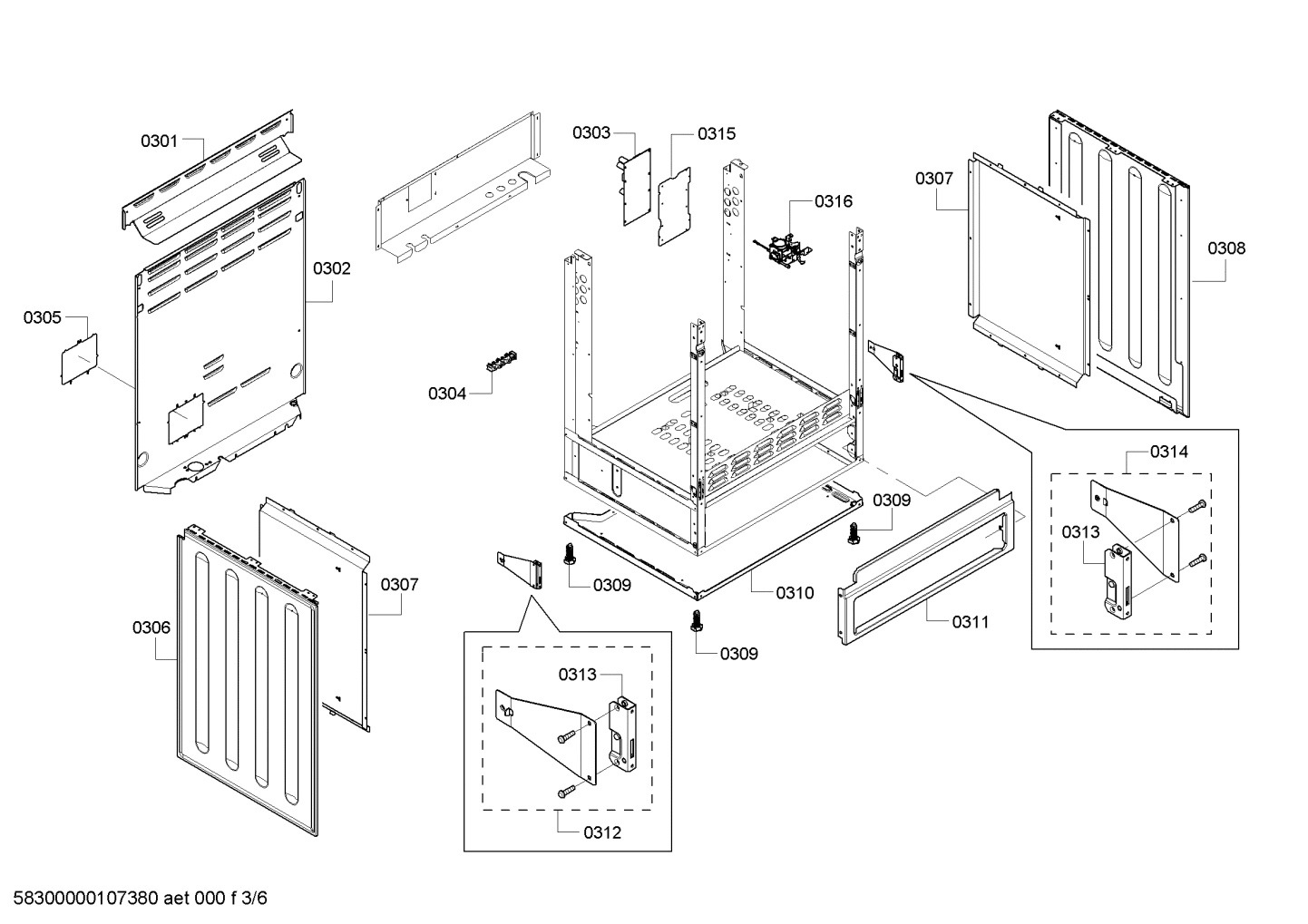

Diagram 3

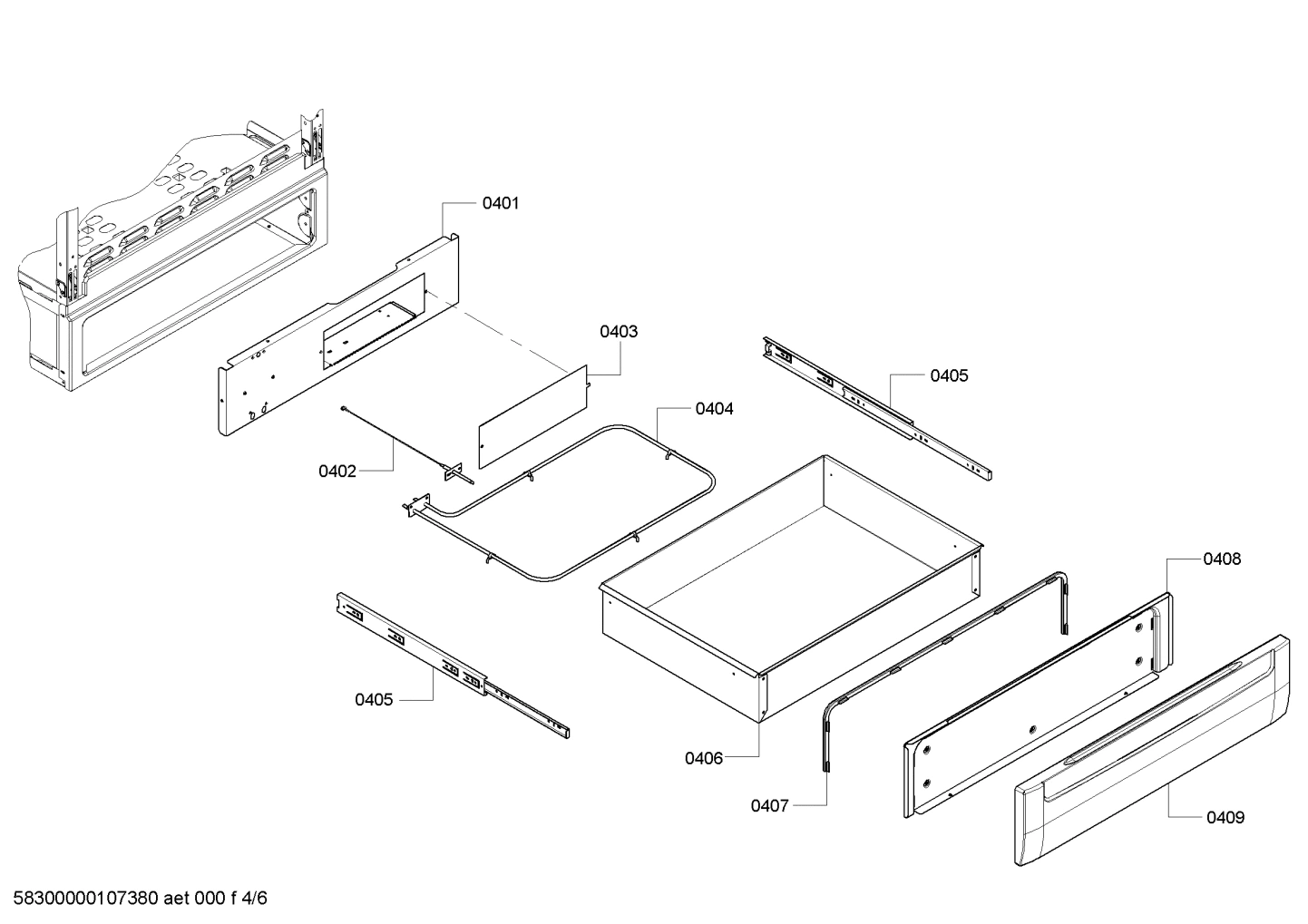

Diagram 4

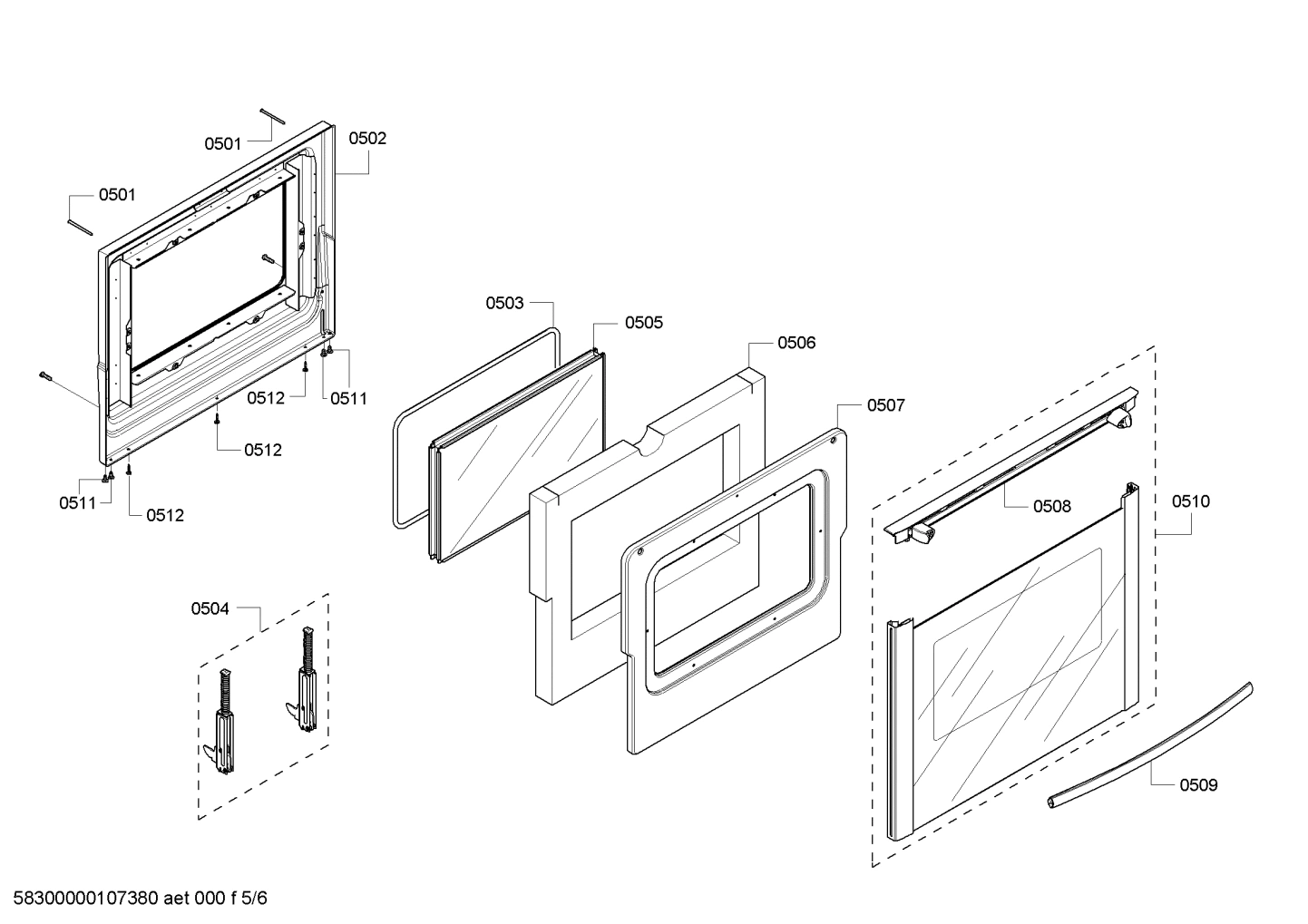

Diagram 5

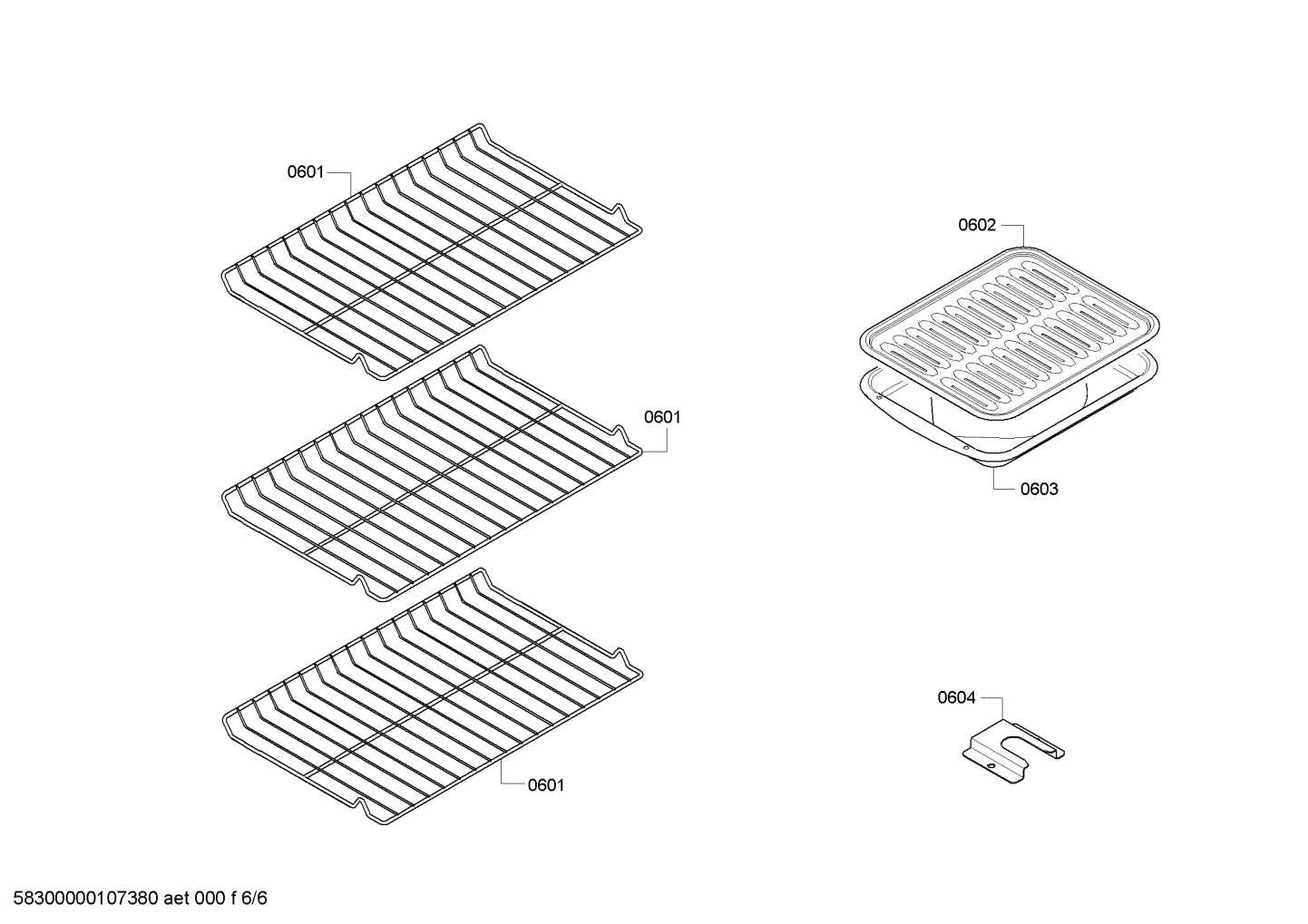

Diagram 6
Common parts from model Bosch HES245C/01 Range Oven
0101
PC board BOS 00445290 Contact Us For Availability
0105
Knob-programme BOS 00422367 Contact Us For Availability
0112
Heating element BOS 00367247 Contact Us For Availability
0113
Hilight hotplate BOS 00499573 Contact Us For Availability
0117
Frame-decor BOS 00436666 Contact Us For Availability
0118
Ring BOS 00423518 Contact Us For Availability
0119
Spring BOS 00422105 Contact Us For Availability
0201
Motor BOS 00491576 Contact Us For Availability
0206
Burner BOS 00491571 Contact Us For Availability
0214
Lamp BOS 00415045 No Longer Available
0307
Panel BOS 00422024 Contact Us For Availability
0312
Hinge-plate BOS 00491539 No Longer Available
0313
Hinge-window BOS 00492295 No Longer Available
0314
Hinge-plate BOS 00491538 No Longer Available
0316
Latch BOS 00493095 Contact Us For Availability
0404
Heating element BOS 00491787 Contact Us For Availability
0405
Slide BOS 00440843 Contact Us For Availability
0407
Sealing BOS 00436639 Contact Us For Availability
0502
Door-inner BOS 00683705 Contact Us For Availability
0503
Sealing BOS 00491899 Contact Us For Availability
0506
Insulating part BOS 00143678 Contact Us For Availability
0508
Trimplate BOS 00449874 Contact Us For Availability
0509
Handle-door BOS 00436646 Contact Us For Availability
0510
Glass front panel BOS 00471648 Contact Us For Availability
0601
Grill grid BOS 00438061 Contact Us For Availability
0602
Grill tray BOS 00449756 Contact Us For Availability
0603
Universal pan BOS 00449757 Contact Us For Availability
× ![]()
