Model Bosch HES232C/02 Range Oven – Common Parts & Diagrams

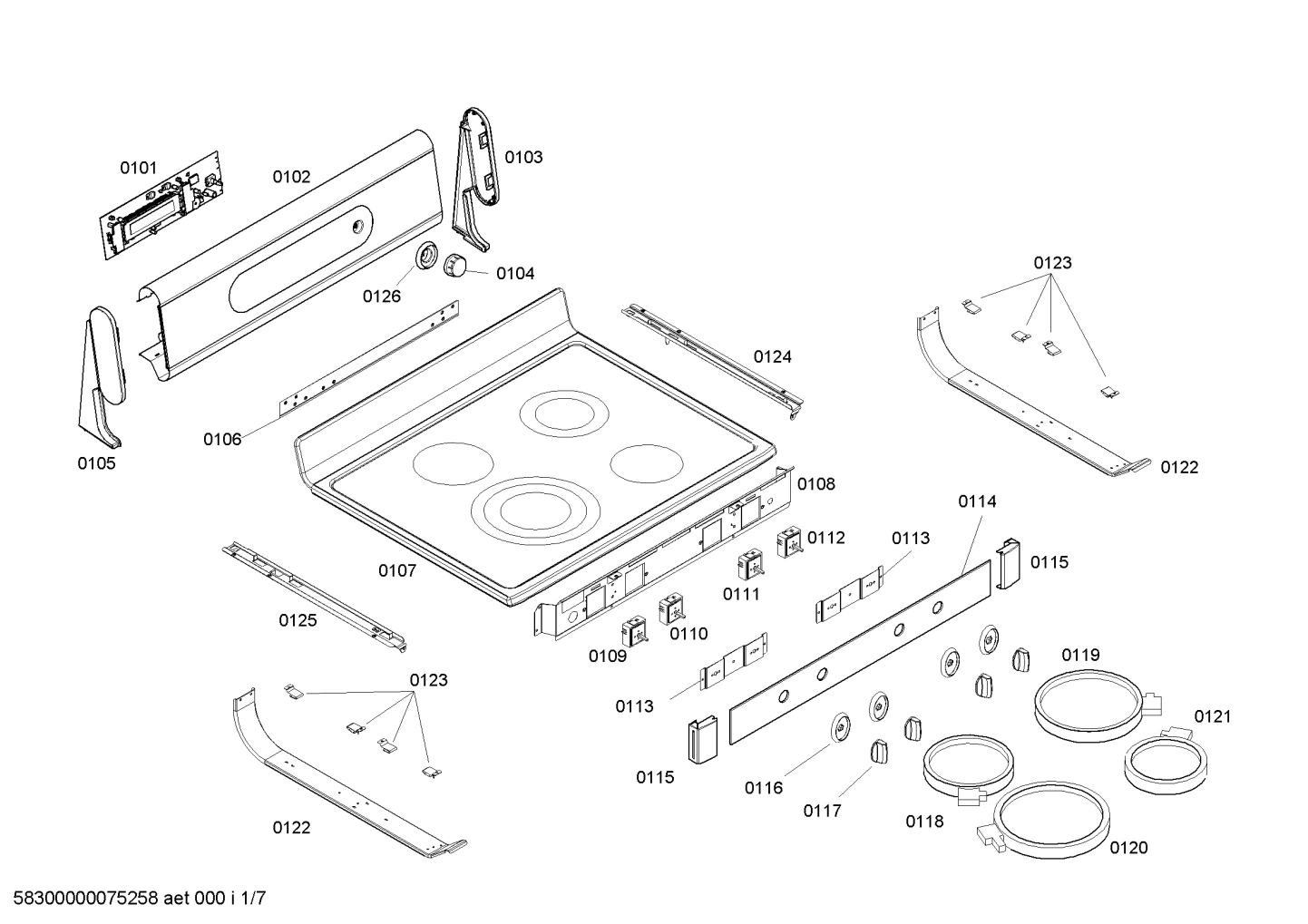

Diagram 1

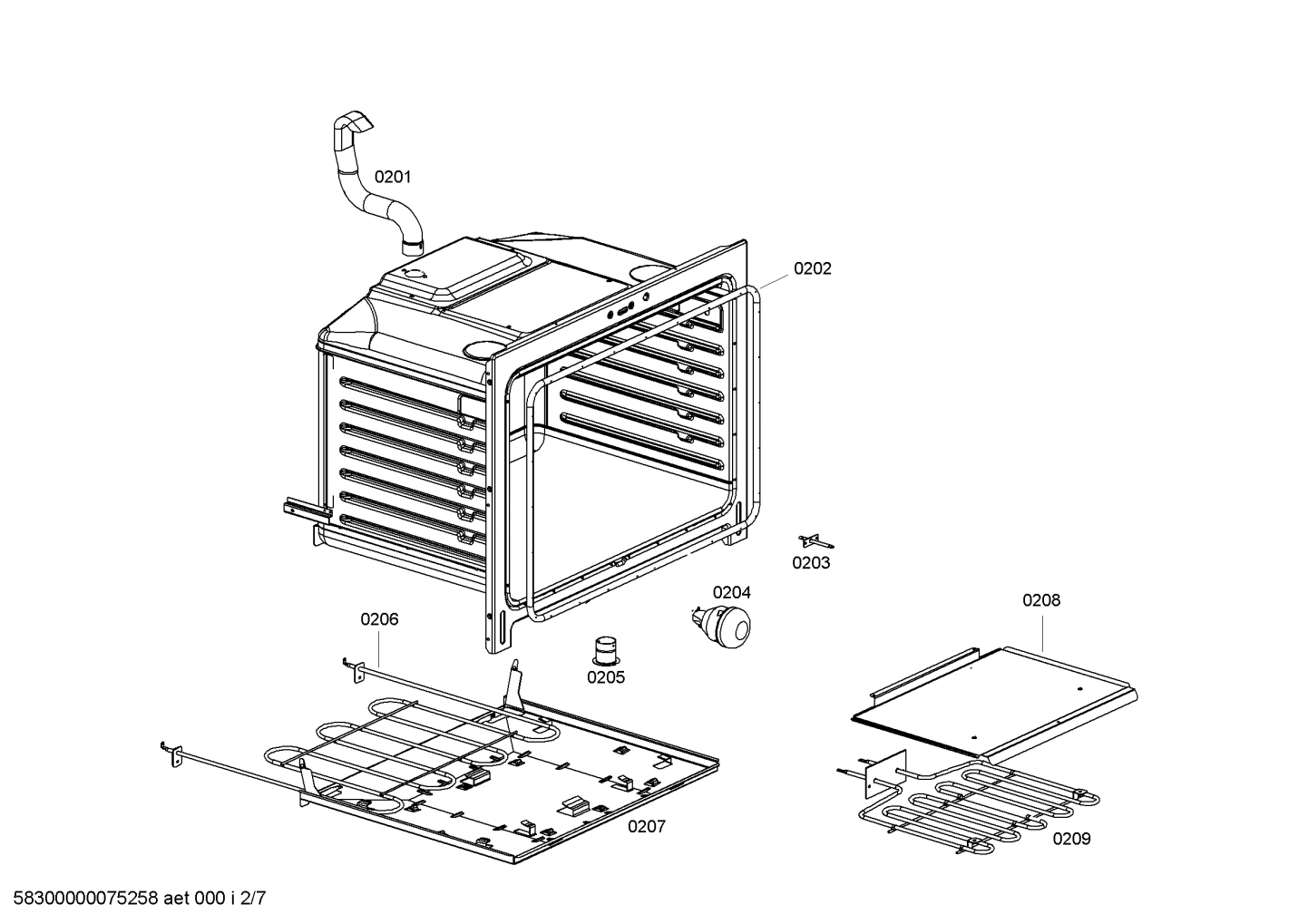

Diagram 2

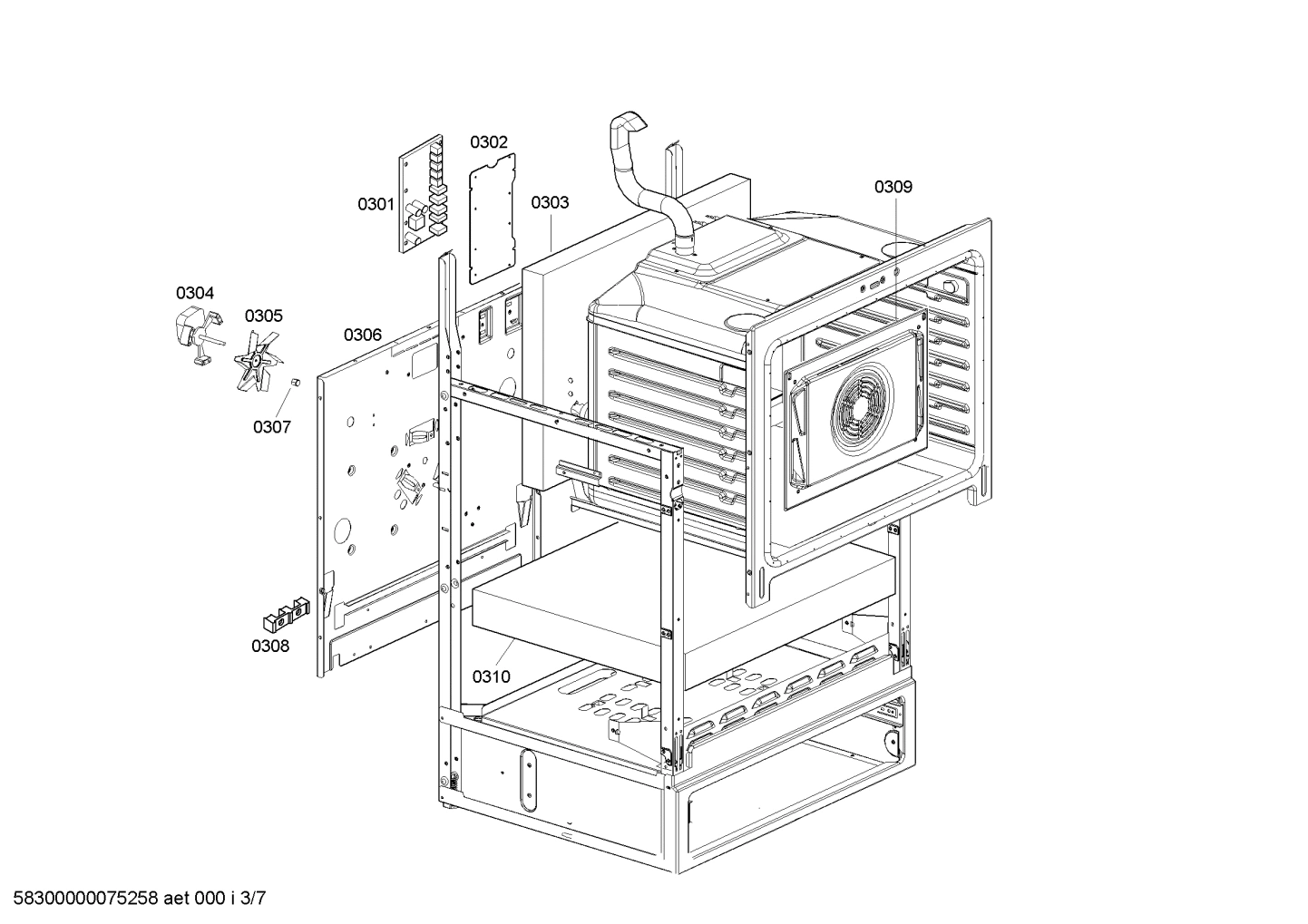

Diagram 3

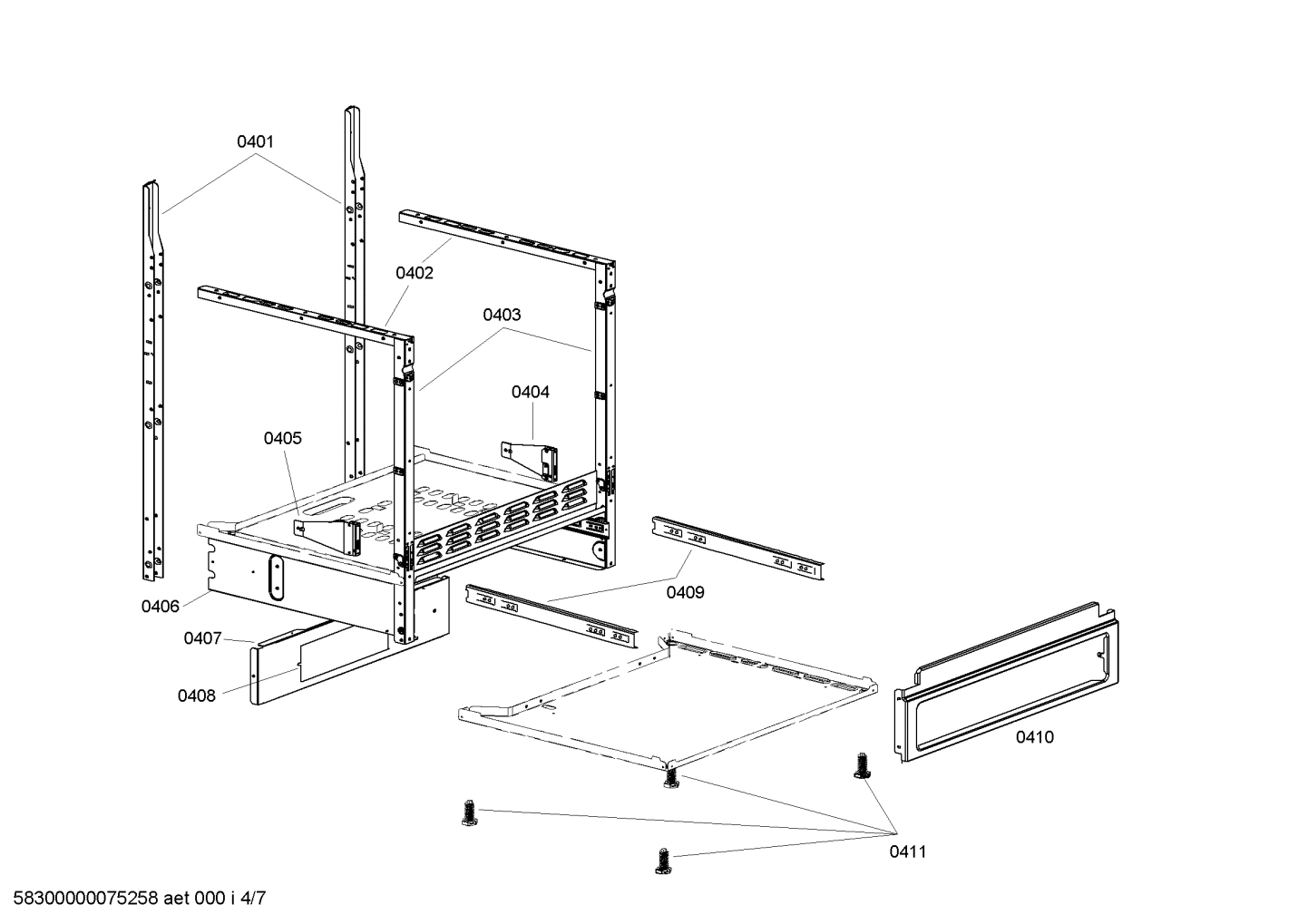

Diagram 4

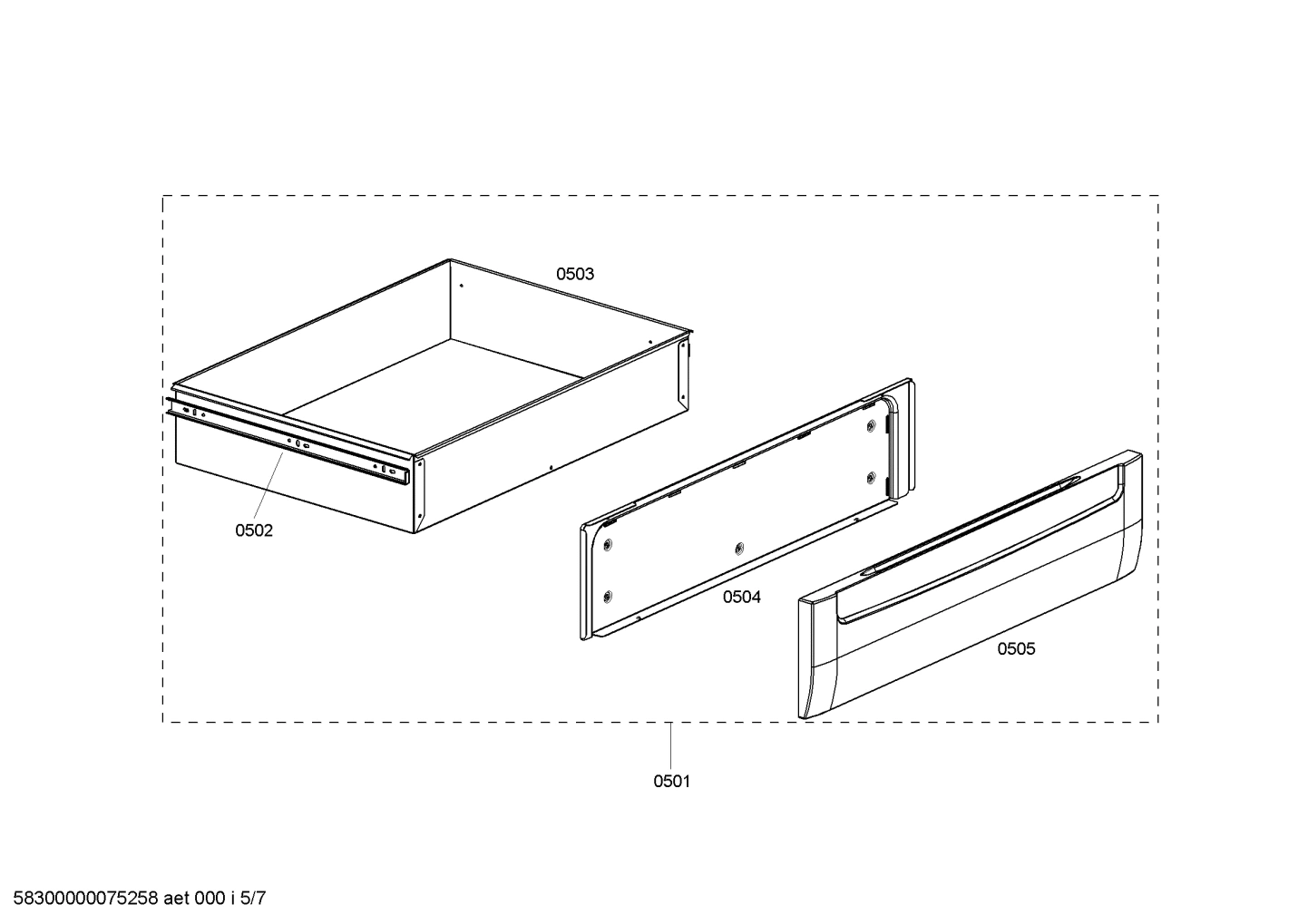

Diagram 5

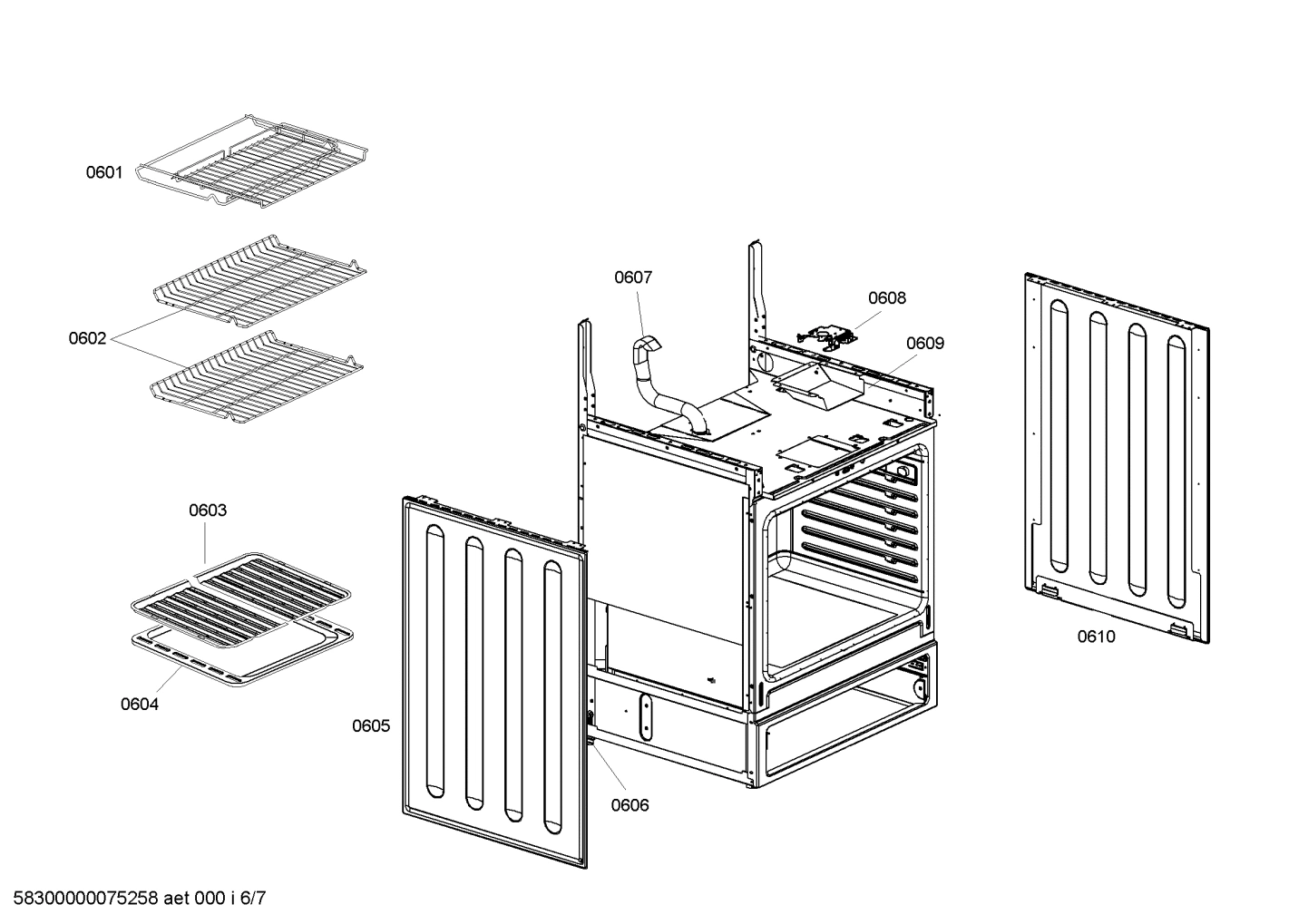

Diagram 6

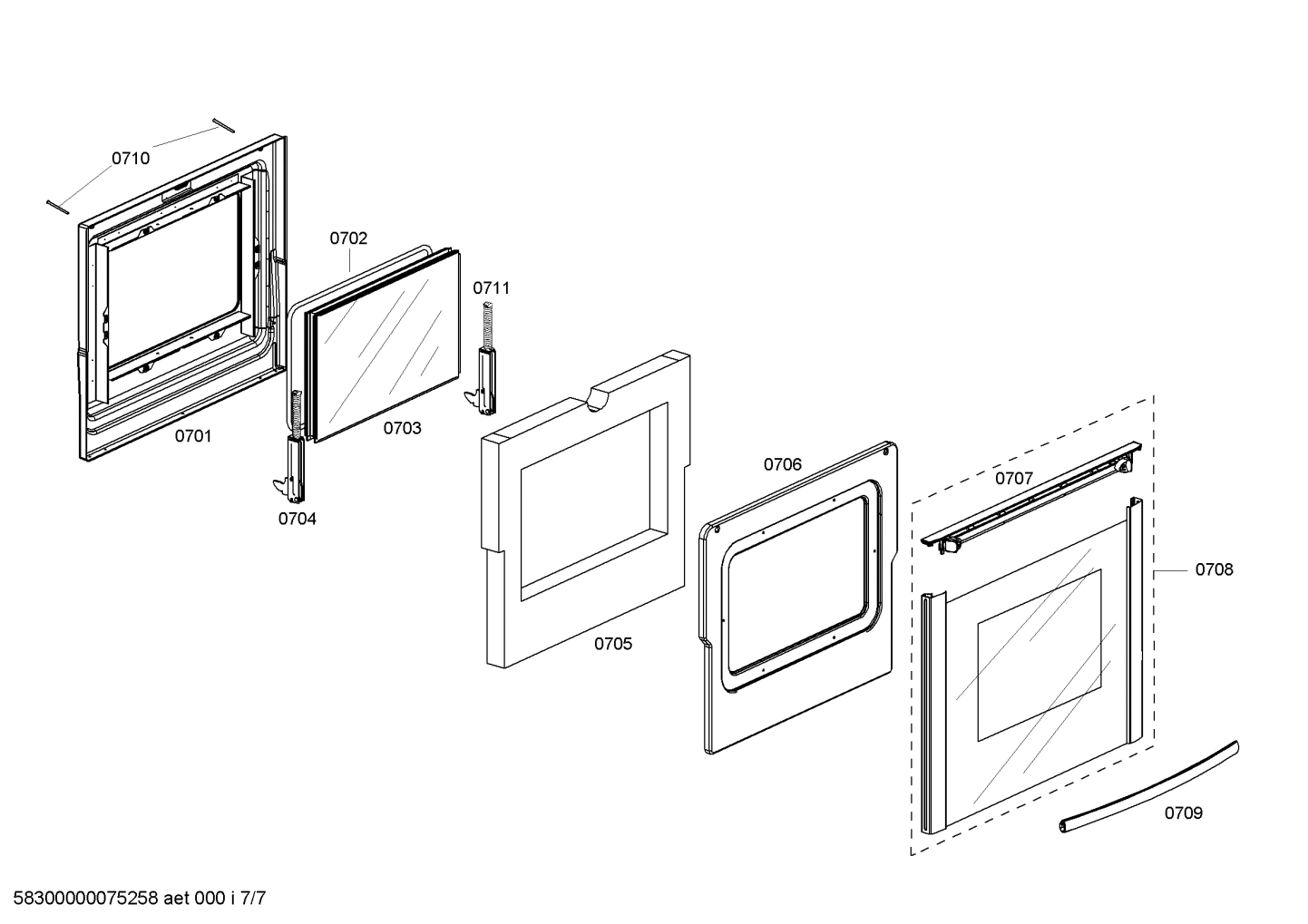

Diagram 7
Common parts from model Bosch HES232C/02 Range Oven
0101
PC board BOS 00497064 Contact Us For Availability
0103
Frame-decor BOS 00422093 Contact Us For Availability
0104
Knob-programme BOS 00422094 Contact Us For Availability
0115
Frame-decor BOS 00436375 Contact Us For Availability
0116
Ring BOS 00436377 No Longer Available
0118
Heating element BOS 00367247 Contact Us For Availability
0119
Heating element BOS 00491581 Contact Us For Availability
0120
Hilight hotplate BOS 00499573 Contact Us For Availability
0204
Lamp BOS 00415045 No Longer Available
0206
Burner BOS 00491571 Contact Us For Availability
0304
Motor BOS 00491576 Contact Us For Availability
0404
Hinge-plate BOS 00491538 No Longer Available
0405
Hinge-plate BOS 00491539 No Longer Available
0602
Grill grid BOS 00438061 Contact Us For Availability
0603
Grill tray BOS 00449756 Contact Us For Availability
0604
Universal pan BOS 00449757 Contact Us For Availability
0605
Panel side BOS 00680732 Contact Us For Availability
0607
Exhaust baffle BOS 00491573 Contact Us For Availability
0608
Latch BOS 00493095 Contact Us For Availability
0609
Lock-clamp BOS 00422027 Contact Us For Availability
0610
Panel side BOS 00680730 Contact Us For Availability
0701
Door-inner BOS 00683705 Contact Us For Availability
0702
Sealing BOS 00491899 Contact Us For Availability
0705
Insulating part BOS 00143678 Contact Us For Availability
0708
Glass front panel BOS 00436381 Contact Us For Availability
0709
Handle-door BOS 00436378 Contact Us For Availability
0710
Screw BOS 00607316 No Longer Available
× ![]()
