Model Bosch HES2320U/02 Range Oven – Common Parts & Diagrams

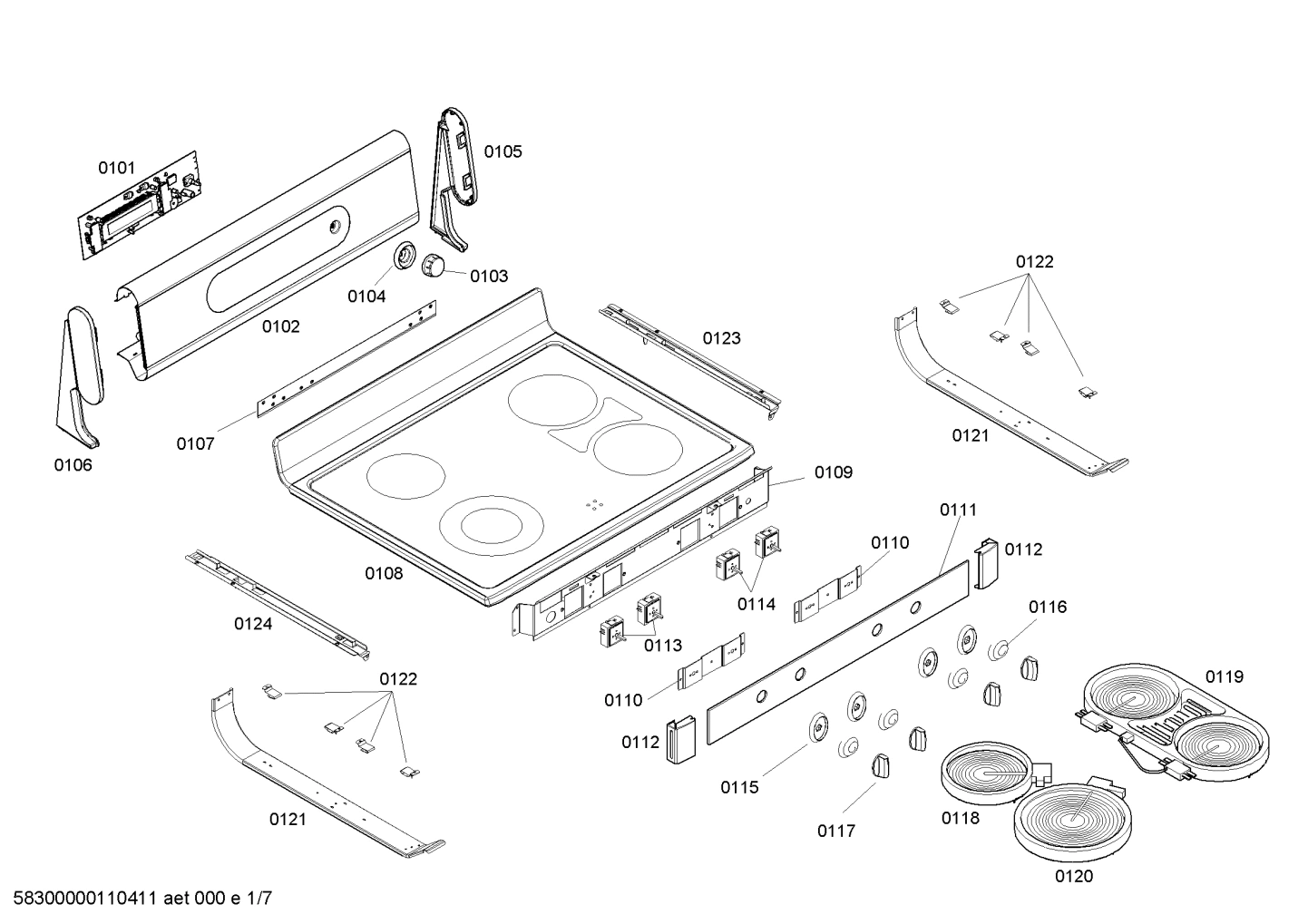

Diagram 1

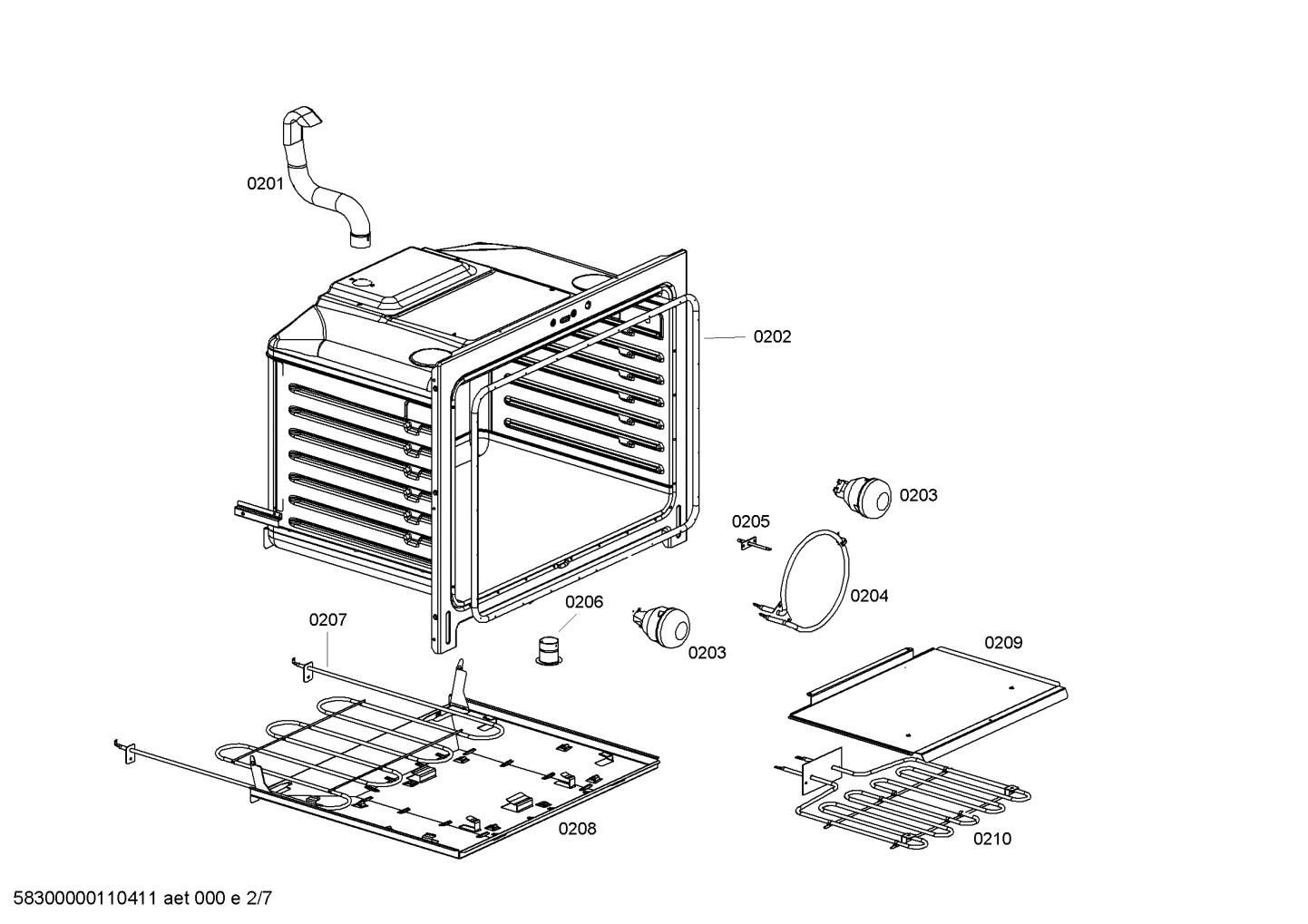

Diagram 2

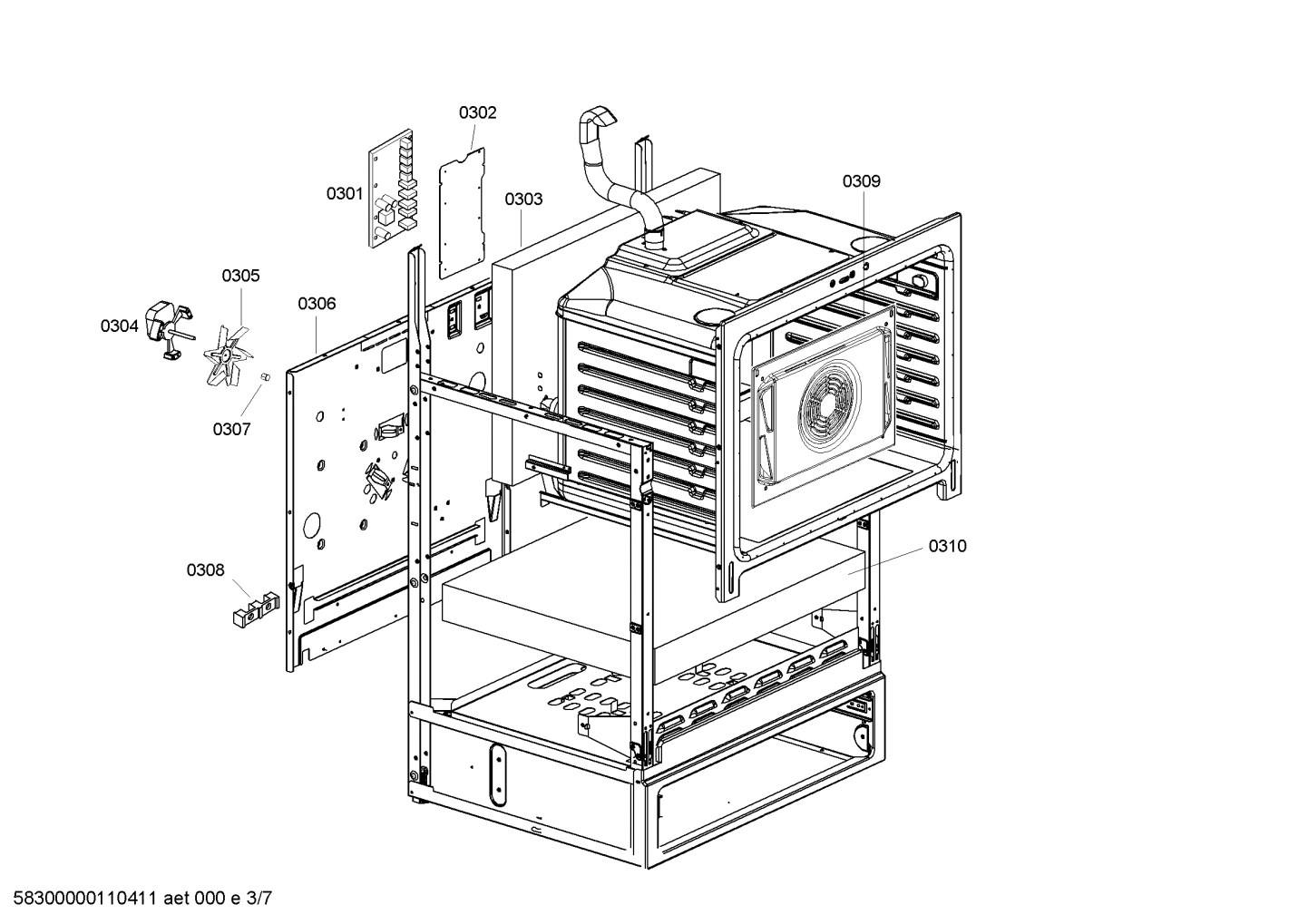

Diagram 3

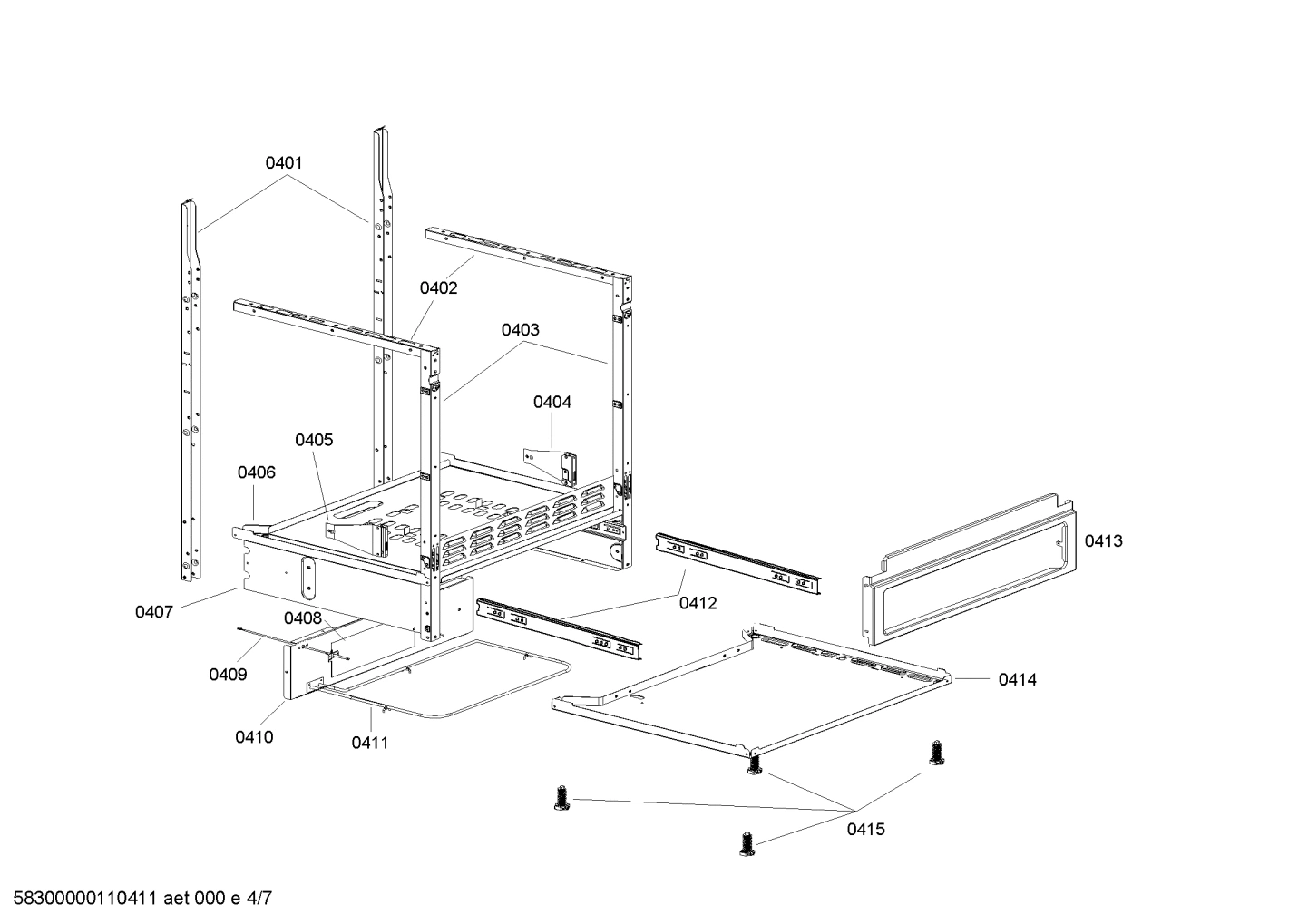

Diagram 4

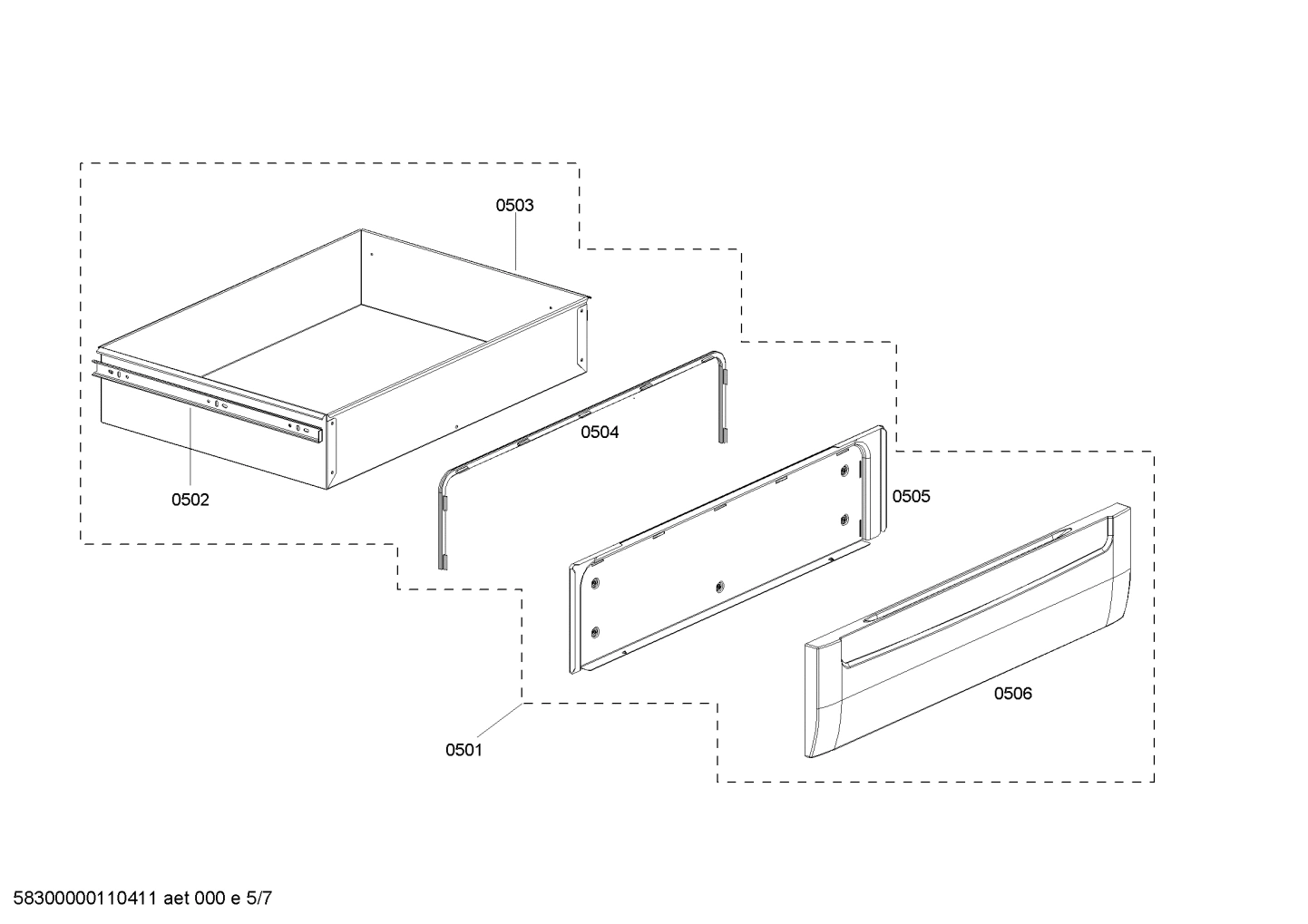

Diagram 5

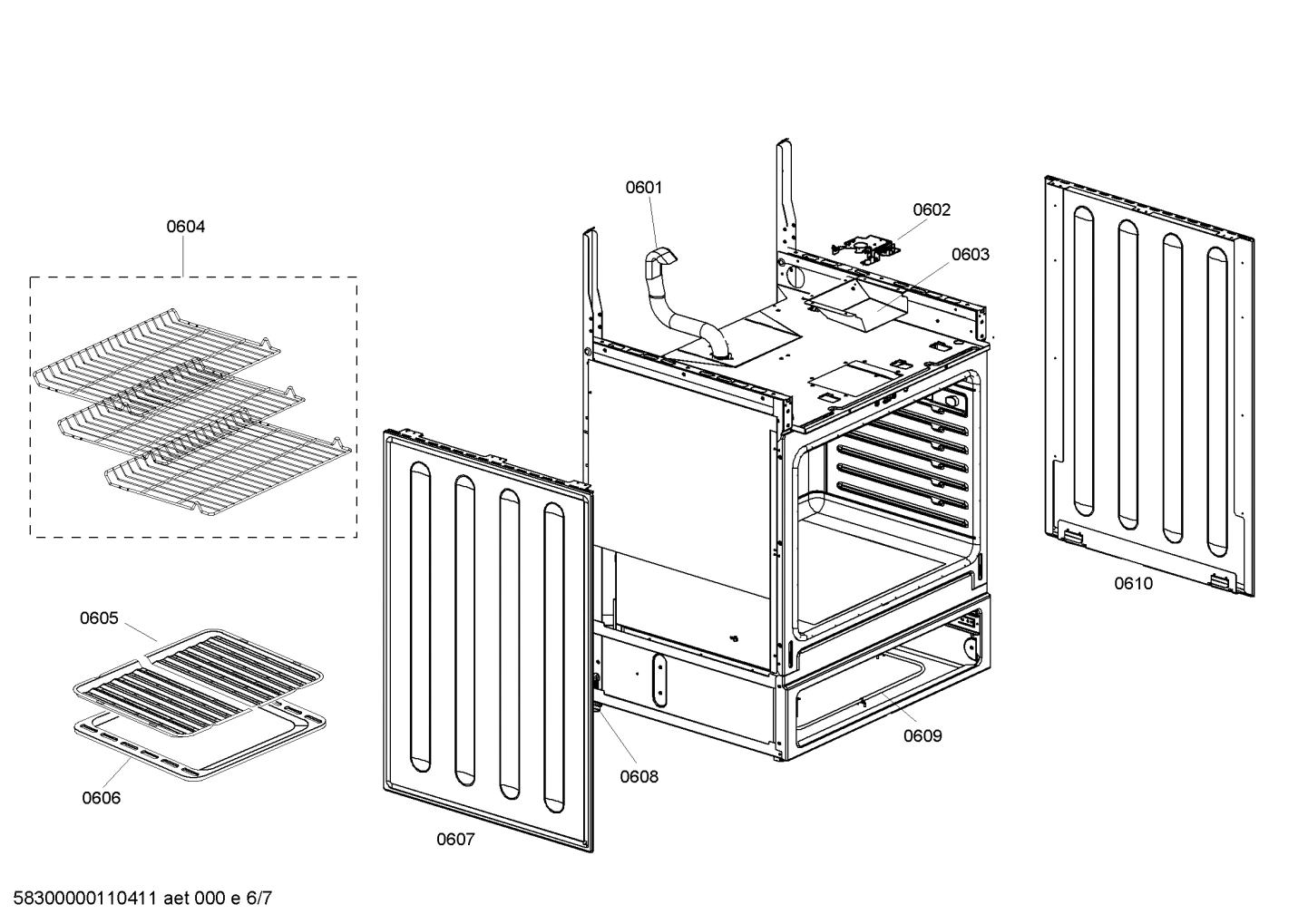

Diagram 6

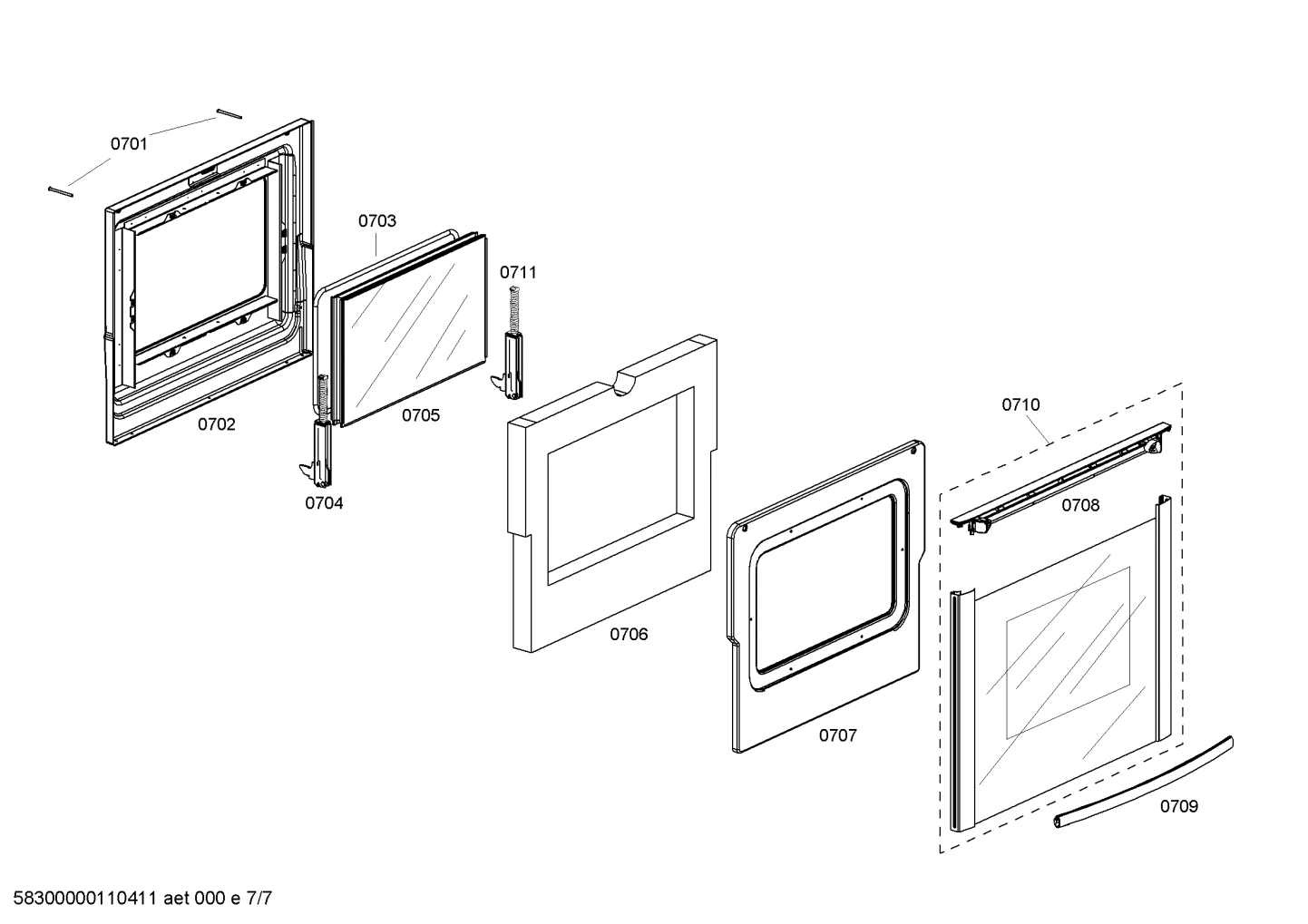

Diagram 7
Common parts from model Bosch HES2320U/02 Range Oven
0101
PC board BOS 00497064 Contact Us For Availability
0103
Knob-programme BOS 00422094 Contact Us For Availability
0105
Frame-decor BOS 00422093 Contact Us For Availability
0112
Frame-decor BOS 00436375 Contact Us For Availability
0115
Ring BOS 00436377 No Longer Available
0116
Spring BOS 00422105 Contact Us For Availability
0118
Heating element BOS 00367247 Contact Us For Availability
0120
Hilight hotplate BOS 00499573 Contact Us For Availability
0203
Lamp BOS 00415045 No Longer Available
0207
Burner BOS 00491571 Contact Us For Availability
0304
Motor BOS 00491576 Contact Us For Availability
0404
Hinge-plate BOS 00491538 No Longer Available
0405
Hinge-plate BOS 00491539 No Longer Available
0411
Heating element BOS 00491787 Contact Us For Availability
0412
Slide BOS 00440843 Contact Us For Availability
0504
Sealing BOS 00436639 Contact Us For Availability
0602
Latch BOS 00493095 Contact Us For Availability
0604
Grill grid BOS 00438061 Contact Us For Availability
0605
Grill tray BOS 00449756 Contact Us For Availability
0606
Universal pan BOS 00449757 Contact Us For Availability
0701
Screw BOS 00607316 No Longer Available
0702
Door-inner BOS 00683705 Contact Us For Availability
0703
Sealing BOS 00491899 Contact Us For Availability
0706
Insulating part BOS 00143678 Contact Us For Availability
0709
Handle-door BOS 00436378 Contact Us For Availability
× ![]()
