Model Bosch HEI7282C/07 Range Oven – Common Parts & Diagrams

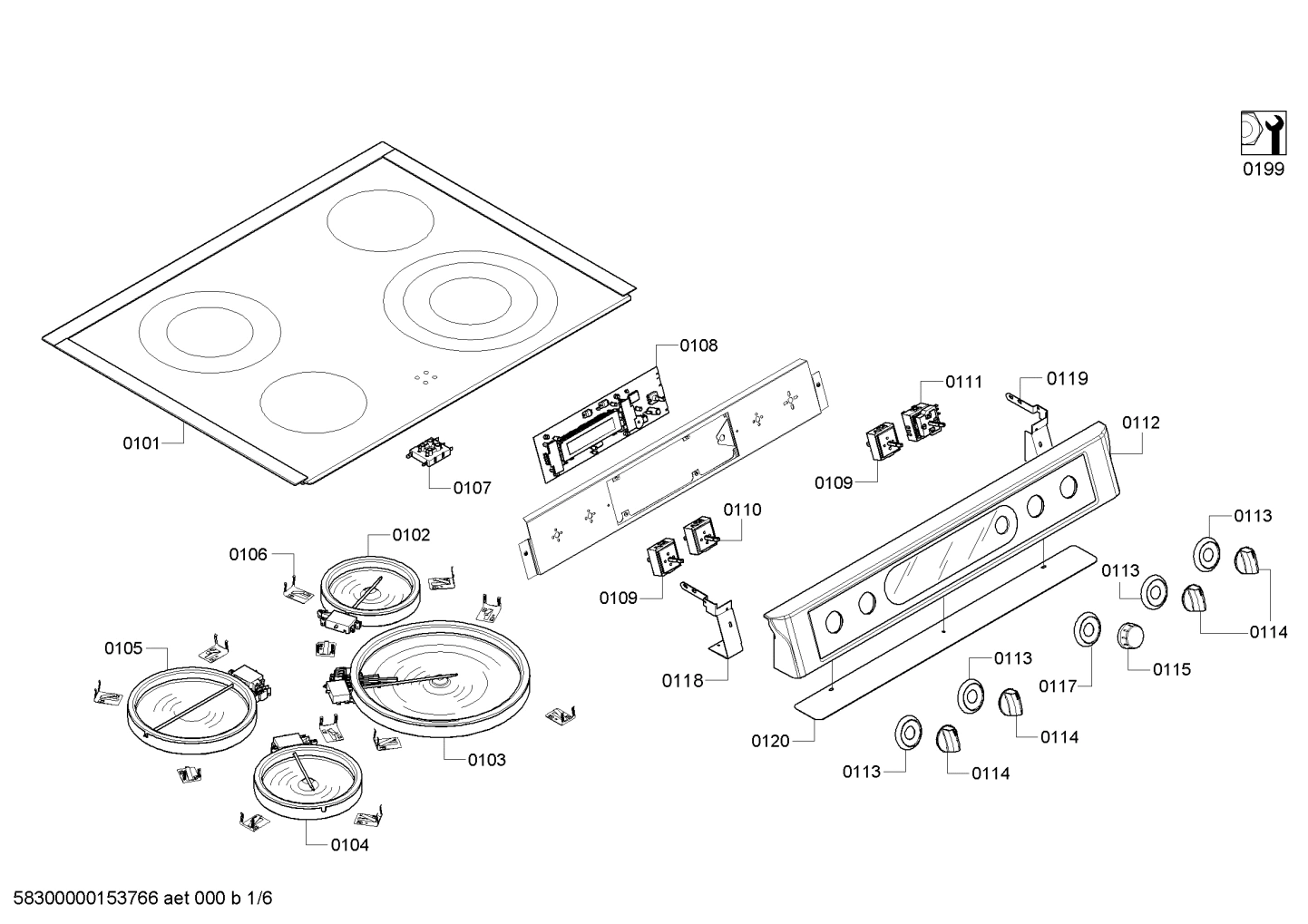

Diagram 1

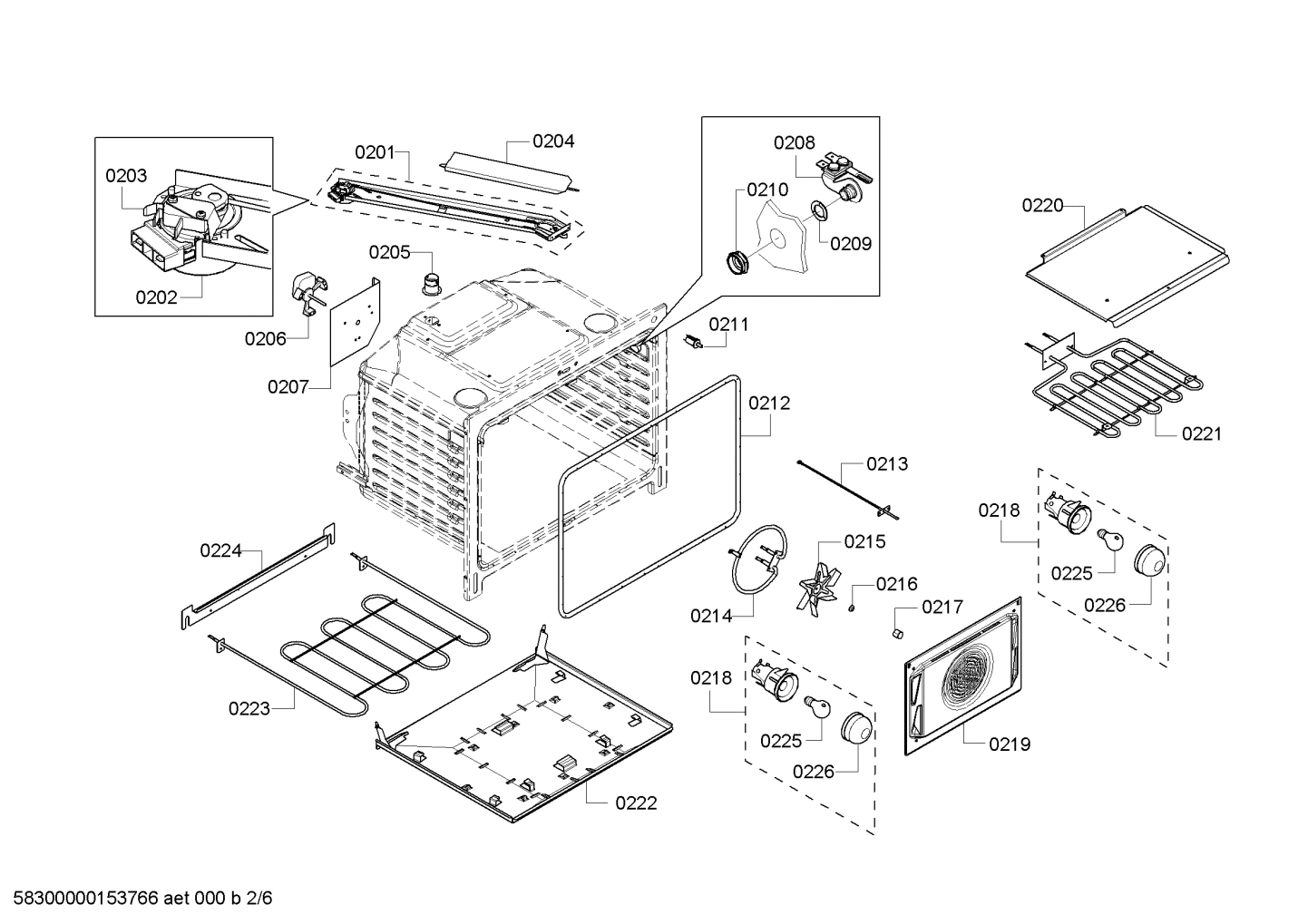

Diagram 2

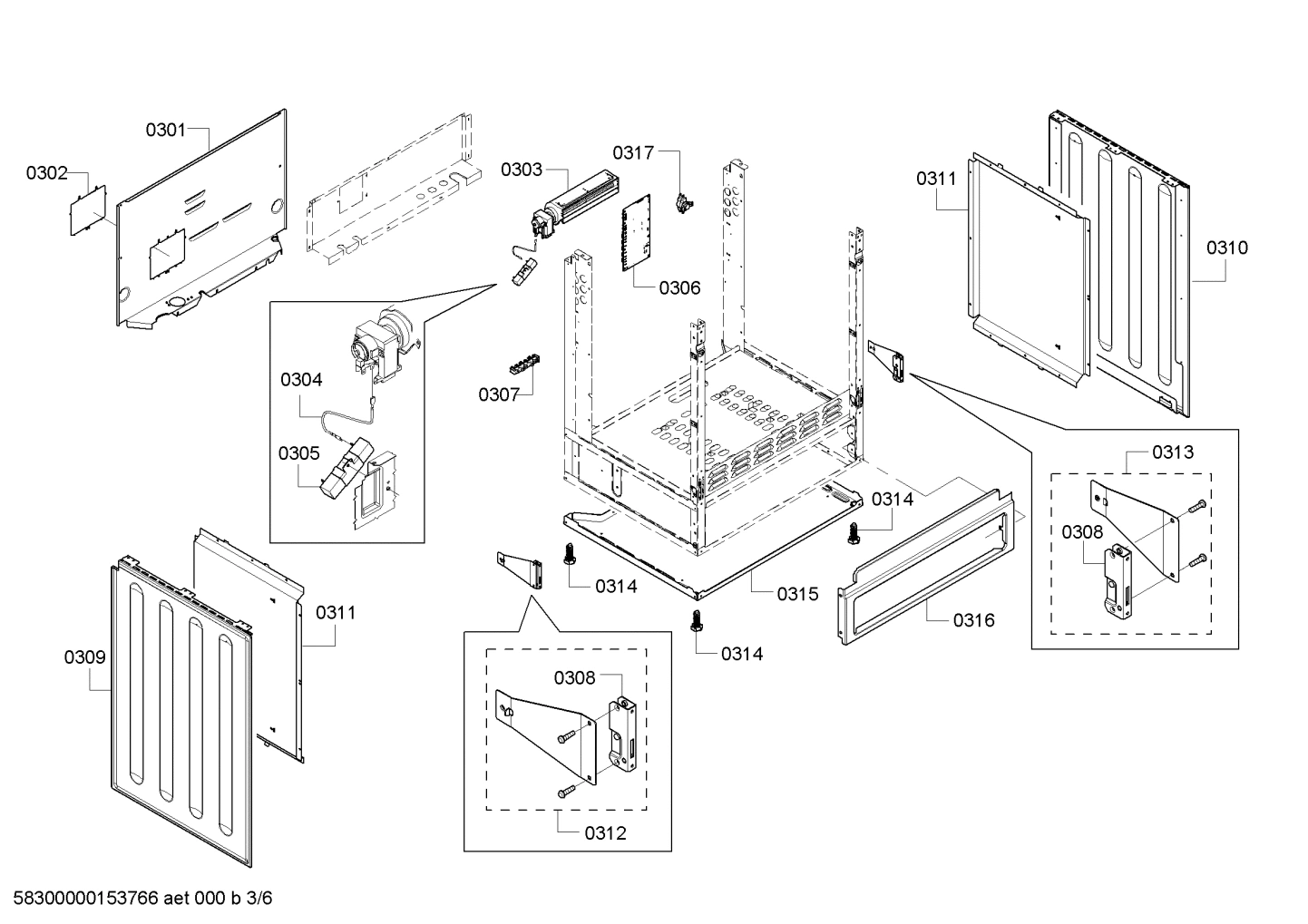

Diagram 3

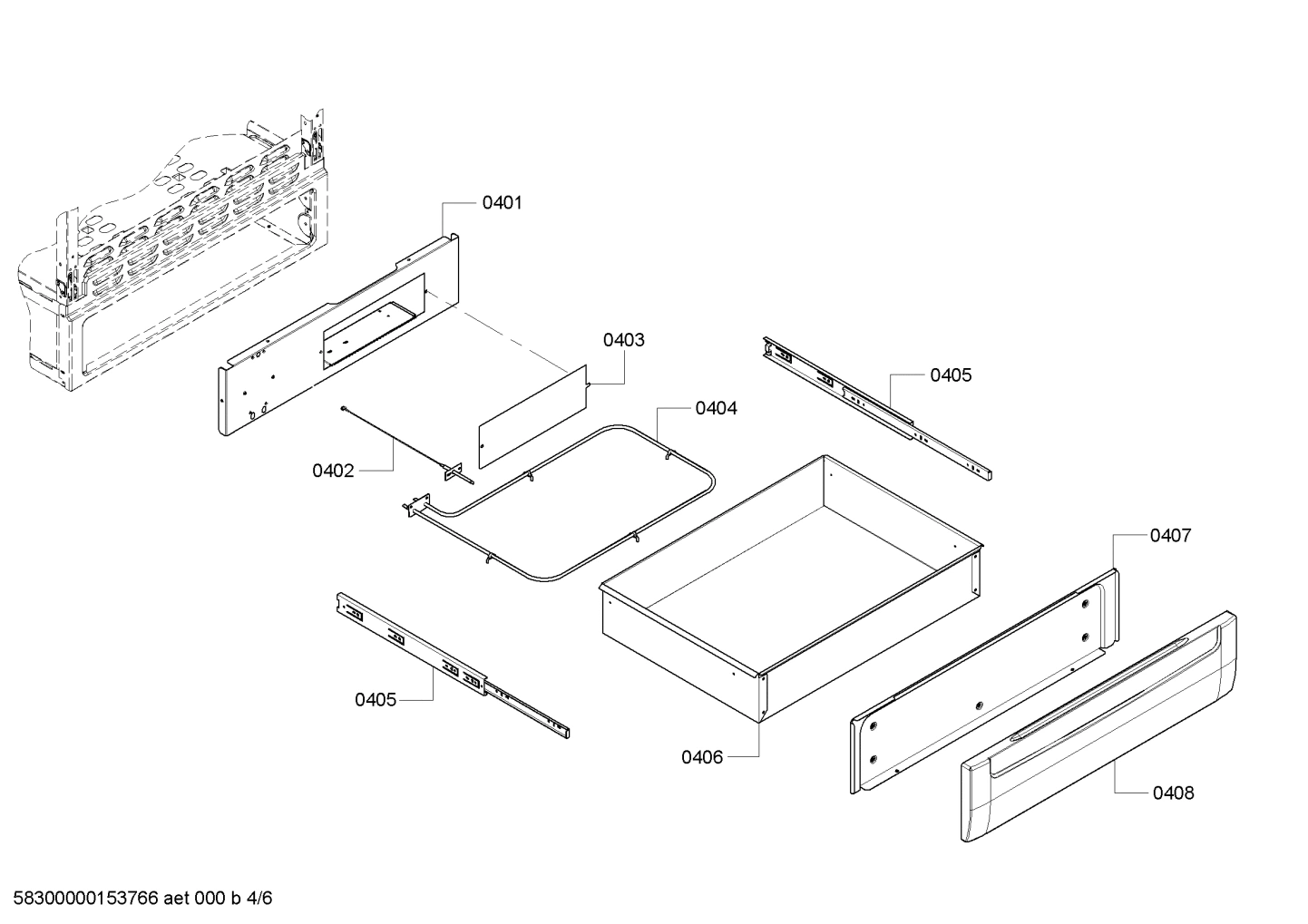

Diagram 4

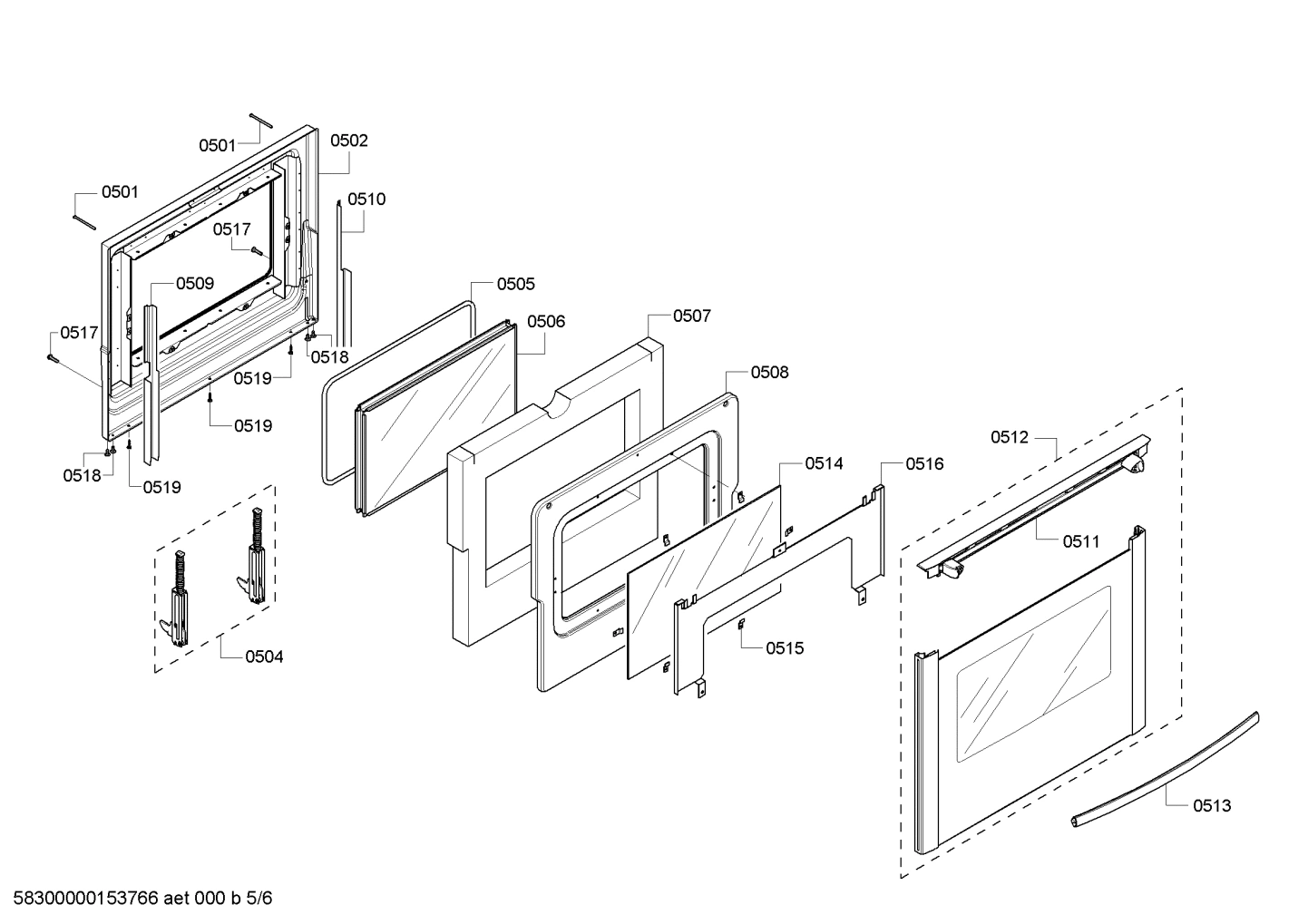

Diagram 5

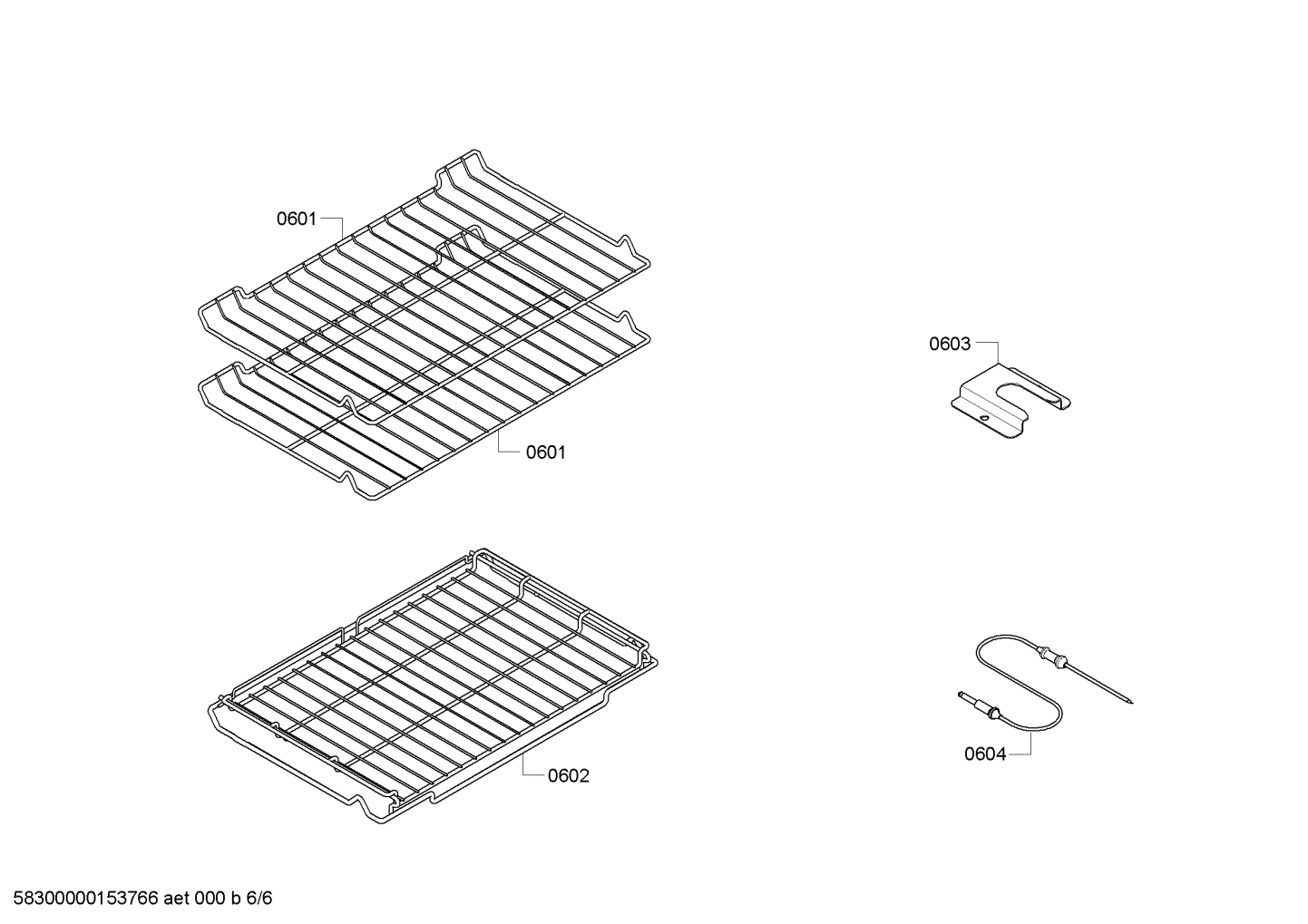

Diagram 6
Common parts from model Bosch HEI7282C/07 Range Oven
0101
Hob top BOS 00243962 Contact Us For Availability
0103
Heating element BOS 00499762 Contact Us For Availability
0108
Display module BOS 00653424 Contact Us For Availability
0155
Filter BOS 00622395 Contact Us For Availability
0202
Motor BOS 00604807 Contact Us For Availability
0203
Switch BOS 00604808 Contact Us For Availability
0206
Motor BOS 00491576 Contact Us For Availability
0211
Switch BOS 00603747 No Longer Available
0218
Lamp BOS 00415045 No Longer Available
0221
Heating element BOS 00144417 Contact Us For Availability
0223
Burner BOS 00491571 Contact Us For Availability
0306
Power module BOS 00657860 Contact Us For Availability
0308
Hinge-window BOS 00492295 No Longer Available
0311
Panel BOS 00422024 Contact Us For Availability
0312
Hinge-plate BOS 00491539 No Longer Available
0313
Hinge-plate BOS 00491538 No Longer Available
0351
Cable harness BOS 00650791 Contact Us For Availability
0352
Cable harness BOS 00499749 Contact Us For Availability
0404
Heating element BOS 00491787 Contact Us For Availability
0405
Slide BOS 00440843 Contact Us For Availability
0501
Screw BOS 00607316 No Longer Available
0502
Door-inner BOS 00683705 Contact Us For Availability
0505
Sealing BOS 00491899 Contact Us For Availability
0507
Insulating part BOS 00143678 Contact Us For Availability
0512
Door-outer BOS 00683496 Contact Us For Availability
0513
Handle-door BOS 00436646 Contact Us For Availability
0514
Glass panel BOS 00665308 Contact Us For Availability
0601
Shelf BOS 00144416 Contact Us For Availability
0602
Grille BOS 00438086 Contact Us For Availability
× ![]()
