Model Bosch HEI7282C/01 Range Oven – Common Parts & Diagrams

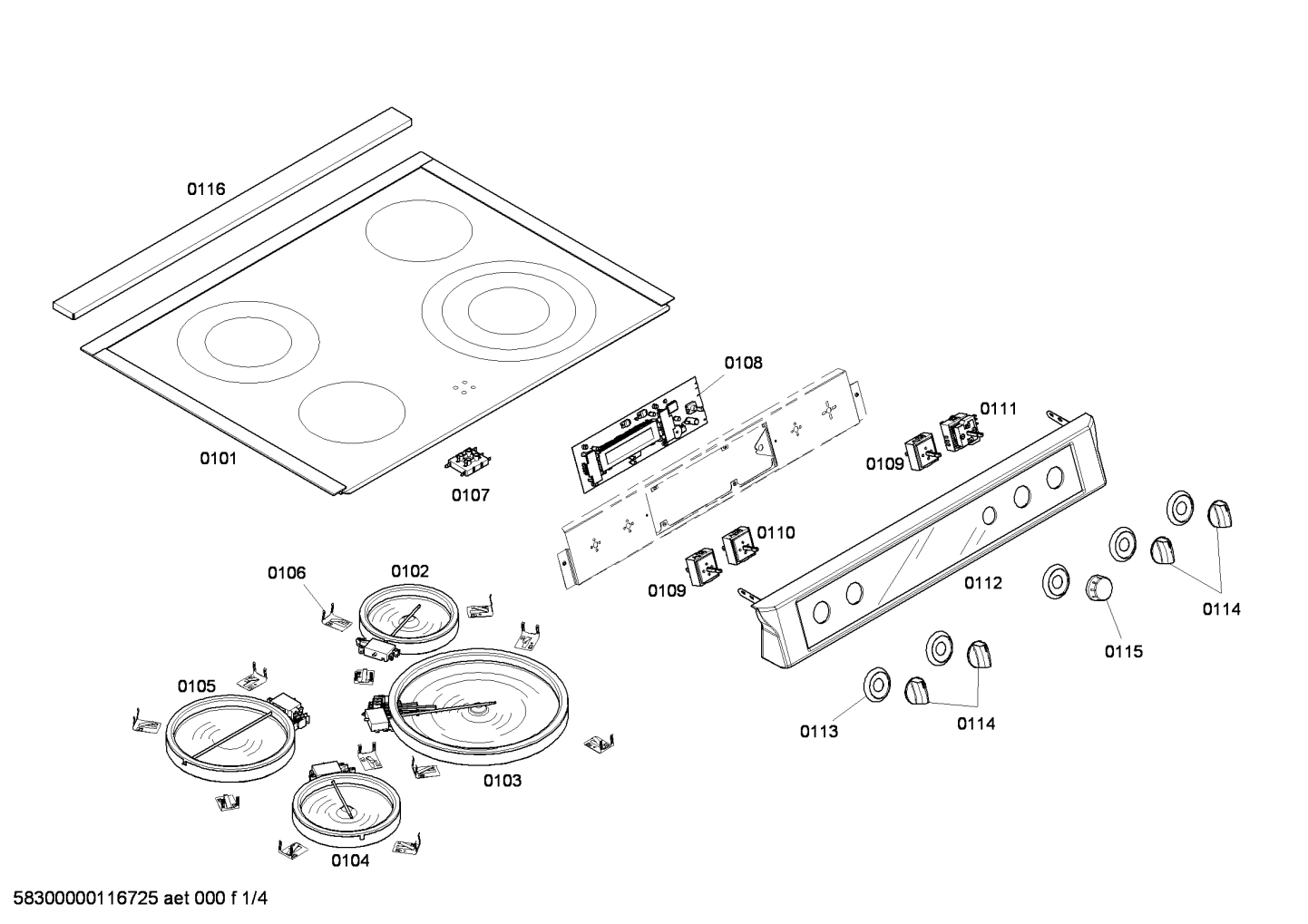

Diagram 1

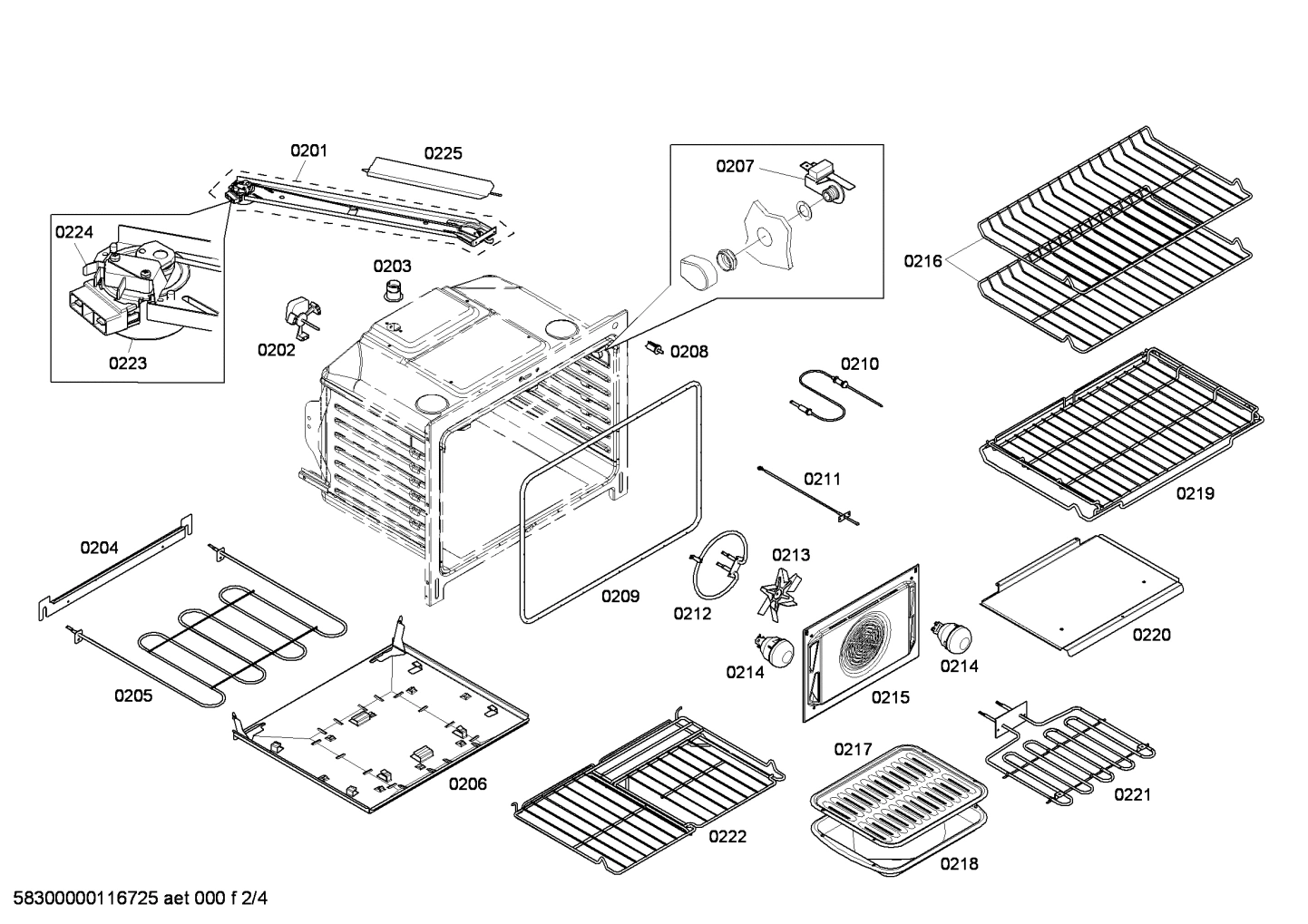

Diagram 2

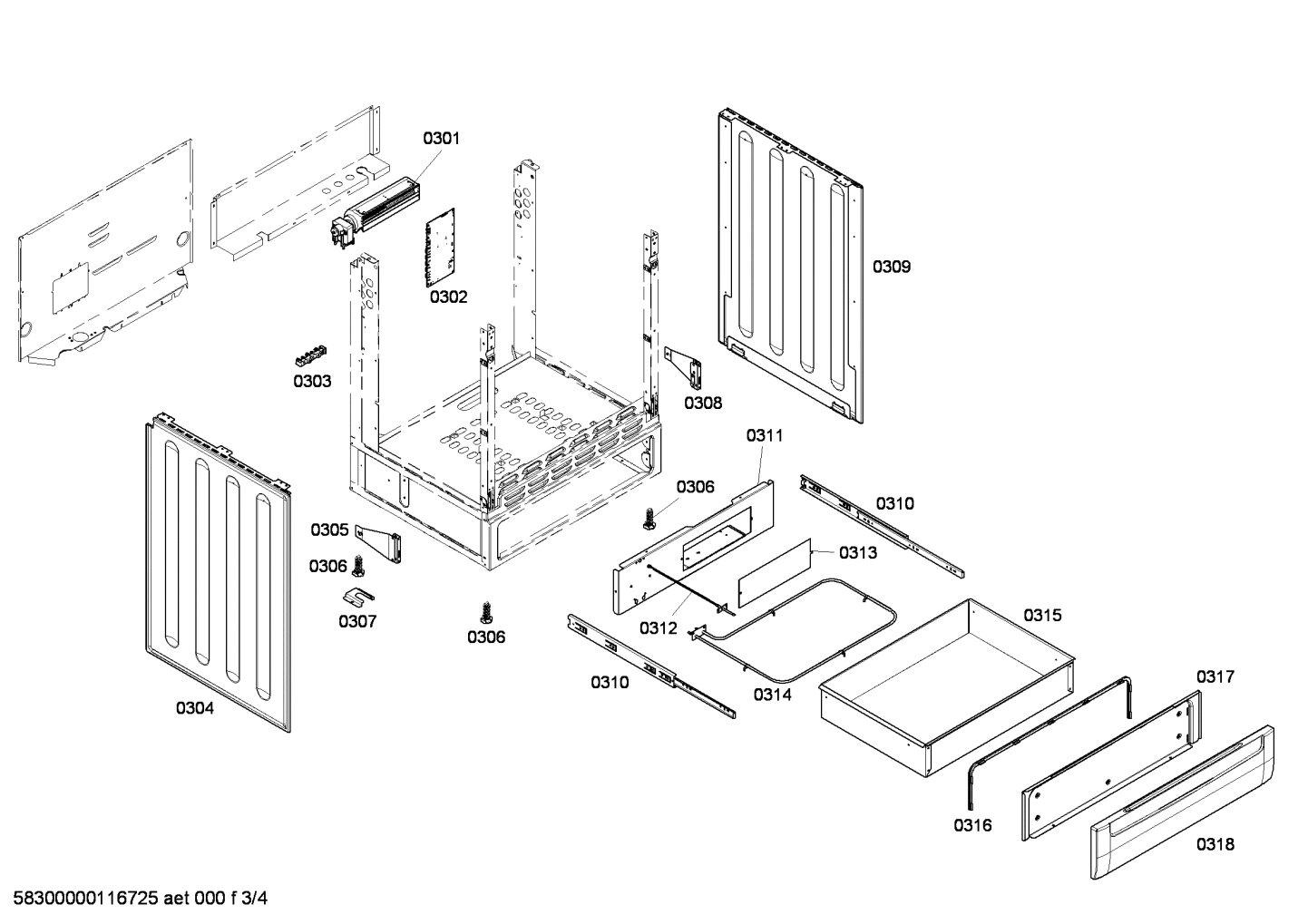

Diagram 3
Diagram 4
Common parts from model Bosch HEI7282C/01 Range Oven
0101
Hob top BOS 00243962 Contact Us For Availability
0103
Heating element BOS 00499762 Contact Us For Availability
0108
Display module BOS 00653424 Contact Us For Availability
0151
Cable harness BOS 00650791 Contact Us For Availability
0153
Cable harness BOS 00499749 Contact Us For Availability
0161
Filter BOS 00622395 Contact Us For Availability
0202
Motor BOS 00491576 Contact Us For Availability
0205
Burner BOS 00491571 Contact Us For Availability
0208
Switch BOS 00603747 No Longer Available
0214
Lamp BOS 00415045 No Longer Available
0216
Shelf BOS 00144416 Contact Us For Availability
0217
Grill tray BOS 00449756 Contact Us For Availability
0218
Universal pan BOS 00449757 Contact Us For Availability
0219
Grille BOS 00438086 Contact Us For Availability
0221
Heating element BOS 00144417 Contact Us For Availability
0223
Motor BOS 00604807 Contact Us For Availability
0224
Switch BOS 00604808 Contact Us For Availability
0302
Power module BOS 00657860 Contact Us For Availability
0305
Hinge-plate BOS 00491539 No Longer Available
0308
Hinge-plate BOS 00491538 No Longer Available
0310
Slide BOS 00440843 Contact Us For Availability
0314
Heating element BOS 00491787 Contact Us For Availability
0316
Sealing BOS 00436639 Contact Us For Availability
0401
Door-inner BOS 00683705 Contact Us For Availability
0405
Insulating part BOS 00143678 Contact Us For Availability
0408
Door-outer BOS 00449217 Contact Us For Availability
0409
Handle-door BOS 00436646 Contact Us For Availability
0410
Screw BOS 00607316 No Longer Available
0450
Sealing BOS 00491899 Contact Us For Availability
× ![]()
