Model Bosch HEI7052U/03 Range Oven – Common Parts & Diagrams
Diagram 1

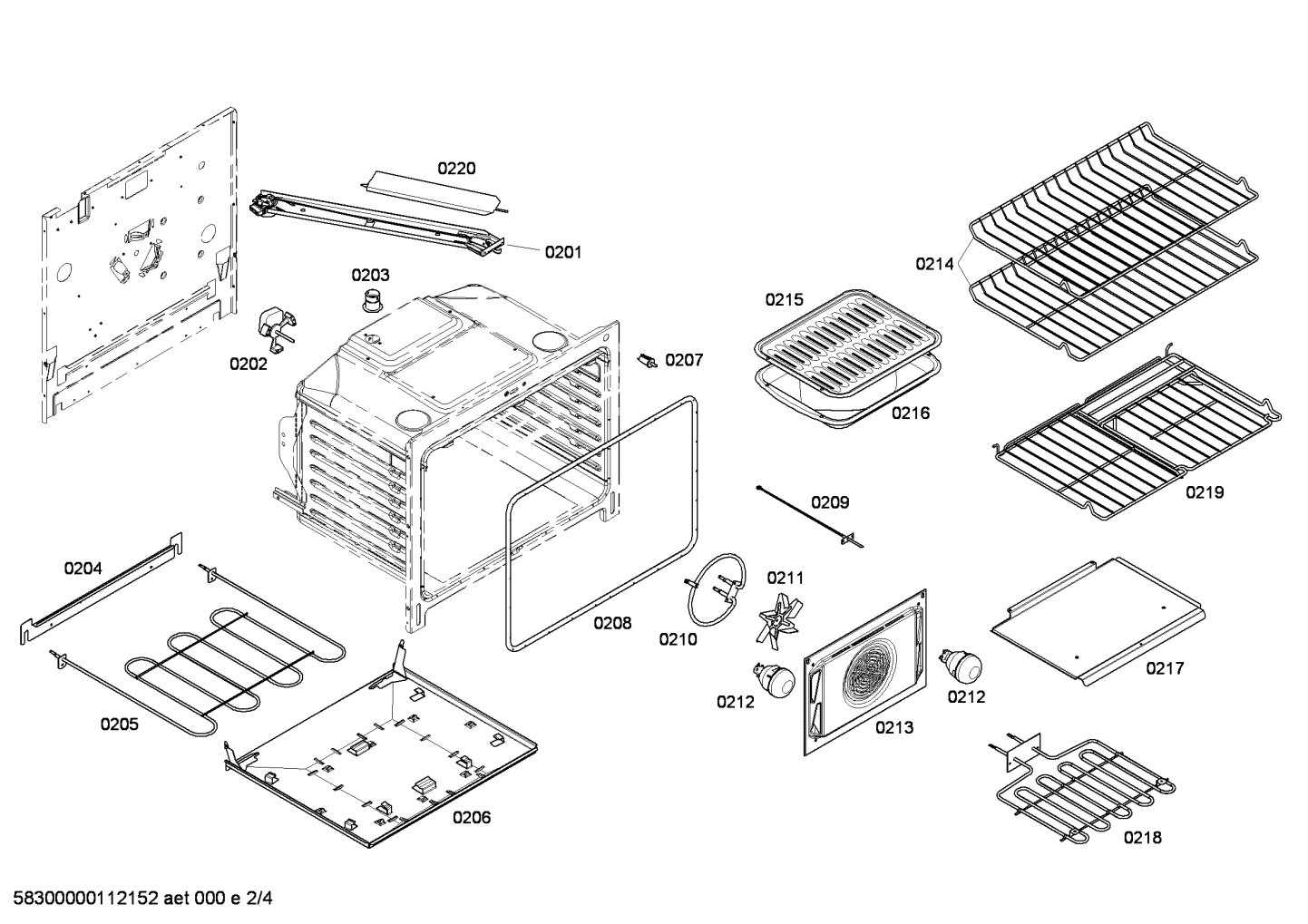

Diagram 2

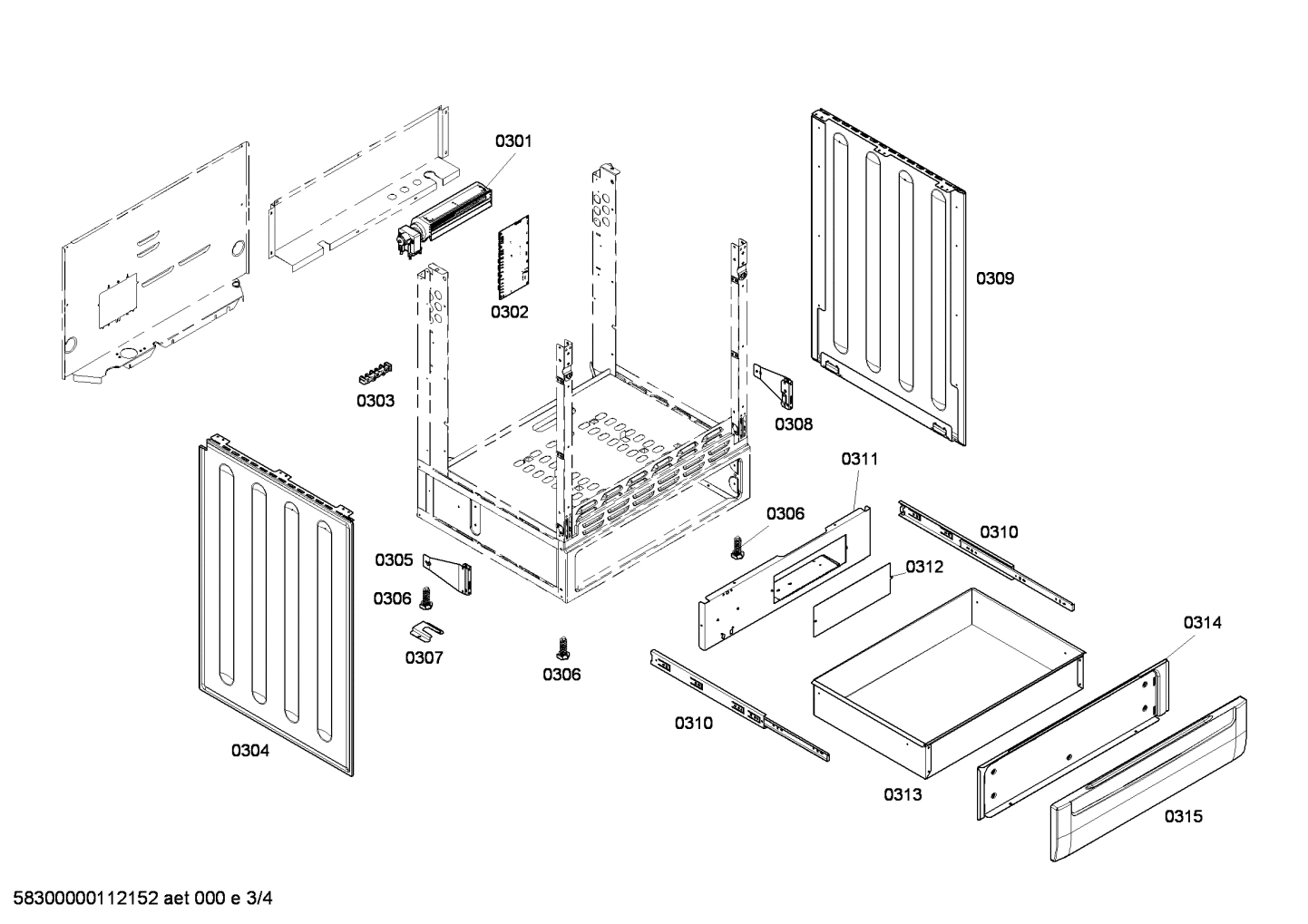

Diagram 3

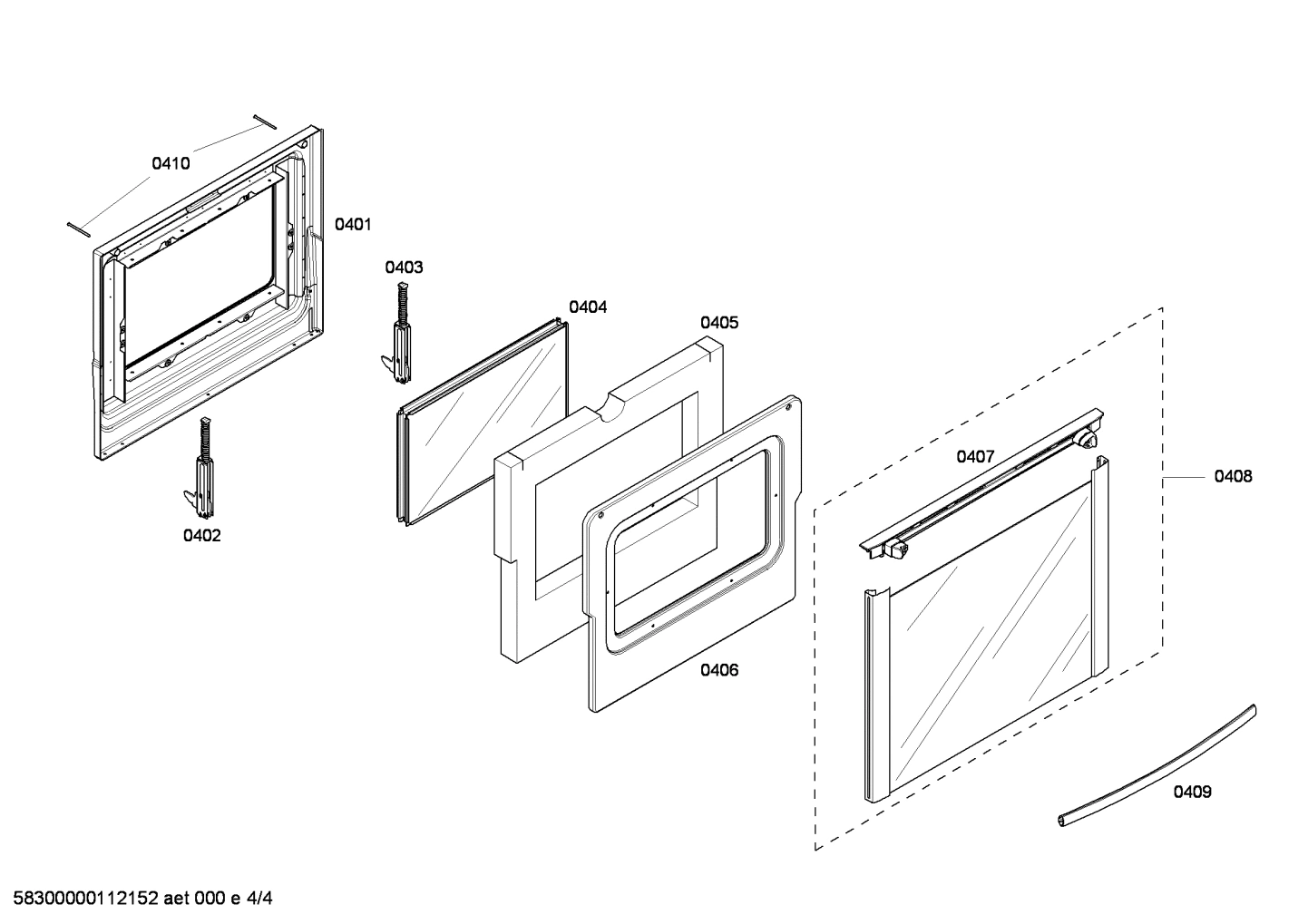

Diagram 4
Common parts from model Bosch HEI7052U/03 Range Oven
0101
Hob top BOS 00243963 Contact Us For Availability
0107
Display module BOS 00653424 Contact Us For Availability
0113
Knob BOS 00603761 Contact Us For Availability
0114
Knob-programme BOS 00422367 Contact Us For Availability
0153
Cable harness BOS 00499749 Contact Us For Availability
0159
Filter BOS 00622395 Contact Us For Availability
0202
Motor BOS 00491576 Contact Us For Availability
0205
Burner BOS 00491571 Contact Us For Availability
0207
Switch BOS 00603747 No Longer Available
0212
Lamp BOS 00415045 No Longer Available
0214
Shelf BOS 00144416 Contact Us For Availability
0215
Grill tray BOS 00449756 Contact Us For Availability
0216
Universal pan BOS 00449757 Contact Us For Availability
0218
Heating element BOS 00144417 Contact Us For Availability
0302
Power module BOS 00657860 Contact Us For Availability
0305
Hinge-plate BOS 00491539 No Longer Available
0308
Hinge-plate BOS 00491538 No Longer Available
0310
Slide BOS 00440843 Contact Us For Availability
0401
Door-inner BOS 00683705 Contact Us For Availability
0405
Insulating part BOS 00143678 Contact Us For Availability
0408
Door-outer BOS 00449216 Contact Us For Availability
0409
Handle-door BOS 00436646 Contact Us For Availability
0410
Screw BOS 00607316 No Longer Available
0450
Sealing BOS 00491899 Contact Us For Availability
× ![]()
