Bosch HEI7032C/06 Range Oven

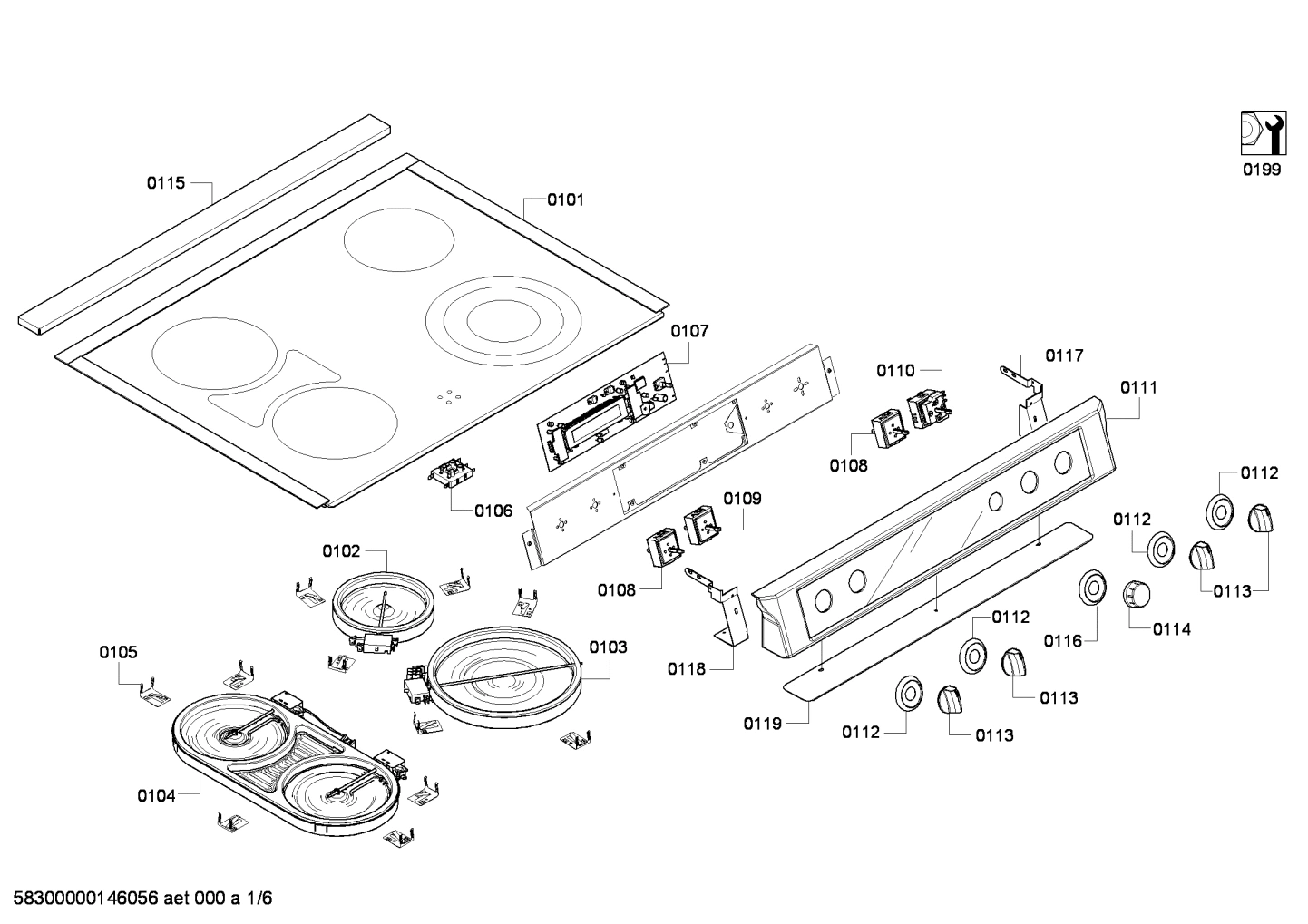

0102

00499755 Bosch Range Heating Element Backorder BOS 00499755 $121.53

View on Model

0103

00499758 Bosch Range Heating Element Backorder BOS 00499758 $244.10

View on Model

0104

00443384 Bosch Range Heating Element In Stock BOS 00443384 $424.63

View on Model

0106

00422109 Bosch Range Lamp Backorder BOS 00422109 $70.03

View on Model

0109

00422133 Bosch Range Energy Regulator In Stock BOS 00422133 $67.60

View on Model

0110

00603864 Bosch Range Switch Backorder BOS 00603864 $100.93

View on Model

0112

00605666 Bosch Range Grommet In Stock BOS 00605666 $9.26

View on Model

0116

00630686 Bosch Range Ring Backorder BOS 00630686 $59.73

View on Model

0150

00651017 Bosch Range Cable Harness Assembly Backorder BOS 00651017 $153.46

View on Model

0154

00422098 Bosch Oven Screw In Stock BOS 00422098 $27.79

View on Model

0159

Filter BOS 00622395 Contact Us For Availability

View on Model

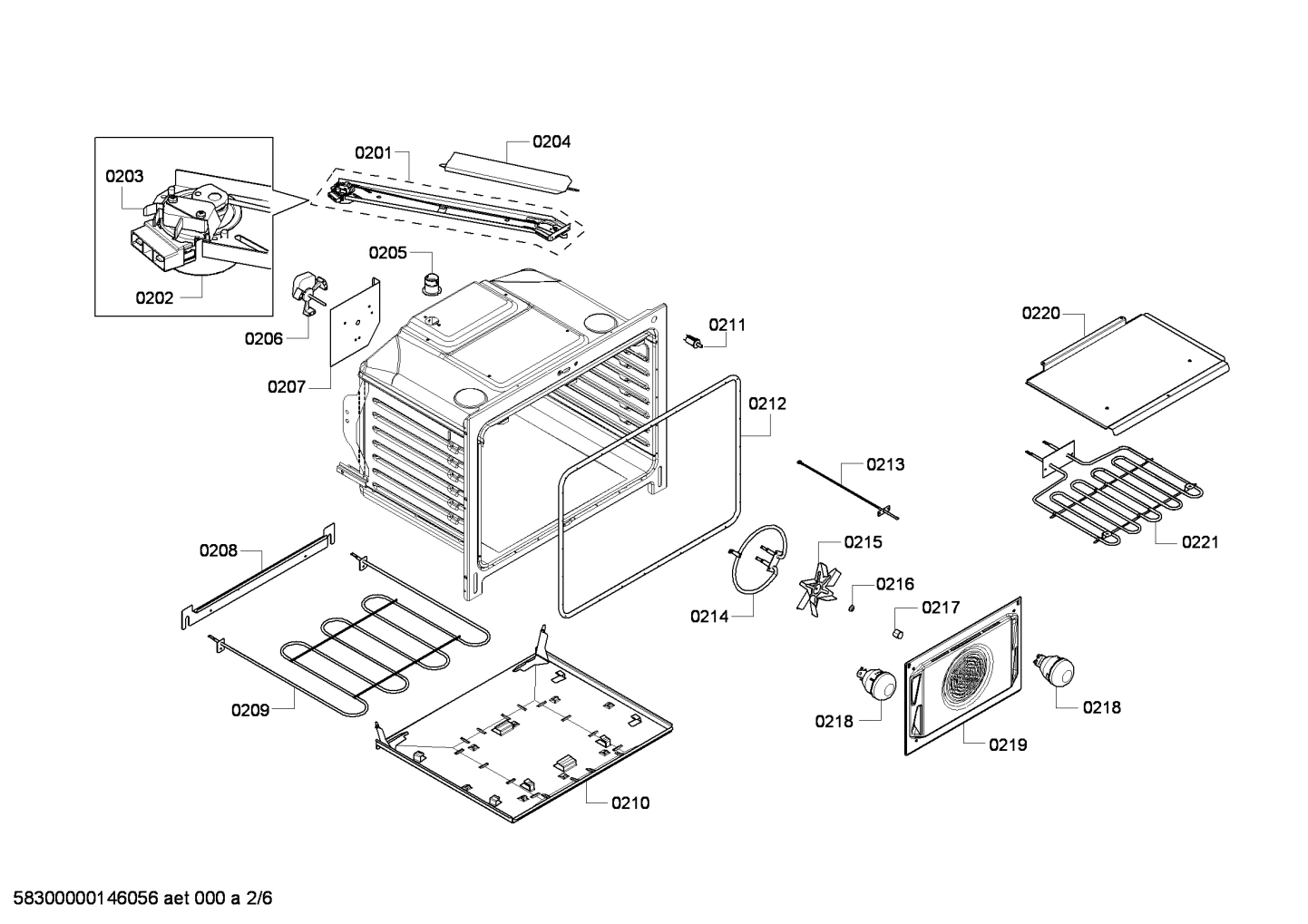

0201

00746648 Bosch Range Latch Backorder BOS 00746648 $120.50

View on Model

0203

Switch BOS 00604808 No Longer Available

View on Model

0205

00491572 Bosch Oven Catalyzer In Stock BOS 00491572 $54.58

View on Model

0206

Motor BOS 00491576 Contact Us For Availability

View on Model

0211

Switch BOS 00603747 No Longer Available

View on Model

0212

00491569 Bosch Oven Door Seal In Stock BOS 00491569 $83.51

View on Model

0213

00422089 Bosch Range Sensor In Stock BOS 00422089 $58.66

View on Model

0214

00436632 Bosch Range Heating Element Backorder BOS 00436632 $169.04

View on Model

0215

00491577 Bosch Oven Fan Blade Backorder BOS 00491577 $30.89

View on Model

0216

00422090 Bosch Oven Washer Backorder BOS 00422090 $16.47

View on Model

0217

00471532 Bosch Oven Nut Backorder BOS 00471532 $10.29

View on Model

0218

00415045 Bosch Oven Lamp In Stock BOS 00415045 $79.53

View on Model

0251

00623710 Bosch Oven Lamp In Stock BOS 00623710 $6.86

View on Model

0252

00414513 Bosch Oven Lens In Stock BOS 00414513 $20.59

View on Model

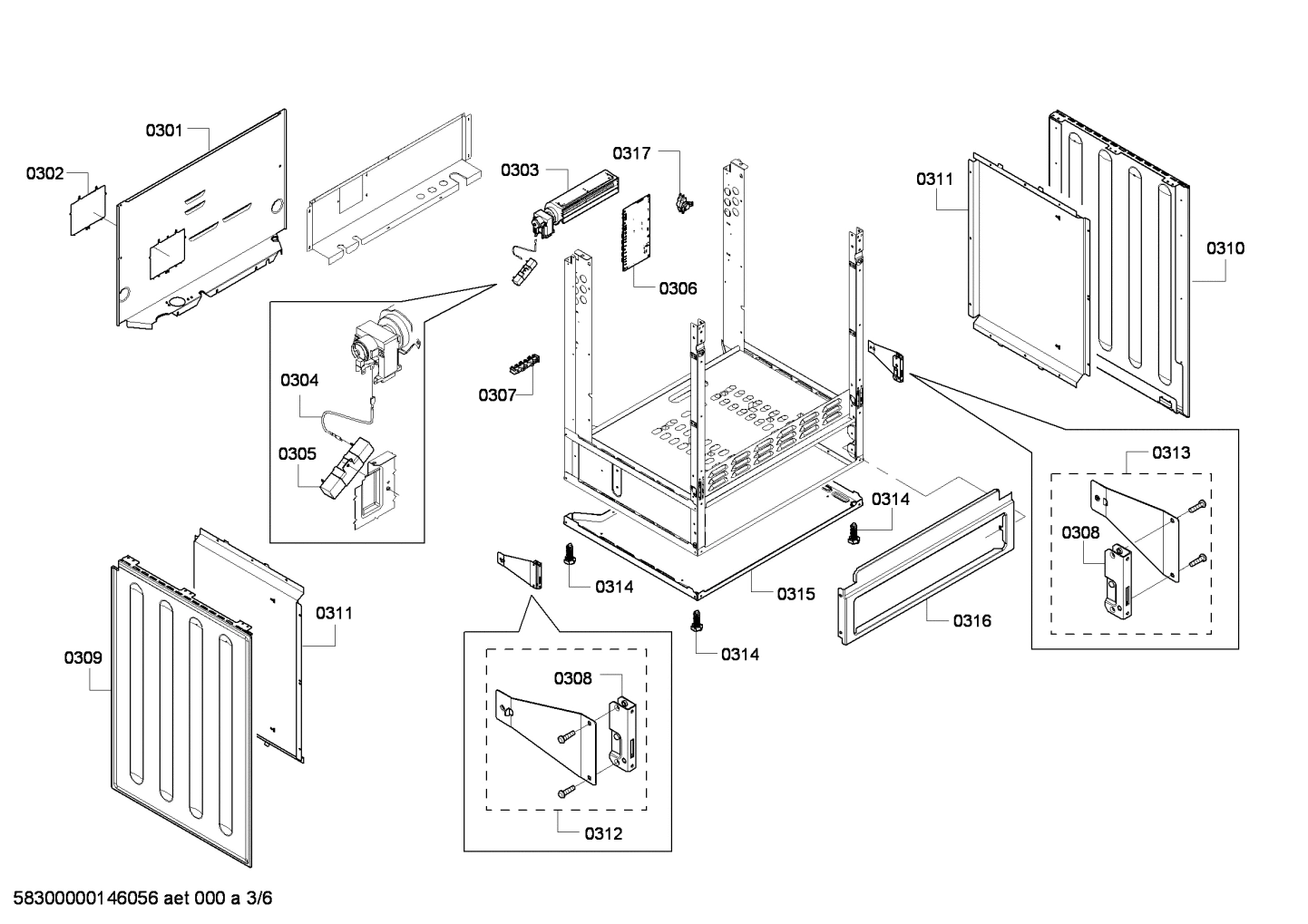

0303

00448635 Bosch Range Fan In Stock BOS 00448635 $196.89

View on Model

0304

00648519 Bosch Range Wire Backorder BOS 00648519 $13.38

View on Model

0305

00616712 Bosch Range Resistor Backorder BOS 00616712 $33.98

View on Model

0307

00436364 Bosch Oven Terminal Box Backorder BOS 00436364 $30.89

View on Model

0308

Hinge-window BOS 00492295 No Longer Available

View on Model

0311

Panel BOS 00422024 Contact Us For Availability

View on Model

0312

Hinge-plate BOS 00491539 No Longer Available

View on Model

0313

Hinge-plate BOS 00491538 No Longer Available

View on Model

0314

00429065 Bosch Range Foot In Stock BOS 00429065 $26.83

View on Model

0317

00617041 Bosch Range Temperature Limiter Backorder BOS 00617041 $65.91

View on Model

0353

00499748 Bosch Range Cable Harness Backorder BOS 00499748 $33.98

View on Model

0354

00424823 Bosch Range Terminal Backorder BOS 00424823 $27.80

View on Model

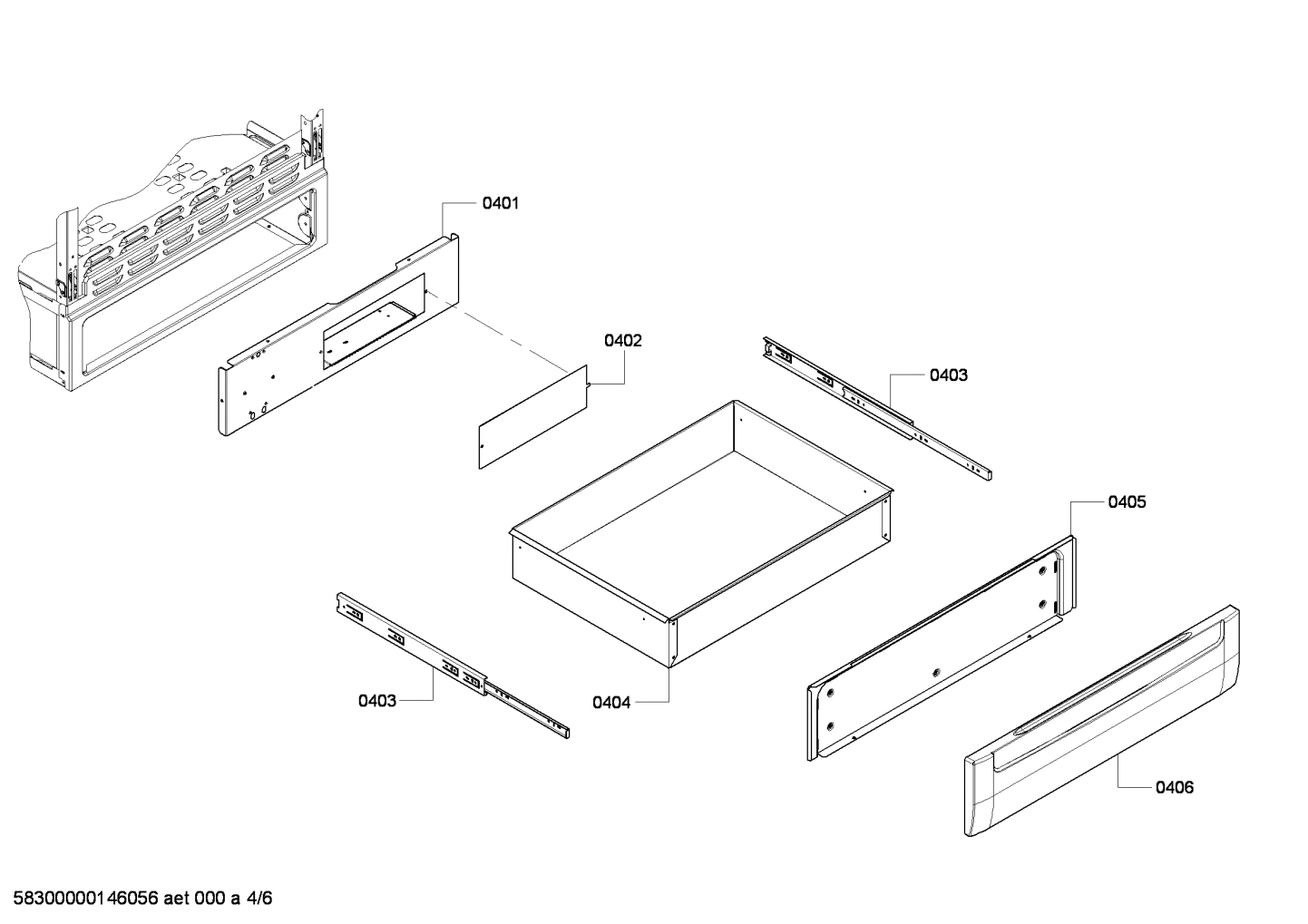

0403

00440843 Bosch Oven Slide Backorder BOS 00440843 $65.91

View on Model

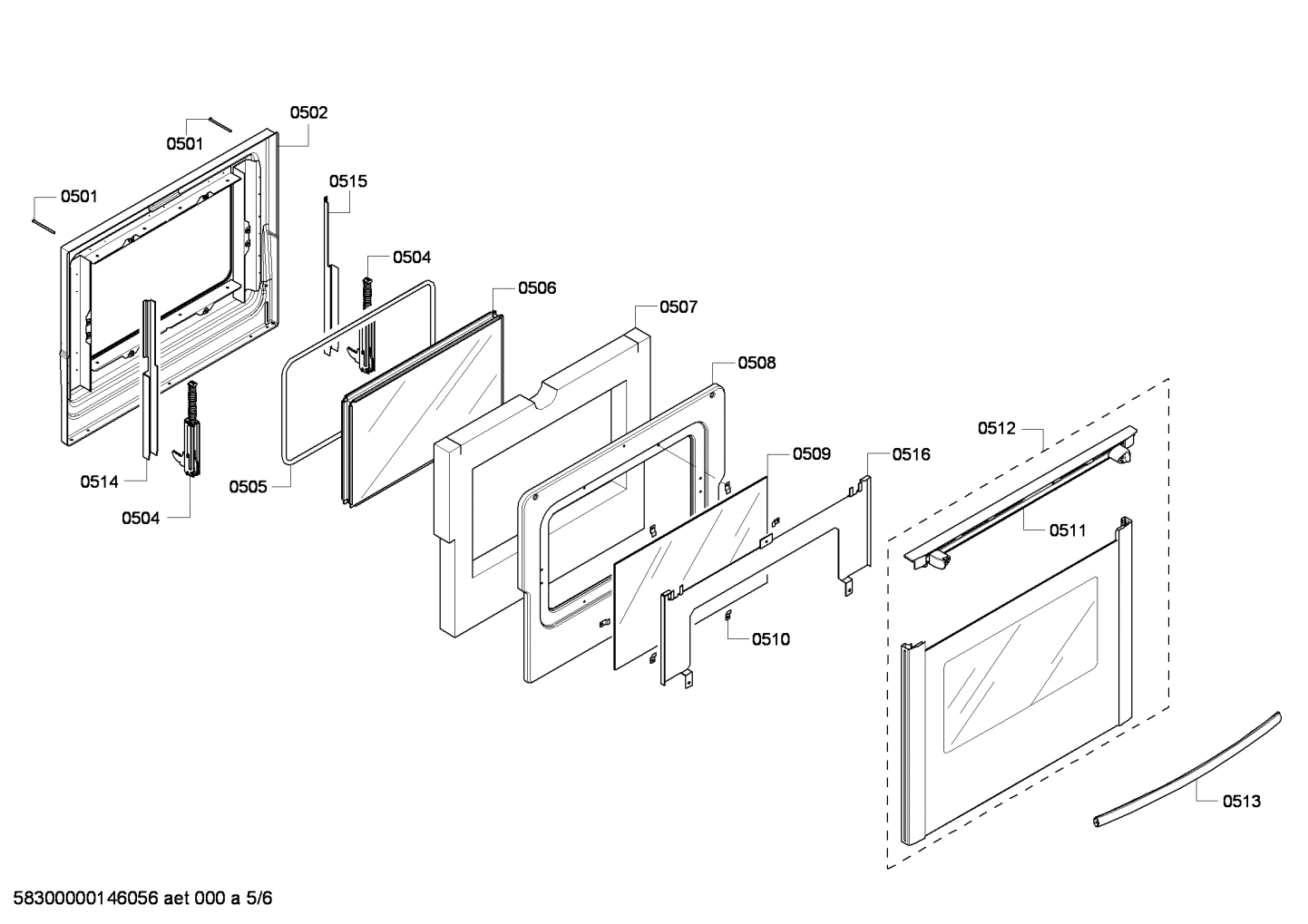

0501

Screw BOS 00607316 No Longer Available

View on Model

0502

Door-inner BOS 00683705 Contact Us For Availability

View on Model

0504

00648843 Bosch Range Hinge Backorder BOS 00648843 $158.61

View on Model

0505

Sealing BOS 00491899 Contact Us For Availability

View on Model

0506

00436379 Bosch Range Front Glass Panel Backorder BOS 00436379 $202.90

View on Model

0507

Insulating part BOS 00143678 Contact Us For Availability

View on Model

0508

00676010 Bosch Range Heat Shield Backorder BOS 00676010 $105.05

View on Model

0509

Glass panel BOS 00665308 Contact Us For Availability

View on Model

0513

Handle-door BOS 00436646 Contact Us For Availability

View on Model

0514

00650182 Bosch Range Bracket Backorder BOS 00650182 $52.52

View on Model

0515

00650183 Bosch Range Bracket Backorder BOS 00650183 $30.89

View on Model

0550

00422137 Bosch Range Screw Backorder BOS 00422137 $24.71

View on Model

0551

00620814 Bosch Oven Screw Backorder BOS 00620814 $24.71

View on Model

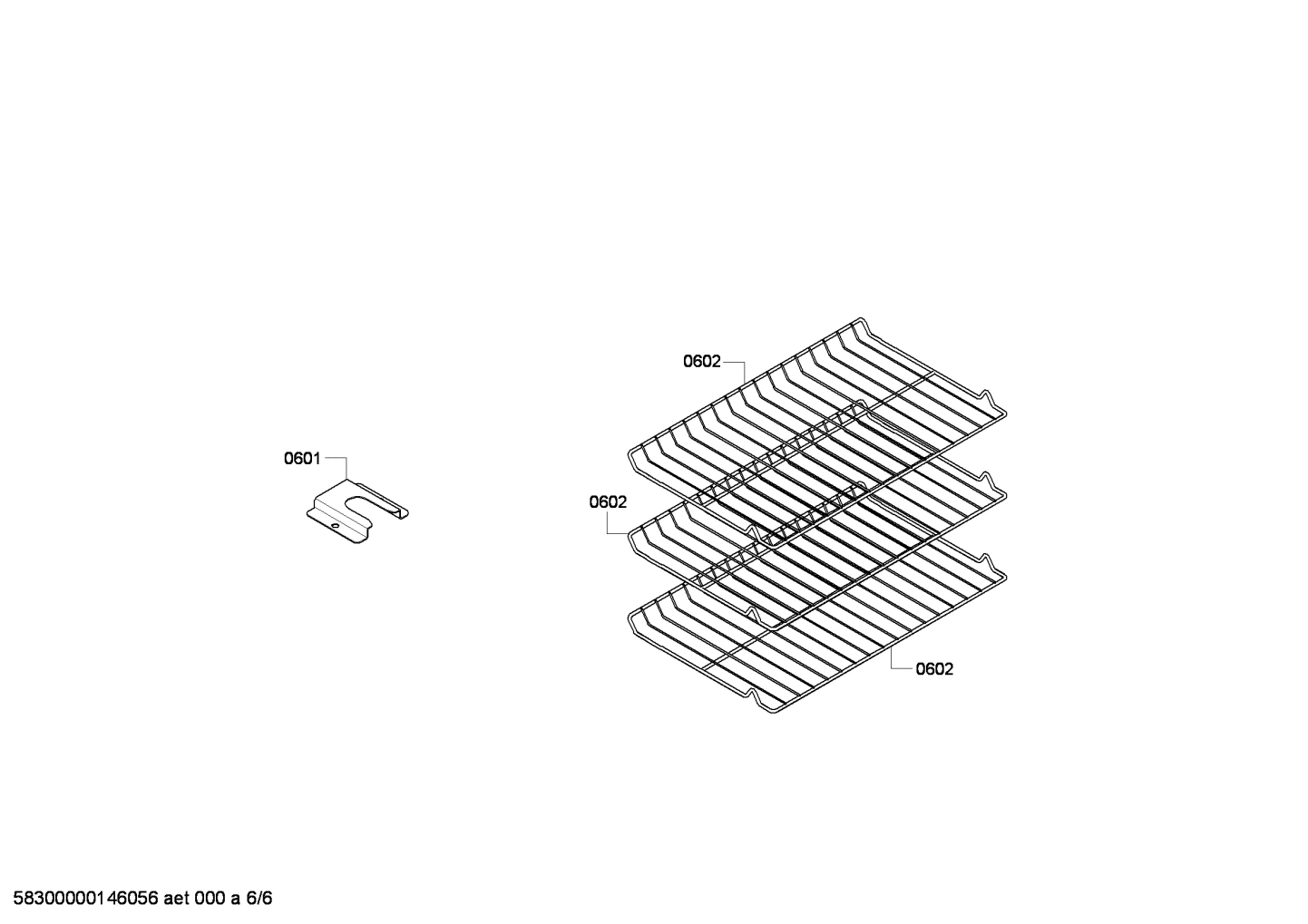

0601

00625466 Bosch Range Bracket Backorder BOS 00625466 $42.22

View on Model

0602

Shelf BOS 00144416 Contact Us For Availability

View on Model

Model Bosch HEI7032C/06 Range Oven – Common Parts & Diagrams

Common parts from model Bosch HEI7032C/06 Range Oven
