Model Bosch HE2216C/02 Range Oven – Common Parts & Diagrams

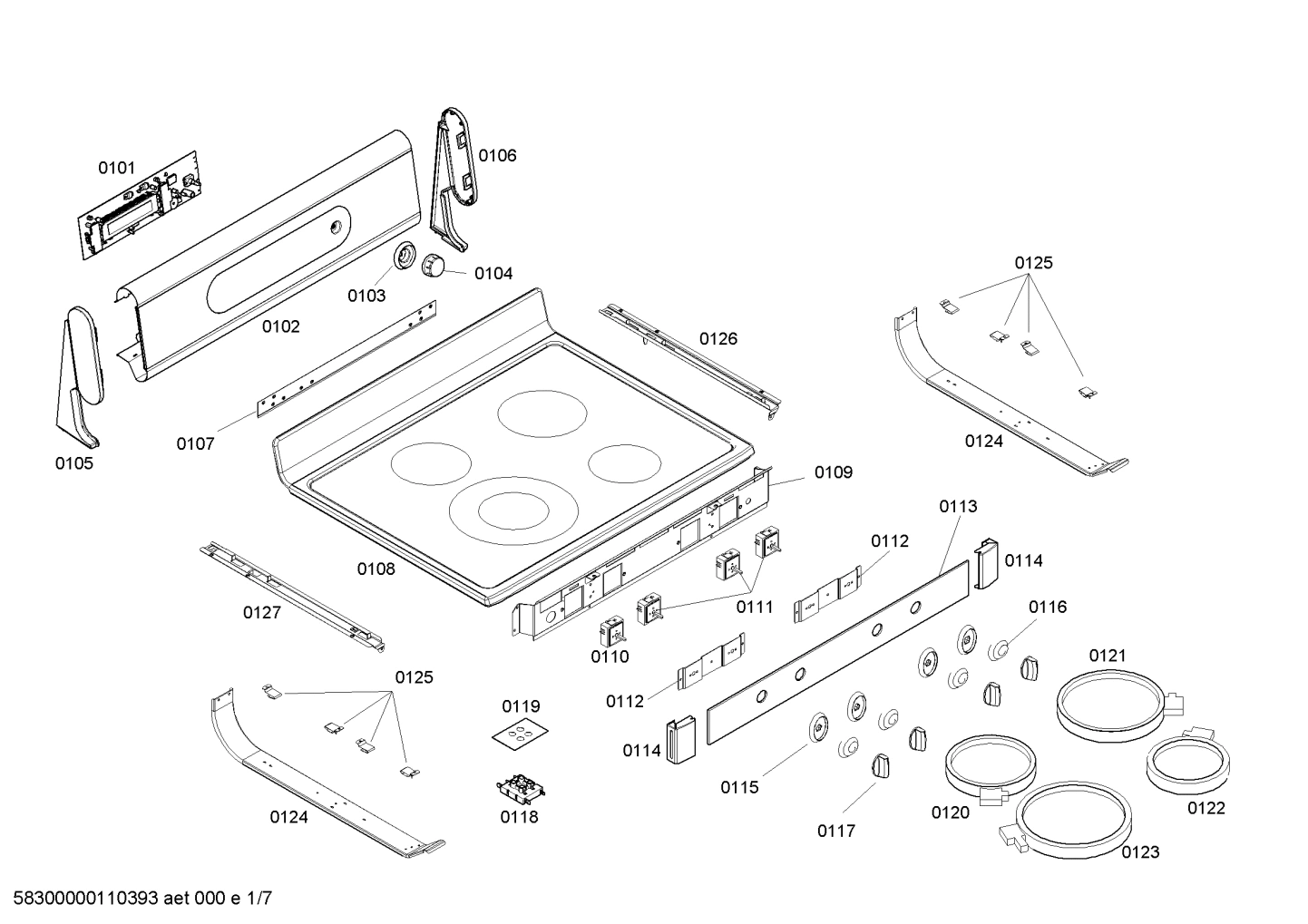

Diagram 1

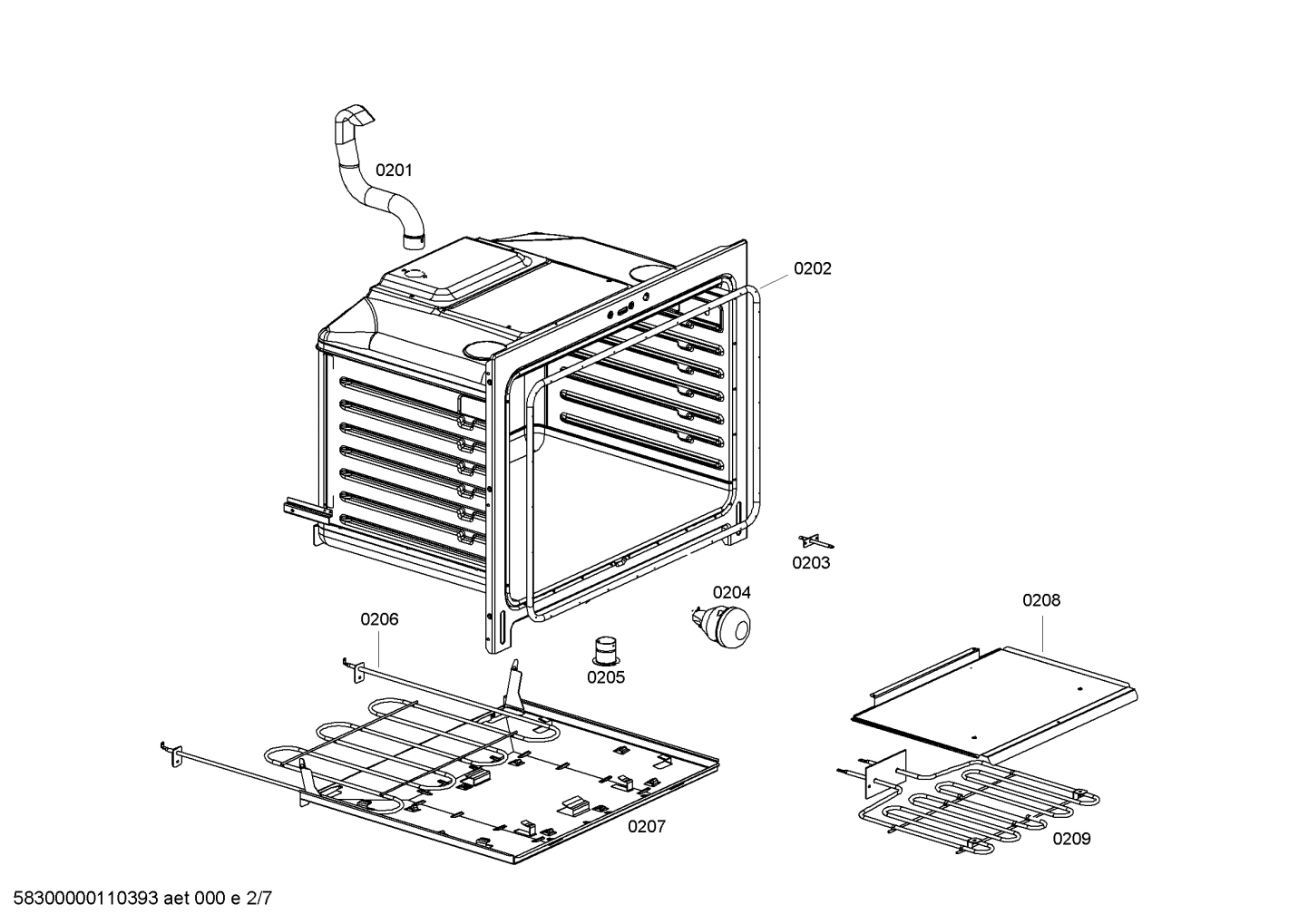

Diagram 2

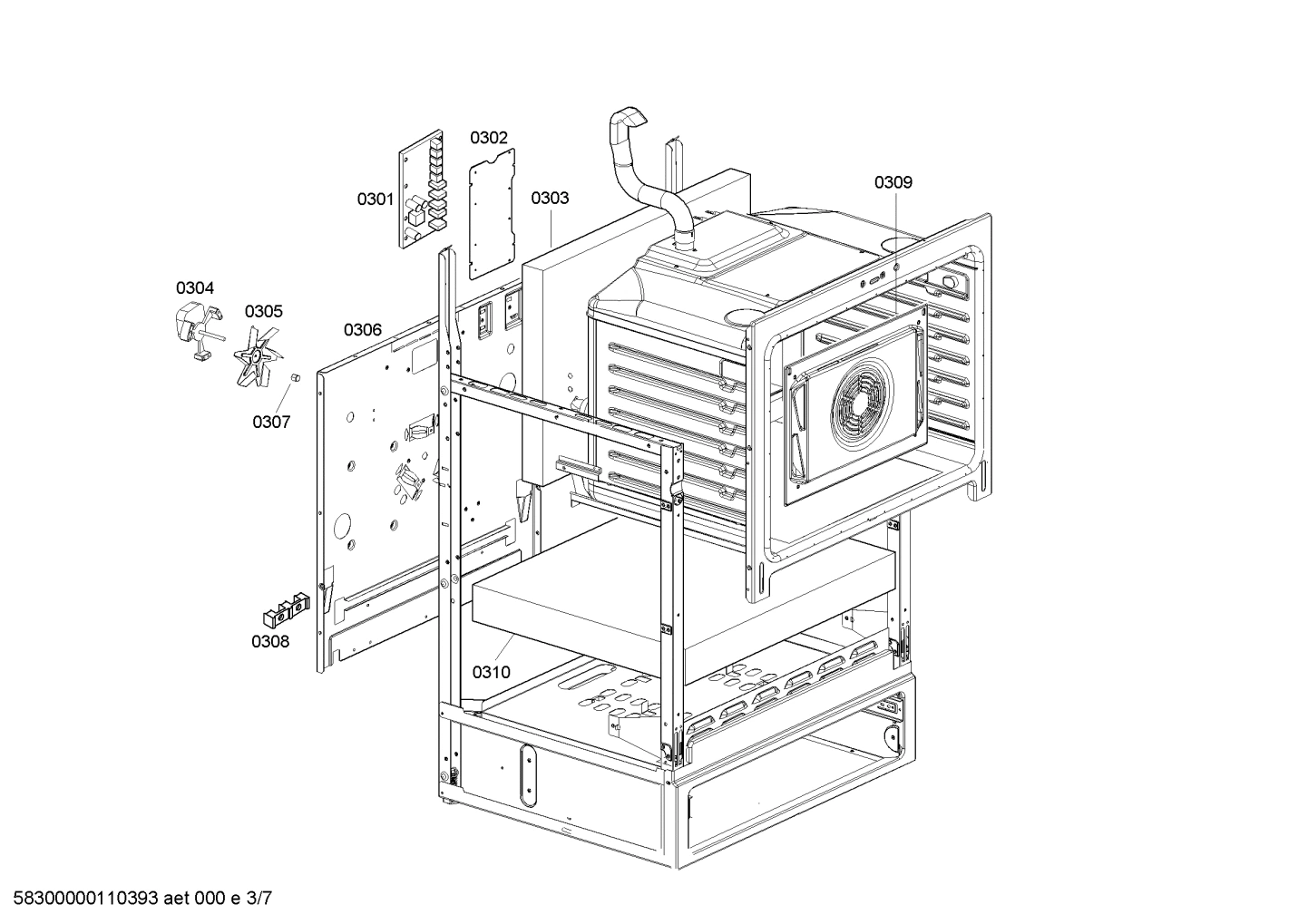

Diagram 3

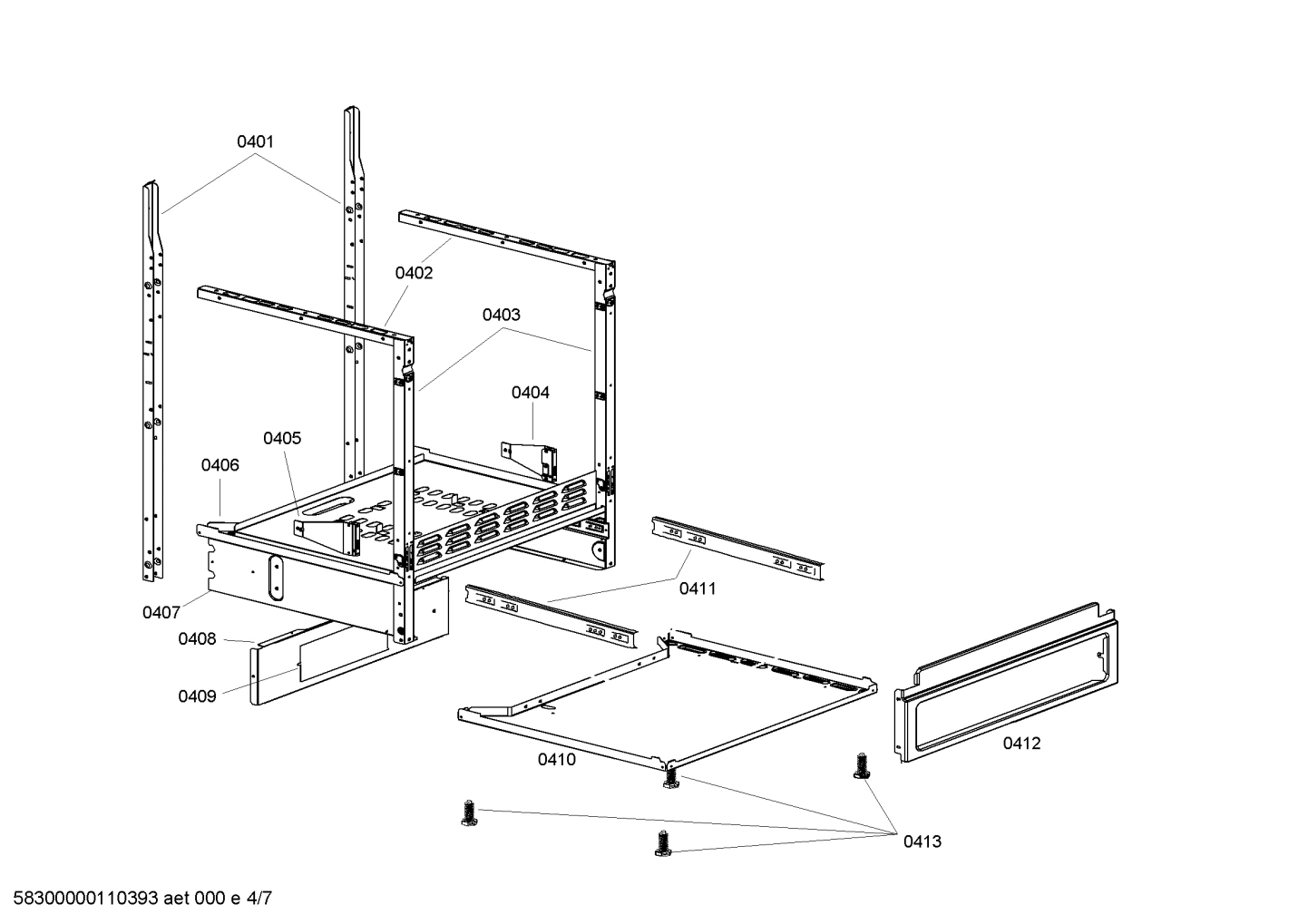

Diagram 4

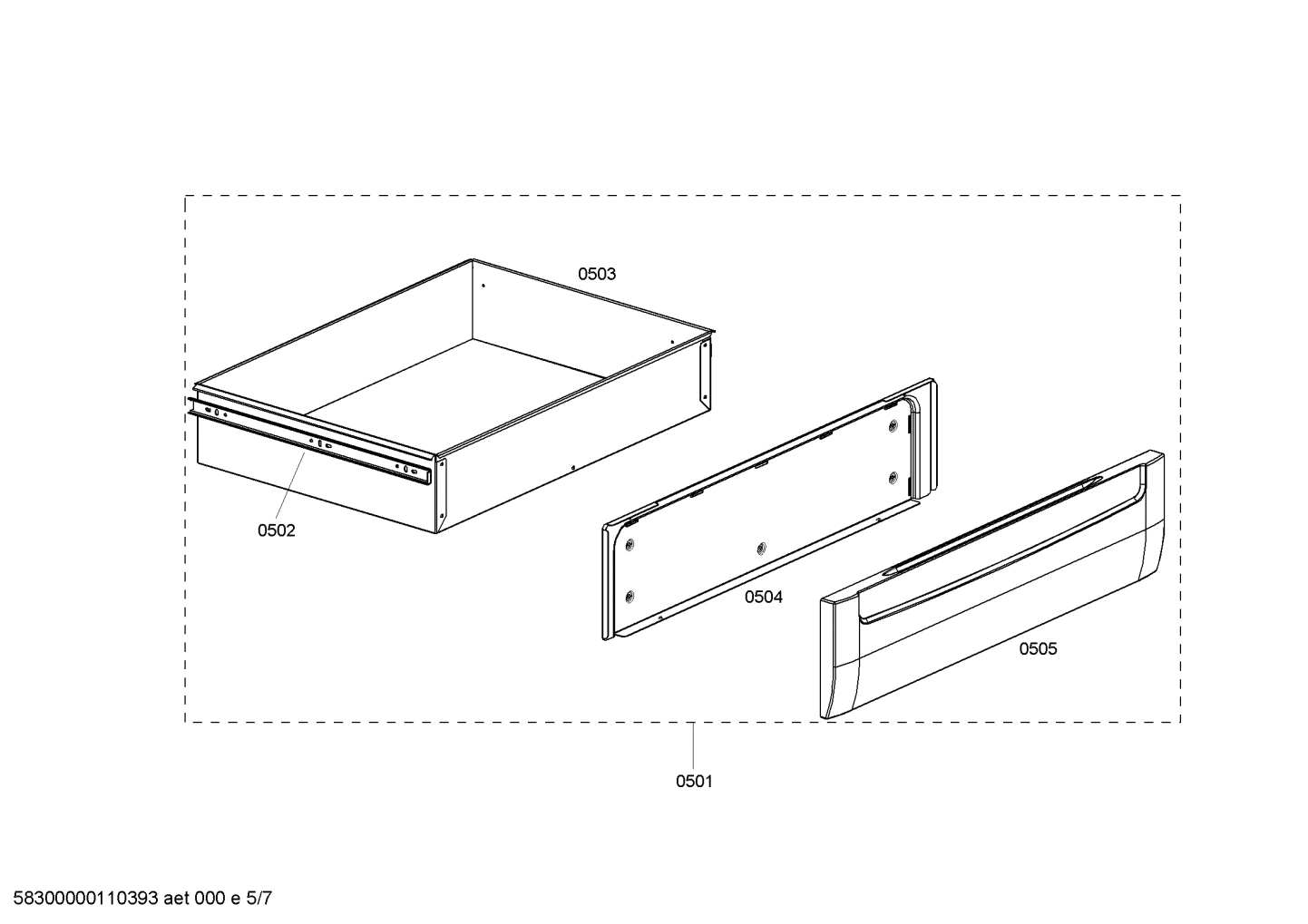

Diagram 5

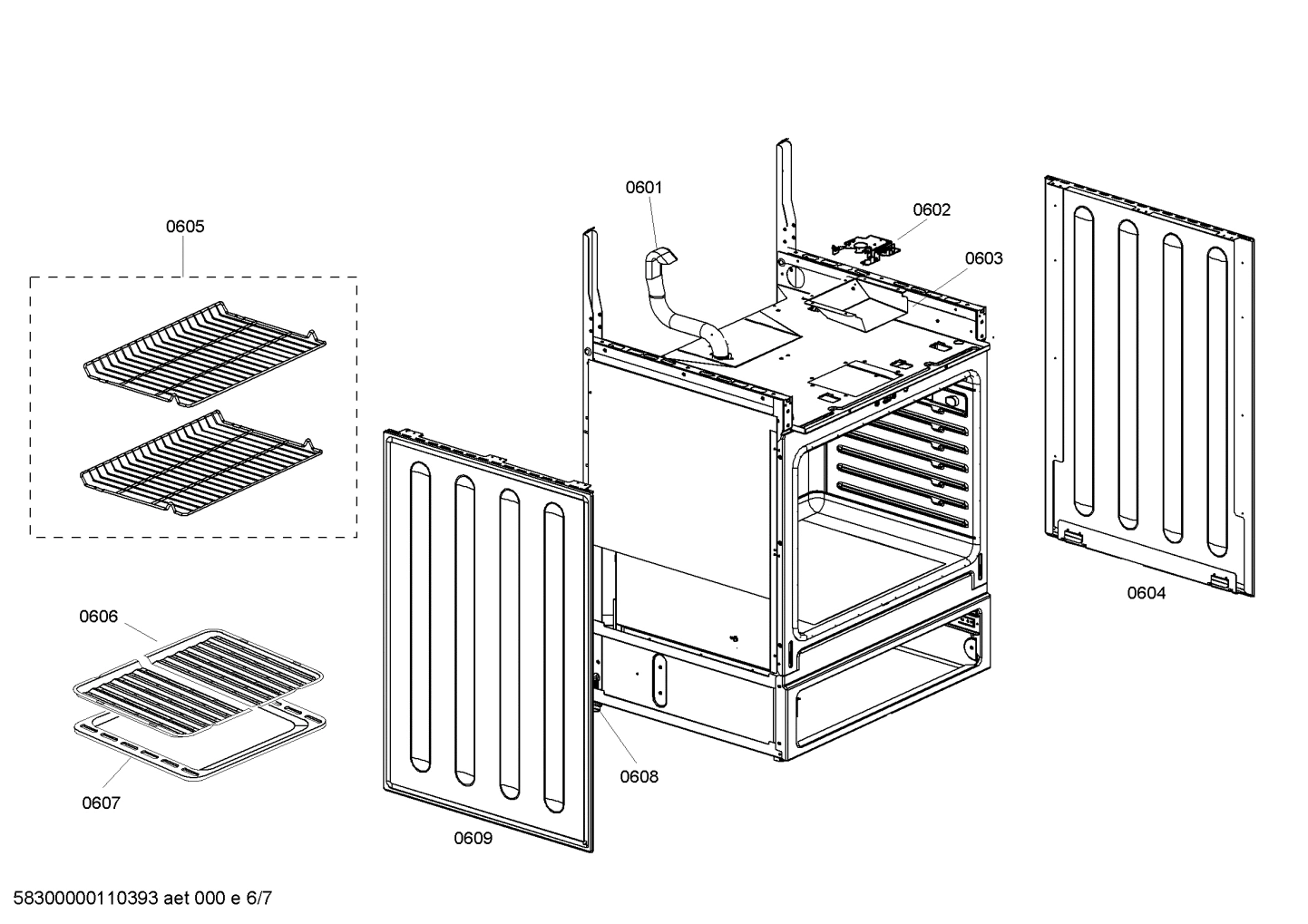

Diagram 6

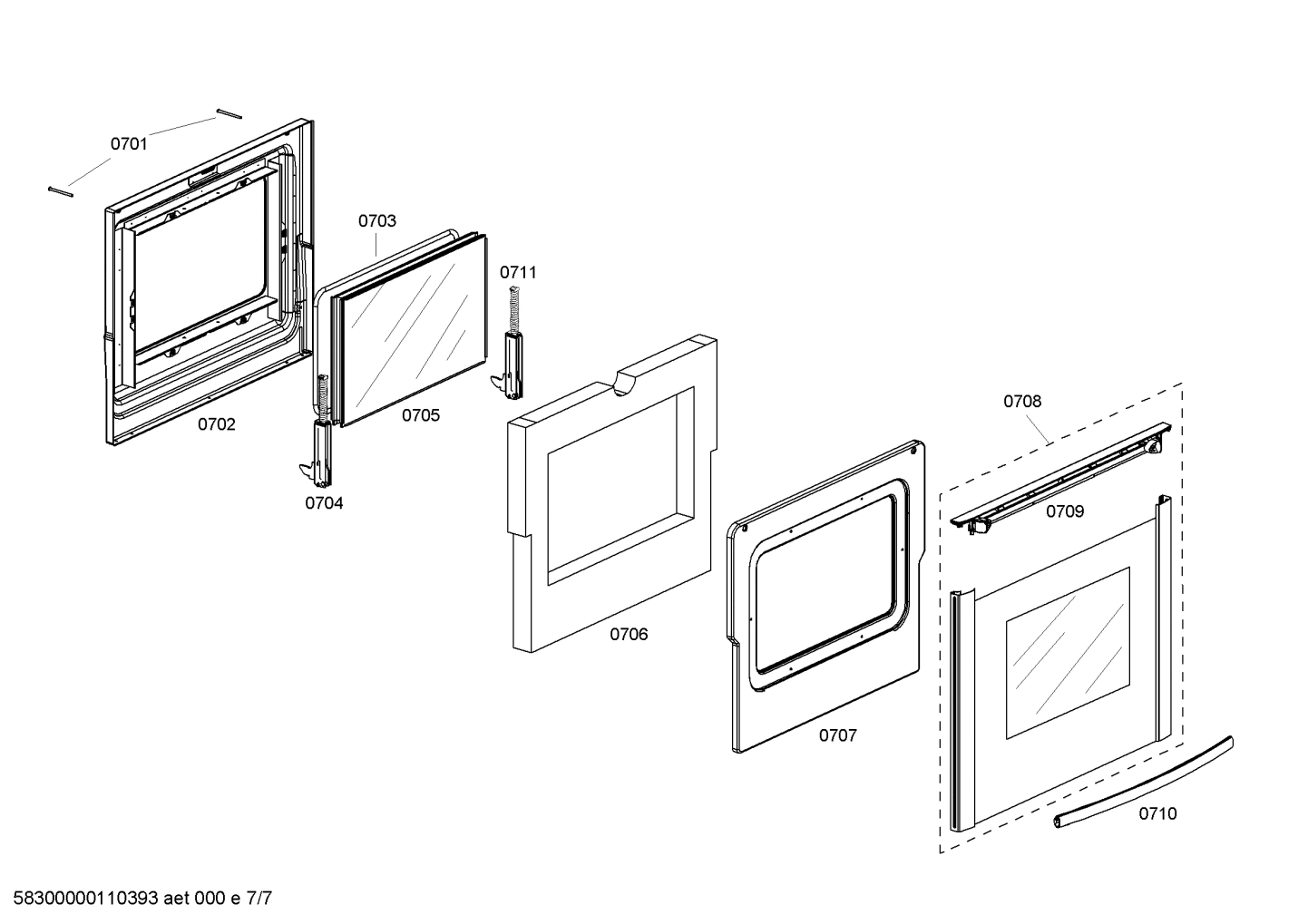

Diagram 7
Common parts from model Bosch HE2216C/02 Range Oven
0101
PC board BOS 00497064 Contact Us For Availability
0114
Frame-decor BOS 00436666 Contact Us For Availability
0116
Spring BOS 00422105 Contact Us For Availability
0120
Heating element BOS 00367247 Contact Us For Availability
0121
Heating element BOS 00491581 Contact Us For Availability
0123
Hilight hotplate BOS 00499573 Contact Us For Availability
0204
Lamp BOS 00415045 No Longer Available
0206
Burner BOS 00491571 Contact Us For Availability
0304
Motor BOS 00491576 Contact Us For Availability
0404
Hinge-plate BOS 00491538 No Longer Available
0405
Hinge-plate BOS 00491539 No Longer Available
0505
Panel BOS 00143703 Contact Us For Availability
0601
Exhaust baffle BOS 00491573 Contact Us For Availability
0602
Latch BOS 00493095 Contact Us For Availability
0603
Lock-clamp BOS 00422027 Contact Us For Availability
0605
Grill grid BOS 00438061 Contact Us For Availability
0606
Grill tray BOS 00449756 Contact Us For Availability
0607
Universal pan BOS 00449757 Contact Us For Availability
0701
Screw BOS 00607316 No Longer Available
0702
Door-inner BOS 00683705 Contact Us For Availability
0703
Sealing BOS 00491899 Contact Us For Availability
0706
Insulating part BOS 00143678 Contact Us For Availability
0708
Glass panel BOS 00143898 Contact Us For Availability
0709
Strip BOS 00439590 Contact Us For Availability
0710
Handle BOS 00439591 Contact Us For Availability
× ![]()
