Model Bosch HDS256C/02 Range Oven – Common Parts & Diagrams

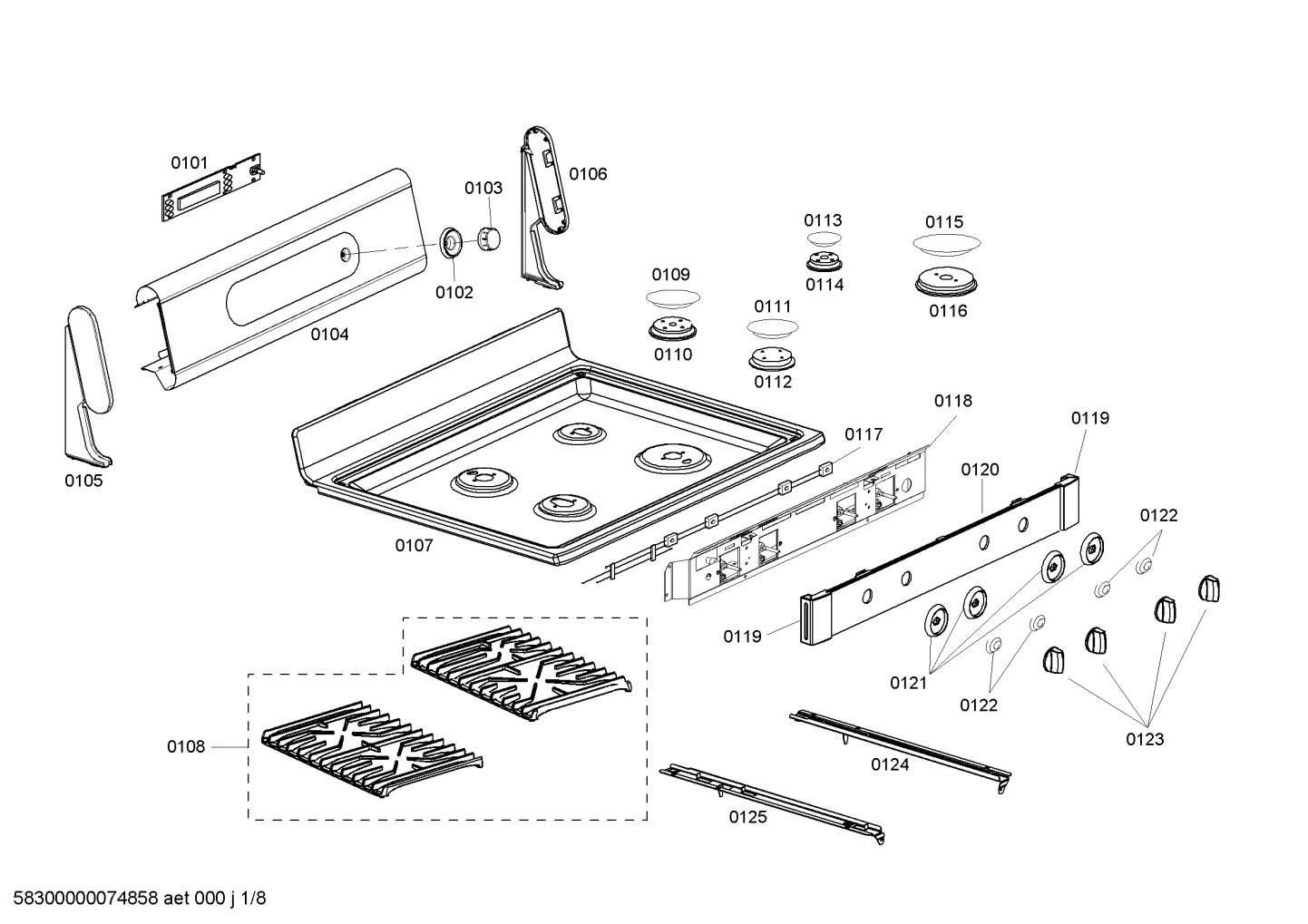

Diagram 1

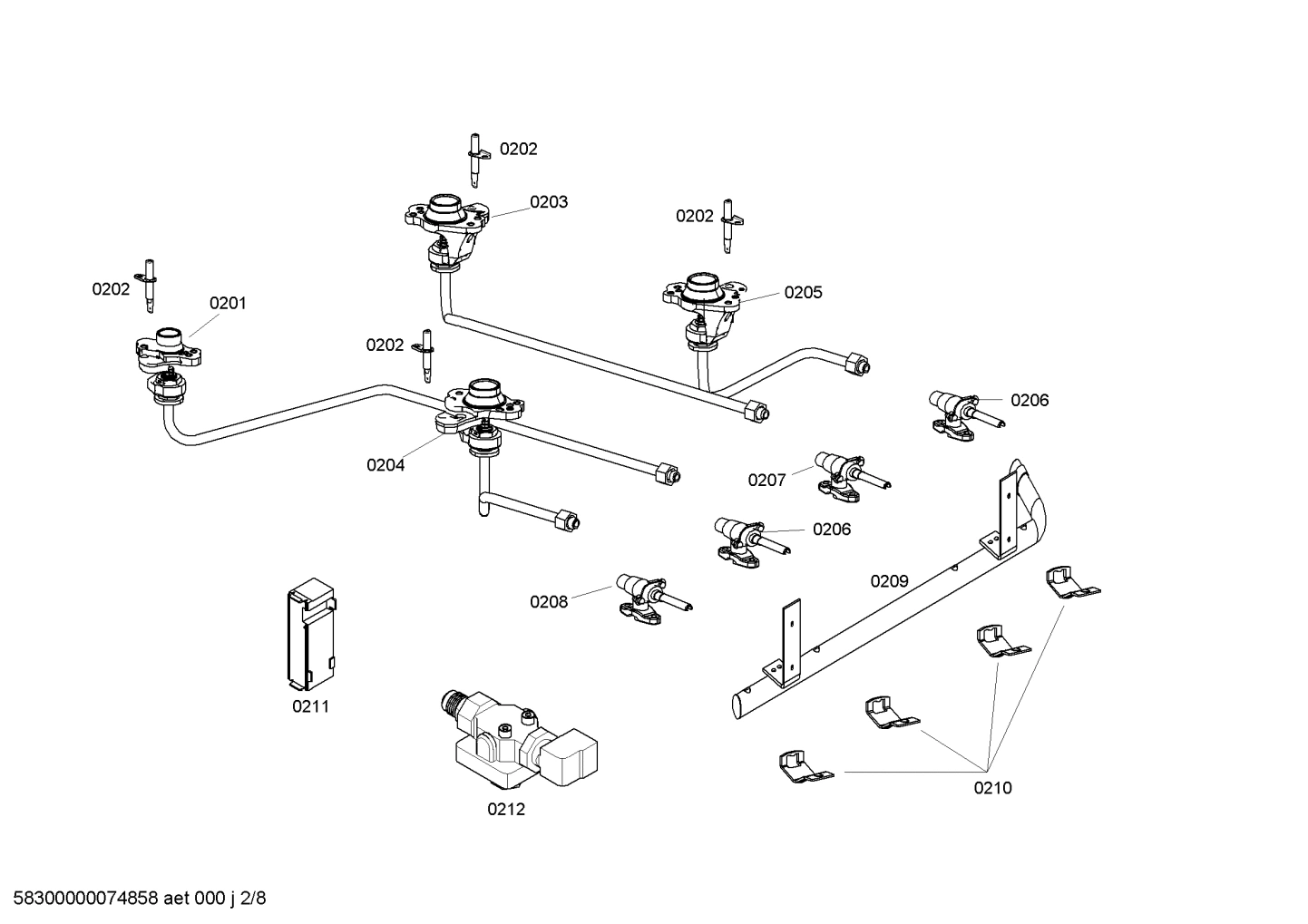

Diagram 2

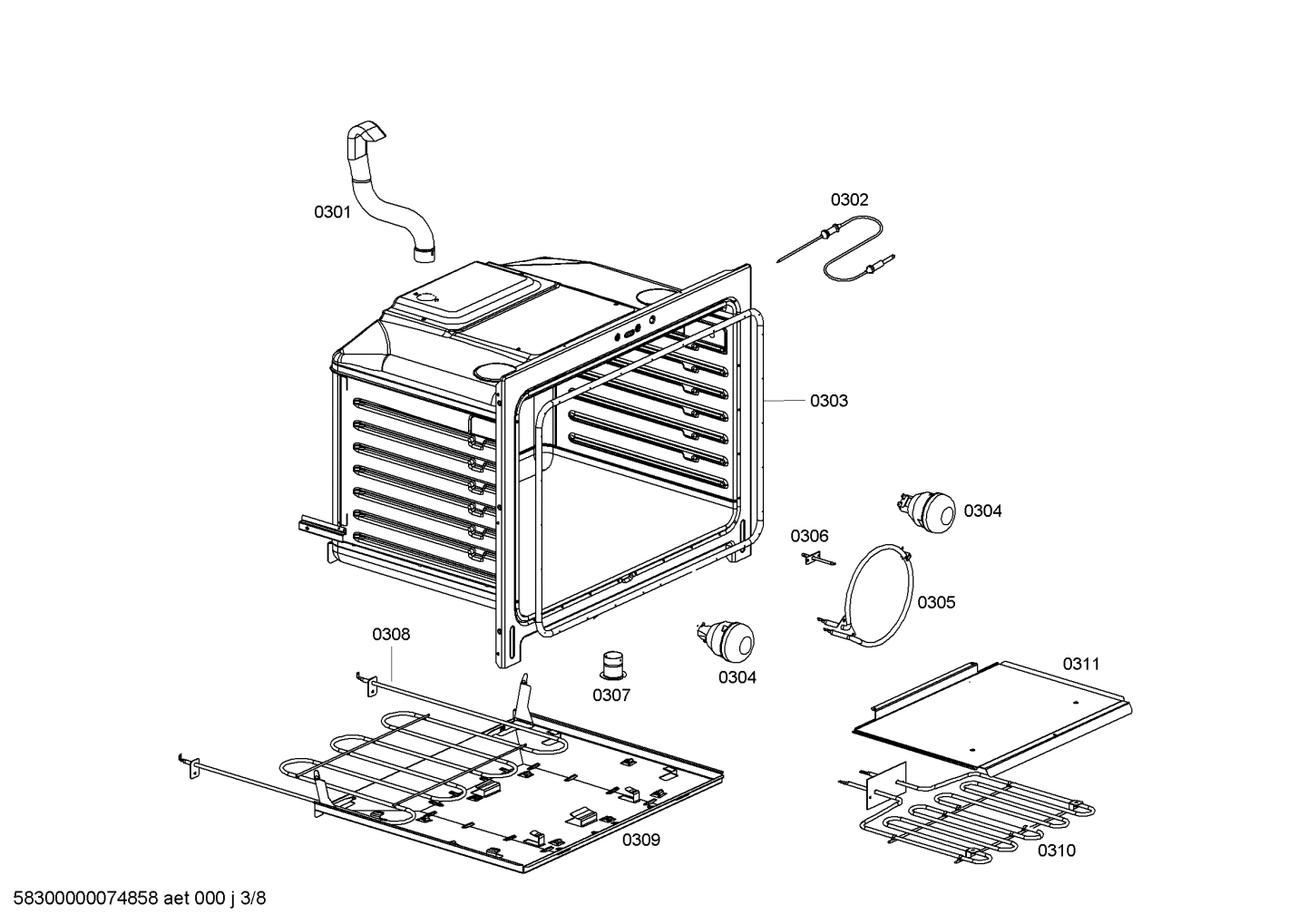

Diagram 3

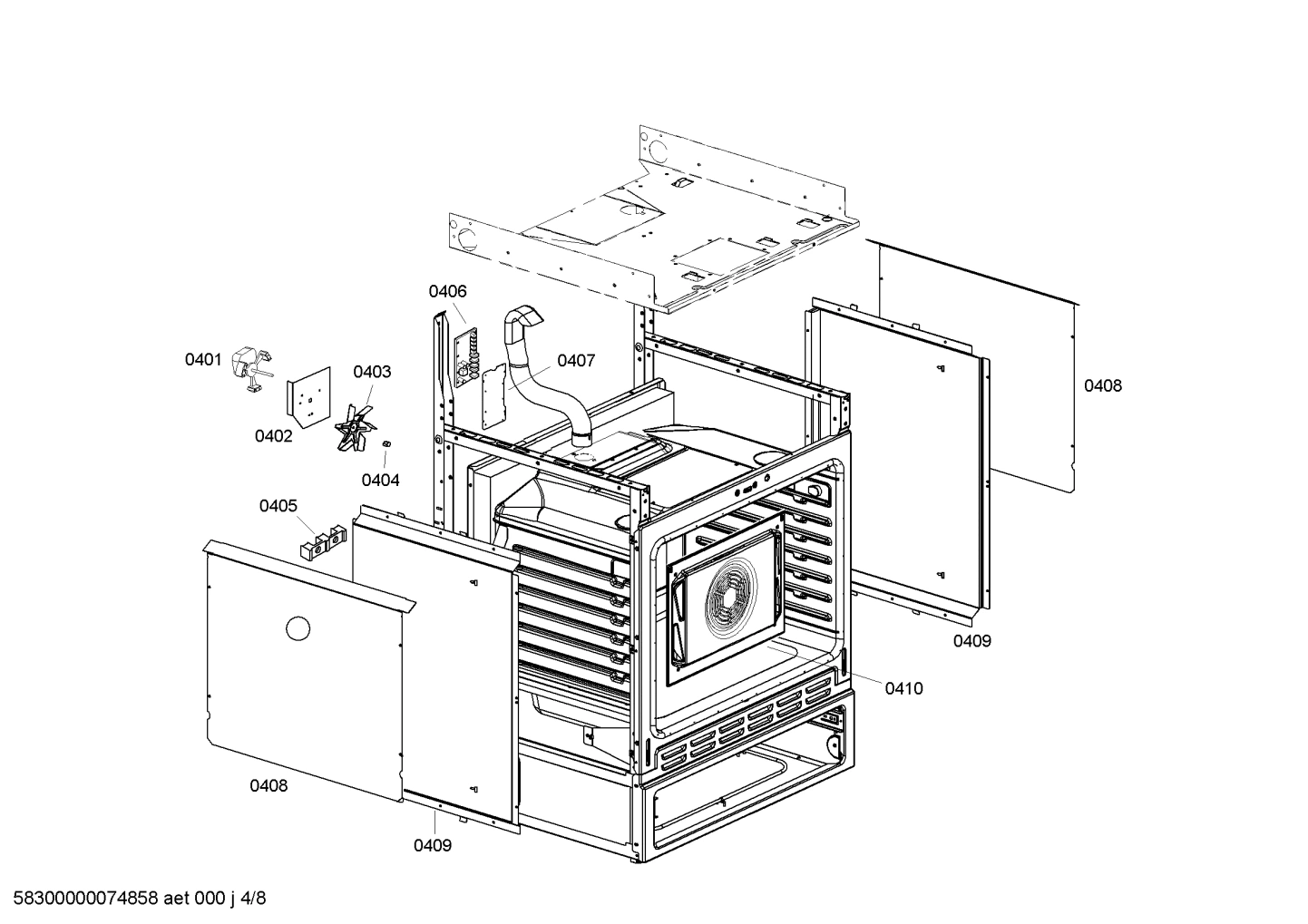

Diagram 4

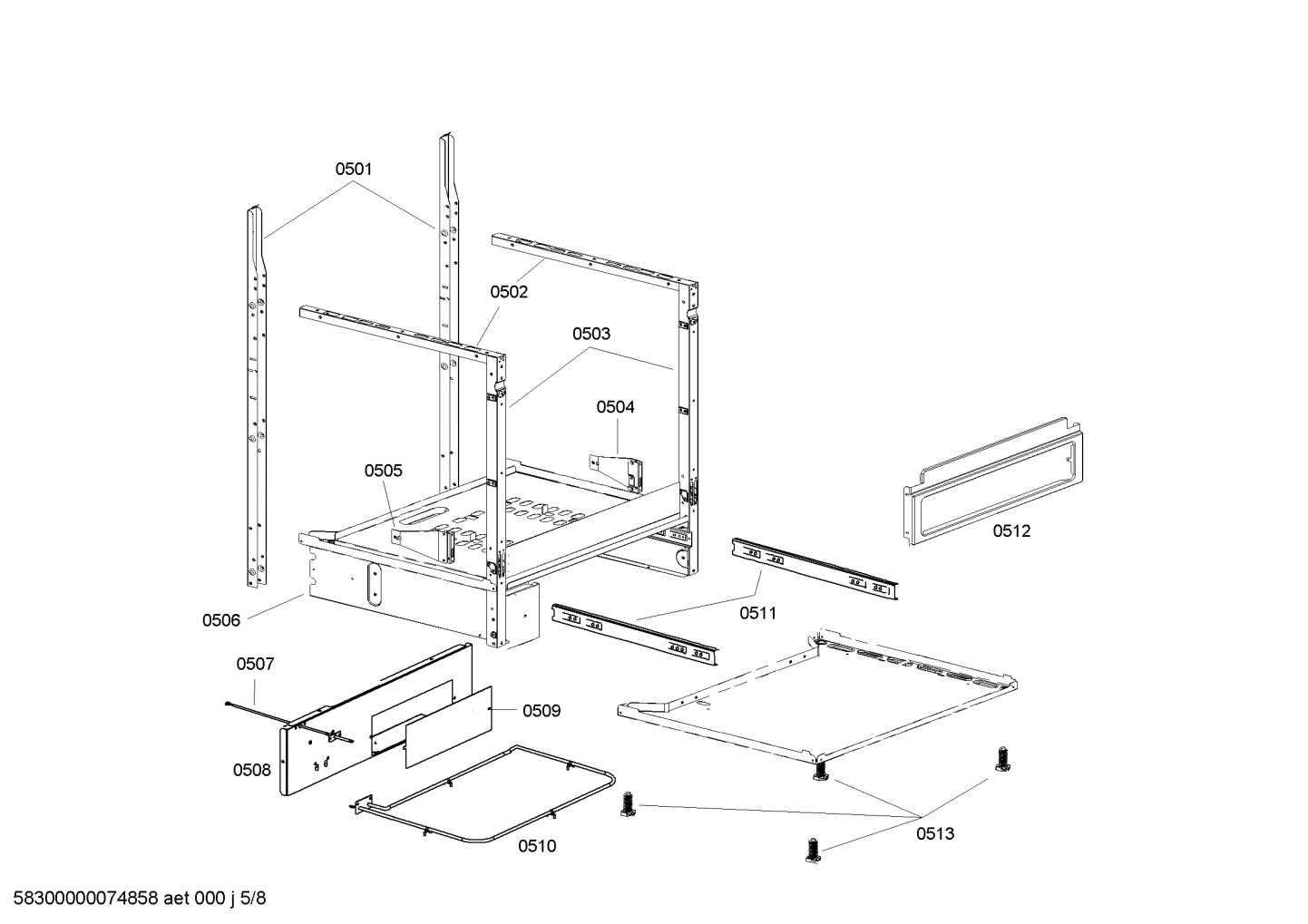

Diagram 5

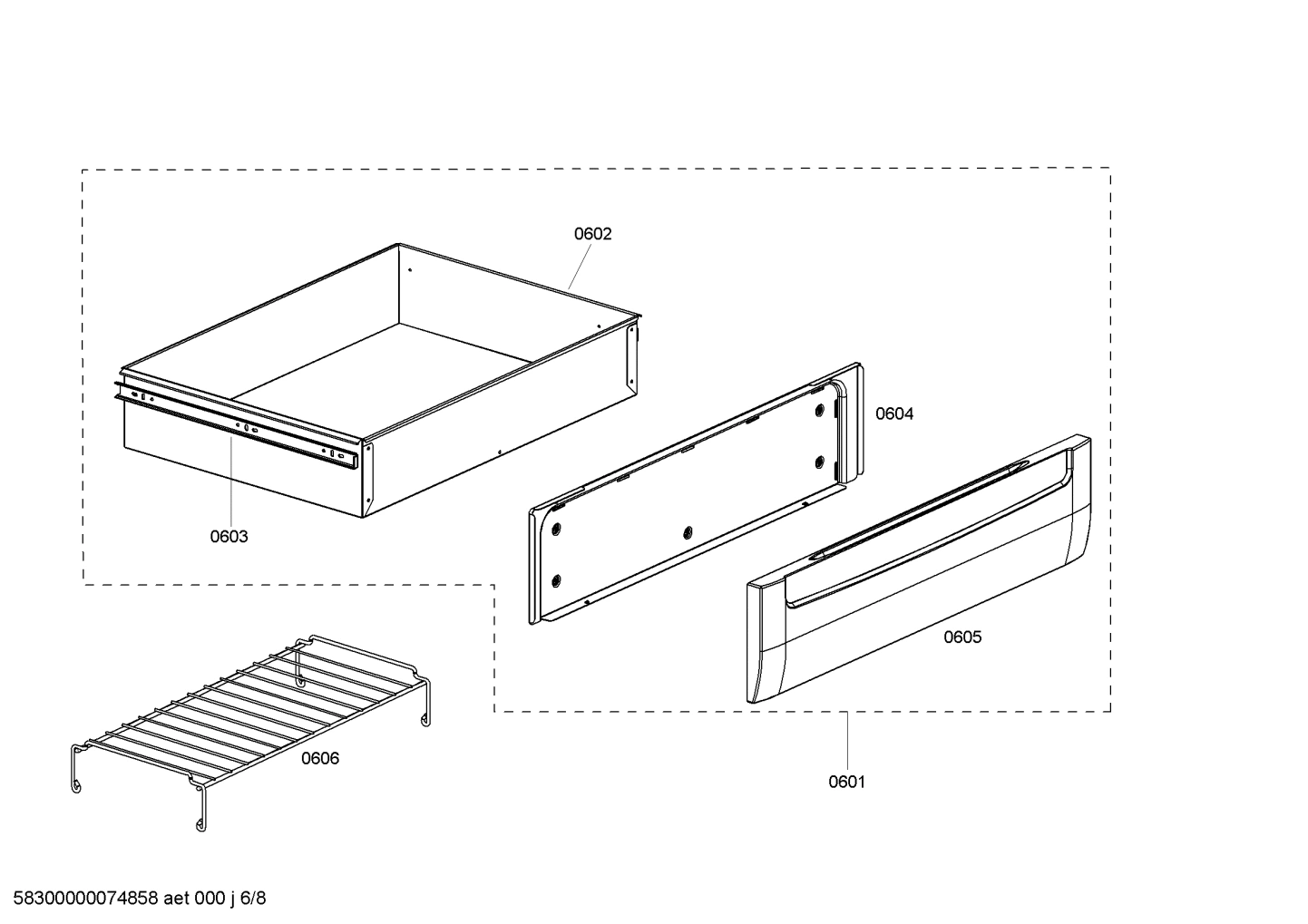

Diagram 6

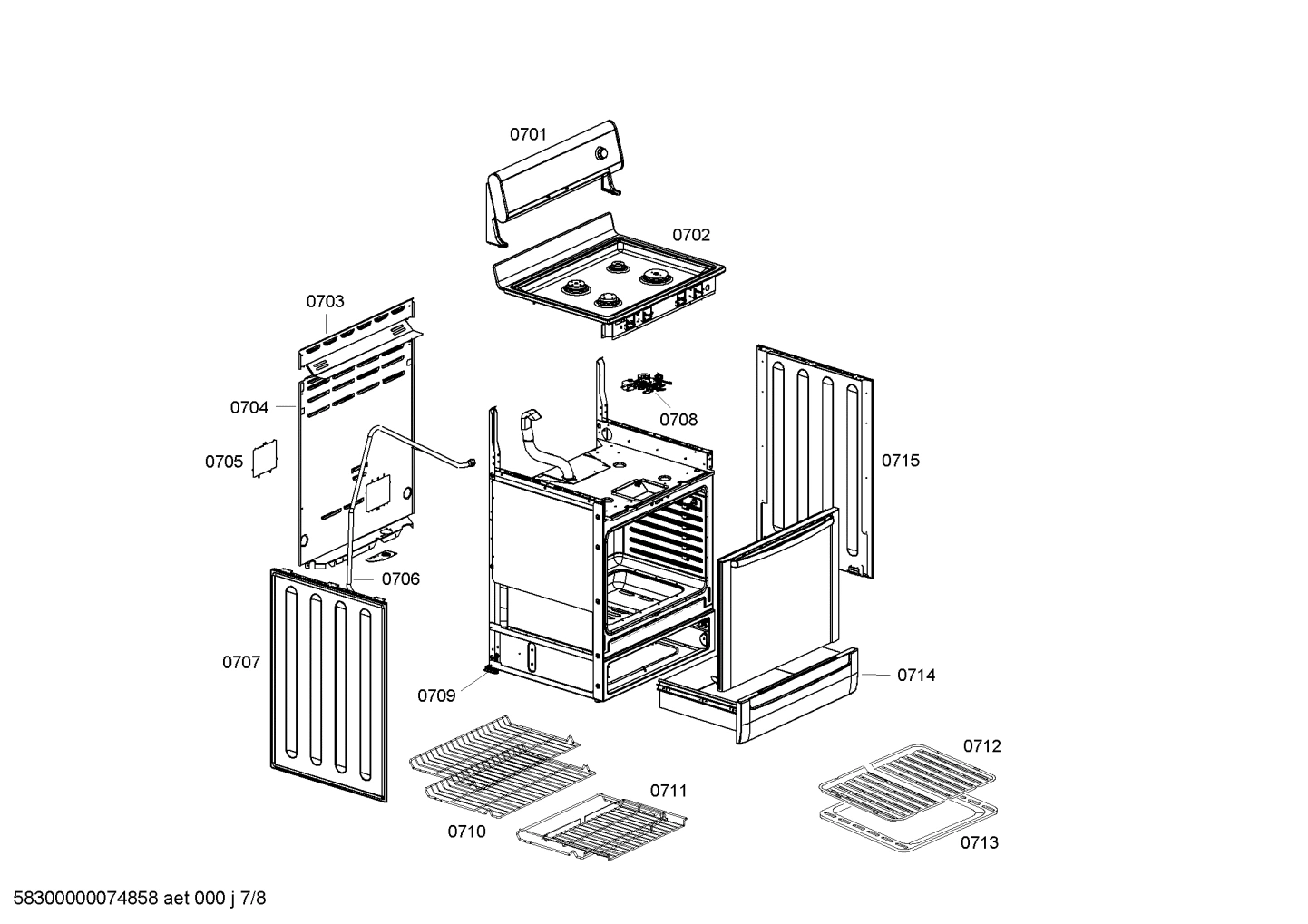

Diagram 7

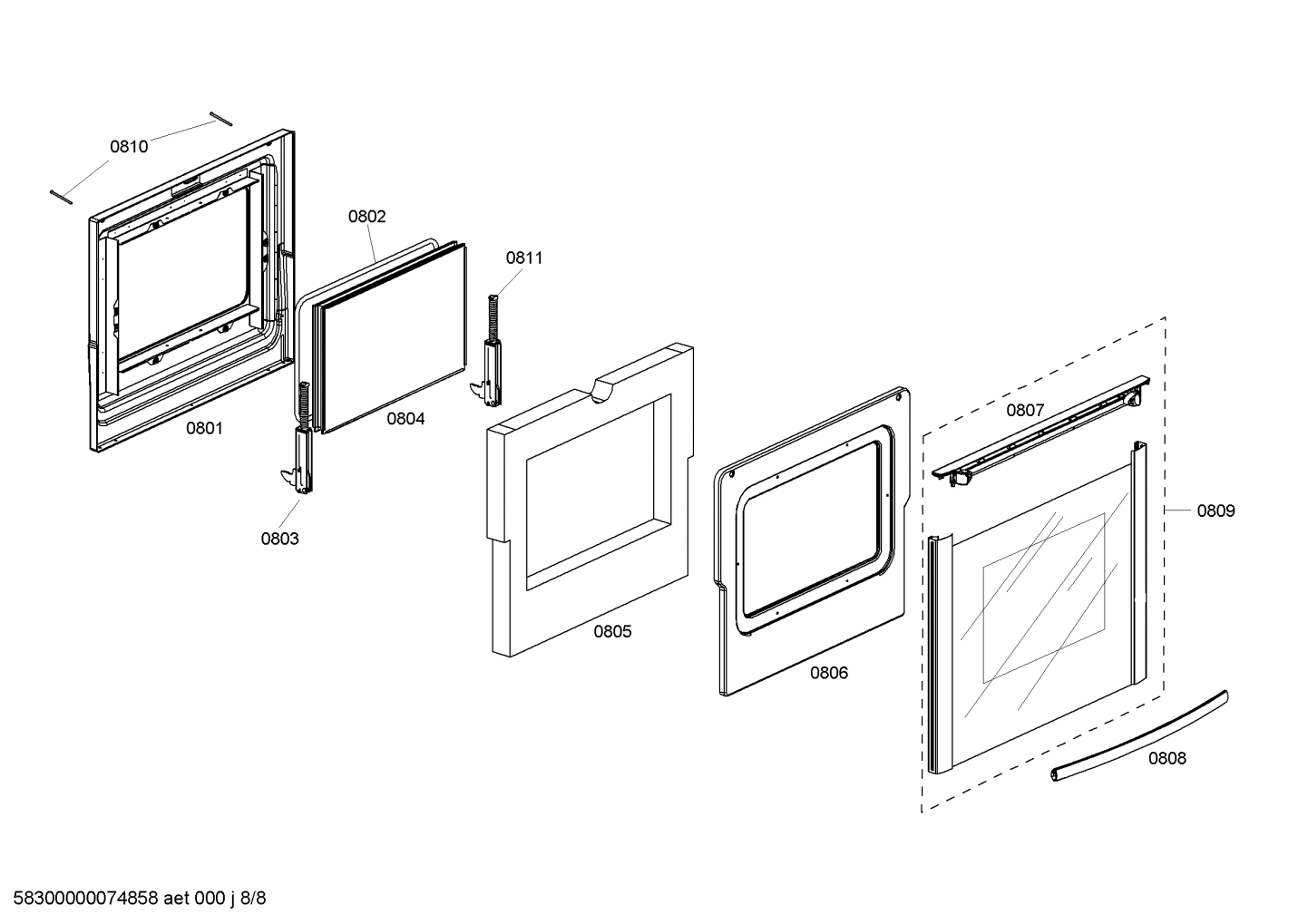

Diagram 8
Common parts from model Bosch HDS256C/02 Range Oven
0103
Knob-programme BOS 00422367 Contact Us For Availability
0109
Burner cap BOS 00423443 Contact Us For Availability
0110
Burner housing BOS 00423444 No Longer Available
0111
Burner cap BOS 00423445 Contact Us For Availability
0113
Burner cap BOS 00423441 Contact Us For Availability
0115
Burner cap BOS 00423450 Contact Us For Availability
0116
Burner housing BOS 00423449 Contact Us For Availability
0121
Ring BOS 00423518 Contact Us For Availability
0122
Spring BOS 00422105 Contact Us For Availability
0123
Knob BOS 00424491 Contact Us For Availability
0205
Holder BOS 00423488 Contact Us For Availability
0211
Control unit BOS 00643578 Contact Us For Availability
0304
Lamp BOS 00415045 No Longer Available
0308
Burner BOS 00491571 Contact Us For Availability
0401
Motor BOS 00491576 Contact Us For Availability
0406
PC board BOS 00497064 Contact Us For Availability
0409
Panel BOS 00422024 Contact Us For Availability
0504
Hinge-plate BOS 00491538 No Longer Available
0505
Hinge-plate BOS 00491539 No Longer Available
0510
Heating element BOS 00491787 Contact Us For Availability
0511
Slide BOS 00440843 Contact Us For Availability
0702
Hob top BOS 00472274 Contact Us For Availability
0708
Latch BOS 00493095 Contact Us For Availability
0710
Grill grid BOS 00438061 Contact Us For Availability
0711
Grille BOS 00438086 Contact Us For Availability
0712
Grill tray BOS 00449756 Contact Us For Availability
0713
Universal pan BOS 00449757 Contact Us For Availability
0801
Door-inner BOS 00683705 Contact Us For Availability
0802
Sealing BOS 00491899 Contact Us For Availability
0805
Insulating part BOS 00143678 Contact Us For Availability
0807
Trimplate BOS 00449874 Contact Us For Availability
0809
Glass front panel BOS 00436642 Contact Us For Availability
0810
Screw BOS 00607316 No Longer Available
× ![]()
