Bosch HDI8054U/05 Range Oven Parts List

0101

11002182 Bosch Range Trim Plate Backorder BOS 11002182 $166.85

View on Model

0102

00771649 Bosch Range Hob Top Backorder BOS 00771649 $307.96

View on Model

0103

00631626 Bosch Oven Burner Cap Backorder BOS 00631626 $35.01

View on Model

0104

00631625 Bosch Oven Burner Cap In Stock BOS 00631625 $31.92

View on Model

0105

00631627 Bosch Oven Burner Cap In Stock BOS 00631627 $35.01

View on Model

0107

00631630 Bosch Oven Burner In Stock BOS 00631630 $22.65

View on Model

0108

00631629 Bosch Oven Burner In Stock BOS 00631629 $18.03

View on Model

0109

00631631 Bosch Oven Burner Backorder BOS 00631631 $25.74

View on Model

0111

12029207 Bosch Oven Display Module In Stock BOS 12029207 $246.66

View on Model

0112

11002178 Bosch Range Trim Plate Backorder BOS 11002178 $104.02

View on Model

0113

Front panel BOS 11005333 Contact Us For Availability

View on Model

0115

00608089 Bosch Range Screw Backorder BOS 00608089 $9.26

View on Model

0116

00611957 Bosch Range Burner Ring In Stock BOS 00611957 $28.83

View on Model

0117

00632515 Bosch Range Knob Assembly In Stock BOS 00632515 $62.53

View on Model

0118

00798849 Bosch Oven Air Duct Assembly Backorder BOS 00798849 $75.18

View on Model

0119

00638272 Bosch Range Burner Backorder BOS 00638272 $49.96

View on Model

0199

00634737 Bosch Range Trim Plate Backorder BOS 00634737 $49.96

View on Model

0199

11017276 Bosch Range Fan Cover Backorder BOS 11017276 $150.90

View on Model

0201

12004873 Bosch Oven Ignition Device In Stock BOS 12004873 $161.19

View on Model

0202

12003348 Bosch Range Tube Backorder BOS 12003348 $54.50

View on Model

0203

12011385 Bosch Range Tube In Stock BOS 12011385 $60.80

View on Model

0204

12003352 Bosch Range Tube Backorder BOS 12003352 $54.50

View on Model

0205

12003351 Bosch Range Tube Backorder BOS 12003351 $48.93

View on Model

0206

00631633 Bosch Oven Electrode In Stock BOS 00631633 $21.80

View on Model

0207

00612818 Bosch Oven Screw Backorder BOS 00612818 $5.14

View on Model

0209

00492444 Bosch Range Valve Backorder BOS 00492444 $44.81

View on Model

0210

00492443 Bosch Range Valve Backorder BOS 00492443 $28.83

View on Model

0212

00619838 Bosch Oven Screw In Stock BOS 00619838 $11.85

View on Model

0213

00619526 Bosch Oven Seal Backorder BOS 00619526 $15.44

View on Model

0214

00619525 Bosch Oven Retaining Washer In Stock BOS 00619525 $13.38

View on Model

0216

12003913 Bosch Range Cable Harness Backorder BOS 12003913 $126.18

View on Model

0217

10004177 Bosch Range Electrode In Stock BOS 10004177 $14.34

View on Model

0255

12003605 Bosch Range Cable Harness Backorder BOS 12003605 $89.10

View on Model

0296

12003867 Bosch Range Jet Set Backorder BOS 12003867 $49.96

View on Model

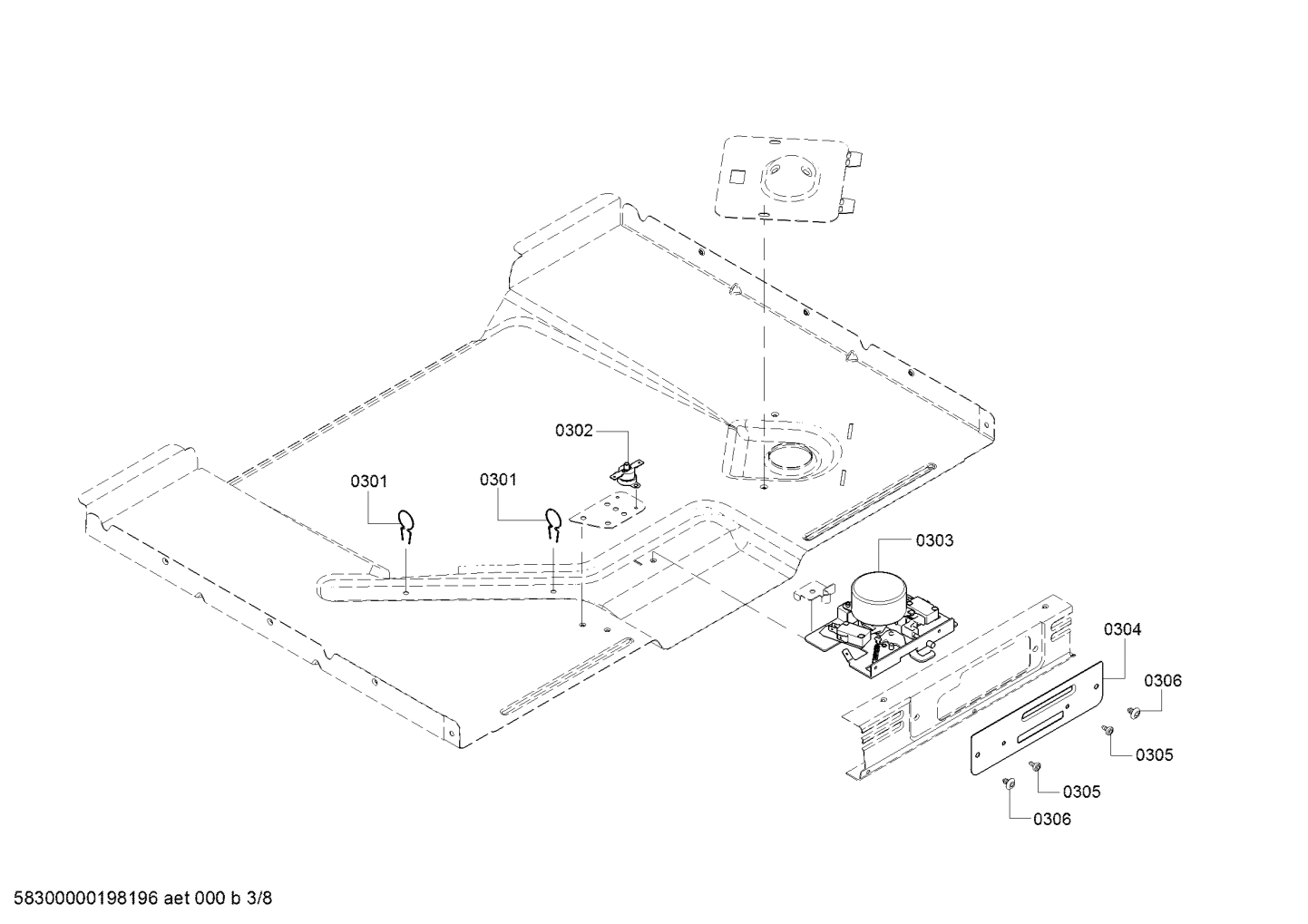

0302

10012286 Bosch Oven Temperature Limiter In Stock BOS 10012286 $47.03

View on Model

0303

12024390 Bosch Oven Latch In Stock BOS 12024390 $81.46

View on Model

0304

00758203 Bosch Oven Plate Backorder BOS 00758203 $60.76

View on Model

0305

00620814 Bosch Oven Screw Backorder BOS 00620814 $25.74

View on Model

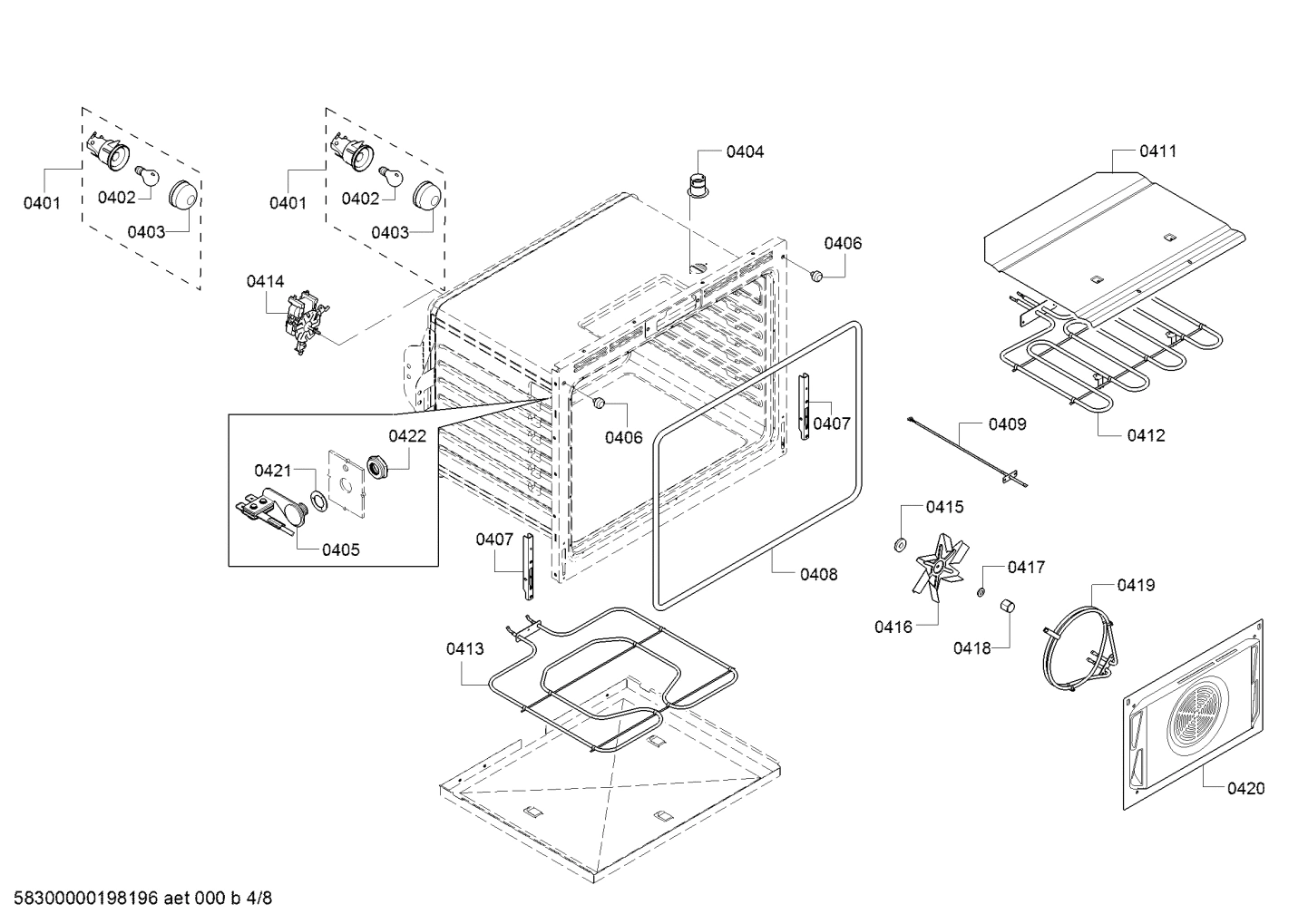

0401

Lamp BOS 00415045 No Longer Available

View on Model

0402

00623710 Bosch Oven Lamp In Stock BOS 00623710 $5.73

View on Model

0403

00414513 Bosch Oven Lens In Stock BOS 00414513 $21.62

View on Model

0404

00491572 Bosch Oven Catalyzer In Stock BOS 00491572 $56.14

View on Model

0405

10007567 Bosch Oven Socket Backorder BOS 10007567 $406.71

View on Model

0406

00631116 Bosch Oven Spacer Backorder BOS 00631116 $26.27

View on Model

0407

00758209 Bosch Oven Hinge Holder Backorder BOS 00758209 $31.42

View on Model

0408

00755053 Bosch Oven Door Seal Assembly Backorder BOS 00755053 $63.10

View on Model

0411

00777053 Bosch Oven Reflector Backorder BOS 00777053 $61.29

View on Model

0413

00791650 Bosch Oven Heating Element In Stock BOS 00791650 $105.55

View on Model

0414

00642845 Bosch Oven Motor In Stock BOS 00642845 $184.70

View on Model

0415

00603860 Bosch Oven Spacer Backorder BOS 00603860 $35.54

View on Model

0416

00491577 Bosch Oven Fan Blade Backorder BOS 00491577 $31.92

View on Model

0417

00422090 Bosch Oven Washer Backorder BOS 00422090 $16.47

View on Model

0418

00471532 Bosch Oven Nut Backorder BOS 00471532 $10.29

View on Model

0419

00755059 Bosch Oven Heating Element Backorder BOS 00755059 $76.30

View on Model

0421

00605039 Bosch Oven Washer Backorder BOS 00605039 $12.35

View on Model

0422

00608199 Bosch Oven Nut Backorder BOS 00608199 $10.29

View on Model

0450

00755410 Bosch Oven Cable Harness Backorder BOS 00755410 $35.54

View on Model

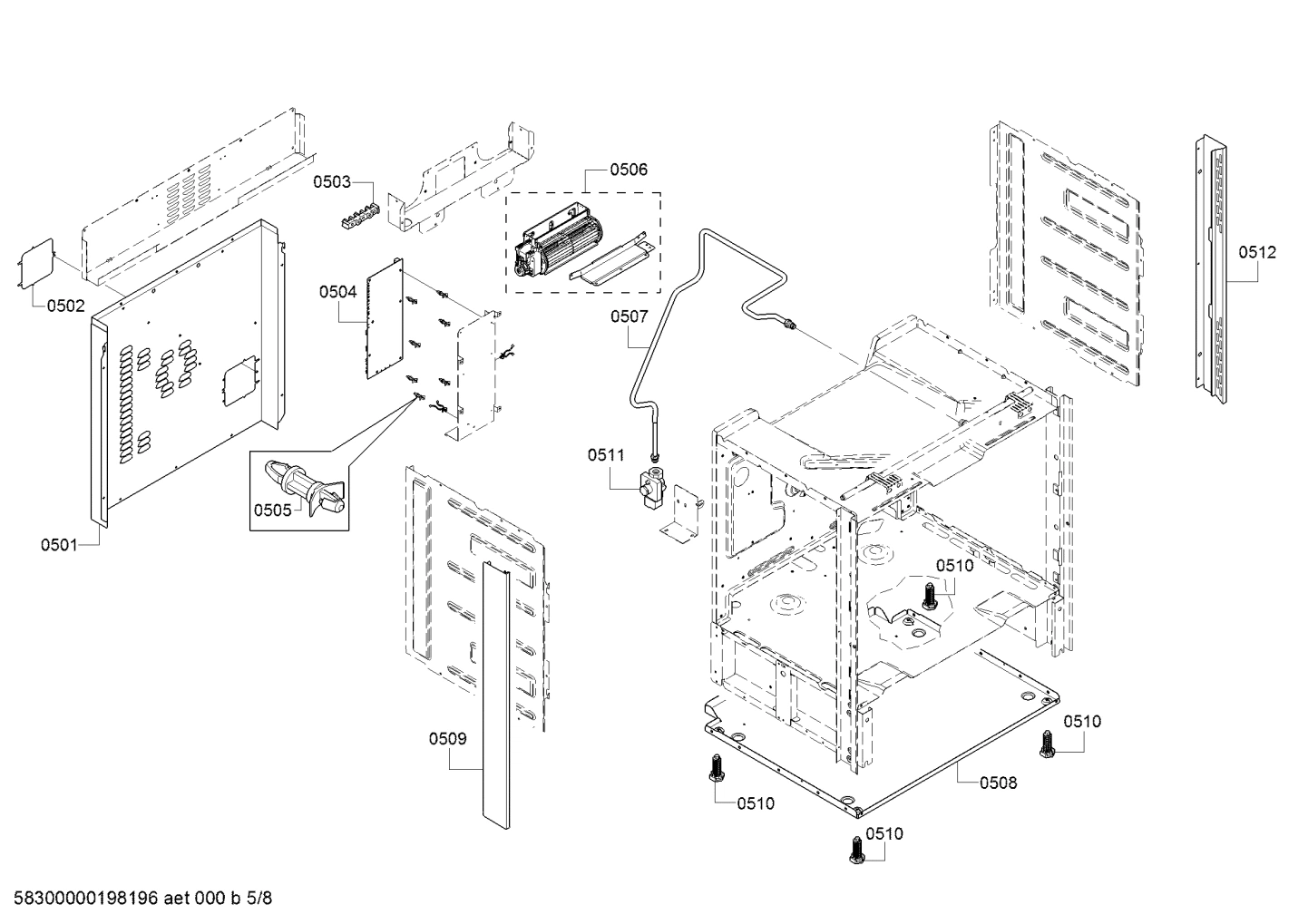

0502

00632609 Bosch Range Cover Backorder BOS 00632609 $25.74

View on Model

0503

00436364 Bosch Oven Terminal Box In Stock BOS 00436364 $31.42

View on Model

0504

12011384 Bosch Range Control Module In Stock BOS 12011384 $343.03

View on Model

0506

12011471 Bosch Range Fan In Stock BOS 12011471 $232.90

View on Model

0507

11025218 Bosch Range Tube In Stock BOS 11025218 $44.81

View on Model

0509

11008981 Bosch Range Side Panel Backorder BOS 11008981 $134.92

View on Model

0510

00429065 Bosch Range Foot In Stock BOS 00429065 $31.55

View on Model

0511

00632664 Bosch Range Regulator Backorder BOS 00632664 $106.61

View on Model

0512

11008980 Bosch Range Side Panel Backorder BOS 11008980 $224.53

View on Model

0550

00755412 Bosch Oven Cable Harness Backorder BOS 00755412 $20.59

View on Model

0551

Cable harness BOS 00755377 Contact Us For Availability

View on Model

0553

00755399 Bosch Range Cable Harness Backorder BOS 00755399 $64.88

View on Model

0554

00755402 Bosch Range Cable Harness Backorder BOS 00755402 $18.03

View on Model

0555

00755371 Bosch Range Cable Harness Backorder BOS 00755371 $28.83

View on Model

0556

11033493 Bosch Oven Cable Harness Backorder BOS 11033493 $26.27

View on Model

0557

00755408 Bosch Range Cable Harness In Stock BOS 00755408 $92.71

View on Model

0561

00617527 Bosch Oven Screw In Stock BOS 00617527 $33.27

View on Model

0562

00422126 Bosch Oven Screw In Stock BOS 00422126 $25.25

View on Model

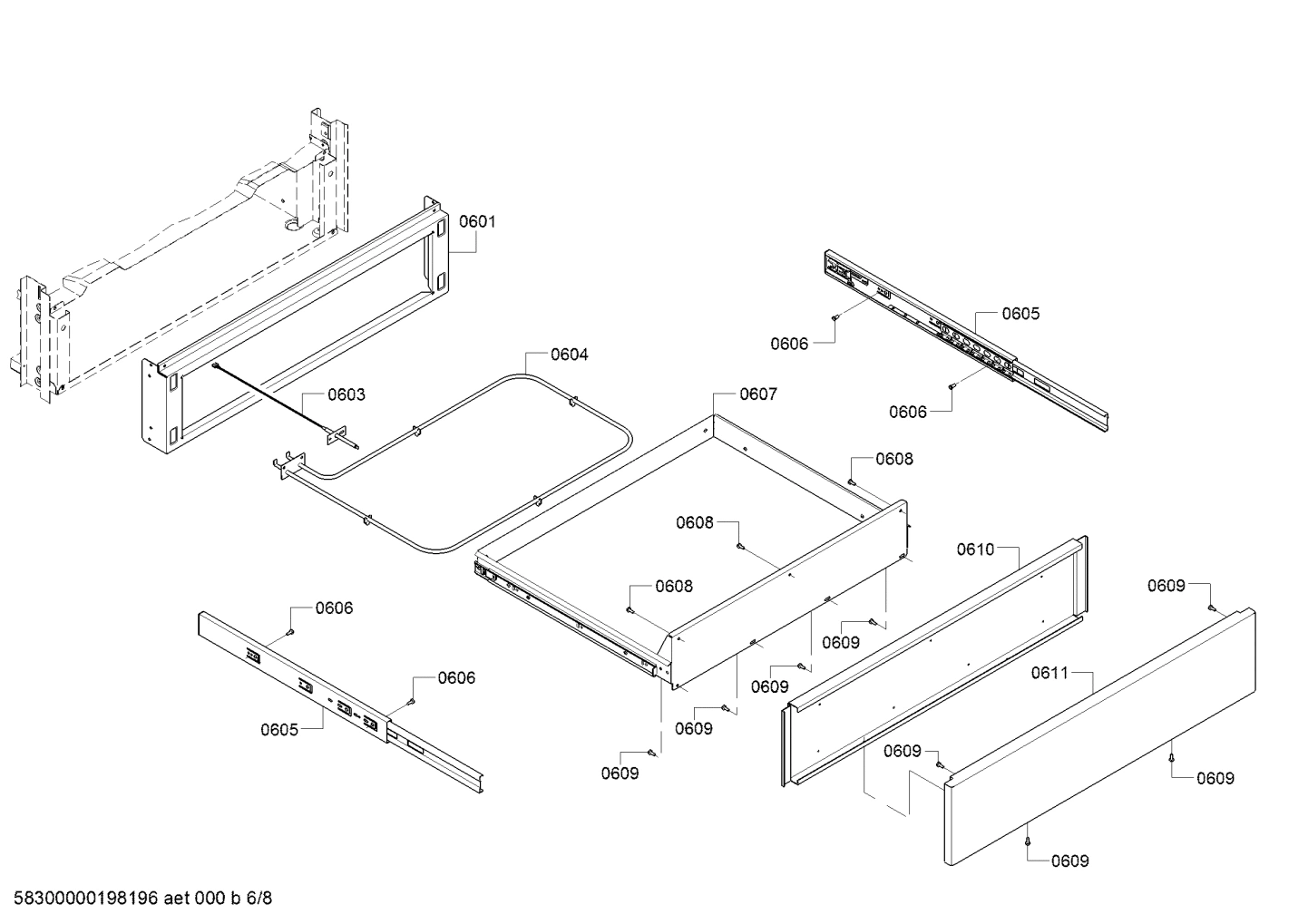

0603

00630873 Bosch Oven Sensor In Stock BOS 00630873 $40.79

View on Model

0605

12024638 Bosch Range Slide In Stock BOS 12024638 $150.29

View on Model

0606

00422098 Bosch Oven Screw In Stock BOS 00422098 $27.82

View on Model

0607

00775744 Bosch Range Drawer Backorder BOS 00775744 $241.54

View on Model

0608

00614573 Bosch Oven Screw Backorder BOS 00614573 $30.39

View on Model

0609

00189345 Bosch Oven Screw In Stock BOS 00189345 $22.65

View on Model

0610

11014918 Bosch Range Panel Backorder BOS 11014918 $104.55

View on Model

0611

11002375 Bosch Range Drawer Front Backorder BOS 11002375 $168.41

View on Model

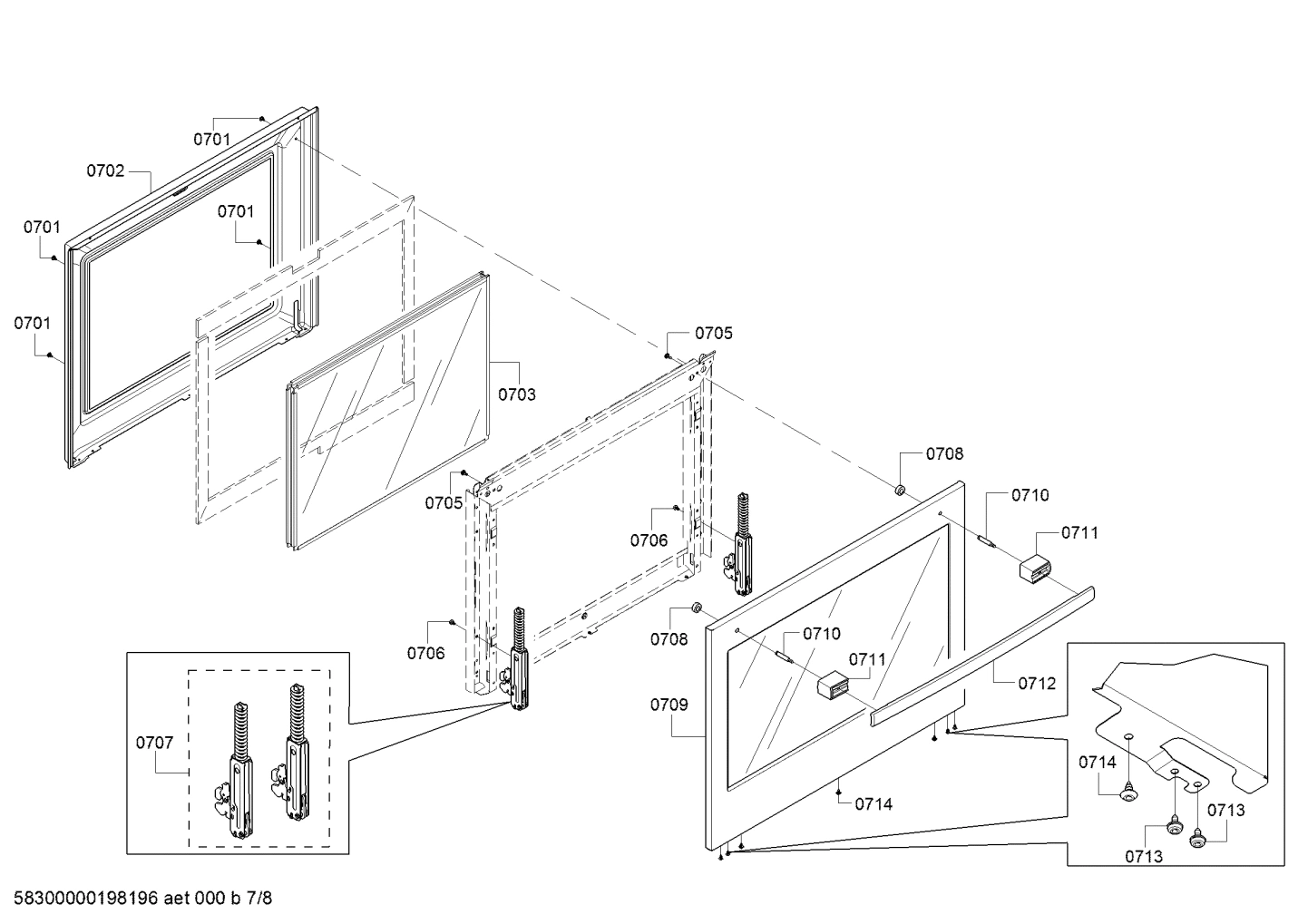

0702

00771360 Bosch Oven Inner Door In Stock BOS 00771360 $126.63

View on Model

0703

11016269 Bosch Range Glass Panel Backorder BOS 11016269 $226.59

View on Model

0705

00632735 Bosch Oven Screw Backorder BOS 00632735 $25.74

View on Model

0706

00421507 Bosch Oven Screw In Stock BOS 00421507 $22.65

View on Model

0708

00631616 Bosch Oven Insert Backorder BOS 00631616 $26.27

View on Model

0709

00771361 Bosch Oven Outer Door Backorder BOS 00771361 $363.68

View on Model

0710

00631615 Bosch Oven Insert Backorder BOS 00631615 $28.83

View on Model

0711

00631899 Bosch Oven Spacer Backorder BOS 00631899 $46.34

View on Model

0712

00798648 Bosch Oven Door Handle In Stock BOS 00798648 $79.83

View on Model

0713

00626588 Bosch Oven Screw Backorder BOS 00626588 $11.32

View on Model

0714

00422102 Bosch Oven Screw In Stock BOS 00422102 $22.65

View on Model

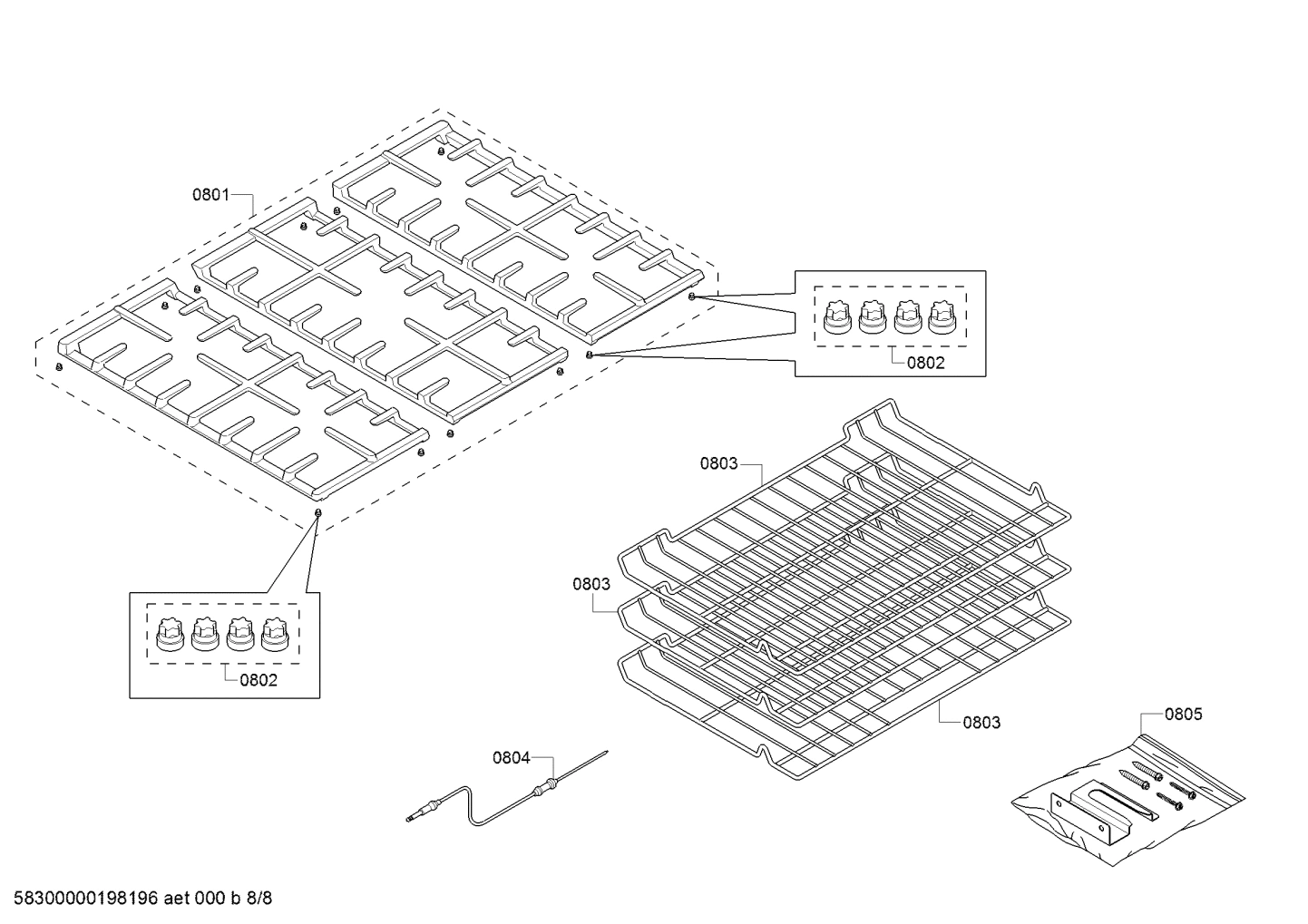

0801

11012878 Bosch Range Grid Backorder BOS 11012878 $256.99

View on Model

0802

00637940 Bosch Oven Rubber Foot In Stock BOS 00637940 $57.37

View on Model

0803

00798845 Bosch Oven Shelf In Stock BOS 00798845 $72.28

View on Model

0804

00755060 Bosch Oven Sensor In Stock BOS 00755060 $111.28

View on Model

0805

00632523 Bosch Range Bracket Backorder BOS 00632523 $36.04

View on Model

0850

00424823 Bosch Range Terminal Backorder BOS 00424823 $28.33

View on Model
