Bosch HDI7282U/04 Range Oven Parts List

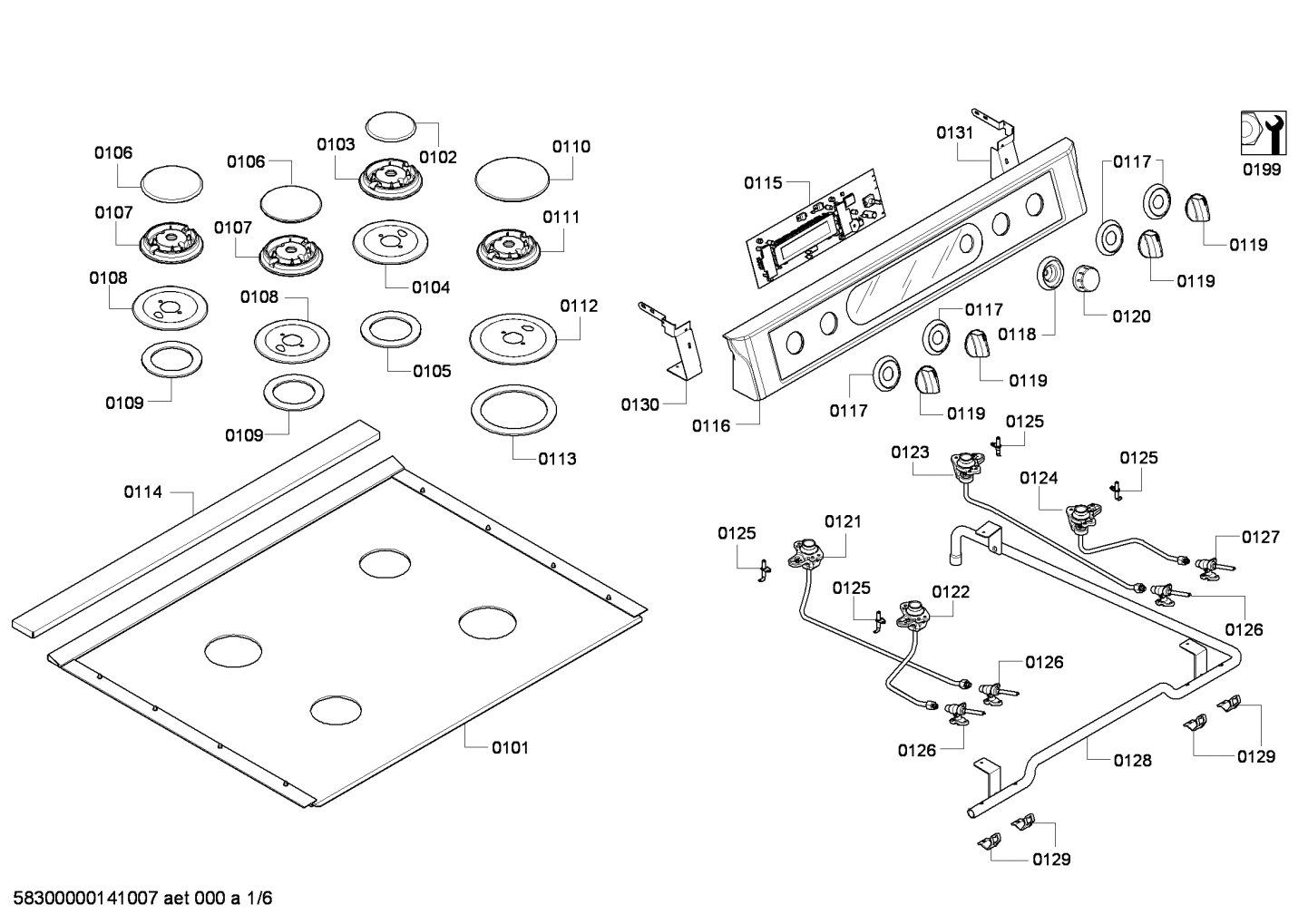

0101

Hob top BOS 00243959 Contact Us For Availability

View on Model

0102

Cap BOS 00603882 Contact Us For Availability

View on Model

0103

00423442 Bosch Range Burner Housing Backorder BOS 00423442 $45.84

View on Model

0105

00605675 Bosch Range Seal Backorder BOS 00605675 $39.13

View on Model

0106

00494730 Bosch Range Burner Cap Backorder BOS 00494730 $95.28

View on Model

0107

Burner housing BOS 00423444 No Longer Available

View on Model

0108

Support BOS 00605670 Contact Us For Availability

View on Model

0109

00605676 Bosch Range Seal Backorder BOS 00605676 $47.37

View on Model

0110

Burner cap BOS 00426056 Contact Us For Availability

View on Model

0111

Burner housing BOS 00423449 Contact Us For Availability

View on Model

0113

Seal BOS 00605677 Contact Us For Availability

View on Model

0115

Display module BOS 00653424 Contact Us For Availability

View on Model

0116

00703426 Bosch Range Glass Front Panel Backorder BOS 00703426 $676.20

View on Model

0117

00605666 Bosch Range Grommet In Stock BOS 00605666 $9.26

View on Model

0118

00630686 Bosch Range Ring Backorder BOS 00630686 $61.29

View on Model

0120

00630685 Bosch Range Knob Backorder BOS 00630685 $55.11

View on Model

0121

Jet BOS 00448637 Contact Us For Availability

View on Model

0122

Jet BOS 00499754 Contact Us For Availability

View on Model

0123

00448636 Bosch Range Jet Backorder BOS 00448636 $75.71

View on Model

0124

00499753 Bosch Range Jet Backorder BOS 00499753 $66.44

View on Model

0125

00603506 Bosch Range Electrode In Stock BOS 00603506 $24.66

View on Model

0126

00603716 Bosch Range Valve In Stock BOS 00603716 $160.17

View on Model

0127

00605674 Bosch Range Valve Backorder BOS 00605674 $61.79

View on Model

0128

00661313 Bosch Range Manifold Backorder BOS 00661313 $184.36

View on Model

0150

00651017 Bosch Range Cable Harness Assembly Backorder BOS 00651017 $157.58

View on Model

0151

Cable harness BOS 00641106 Contact Us For Availability

View on Model

0152

00422098 Bosch Oven Screw In Stock BOS 00422098 $27.82

View on Model

0153

00619838 Bosch Oven Screw In Stock BOS 00619838 $11.85

View on Model

0155

Filter BOS 00622395 Contact Us For Availability

View on Model

0156

00423478 Bosch Range Screw In Stock BOS 00423478 $3.10

View on Model

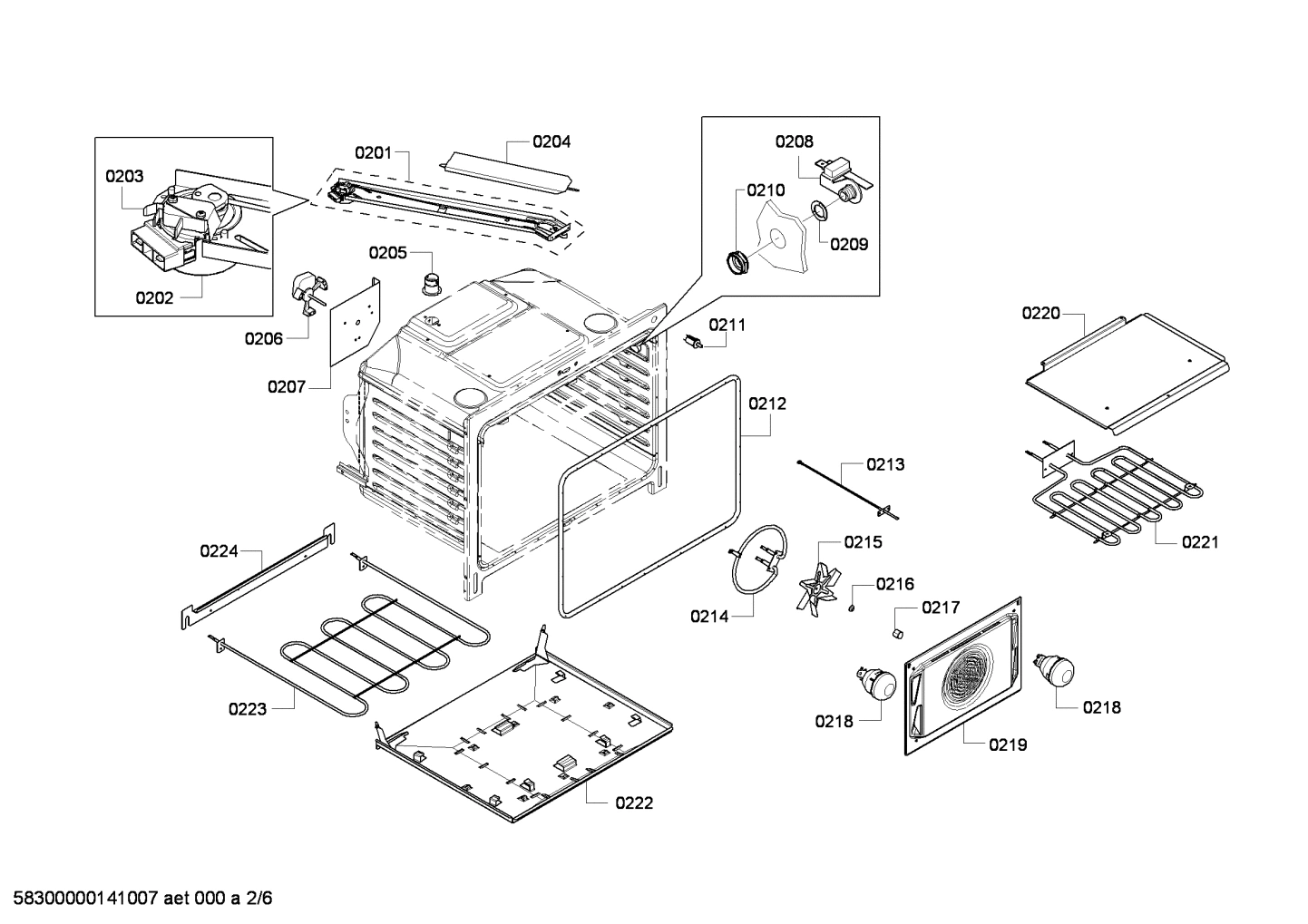

0201

00746648 Bosch Range Latch Backorder BOS 00746648 $124.12

View on Model

0202

Motor BOS 00604807 Contact Us For Availability

View on Model

0203

Switch BOS 00604808 Contact Us For Availability

View on Model

0205

00491572 Bosch Oven Catalyzer In Stock BOS 00491572 $56.14

View on Model

0206

Motor BOS 00491576 Contact Us For Availability

View on Model

0208

10007567 Bosch Oven Socket Backorder BOS 10007567 $406.71

View on Model

0209

00605039 Bosch Oven Washer Backorder BOS 00605039 $12.35

View on Model

0211

Switch BOS 00603747 No Longer Available

View on Model

0212

00491569 Bosch Oven Door Seal In Stock BOS 00491569 $99.24

View on Model

0213

00422089 Bosch Range Sensor In Stock BOS 00422089 $68.84

View on Model

0214

00436632 Bosch Range Heating Element Backorder BOS 00436632 $201.34

View on Model

0215

00491577 Bosch Oven Fan Blade Backorder BOS 00491577 $31.92

View on Model

0216

00422090 Bosch Oven Washer Backorder BOS 00422090 $16.47

View on Model

0217

00471532 Bosch Oven Nut Backorder BOS 00471532 $10.29

View on Model

0218

Lamp BOS 00415045 No Longer Available

View on Model

0221

Heating element BOS 00144417 Contact Us For Availability

View on Model

0223

Burner BOS 00491571 Contact Us For Availability

View on Model

0250

00623710 Bosch Oven Lamp In Stock BOS 00623710 $5.73

View on Model

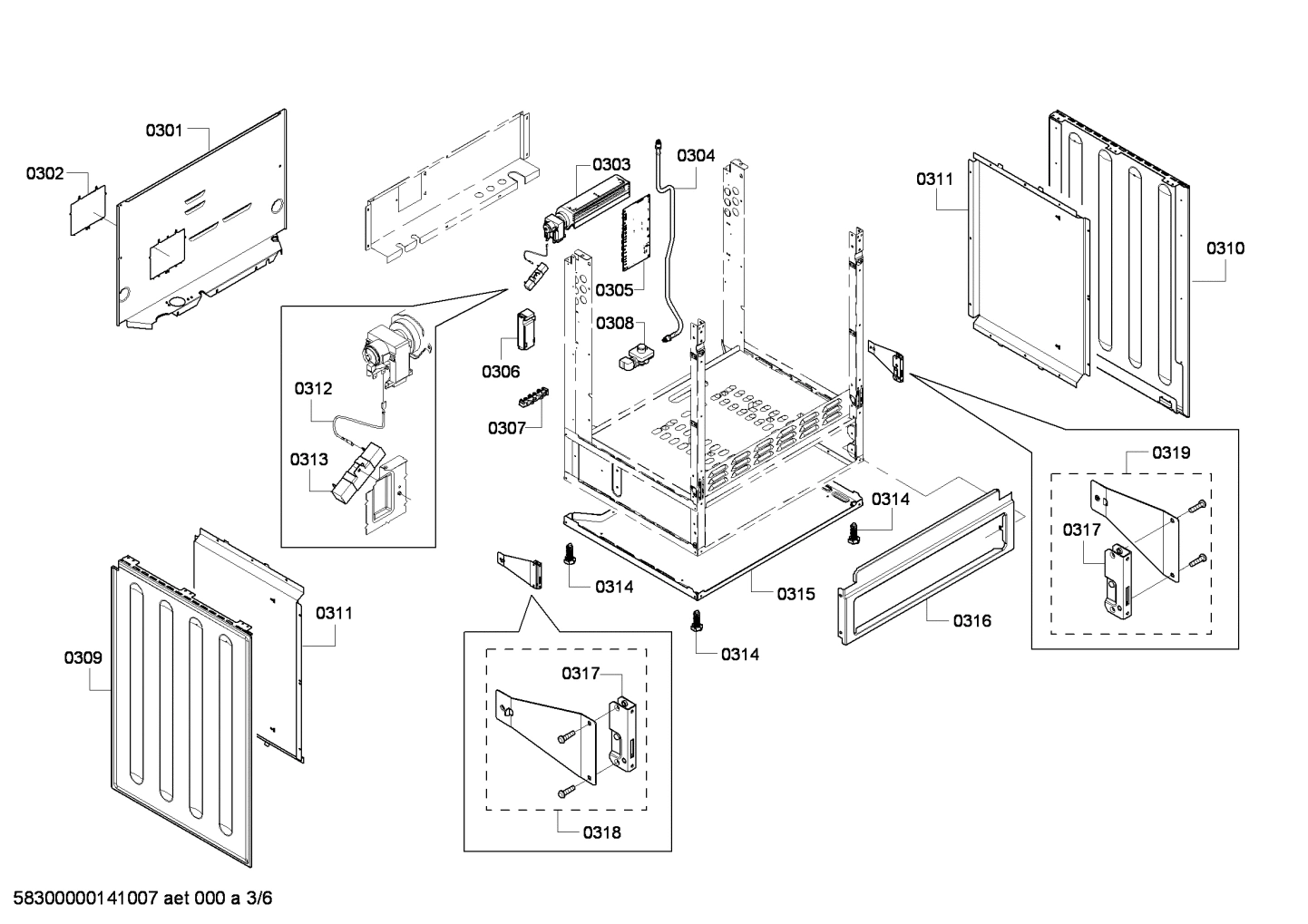

0303

00448635 Bosch Range Fan In Stock BOS 00448635 $232.90

View on Model

0304

Tube BOS 00661314 Contact Us For Availability

View on Model

0305

Power module BOS 00657860 Contact Us For Availability

View on Model

0306

Control unit BOS 00643578 Contact Us For Availability

View on Model

0307

00436364 Bosch Oven Terminal Box In Stock BOS 00436364 $31.42

View on Model

0308

Regulator BOS 00603880 Contact Us For Availability

View on Model

0311

Panel BOS 00422024 Contact Us For Availability

View on Model

0312

00648519 Bosch Range Wire Backorder BOS 00648519 $13.38

View on Model

0313

00616712 Bosch Range Resistor Backorder BOS 00616712 $35.01

View on Model

0314

00429065 Bosch Range Foot In Stock BOS 00429065 $31.55

View on Model

0317

Hinge-window BOS 00492295 No Longer Available

View on Model

0318

Hinge-plate BOS 00491539 No Longer Available

View on Model

0319

Hinge-plate BOS 00491538 No Longer Available

View on Model

0352

Cable harness BOS 00650791 Contact Us For Availability

View on Model

0353

Cable harness BOS 00499749 Contact Us For Availability

View on Model

0355

00499748 Bosch Range Cable Harness Backorder BOS 00499748 $35.01

View on Model

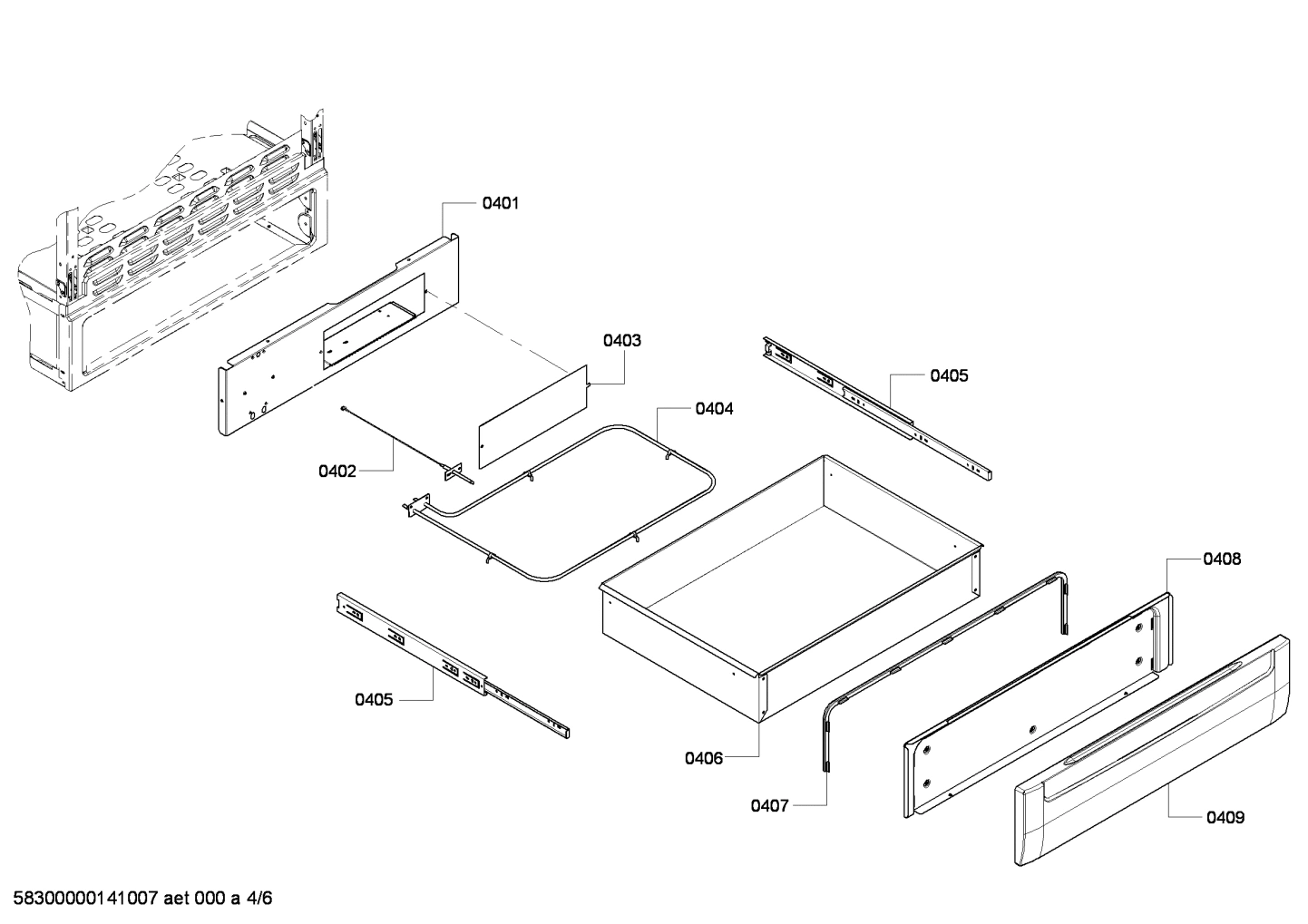

0402

00619630 Bosch Oven Sensor Backorder BOS 00619630 $61.79

View on Model

0404

Heating element BOS 00491787 Contact Us For Availability

View on Model

0405

Slide BOS 00440843 Contact Us For Availability

View on Model

0407

Sealing BOS 00436639 Contact Us For Availability

View on Model

0450

00423245 Bosch Oven Screw Backorder BOS 00423245 $3.08

View on Model

0458

00421506 Bosch Oven Screw Backorder BOS 00421506 $25.74

View on Model

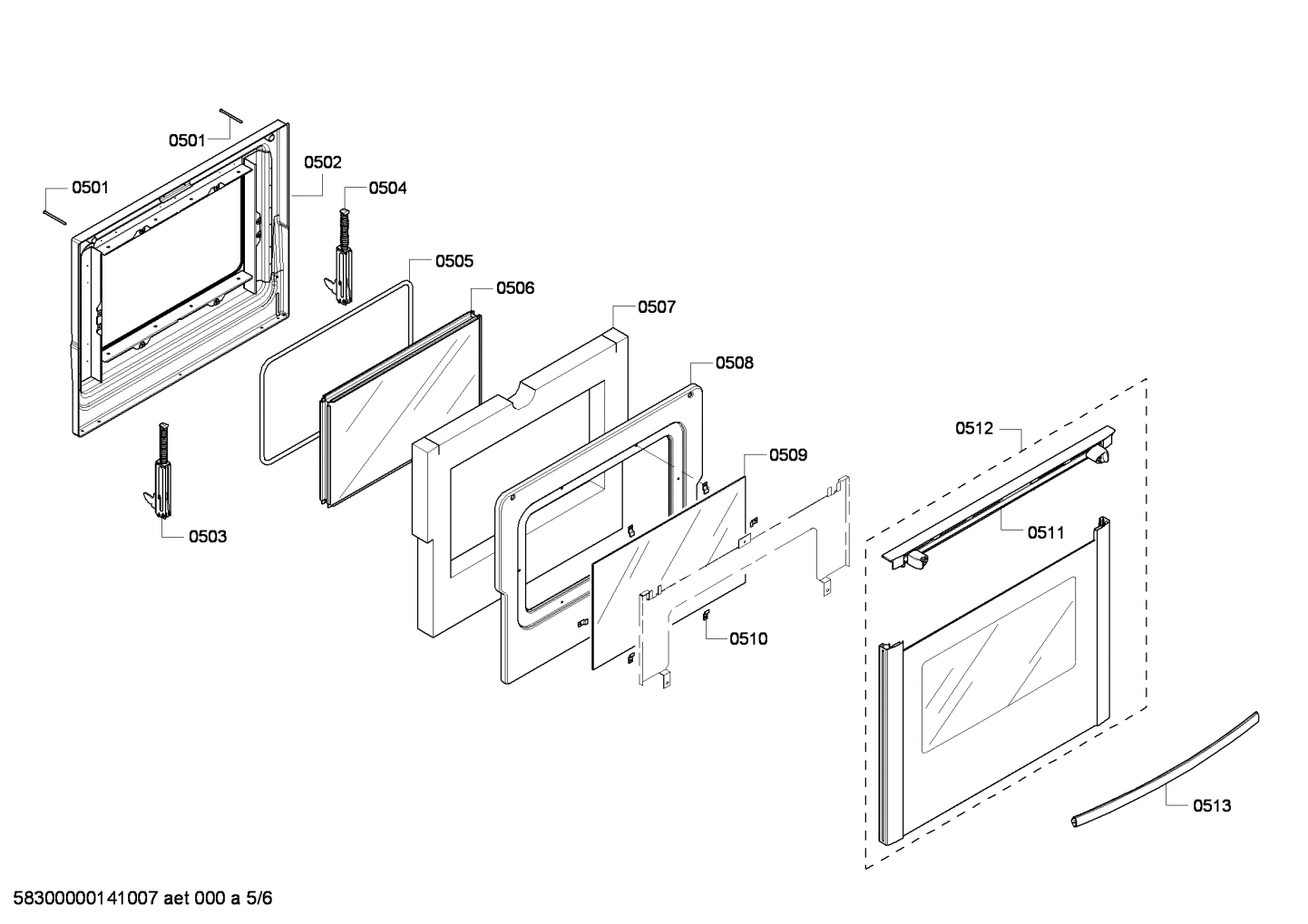

0501

Screw BOS 00607316 No Longer Available

View on Model

0502

Door-inner BOS 00683705 Contact Us For Availability

View on Model

0505

Sealing BOS 00491899 Contact Us For Availability

View on Model

0506

00436379 Bosch Range Front Glass Panel Backorder BOS 00436379 $208.58

View on Model

0507

Insulating part BOS 00143678 Contact Us For Availability

View on Model

0508

00676010 Bosch Range Heat Shield Backorder BOS 00676010 $108.67

View on Model

0509

Glass panel BOS 00665308 Contact Us For Availability

View on Model

0511

00499807 Bosch Range Handle Strip Backorder BOS 00499807 $101.46

View on Model

0512

Door-outer BOS 00683496 Contact Us For Availability

View on Model

0513

Handle-door BOS 00436646 Contact Us For Availability

View on Model

0550

00422137 Bosch Range Screw Backorder BOS 00422137 $25.74

View on Model

0551

00620814 Bosch Oven Screw Backorder BOS 00620814 $25.74

View on Model

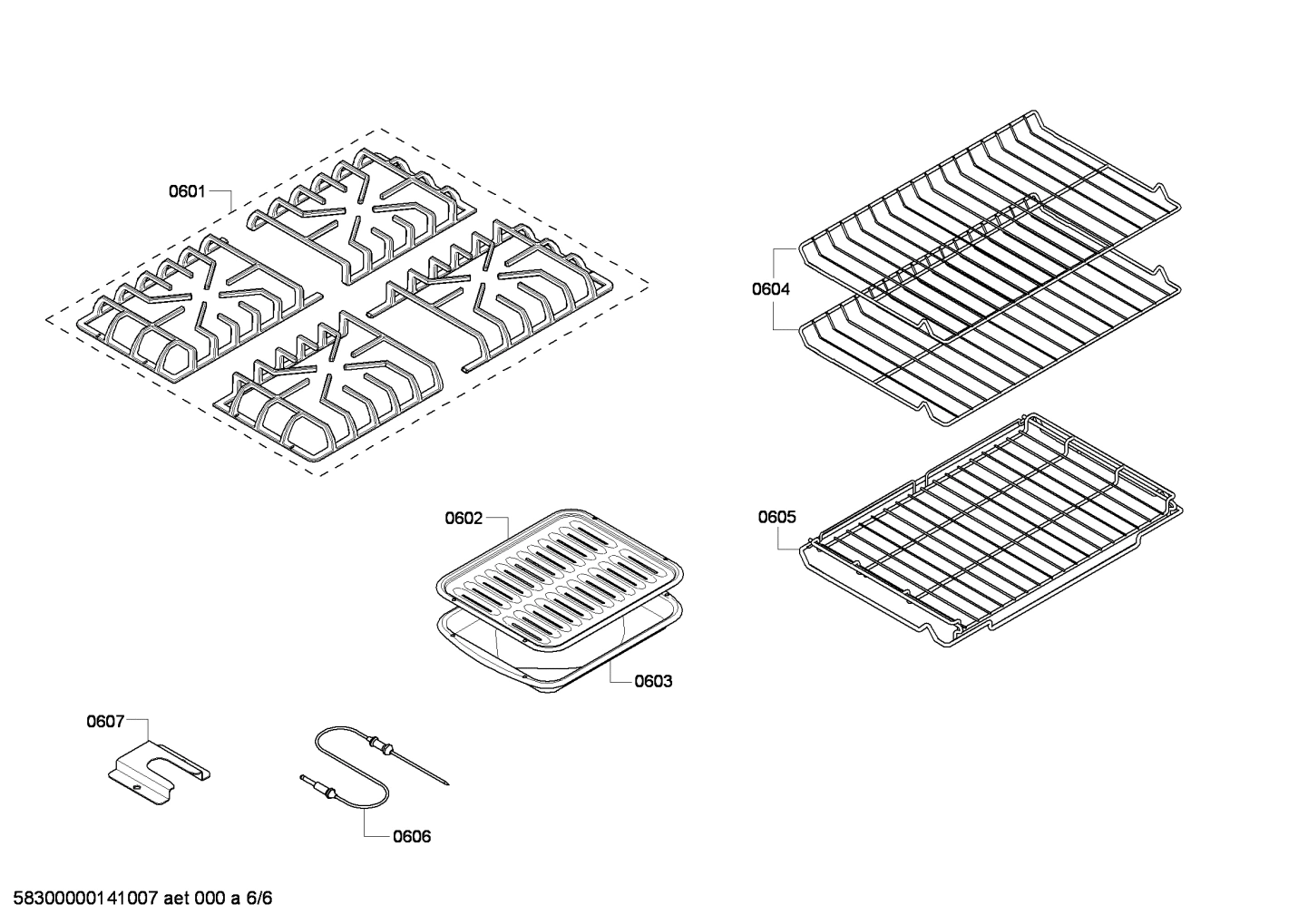

0601

Grid BOS 00701369 Contact Us For Availability

View on Model

0602

Grill tray BOS 00449756 Contact Us For Availability

View on Model

0603

Universal pan BOS 00449757 Contact Us For Availability

View on Model

0604

Shelf BOS 00144416 Contact Us For Availability

View on Model

0605

Grille BOS 00438086 Contact Us For Availability

View on Model

0606

00755060 Bosch Oven Sensor In Stock BOS 00755060 $111.28

View on Model

0607

00625466 Bosch Range Bracket Backorder BOS 00625466 $42.75

View on Model

0652

00416438 Bosch Oven Leg In Stock BOS 00416438 $6.17

View on Model
