Bosch HDI7152C/01 Range Oven Parts List

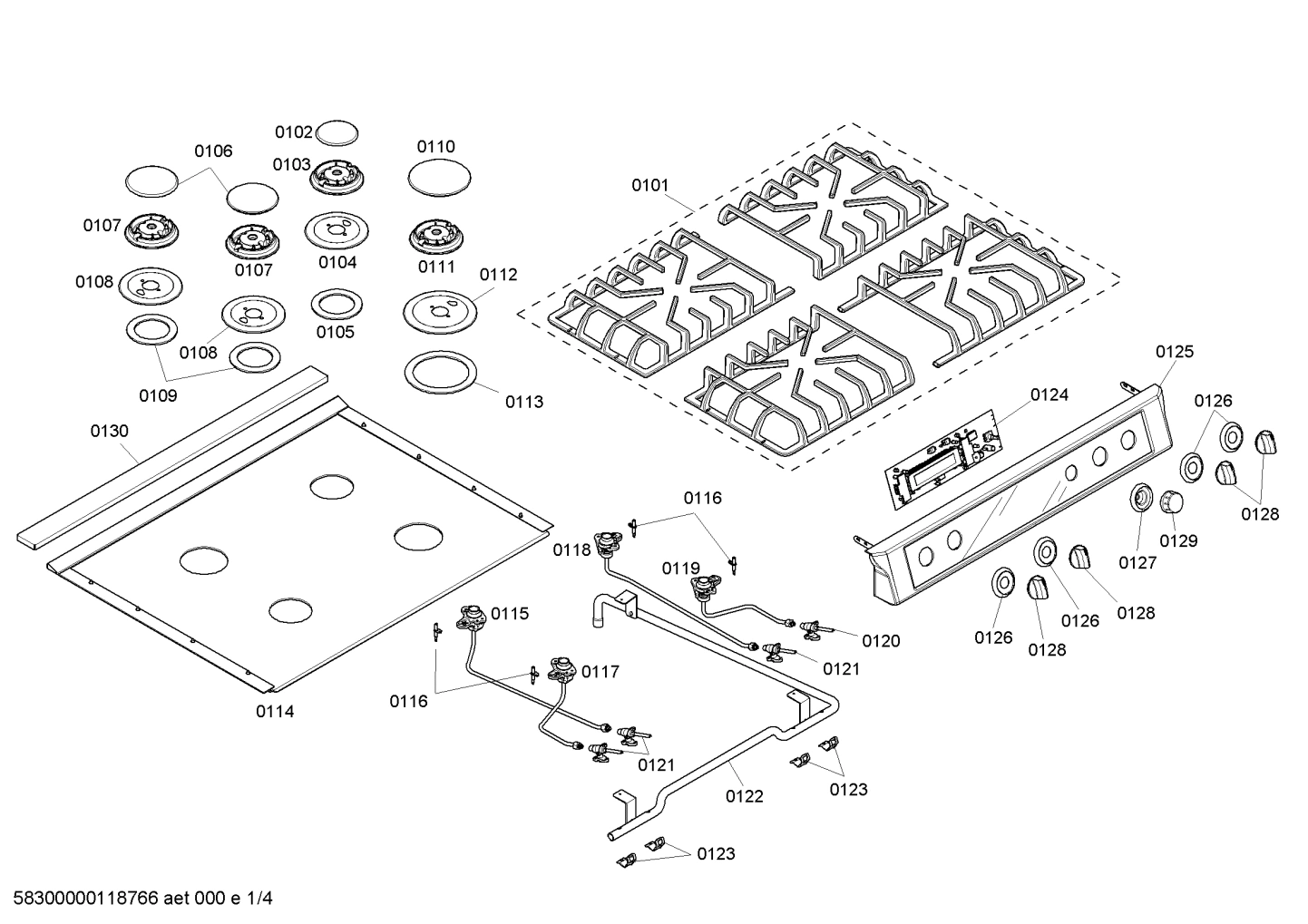

0101

Grid BOS 00701369 Contact Us For Availability

View on Model

0102

Cap BOS 00603882 Contact Us For Availability

View on Model

0103

00423442 Bosch Range Burner Housing Backorder BOS 00423442 $45.84

View on Model

0105

00605675 Bosch Range Seal Backorder BOS 00605675 $39.13

View on Model

0106

00494730 Bosch Range Burner Cap Backorder BOS 00494730 $95.28

View on Model

0107

Burner housing BOS 00423444 No Longer Available

View on Model

0108

Support BOS 00605670 Contact Us For Availability

View on Model

0109

00605676 Bosch Range Seal Backorder BOS 00605676 $47.37

View on Model

0110

Burner cap BOS 00426056 Contact Us For Availability

View on Model

0111

Burner housing BOS 00423449 Contact Us For Availability

View on Model

0113

Seal BOS 00605677 Contact Us For Availability

View on Model

0114

Hob top BOS 00243959 Contact Us For Availability

View on Model

0115

Jet BOS 00448637 Contact Us For Availability

View on Model

0116

00603506 Bosch Range Electrode In Stock BOS 00603506 $24.66

View on Model

0117

Jet BOS 00499754 Contact Us For Availability

View on Model

0118

00448636 Bosch Range Jet Backorder BOS 00448636 $75.71

View on Model

0119

00499753 Bosch Range Jet Backorder BOS 00499753 $66.44

View on Model

0120

00605674 Bosch Range Valve Backorder BOS 00605674 $61.79

View on Model

0121

00603716 Bosch Range Valve In Stock BOS 00603716 $160.17

View on Model

0122

00661313 Bosch Range Manifold Backorder BOS 00661313 $184.36

View on Model

0124

Display module BOS 00653424 Contact Us For Availability

View on Model

0126

00605666 Bosch Range Grommet In Stock BOS 00605666 $9.26

View on Model

0127

00630686 Bosch Range Ring Backorder BOS 00630686 $61.29

View on Model

0129

00630685 Bosch Range Knob Backorder BOS 00630685 $55.11

View on Model

0151

Cable harness BOS 00650791 Contact Us For Availability

View on Model

0152

00499748 Bosch Range Cable Harness Backorder BOS 00499748 $35.01

View on Model

0153

Cable harness BOS 00499749 Contact Us For Availability

View on Model

0155

00651017 Bosch Range Cable Harness Assembly Backorder BOS 00651017 $157.58

View on Model

0156

Cable harness BOS 00641106 Contact Us For Availability

View on Model

0159

Filter BOS 00622395 Contact Us For Availability

View on Model

0160

00423478 Bosch Range Screw In Stock BOS 00423478 $3.10

View on Model

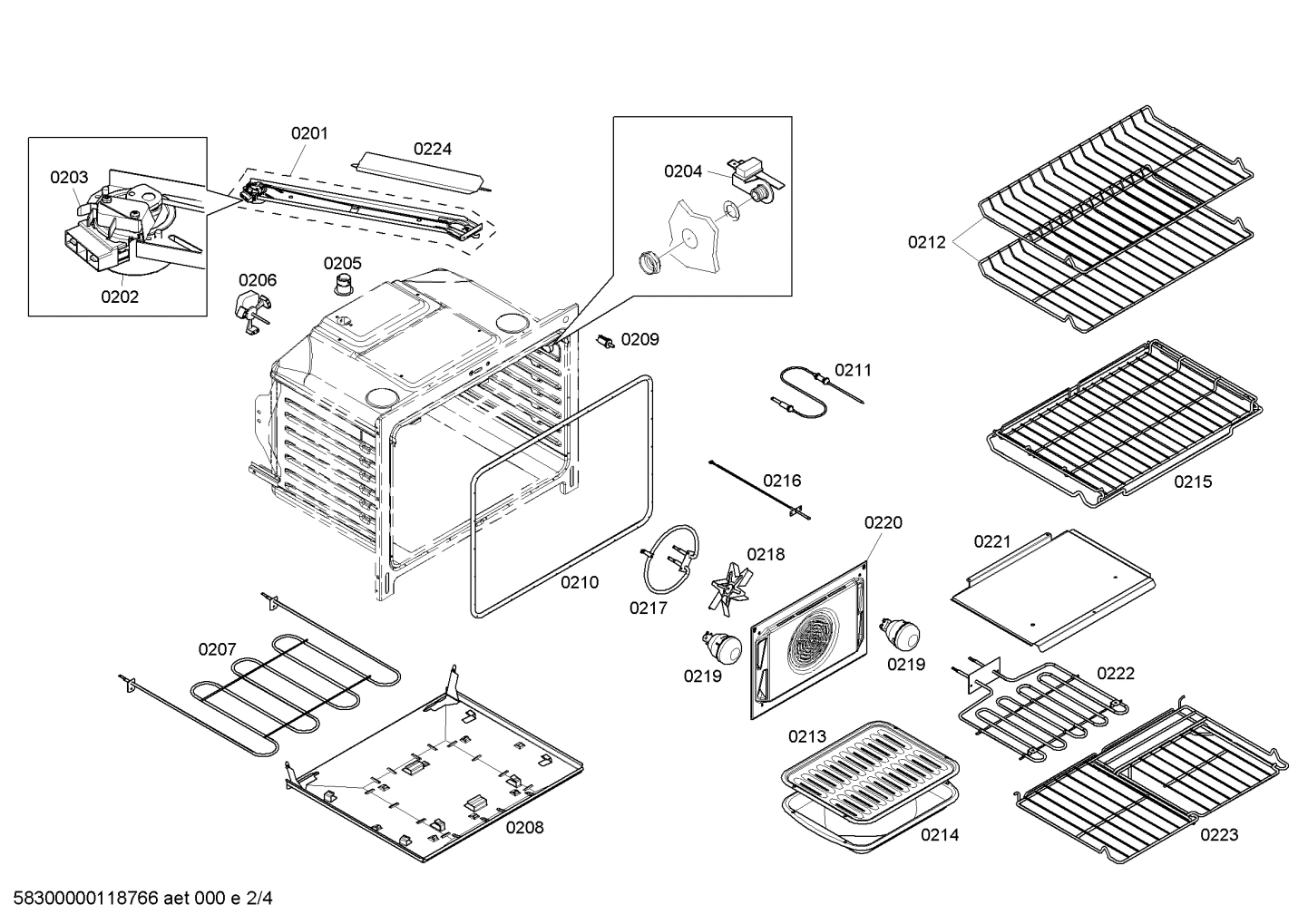

0201

00746648 Bosch Range Latch Backorder BOS 00746648 $124.12

View on Model

0202

Motor BOS 00604807 Contact Us For Availability

View on Model

0203

Switch BOS 00604808 Contact Us For Availability

View on Model

0204

10007567 Bosch Oven Socket Backorder BOS 10007567 $406.71

View on Model

0205

00491572 Bosch Oven Catalyzer In Stock BOS 00491572 $56.14

View on Model

0206

Motor BOS 00491576 Contact Us For Availability

View on Model

0207

Burner BOS 00491571 Contact Us For Availability

View on Model

0209

Switch BOS 00603747 No Longer Available

View on Model

0210

00491569 Bosch Oven Door Seal In Stock BOS 00491569 $99.24

View on Model

0211

00755060 Bosch Oven Sensor In Stock BOS 00755060 $111.28

View on Model

0212

Shelf BOS 00144416 Contact Us For Availability

View on Model

0213

Grill tray BOS 00449756 Contact Us For Availability

View on Model

0214

Universal pan BOS 00449757 Contact Us For Availability

View on Model

0215

Grille BOS 00438086 Contact Us For Availability

View on Model

0216

00422089 Bosch Range Sensor In Stock BOS 00422089 $68.84

View on Model

0217

00436632 Bosch Range Heating Element Backorder BOS 00436632 $201.34

View on Model

0218

00491577 Bosch Oven Fan Blade Backorder BOS 00491577 $31.92

View on Model

0219

Lamp BOS 00415045 No Longer Available

View on Model

0222

Heating element BOS 00144417 Contact Us For Availability

View on Model

0250

00683484 Bosch Range Fixing Kit Backorder BOS 00683484 $300.25

View on Model

0251

00623710 Bosch Oven Lamp In Stock BOS 00623710 $5.73

View on Model

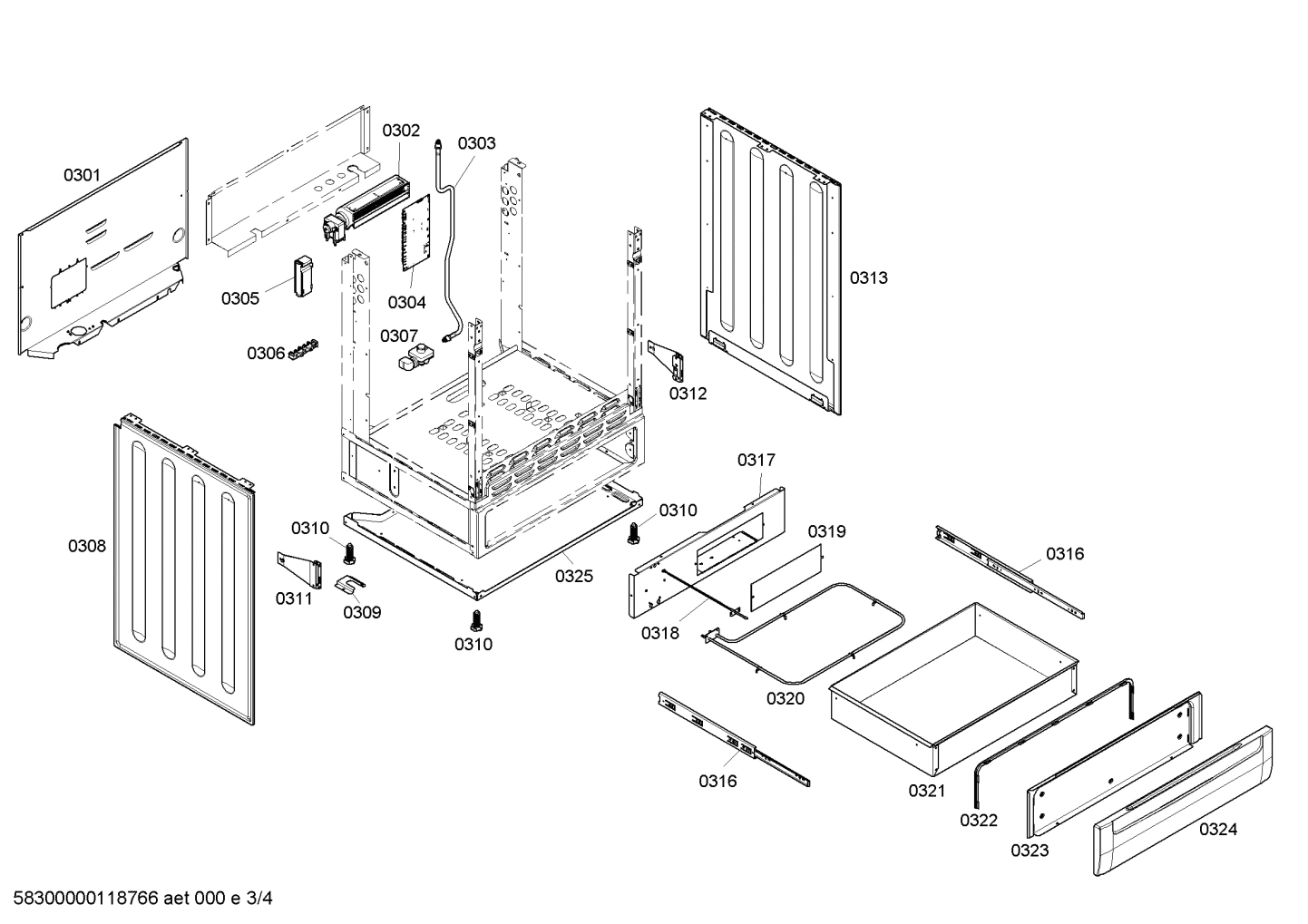

0302

00448635 Bosch Range Fan In Stock BOS 00448635 $232.90

View on Model

0303

Tube BOS 00661314 Contact Us For Availability

View on Model

0304

Power module BOS 00657860 Contact Us For Availability

View on Model

0305

Control unit BOS 00643578 Contact Us For Availability

View on Model

0306

00436364 Bosch Oven Terminal Box In Stock BOS 00436364 $31.42

View on Model

0307

Regulator BOS 00603880 Contact Us For Availability

View on Model

0309

00625466 Bosch Range Bracket Backorder BOS 00625466 $42.75

View on Model

0310

00429065 Bosch Range Foot In Stock BOS 00429065 $31.55

View on Model

0311

Hinge-plate BOS 00491539 No Longer Available

View on Model

0312

Hinge-plate BOS 00491538 No Longer Available

View on Model

0316

Slide BOS 00440843 Contact Us For Availability

View on Model

0318

00619630 Bosch Oven Sensor Backorder BOS 00619630 $61.79

View on Model

0320

Heating element BOS 00491787 Contact Us For Availability

View on Model

0322

Sealing BOS 00436639 Contact Us For Availability

View on Model

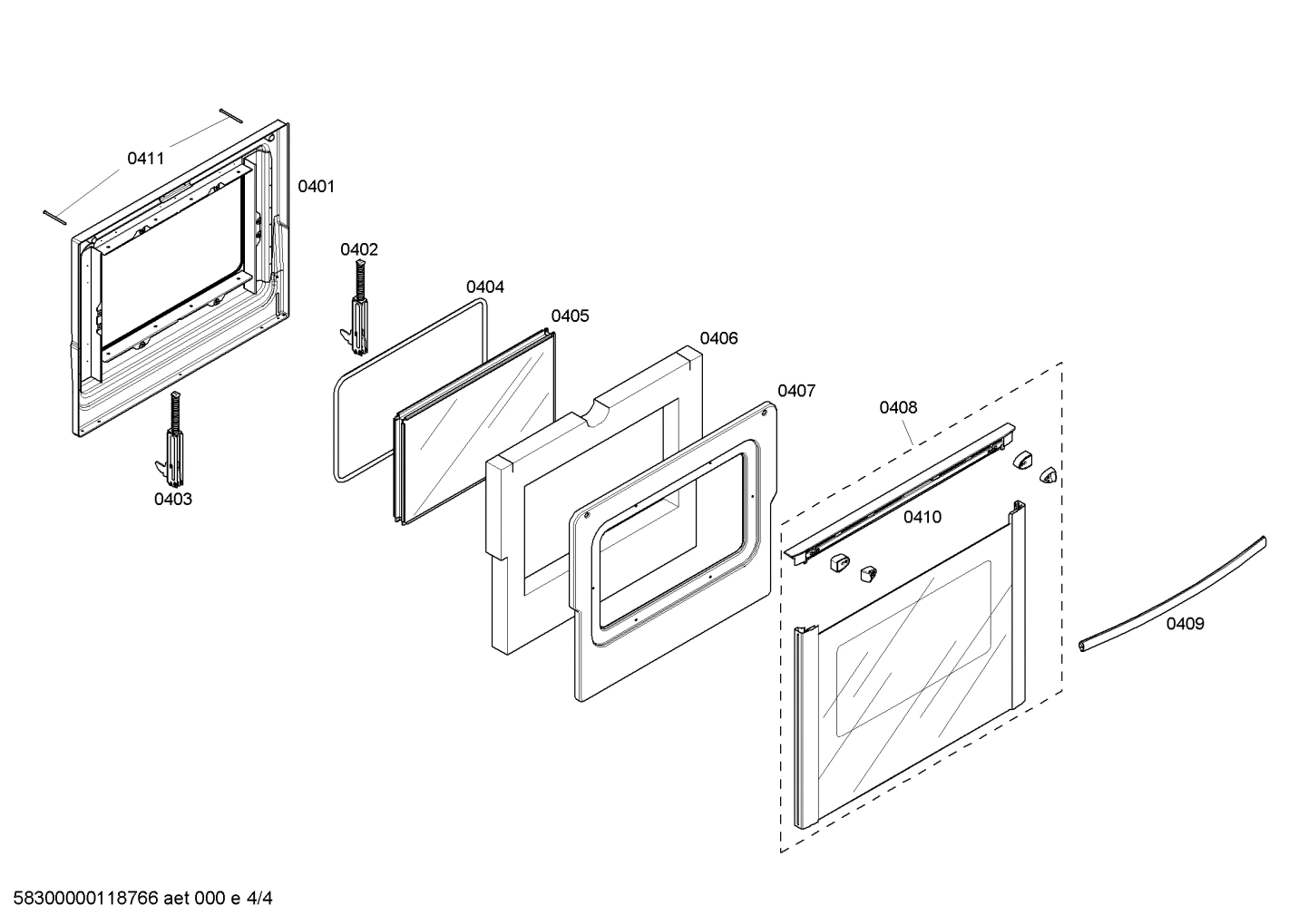

0401

Door-inner BOS 00683705 Contact Us For Availability

View on Model

0403

00683866 Bosch Range Fixing Kit Backorder BOS 00683866 $631.57

View on Model

0404

Sealing BOS 00491899 Contact Us For Availability

View on Model

0405

00436379 Bosch Range Front Glass Panel Backorder BOS 00436379 $208.58

View on Model

0406

Insulating part BOS 00143678 Contact Us For Availability

View on Model

0407

00676010 Bosch Range Heat Shield Backorder BOS 00676010 $108.67

View on Model

0408

Door-outer BOS 00449216 Contact Us For Availability

View on Model

0409

Handle-door BOS 00436646 Contact Us For Availability

View on Model

0410

00499807 Bosch Range Handle Strip Backorder BOS 00499807 $101.46

View on Model

0411

Screw BOS 00607316 No Longer Available

View on Model

0450

Glass panel BOS 00665308 Contact Us For Availability

View on Model
