Model Bosch HBN77P750/05 Range Oven – Common Parts & Diagrams
Diagram 1

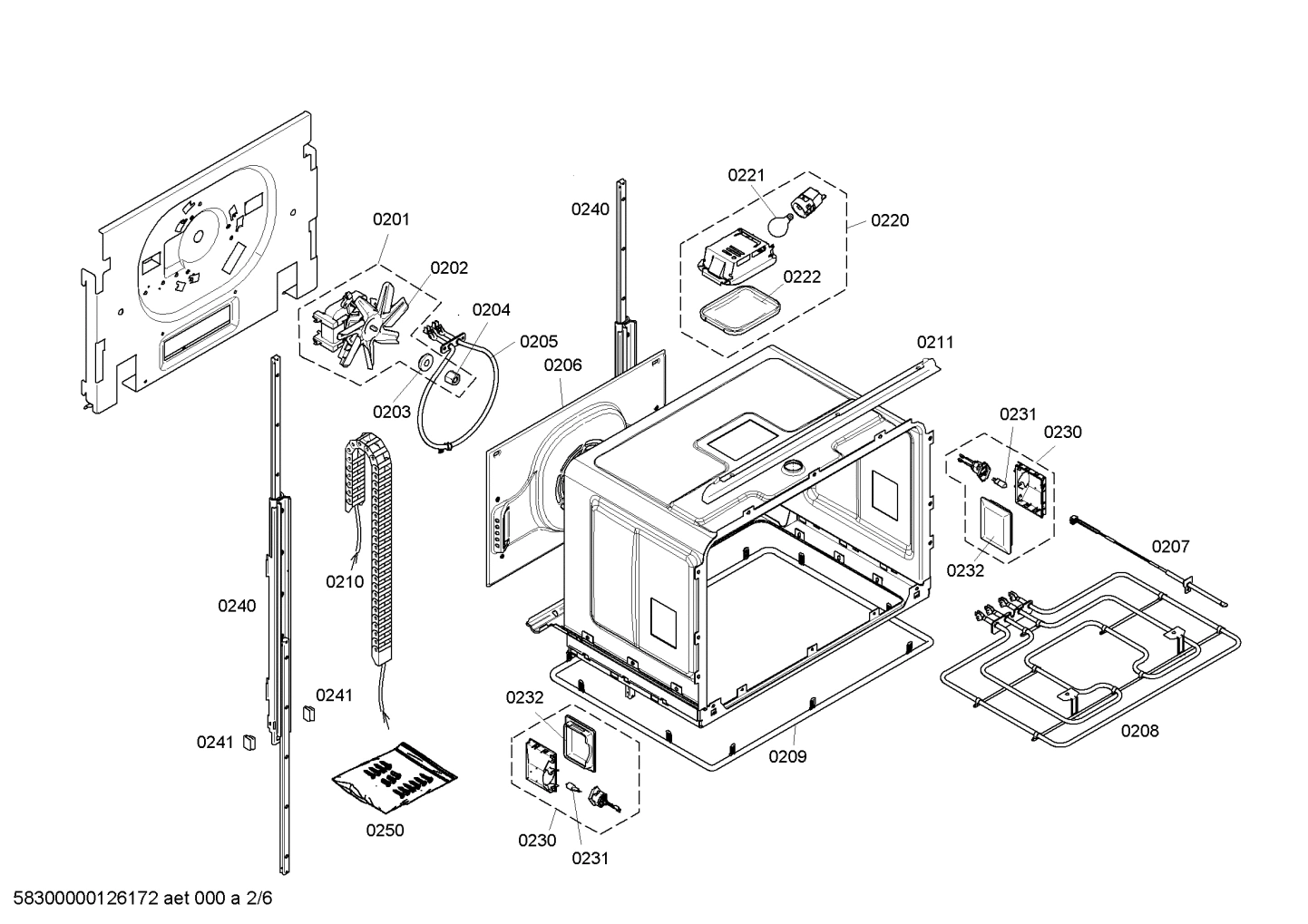

Diagram 2

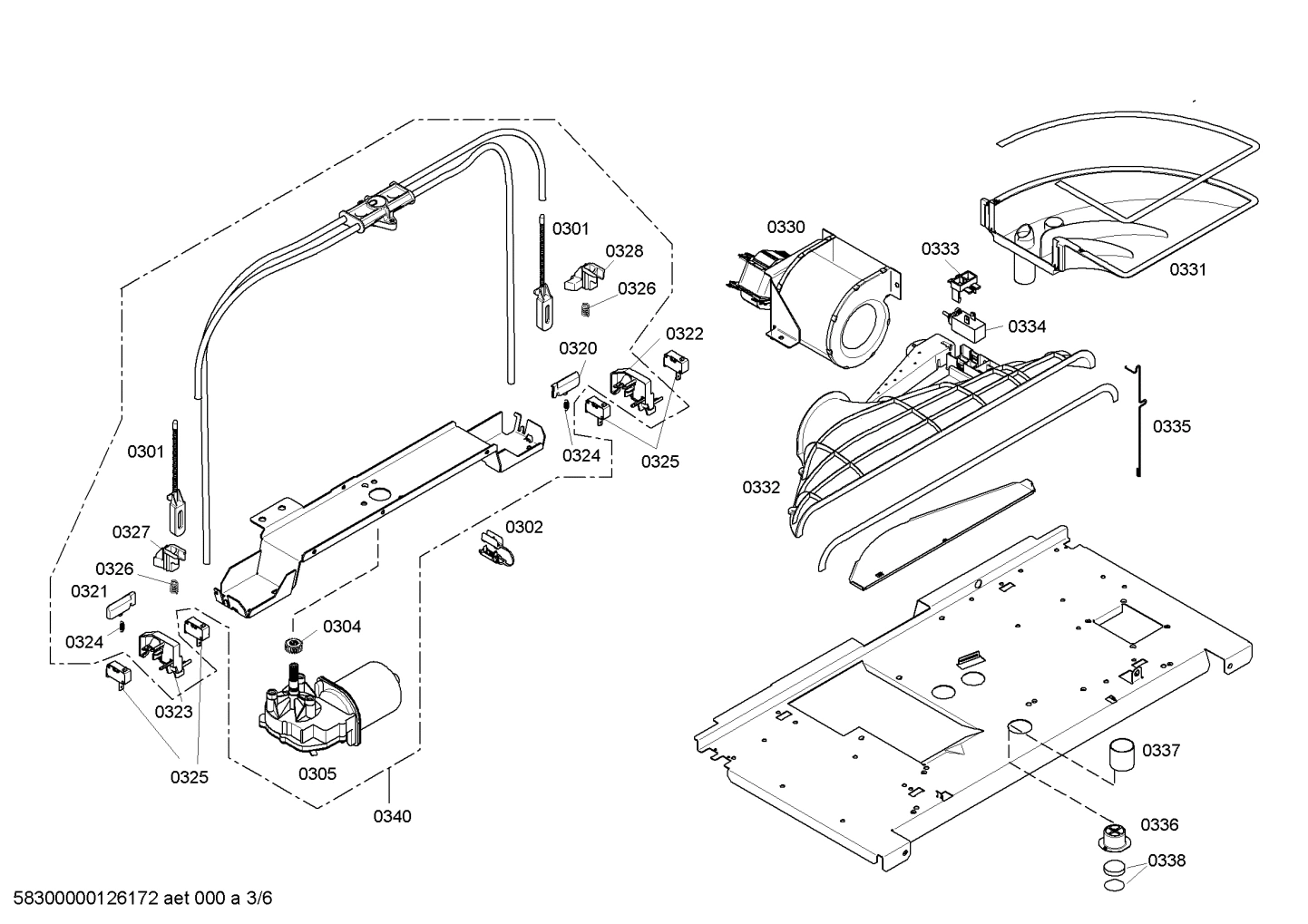

Diagram 3

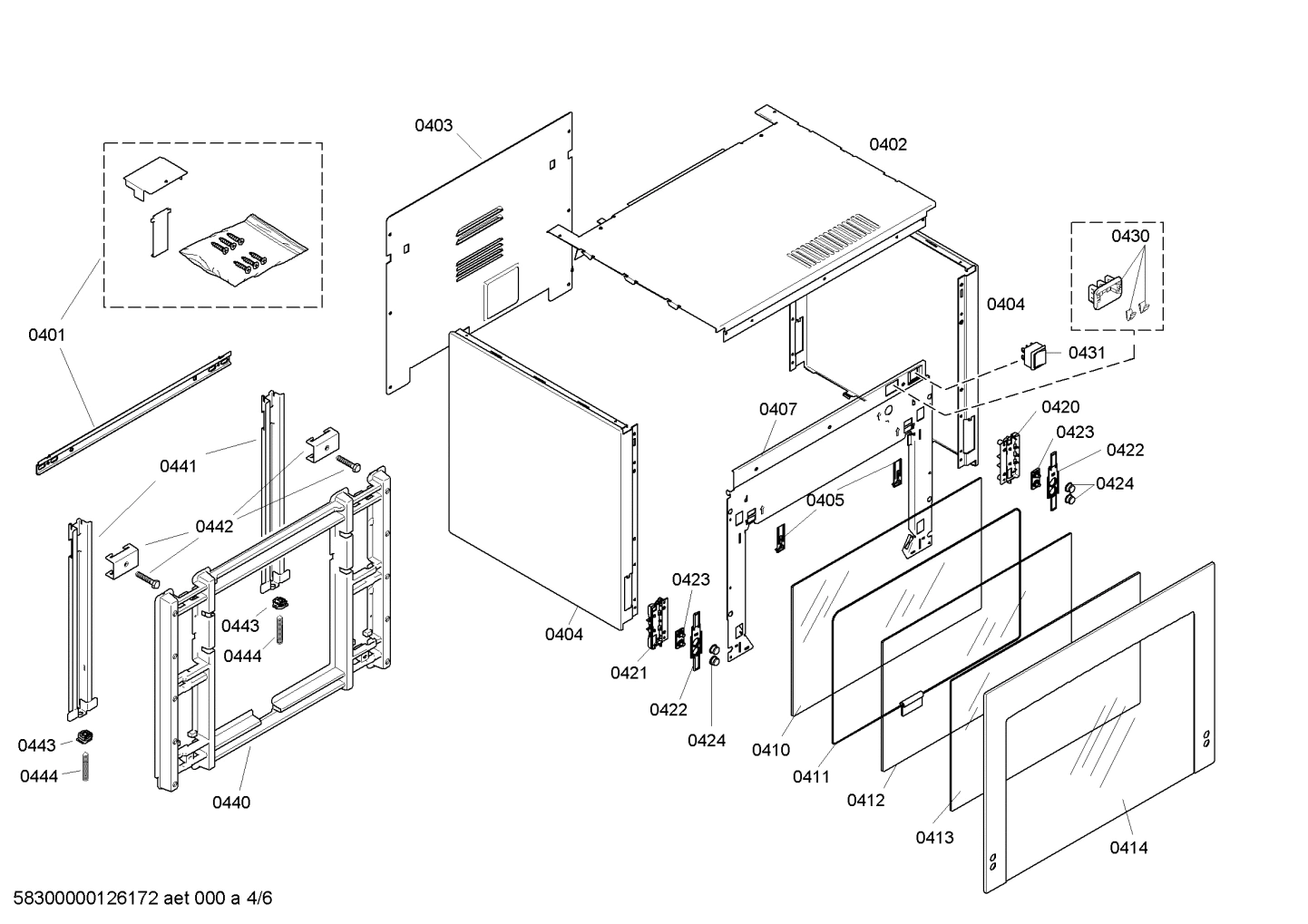

Diagram 4

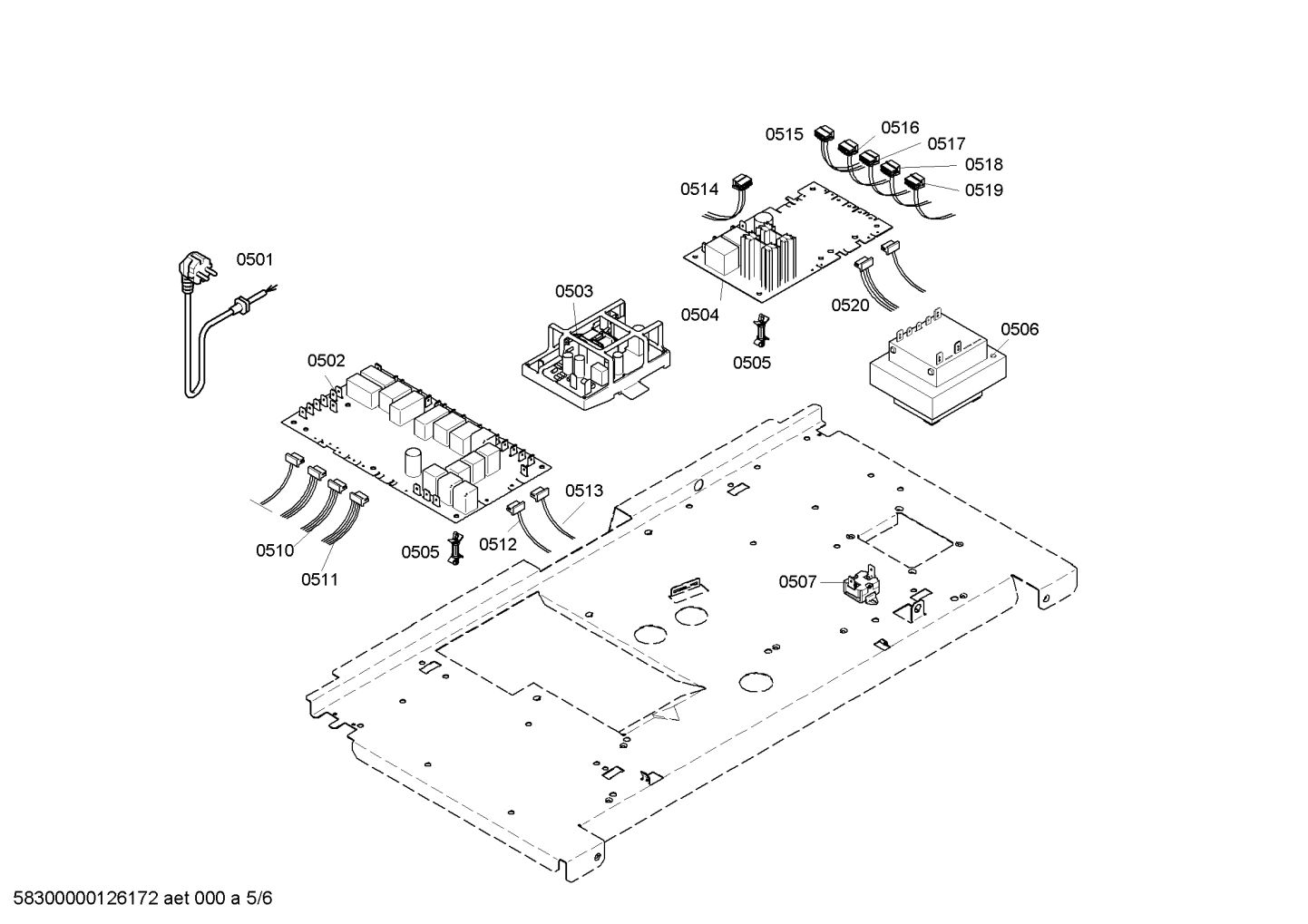

Diagram 5

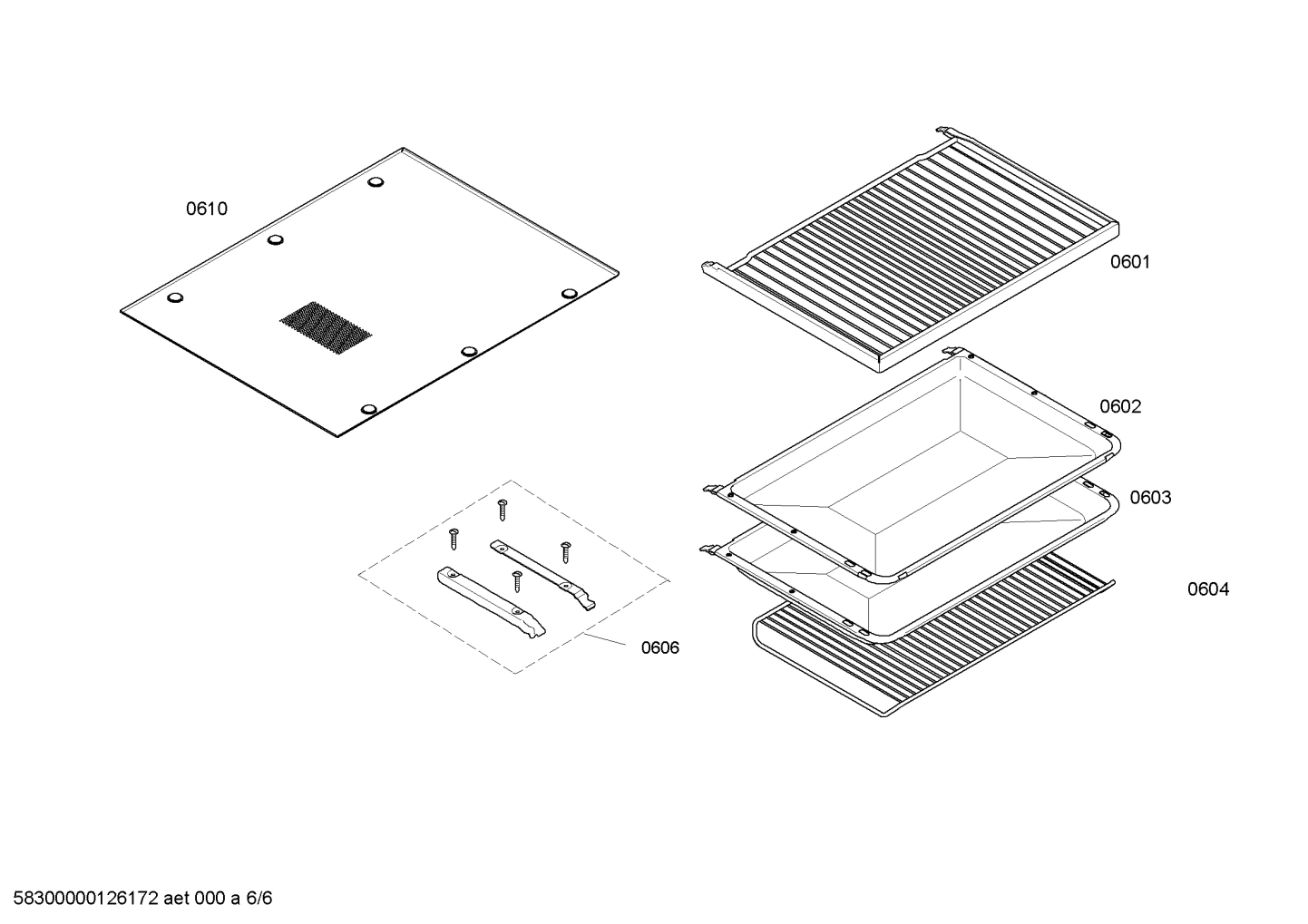

Diagram 6
Common parts from model Bosch HBN77P750/05 Range Oven
0109
Sealing BOS 00610389 Contact Us For Availability
0110
Heater-spiral BOS 00476303 Contact Us For Availability
0111
Fixture BOS 00490359 Contact Us For Availability
0112
Cover BOS 00448308 Contact Us For Availability
0120
Back panel BOS 00448246 Contact Us For Availability
0121
Cover BOS 00448244 Contact Us For Availability
0122
Cover BOS 00476322 Contact Us For Availability
0123
Strip BOS 00448703 Contact Us For Availability
0202
Fan wheel BOS 00603859 Contact Us For Availability
0205
Heater-ring BOS 00448333 Contact Us For Availability
0209
Seal-door BOS 00448353 Contact Us For Availability
0220
Lamp complete BOS 00499649 Contact Us For Availability
0240
Rail BOS 00448796 Contact Us For Availability
0241
Guide BOS 00603642 Contact Us For Availability
0250
Screw-set BOS 00603942 Contact Us For Availability
0301
Rope BOS 00476319 Contact Us For Availability
0304
Gear / spur gear BOS 00603644 Contact Us For Availability
0320
Bracket BOS 00603518 Contact Us For Availability
0321
Bracket BOS 00603516 Contact Us For Availability
0322
Case-switch BOS 00603519 Contact Us For Availability
0323
Case-switch BOS 00603520 Contact Us For Availability
0324
Spring BOS 00603515 Contact Us For Availability
0326
Spring BOS 00603849 Contact Us For Availability
0327
Guide BOS 00603847 Contact Us For Availability
0328
Guide BOS 00603848 Contact Us For Availability
0333
Clip BOS 00603851 Contact Us For Availability
0334
Switch BOS 00603543 Contact Us For Availability
0335
Wire BOS 00603850 Contact Us For Availability
0337
Pipe connection piece BOS 00603856 Contact Us For Availability
0338
Filter BOS 00603643 Contact Us For Availability
0340
Drive BOS 00682439 Contact Us For Availability
0402
Cover BOS 00479131 Contact Us For Availability
0403
Cover BOS 00476323 Contact Us For Availability
0404
Cover BOS 00476289 Contact Us For Availability
0405
Spring BOS 00603512 Contact Us For Availability
0407
Frame BOS 00478266 Contact Us For Availability
0410
Inner glass BOS 00448355 Contact Us For Availability
0411
Sealing BOS 00448354 Contact Us For Availability
0412
Inner glass BOS 00448356 Contact Us For Availability
0413
Intermediate panel BOS 00448058 Contact Us For Availability
0420
Operating module BOS 00499560 Contact Us For Availability
0421
Operating module BOS 00499562 Contact Us For Availability
0423
Key BOS 00603504 Contact Us For Availability
0440
Frame BOS 00478384 Contact Us For Availability
0441
Rail BOS 00664042 Contact Us For Availability
0442
Clip BOS 00617392 Contact Us For Availability
0443
Nut BOS 00608247 Contact Us For Availability
0444
Screw BOS 00608248 Contact Us For Availability
0504
Control module BOS 00643976 Contact Us For Availability
0505
Holder BOS 00603855 Contact Us For Availability
0601
Multi-use wire shelf BOS 00476505 Contact Us For Availability
0602
Baking tray enamel BOS 00476503 Contact Us For Availability
0603
Baking tray enamel BOS 00476504 Contact Us For Availability
0606
Installation kit BOS 00640092 Contact Us For Availability
0610
Panel BOS 00478186 Contact Us For Availability
× ![]()
