Model Bosch HBN752AUC/01 Range Oven – Common Parts & Diagrams

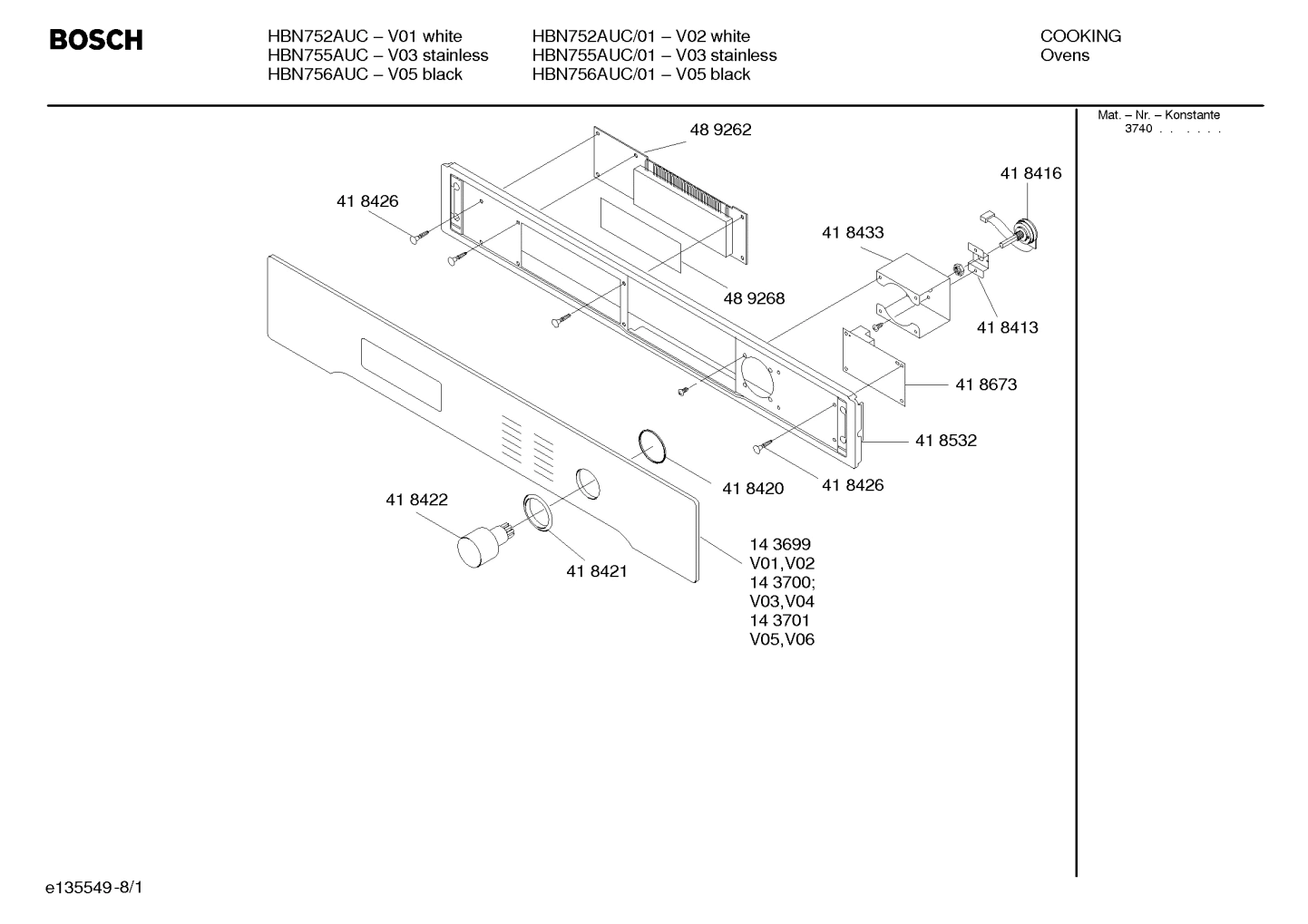

Diagram 1

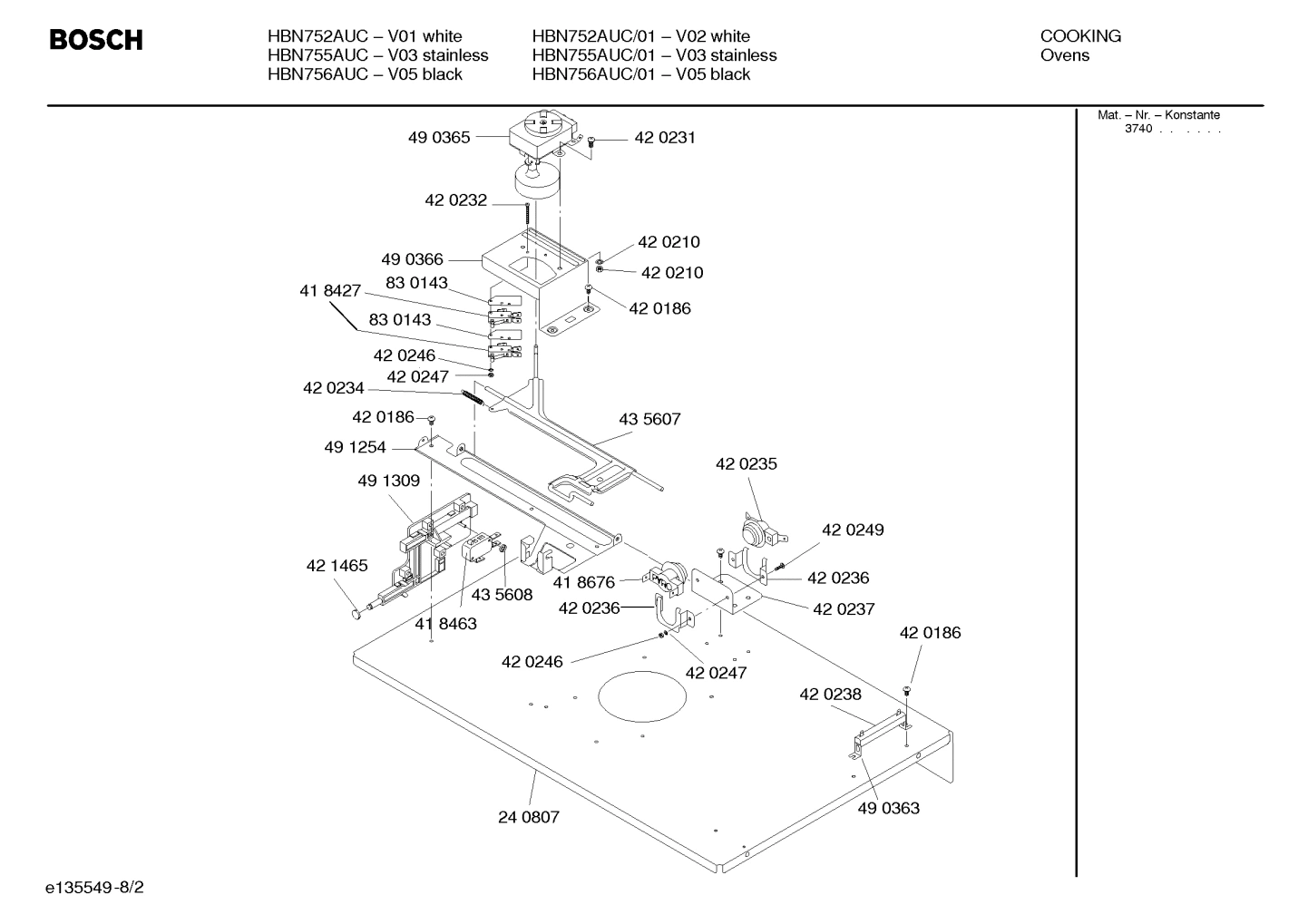

Diagram 2

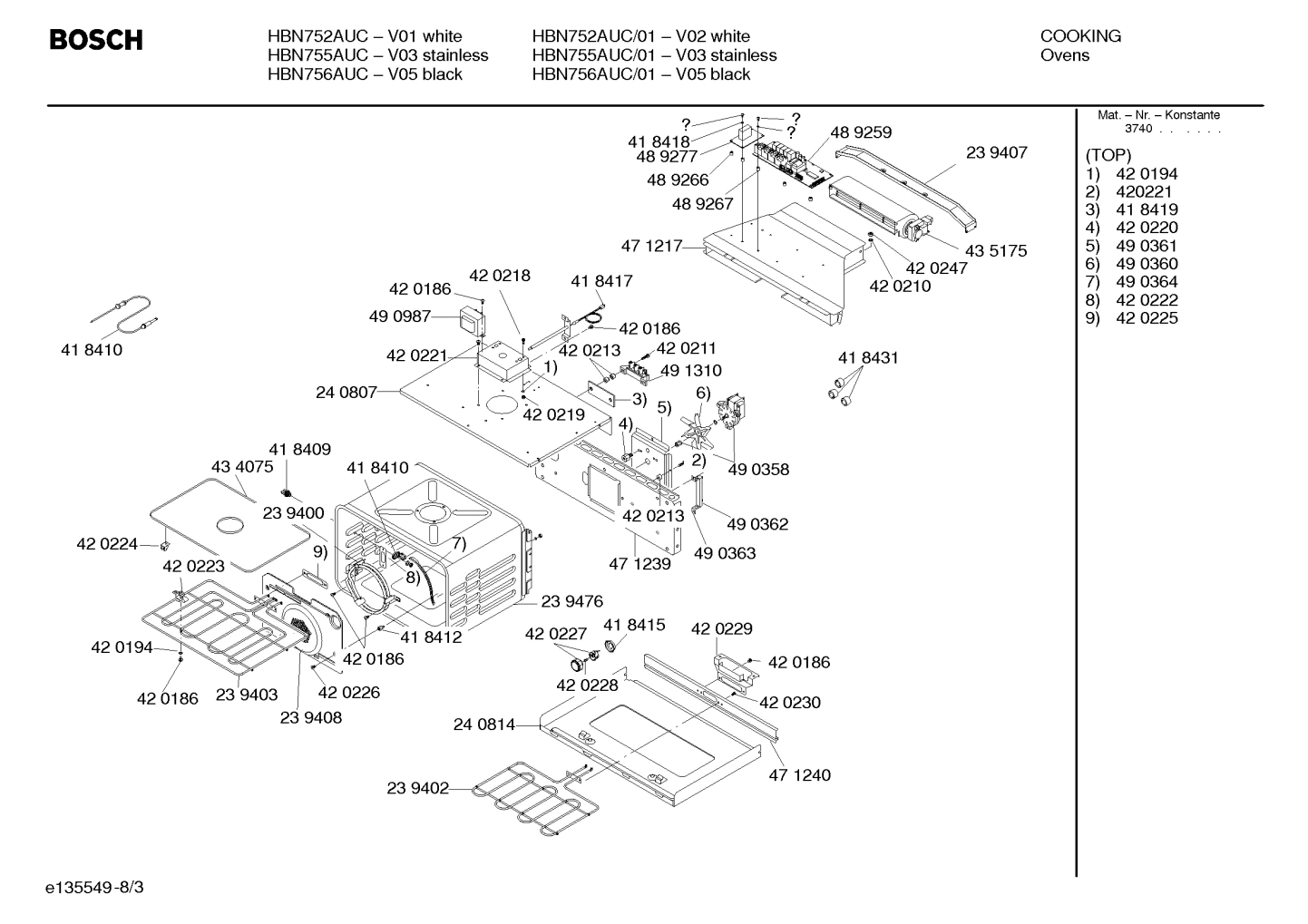

Diagram 3

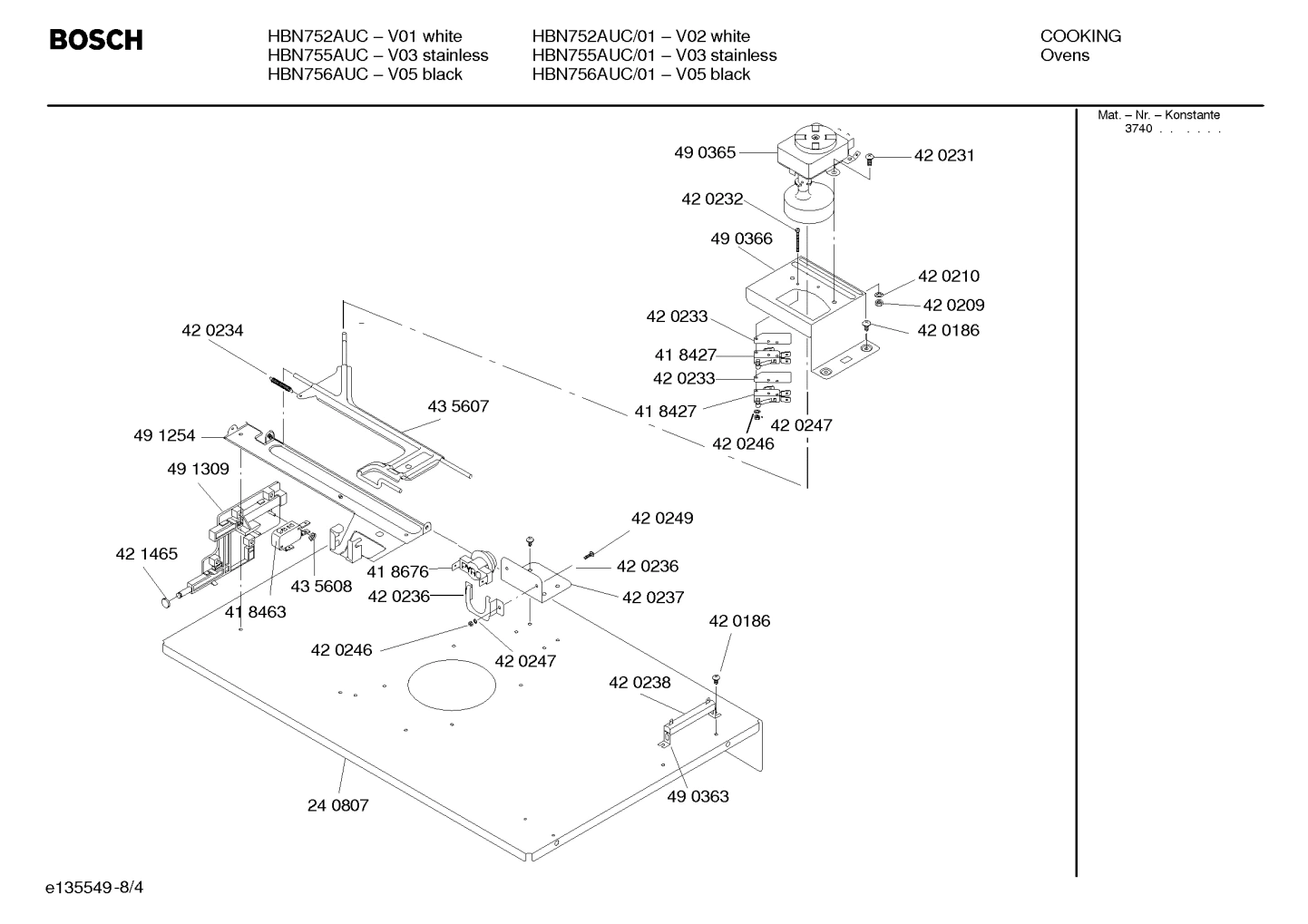

Diagram 4

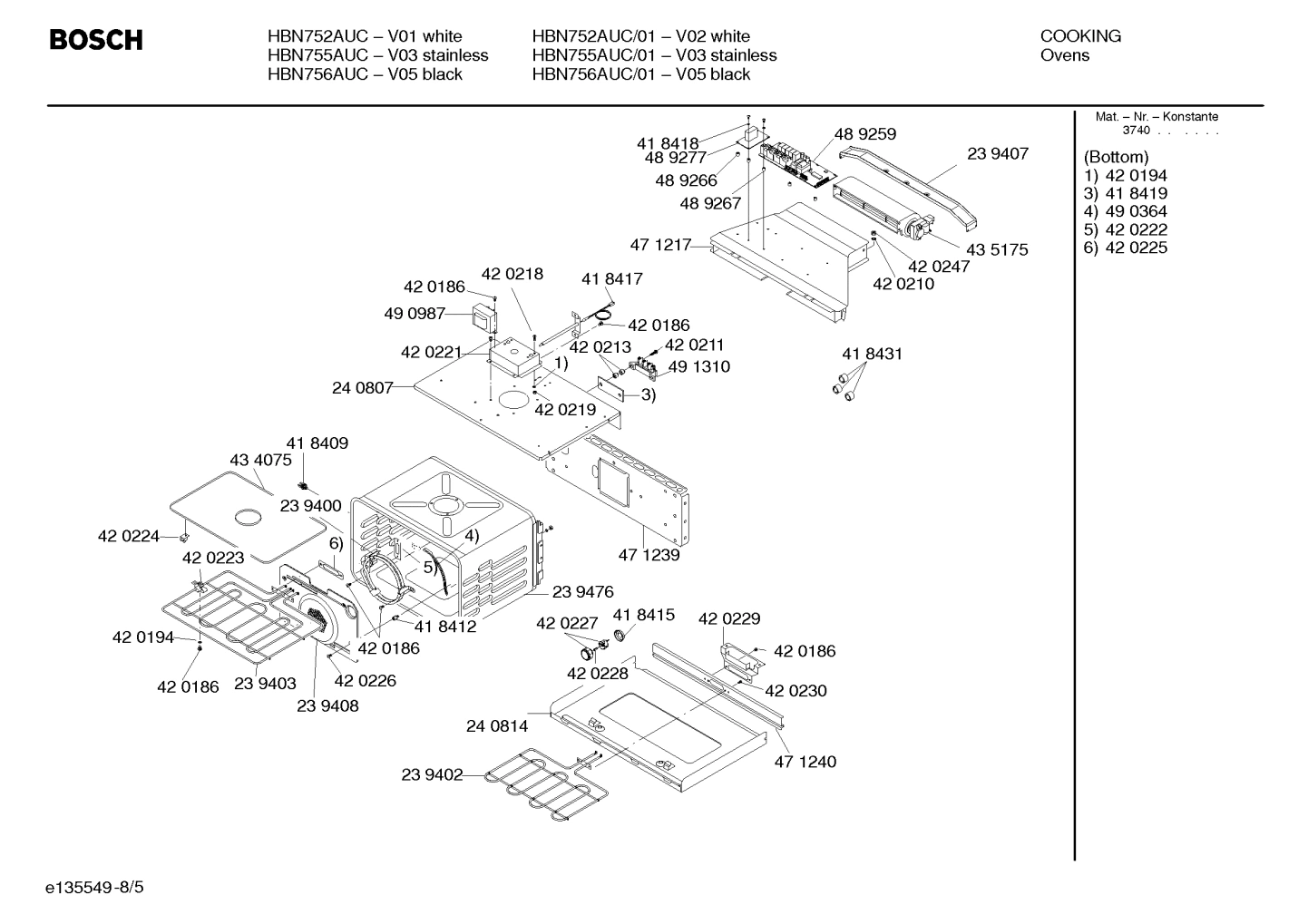

Diagram 5

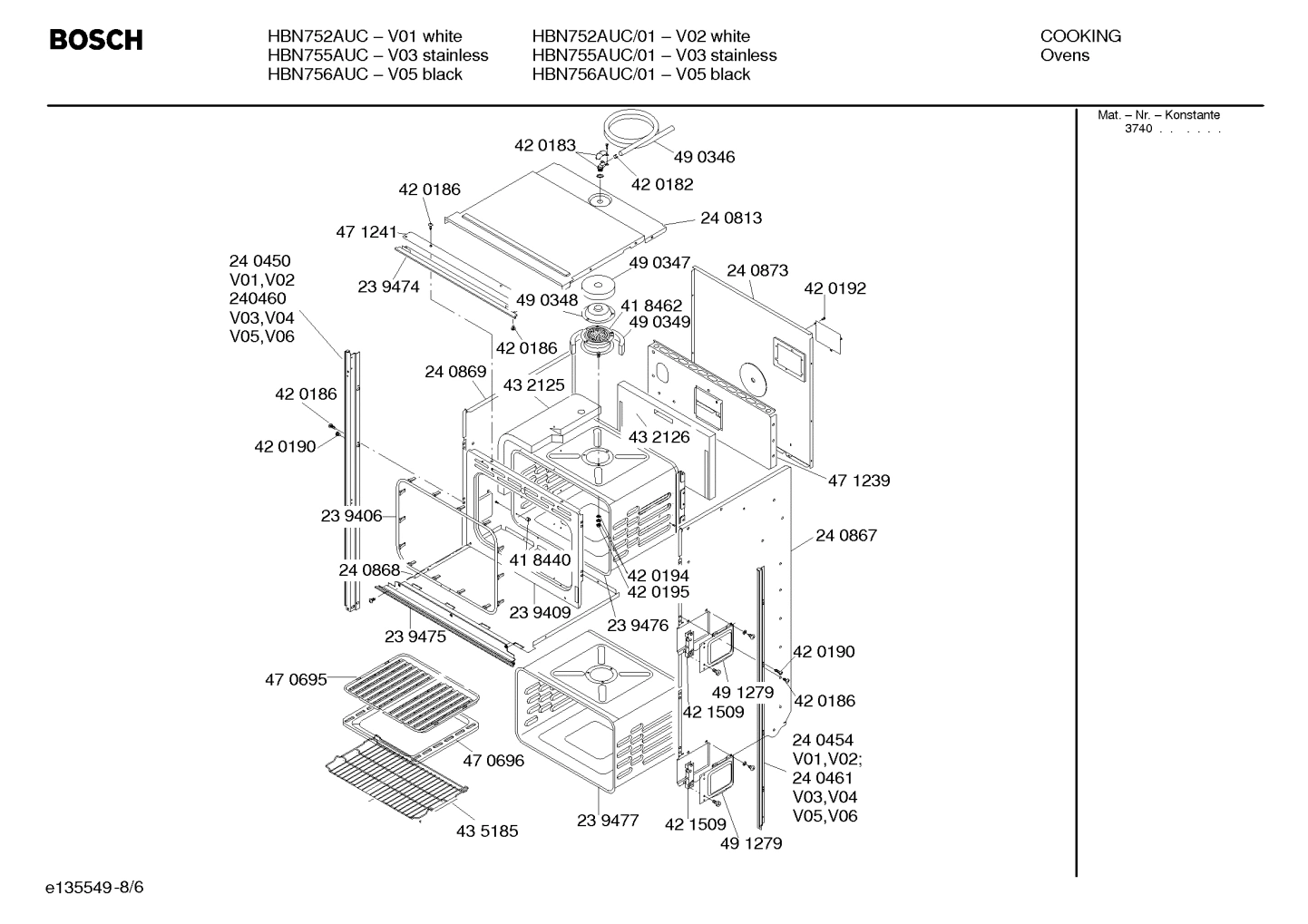

Diagram 6

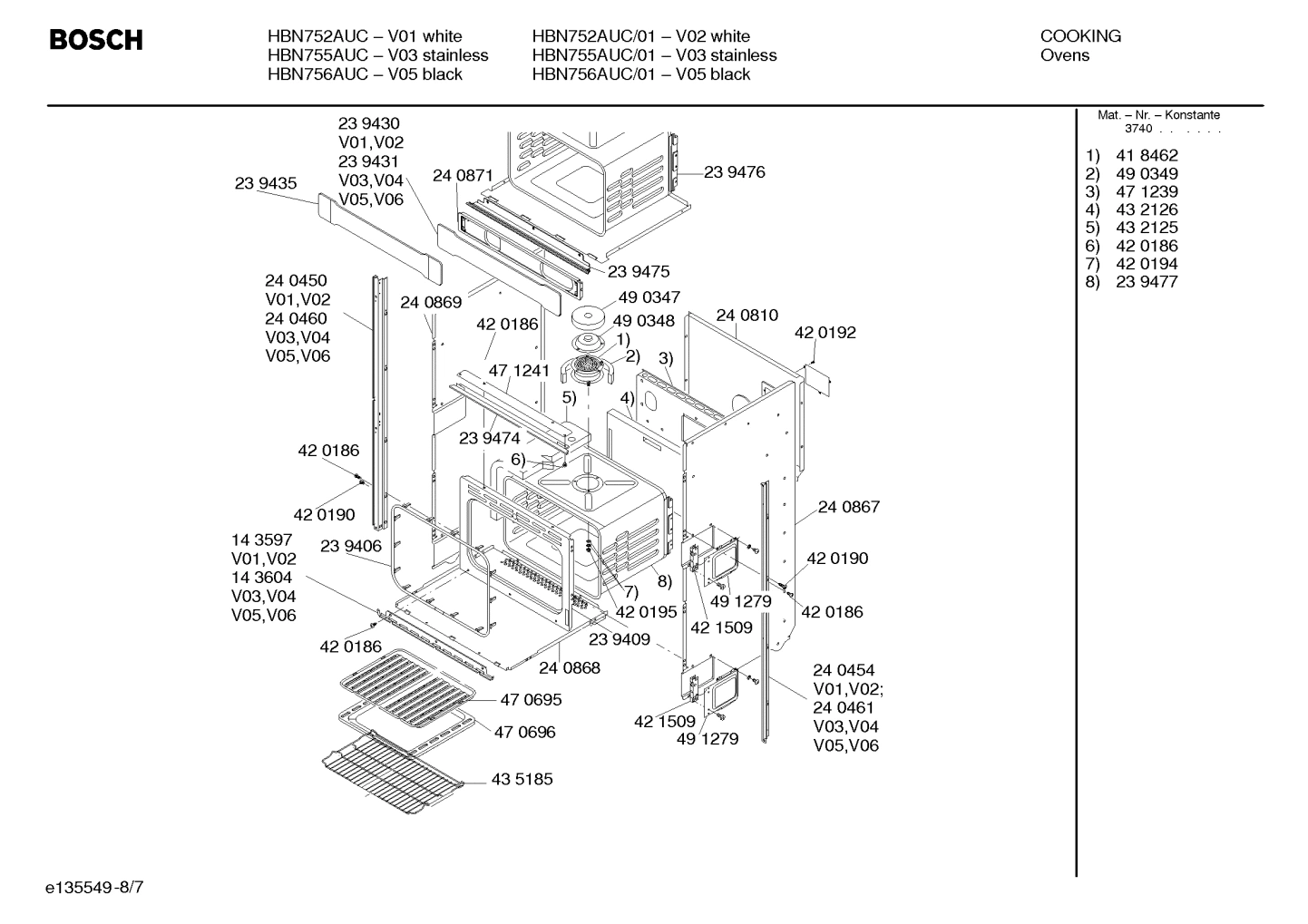

Diagram 7

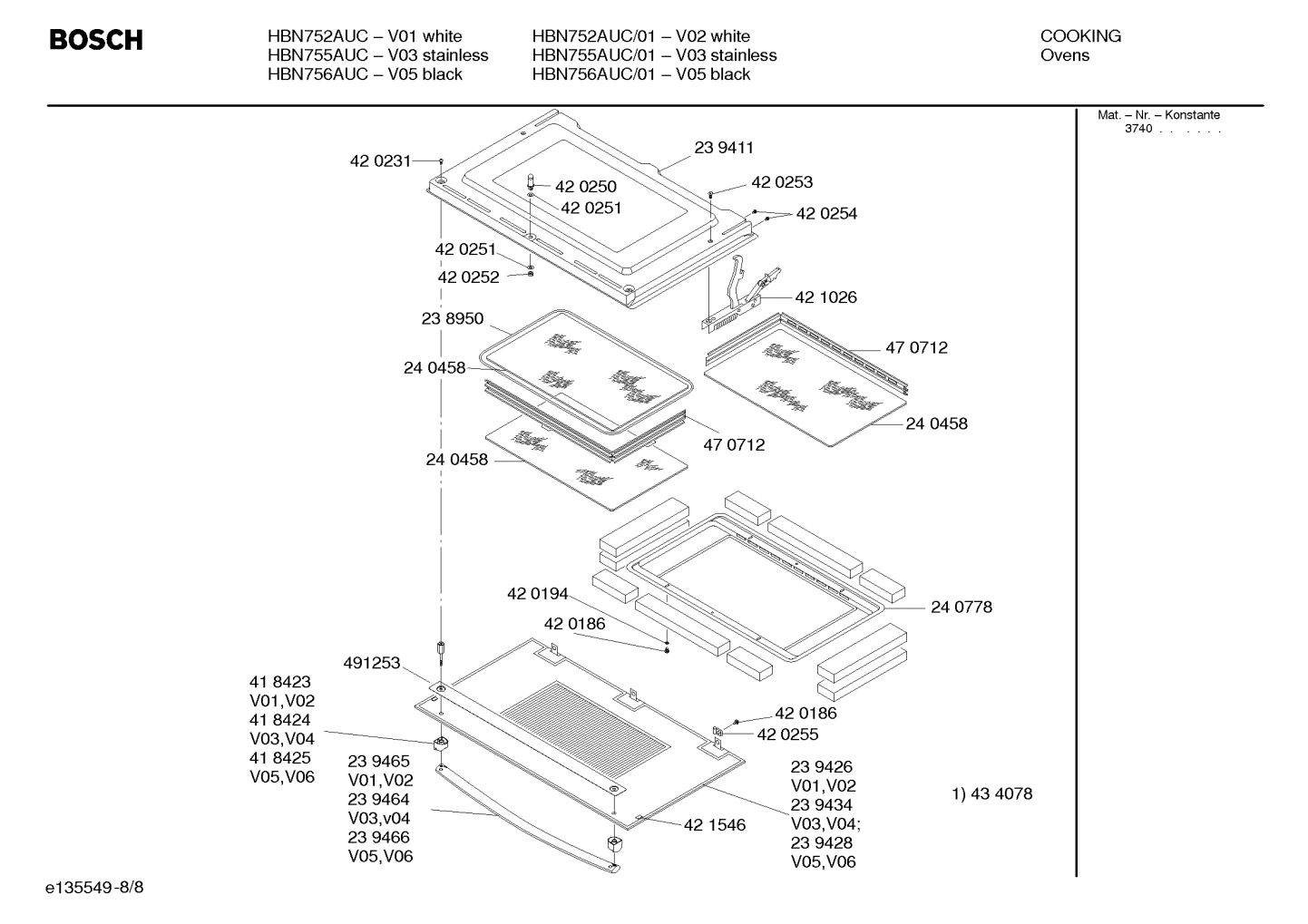

Diagram 8
Common parts from model Bosch HBN752AUC/01 Range Oven
0106
Display-film strip BOS 00489268 Contact Us For Availability
0340
Fan motor BOS 00490358 Contact Us For Availability
0413
Temperature sensor BOS 00418676 Contact Us For Availability
0418
Motor BOS 00490365 Contact Us For Availability
0422
Switch BOS 00600145 Contact Us For Availability
0502
Connection piece BOS 00418409 Contact Us For Availability
0503
Reflector BOS 00434075 Contact Us For Availability
0505
Clip BOS 00420224 Contact Us For Availability
0506
Clip BOS 00420223 Contact Us For Availability
0508
Screw BOS 00420226 Contact Us For Availability
0509
Cover BOS 00239408 Contact Us For Availability
0510
Heating element BOS 00239403 Contact Us For Availability
0512
Heating element BOS 00239402 Contact Us For Availability
0513
Tray BOS 00240814 Contact Us For Availability
0515
Lamp housing BOS 00420227 Contact Us For Availability
0516
Screw BOS 00418412 Contact Us For Availability
0517
Cover BOS 00418415 Contact Us For Availability
0520
Nut BOS 00420219 Contact Us For Availability
0521
Terminal BOS 00491310 Contact Us For Availability
0522
Screw BOS 00420211 Contact Us For Availability
0523
Spacer BOS 00420213 Contact Us For Availability
0524
Screw BOS 00420221 Contact Us For Availability
0525
Transformer BOS 00418461 Contact Us For Availability
0526
Screw BOS 00420218 Contact Us For Availability
0527
Temperature sensor BOS 00418417 Contact Us For Availability
0528
Ventilation duct BOS 00471217 Contact Us For Availability
0529
Spacer BOS 00489267 Contact Us For Availability
0530
Spacer BOS 00489266 Contact Us For Availability
0531
Relay BOS 00489277 Contact Us For Availability
0532
Washer BOS 00418418 Contact Us For Availability
0533
Control unit BOS 00489259 Contact Us For Availability
0534
Retaining plate BOS 00239407 Contact Us For Availability
0535
Blower motor BOS 00435175 Contact Us For Availability
0536
Nut BOS 00420247 Contact Us For Availability
0537
Retaining washer BOS 00420210 Contact Us For Availability
0538
Frequency filter BOS 00418431 Contact Us For Availability
0539
Bracket BOS 00420229 Contact Us For Availability
0540
Screw BOS 00420230 Contact Us For Availability
0541
Strip-decor BOS 00471240 Contact Us For Availability
0542
Insulating part BOS 00418419 Contact Us For Availability
0543
Ventilation duct BOS 00490364 Contact Us For Availability
0544
Seal BOS 00420222 Contact Us For Availability
0545
Sealing BOS 00420225 Contact Us For Availability
0616
Pin BOS 00418440 Contact Us For Availability
0625
Panel BOS 00240813 Contact Us For Availability
0626
Sleeve BOS 00420182 Contact Us For Availability
0627
Hose-vent BOS 00490346 Contact Us For Availability
0628
Connection piece BOS 00420183 Contact Us For Availability
0629
Case-rear part BOS 00240873 Contact Us For Availability
0701
Glass panel BOS 00239430 Contact Us For Availability
0702
Support BOS 00240871 Contact Us For Availability
0703
Panel BOS 00239435 Contact Us For Availability
0704
Cover BOS 00240869 Contact Us For Availability
0705
Support BOS 00240450 Contact Us For Availability
0707
Screw BOS 00420190 Contact Us For Availability
0708
Seal-door BOS 00239406 Contact Us For Availability
0709
Strip-decor BOS 00143597 Contact Us For Availability
0710
Shelf BOS 00445289 Contact Us For Availability
0711
Drip pan BOS 00470696 Contact Us For Availability
0712
Frying pan BOS 00470695 Contact Us For Availability
0713
Cover BOS 00240868 Contact Us For Availability
0714
Frame BOS 00239409 Contact Us For Availability
0715
Nut BOS 00420195 Contact Us For Availability
0716
Spacer BOS 00239474 Contact Us For Availability
0717
Strip BOS 00471241 Contact Us For Availability
0718
Spare part BOS 00239476 Contact Us For Availability
0719
Strip-decor BOS 00239475 Contact Us For Availability
0720
Insulating part BOS 00490347 Contact Us For Availability
0721
Cover BOS 00490348 Contact Us For Availability
0722
Case-rear part BOS 00240810 Contact Us For Availability
0723
Screw BOS 00420192 Contact Us For Availability
0724
Cover BOS 00240867 Contact Us For Availability
0725
Box BOS 00497236 Contact Us For Availability
0726
Hinge-plate BOS 00600169 Contact Us For Availability
0727
Support BOS 00240454 Contact Us For Availability
0728
Catalyzer BOS 00418462 Contact Us For Availability
0729
Insulating part BOS 00490349 Contact Us For Availability
0730
Panel BOS 00471239 Contact Us For Availability
0731
Insulating part BOS 00432126 Contact Us For Availability
0732
Insulating part BOS 00432125 Contact Us For Availability
0734
Spare part BOS 00239477 Contact Us For Availability
0801
Screw BOS 00420231 Contact Us For Availability
0802
Washer BOS 00420251 Contact Us For Availability
0803
Nut BOS 00420252 Contact Us For Availability
0804
Seal BOS 00238950 Contact Us For Availability
0805
Glass panel BOS 00240458 Contact Us For Availability
0806
Strip BOS 00491253 Contact Us For Availability
0807
Spacer BOS 00418423 Contact Us For Availability
0808
Handle-door BOS 00239465 Contact Us For Availability
0809
Seal-door BOS 00421546 Contact Us For Availability
0810
Screw BOS 00420186 Contact Us For Availability
0811
Retaining washer BOS 00420194 Contact Us For Availability
0812
Pin BOS 00420250 Contact Us For Availability
0813
Frame BOS 00239411 Contact Us For Availability
0814
Screw BOS 00420253 Contact Us For Availability
0815
Screw BOS 00420254 Contact Us For Availability
0816
Door hinge BOS 00421026 Contact Us For Availability
0817
Spacer BOS 00470712 Contact Us For Availability
0818
Reflector BOS 00240778 Contact Us For Availability
0819
Clip BOS 00420255 Contact Us For Availability
0820
Door BOS 00239426 Contact Us For Availability
0821
Insulating part BOS 00434078 Contact Us For Availability
× ![]()
