Model Bosch HBN666AUC/01 Range Oven – Common Parts & Diagrams

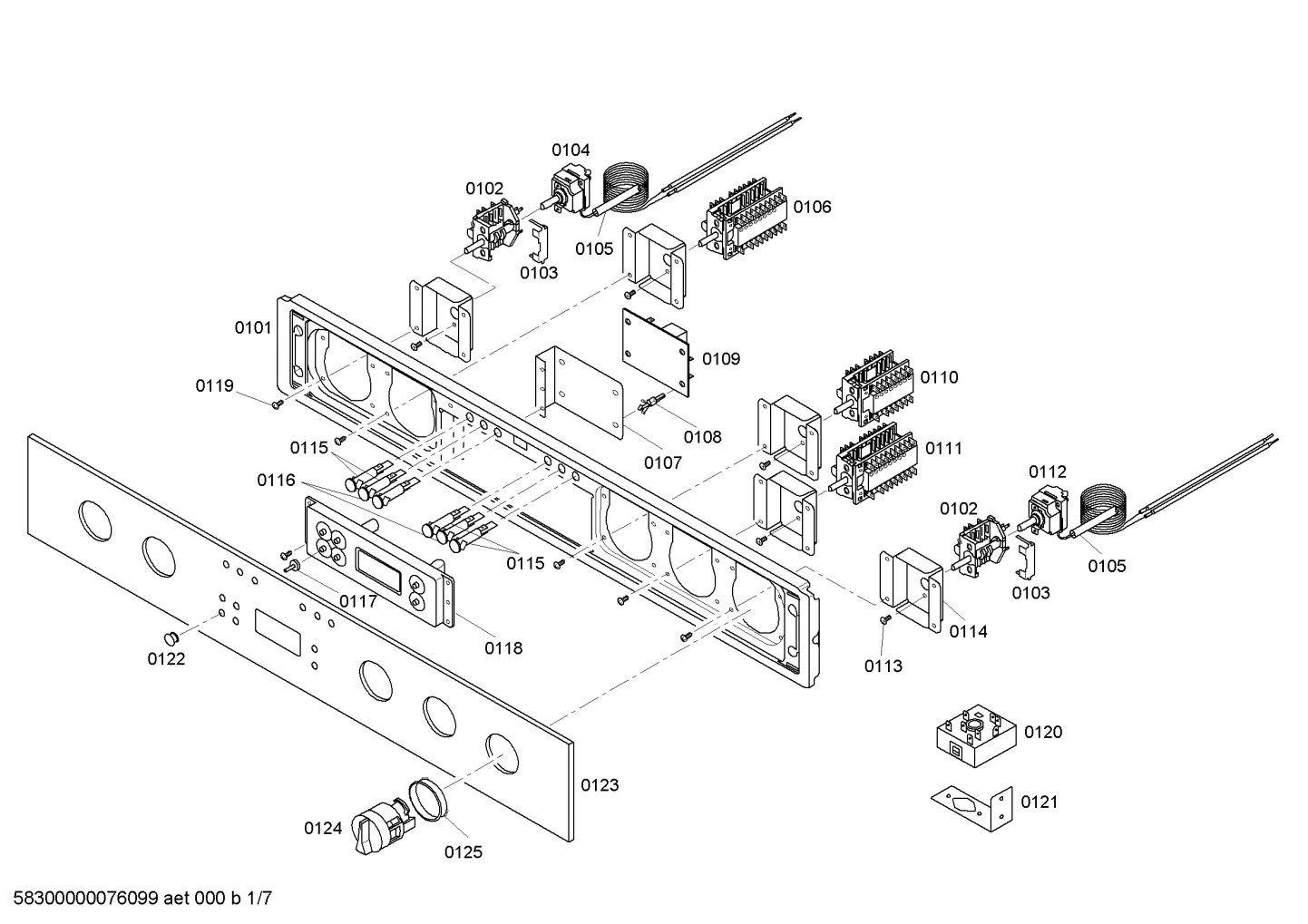

Diagram 1

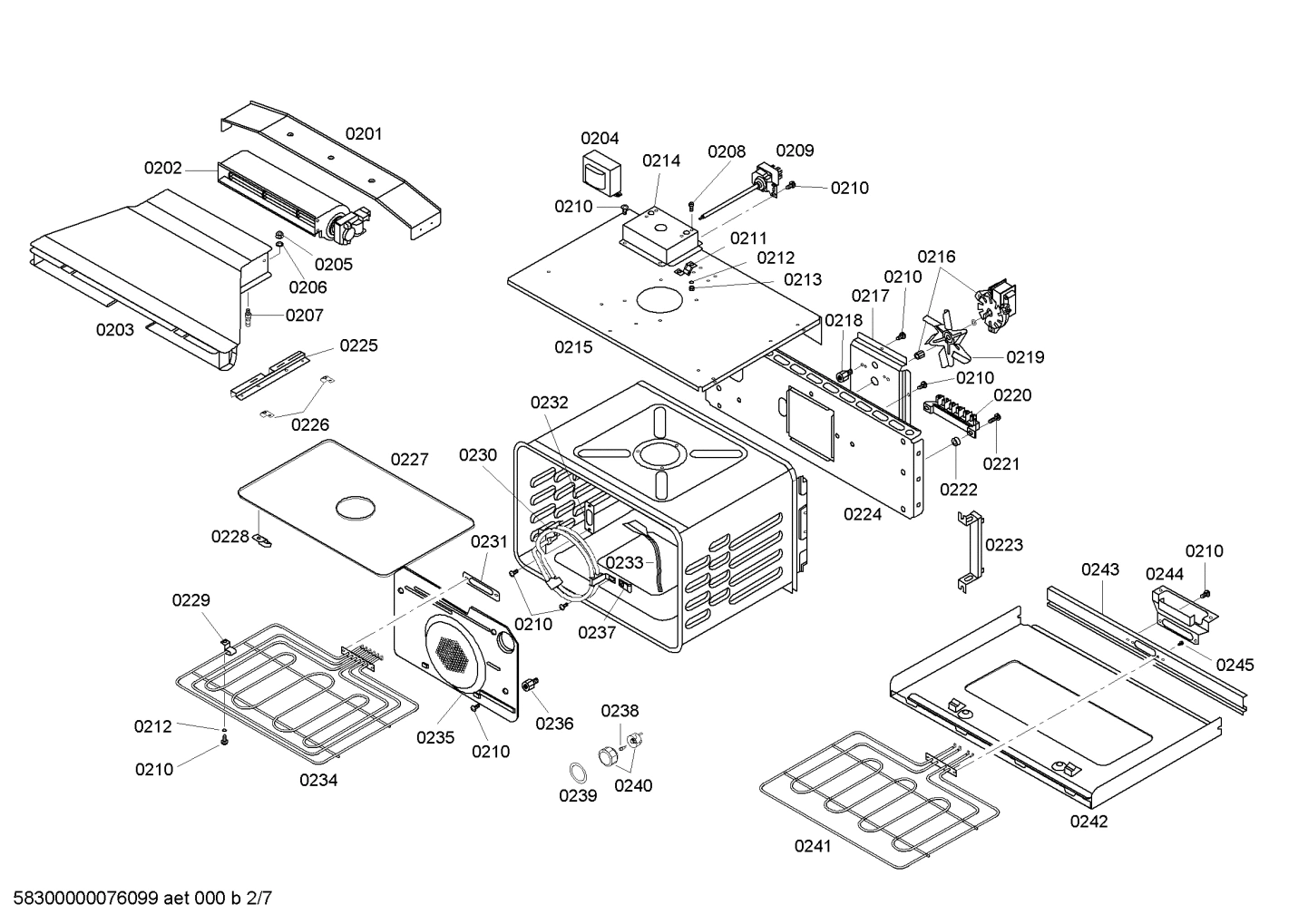

Diagram 2

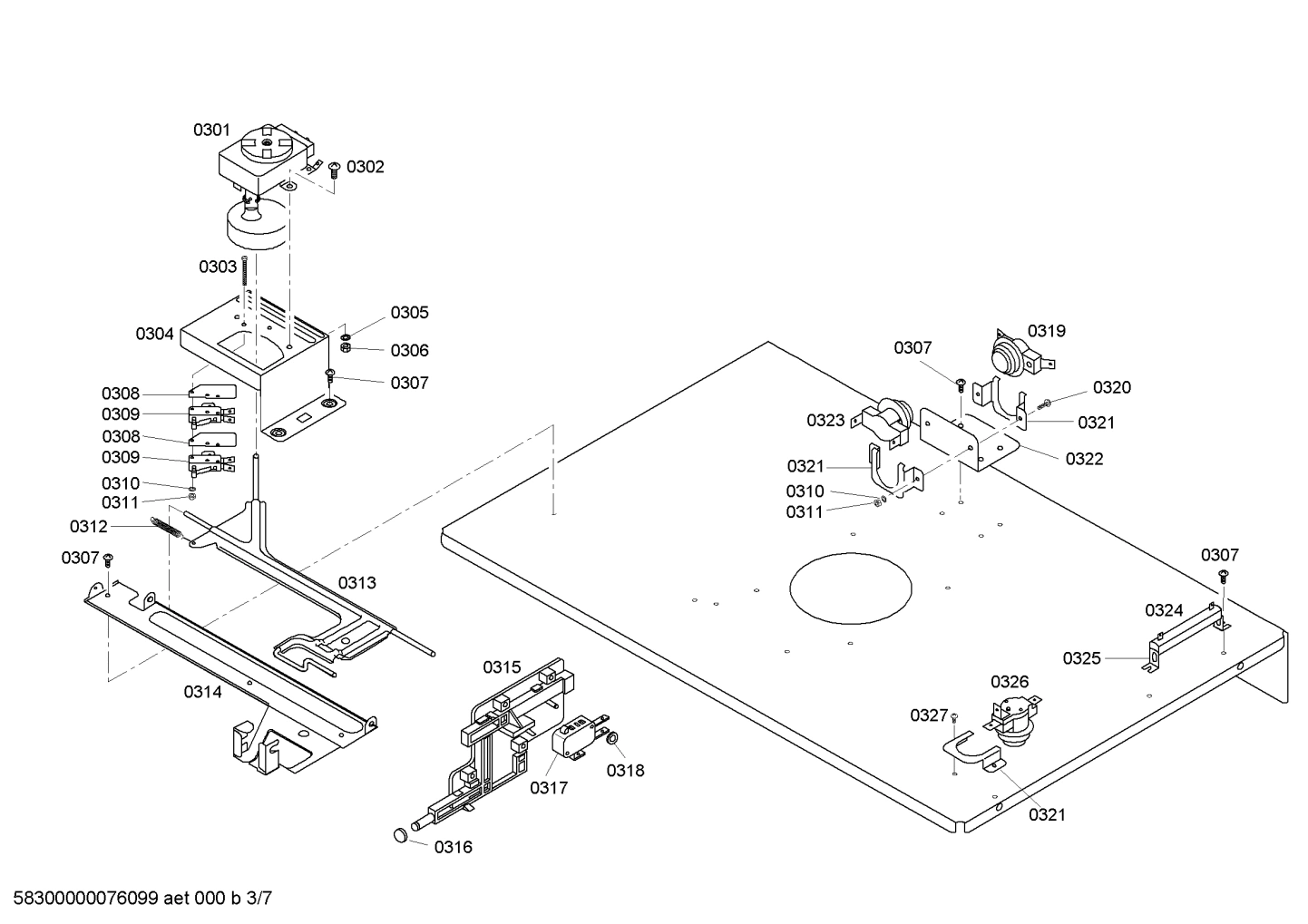

Diagram 3

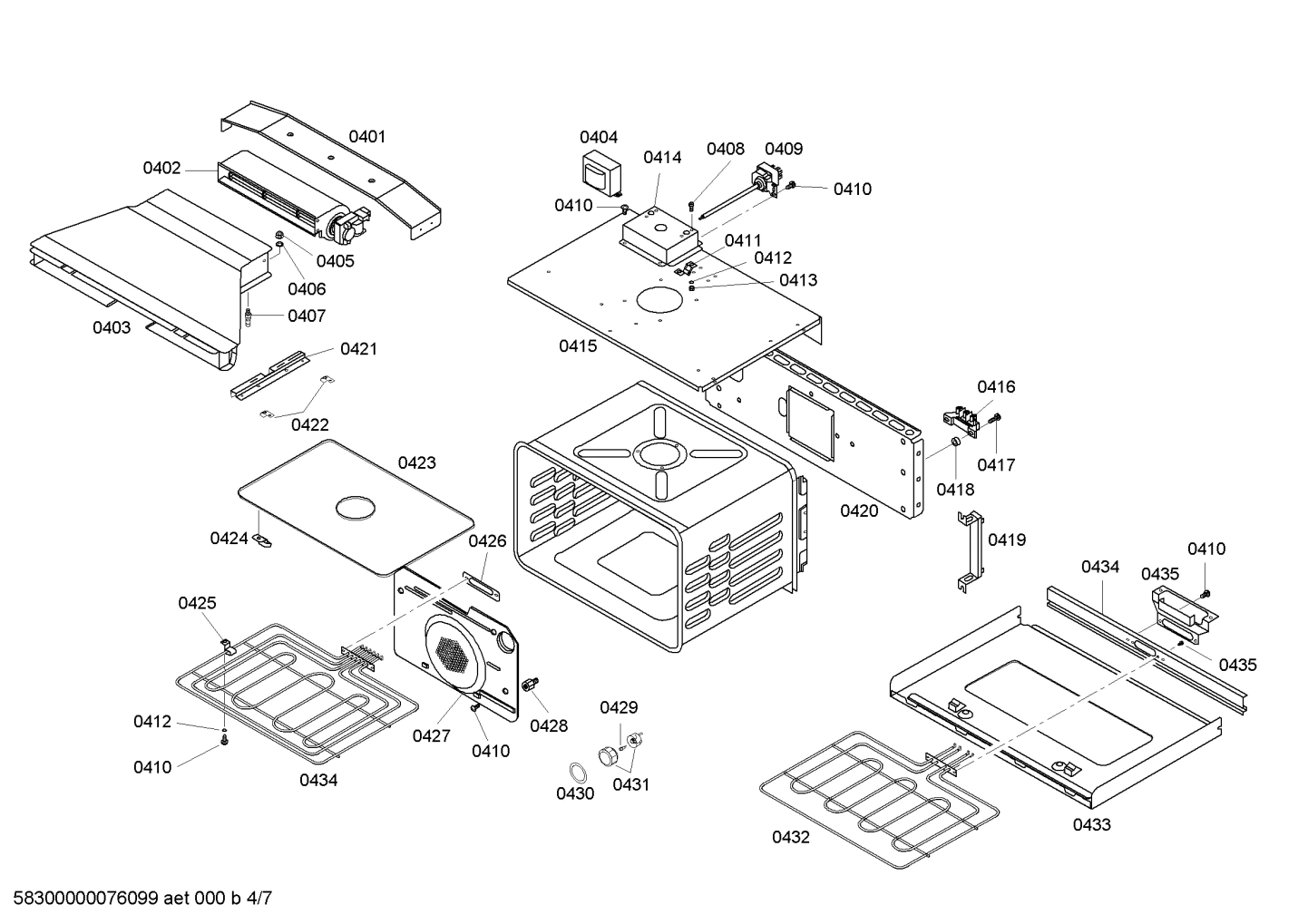

Diagram 4

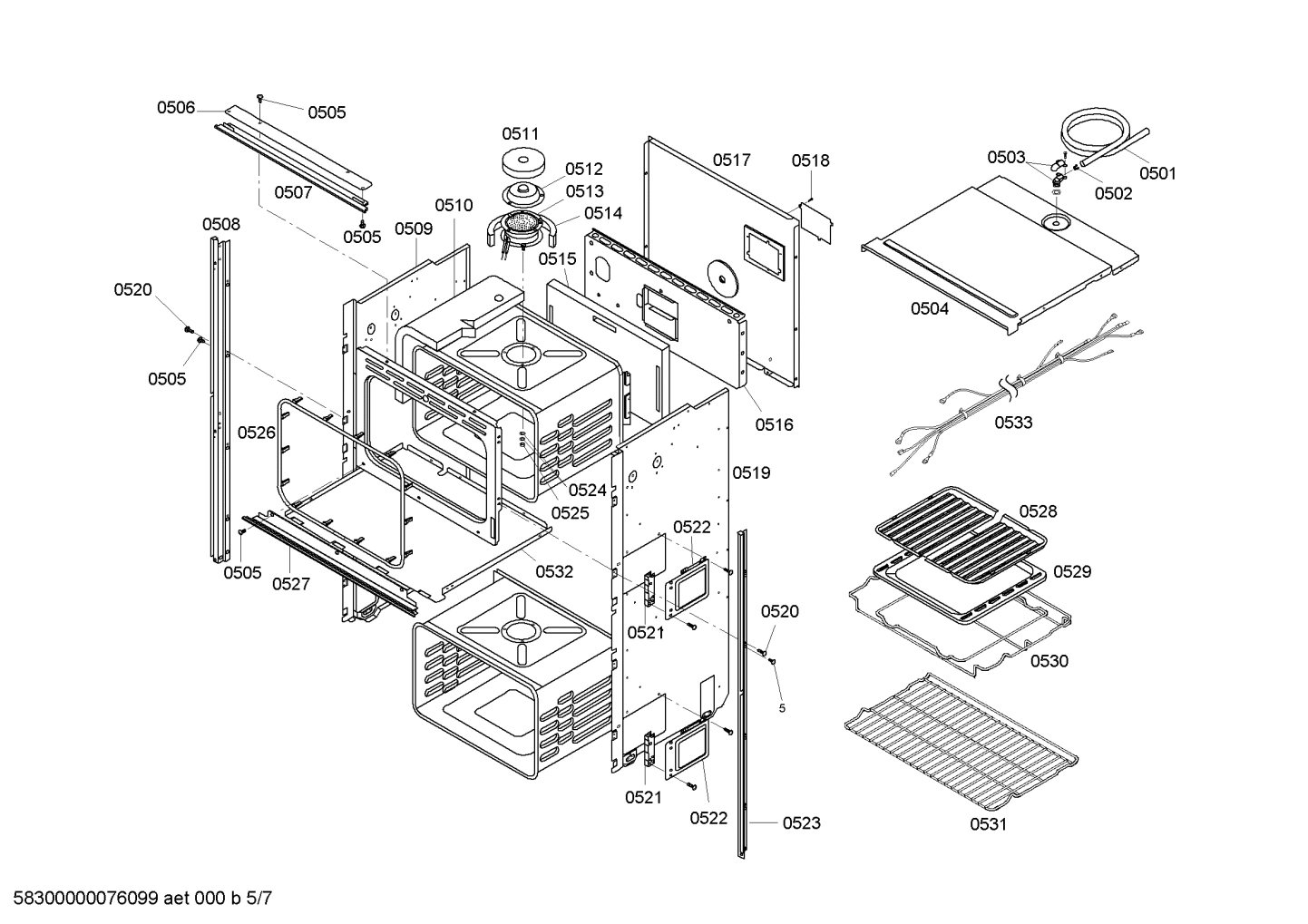

Diagram 5

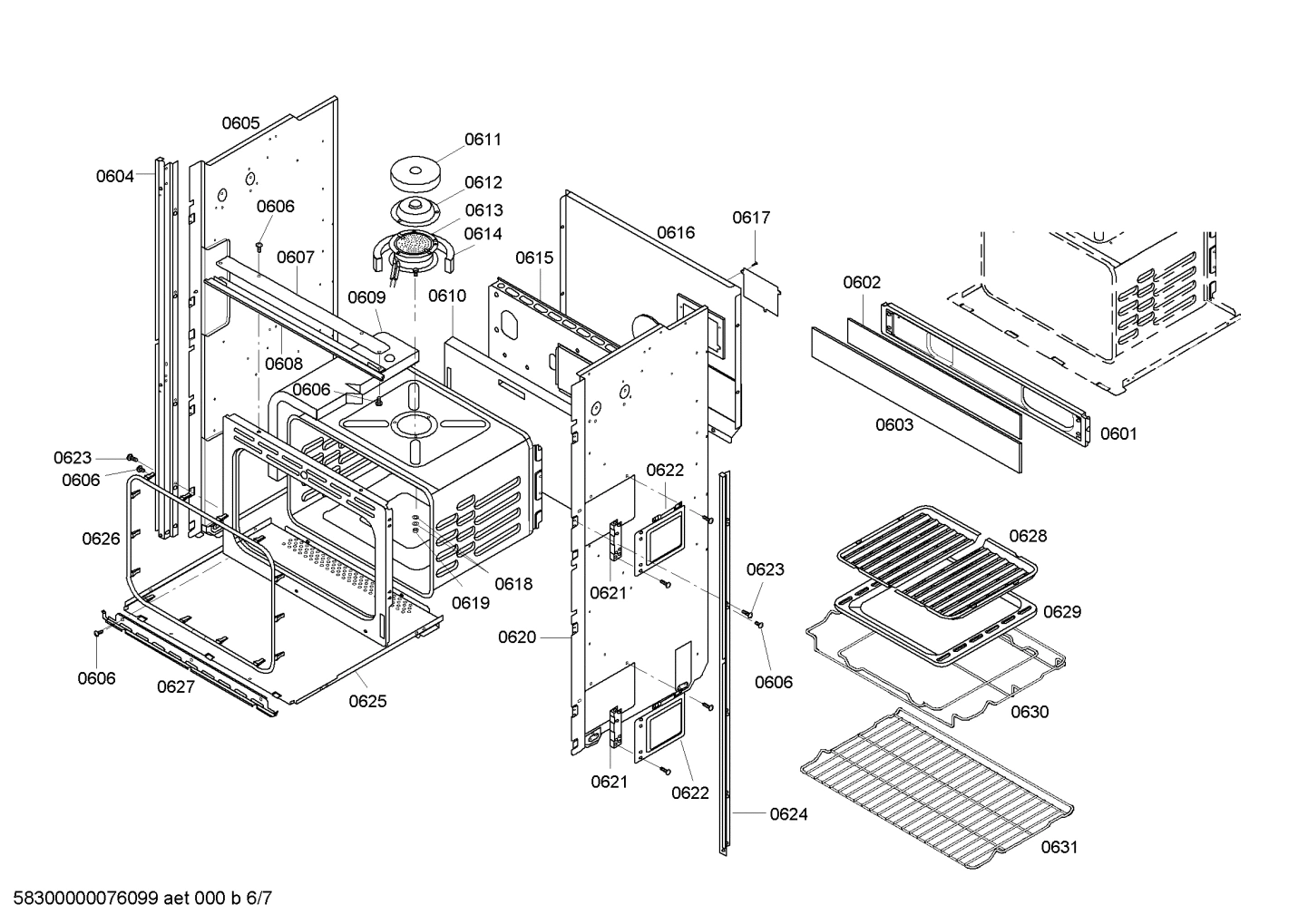

Diagram 6

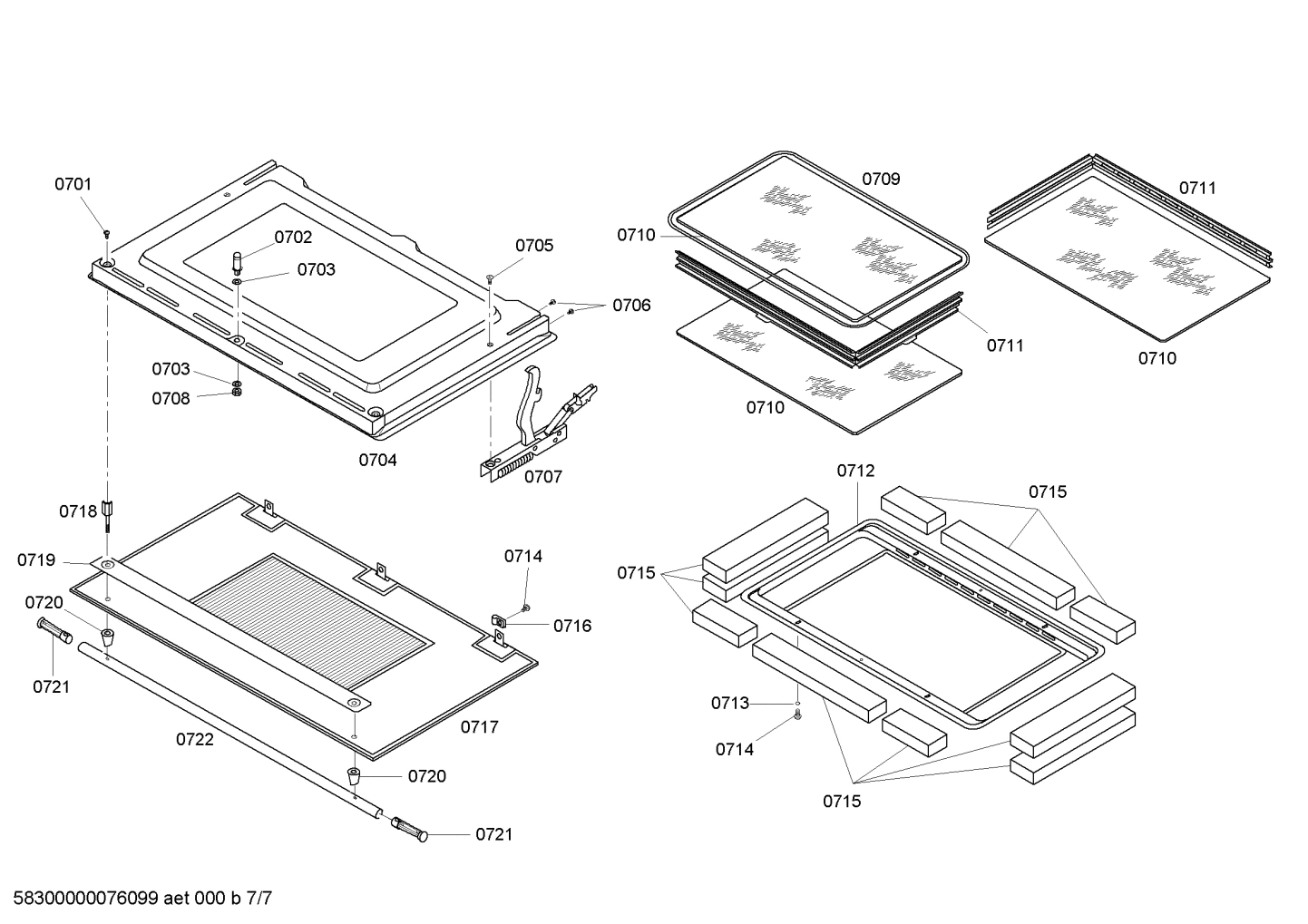

Diagram 7
Common parts from model Bosch HBN666AUC/01 Range Oven
0109
Relay BOS 00489264 Contact Us For Availability
0111
Switch-selector BOS 00490962 Contact Us For Availability
0118
Time switch BOS 00489265 Contact Us For Availability
0122
Push button cap BOS 00421020 Contact Us For Availability
0202
Blower motor BOS 00435175 Contact Us For Availability
0203
Ventilation duct BOS 00471217 Contact Us For Availability
0204
Transformer BOS 00418461 Contact Us For Availability
0207
Pin BOS 00421538 Contact Us For Availability
0208
Screw BOS 00420218 Contact Us For Availability
0211
Clip BOS 00421547 Contact Us For Availability
0213
Nut BOS 00420219 Contact Us For Availability
0214
Support BOS 00490357 Contact Us For Availability
0215
Cover BOS 00240807 Contact Us For Availability
0216
Terminal BOS 00491420 Contact Us For Availability
0217
Screw BOS 00420221 Contact Us For Availability
0218
Spacer BOS 00420213 Contact Us For Availability
0219
Fan motor BOS 00490358 Contact Us For Availability
0220
Support BOS 00490361 Contact Us For Availability
0221
Screw BOS 00420220 Contact Us For Availability
0222
Fan BOS 00497261 Contact Us For Availability
0223
Terminal BOS 00491310 Contact Us For Availability
0224
Resistor BOS 00490362 Contact Us For Availability
0226
Sleeve BOS 00421024 Contact Us For Availability
0227
Bracket BOS 00421023 Contact Us For Availability
0228
Reflector BOS 00434075 Contact Us For Availability
0229
Clip BOS 00420223 Contact Us For Availability
0230
Clip BOS 00420224 Contact Us For Availability
0232
Sealing BOS 00420225 Contact Us For Availability
0233
Seal BOS 00420222 Contact Us For Availability
0234
Ventilation duct BOS 00490364 Contact Us For Availability
0235
Heating element BOS 00239404 Contact Us For Availability
0236
Cover BOS 00435184 Contact Us For Availability
0237
Spacer BOS 00424265 Contact Us For Availability
0238
Clamp BOS 00421467 Contact Us For Availability
0240
Seal BOS 00421025 Contact Us For Availability
0241
Lamp housing BOS 00420227 Contact Us For Availability
0242
Heating element BOS 00239401 Contact Us For Availability
0243
Tray BOS 00240814 Contact Us For Availability
0244
Strip-decor BOS 00471240 Contact Us For Availability
0245
Bracket BOS 00420229 Contact Us For Availability
0246
Screw BOS 00420230 Contact Us For Availability
0301
Motor BOS 00490365 Contact Us For Availability
0303
Screw BOS 00420232 Contact Us For Availability
0304
Housing BOS 00490366 Contact Us For Availability
0305
Retaining washer BOS 00420210 Contact Us For Availability
0306
Nut BOS 00420209 Contact Us For Availability
0308
Plate BOS 00420233 Contact Us For Availability
0309
Switch BOS 00600145 Contact Us For Availability
0310
Retaining washer BOS 00420246 Contact Us For Availability
0311
Nut BOS 00420247 Contact Us For Availability
0312
Spring BOS 00420234 Contact Us For Availability
0313
Latch BOS 00435607 Contact Us For Availability
0314
Guide BOS 00491254 Contact Us For Availability
0315
Seating BOS 00491309 Contact Us For Availability
0316
Spacer BOS 00412465 Contact Us For Availability
0317
Switch-door BOS 00421155 Contact Us For Availability
0318
Latch BOS 00435608 Contact Us For Availability
0319
Temperature sensor BOS 00420235 Contact Us For Availability
0320
Screw BOS 00420231 Contact Us For Availability
0321
Bracket BOS 00420236 Contact Us For Availability
0322
Support BOS 00420237 Contact Us For Availability
0323
Temperature sensor BOS 00418676 Contact Us For Availability
0324
Resistor BOS 00420238 Contact Us For Availability
0325
Support BOS 00490363 Contact Us For Availability
0326
Temperature sensor BOS 00490986 Contact Us For Availability
0401
Hose-vent BOS 00490346 Contact Us For Availability
0402
Sleeve BOS 00420182 Contact Us For Availability
0403
Connection piece BOS 00420183 Contact Us For Availability
0417
Panel BOS 00240813 Contact Us For Availability
0427
Strip-decor BOS 00143632 Contact Us For Availability
0432
Cover BOS 00240868 Contact Us For Availability
0433
Cable harness BOS 00493799 Contact Us For Availability
0501
Support BOS 00240871 Contact Us For Availability
0503
Panel-facia BOS 00240872 Contact Us For Availability
0504
Support BOS 00240460 Contact Us For Availability
0505
Cover BOS 00240869 Contact Us For Availability
0507
Strip BOS 00471241 Contact Us For Availability
0508
Spacer BOS 00143607 Contact Us For Availability
0509
Insulating part BOS 00434056 Contact Us For Availability
0510
Insulating part BOS 00434053 Contact Us For Availability
0511
Insulating part BOS 00490347 Contact Us For Availability
0512
Cover BOS 00490348 Contact Us For Availability
0513
Catalyzer BOS 00493054 Contact Us For Availability
0514
Insulating part BOS 00490349 Contact Us For Availability
0515
Panel BOS 00471239 Contact Us For Availability
0516
Case-rear part BOS 00240810 Contact Us For Availability
0517
Screw BOS 00420192 Contact Us For Availability
0519
Nut BOS 00420195 Contact Us For Availability
0520
Cover BOS 00240867 Contact Us For Availability
0521
Hinge-plate BOS 00600169 Contact Us For Availability
0522
Box BOS 00497236 Contact Us For Availability
0523
Screw BOS 00420190 Contact Us For Availability
0524
Support BOS 00240461 Contact Us For Availability
0525
Cover BOS 00240763 Contact Us For Availability
0526
Seal-door BOS 00239406 Contact Us For Availability
0527
Strip-decor BOS 00143604 Contact Us For Availability
0528
Pan lid BOS 00435183 Contact Us For Availability
0529
Pan BOS 00435182 Contact Us For Availability
0530
Grid BOS 00241734 Contact Us For Availability
0531
Shelf BOS 00445289 Contact Us For Availability
0602
Pin BOS 00420250 Contact Us For Availability
0603
Washer BOS 00420251 Contact Us For Availability
0604
Door-inner BOS 00241735 Contact Us For Availability
0605
Screw BOS 00420253 Contact Us For Availability
0606
Screw BOS 00420254 Contact Us For Availability
0607
Door hinge BOS 00421026 Contact Us For Availability
0608
Nut BOS 00420252 Contact Us For Availability
0609
Seal BOS 00238950 Contact Us For Availability
0610
Glass panel BOS 00240458 Contact Us For Availability
0611
Spacer BOS 00470712 Contact Us For Availability
0612
Reflector BOS 00240778 Contact Us For Availability
0613
Retaining washer BOS 00420194 Contact Us For Availability
0614
Screw BOS 00420186 Contact Us For Availability
0615
Insulating part BOS 00434078 Contact Us For Availability
0616
Clip BOS 00420255 Contact Us For Availability
0617
Door-outer BOS 00241737 Contact Us For Availability
0618
Screw BOS 00424153 Contact Us For Availability
0619
Strip BOS 00491253 Contact Us For Availability
0620
Spacer BOS 00421022 Contact Us For Availability
0621
Handle-cap shaped BOS 00421021 Contact Us For Availability
0622
Handle-door BOS 00241741 Contact Us For Availability
× ![]()
