Model Bosch HBN642AUC/01 Range Oven – Common Parts & Diagrams
Diagram 1

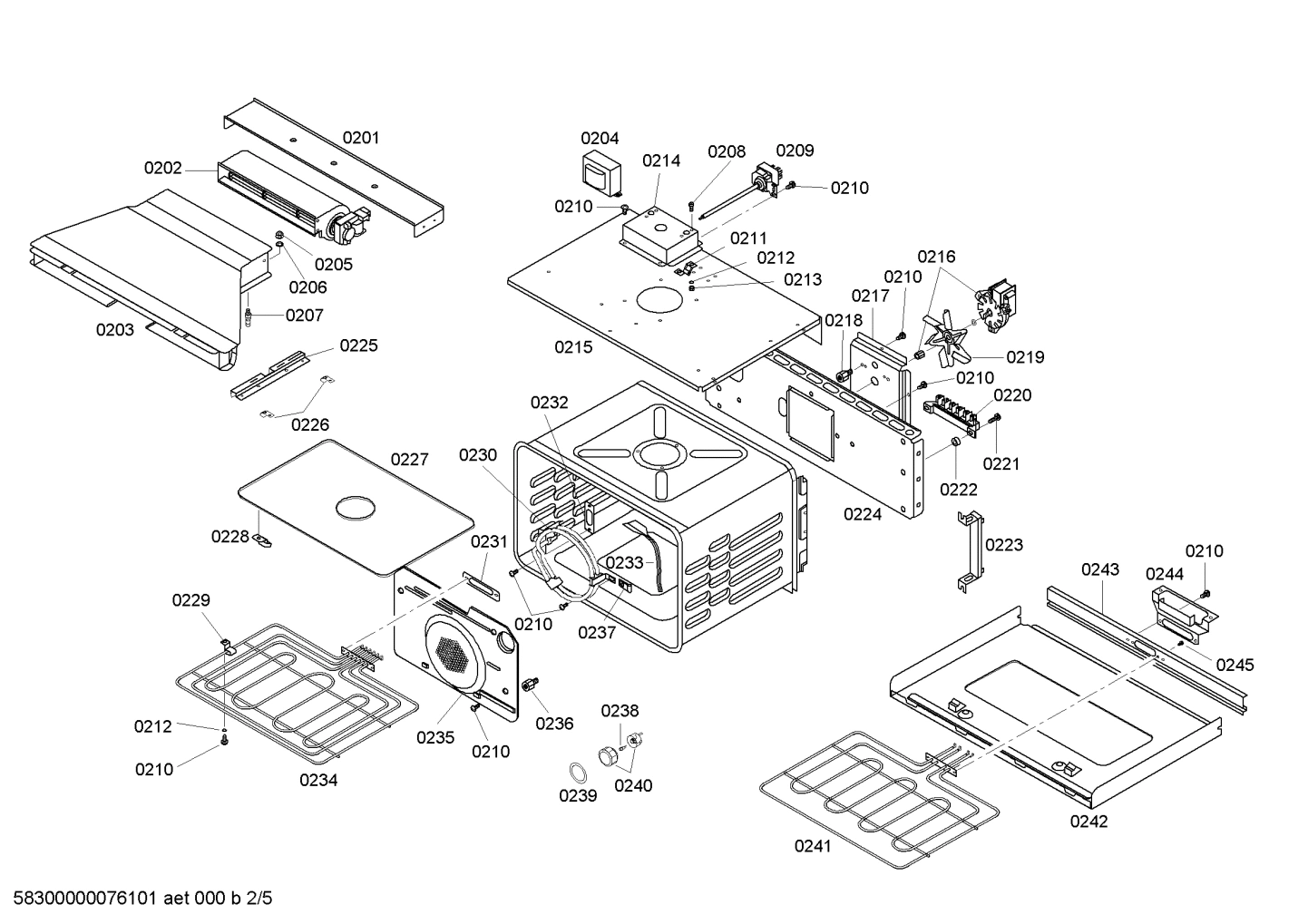

Diagram 2

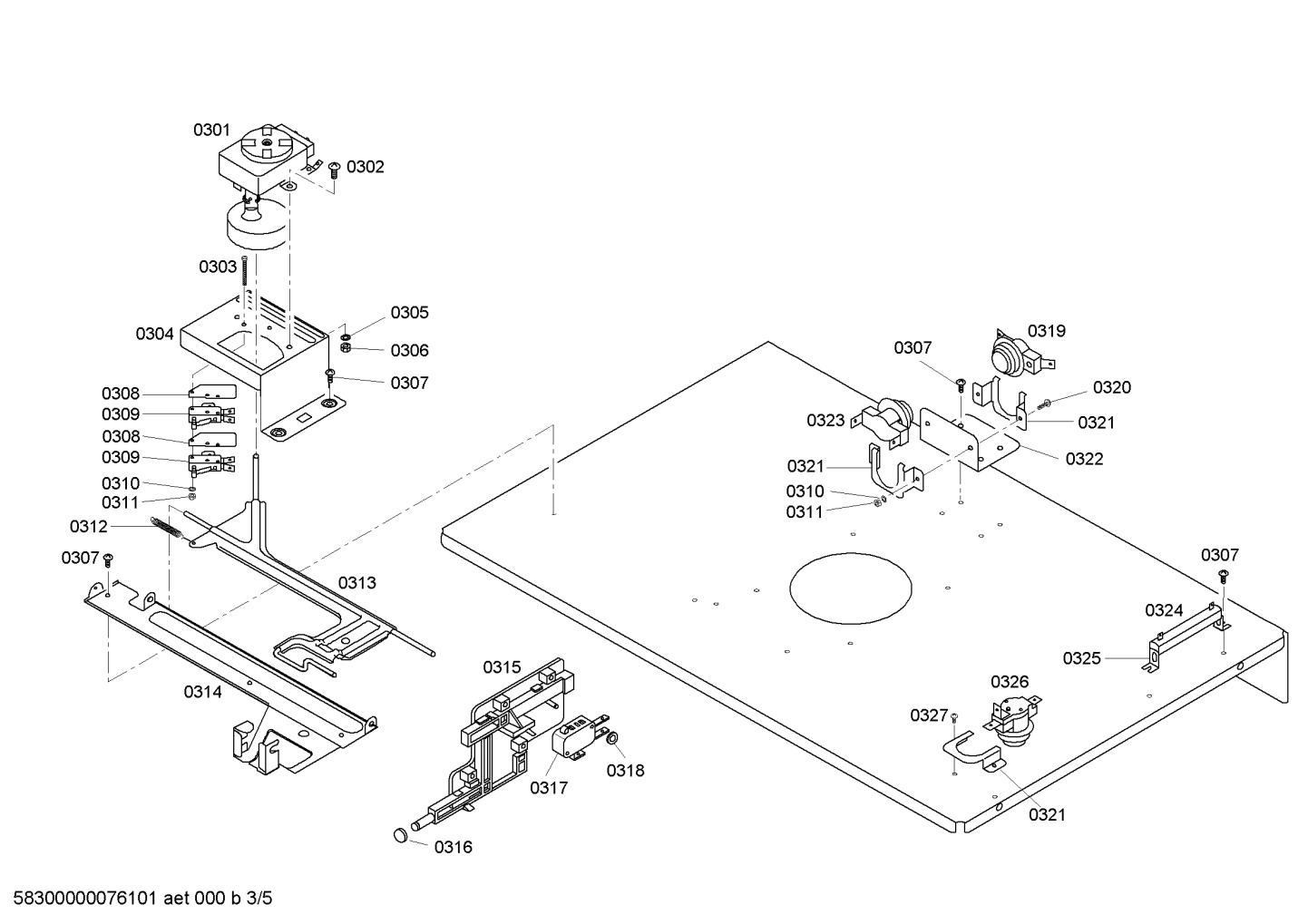

Diagram 3

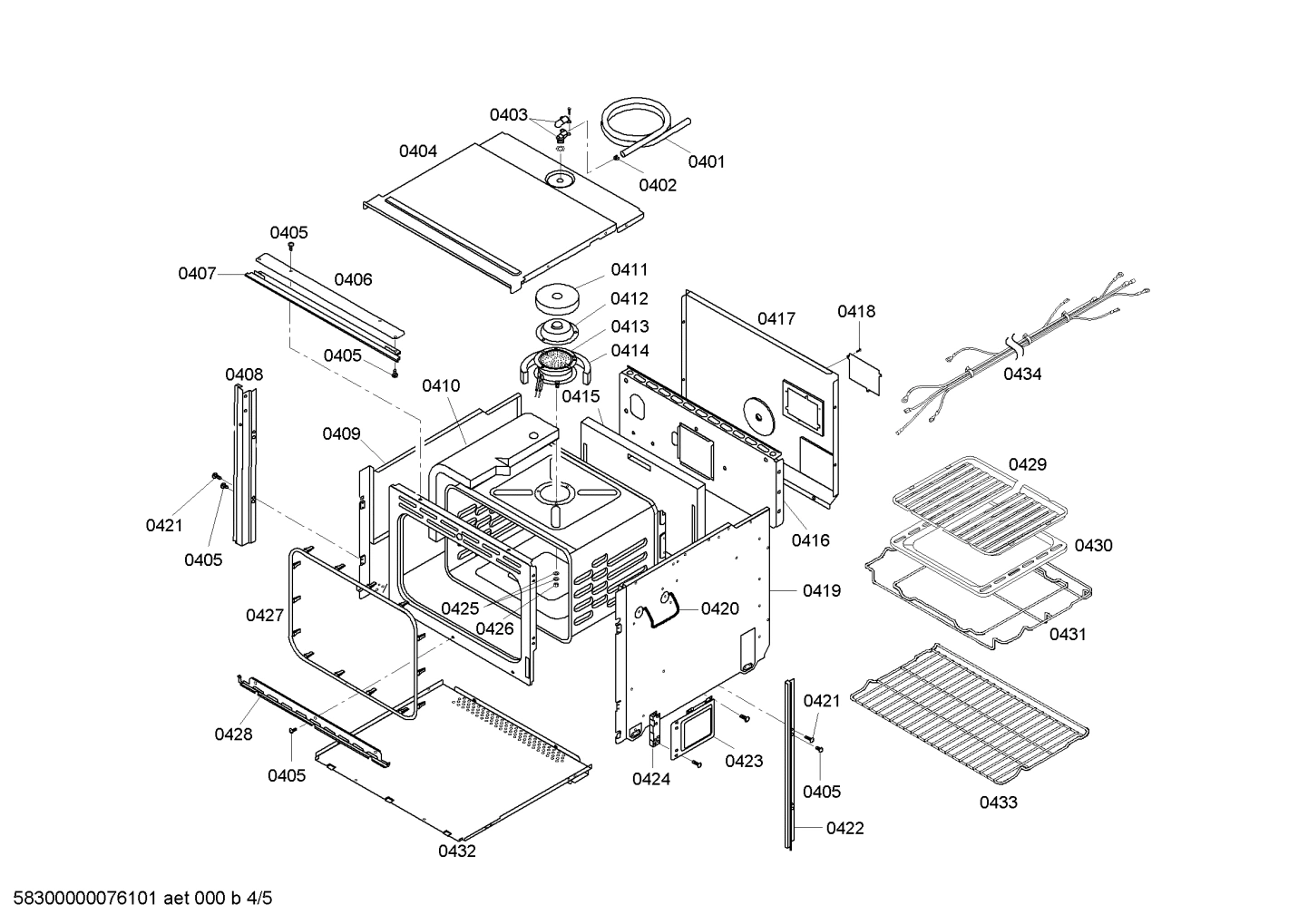

Diagram 4

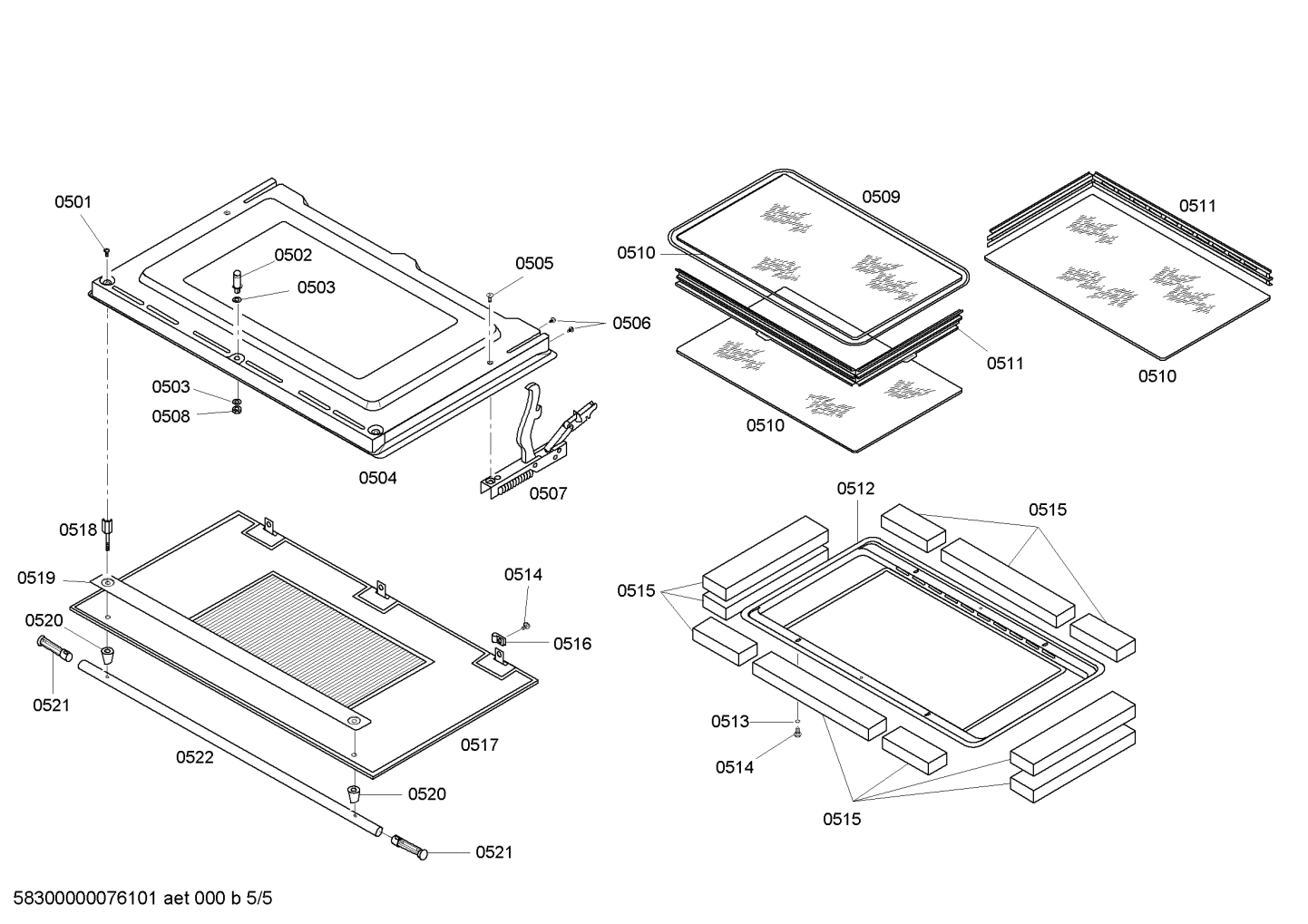

Diagram 5
Common parts from model Bosch HBN642AUC/01 Range Oven
0103
Time switch BOS 00491312 Contact Us For Availability
0104
Relay BOS 00489264 Contact Us For Availability
0107
Switch-selector BOS 00490962 Contact Us For Availability
0113
Time switch BOS 00489265 Contact Us For Availability
0122
Push button cap BOS 00421466 Contact Us For Availability
0207
Pin BOS 00421538 Contact Us For Availability
0208
Screw BOS 00420218 Contact Us For Availability
0209
Thermometer BOS 00491311 Contact Us For Availability
0211
Clip BOS 00421547 Contact Us For Availability
0213
Nut BOS 00420219 Contact Us For Availability
0214
Support BOS 00490357 Contact Us For Availability
0215
Cover BOS 00240807 Contact Us For Availability
0216
Fan motor BOS 00490358 Contact Us For Availability
0217
Support BOS 00490361 Contact Us For Availability
0218
Screw BOS 00420226 Contact Us For Availability
0219
Fan BOS 00497261 Contact Us For Availability
0220
Terminal BOS 00491310 Contact Us For Availability
0221
Screw BOS 00420221 Contact Us For Availability
0222
Spacer BOS 00420213 Contact Us For Availability
0223
Resistor BOS 00490362 Contact Us For Availability
0225
Sleeve BOS 00421024 Contact Us For Availability
0226
Bracket BOS 00421023 Contact Us For Availability
0227
Reflector BOS 00434075 Contact Us For Availability
0228
Clip BOS 00420223 Contact Us For Availability
0229
Clip BOS 00420224 Contact Us For Availability
0231
Sealing BOS 00420225 Contact Us For Availability
0232
Seal BOS 00420222 Contact Us For Availability
0233
Ventilation duct BOS 00490364 Contact Us For Availability
0234
Heating element BOS 00239404 Contact Us For Availability
0235
Cover BOS 00435184 Contact Us For Availability
0236
Spacer BOS 00424265 Contact Us For Availability
0237
Clamp BOS 00421467 Contact Us For Availability
0239
Seal BOS 00421025 Contact Us For Availability
0240
Lamp housing BOS 00420227 Contact Us For Availability
0241
Heating element BOS 00239401 Contact Us For Availability
0242
Tray BOS 00240814 Contact Us For Availability
0243
Strip-decor BOS 00471240 Contact Us For Availability
0244
Bracket BOS 00420229 Contact Us For Availability
0245
Screw BOS 00420230 Contact Us For Availability
0301
Motor BOS 00490365 Contact Us For Availability
0303
Screw BOS 00420232 Contact Us For Availability
0304
Housing BOS 00490366 Contact Us For Availability
0305
Retaining washer BOS 00420210 Contact Us For Availability
0306
Nut BOS 00420209 Contact Us For Availability
0308
Plate BOS 00420233 Contact Us For Availability
0309
Switch BOS 00600145 Contact Us For Availability
0310
Retaining washer BOS 00420246 Contact Us For Availability
0311
Nut BOS 00420247 Contact Us For Availability
0312
Spring BOS 00420234 Contact Us For Availability
0313
Latch BOS 00435607 Contact Us For Availability
0314
Guide BOS 00491254 Contact Us For Availability
0315
Seating BOS 00491309 Contact Us For Availability
0316
Spacer BOS 00412465 Contact Us For Availability
0317
Switch-door BOS 00421155 Contact Us For Availability
0318
Latch BOS 00435608 Contact Us For Availability
0319
Temperature sensor BOS 00420235 Contact Us For Availability
0320
Screw BOS 00420231 Contact Us For Availability
0321
Bracket BOS 00420236 Contact Us For Availability
0322
Support BOS 00420237 Contact Us For Availability
0323
Temperature sensor BOS 00418676 Contact Us For Availability
0324
Resistor BOS 00420238 Contact Us For Availability
0325
Support BOS 00490363 Contact Us For Availability
0326
Temperature sensor BOS 00490986 Contact Us For Availability
0401
Hose-vent BOS 00490346 Contact Us For Availability
0402
Sleeve BOS 00420182 Contact Us For Availability
0403
Connection piece BOS 00420183 Contact Us For Availability
0404
Panel BOS 00240813 Contact Us For Availability
0406
Strip BOS 00471241 Contact Us For Availability
0407
Spacer BOS 00143600 Contact Us For Availability
0408
Support BOS 00491300 Contact Us For Availability
0409
Cover BOS 00240811 Contact Us For Availability
0410
Insulating part BOS 00434056 Contact Us For Availability
0411
Insulating part BOS 00490347 Contact Us For Availability
0412
Cover BOS 00490348 Contact Us For Availability
0413
Catalyzer BOS 00493054 Contact Us For Availability
0414
Insulating part BOS 00490349 Contact Us For Availability
0415
Insulating part BOS 00434053 Contact Us For Availability
0416
Panel BOS 00471239 Contact Us For Availability
0417
Case-rear part BOS 00240810 Contact Us For Availability
0418
Screw BOS 00420192 Contact Us For Availability
0419
Cover BOS 00240812 Contact Us For Availability
0420
Handle BOS 00421499 Contact Us For Availability
0421
Screw BOS 00420190 Contact Us For Availability
0423
Box BOS 00497236 Contact Us For Availability
0424
Hinge-plate BOS 00600169 Contact Us For Availability
0426
Nut BOS 00420195 Contact Us For Availability
0427
Seal-door BOS 00239406 Contact Us For Availability
0428
Strip-decor BOS 00143597 Contact Us For Availability
0429
Pan lid BOS 00435183 Contact Us For Availability
0430
Pan BOS 00435182 Contact Us For Availability
0431
Grid BOS 00241734 Contact Us For Availability
0432
Cover BOS 00240763 Contact Us For Availability
0433
Shelf BOS 00445289 Contact Us For Availability
0434
Cable harness BOS 00493808 Contact Us For Availability
0502
Pin BOS 00420250 Contact Us For Availability
0503
Washer BOS 00420251 Contact Us For Availability
0504
Door-inner BOS 00241735 Contact Us For Availability
0505
Screw BOS 00420253 Contact Us For Availability
0506
Screw BOS 00420254 Contact Us For Availability
0507
Door hinge BOS 00421026 Contact Us For Availability
0508
Nut BOS 00420252 Contact Us For Availability
0509
Seal BOS 00238950 Contact Us For Availability
0510
Glass panel BOS 00240458 Contact Us For Availability
0511
Spacer BOS 00470712 Contact Us For Availability
0512
Reflector BOS 00240778 Contact Us For Availability
0513
Retaining washer BOS 00420194 Contact Us For Availability
0514
Screw BOS 00420186 Contact Us For Availability
0515
Insulating part BOS 00434078 Contact Us For Availability
0516
Clip BOS 00420255 Contact Us For Availability
0517
Door-outer BOS 00241736 Contact Us For Availability
0518
Screw BOS 00424153 Contact Us For Availability
0519
Strip BOS 00491253 Contact Us For Availability
0520
Spacer BOS 00424154 Contact Us For Availability
0521
Cap BOS 00424155 Contact Us For Availability
0522
Handle-door BOS 00241738 Contact Us For Availability
× ![]()
