Model Bosch HBN5035AUC/01 Range Oven – Common Parts & Diagrams

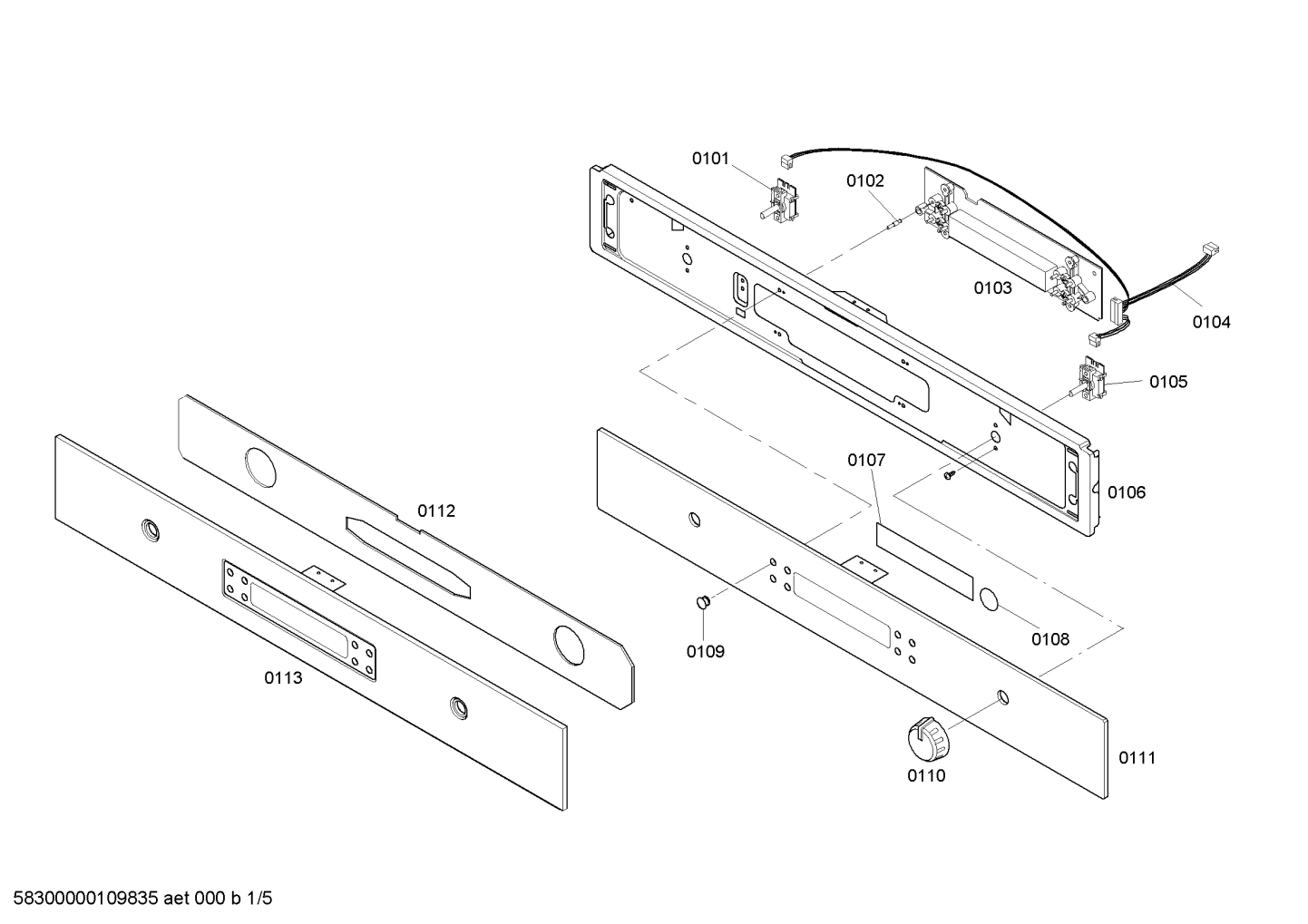

Diagram 1

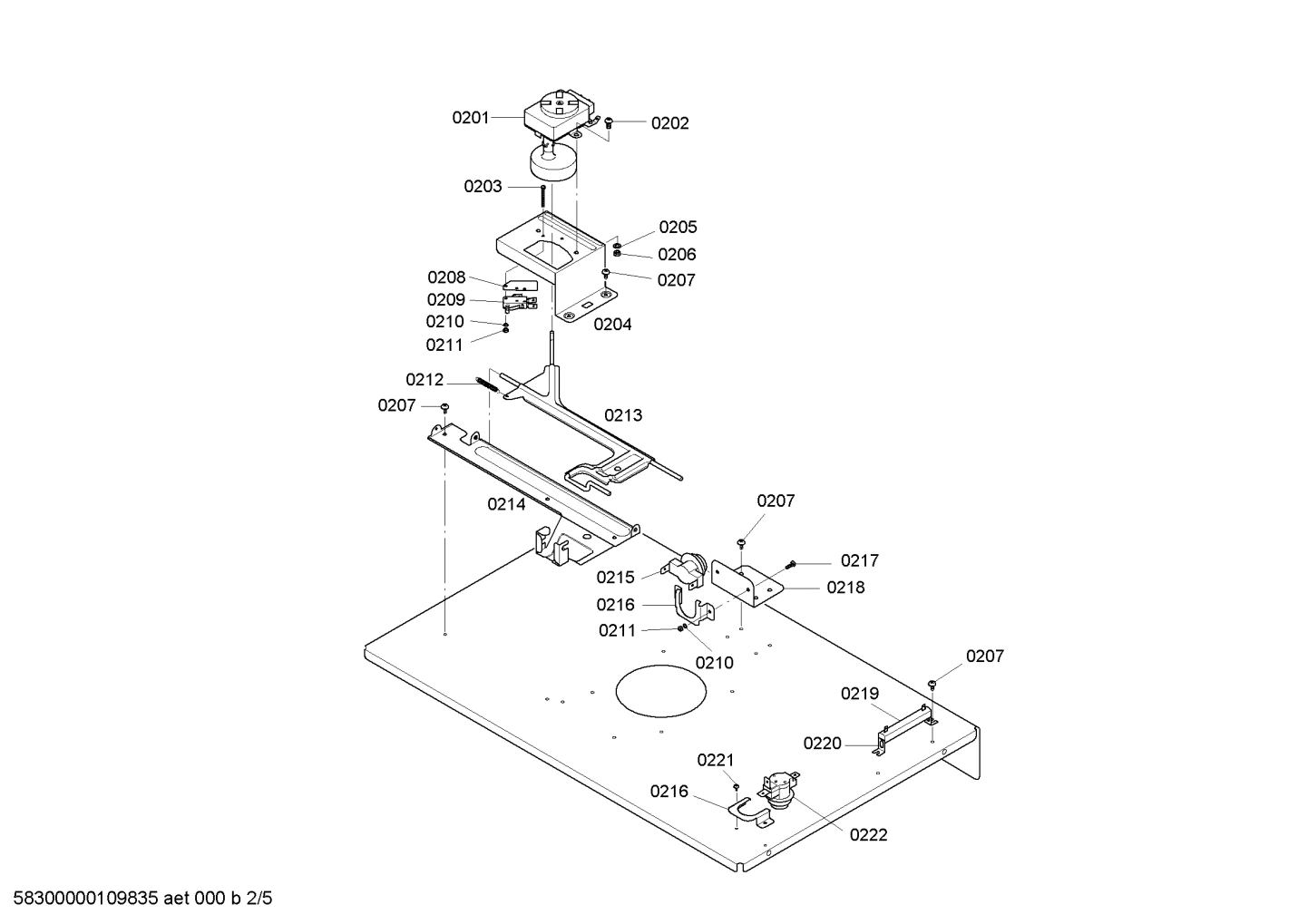

Diagram 2

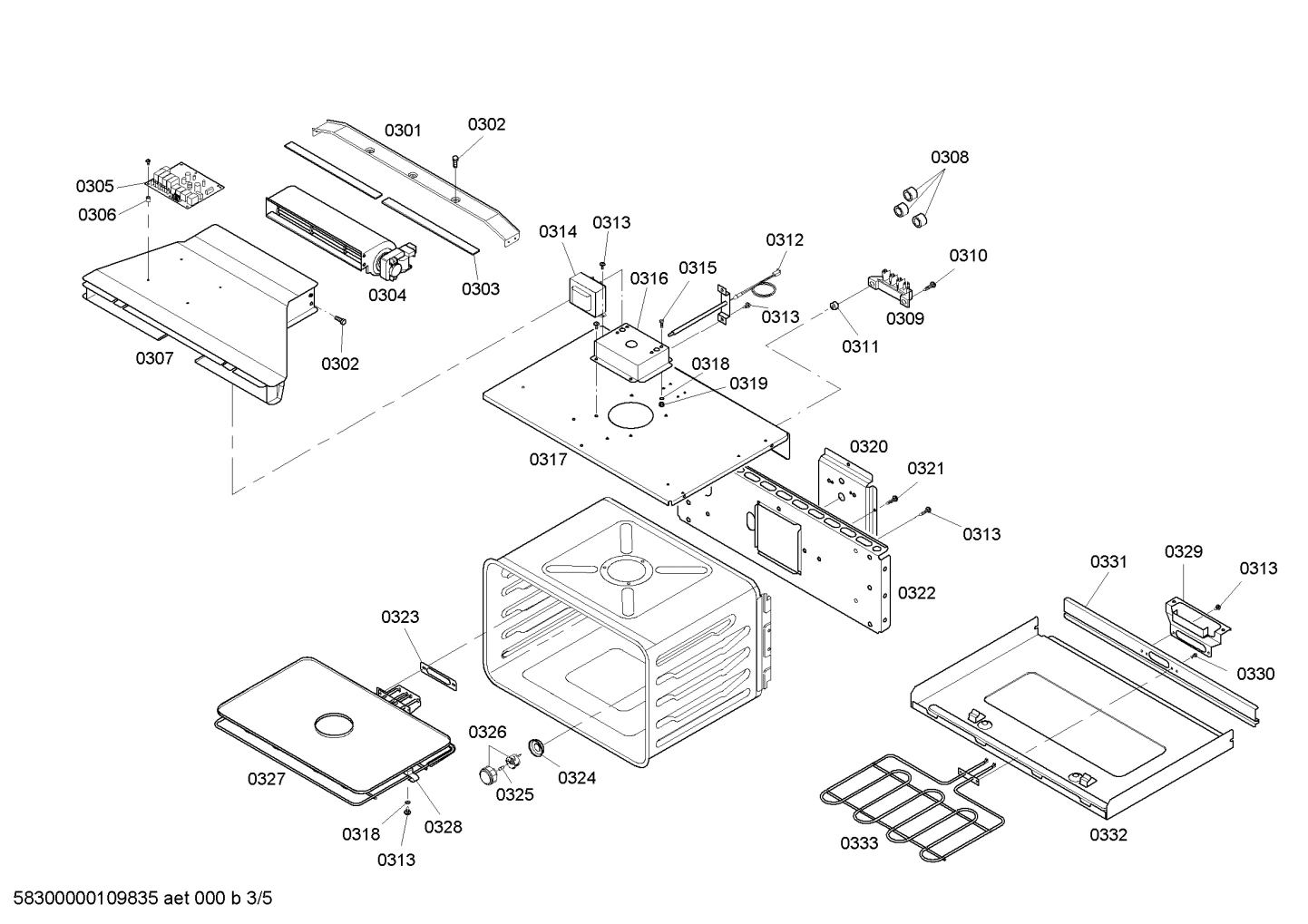

Diagram 3

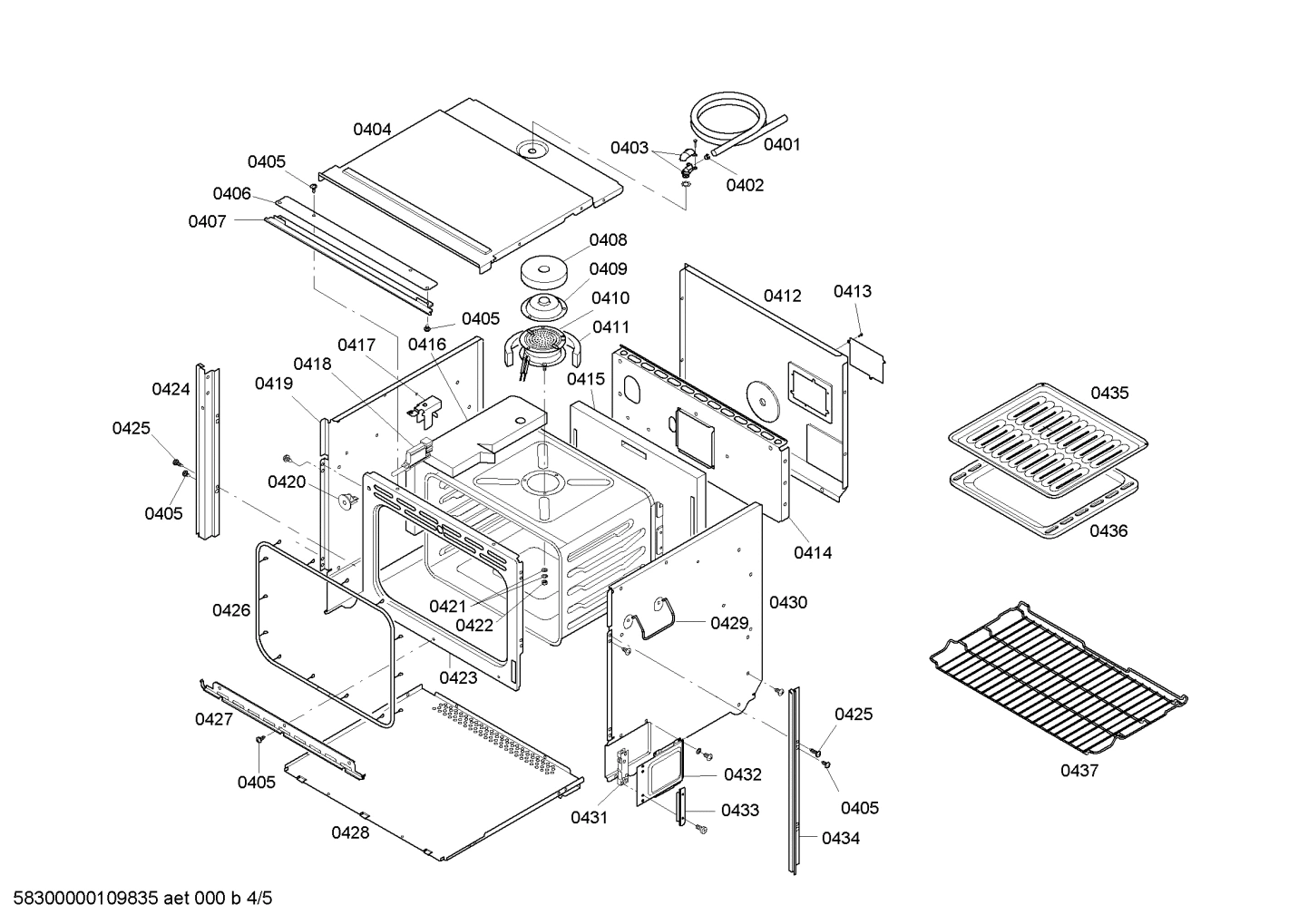

Diagram 4

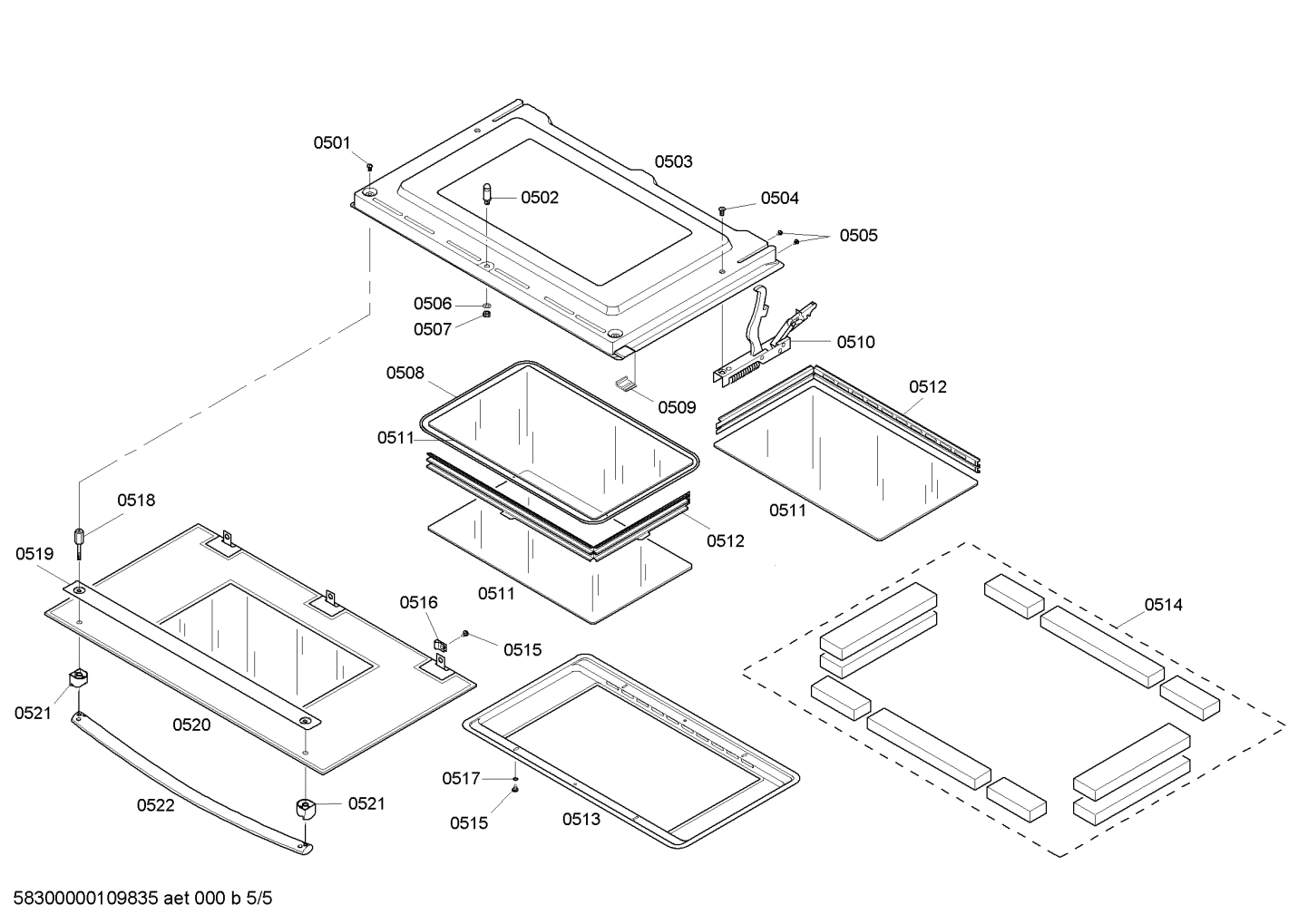

Diagram 5
Common parts from model Bosch HBN5035AUC/01 Range Oven
0109
Push button cap BOS 00421020 Contact Us For Availability
0201
Motor BOS 00490365 Contact Us For Availability
0202
Screw BOS 00420231 Contact Us For Availability
0208
Plate BOS 00420233 Contact Us For Availability
0209
Switch BOS 00600145 Contact Us For Availability
0210
Retaining washer BOS 00420246 Contact Us For Availability
0211
Nut BOS 00420247 Contact Us For Availability
0212
Spring BOS 00420234 Contact Us For Availability
0213
Latch BOS 00435608 Contact Us For Availability
0214
Guide BOS 00491254 Contact Us For Availability
0215
Temperature sensor BOS 00418676 Contact Us For Availability
0216
Bracket BOS 00420236 Contact Us For Availability
0217
Screw BOS 00420249 Contact Us For Availability
0218
Support BOS 00420237 Contact Us For Availability
0219
Resistor BOS 00420238 Contact Us For Availability
0220
Support BOS 00490363 Contact Us For Availability
0222
Temperature sensor BOS 00490986 Contact Us For Availability
0301
Retaining plate BOS 00239407 Contact Us For Availability
0302
Screw BOS 00600160 Contact Us For Availability
0303
Spacer BOS 00497223 Contact Us For Availability
0304
Fan BOS 00445272 Contact Us For Availability
0305
Control unit BOS 00497224 Contact Us For Availability
0306
Spacer BOS 00489266 Contact Us For Availability
0307
Ventilation duct BOS 00471217 Contact Us For Availability
0308
Frequency filter BOS 00418431 Contact Us For Availability
0309
Terminal box BOS 00418464 Contact Us For Availability
0310
Screw BOS 00420211 Contact Us For Availability
0311
Spacer BOS 00420213 Contact Us For Availability
0312
Temperature sensor BOS 00497225 Contact Us For Availability
0314
Transformer BOS 00418461 Contact Us For Availability
0315
Screw BOS 00219290 Contact Us For Availability
0316
Support BOS 00490357 Contact Us For Availability
0317
Dividing wall BOS 00243227 Contact Us For Availability
0319
Nut BOS 00420219 Contact Us For Availability
0320
Support BOS 00490361 Contact Us For Availability
0321
Screw BOS 00600161 Contact Us For Availability
0323
Sealing BOS 00420225 Contact Us For Availability
0324
Cover BOS 00418415 Contact Us For Availability
0326
Lamp housing BOS 00420227 Contact Us For Availability
0327
Heating element BOS 00144260 Contact Us For Availability
0328
Clip BOS 00420223 Contact Us For Availability
0329
Bracket BOS 00420229 Contact Us For Availability
0331
Screw BOS 00420230 Contact Us For Availability
0332
Tray BOS 00240814 Contact Us For Availability
0333
Heating element BOS 00239402 Contact Us For Availability
0401
Hose-vent BOS 00490346 Contact Us For Availability
0402
Sleeve BOS 00420182 Contact Us For Availability
0403
Connection piece BOS 00420183 Contact Us For Availability
0404
Panel BOS 00240813 Contact Us For Availability
0406
Strip BOS 00471241 Contact Us For Availability
0407
Spacer BOS 00143607 Contact Us For Availability
0408
Insulating part BOS 00490347 Contact Us For Availability
0409
Cover BOS 00490348 Contact Us For Availability
0410
Catalyzer BOS 00418462 Contact Us For Availability
0411
Insulating part BOS 00490349 Contact Us For Availability
0412
Case-rear part BOS 00240810 Contact Us For Availability
0413
Screw BOS 00420192 Contact Us For Availability
0414
Panel BOS 00471239 Contact Us For Availability
0415
Insulating part BOS 00432126 Contact Us For Availability
0416
Insulating part BOS 00432125 Contact Us For Availability
0417
Bracket BOS 00600166 Contact Us For Availability
0418
Switch BOS 00600167 Contact Us For Availability
0419
Cover BOS 00240811 Contact Us For Availability
0420
Clip BOS 00600168 Contact Us For Availability
0422
Nut BOS 00420195 Contact Us For Availability
0423
Frame BOS 00475373 Contact Us For Availability
0424
Support BOS 00435636 Contact Us For Availability
0425
Screw BOS 00420190 Contact Us For Availability
0426
Seal-door BOS 00493343 Contact Us For Availability
0427
Strip-decor BOS 00143604 Contact Us For Availability
0428
Cover BOS 00240763 Contact Us For Availability
0429
Handle BOS 00421499 Contact Us For Availability
0430
Cover BOS 00240812 Contact Us For Availability
0431
Hinge-plate BOS 00600169 Contact Us For Availability
0432
Box BOS 00497236 Contact Us For Availability
0433
Spacer BOS 00600170 Contact Us For Availability
0434
Support BOS 00435635 Contact Us For Availability
0435
Grill tray BOS 00449756 Contact Us For Availability
0436
Universal pan BOS 00449757 Contact Us For Availability
0437
Shelf BOS 00445289 Contact Us For Availability
0450
Cable harness BOS 00497237 Contact Us For Availability
0451
Cable harness BOS 00497207 Contact Us For Availability
0452
Cable harness BOS 00497238 Contact Us For Availability
0502
Pin BOS 00420250 Contact Us For Availability
0503
Door-inner BOS 00243228 Contact Us For Availability
0504
Screw BOS 00420253 Contact Us For Availability
0505
Screw BOS 00420254 Contact Us For Availability
0506
Washer BOS 00420251 Contact Us For Availability
0507
Nut BOS 00420252 Contact Us For Availability
0508
Seal BOS 00238950 Contact Us For Availability
0509
Spacer BOS 00600171 Contact Us For Availability
0510
Door hinge BOS 00421026 Contact Us For Availability
0511
Glass panel BOS 00240458 Contact Us For Availability
0512
Spacer BOS 00470712 Contact Us For Availability
0513
Reflector BOS 00240778 Contact Us For Availability
0514
Insulating part BOS 00434078 Contact Us For Availability
0515
Screw BOS 00420186 Contact Us For Availability
0516
Clip BOS 00420255 Contact Us For Availability
0517
Retaining washer BOS 00420194 Contact Us For Availability
0518
Screw BOS 00418436 Contact Us For Availability
0519
Strip BOS 00491253 Contact Us For Availability
0520
Door BOS 00243231 Contact Us For Availability
0521
Spacer BOS 00418424 Contact Us For Availability
0522
Handle-door BOS 00239464 Contact Us For Availability
0550
Packaging BOS 00243232 Contact Us For Availability
× ![]()
