Model Bosch HBN442AUC/01 Range Oven – Common Parts & Diagrams

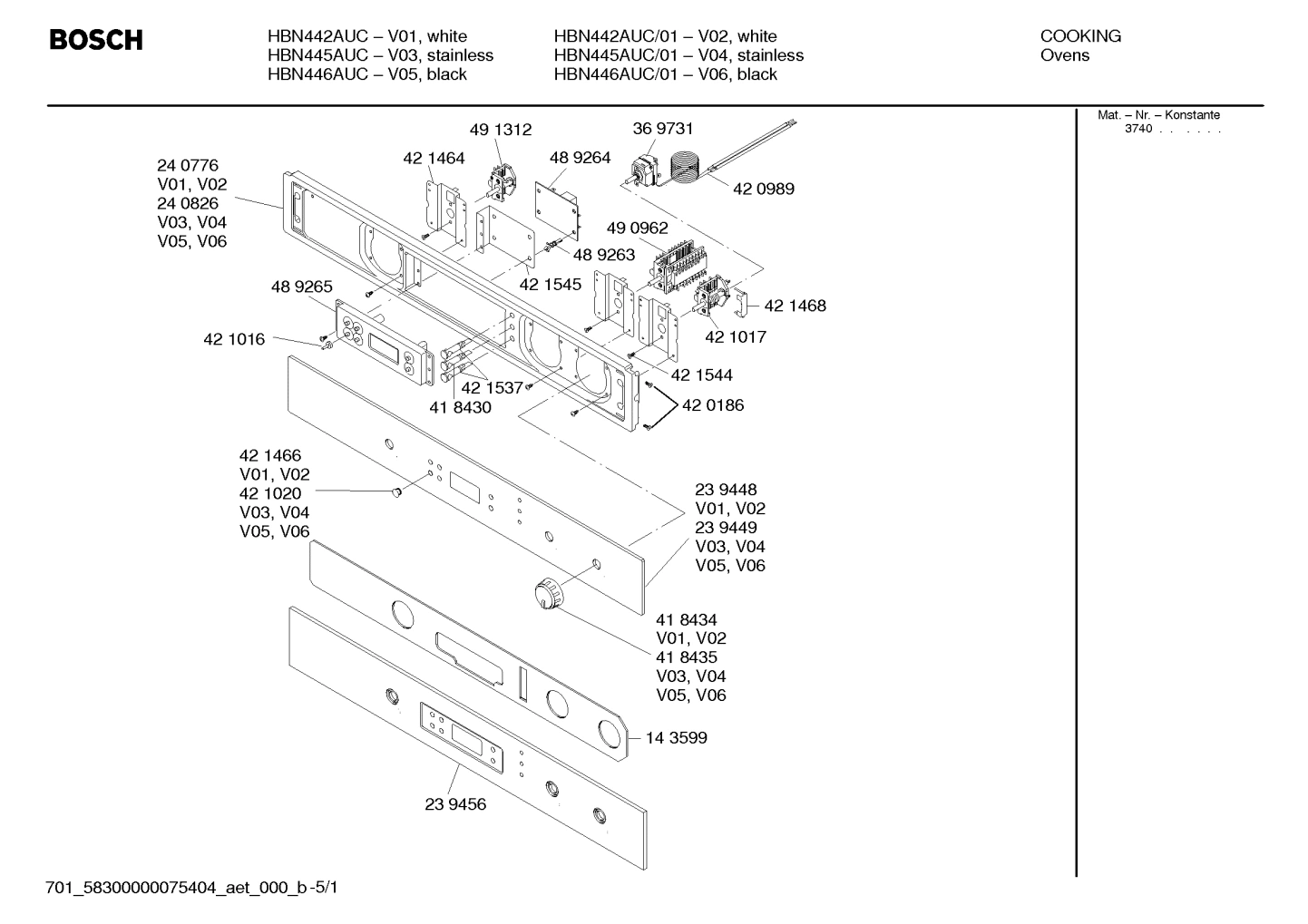

Diagram 1

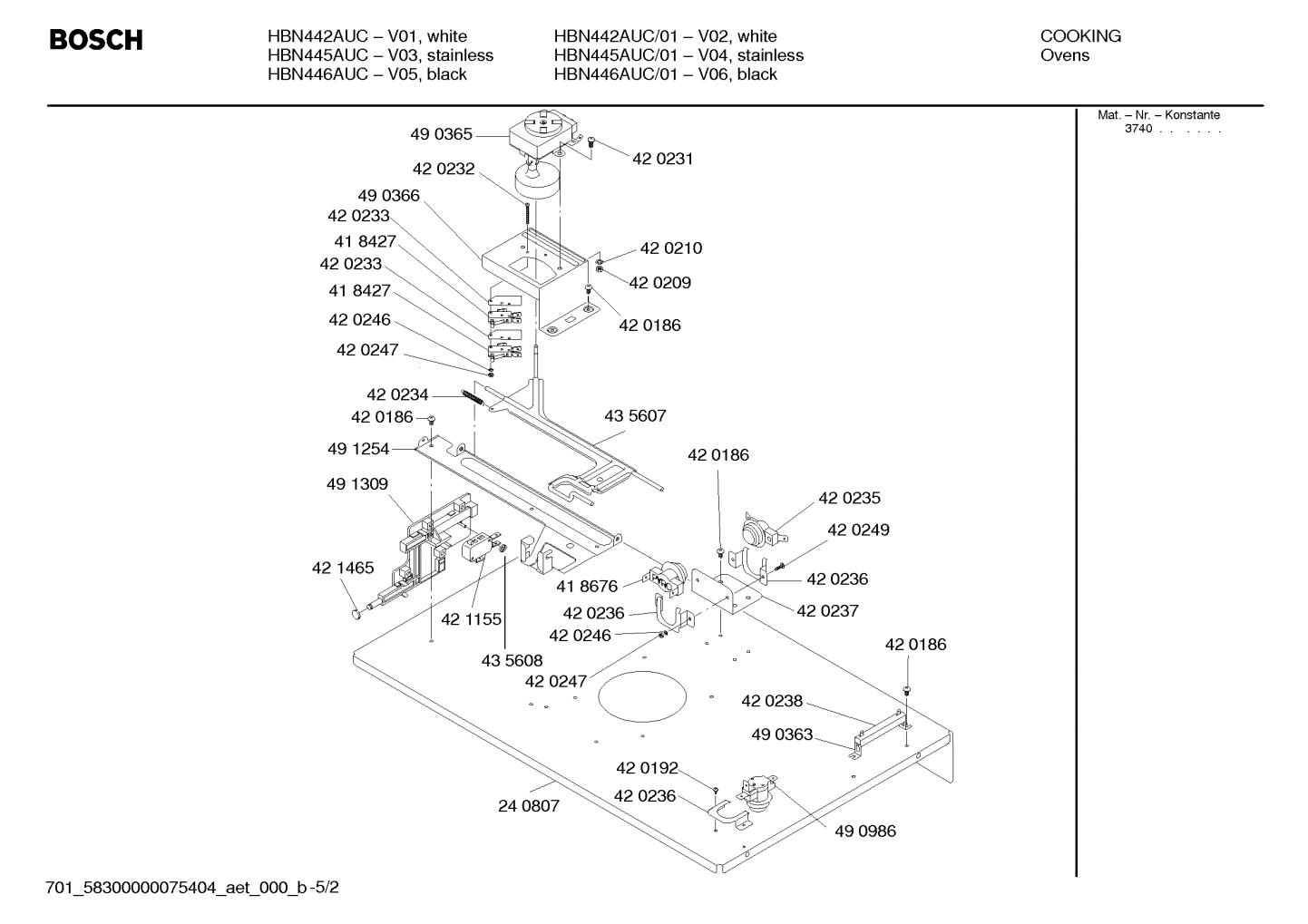

Diagram 2

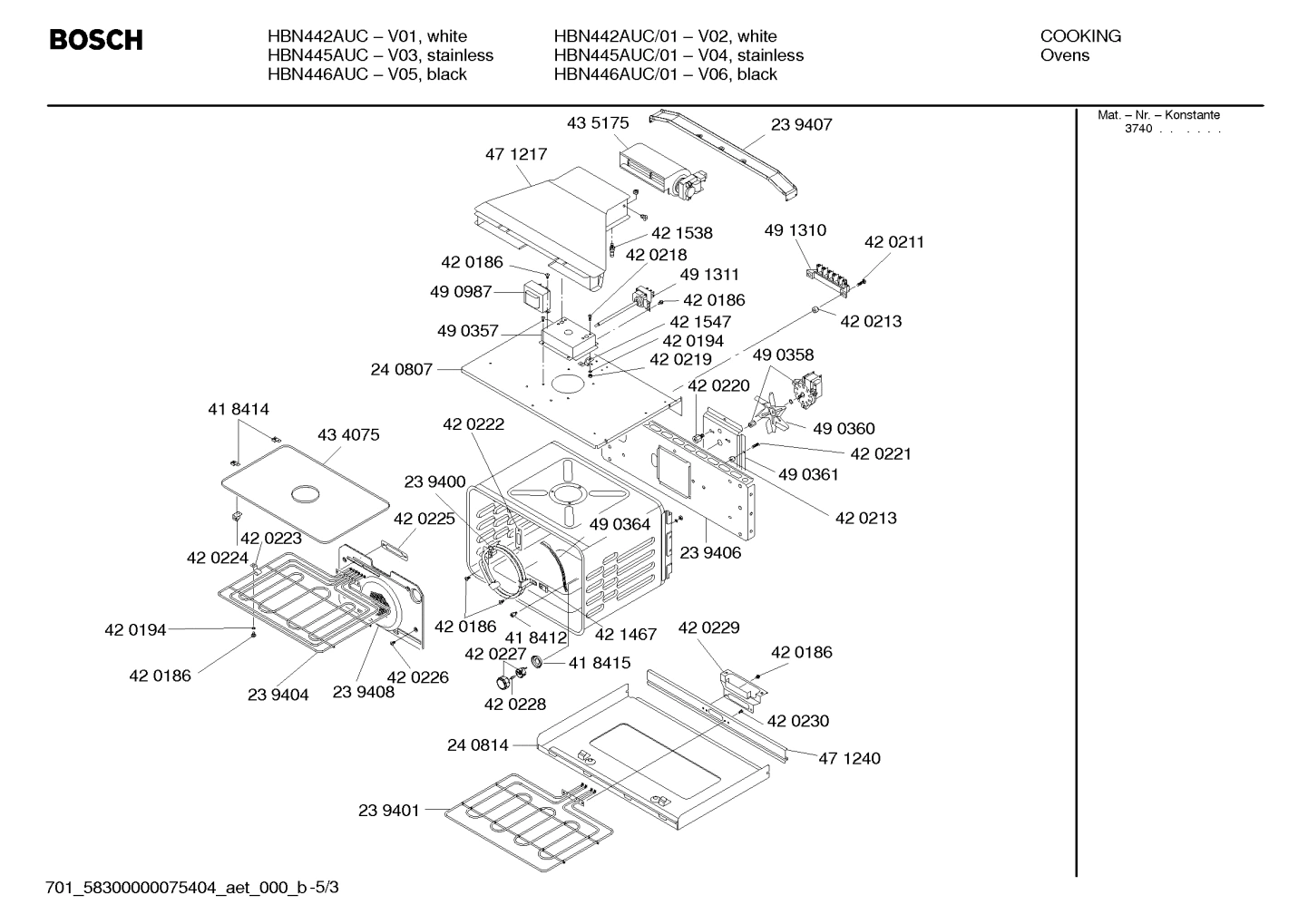

Diagram 3

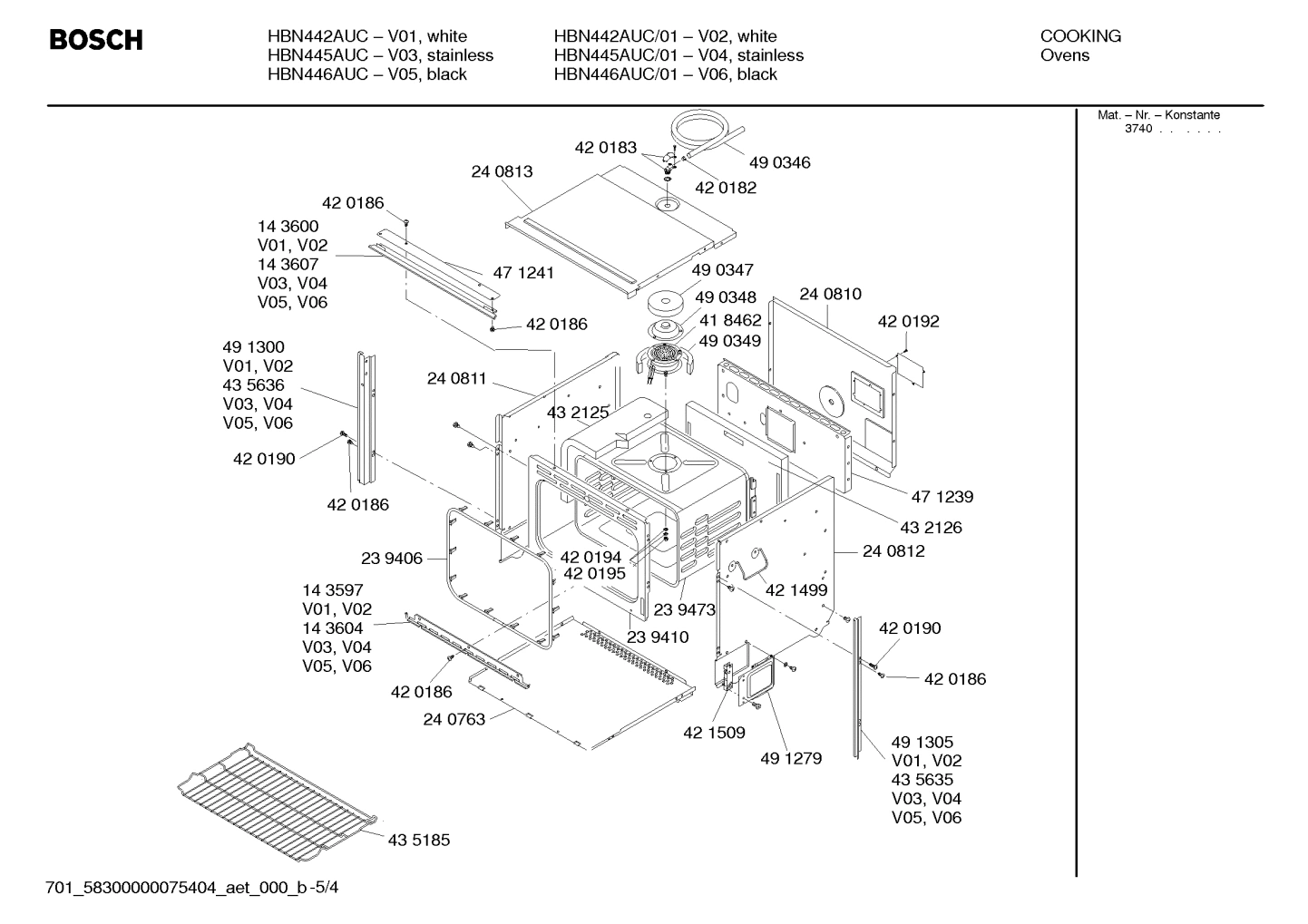

Diagram 4

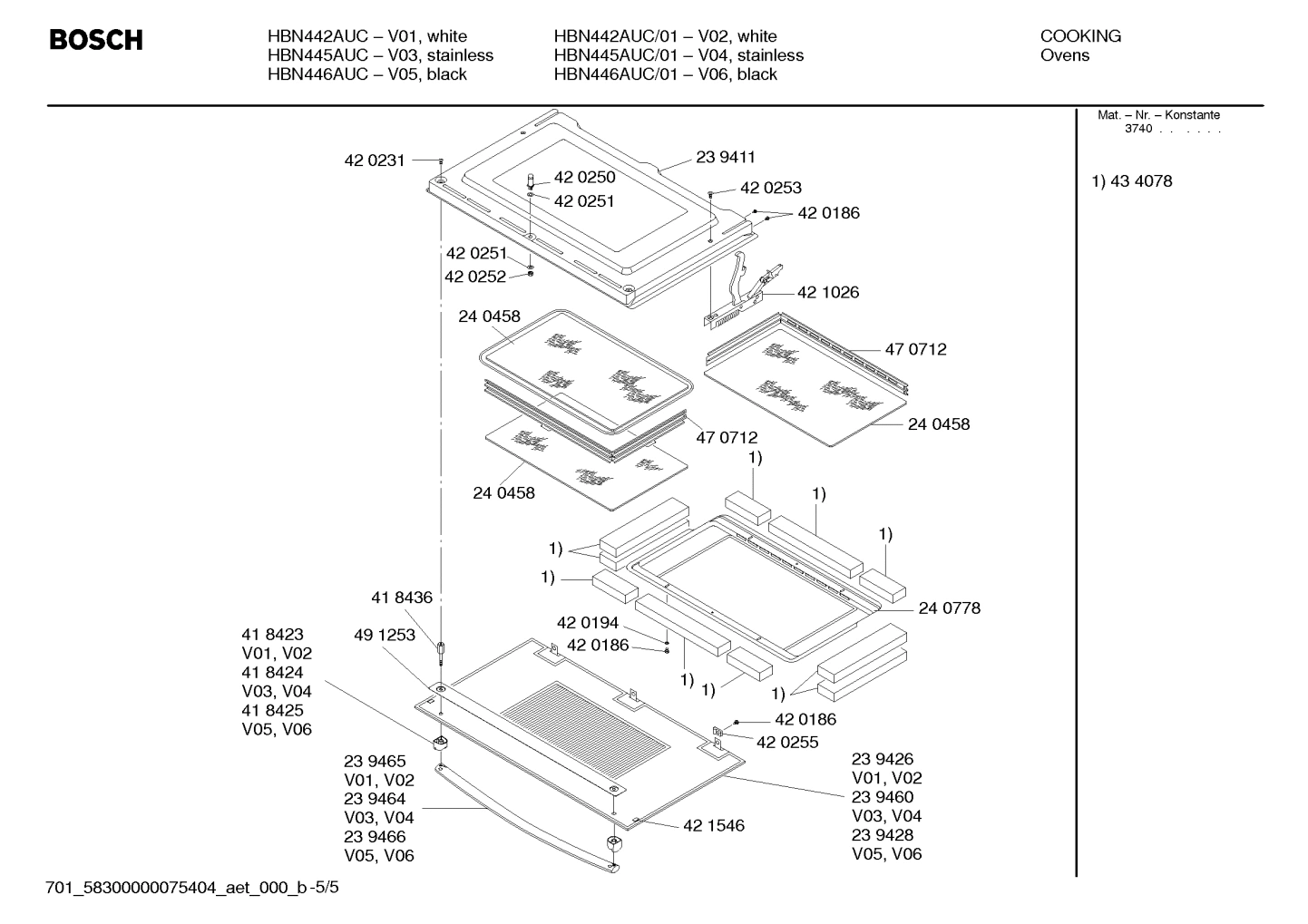

Diagram 5
Common parts from model Bosch HBN442AUC/01 Range Oven
0002
Heating element BOS 00239404 Contact Us For Availability
0004
Seal BOS 00238950 Contact Us For Availability
0018
Spacer BOS 00418423 Contact Us For Availability
0019
Switch BOS 00600145 Contact Us For Availability
0021
Screw BOS 00418436 Contact Us For Availability
0022
Temperature sensor BOS 00418676 Contact Us For Availability
0029
Time switch BOS 00489265 Contact Us For Availability
0030
Relay BOS 00489264 Contact Us For Availability
0031
Temperature sensor BOS 00490986 Contact Us For Availability
0032
Terminal BOS 00491310 Contact Us For Availability
0042
Screw BOS 00420232 Contact Us For Availability
0043
Screw BOS 00420186 Contact Us For Availability
0044
Screw BOS 00420190 Contact Us For Availability
0045
Screw BOS 00420249 Contact Us For Availability
0046
Screw BOS 00420231 Contact Us For Availability
0047
Screw BOS 00420192 Contact Us For Availability
0048
Screw BOS 00420254 Contact Us For Availability
0049
Screw BOS 00420221 Contact Us For Availability
0050
Screw BOS 00420211 Contact Us For Availability
0051
Retaining washer BOS 00420194 Contact Us For Availability
0052
Retaining washer BOS 00420210 Contact Us For Availability
0053
Retaining washer BOS 00420246 Contact Us For Availability
0054
Support BOS 00490357 Contact Us For Availability
0055
Support BOS 00490361 Contact Us For Availability
0056
Bracket BOS 00420236 Contact Us For Availability
0057
Time switch BOS 00491312 Contact Us For Availability
0058
Motor BOS 00490365 Contact Us For Availability
0059
Screw BOS 00420220 Contact Us For Availability
0060
Reflector BOS 00434075 Contact Us For Availability
0061
Sealing BOS 00420225 Contact Us For Availability
0062
Seal BOS 00420222 Contact Us For Availability
0063
Bracket BOS 00420229 Contact Us For Availability
0064
Housing BOS 00490366 Contact Us For Availability
0065
Hose BOS 00420989 Contact Us For Availability
0066
Bracket BOS 00421545 Contact Us For Availability
0067
Support BOS 00420237 Contact Us For Availability
0068
Support BOS 00490363 Contact Us For Availability
0069
Sleeve BOS 00420182 Contact Us For Availability
0070
Hose-vent BOS 00490346 Contact Us For Availability
0071
Lamp BOS 00421537 Contact Us For Availability
0072
Connection piece BOS 00420183 Contact Us For Availability
0073
Spacer BOS 00420213 Contact Us For Availability
0074
Resistor BOS 00420238 Contact Us For Availability
0075
Nut BOS 00420195 Contact Us For Availability
0076
Pin BOS 00421016 Contact Us For Availability
0077
Clip BOS 00421468 Contact Us For Availability
0078
Spring BOS 00420234 Contact Us For Availability
0079
Spacer BOS 00489263 Contact Us For Availability
0080
Plate BOS 00420233 Contact Us For Availability
0081
Switch BOS 00421017 Contact Us For Availability
0082
Clamp BOS 00421467 Contact Us For Availability
0083
Handle BOS 00421499 Contact Us For Availability
0084
Insulating part BOS 00490349 Contact Us For Availability
0085
Push button cap BOS 00421466 Contact Us For Availability
0086
Spacer BOS 00470712 Contact Us For Availability
0087
Glass panel BOS 00240458 Contact Us For Availability
0088
Support BOS 00491300 Contact Us For Availability
0089
Support BOS 00491305 Contact Us For Availability
0090
Insulating part BOS 00434078 Contact Us For Availability
0091
Pin BOS 00420250 Contact Us For Availability
0092
Seal-door BOS 00239406 Contact Us For Availability
0093
Panel BOS 00471239 Contact Us For Availability
0094
Panel BOS 00240813 Contact Us For Availability
0095
Case-rear part BOS 00240810 Contact Us For Availability
0096
Cover BOS 00240807 Contact Us For Availability
0097
Tray BOS 00240814 Contact Us For Availability
0098
Strip-decor BOS 00471240 Contact Us For Availability
0099
Strip BOS 00471241 Contact Us For Availability
0100
Screw BOS 00420226 Contact Us For Availability
0101
Box BOS 00497236 Contact Us For Availability
0102
Lamp housing BOS 00420227 Contact Us For Availability
0103
Screw BOS 00421465 Contact Us For Availability
0104
Fan BOS 00497261 Contact Us For Availability
0105
Clip BOS 00420224 Contact Us For Availability
0106
Ventilation duct BOS 00490364 Contact Us For Availability
0107
Latch BOS 00435608 Contact Us For Availability
0108
Clip BOS 00421547 Contact Us For Availability
0109
Pin BOS 00421538 Contact Us For Availability
0110
Door hinge BOS 00421026 Contact Us For Availability
0111
Hinge-plate BOS 00600169 Contact Us For Availability
0112
Switch-selector BOS 00490962 Contact Us For Availability
0113
Thermometer BOS 00491311 Contact Us For Availability
0114
Temperature sensor BOS 00420235 Contact Us For Availability
0115
Heating element BOS 00239401 Contact Us For Availability
0116
Switch-door BOS 00421155 Contact Us For Availability
0118
Fan motor BOS 00490358 Contact Us For Availability
0119
Blower motor BOS 00435175 Contact Us For Availability
0120
Transformer BOS 00418461 Contact Us For Availability
0121
Seal-door BOS 00421546 Contact Us For Availability
0122
Cover BOS 00240811 Contact Us For Availability
0123
Cover BOS 00240812 Contact Us For Availability
0124
Ventilation duct BOS 00471217 Contact Us For Availability
0125
Cover BOS 00240763 Contact Us For Availability
0126
Spacer BOS 00143600 Contact Us For Availability
0127
Strip-decor BOS 00143597 Contact Us For Availability
0128
Seating BOS 00491309 Contact Us For Availability
0129
Bracket BOS 00421464 Contact Us For Availability
0130
Support BOS 00143599 Contact Us For Availability
0131
Strip BOS 00491253 Contact Us For Availability
0132
Guide BOS 00491254 Contact Us For Availability
0133
Latch BOS 00435607 Contact Us For Availability
0134
Frame BOS 00240776 Contact Us For Availability
0135
Reflector BOS 00240778 Contact Us For Availability
0136
Shelf BOS 00445289 Contact Us For Availability
× ![]()
