Bosch HBLP651LUC/03 Range Oven Parts List

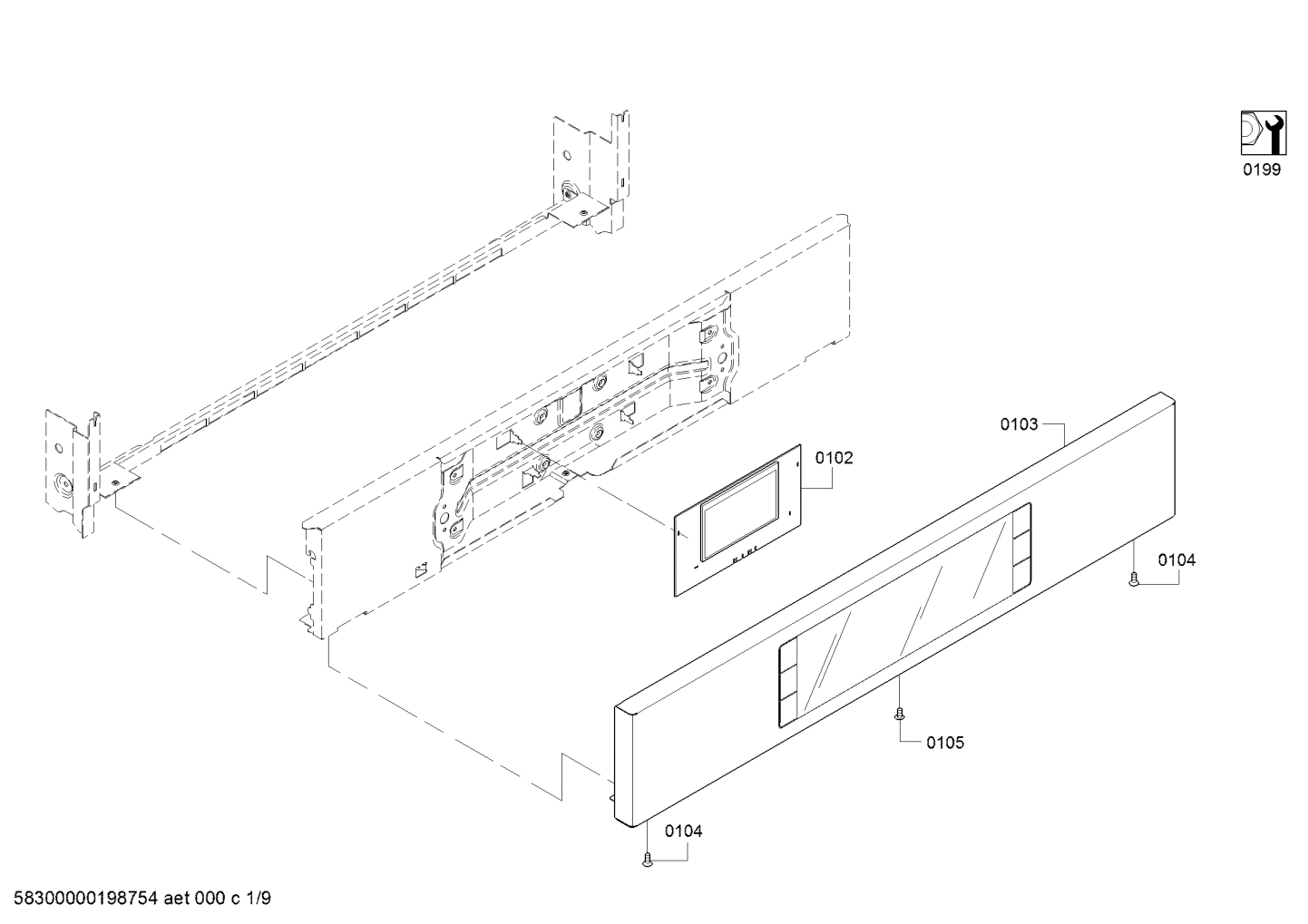

0103

11005328 Bosch Oven Fascia Panel Backorder BOS 11005328 $317.23

View on Model

0104

00422102 Bosch Oven Screw In Stock BOS 00422102 $22.65

View on Model

0105

00422098 Bosch Oven Screw In Stock BOS 00422098 $27.82

View on Model

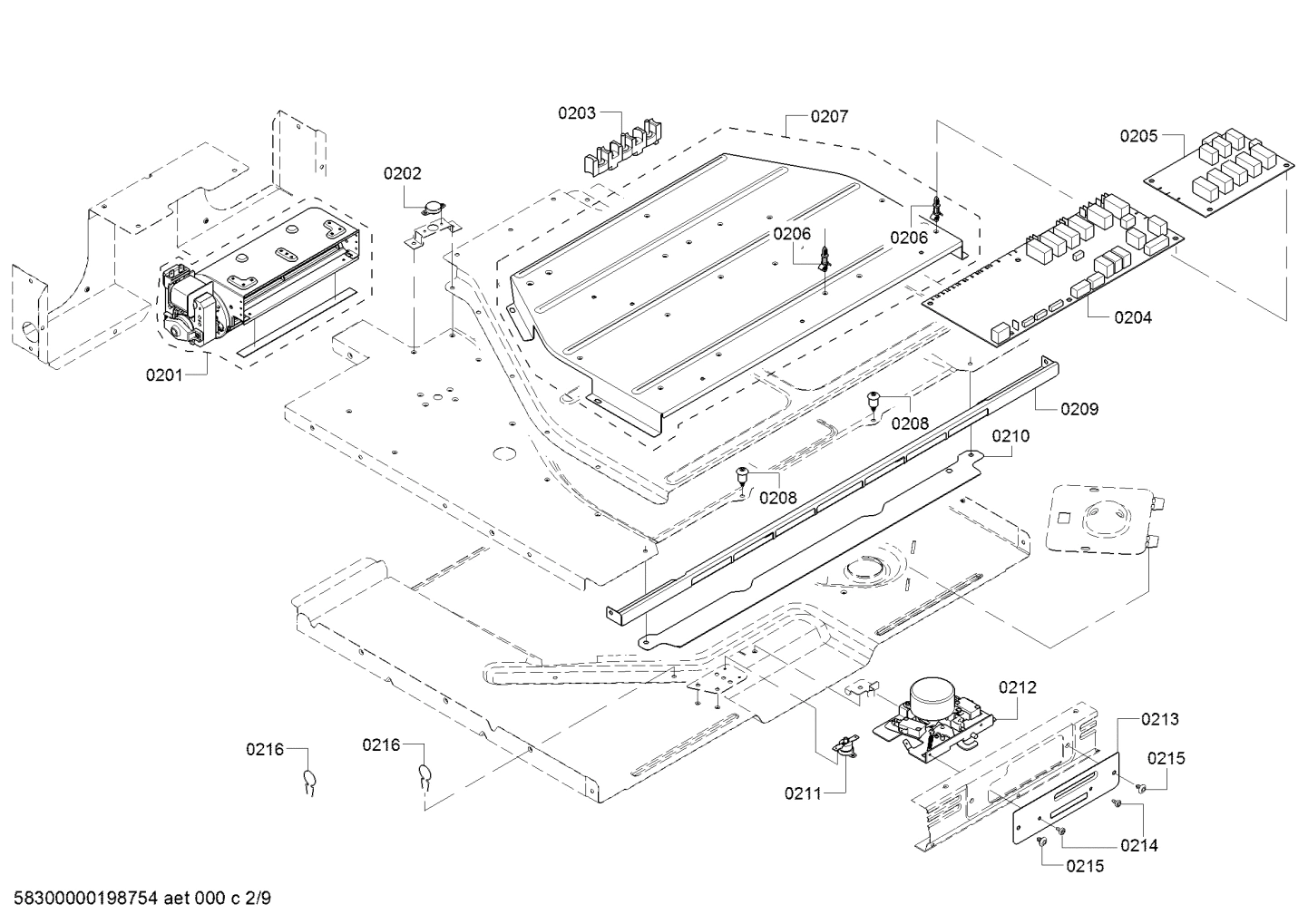

0203

00436364 Bosch Oven Terminal Box In Stock BOS 00436364 $31.42

View on Model

0204

11020737 Bosch Oven Control Module Backorder BOS 11020737 $343.60

View on Model

0205

12034881 Bosch Oven Control Module In Stock BOS 12034881 $205.36

View on Model

0209

00798645 Bosch Oven Trim Plate Backorder BOS 00798645 $80.86

View on Model

0250

00755412 Bosch Oven Cable Harness Backorder BOS 00755412 $20.59

View on Model

0251

Cable harness BOS 12006322 Contact Us For Availability

View on Model

0252

00755370 Bosch Oven Cable Harness In Stock BOS 00755370 $48.40

View on Model

0253

00755397 Bosch Oven Cable Harness Backorder BOS 00755397 $28.83

View on Model

0254

11033493 Bosch Oven Cable Harness Backorder BOS 11033493 $26.27

View on Model

0255

00758981 Bosch Oven Cable Harness In Stock BOS 00758981 $15.44

View on Model

0257

12006323 Bosch Oven Cable Harness Backorder BOS 12006323 $26.27

View on Model

0259

00755414 Bosch Oven Cable Harness Backorder BOS 00755414 $22.65

View on Model

0262

00755373 Bosch Oven Cable Harness Backorder BOS 00755373 $35.01

View on Model

0263

00755413 Bosch Oven Cable Harness Backorder BOS 00755413 $26.27

View on Model

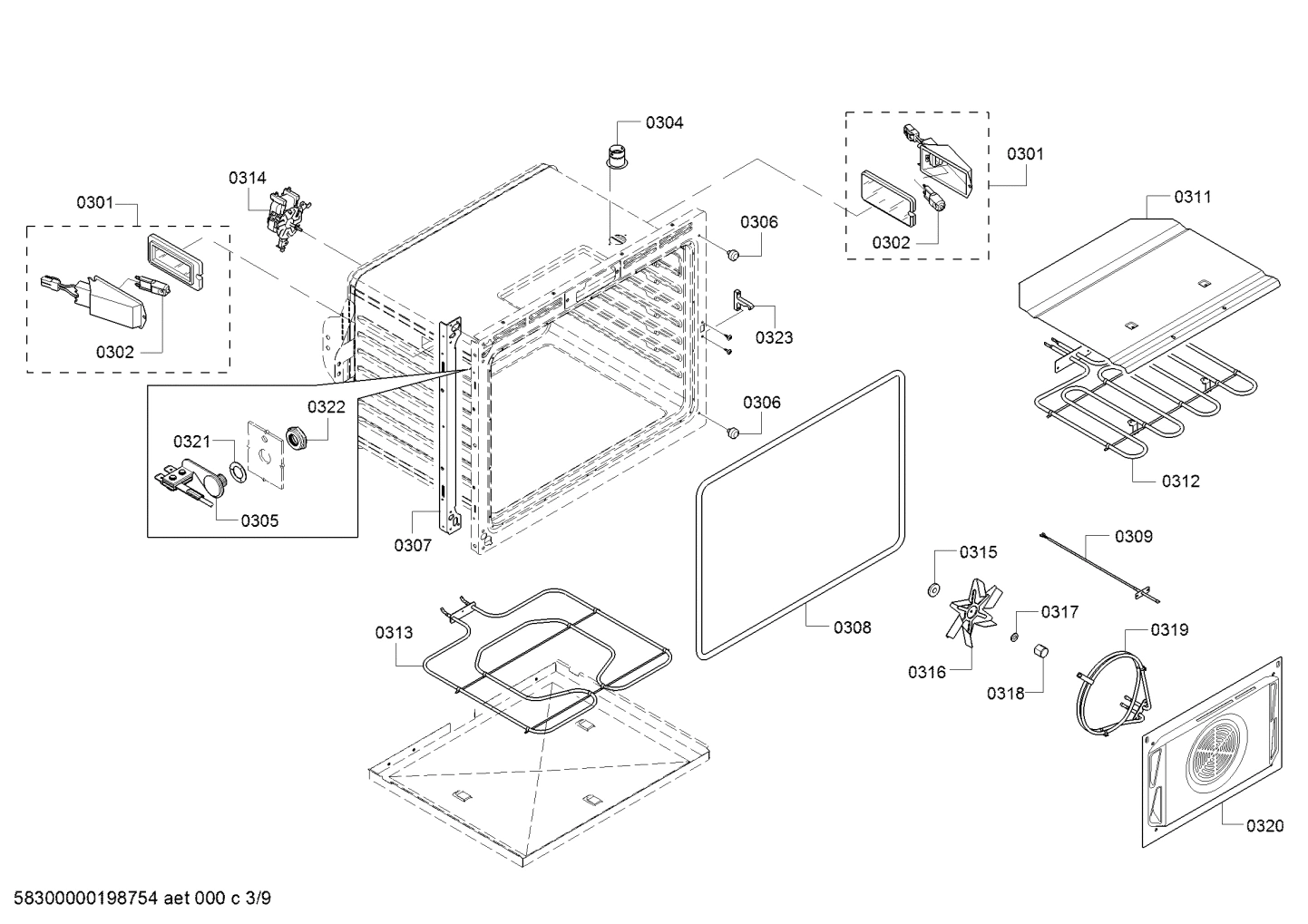

0301

Lamp BOS 00625069 Contact Us For Availability

View on Model

0305

10007567 Bosch Oven Socket Backorder BOS 10007567 $406.71

View on Model

0321

00605039 Bosch Oven Washer Backorder BOS 00605039 $12.35

View on Model

0322

00608199 Bosch Oven Nut Backorder BOS 00608199 $10.29

View on Model

0350

00755410 Bosch Oven Cable Harness Backorder BOS 00755410 $35.54

View on Model

0408

00771592 Bosch Oven Outer Door In Stock BOS 00771592 $341.89

View on Model

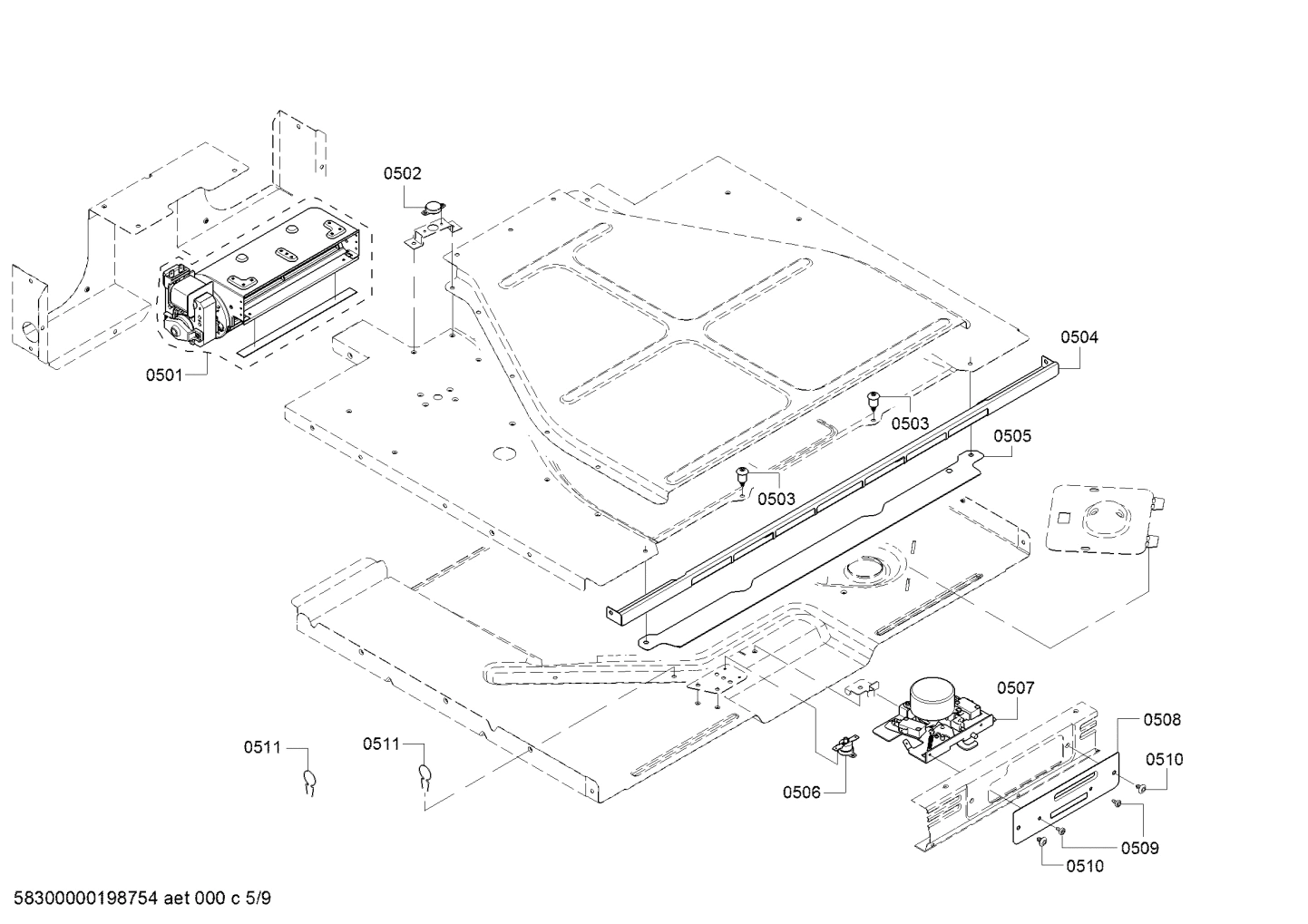

0501

00759374 Bosch Oven Fan In Stock BOS 00759374 $125.62

View on Model

0502

00631343 Bosch Oven Temperature Limiter In Stock BOS 00631343 $45.89

View on Model

0505

00798849 Bosch Oven Air Duct Assembly Backorder BOS 00798849 $75.18

View on Model

0506

10012286 Bosch Oven Temperature Limiter In Stock BOS 10012286 $47.03

View on Model

0507

12024390 Bosch Oven Latch In Stock BOS 12024390 $81.46

View on Model

0508

00758203 Bosch Oven Plate Backorder BOS 00758203 $60.76

View on Model

0509

00620814 Bosch Oven Screw Backorder BOS 00620814 $25.74

View on Model

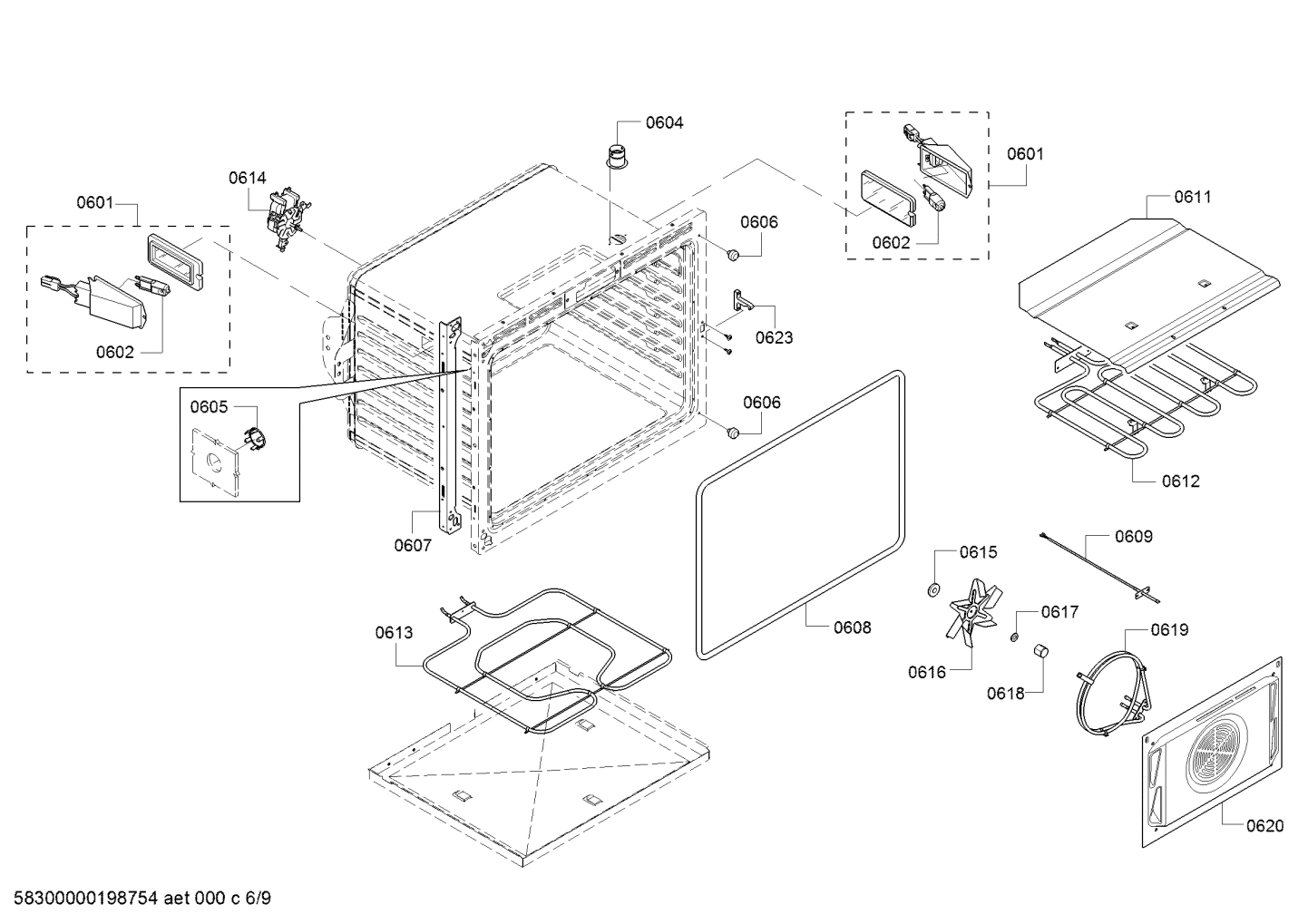

0602

00624404 Bosch Oven Halogen Lamp In Stock BOS 00624404 $41.19

View on Model

0604

00491572 Bosch Oven Catalyzer In Stock BOS 00491572 $56.14

View on Model

0605

00413573 Bosch Oven Plug Backorder BOS 00413573 $16.47

View on Model

0606

00631116 Bosch Oven Spacer Backorder BOS 00631116 $26.27

View on Model

0608

00755053 Bosch Oven Door Seal Assembly Backorder BOS 00755053 $63.10

View on Model

0609

00630873 Bosch Oven Sensor In Stock BOS 00630873 $40.79

View on Model

0611

00777053 Bosch Oven Reflector Backorder BOS 00777053 $61.29

View on Model

0613

00791650 Bosch Oven Heating Element In Stock BOS 00791650 $105.55

View on Model

0614

00642845 Bosch Oven Motor In Stock BOS 00642845 $184.70

View on Model

0615

00603860 Bosch Oven Spacer Backorder BOS 00603860 $35.54

View on Model

0616

00491577 Bosch Oven Fan Blade Backorder BOS 00491577 $31.92

View on Model

0617

00422090 Bosch Oven Washer Backorder BOS 00422090 $16.47

View on Model

0618

00471532 Bosch Oven Nut Backorder BOS 00471532 $10.29

View on Model

0619

00755059 Bosch Oven Heating Element Backorder BOS 00755059 $76.30

View on Model

0623

00631619 Bosch Oven Hook Backorder BOS 00631619 $20.09

View on Model

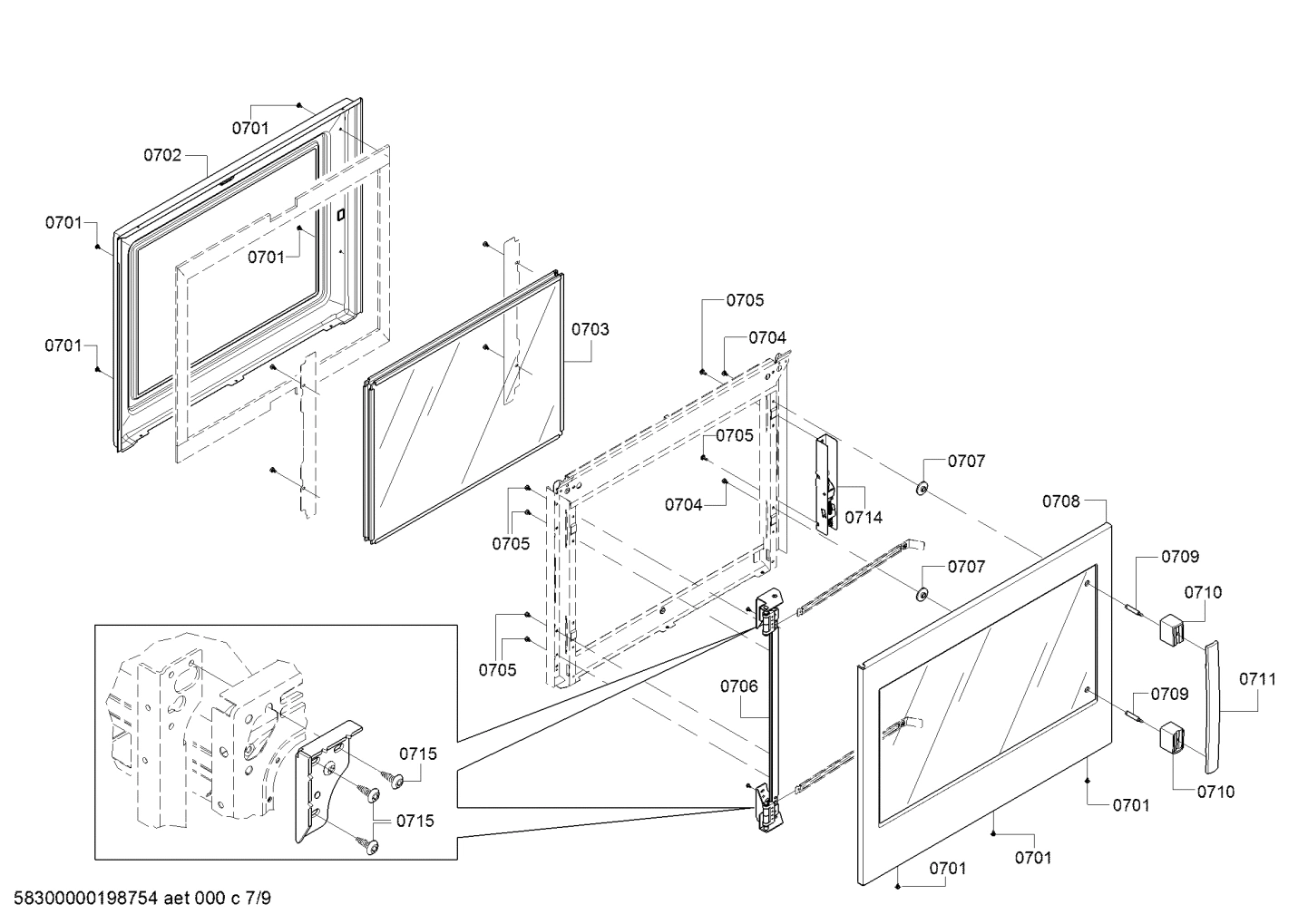

0702

00771590 Bosch Oven Inner Door Backorder BOS 00771590 $149.34

View on Model

0703

11034111 Bosch Oven Inner Glass Backorder BOS 11034111 $196.22

View on Model

0704

00632735 Bosch Oven Screw Backorder BOS 00632735 $25.74

View on Model

0706

11008120 Bosch Oven Door Hinge In Stock BOS 11008120 $322.38

View on Model

0708

00771593 Bosch Oven Outer Door Backorder BOS 00771593 $271.91

View on Model

0709

00631615 Bosch Oven Insert Backorder BOS 00631615 $28.83

View on Model

0710

00631899 Bosch Oven Spacer Backorder BOS 00631899 $46.34

View on Model

0711

12002685 Bosch Oven Door Handle Backorder BOS 12002685 $56.14

View on Model

0714

00757862 Bosch Oven Hinge Holder In Stock BOS 00757862 $131.83

View on Model

0715

00632191 Bosch Oven Screw Backorder BOS 00632191 $22.65

View on Model

0750

00421507 Bosch Oven Screw In Stock BOS 00421507 $22.65

View on Model

0751

00635045 Bosch Oven Spring Strip Backorder BOS 00635045 $33.98

View on Model

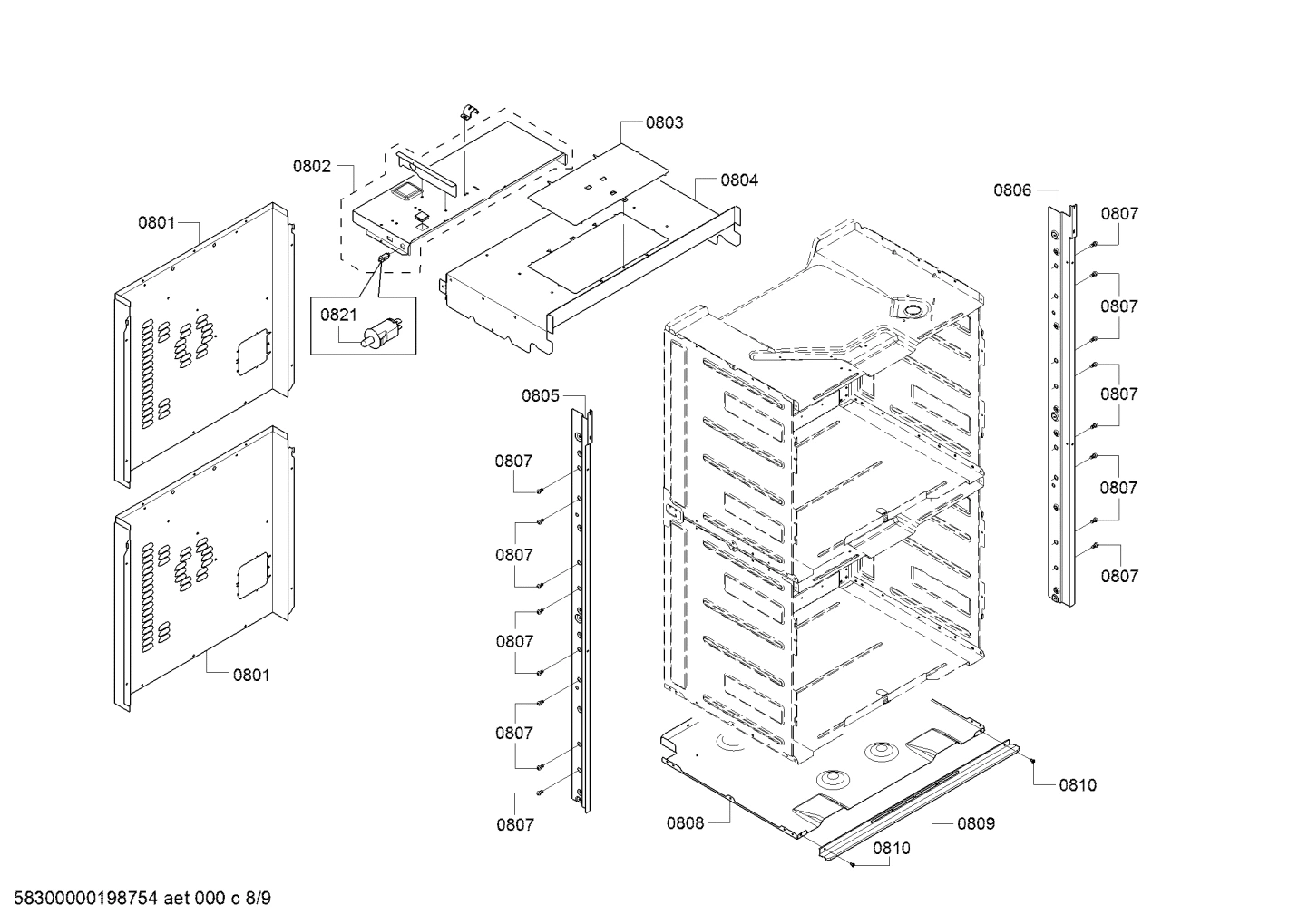

0801

00771362 Bosch Oven Housing Backorder BOS 00771362 $123.59

View on Model

0803

00758210 Bosch Oven Panel Backorder BOS 00758210 $114.85

View on Model

0805

00771372 Bosch Oven Trim Plate Backorder BOS 00771372 $135.95

View on Model

0806

00771373 Bosch Oven Trim Plate In Stock BOS 00771373 $131.85

View on Model

0809

00798654 Bosch Oven Trim Plate Backorder BOS 00798654 $135.95

View on Model

0810

00631347 Bosch Oven Screw Backorder BOS 00631347 $22.65

View on Model

0850

00413453 Bosch Oven Screw Backorder BOS 00413453 $10.29

View on Model

0851

00797850 Bosch Oven Cable Harness Assembly Backorder BOS 00797850 $87.54

View on Model

0853

00630845 Bosch Oven Screw Backorder BOS 00630845 $25.74

View on Model

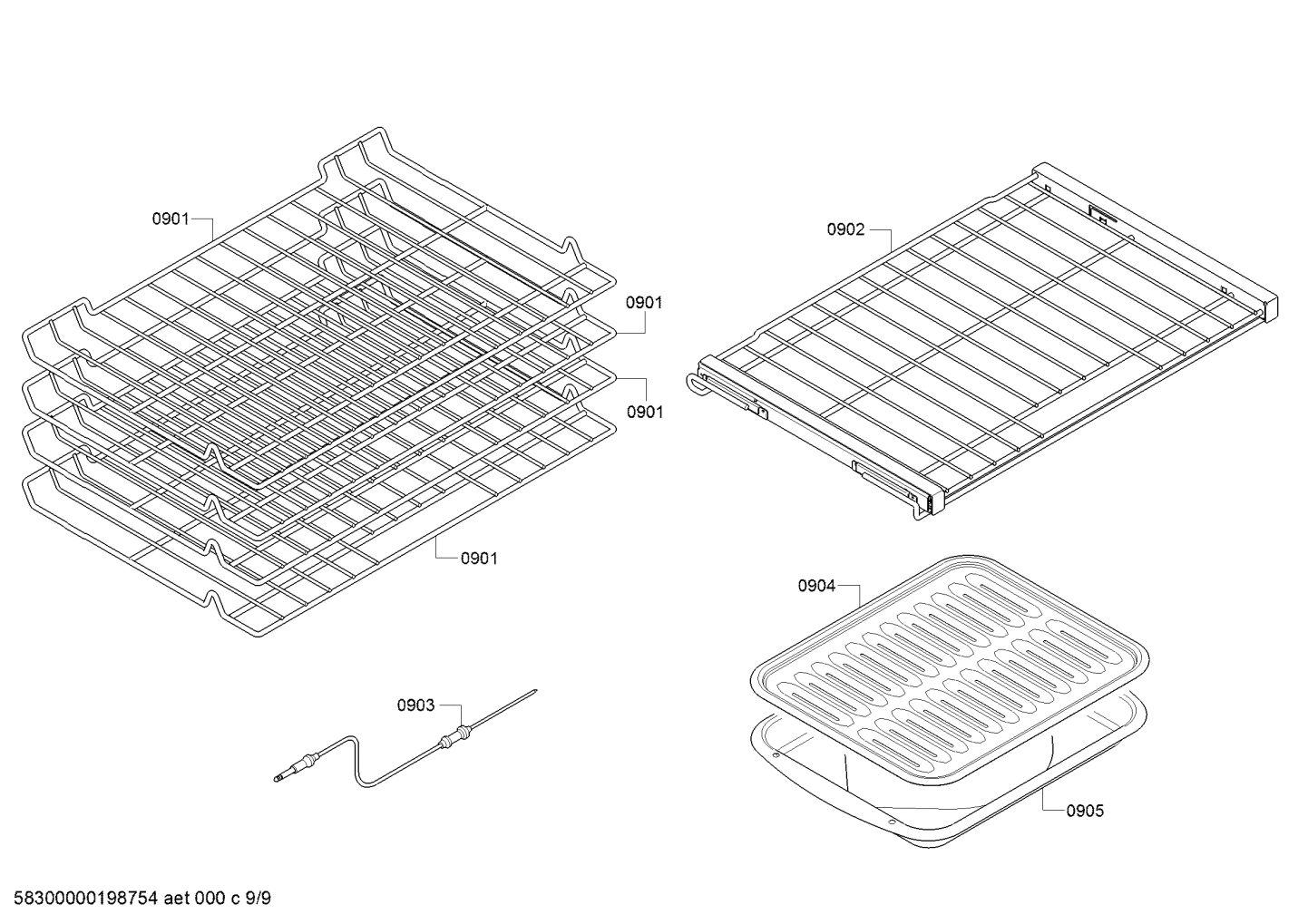

0901

00798845 Bosch Oven Shelf In Stock BOS 00798845 $72.28

View on Model

0902

00798846 Bosch Oven Shelf In Stock BOS 00798846 $354.50

View on Model

0903

00755060 Bosch Oven Sensor In Stock BOS 00755060 $111.28

View on Model

0904

Grill tray BOS 00449756 Contact Us For Availability

View on Model

0905

Universal pan BOS 00449757 Contact Us For Availability

View on Model
