Model Bosch HBL752AUC/02 Range Oven – Common Parts & Diagrams

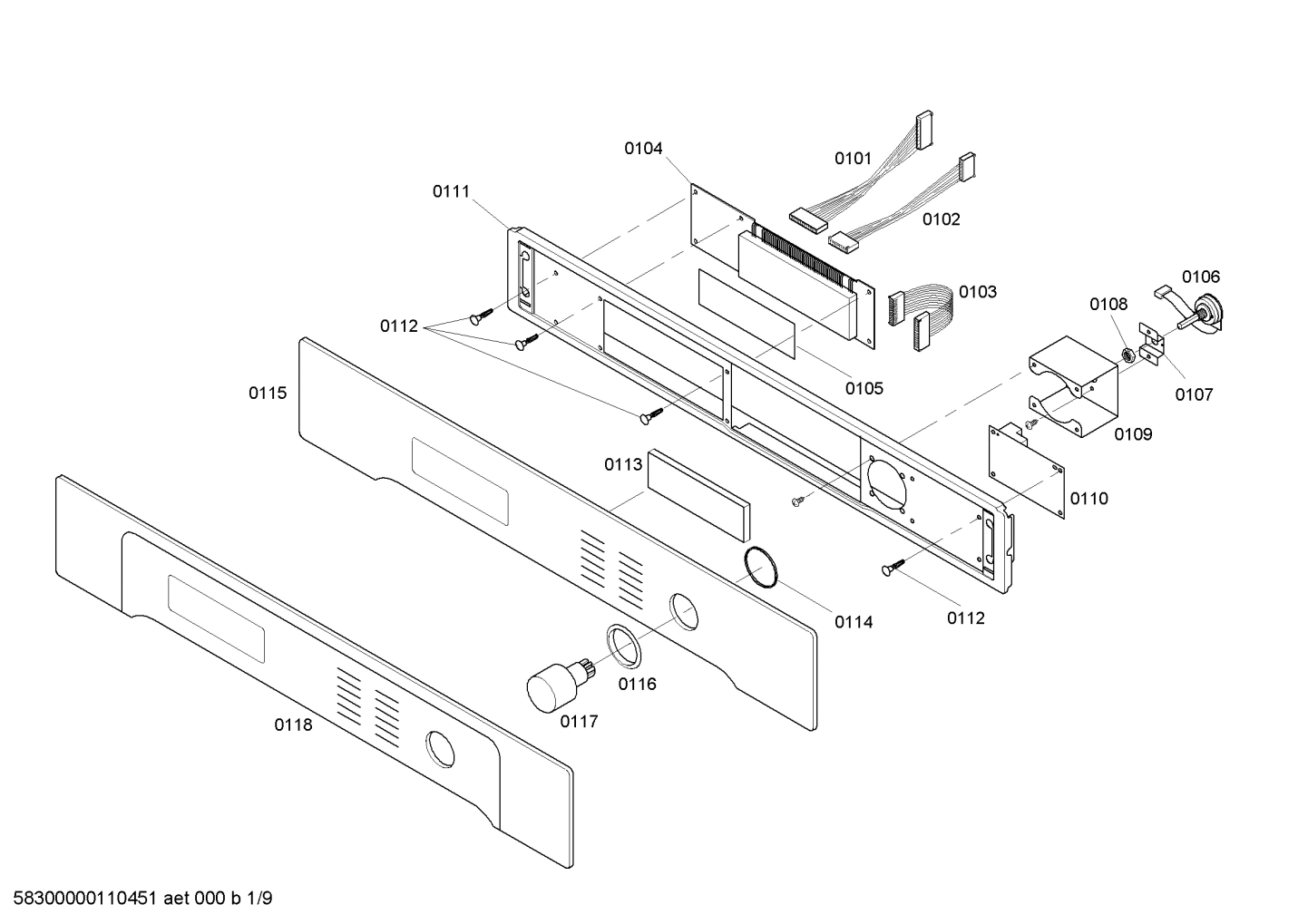

Diagram 1

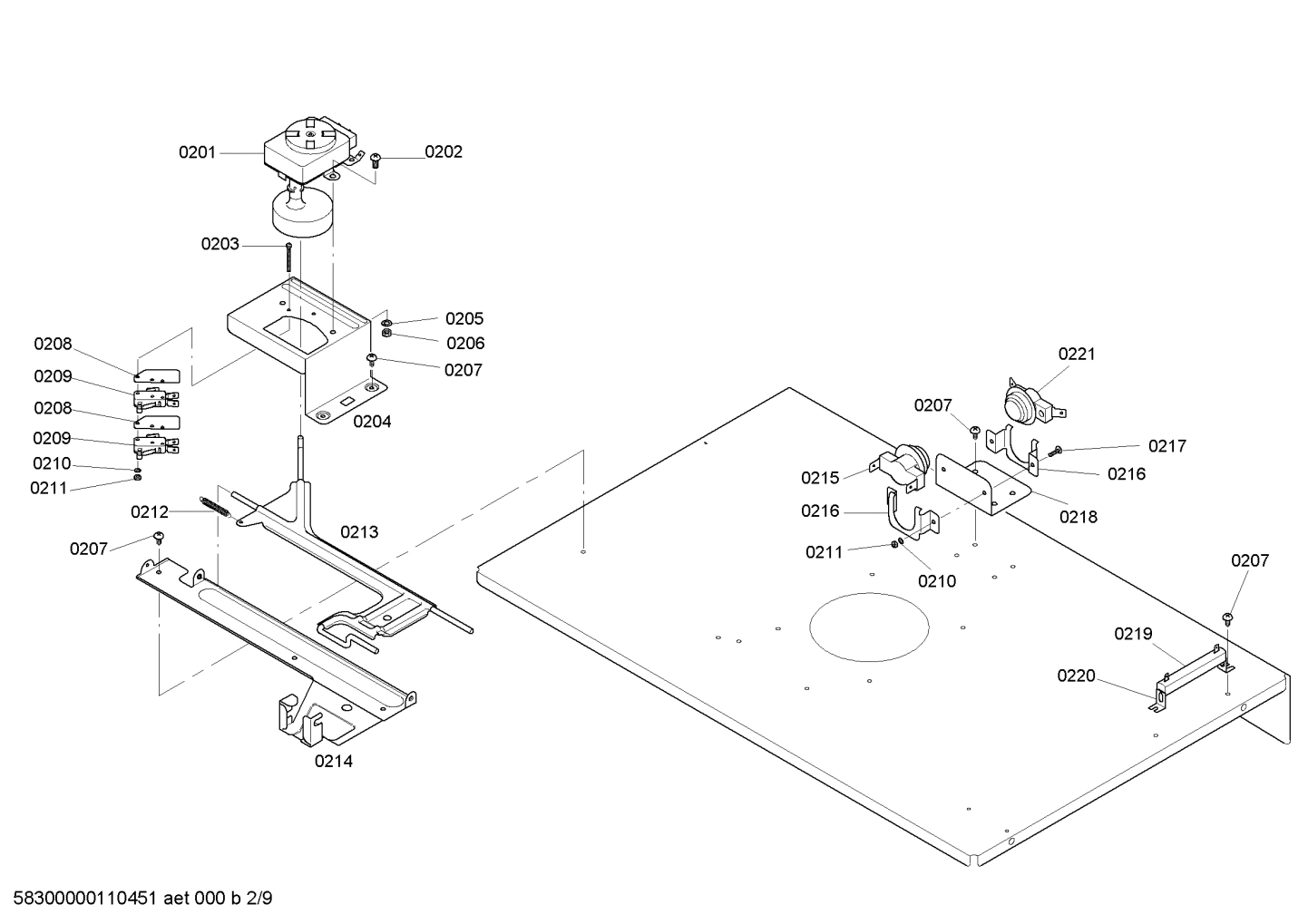

Diagram 2

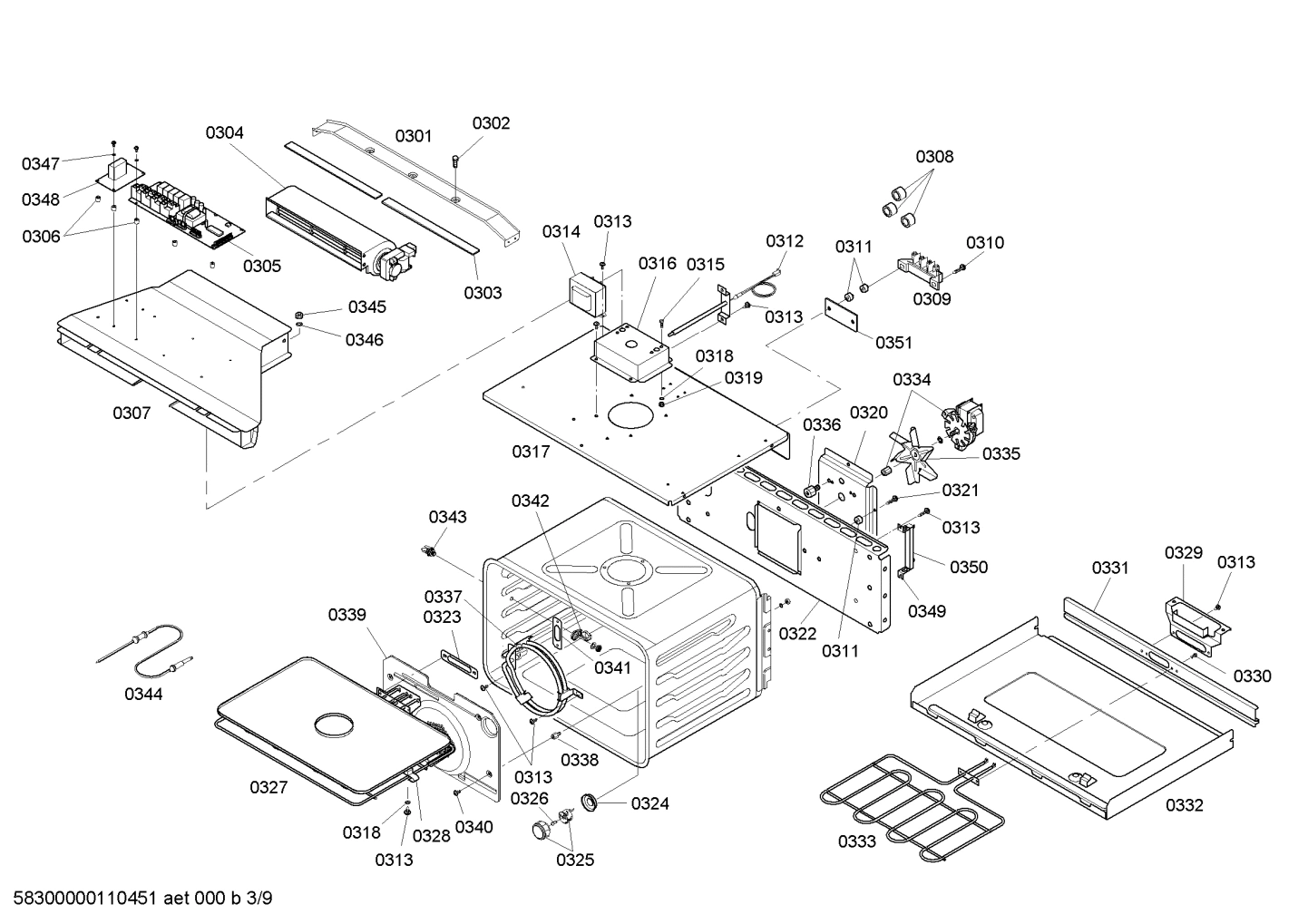

Diagram 3

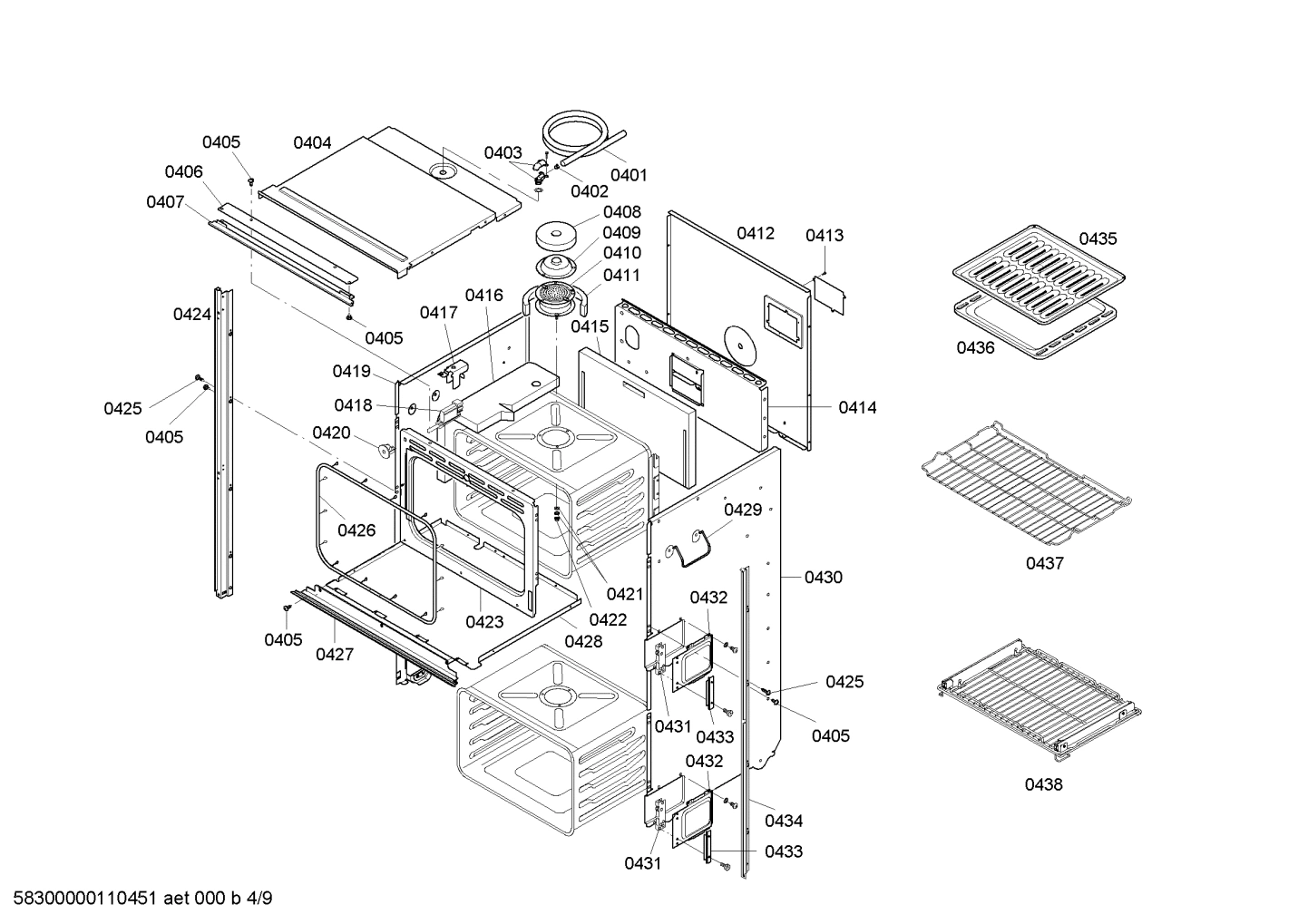

Diagram 4

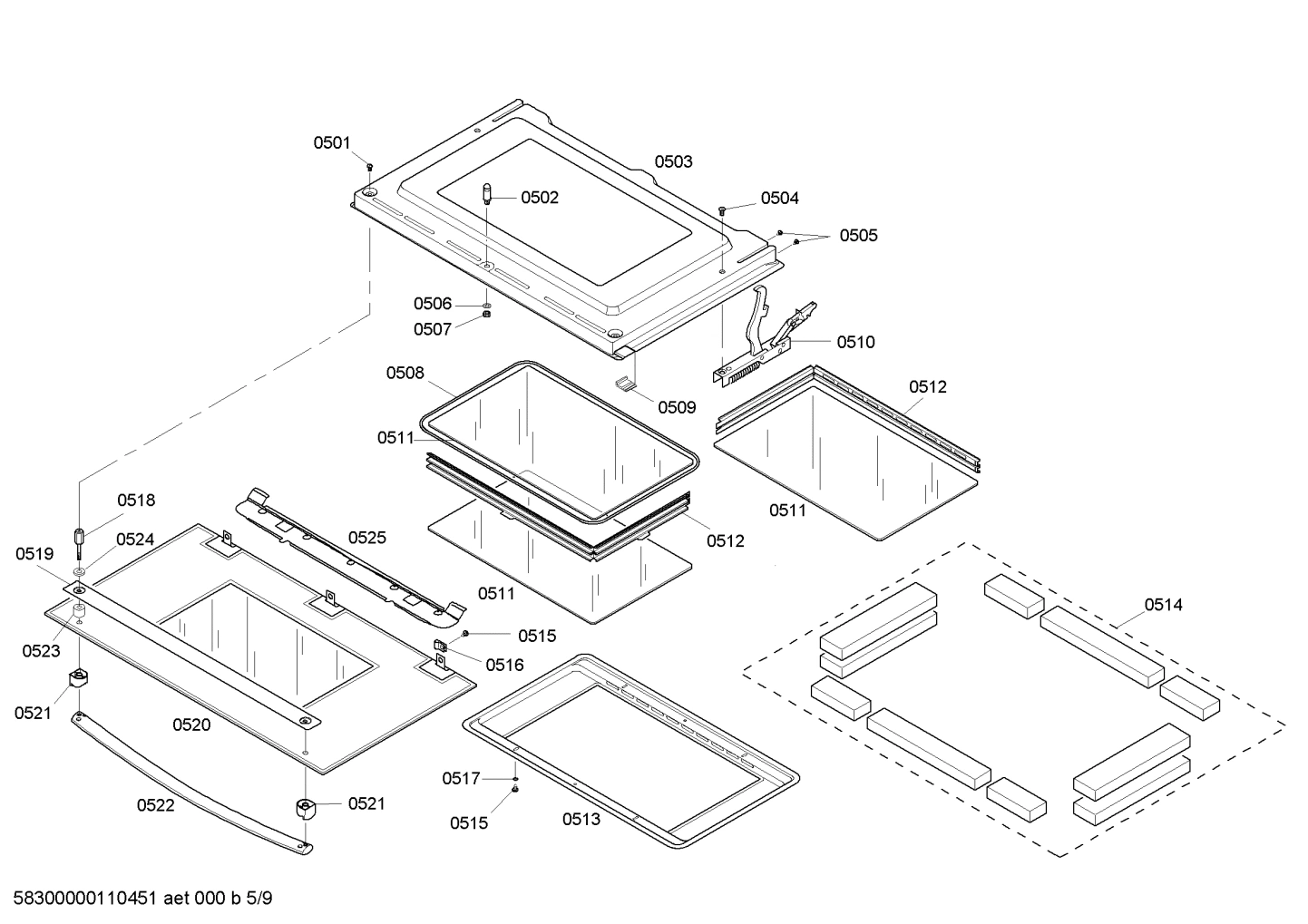

Diagram 5

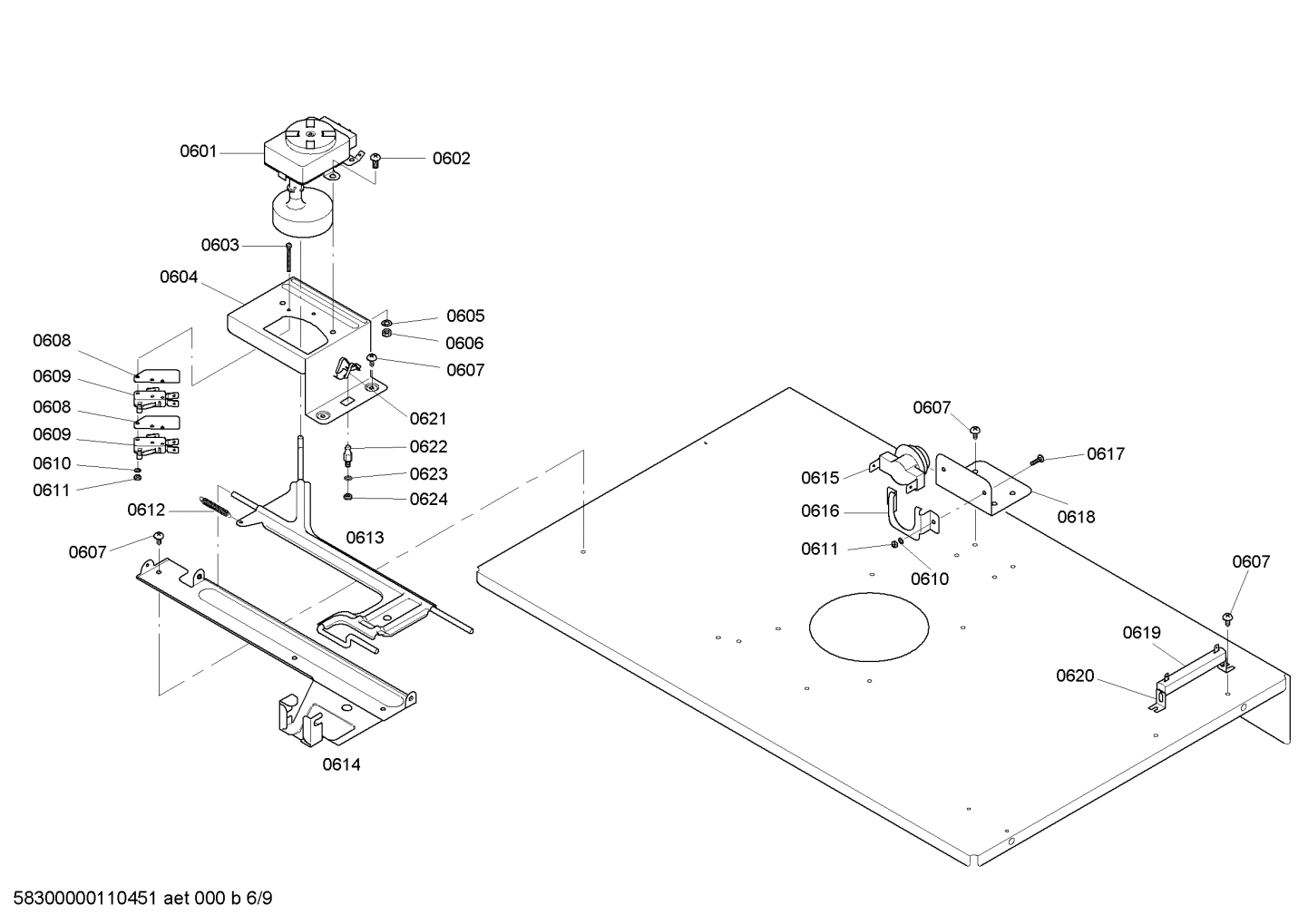

Diagram 6

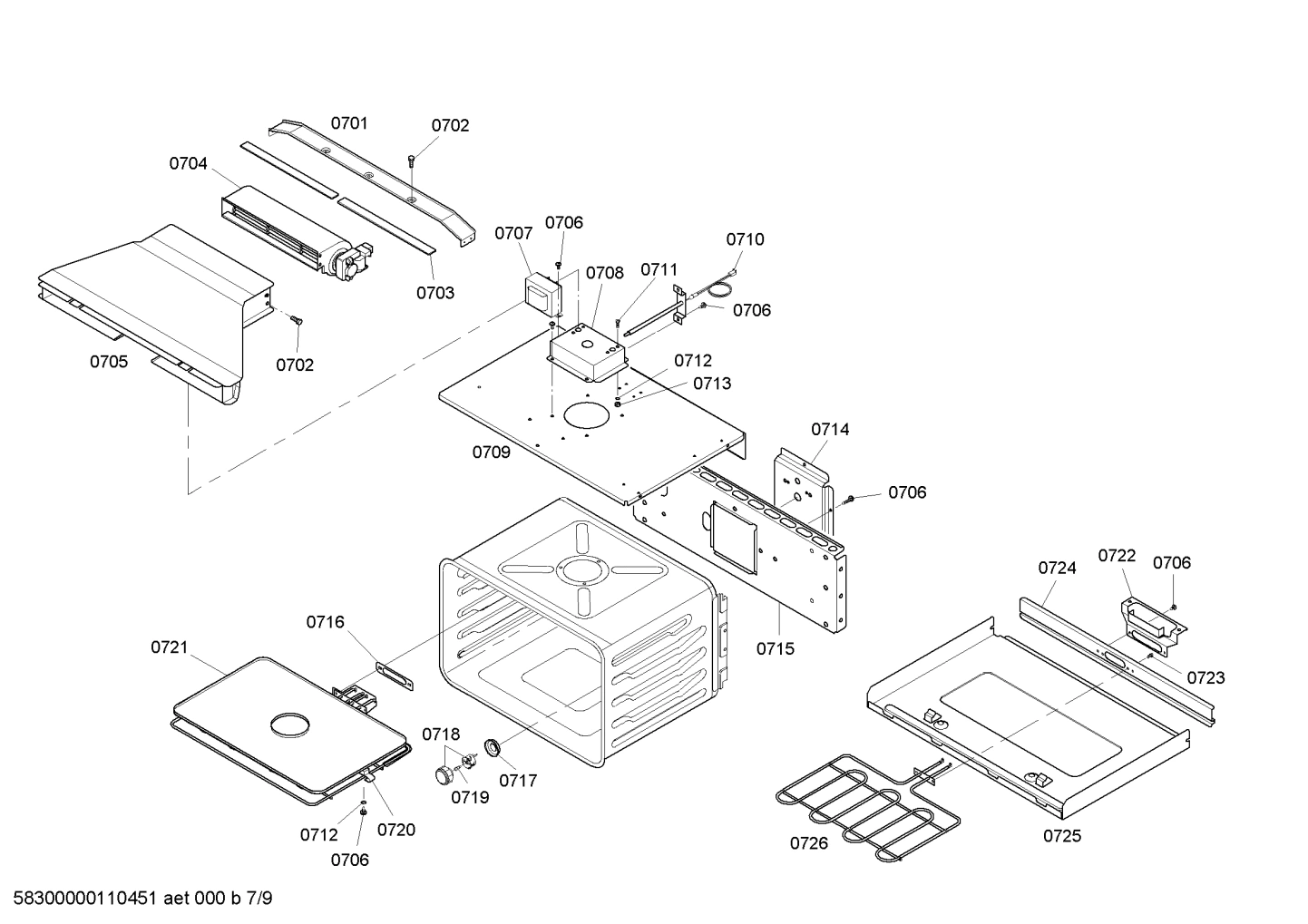

Diagram 7

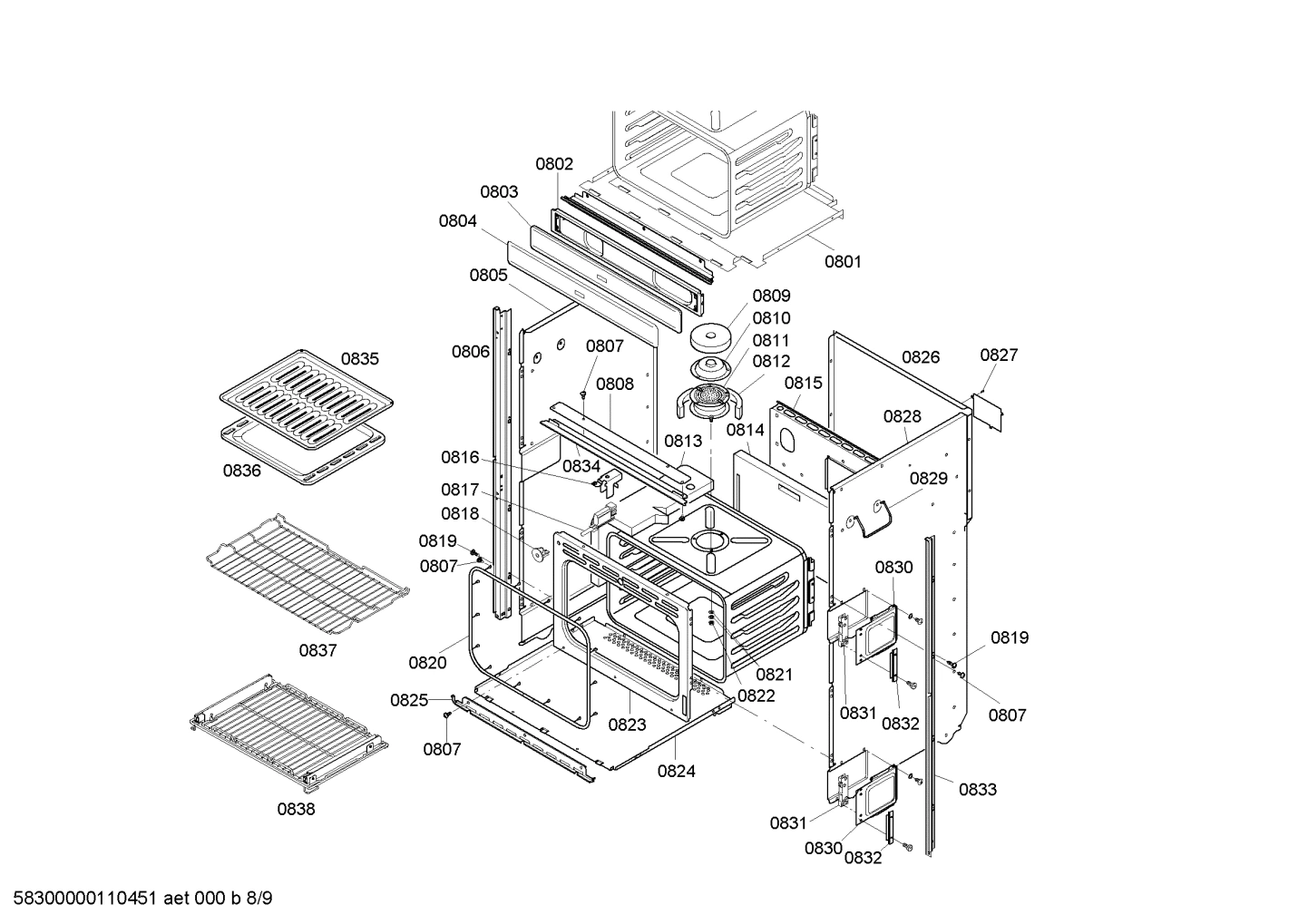

Diagram 8
Diagram 9
Common parts from model Bosch HBL752AUC/02 Range Oven
0104
Display module BOS 00445414 Contact Us For Availability
0110
Relay BOS 00489261 Contact Us For Availability
0305
Control unit BOS 00489259 Contact Us For Availability
0306
Spacer BOS 00489266 Contact Us For Availability
0308
Frequency filter BOS 00418431 Contact Us For Availability
0309
Terminal box BOS 00418464 Contact Us For Availability
0310
Screw BOS 00420211 Contact Us For Availability
0311
Spacer BOS 00420213 Contact Us For Availability
0321
Screw BOS 00600161 Contact Us For Availability
0334
Fan motor BOS 00490358 Contact Us For Availability
0335
Fan BOS 00497261 Contact Us For Availability
0336
Screw BOS 00420220 Contact Us For Availability
0338
Screw BOS 00418412 Contact Us For Availability
0339
Ventilation duct BOS 00144263 Contact Us For Availability
0340
Screw BOS 00420226 Contact Us For Availability
0341
Seal BOS 00420222 Contact Us For Availability
0342
Cap BOS 00418408 Contact Us For Availability
0343
Connection piece BOS 00418409 Contact Us For Availability
0344
Temperature sensor BOS 00418410 Contact Us For Availability
0347
Washer BOS 00418418 Contact Us For Availability
0348
Relay BOS 00489277 Contact Us For Availability
0350
Resistor BOS 00490362 Contact Us For Availability
0351
Insulating part BOS 00418419 Contact Us For Availability
0401
Hose-vent BOS 00490346 Contact Us For Availability
0402
Sleeve BOS 00420182 Contact Us For Availability
0403
Connection piece BOS 00420183 Contact Us For Availability
0404
Cover BOS 00243185 Contact Us For Availability
0412
Case-rear part BOS 00240451 Contact Us For Availability
0427
Strip-decor BOS 00489298 Contact Us For Availability
0428
Cover BOS 00243202 Contact Us For Availability
0450
Cable harness BOS 00445464 Contact Us For Availability
0501
Screw BOS 00600172 Contact Us For Availability
0508
Seal BOS 00238950 Contact Us For Availability
0510
Door hinge BOS 00445076 Contact Us For Availability
0511
Glass panel BOS 00240458 Contact Us For Availability
0520
Door BOS 00239412 Contact Us For Availability
0521
Spacer BOS 00418423 Contact Us For Availability
0601
Motor BOS 00490365 Contact Us For Availability
0602
Screw BOS 00420231 Contact Us For Availability
0603
Screw BOS 00420232 Contact Us For Availability
0604
Housing BOS 00490366 Contact Us For Availability
0605
Retaining washer BOS 00420210 Contact Us For Availability
0606
Nut BOS 00420209 Contact Us For Availability
0608
Plate BOS 00420233 Contact Us For Availability
0609
Switch BOS 00600145 Contact Us For Availability
0610
Retaining washer BOS 00420246 Contact Us For Availability
0611
Nut BOS 00420247 Contact Us For Availability
0612
Spring BOS 00420234 Contact Us For Availability
0613
Latch BOS 00490368 Contact Us For Availability
0614
Guide BOS 00490369 Contact Us For Availability
0615
Temperature sensor BOS 00418676 Contact Us For Availability
0616
Bracket BOS 00420236 Contact Us For Availability
0617
Screw BOS 00420249 Contact Us For Availability
0618
Support BOS 00420237 Contact Us For Availability
0619
Resistor BOS 00420238 Contact Us For Availability
0620
Support BOS 00490363 Contact Us For Availability
0621
Spring BOS 00600252 Contact Us For Availability
0622
Pin BOS 00600253 Contact Us For Availability
0701
Retaining plate BOS 00445057 Contact Us For Availability
0702
Screw BOS 00600160 Contact Us For Availability
0703
Spacer BOS 00497223 Contact Us For Availability
0704
Fan BOS 00219292 Contact Us For Availability
0705
Ventilation duct BOS 00434068 Contact Us For Availability
0707
Transformer BOS 00418461 Contact Us For Availability
0708
Support BOS 00490357 Contact Us For Availability
0709
Dividing wall BOS 00470711 Contact Us For Availability
0710
Temperature sensor BOS 00418417 Contact Us For Availability
0711
Screw BOS 00219290 Contact Us For Availability
0713
Nut BOS 00420219 Contact Us For Availability
0714
Support BOS 00490361 Contact Us For Availability
0716
Sealing BOS 00420225 Contact Us For Availability
0717
Cover BOS 00418415 Contact Us For Availability
0718
Lamp housing BOS 00420227 Contact Us For Availability
0720
Clip BOS 00420223 Contact Us For Availability
0721
Heating element BOS 00144260 Contact Us For Availability
0722
Bracket BOS 00420229 Contact Us For Availability
0723
Screw BOS 00420230 Contact Us For Availability
0724
Strip-decor BOS 00434077 Contact Us For Availability
0725
Tray BOS 00434076 Contact Us For Availability
0726
Heating element BOS 00239402 Contact Us For Availability
0801
Support BOS 00243224 Contact Us For Availability
0802
Cover BOS 00470699 Contact Us For Availability
0803
Glass panel BOS 00239416 Contact Us For Availability
0804
Glass panel BOS 00239423 Contact Us For Availability
0805
Cover BOS 00243201 Contact Us For Availability
0806
Support BOS 00240450 Contact Us For Availability
0808
Strip BOS 00434051 Contact Us For Availability
0809
Insulating part BOS 00490347 Contact Us For Availability
0810
Cover BOS 00490348 Contact Us For Availability
0811
Catalyzer BOS 00418462 Contact Us For Availability
0812
Insulating part BOS 00490349 Contact Us For Availability
0813
Insulating part BOS 00434056 Contact Us For Availability
0814
Insulating part BOS 00434053 Contact Us For Availability
0815
Panel BOS 00434052 Contact Us For Availability
0816
Bracket BOS 00600166 Contact Us For Availability
0817
Switch BOS 00600167 Contact Us For Availability
0818
Clip BOS 00600168 Contact Us For Availability
0819
Screw BOS 00420190 Contact Us For Availability
0820
Seal-door BOS 00493342 Contact Us For Availability
0822
Nut BOS 00420195 Contact Us For Availability
0823
Frame BOS 00475314 Contact Us For Availability
0824
Cover BOS 00243188 Contact Us For Availability
0825
Strip-decor BOS 00470709 Contact Us For Availability
0826
Case-rear part BOS 00240455 Contact Us For Availability
0827
Screw BOS 00420192 Contact Us For Availability
0828
Cover BOS 00243203 Contact Us For Availability
0829
Handle BOS 00421499 Contact Us For Availability
0830
Box BOS 00497236 Contact Us For Availability
0831
Hinge-plate BOS 00600169 Contact Us For Availability
0832
Spacer BOS 00600170 Contact Us For Availability
0833
Support BOS 00240454 Contact Us For Availability
0834
Spacer BOS 00489297 Contact Us For Availability
0835
Grill tray BOS 00449756 Contact Us For Availability
0836
Universal pan BOS 00449757 Contact Us For Availability
0837
Shelf BOS 00144261 Contact Us For Availability
0838
Shelf BOS 00144275 Contact Us For Availability
0902
Pin BOS 00420250 Contact Us For Availability
0903
Door-inner BOS 00243192 Contact Us For Availability
0904
Screw BOS 00600173 Contact Us For Availability
0905
Screw BOS 00420254 Contact Us For Availability
0906
Washer BOS 00420251 Contact Us For Availability
0907
Nut BOS 00420252 Contact Us For Availability
0909
Spacer BOS 00600171 Contact Us For Availability
0912
Spacer BOS 00470712 Contact Us For Availability
0913
Reflector BOS 00239405 Contact Us For Availability
0914
Insulating part BOS 00434078 Contact Us For Availability
0915
Screw BOS 00420186 Contact Us For Availability
0916
Clip BOS 00420255 Contact Us For Availability
0917
Retaining washer BOS 00420194 Contact Us For Availability
0918
Screw BOS 00600424 Contact Us For Availability
0919
Retaining plate BOS 00240459 Contact Us For Availability
0922
Handle-door BOS 00239462 Contact Us For Availability
0923
Spacer BOS 00600425 Contact Us For Availability
0924
Washer BOS 00600426 Contact Us For Availability
0925
Strip BOS 00445421 Contact Us For Availability
× ![]()
